6-68

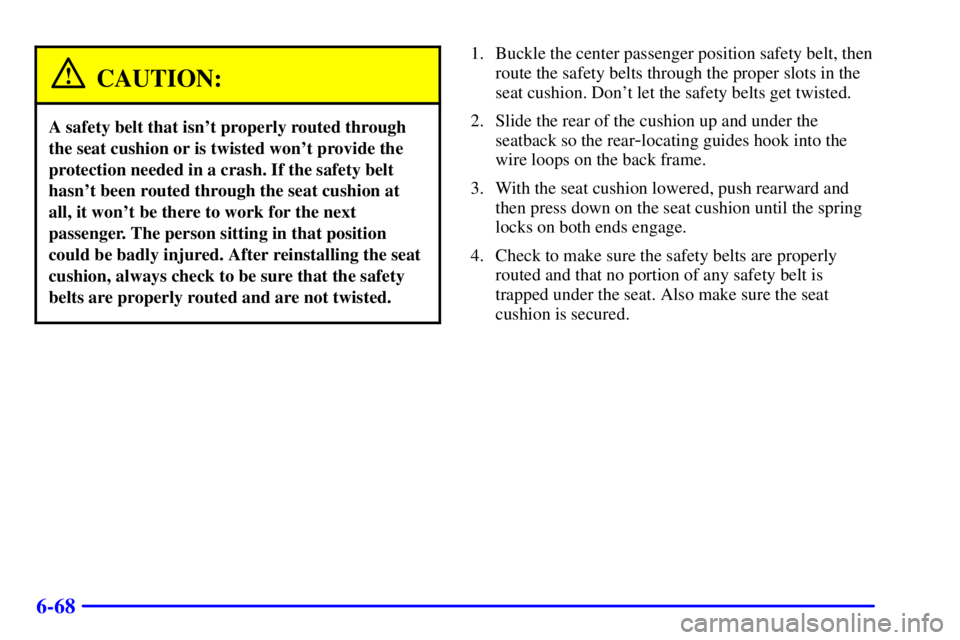

CAUTION:
A safety belt that isn't properly routed through
the seat cushion or is twisted won't provide the
protection needed in a crash. If the safety belt
hasn't been routed through the seat cushion at
all, it won't be there to work for the next
passenger. The person sitting in that position
could be badly injured. After reinstalling the seat
cushion, always check to be sure that the safety
belts are properly routed and are not twisted.
1. Buckle the center passenger position safety belt, then
route the safety belts through the proper slots in the
seat cushion. Don't let the safety belts get twisted.
2. Slide the rear of the cushion up and under the
seatback so the rear
-locating guides hook into the
wire loops on the back frame.
3. With the seat cushion lowered, push rearward and
then press down on the seat cushion until the spring
locks on both ends engage.
4. Check to make sure the safety belts are properly
routed and that no portion of any safety belt is
trapped under the seat. Also make sure the seat
cushion is secured.

6-69
Rear Underseat Bussed Electrical Center (BEC)
The rear BEC is located
below the rear seat on the
driver's side. The rear seat
cushion must be removed to
access the BEC. See
ªRemoving the Rear Seat
Cushionº in the Index.
Minifuse Usage
1 Fuel Pump
2 Heater, Ventilation, Air
Conditioning Blower
3 Memory Seat
4 Assembly Line Diagnostic Link
5 Not Used
6CD
7 Driver Door Module
8 Supplemental Inflatable Restraint

6-70
Minifuse Usage
9 Not Used
10 Lamps Park Right
11 Ventilation Solenoid
12 Ignition 1
13 Lamps Park Left
14 Interior Lamp Dimmer Module
15 Not Used
16 Heated Seat Left Front
17 Not Used
18 Rear Door Modules
19 Stoplamps
20 PARK (P) / REVERSE (R)
21 Audio
22 Retained Accessory Power
23 Not Used
24 Not Used
25 Passenger Door Module
26 Body
27 Interior Lamps
28 Not Used
29 Ignition SwitchMinifuse Usage
30 Instrument Panel
31 Heated Seat Right Front
32 Not Used
33 Heating, Ventilation,
Air Conditioning
34 Ignition 3 Rear
35 Antilock Brake System
36 Turn Signal/Hazard
37 HVAC Battery
38 Dash Integration Module
Micro Relay Usage
39 Fuel Pump
40 Parking Lamps
41 Ignition 1
42 Not Used
43 Not Used
44 Park Brake
45 Reverse Lamps
46 Retained Accessory Power

6-71
Micro Relay Usage
47 Fuel Tank Door Lock
48 Not Used
49 Ignition 3
50 Fuel Tank Door Release
51 Interior Lamps
52 Trunk Release
53 Front Courtesy Lamps
54 Not Used
55 Electronic Level
Control Compressor
Circuit Breaker Usage
56 Power Seats
57 Power Windows
Mini Relay Usage
58 Cigarette Lighter
59 Rear DefogMaxifuse Usage
60 Not Used
61 Rear Defog
62 Not Used
63 Audio Amplifier
64 Electronic Level Control
Compressor/Exhaust
65 Cigarette Lighter
66 Not Used
67 Spare
68 Spare
69 Spare
70 Spare
71 Spare
72 Spare
73 Spare
74 Spare
75 Fuse Puller

6-72
Replacement Bulbs
Front Outside Lamps Bulb Number
Parking/Turn Lamps 3157. . . . . . . . . . . . . . . . . . . . .
Headlamp
Low Beam 9006. . . . . . . . . . . . . . . . . . . . . . . . . . . .
High Beam 9005. . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Outside Lamps Bulb Number
Taillamps 3057. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back
-Up Lamps 3057. . . . . . . . . . . . . . . . . . . . . . . . .
Stoplamps 3057. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn 3157. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For service information on other bulbs, contact your
dealer's service department.
Capacities and Specifications
The following approximate capacities are given in English
and metric conversions. Please refer to ªRecommended
Fluids and Lubricantsº in the Index for more information.
Capacities
Automatic Transaxle (Overdrive)
Pan Removal and Replacement 7.4 quarts (7.0 L). . .
Complete Overhaul 10.0 quarts (9.5 L). . . . . . . . . .
When draining or replacing torque converter, more
fluid may be needed.
Cooling System10.0 quarts (9.5 L) . . . . . . . . . . . . . .
Engine Crankcase
Oil change with filter change 4.5 quarts (4.3 L). . .
Fuel Tank18.5 U.S. gallons (70.0 L) . . . . . . . . . . . .
Tire PressureSee Tire
-Loading . . . . . . . . . . . . . . . . .
Information label on the rear edge
of the driver's door.
Air Conditioning
RefrigerantSee refrigerant charge label . . . . . . . . .
under the hood.
All capacities are approximate. When adding, be sure to fill
to the appropriate level, as recommended in this manual.

6-73 Wheel Nut Torque
100 lb-ft (140 N´m)
Engine Specifications
VIN Engine Code
3800 V6 Engine (L36) K. . . . . . . . . . . . . . . . . . . . .
3800 V6 Supercharged Engine (L67) 1. . . . . . . . . .
TypeV6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement3.8L . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compression Ratio
3800 V6 Engine (L36) 9:4:1. . . . . . . . . . . . . . . . . .
3800 V6 Supercharged Engine (L67) 8:5:1. . . . . . .
Horsepower
3800 V6 Engine (L36) 205. . . . . . . . . . . . . . . . . . .
3800 V6 Supercharged Engine (L67) 240. . . . . . . .
Firing Order1
-6-5-4-3-2 . . . . . . . . . . . . . . . . . . . . .
Thermostat Temperature195
F (91
C) . . . . . . . . .
Normal Maintenance
Replacement Parts
Engine Air Cleaner/Filter GM Part No. 25096932. . . .
Passenger Compartment
Air Filter GM Part No. 25654414. . . . . . . . . . . . . . .
Engine Oil Filter GM Part No. 25010792. . . . . . . . . .
Fuel Filter GM Part No. 25121942. . . . . . . . . . . . . . . .
Transaxle Filter GM Part No. 24206433. . . . . . . . . . .
Spark Plugs GM Part No. 25161444*. . . . . . . . . . . . .
Gap: 0.060 inch (1.52 mm)
Windshield Wiper Blades
Type Shepherd's Hook. . . . . . . . . . . . . . . . . . . . . . . .
Length 22 inches (56 cm). . . . . . . . . . . . . . . . . . . . .
*On 3800 V6 Supercharged Engine (Code 1) only, this
replaces original spark plug NGK Type PTR4B
-15.
Vehicle Dimensions
Wheelbase 112.2 inches (285.0 cm). . . . . . . . . . . . . .
Tread Width
Front 62.4 inches (158.5 cm). . . . . . . . . . . . . . . . . .
Rear 62.3 inches (158.2 cm). . . . . . . . . . . . . . . . . . .
Length 202.6 inches (514.6 cm). . . . . . . . . . . . . . . . .
Width 73.8 inches (187.5 cm). . . . . . . . . . . . . . . . . . .
Height 56.0 inches (142.2 cm). . . . . . . . . . . . . . . . . . .
