2001 PONTIAC BONNEVILLE Owners Manual

2-38
Turn Signal and Lane Change Indicators
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up
or down. When the turn is finished, the lever will
return automatically.
An arrow on the instrument
panel cluster will flash in
the direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.If the arrows flash very fast as you signal a turn or a lane
change, a signal bulb may be burned out and other
drivers won't see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. See ªBulb Replacementº in the Index. If the
arrows don't go on at all when you signal a turn, check
the fuse. See ªFuses and Circuit Breakersº in the Index.
Turn Signal On Chime
If your turn signal is left on for more than 3/4 of a mile
(1.2 km), a chime will sound at each flash of the turn
signal. To turn off the chime, move the turn signal lever
to the off position.

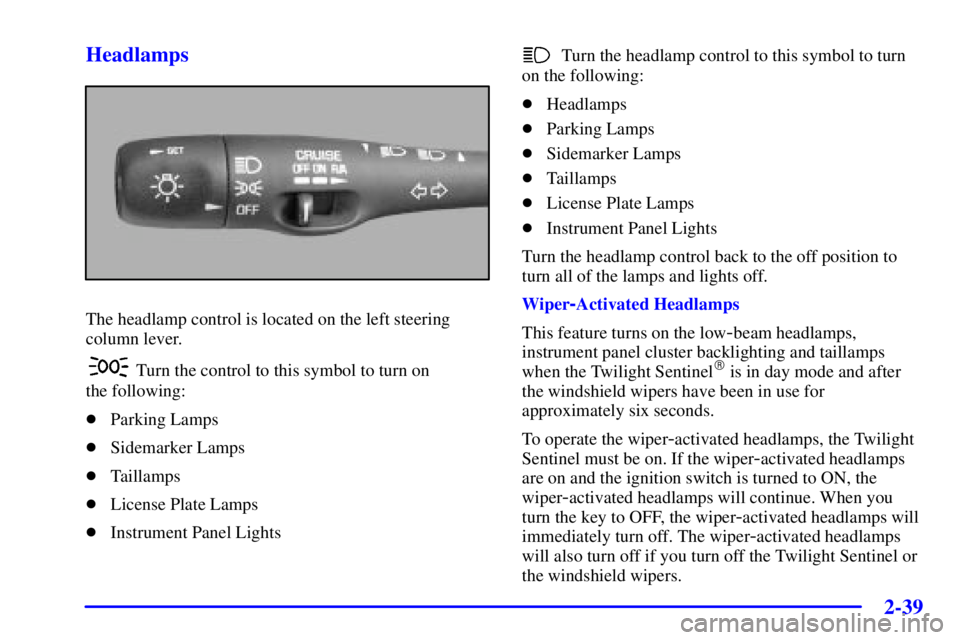

2-39 Headlamps
The headlamp control is located on the left steering
column lever.
Turn the control to this symbol to turn on
the following:

Parking Lamps

Sidemarker Lamps

Taillamps

License Plate Lamps

Instrument Panel Lights
Turn the headlamp control to this symbol to turn
on the following:

Headlamps

Parking Lamps

Sidemarker Lamps

Taillamps

License Plate Lamps

Instrument Panel Lights
Turn the headlamp control back to the off position to
turn all of the lamps and lights off.
Wiper
-Activated Headlamps
This feature turns on the low
-beam headlamps,
instrument panel cluster backlighting and taillamps
when the Twilight Sentinel
 is in day mode and after
the windshield wipers have been in use for
approximately six seconds.
To operate the wiper
-activated headlamps, the Twilight
Sentinel must be on. If the wiper
-activated headlamps
are on and the ignition switch is turned to ON, the
wiper
-activated headlamps will continue. When you
turn the key to OFF, the wiper
-activated headlamps will
immediately turn off. The wiper
-activated headlamps
will also turn off if you turn off the Twilight Sentinel or
the windshield wipers.

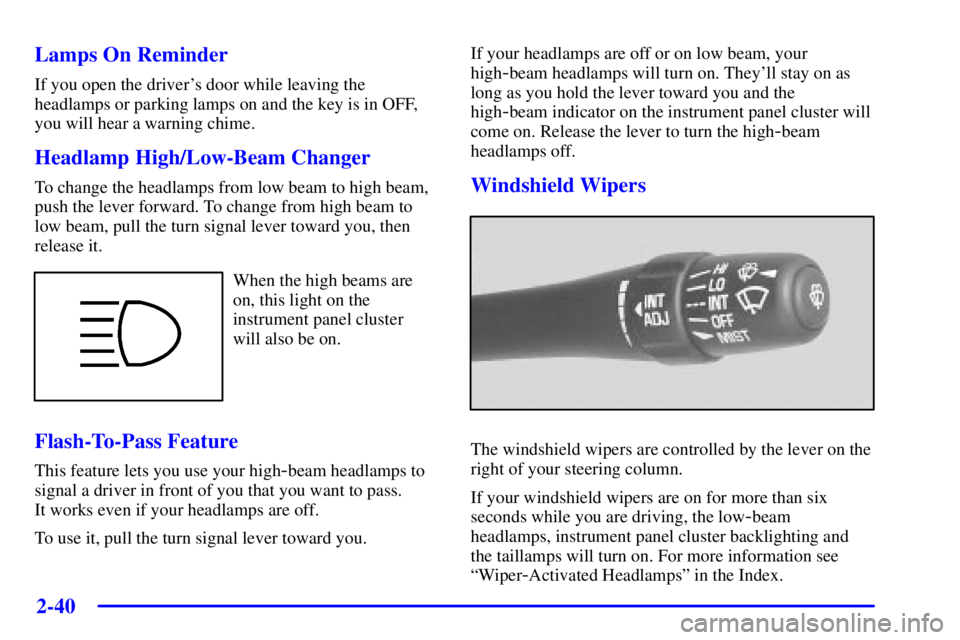

2-40
Lamps On Reminder
If you open the driver's door while leaving the
headlamps or parking lamps on and the key is in OFF,
you will hear a warning chime.
Headlamp High/Low-Beam Changer
To change the headlamps from low beam to high beam,
push the lever forward. To change from high beam to
low beam, pull the turn signal lever toward you, then
release it.
When the high beams are
on, this light on the
instrument panel cluster
will also be on.
Flash-To-Pass Feature
This feature lets you use your high-beam headlamps to
signal a driver in front of you that you want to pass.
It works even if your headlamps are off.
To use it, pull the turn signal lever toward you.If your headlamps are off or on low beam, your
high
-beam headlamps will turn on. They'll stay on as
long as you hold the lever toward you and the
high
-beam indicator on the instrument panel cluster will
come on. Release the lever to turn the high
-beam
headlamps off.
Windshield Wipers
The windshield wipers are controlled by the lever on the
right of your steering column.
If your windshield wipers are on for more than six
seconds while you are driving, the low
-beam
headlamps, instrument panel cluster backlighting and
the taillamps will turn on. For more information see
ªWiper
-Activated Headlampsº in the Index.

2-41
MIST: For a single wiping cycle, push the lever down
to the MIST position and let go. The wipers will stop
after one cycle. If you want more cycles, hold the
lever down.
LO or HI: Push the lever up to LO for steady wiping at
a slow speed. Push the lever up to HI for steady wiping
at a high speed.
INT: Push the lever up to the INT position and turn the
INT ADJ band to adjust the delay time. The further you
turn the band, the shorter the delay between wiping cycles.
OFF: Lower the lever to its original position to turn the
wipers OFF.
Heavy snow or ice can overload your wiper motor.
A circuit breaker will stop the motor until it cools.
Clear away snow or ice to prevent an overload.
Keep in mind that damaged wiper blades may prevent
you from seeing well enough to drive safely. To avoid
damage, be sure to clear ice and snow from the wiper
blades before using them. If your blades do become
damaged, get new blades or blade inserts. See ªWiper
Blade Replacementº in the Index.Windshield Washer
At the end of the wiper lever, there's a button. To spray
washer fluid on the windshield, push the button until
you have enough fluid to clean the windshield. The
wipers will clear the window and either stop or return to
your preset speed.
CAUTION:
In freezing weather, don't use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
A WASHER FLUID warning light will indicate if the
fluid level in the windshield washer reservoir is low.
See ªLow Washer Fluid Warning Lightº in the Index.

2-42
Cruise Control
With cruise control, you can
maintain a speed of about
25 mph (40 km/h) or more
without keeping your foot
on the accelerator. This can
really help on long trips.
Cruise control does not work at speeds below
about 25 mph (40 km/h).
When you apply your brakes, the cruise control
shuts off.CAUTION:

Cruise control can be dangerous where you
can't drive safely at a steady speed.
So, don't use your cruise control on
winding roads or in heavy traffic.

Cruise control can be dangerous on
slippery roads. On such roads, fast changes
in tire traction can cause needless wheel
spinning, and you could lose control.
Don't use cruise control on slippery roads.
If your vehicle is in cruise control when the optional
traction control system begins to limit wheel spin, the
cruise control will automatically disengage. See
ªTraction Control Systemº in the Index. When road
conditions allow you to safely use it again, you may turn
the cruise control back on.

2-43
Setting Cruise Control
CAUTION:
If you leave your cruise control switch on when
you're not using cruise, you might hit a button
and go into cruise when you don't want to. You
could be startled and even lose control. Keep the
cruise control switch off until you want to use
cruise control.
1. Push the cruise control switch to ON.
2. Get up to the speed you want.
3. Push the set button.
4. Take your foot off the accelerator pedal.
Resuming a Set Speed
Suppose you set your cruise control at a desired speed
and then you apply the brake. This, of course, shuts off
the cruise control. But you don't need to reset it.Once you're going about 25 mph (40 km/h)
or more, you can move the cruise lever up to
R/A (resume/accelerate) briefly.
You'll go right back up to your chosen speed and stay
there. Remember that if you hold the lever at R/A, the
vehicle will keep going faster until you release the
switch or apply the brake. So unless you want to go
faster, don't hold the lever at R/A.
Increasing Speed While Using Cruise Control
There are two ways to go to a higher speed.

Use the accelerator pedal to get to the higher speed.
Press the SET button and then release it as well
as the accelerator pedal. You'll now cruise at the
higher speed.

Push the cruise lever up to R/A. Hold it there until
you get up to the speed you want, and then release it.
To increase your speed in very small amounts, move
the switch to R/A briefly and then release it.
Each time you do this, your vehicle will go about
1 mph (1.6 km/h) faster.
The accelerate feature will only work after you have set
the cruise control speed by pushing the SET button.

2-44
Reducing Speed While Using Cruise Control
There are two ways to reduce your speed while using
cruise control:

Press and hold the SET button until you get to the
speed you want, and then release it.

To slow down in very small amounts, press and
release the SET button briefly. Each time you do
this, you'll go about 1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase your speed. When
you take your foot off the pedal, your vehicle will slow
down to the cruise control speed you set earlier.
Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load and the steepness of the hills.
When going up steep hills, you may have to step on the
accelerator pedal to maintain your speed. When going
downhill, you may have to brake or shift to a lower gear to
keep your speed down. Of course, applying the brake takes
you out of cruise control. Many drivers find this to be too
much trouble and don't use cruise control on steep hills.Ending Cruise Control
There are three ways to turn off the cruise control:

Step lightly on the brake pedal,

move the cruise switch to OFF, or

push the cruise lever toward the driver.
Erasing Speed Memory
When you turn off the cruise control or the ignition,
your cruise control set speed memory is erased.

2-45
Exterior Lamps
Headlamps
See ªTurn Signal/Multifunction Leverº in the Index.
Daytime Running Lamps
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset. Fully
functional daytime running lights are required on all
vehicles first sold in Canada.
A light sensor on top of the instrument panel monitors
the exterior light level for the operation of DRL and
Twilight Sentinel

, so be sure it isn't covered.
The DRL system will make your high
-beam headlamps
come on at a reduced brightness when the following
conditions are met:

The ignition is on,

the headlamp control is off, and

the transaxle is not in PARK (P).When the DRL are on, only your high
-beam headlamps
will be on at reduced intensity. The taillamps,
sidemarker and other lamps won't be on. Your
instrument panel won't be lit either.
When it's dark enough outside, your regular intensity
headlamps will come on at full brightness and the DRL
lighting will turn off. The parking lamps that normally
come on with your headlamps will also come on. When
it's bright enough outside, the regular intensity
headlamps and parking lamps will turn back off, and the
reduced brightness DRL lighting will turn back on.
To idle your vehicle during the day with the DRL off,
shift the transaxle into PARK (P). The DRL will stay off
until you shift out of PARK (P).
At night, you can turn off all exterior lamps when you
are in PARK (P) by turning the Twilight Sentinel knob
all the way to OFF.
If the knob was already in OFF, it must be cycled to
ON and back to OFF. Turn the knob clockwise to turn
the exterior lighting back on. The lamps will come back
on automatically when you put the transaxle in gear.
As with any vehicle, you should turn on the regular
headlamp system when you need it.
