2001 PONTIAC BONNEVILLE Owners Manual

2-54
Storage Compartments
Glove Box
The glove box is located on the instrument panel on the
passenger's side of the vehicle.
Use the master key to lock and unlock it. To open, lift
the latch release on the left side of the glove box door.
The VALET key will not work in the glove box door lock.
Front Storage Armrest
Press the buttons on either side of the armrest to open
the storage area for cassette tapes, gloves, etc.
Center Console (Option)
Press the button at the front edge of the armrest to open
the storage area for cassette tapes, gloves, etc.
Rear Armrest
Your vehicle has a rear armrest with cupholders and a
pass
-through feature.
Rear Storage Compartment (Option)
Your vehicle may have a rear storage armrest with
cupholders and a pass
-through feature.
Lift the front of the cover on the armrest to reveal the
storage space.
Pull down the interior door to access the trunk.
Convenience Net (Option)
Your vehicle may have a convenience net. You'll see it
just inside the back wall of the trunk.
Put small loads, like grocery bags, behind the net. It can
help keep them from falling over during sharp turns or
quick starts and stops. For heavier loads, store them in
the trunk as far forward as you can.
You can unhook the net so that it will lie flat when
you're not using it.

2-55
Ashtrays and Cigarette Lighter
Push down on the cover to reveal the front ashtray.
To clean the ashtray, lift it out by pulling on the finger
holes on each side.
On models without a console, there's an ashtray under
the instrument panel. To clean the ashtray, lift it out
by pulling up on the tabs on either side. It snaps back
into place.
To open a rear ashtray, lift the cover.
NOTICE:
Don't put papers and other things that burn into
your ashtrays. If you do, cigarettes or other
smoking materials could set them on fire,
causing damage.
The cigarette lighter is located next to the storage tray.
To use a lighter, just push the center in all the way and
let it go. When it is ready, the center will pop back out
by itself. Pull out the entire unit to use it.
NOTICE:
Don't hold a cigarette lighter in with your hand
while it is heating. If you do, it won't be able to
back away from the heating element when it's
ready. That can make it overheat, damaging the
lighter and the heating element.
The cigarette lighter will only operate when the ignition
key is in ON and for 10 minutes after turning the
ignition OFF. If you would like the lighter to operate
regardless of ignition position, and for unlimited periods
of time, see ªEngine Compartment Bussed Electrical
Centerº in the Index or see your dealer.

2-56
Sun Visors
To block out glare, you can swing down the visors. You
can also remove them from the center mount and swing
them to the side, while the auxiliary sunshade remains to
block glare from the front.
Visor Vanity Mirror
Open the cover to expose the vanity mirror.
If your vehicle has the optional lighted vanity mirrors,
the lamps come on when you open the cover.

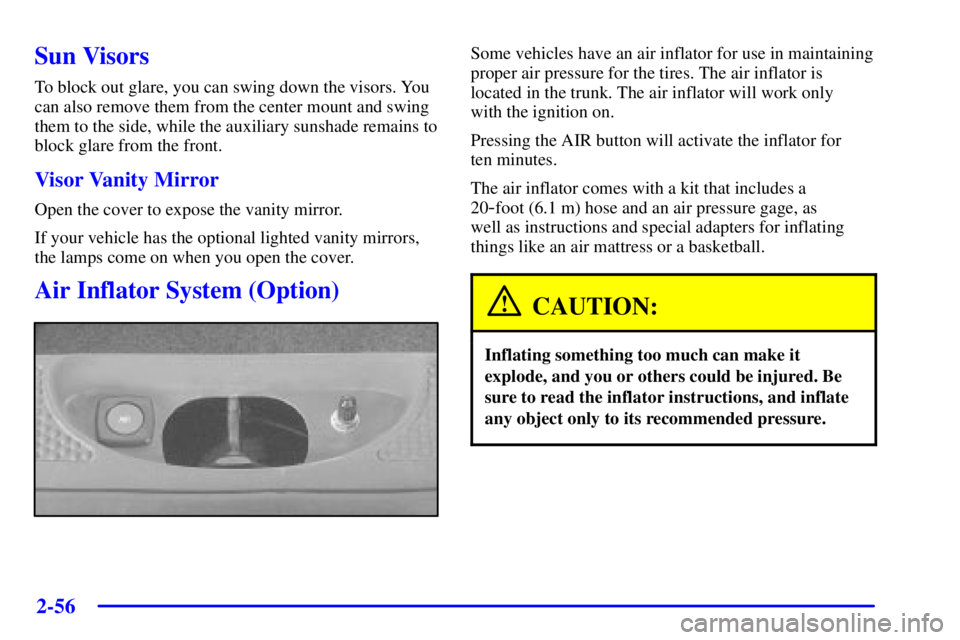

Air Inflator System (Option)
Some vehicles have an air inflator for use in maintaining
proper air pressure for the tires. The air inflator is
located in the trunk. The air inflator will work only
with the ignition on.
Pressing the AIR button will activate the inflator for
ten minutes.
The air inflator comes with a kit that includes a
20
-foot (6.1 m) hose and an air pressure gage, as
well as instructions and special adapters for inflating
things like an air mattress or a basketball.
CAUTION:
Inflating something too much can make it
explode, and you or others could be injured. Be
sure to read the inflator instructions, and inflate
any object only to its recommended pressure.

2-57
Accessory Power Outlet
The accessory power outlet (12-volt) is located inside
the overhead console (if equipped) and at the rear of the
front console (if equipped). If your vehicle is equipped
with an overhead console, access the accessory power
outlet by sliding the access door to the side. If your
vehicle is equipped with a floor console, the power
outlet is at the rear of the floor console. Remove the
protective cap which covers the outlet.
The outlet can be used to plug in electrical equipment
such as a cellular telephone, CB radio, etc. Follow the
proper installation instructions that are included with
any electrical equipment you install.
Certain power accessory plugs may not be compatible to
the accessory power outlet and could result in blown
vehicle or adapter fuses. If you experience a problem see
your dealer for additional information on the power
accessory plugs.The accessory power outlet will only operate when the
ignition key is in ON and for 10 minutes after turning
the ignition OFF. If you would like the accessory power
outlet to operate regardless of ignition position, and for
unlimited periods of time, see ªEngine Compartment
Bussed Electrical Centerº in the Index or see
your dealer.
Leaving an accessory on for a long period of time, or a
fuse in the wrong place, can drain the vehicle's battery.
NOTICE:
When using the accessory power outlet, the
maximum load of any electrical equipment
should not exceed 15 amps.

2-58
OnStar
System (If Equipped)
OnStar is a vehicle communications system that
offers a variety of services and provides a hands
-free
communication link between you and the OnStar Center.
A service subscription agreement and fee are required in
order to receive OnStar service. Services are available
24 hours a day, 7 days a week. For more information,
call 1
-888-ONSTAR-7 (1-888-667-8277).
OnStar Services Button: Press this button once
to contact an advisor who will be able to assist you with
these services. If you are not quickly connected, the
system will automatically reset and redial. This ensures
connection to the center; there is no additional action
required. Press the Call Answer/End button to cancel the
automatic redial.
Emergency Button: In an emergency situation,
press the emergency service button. Upon receiving the
call, an advisor at the center will locate your vehicle and
assess the situation. If necessary, the advisor will alert
the nearest emergency service provider.
Call ANSWER/END Button: Use this button to
answer a call. (If you are receiving a call, the audio
system will mute, and the ring will be heard). Press this
button at the end of a call to disconnect and return the
audio system to its previous settings. This button will
also cancel a call if one of the buttons is accidentally
pressed or if the automatic redial function is activated.
Volume Control: You can control the volume of the OnStar
System using either the volume control knob on the radio or
using the steering wheel volume control (if equipped).
Telltale Light: This light will indicate the status of
the system. A solid green light will come on when you
start the vehicle to let you know that the system is on
and is ready to make or receive calls.
If the light blinks green it means that an incoming or
outgoing call is in progress. Press the Call ANSWER/END
button if you notice the light blinking and you are not
on a call.

2-59
The light will be red in the event of an OnStar system
malfunction. If this occurs press the OnStar button to
attempt to contact an advisor. If the connection is made,
the advisor will assist you with steps to take to make
sure that the system is functioning properly. If you
cannot contact the advisor, take your vehicle to your
dealership as soon as possible for assistance.
Safety and Security Services

Automatic Notification of Air Bag
Deployment
-- If an air bag deploys, a priority
emergency signal is automatically sent to the center.
An advisor will locate your vehicle's position, try to
contact you and assist you in the situation. If the
center is unable to contact you, an emergency service
provider will be contacted.

Stolen Vehicle Tracking
-- Call the center at
1
-888-4-ONSTAR (1-888-466-7827) to report your
vehicle stolen. The system can then locate and track
your vehicle and the advisor will be able to notify
the proper authorities.

Roadside Assistance with Location
-- For vehicle
breakdowns, press the OnStar button. An advisor
will contact the appropriate help.
Remote Diagnostics
-- If an instrument panel light
comes on, the center can perform a check of the
engine on
-board computer. An advisor can then
recommend what action needs to be taken.

OnStar MED
-NET -- Med-Net can store your
personal medical history and provide it to emergency
personnel if necessary. (Requires activation and
additional fee.)

Accident Assist
-- An advisor can provide
step
-by-step guidance following an accident.

Remote Door Unlock
-- To contact the center, call
1
-888-4-ONSTAR. You will be required to provide
your security information. An advisor will send a
command to your vehicle to unlock itself. The
advisor can delay unlocking your vehicle. Remote
Door Unlock is disabled 48 hours after the vehicle is
parked to maintain the battery charge.

Vehicle Locator Service
-- To contact the center,
call 1
-888-4-ONSTAR. You will be required to
provide your security information. An advisor will
send a command to your vehicle to sound the horn
and/or flash the lamps.
In order to provide you with excellent service, calls with
the OnStar Center may be monitored or recorded.

2-60
Premium Services (Includes Safety and
Security Services)

Route Support -- An advisor can provide directions
or guidance to anywhere you want to go. In addition,
they can help you locate gas stations, rest areas,
ATMs, hospitals, hotels, stores, eateries and more.

Concierge Services
-- The concierge advisor can
obtain tickets, reservations, or help with vacation/trip
planning and other unique items and services.

Ride Assist
-- An advisor can locate transportation
in the event that you are unable to drive.
OnStar System Limitations
Complete limitations can be found on the Subscriber
Services Agreement.
OnStar Service is:

Available in the 48 contiguous United States, Alaska,
Hawaii and Canada;

available when the vehicle is within the operating
range of a cellular provider;
subject to limitations caused by atmospheric
conditions, such as severe weather or topographical
conditions, such as mountainous terrain;

subject to cellular carrier equipment limitations.
Global positioning capabilities used to deliver
OnStar Service will not be available if satellite signals
are obstructed.
OnStar will not function if the vehicle's battery is
discharged or disconnected. It may also be inoperative if
the vehicle is in an accident and the OnStar or vehicle
electrical system components are damaged.
Safety and security services are provided by existing
governmental emergency service providers. OnStar will
use reasonable efforts to contact the appropriate
emergency service provider and request assistance but
cannot promise that they will respond to the call in a
timely manner or at all.

2-61
Express Sunroof (Option)
If your vehicle has this
option, the switch is located
between the sun visors.
The sunroof switch can be operated in four directions to
control sunroof movement. The switch will work only
when the ignition is on or when the ignition is off and
Retained Accessory Power is active.
The sunroof has both manual and express features for
opening the glass panel and sunshade.Press and hold the switch rearward to the first position
to open the glass panel and sunshade. The sunshade can
also be opened by hand. To close the glass panel, press
and hold the switch forward. As the glass panel closes, it
will open slightly toward the vent position to provide a
better seal. The sunshade can only be closed by hand.
Press and release the switch rearward to the second
position to express open the glass panel. It will stop in a
partially open position. The glass panel may be fully
opened by pressing the switch rearward again. When the
glass panel is express opening, pressing the switch in
any direction will stop it. If you press and hold the
switch in the express open position for more than one
and a half seconds, the express open operation will be
overridden and the sunroof will operate manually.
To vent open the glass panel, press and hold the
switch upward. The sunshade must be opened by hand.
To close the glass panel, pull and hold the
switch downward.
