2001 Oldsmobile Silhouette Owner's Manuals

1-5 Heated Front Seats (Option)
The heated seat switch is
located in the instrument
panel switchbank. This
feature will quickly heat
the lower cushions and
lower back of the driver's
and front passenger's seats
for added comfort.
The left switch is for the driver's seat and the right
switch is for the front passenger's seat. Press the bottom
of the switch to turn the heater on. The indicator light on
the switch will glow. Press the top of the switch to turn
the heater off. The heated seat switch will turn off when
the ignition is turned to OFF and resume operation when
the ignition is turned to RUN, unless the switch is
manually turned off.
Reclining Front Seatbacks
All front seats recline.
To adjust the seatback, pull up on the lever located on
the outboard sides of both the driver's and the front
passenger's seat. It is easier to recline the seat if you
lean forward, taking your weight off the seatback.

1-6
But don't have a seatback reclined if your vehicle
is moving.

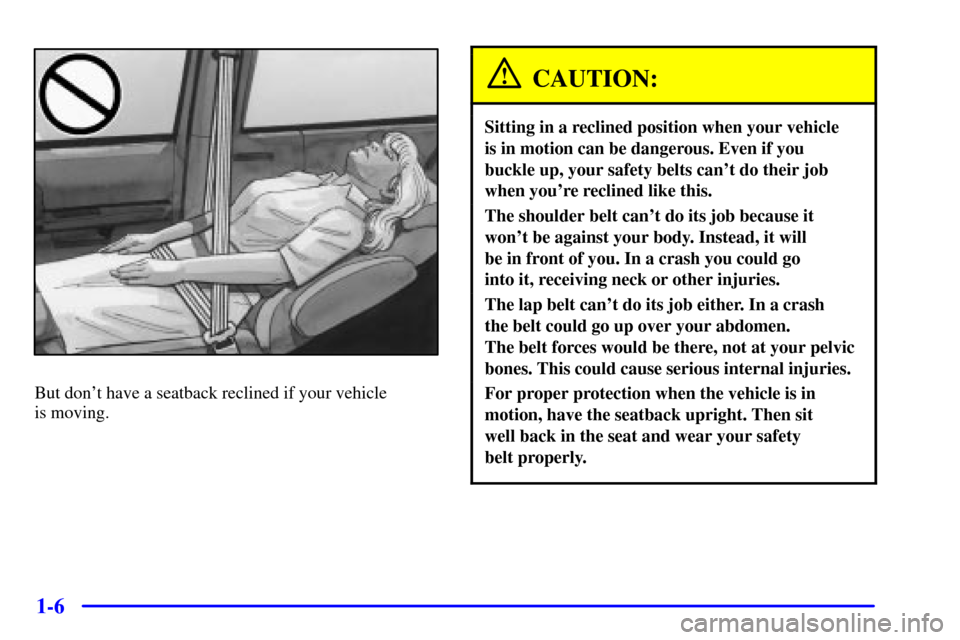

CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can't do their job
when you're reclined like this.
The shoulder belt can't do its job because it
won't be against your body. Instead, it will
be in front of you. In a crash you could go
into it, receiving neck or other injuries.
The lap belt can't do its job either. In a crash
the belt could go up over your abdomen.
The belt forces would be there, not at your pelvic
bones. This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.

1-7 Head Restraints
Head restraints are fixed on some models and adjustable
on others. Slide an adjustable head restraint up or down
so that the top of the restraint is closest to the top of
your ears. This position reduces the chance of a neck
injury in a crash.
Rear Seats
Seat Controls
The rear seats in your vehicle have levers and straps
used to adjust, remove and reinstall the seats. By using
the levers and straps, in the correct order, you can easily
remove the seats from your vehicle.
Floor Seat Pin Diagram

1-8
When you put the seats back in the vehicle, be sure
to follow the label on the back of the seat for proper
location. Follow the previous diagram when the text in
this manual tells you what sets of floor cups to use for
each seat.
Flip and Fold Feature
The rear seats in your vehicle, except the captain's
chairs, can be folded forward. Use this feature for
exiting and entering third row seats.
1. If the seats have the adjustable head restraints,
push them fully down.
2. Fold the seatback flat on the seat by either pulling
on the nylon strap on the rear of the seat or lifting
up on the lever located on the front of the seatback.
If the seat adjusts forward, slide it all the way back.
3. Release the rear set of hooks from the floor pins by
pulling the nylon strap located at the base of the seat;
hang on to the straps as the seat folds forward.
To return the seat(s) to the normal position,
do the following:
1. Push the seat back and firmly push the rear hooks
onto the rear floor pins by pushing down on the
rear of the seat.
2. Try to raise the seat to check that it is locked down.
3. Lift the seatback recliner lever or pull the nylon strap
on the back of the seat and raise the seatback until it
locks upright.
4. Push and pull on the seatback to check that it
is locked.

1-9 Split Bench Seats
If you have the third row split bench seat, the seatbacks
can be folded down individually and the sections can be
removed individually.
Folding or Reclining the Seatbacks
The seatbacks on each section of the split bench seat
can be either folded down or reclined. The following
explains how to use either the nylon strap or the lever
to fold or recline the seatbacks.
To fold down the seatback,
pull this nylon strap on
the rear of the seat, while
pulling the seatback down
until it locks into place.
To raise a seatback, pull the nylon strap while raising the
seatback until it locks upright.
To fold down the seatback,
lift up on this lever located
on the front of the seatback.
Use the lever to raise or lower the seatback to the
desired position.
When raising a seatback to an upright position,
push and pull on the seatback to check that it is
locked upright.

1-10
Adjusting the Split Bench Seats
There are two adjustment levers on each section of the
split bench seats to adjust the seat forward or rearward.
One is located below the center, in the front of each
section of the split bench.
There other lever is located
on the rear of the seat.
Lift up either lever and slide the seat forward or
rearward. Release the lever. Push and pull on the
seat to make sure it is locked into place.

1-11
Removing the Split Bench Seat
Make sure the seatback is in the upright position.
1. For the second row split bench, with the seatback in
the upright position, unhook the side attachment for
the safety belt. This mini
-buckle is located on the
right side of the seat.
2. Push the red center
of the buckle up
with a small pointed
object
-- like a key or
a pen
-- to remove the
seat belt, if needed.
3. Lift the seatback recliner lever or pull the nylon strap
on the back of the seat to fold the seatback forward.4. Slide the seat all the way back by lifting one of the
adjustment levers and sliding the seat fully rearward.
5. From behind the bench seat, pull the nylon strap at
the center of the base of the seat to release the rear
latches from the floor pins.
Do not let go of the strap until the seat is folded all
the way forward.

1-12
6. To unlatch the front latches, squeeze the angled latch
release bar toward the straight crossbar.
7. Remove the seat by rocking it slightly forward, then
toward the rear of the vehicle and then pulling it out.
Repeat these steps for the other section of the split
bench seat.Replacing the Split Bench Sections
Make sure the seatback is in the upright position and
the safety belts are on the correct section of the seat.
Don't put the sections of the bench seat in so they face
rearward because they won't latch that way. If you want
more storage room behind the seat, adjust each section
by sliding it forward.
The split benches have seat position labels, located on
the back of each seat, showing where the seat must go.
Follow that diagram.

The left section of the 50/50 split bench uses
the G and H sets of floor cups.

The right section of the 50/50 split bench uses
the I and J sets of floor cups.
See ªRear Seatsº in the beginning of this section for
more details. The seat must be placed in the proper
location for the legs to attach correctly.
