2001 Oldsmobile Silhouette Owner's Manuals

2-77
Front Seat Storage Bin
The storage bin is located under the manual front
passenger's seat. To open the bin, lift the handle and
slide the drawer out.
Cupholders
There are cupholders located below the center console
switchbank. The cupholders have a removeable liner for
larger size cups and for cleaning the cupholders.
To use the cupholders, simply pull out the tray.
Keep the tray in when not in use.
Rear Storage Compartments
and Cupholders
Your vehicle has a storage compartment and may have a
cupholder on the driver's side of the vehicle, next to the
third row seat(s).
Your vehicle also has cupholders on the bottom inboard
side of the second row driver's side captain's chairs.
The seatbacks have cupholders that can be used when
the seatbacks are folded forward.
Convenience Net (Option)
The optional convenience net is designed to help keep small
loads, like grocery bags, from falling over during sharp
turns or quick stops and starts. Install the convenience
net at the rear of your vehicle, inside the liftgate.
Attach the upper loops to the posts on either side of the
liftgate opening (the label on the net should be in the

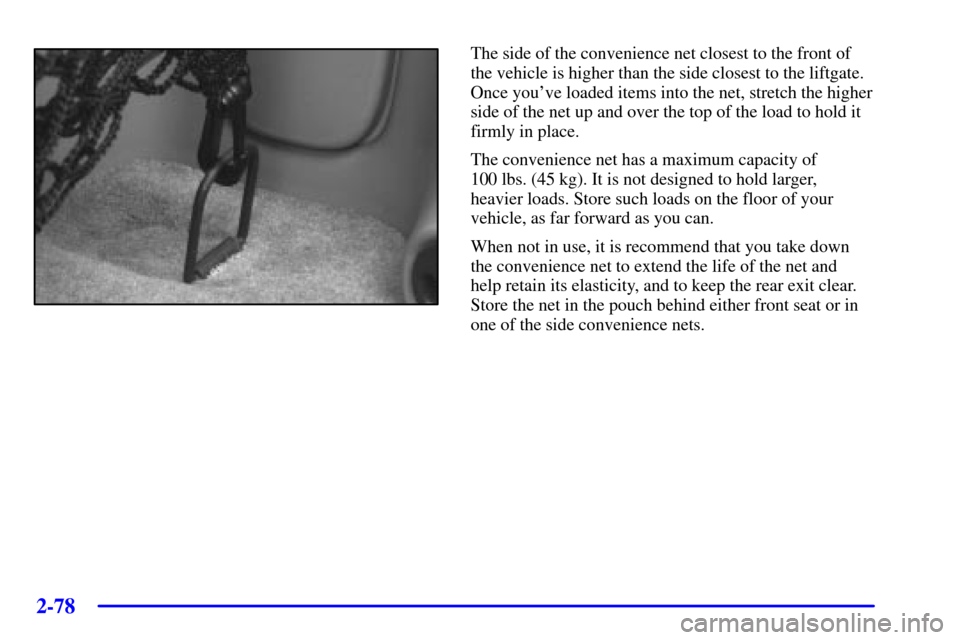

upper left corner). Attach the lower hooks to the metal
rings on the floor.

2-78
The side of the convenience net closest to the front of
the vehicle is higher than the side closest to the liftgate.
Once you've loaded items into the net, stretch the higher
side of the net up and over the top of the load to hold it
firmly in place.
The convenience net has a maximum capacity of
100 lbs. (45 kg). It is not designed to hold larger,
heavier loads. Store such loads on the floor of your
vehicle, as far forward as you can.
When not in use, it is recommend that you take down
the convenience net to extend the life of the net and
help retain its elasticity, and to keep the rear exit clear.
Store the net in the pouch behind either front seat or in
one of the side convenience nets.

2-79
Side Convenience Nets
The side convenience nets are designed to hold smaller
items (about 8 lbs. (4 kg)) than the large convenience
net. Attach the loops to the posts on the rear side panels,
near the jack storage area.
When not in use, it is recommended that you take
down the convenience nets to extend their life and
retain their elasticity.
Front Seat Storage Net
There is a storage net that stretches between the front
seats. Pull the hooks toward the passenger's seat and
insert them into the holes.
To store the net, lift the hooks up and out of the holes.
The net does not detach from the driver's seat.
When not in use, it is recommended that you unhook the
net to extend its life and retain its elasticity.

2-80 Convenience Center (Option)
CAUTION:
If the convenience center isn't secured properly,
it can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure to
secure the convenience center properly.
The convenience center comes with the optional
stowable seat. It provides extra storage space for the
rear of the vehicle.
To open the convenience center, pull up on the door
latch located in the front. The convenience center cover
has two automatic prop rods to hold it up and in place.
To close the convenience center cover you must pull one
of the prop rod linkages toward you while holding onto
the door latch and lower the convenience center cover
to close it.Removing the Convenience Center
1. Make sure that all items are off of the convenience
center and that it is empty.
2. Turn the hand knob counterclockwise until the
knob is loose.
3. Lift up on the hand knob to grab a hold of the
convenience center.
4. Lift up on the convenience center while pulling it
toward you and pull it out.
Replacing the Convenience Center
1. The stowable seat must be properly installed in
the vehicle. See ªStowable Seatº in the Index for
more information. If the stowable seat is not in the
vehicle with the convenience center, the convenience
center will not be locked into the correct position in
the vehicle.
2. Make sure that the convenience center is closed.
3. Lift the convenience center up and into the rear
of the vehicle.

2-81
4. Put the tray sill, located on the back of the
convenience center, in the upright position.
5. Slide the convenience center in and align it so that
the forks, located on the bottom rear of the
convenience center, slide into the seat anchors.
6. Press down on the front of the convenience center
so the center locates on the sill mounting bracket.
7. Turn the hand knob clockwise until it is tight.
8. Pull up on the convenience center to make sure
it is locked into place.The tray sill can be folded down onto the stowable seat
to close the space between the two when the stowable
seat is folded down. To do this, flip the sill plate up and
over toward the stowable seat.
The cover of the convenience center can be left in its
upright position while the vehicle is moving.
The convenience center has six hooks on the inside
cover for hanging items on. The prop rods can hold
up to 49 lbs. (21.8 kg) on the cover of the convenience
center while in its upright position.
The convenience center and the stowable seat both have
a maximum weight capacity of 400 lbs. (181.6 kg).
NOTICE:
Your warranty does not cover parts or components
that fail because of overloading.

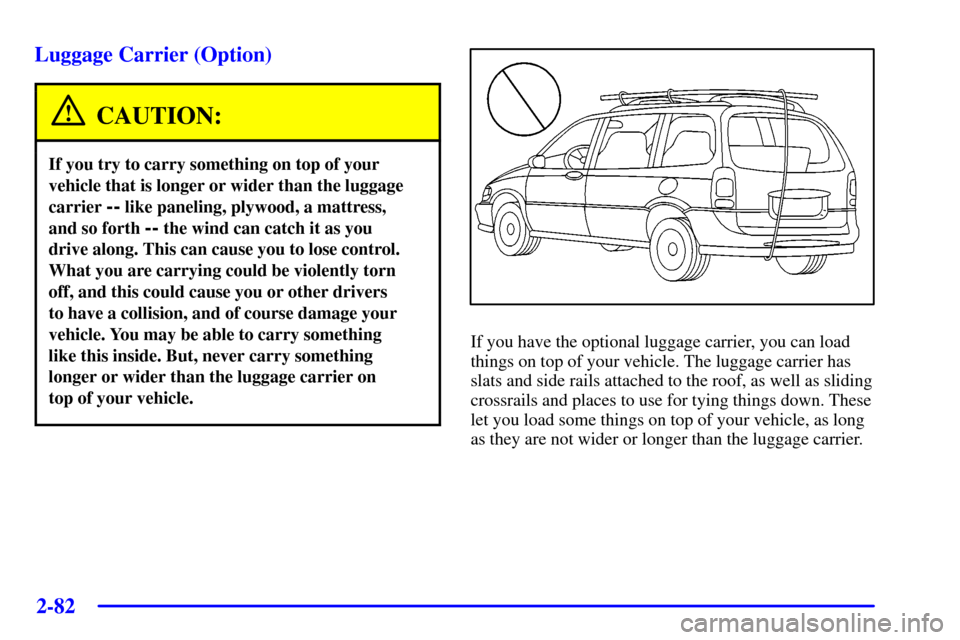

2-82 Luggage Carrier (Option)
CAUTION:
If you try to carry something on top of your
vehicle that is longer or wider than the luggage
carrier
-- like paneling, plywood, a mattress,
and so forth
-- the wind can catch it as you
drive along. This can cause you to lose control.
What you are carrying could be violently torn
off, and this could cause you or other drivers
to have a collision, and of course damage your
vehicle. You may be able to carry something
like this inside. But, never carry something
longer or wider than the luggage carrier on
top of your vehicle.
If you have the optional luggage carrier, you can load
things on top of your vehicle. The luggage carrier has
slats and side rails attached to the roof, as well as sliding
crossrails and places to use for tying things down. These
let you load some things on top of your vehicle, as long
as they are not wider or longer than the luggage carrier.

2-83
NOTICE:
Loading cargo that weighs more than 150 lbs.
(68 kg) on the luggage carrier may damage
your vehicle.
When you carry cargo on the luggage carrier
of a proper size and weight, put it on the slats,
as far forward as you can. Then slide the
crossrail up against the rear of the load, to help
keep it from moving. You can then tie it down.
Don't exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, see ªLoading Your Vehicleº in
the Index.

2-84
To prevent damage or loss of cargo as you're driving,
check now and then to make sure the luggage carrier
and cargo are still securely fastened.
Your luggage carrier has
release knobs set in the
ends of each crossrail.
Turn the release knobs counterclockwise to unlock the
crossrails. Slide the crossrails forward or backward as
needed, to accommodate loads of various sizes.
After repositioning the crossrails, be sure to tighten the
release knobs by turning them clockwise. This will lock
the crossrails in place.
Use the tie-down loops
on the slider to help
secure large loads.
Sun Visors
To block out glare, you can swing down the visors.
You can also remove them from the center mount and
swing them to the side.
Visor Vanity Mirrors
Pull down the sun visor. Flip up the cover to expose the
vanity mirror.
Lighted Visor Vanity Mirrors (If Equipped)
Pull down the sun visor. Flip up the cover to expose the
vanity mirror. The lamps will come on when you open
the cover.
