2-29
If you have the optional
power sliding door,
this switch is located
in the overhead
console switchbank.
These switches are located
in the overhead console
switchbank, if you have
the optional dual power
sliding doors.The power sliding door and the power sliding door
override is one switch. The left switch is for the
driver's side sliding door and the right switch is for
the passenger's side sliding door.
Pushing the bottom of the switch(es) turns the power
to the sliding door(s) off. When the power to the sliding
door(s) is off, you will not be able to open the door(s)
in the following ways:

When using the power sliding door switch(es)
located on the overhead console switchbank,

when using the wall
-mounted switch in front of
the driver's or the passenger's sliding door, or

when using the optional remote keyless
entry transmitter.
NOTICE:
When your vehicle goes through an automatic
car wash, be sure the power sliding door is
turned off. If it isn't, the power sliding door
may open accidentally.

2-30
To open or close the sliding door(s), press and release
one of the following power door switches.
This switch(es) is located in the overhead
console switchbank.
This switch is mounted
on the wall, in front of the
driver's or the passenger's
side sliding door.
The power sliding door override switch(es) will also
stop the door(s) immediately, while the door(s) is
opening or closing, when the override switch(es) is
turned on.
The power sliding door(s) will only open if the transaxle
is in PARK (P). The transaxle does not have to be in
PARK (P) to close the door(s).
If the power sliding door(s) is open or in the process of
closing when you shift out of PARK (P), a buzzer will
sound. This is a warning that the sliding door(s) is not
completely closed.
If the power to the sliding door(s) is turned off, the
buzzer will not sound indicating the door(s) is not
completely closed.

2-31

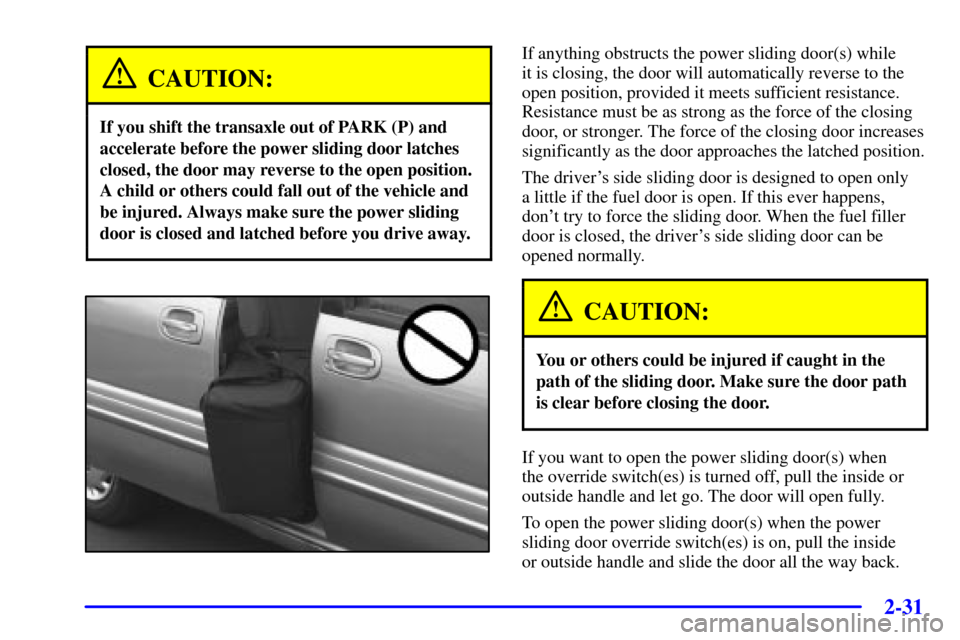

CAUTION:
If you shift the transaxle out of PARK (P) and
accelerate before the power sliding door latches
closed, the door may reverse to the open position.
A child or others could fall out of the vehicle and
be injured. Always make sure the power sliding
door is closed and latched before you drive away.
If anything obstructs the power sliding door(s) while
it is closing, the door will automatically reverse to the
open position, provided it meets sufficient resistance.
Resistance must be as strong as the force of the closing
door, or stronger. The force of the closing door increases
significantly as the door approaches the latched position.
The driver's side sliding door is designed to open only
a little if the fuel door is open. If this ever happens,
don't try to force the sliding door. When the fuel filler
door is closed, the driver's side sliding door can be
opened normally.
CAUTION:
You or others could be injured if caught in the
path of the sliding door. Make sure the door path
is clear before closing the door.
If you want to open the power sliding door(s) when
the override switch(es) is turned off, pull the inside or
outside handle and let go. The door will open fully.
To open the power sliding door(s) when the power
sliding door override switch(es) is on, pull the inside
or outside handle and slide the door all the way back.

2-32
CAUTION:
If your vehicle is facing downward on a steep
grade (15 percent or more), the door may not
stay open and could slam shut, possibly injuring
someone. To make sure the door does not slam
shut, turn on the power sliding door feature.
Then if the door closes, it will close under the
control of the power door system.
If you want to close the power sliding door(s) when the
override switch(es) is turned off, pull the inside or outside
handle or the edge of the door. Move the door about
4 inches (10 cm) toward the closed position and release.
The door will close completely and latch for you.
To close the power sliding door(s) when the override
switch(es) is turned on, pull the inside or outside
handle and slide the door all the way forward to the
latched position.

2-33
Sliding Door Security Lock
Your vehicle is equipped with a sliding door security
lock that helps prevent young children or other
passengers from opening the sliding door(s) using
the inside door handle.
The security lock lever is located on the inside of the
sliding door(s), on the front edge of the door. To access
the lever, open the sliding door. Use the security lock
label on the edge of the door as a guide.
To use the security lock,
move the security lock
lever all the way up
and close the door from
the outside.If your vehicle has the optional power sliding door(s),
you can override the security lock by pressing either
power door switch when the power sliding door override
switch is turned off. When the power sliding door
override switch is turned on, the power sliding door(s)
cannot be opened from the inside when the sliding door
security lock is in use.
If you want to open the sliding door when the security
lock is on, unlock and open the door from the outside.
You should let adults and older children know how the
security lock works, and how to cancel the lock. If you
don't, adults or older children who ride in the rear won't
be able to open the sliding door from the inside when
the security lock feature is in use.

2-34 Resetting the Power Sliding Door
The power sliding door may operate incorrectly or not
at all because of the following conditions:

A low voltage or dead battery,

disconnecting the battery, or

if the instrument panel fuse 4 or the underhood
fuses 5, 27 or 29 are removed or blown.
See ªFuses and Circuit Breakersº in the Index for
more information about your fuse panel.
If any of these conditions occur, the power sliding door
will need to be reset. If your vehicle has the optional
dual power sliding doors, both doors will have to be
reset. To do this, follow the directions listed here.
It will be easier if you read through them once before
beginning this procedure.
1. Check to be sure the power sliding door is unlocked
and securely closed.
2. Turn the ignition key to OFF.
3. If on, turn the power sliding door override
switch off.4. Remove fuse 29 from the underhood fuse and
relay center. Leave it out for 30 seconds.
5. Reinstall the fuse and wait 10 seconds.
6. Turn the power sliding door override switch on.
7. Push either of the power door buttons to open the
power sliding door.
8. Open the door.
9. Wait five seconds and close the door by pushing
either power door button.
10. Wait five seconds and repeat Steps 7 through 9.
If the door does not rest in the fully open position
after repeating Step 7, repeat Steps 7 through 9 again.
If the door still does not operate correctly, see your
dealer for service.
Canceling the Sliding Door Security Lock
1. Unlock the sliding door and open the door from
the outside.
2. Move the security lock lever all the way down.
The sliding door lock will now work normally.

2-35
Liftgate
To unlock the liftgate from the outside, turn the key
in the cylinder clockwise. To lock the liftgate using the
key, turn the key counterclockwise.
Open the liftgate using the handle located above the
license plate. Once slightly opened, the liftgate will rise
by itself. Lamps in the rear of the vehicle will come on,
illuminating the rear cargo area. See ªInterior Lampsº in
the Index.
NOTICE:
Be sure there are no overhead obstructions, such
as a garage door, before you open the liftgate.
You could slam the liftgate into something and
break the glass.
CAUTION:
It can be dangerous to drive with the liftgate
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the liftgate open or if
electrical wiring or other cable connections
must pass through the seal between the body
and the liftgate:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on bi
-level (outside air button is pressed).
That will force outside air into your vehicle.
See ªComfort Controlsº in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.

2-36
To close the liftgate, pull down on the handle, then
firmly shut the liftgate. Don't drive with the liftgate
open, even slightly. See ªEngine Exhaustº in the Index.
A message in your message center will warn you if the
liftgate is not completely closed. See ªRear Hatch Ajar
Warning Messageº in the Index.
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a chime reminding you to remove your key
from the ignition and take it with you. Always do this.
Your steering wheel will be locked, and so will your
ignition and transaxle. Also remember to lock the doors.
