2001 Oldsmobile Silhouette Owner's Manuals

vii
CAUTION:
These mean there is something that could hurt
In the caution area, we tell you what the hazard is.
Y ou will also find a circle

viii
Vehicle Damage Warnings
Also in this book you will find these notices:
NOTICE:
These mean there is something that could
damage your vehicle.
In the notice area, we tell you about something that can
damage your vehicle. Many times, this damage would
not be covered by your warranty, and it could be costly.
But the notice will tell you what to do to help avoid
the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different
colors or in different words.
You'll also see warning labels on your vehicle.
They use the same words, CAUTION or NOTICE.

ix
For example,
these symbols
are used on an
original battery:
CAUTION
POSSIBLE
INJURY
PROTECT
EYES BY
SHIELDING
CAUSTIC
BATTERY
ACID COULD
CAUSE
BURNS
AVOID
SPARKS OR
FLAMES
SPARK OR
FLAME
COULD
EXPLODE
BATTERY
These symbols
are important for
you and your
passengers
whenever your
vehicle is driven:
CHILD
RESTRAINT
TOP STRAP
ANCHOR
DOOR LOCK
UNLOCK
FASTEN
SEAT
BELTS
POWER
WINDOW
AIR BAG
These symbols
have to do with
your lamps:
MASTER
LIGHTING
SWITCH
TURN
SIGNALS
PARKING
LAMPS
HAZARD
WARNING
FLASHER
DAYTIME
RUNNING
LAMPS
FOG LAMPS
These symbols
are on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD
WASHER
WINDSHIELD
DEFROSTER
REAR
WINDOW
DEFOGGER
VENTILATING
FAN
These symbols
are used on
warning and
indicator lights:
ENGINE
COOLANT
TEMP
BATTERY
CHARGING
SYSTEM
BRAKE
COOLANT
ENGINE OIL
PRESSURE
ANTI-LOCK
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
HORN
FUEL
Vehicle Symbols
These are some of the symbols you may find on your vehicle. Also see ªWarning Lights and Gagesº in the Index.

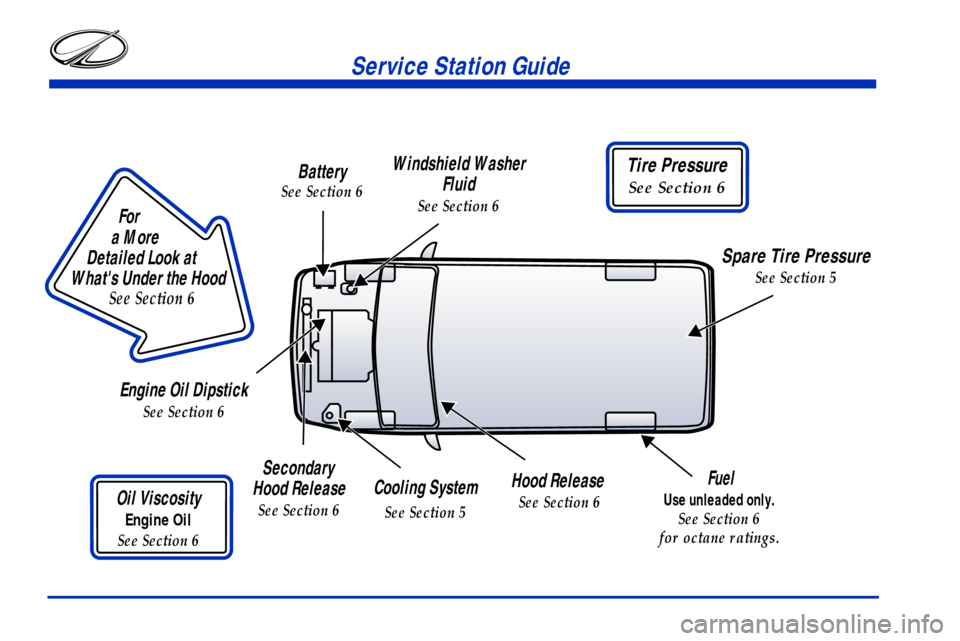

Service Station Guide
Oil Viscosity
Engine Oil
See Section 6
Engine Oil Dipstick
See Section 6
Cooling System
See Section 5
Secondary
Hood Release
See Section 6
Windshield Washer
Fluid
See Section 6
Spare Tire Pressure
See Section 5
Battery
See Section 6
Hood Release
See Section 6
Tire Pressure
See Section 6
For
a More
Detailed Look at
What's Under the Hood
See Section 6
Fuel
Use unleaded only.
See Section 6
for octane ratings.

1-
1-1
Section 1 Seats and Restraint Systems
Here you'll find information about the seats in your vehicle and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
1
-2 Seats and Seat Controls
1
-7 Rear Seats
1
-23 Safety Belts: They're for Everyone
1
-28 Here Are Questions Many People Ask
About Safety Belts
-- and the Answers
1
-29 How to Wear Safety Belts Properly
1
-29 Driver Position
1
-37 Safety Belt Use During Pregnancy
1
-38 Right Front Passenger Position
1
-39 Supplemental Restraint Systems (SRS)
1
-46 Safety Belt Pretensioners1
-47 Rear Seat Passengers
1
-50 Rear Safety Belt Comfort Guides for
Children and Small Adults
1
-53 Center Passenger Position (Bench Seat)
1
-54 Children
1
-58 Restraint Systems for Children
1
-76 Older Children
1
-79 Safety Belt Extender
1
-80 Checking Your Restraint Systems
1
-80 Replacing Restraint System Parts
After a Crash

1-2
Seats and Seat Controls
This section tells you about the seats -- how to
adjust them, take them out, put them back in,
fold and unfold them.
Driver's 4-Way Manual Seat
Use the lever located on the
front left side of the seat to
adjust the seat forward or
rearward. Pull up the lever
to unlock the seat. Slide the
seat to where you want it
and release the lever.
To make sure the seat is locked into place, try to move
the seat back and forth with your body.
To raise the seat, pull up
on the lever located on the
front right side of the seat.
To lower the seat, push the
lever down. Adjust the seat
and release the lever.
CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver's seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don't want to. Adjust the driver's seat only when
the vehicle is not moving.

1-3 Manual Front Passenger Seats
To move the seat, pull up
the lever located on the
front of the seat to unlock it.
Slide the seat to where you want it and release the lever.
To make sure the seat is locked into place, try to move
the seat back and forth with your body.
8-Way Power Seat (Option)
The eight-way power seat
controls are located on the
outboard sides of both the
driver's and the front
passenger's seats.

Move the front of the control in the direction of the
arrows to adjust the front portion of the cushion up
or down.

Move the rear of the control in the direction of the
arrows to adjust the rear portion of the cushion up
or down.

Lift up or push down on both outer arrows at the
same time to move the entire seat up or down.

To move the whole seat forward or rearward, slide
the control in the direction of the center arrows.

To raise and recline the seatback, push or pull the
top of the control in the direction of the arrows.

1-4 Memory Seat (Option)
If your vehicle has this
feature, the controls are
located to the left of the
steering column and are
used to program and recall
the driver's seat settings.
Adjust the driver's seat to the position you would like
for driving. Then press and hold memory button ª1º for
more than three seconds. A double beep will sound
when the memory is set.
To set the seat for a second driver, follow the previous
steps, but press button ª2º instead.To recall your memory positions, your vehicle must be
in PARK (P). Push and release the memory button
(1 or 2) corresponding to the desired driving position.
The seat will move to the position previously stored for
the identified driver. You will hear one beep.
You can also store an exit position for each driver.
The exit position is programmed by moving the seat to
the desired exit position and then holding the EXIT
button for more than three seconds. The exit position
set will be for the most recently selected driving position
(1 or 2). A double beep will sound when the memory is
set. To use EXIT, your vehicle must be in PARK (P).
Push and release the EXIT button and the seat will move
to the exit position stored for the most recently selected
driver. You will hear one beep.
To stop recall movement of the seat at any time,
press one of the three memory buttons or one of the
power seat controls located on the outboard side of
the driver's seat.
