4. Install lock pin.
●Make sure that lock pin is flush with case.
5. Install speedometer drive gear on differential case.
●Align the projection of speedometer drive gear with the
groove of differential case.
6. Press on differential side bearings.
7. Install final gear and tighten fixing bolts in a crisscross pattern.
SMT699BA
SAT313D
SAT545FA
SAT546F

AT-498
[ALL]
ASSEMBLY
ASSEMBLY
PFP:00000
Assembly (1)ECS004MD
1. Install differential side oil seals on transmission case and con-
verter housing.
2. Install parking actuator support to transmission case. Tighten
parking actuator support bolts to the specified torque. Refer to
AT-421, "
OVERHAUL" .
●Pay attention to direction of parking actuator support.
3. Install parking pawl on transmission case and fix it with parking
shaft.
4. Install return spring.
SAT181FC
SAT182F
SAT183F
SAT039F

ASSEMBLY
AT-499
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Adjustment (1)ECS004ME
DIFFERENTIAL SIDE BEARING PRELOAD
1. Install differential side bearing outer race without adjusting shim
on transmission case.
2. Install differential side bearing outer race on converter housing.
3. Place final drive assembly on transmission case.
4. Install transmission case on converter housing. Tighten trans-
mission case fixing bolts to the specified torque. Refer to AT-
421, "OVERHAUL" .
5. Attach dial indicator on differential case at converter housing
side.
6. Insert Tool into differential side gear from transmission case
side.
7. Move Tool up and down and measure dial indicator deflection.
8. Select proper thickness of differential side bearing adjusting
shim(s).
Suitable shim thickness = Dial indicator deflection + Speci-
fied bearing preload
SAT870D
SAT008F
Differential side bearing preload adjusting shim:
Refer to AT- 5 2 1 , "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)" .
Bearing preload:
0.05 - 0.09 mm (0.0020 - 0.0035 in)
SAT186FA

AT-500
[ALL]
ASSEMBLY

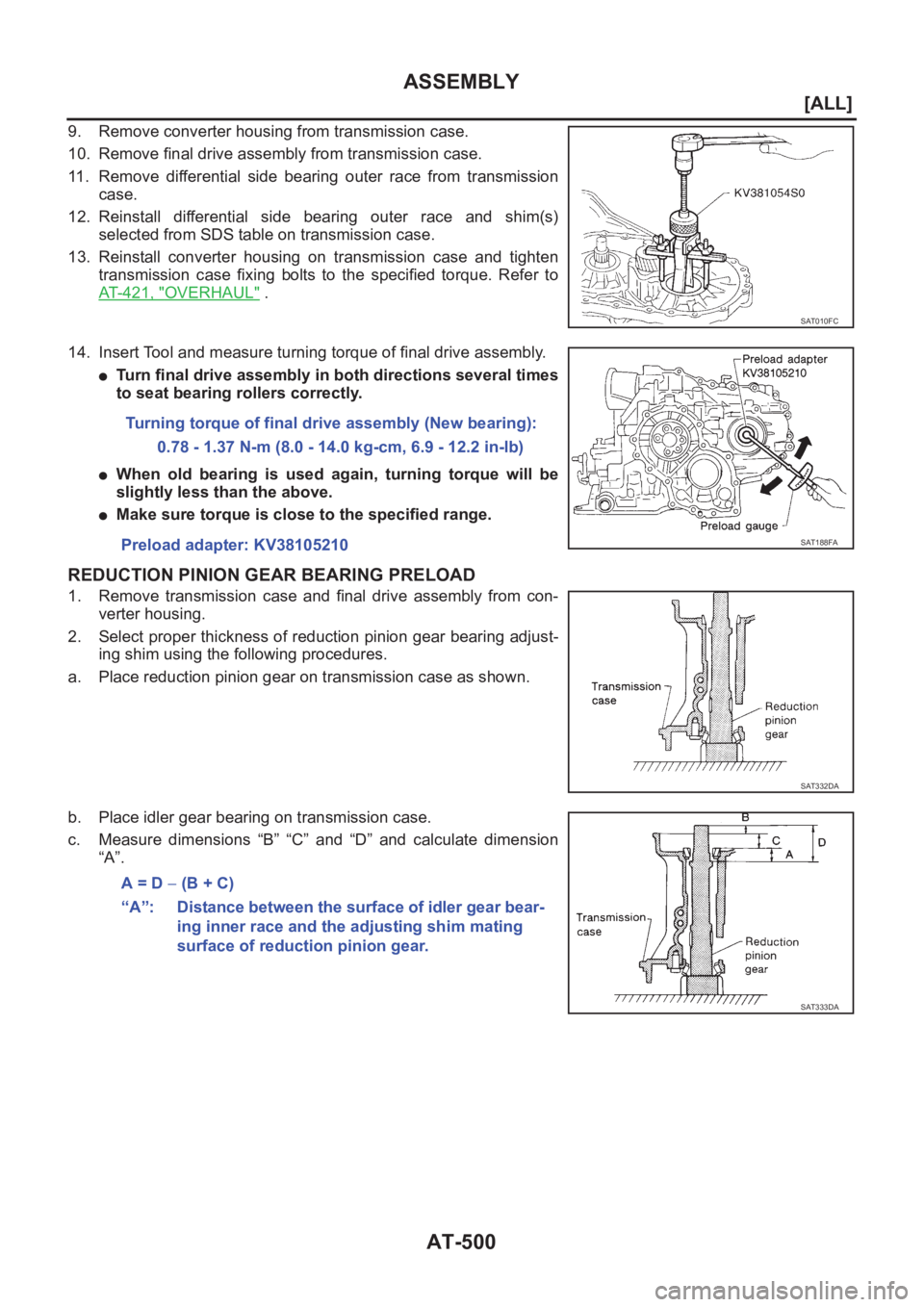

9. Remove converter housing from transmission case.
10. Remove final drive assembly from transmission case.
11. Remove differential side bearing outer race from transmission
case.
12. Reinstall differential side bearing outer race and shim(s)
selected from SDS table on transmission case.
13. Reinstall converter housing on transmission case and tighten
transmission case fixing bolts to the specified torque. Refer to
AT-421, "
OVERHAUL" .
14. Insert Tool and measure turning torque of final drive assembly.
●Turn final drive assembly in both directions several times
to seat bearing rollers correctly.
●When old bearing is used again, turning torque will be
slightly less than the above.
●Make sure torque is close to the specified range.
REDUCTION PINION GEAR BEARING PRELOAD
1. Remove transmission case and final drive assembly from con-
verter housing.
2. Select proper thickness of reduction pinion gear bearing adjust-
ing shim using the following procedures.
a. Place reduction pinion gear on transmission case as shown.
b. Place idler gear bearing on transmission case.
c. Measure dimensions “B” “C” and “D” and calculate dimension
“A”.
SAT010FC
Turning torque of final drive assembly (New bearing):
0.78 - 1.37 N-m (8.0 - 14.0 kg-cm, 6.9 - 12.2 in-lb)
Preload adapter: KV38105210
SAT188FA
SAT332DA
A = D − (B + C)
“A”: Distance between the surface of idler gear bear-
ing inner race and the adjusting shim mating
surface of reduction pinion gear.
SAT333DA

ASSEMBLY
AT-515
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
8. Adjust brake band.
a. Tighten anchor end pin to the specified torque.
b. Back off anchor end pin two and a half turns.
c. While holding anchor end pin, tighten lock nut.
9. Apply compressed air to oil holes of transmission case and
check operation of brake band.
10. Install final drive assembly on transmission case.
11. Install differential lubricant tube on converter housing. Tighten
differential lubricant tube bolts to the specified torque. Refer to
AT- 4 2 1 , "
OVERHAUL" . Anchor end pin:
Refer to AT-521, "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)" .
Lock nut:
Refer to AT-521, "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)" .
SAT014FA
SAT397D
SAT228F
SAT063K

AT-516
[ALL]
ASSEMBLY
12. Install O-ring on differential oil port of transmission case.
13. Install converter housing on transmission case.
●Apply locking sealant (Locktite #518) to mating surface of
converter housing.
●Tighten converter housing bolts to the specified torque.
Refer to AT-421, "
OVERHAUL" .
14. Install accumulator piston.
a. Check contact surface of accumulator piston for damage.
b. Install O-rings on accumulator piston.
●Apply ATF to O-rings.
SAT235F
SAT371H
SAT008F
SAT406DA
Accumulator piston O-rings:
Refer to AT-521, "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)" .
SAT236FA

AT-526
[ALL]
SERVICE DATA AND SPECIFICATIONS (SDS)
*: Always check with the Parts Department for the latest parts information.
*: Always check with the Parts Department for the latest parts information.
CLUTCH AND BRAKE RETURN SPRINGS
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
BRAKE BAND
Final DriveECS004MP
DIFFERENTIAL SIDE GEAR CLEARANCE
Drive plate thickness mm (in)Standard 1.8 (0.071)
Allowable limit 1.6 (0.063)
Driven plate thickness mm (in) Standard 1.8 (0.071)
Clearance mm (in)Standard 1.7 - 2.1 (0.067 - 0.083)
Allowable limit 3.3 (0.130)
Thickness of retaining platesThickness mm (in) Part number*
2.0 (0.079)
2.2 (0.087)
2.4 (0.094)
2.6 (0.102)
2.8 (0.110)
3.0 (0.118)
3.2 (0.126)
3.4 (0.134)31667-80X00
31667-80X01
31667-80X02
31667-80X03
31667-80X04
31667-80X05
31667-80X06
31667-80X07
Model code number85X64
Number of drive plates6
Number of driven plates6
Drive plate thickness mm (in)Standard 1.8 (0.071)
Allowable limit 1.6 (0.063)
Driven plate thickness mm (in) Standard 1.8 (0.071)
Clearance mm (in)Standard 1.7 - 2.1 (0.067 - 0.083)
Allowable limit 3.3 (0.130)
Thickness of retaining platesThickness mm (in) Part number*
2.0 (0.079)
2.2 (0.087)
2.4 (0.094)
2.6 (0.102)
2.8 (0.110)
3.0 (0.118)
3.2 (0.126)
3.4 (0.134)31667-80X00
31667-80X01
31667-80X02
31667-80X03
31667-80X04
31667-80X05
31667-80X06
31667-80X07
Parts Part number* Free length Outer diameter
Forward clutch (Overrun clutch)
(22 pcs)31505-80X02 21.4 (0.843) 10.3 (0.406)
High clutch (12 pcs) 31505-80X05 22.5 (0.886) 10.8 (0.425)
Low & reverse brake (24 pcs) 31505-80X07 24.1 (0.949) 6.6 (0.260)
Anchor end pin tightening torque N·m (kg-m, in-lb) 4.0 - 5.8 (0.4 - 0.6, 35 - 52)
Number of returning revolutions for anchor end pin 2.5
Lock nut tightening torque N·m (kg-m, ft-lb) 32 - 36 (3.3 - 3.7, 23 - 27)
Clearance between side gear and differential case with
washer mm (in)0.1 - 0.2 (0.004 - 0.008)

SERVICE DATA AND SPECIFICATIONS (SDS)
AT-527
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
DIFFERENTIAL SIDE GEAR THRUST WASHERS
*: Always check with the Parts Department for the latest parts information.
DIFFERENTIAL SIDE BEARING PRELOAD ADJUSTING SHIMS
*: Always check with the Parts Department for the latest parts information.
BEARING PRELOAD
TURNING TORQUE
Planetary Carrier and Oil PumpECS004MQ
PLANETARY CARRIER
OIL PUMP
*: Always check with the Parts Department for the latest parts information. Thickness mm (in) Part number*
0.75 (0.0295)
0.80 (0.0315)
0.85 (0.0335)
0.90 (0.0354)
0.95 (0.0374)38424-81X00
38424-81X01
38424-81X02
38424-81X03
38424-81X04
Thickness mm (in) Part number*
0.48 (0.0189)
0.52 (0.0205)
0.56 (0.0220)
0.60 (0.0236)
0.64 (0.0252)
0.68 (0.0268)
0.72 (0.0283)
0.76 (0.0299)
0.80 (0.0315)
0.84 (0.0331)
0.88 (0.0346)
0.92 (0.0362)31438-80X00
31438-80X01
31438-80X02
31438-80X03
31438-80X04
31438-80X05
31438-80X06
31438-80X07
31438-80X08
31438-80X09
31438-80X10
31438-80X11
Differential side bearing preload mm (in) 0.05 - 0.09 (0.0020 - 0.0035)
Turning torque of final drive assembly N·m (kg-cm, in-lb) 0.78 - 1.37 (8.0 - 14.0, 6.9 - 12.2)
Clearance between planetary carrier
and pinion washer mm (in)Standard 0.20 - 0.70 (0.0079 - 0.0276)
Allowable limit 0.80 (0.0315)
Oil pump side clearance mm (in) 0.030 - 0.050 (0.0012 - 0.0020)
Thickness of inner gears and outer gearsInner gear
Thickness mm (in) Part number*
11.99 - 12.0 (0.4720 - 0.4724)
11.98 - 11.99 (0.4717 - 0.4720)
11.97 - 11.98 (0.4713 - 0.4717)31346-80X00
31346-80X01
31346-80X02
Outer gear
Thickness mm (in) Part number*
11.99 - 12.0 (0.4720 - 0.4724)
11.98 - 11.99 (0.4717 - 0.4720)
11.97 - 11.98 (0.4713 - 0.4717)31347-80X00
31347-80X01
31347-80X02
Clearance between oil pump
housing and outer gear mm
(in)Standard 0.111 - 0.181 (0.0044 - 0.0071)
Allowable limit 0.181 (0.0071)
Oil pump cover seal ring
clearance mm (in)Standard 0.1 - 0.25 (0.0039 - 0.0098)
Allowable limit 0.25 (0.0098)
