DTC P0733 A/T 3RD GEAR FUNCTION
AT-143
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0733 A/T 3RD GEAR FUNCTIONPFP:31940
DescriptionECS004RI
●This malfunction will not be detected while the O/D OFF indicator lamp is indicating another self-diagnosis
malfunction.
●This malfunction is detected when the A/T does not shift into third gear position as instructed by the TCM.
This is not caused by electrical malfunction (circuits open or shorted) but by mechanical malfunction such
as control valve sticking, improper solenoid valve operation, malfunctioning servo piston or brake band,
etc.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSTIC LOGIC
This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM as
follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (3rd) supposed by TCM, the slip ratio will be more than
normal. In case the ratio exceeds the specified value, TCM judges this diagnosis malfunction.
This malfunction will be caused when shift solenoid valve A is stuck closed.
*: P0733 is detected.Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
11 L / WShift solenoid
valve AWhen shift solenoid valve A oper-
ates.
(When driving in “D
1 ” or “D4 ”.)Battery voltage
When shift solenoid valve A does not
operate.
(When driving in “D
2 ” or “D3 ”.)0V
Gear position supposed by TCM 1 2 3 4
In case of gear position with no malfunctions 1 2 3 4
In case of gear position with shift solenoid valve A stuck closed 1 1 4* 4
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: A/T 3RD GR FNCTN
A/T cannot be shifted to the 3rd gear posi-
tion even if electrical circuit is good.
●Shift solenoid valve A
●Each clutch
●Hydraulic control circuit : P0733

DTC P0734 A/T 4TH GEAR FUNCTION
AT-149
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DTC P0734 A/T 4TH GEAR FUNCTIONPFP:31940

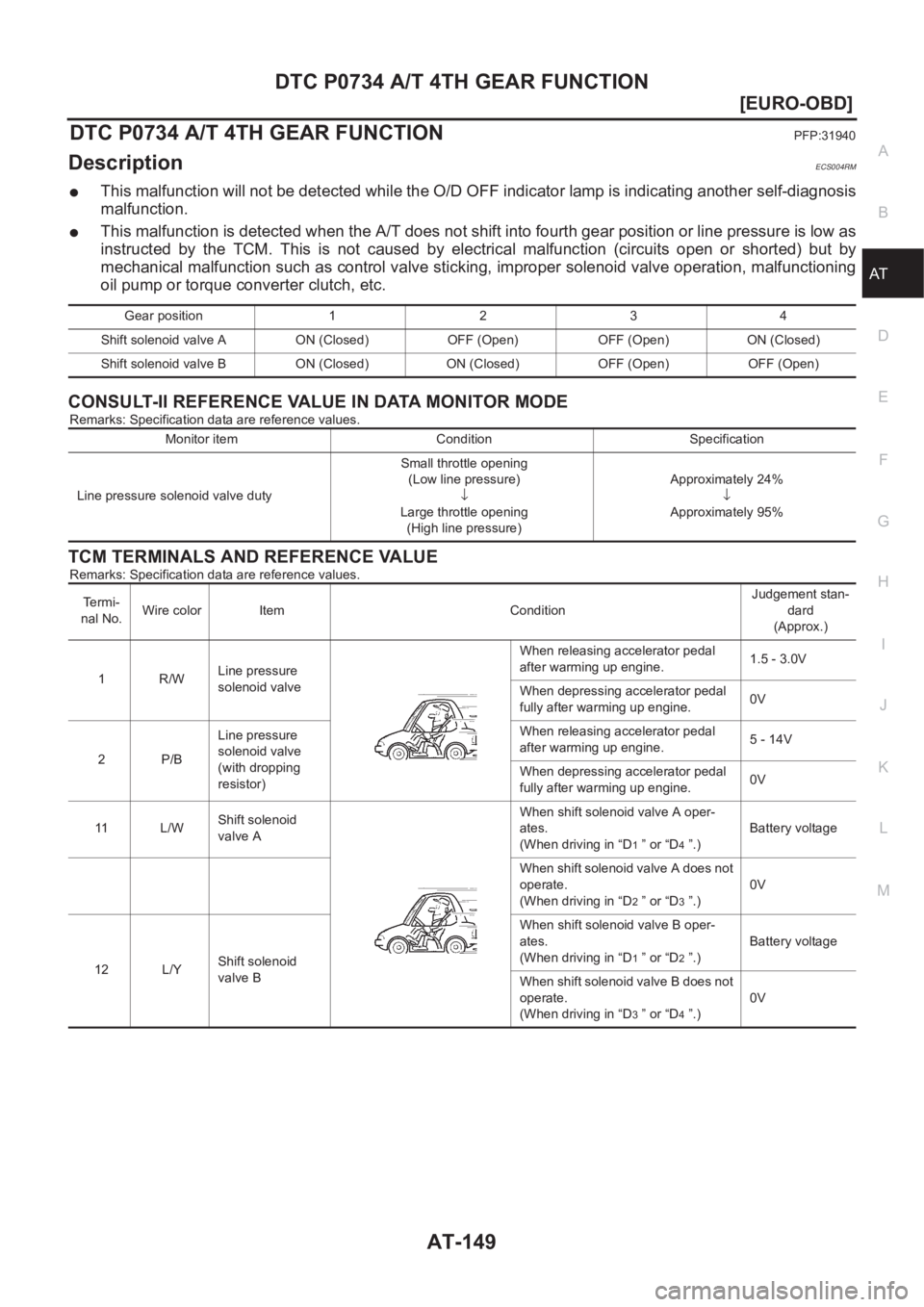

DescriptionECS004RM
●This malfunction will not be detected while the O/D OFF indicator lamp is indicating another self-diagnosis
malfunction.
●This malfunction is detected when the A/T does not shift into fourth gear position or line pressure is low as
instructed by the TCM. This is not caused by electrical malfunction (circuits open or shorted) but by
mechanical malfunction such as control valve sticking, improper solenoid valve operation, malfunctioning
oil pump or torque converter clutch, etc.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Monitor item Condition Specification
Line pressure solenoid valve dutySmall throttle opening
(Low line pressure)
↓
Large throttle opening
(High line pressure)Approximately 24%
↓
Approximately 95%
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
1R/WLine pressure
solenoid valveWhen releasing accelerator pedal
after warming up engine.1.5 - 3.0V
When depressing accelerator pedal
fully after warming up engine.0V
2P/BLine pressure
solenoid valve
(with dropping
resistor)When releasing accelerator pedal
after warming up engine.5 - 14V
When depressing accelerator pedal
fully after warming up engine.0V
11 L / WShift solenoid
valve AWhen shift solenoid valve A oper-
ates.
(When driving in “D
1 ” or “D4 ”.)Battery voltage
When shift solenoid valve A does not
operate.
(When driving in “D
2 ” or “D3 ”.)0V
12 L/YShift solenoid
valve BWhen shift solenoid valve B oper-
ates.
(When driving in “D
1 ” or “D2 ”.)Battery voltage
When shift solenoid valve B does not
operate.
(When driving in “D
3 ” or “D4 ”.)0V

AT-150
[EURO-OBD]
DTC P0734 A/T 4TH GEAR FUNCTION
ON BOARD DIAGNOSTIC LOGIC

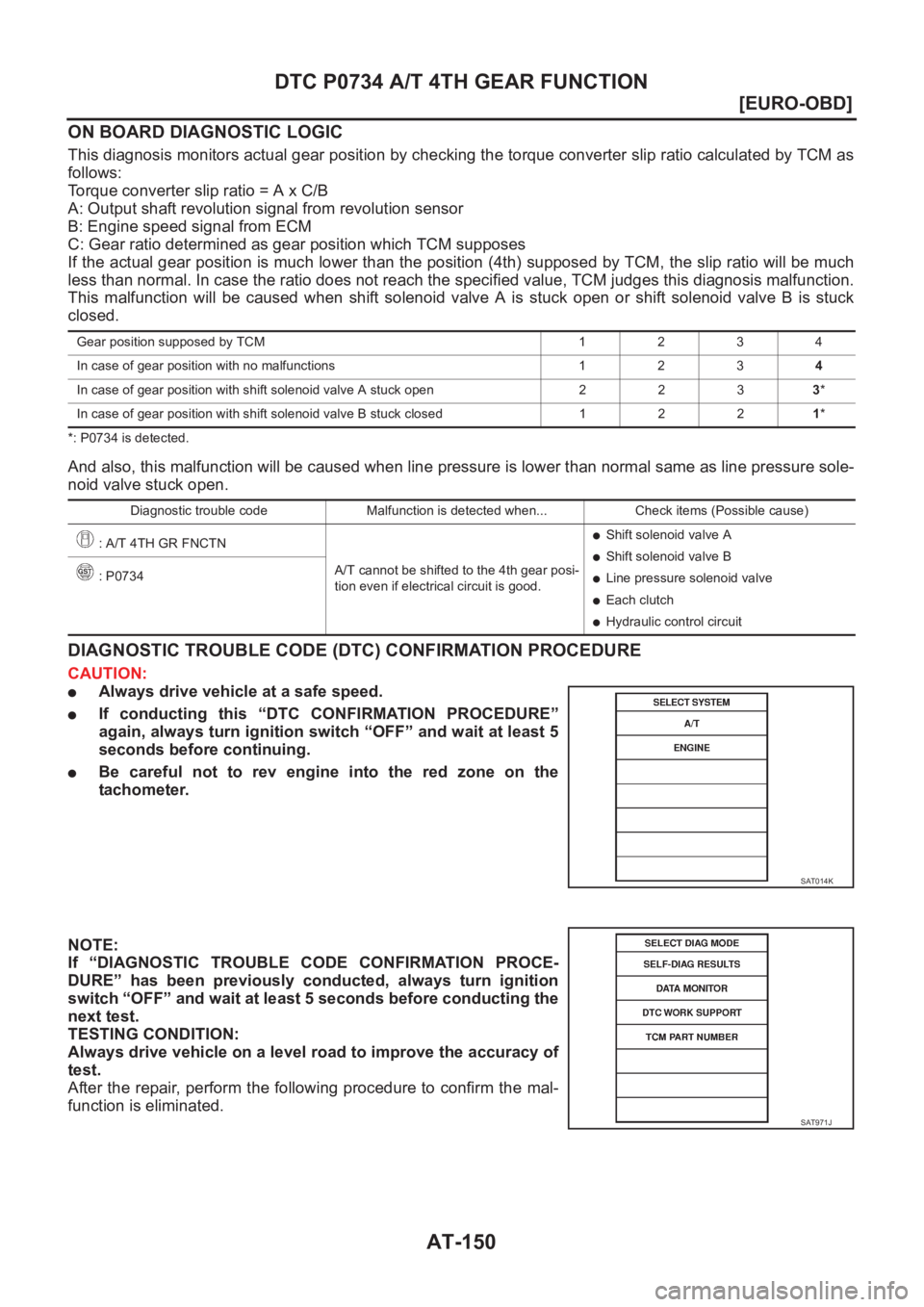

This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM as
follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is much lower than the position (4th) supposed by TCM, the slip ratio will be much
less than normal. In case the ratio does not reach the specified value, TCM judges this diagnosis malfunction.
This malfunction will be caused when shift solenoid valve A is stuck open or shift solenoid valve B is stuck
closed.
*: P0734 is detected.
And also, this malfunction will be caused when line pressure is lower than normal same as line pressure sole-
noid valve stuck open.
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
CAUTION:
●Always drive vehicle at a safe speed.
●If conducting this “DTC CONFIRMATION PROCEDURE”
again, always turn ignition switch “OFF” and wait at least 5
seconds before continuing.
●Be careful not to rev engine into the red zone on the
tachometer.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting the
next test.
TESTING CONDITION:
Always drive vehicle on a level road to improve the accuracy of
test.
After the repair, perform the following procedure to confirm the mal-
function is eliminated.
Gear position supposed by TCM 1 2 3 4
In case of gear position with no malfunctions 1 2 34
In case of gear position with shift solenoid valve A stuck open2233*
In case of gear position with shift solenoid valve B stuck closed 1 2 21*
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: A/T 4TH GR FNCTN
A/T cannot be shifted to the 4th gear posi-
tion even if electrical circuit is good.
●Shift solenoid valve A
●Shift solenoid valve B
●Line pressure solenoid valve
●Each clutch
●Hydraulic control circuit : P0734
SAT014K
SAT971J

AT-158
[EURO-OBD]
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
PFP:31940
DescriptionECS004RQ
The torque converter clutch solenoid valve is activated, with the gear
in “D
4 ”, by the TCM in response to signals sent from the vehicle
speed and throttle position sensors. Lock-up piston operation will
then be controlled.
Lock-up operation, however, is prohibited when A/T fluid tempera-
ture is too low.
When the accelerator pedal is depressed (less than 2/8) in lock-up
condition, the engine speed should not change abruptly. If there is a
big jump in engine speed, there is no lock-up.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SCIA0718E
Monitor item Condition Specification
Torque converter clutch solenoid valve
dutyLock-up “OFF”
↓
Lock-up “ON”Approximately 4%
↓
Approximately 94%
Termi-
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
3GY/RTorque converter
clutch solenoid
valve When A/T performs lock-up. 8 - 15V
When A/T does not perform lock-up. 0V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: TCC SOLENOID/CIRC
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
●Harness or connectors
(The solenoid circuit is open or shorted.)
●T/C clutch solenoid valve
: P0740

AT-166
[EURO-OBD]
DTC P0745 LINE PRESSURE SOLENOID VALVE
Diagnostic Procedure
ECS004RW
1. CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 4 and ground.
OK or NG
OK >> GO TO 2.
NG >> 1. Remove control valve assembly. Refer to AT- 4 1 4 ,
"REMOVAL" .
2. Check the following items:
–Line pressure solenoid valve
Refer to AT-168, "
Component Inspection" .
–Harness of terminal cord assembly for short or open
2. CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check resistance between terminal 4 and TCM harness connector terminal 2.
OK or NG
OK >> GO TO 3.
NG >> Check the following items:
●Dropping resistor
Refer to AT-168, "
Component Inspection" .
●Harness for short or open between TCM terminal 2
and terminal cord assembly Resistance: 2.5 - 5Ω
SCIA0741E
Resistance: 10 - 15Ω
SCIA0742E

DTC P0750 SHIFT SOLENOID VALVE A
AT-173
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

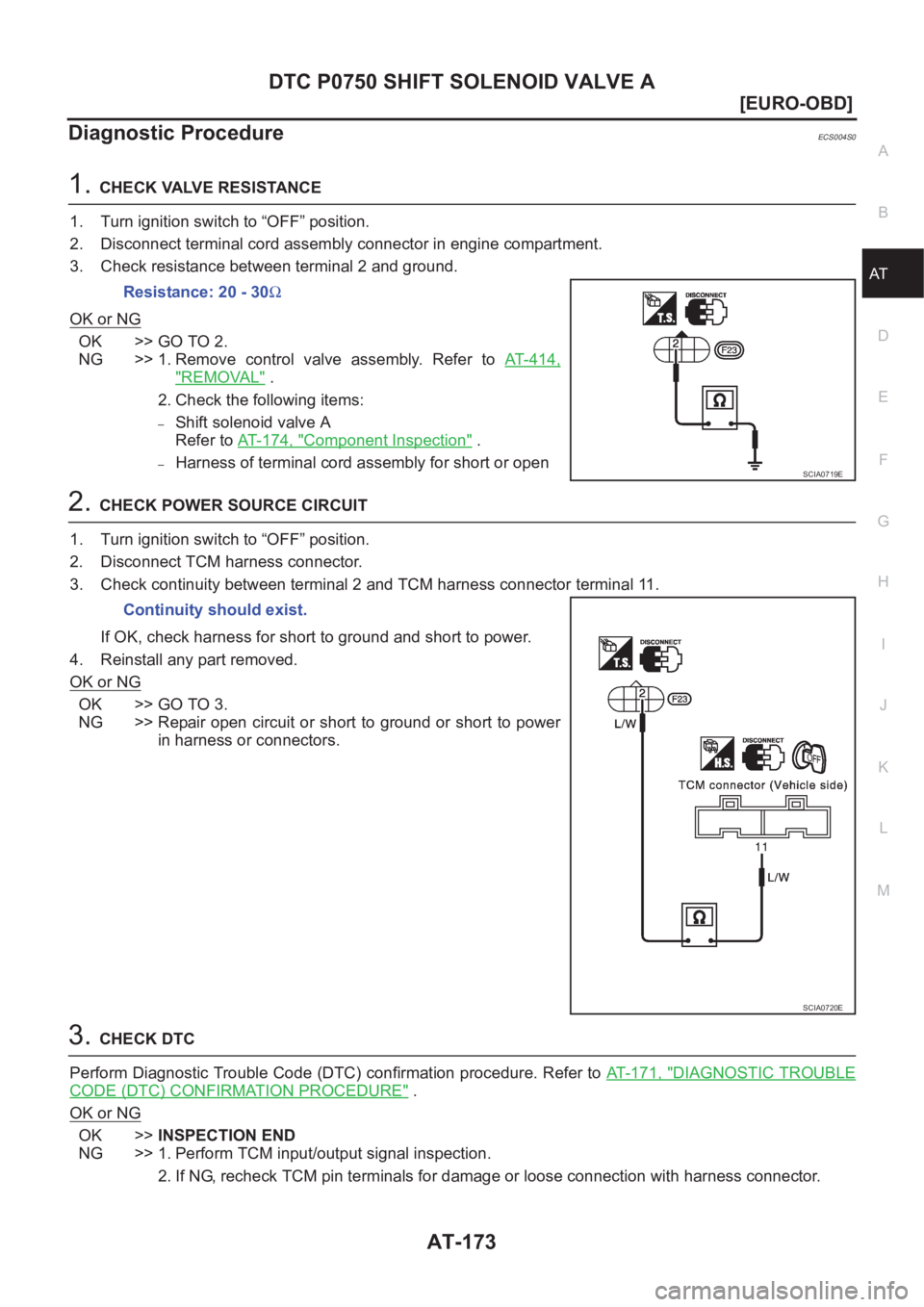

Diagnostic ProcedureECS004S0
1.CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 2 and ground.
OK or NG
OK >> GO TO 2.
NG >>1.Remove control valve assembly. Refer to AT- 4 1 4 ,
"REMOVAL" .
2. Check the following items:
–Shift solenoid valve A
Refer to AT- 1 7 4 , "
Component Inspection" .
–Harness of terminal cord assembly for short or open
2.CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 2 and TCM harness connector terminal 11.
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3.CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure. Refer to AT- 1 7 1 , "
DIAGNOSTIC TROUBLE
CODE (DTC) CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Resistance: 20 - 30Ω
SCIA0719E
Continuity should exist.
SCIA0720E

AT-178
[EURO-OBD]
DTC P0755 SHIFT SOLENOID VALVE B

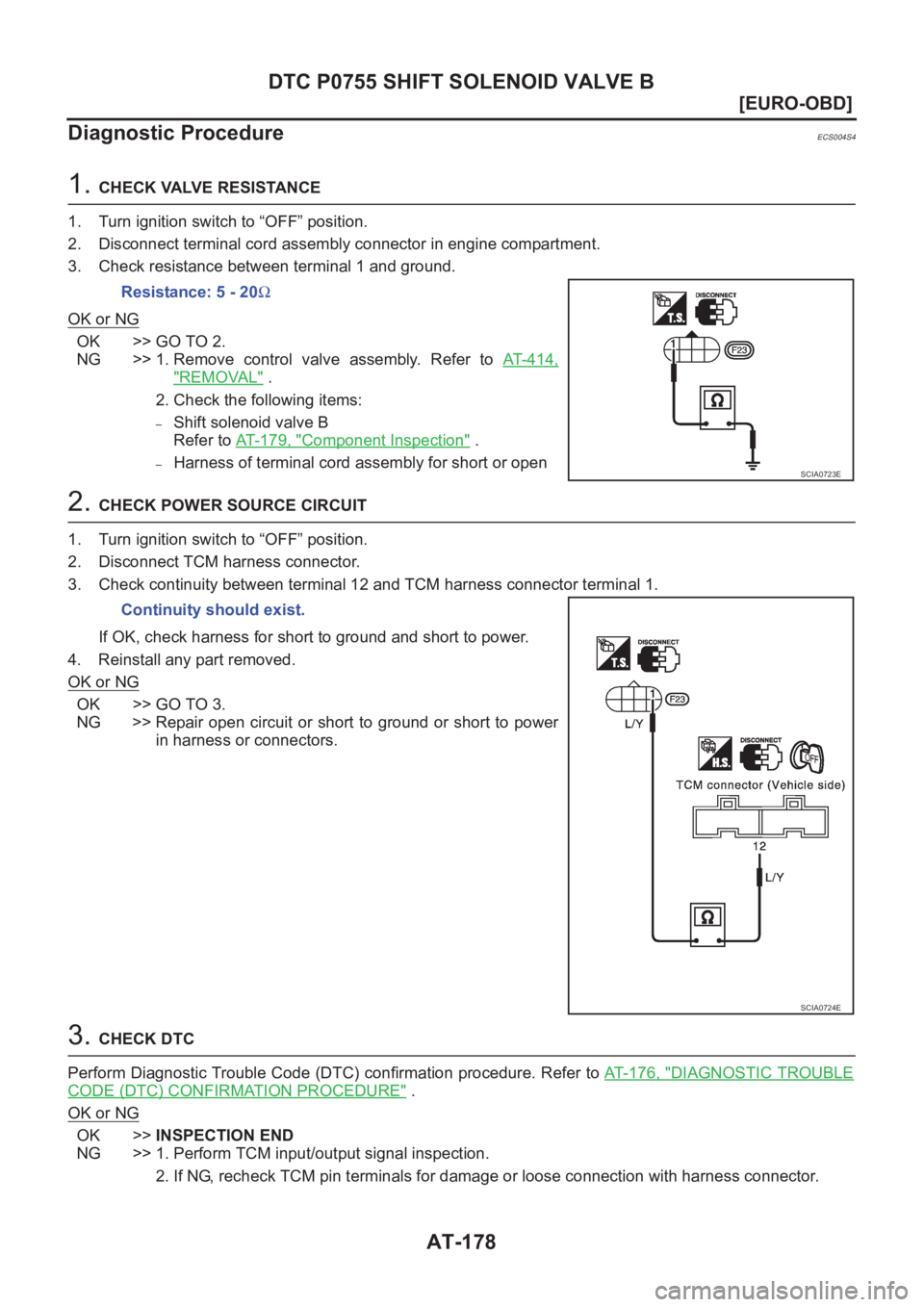

Diagnostic Procedure
ECS004S4
1. CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 1 and ground.
OK or NG
OK >> GO TO 2.
NG >> 1. Remove control valve assembly. Refer to AT- 4 1 4 ,
"REMOVAL" .
2. Check the following items:
–Shift solenoid valve B
Refer to AT-179, "
Component Inspection" .
–Harness of terminal cord assembly for short or open
2. CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 12 and TCM harness connector terminal 1.
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure. Refer to AT- 1 7 6 , "
DIAGNOSTIC TROUBLE
CODE (DTC) CONFIRMATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Resistance: 5 - 20Ω
SCIA0723E
Continuity should exist.
SCIA0724E

AT-180
[EURO-OBD]
DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR
DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR
PFP:22620
DescriptionECS004S6
●Accelerator pedal position (APP) sensor
Electric throttle control actuator consists of throttle control motor,
acceleration pedal position sensor, throttle position sensor, etc.
The actuator sends a signal to the TCM.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
*:This code means Accelerator pedal position (APP) sensor in reality.
PBIB0498E
Monitor item Condition Specification
Accelerator pedal position (APP) sensor
(THRTL POS SEN)Fully-closed throttle Approximately 0.5V
Fully-open throttle Approximately 4V
Te r m i -
nal No.Wire color Item ConditionJudgement standard
(Approx.)
32 RThrottle position
sensor
(Power source)orWhen turning ignition switch “ON” 4.5 - 5.5V
When turning ignition switch “OFF” 0V
41 W/RThrottle position
sensorWhen depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)Fully-closed throttle:
0.5V
Fully-open throttle:
4V
42 BGround
(Throttle position
sensor)———
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: TP SEN/CIRC A/T*
TCM receives an excessively low or high
voltage from the sensor.
●Harness or connectors
(The sensor circuit is open or shorted.)
●Accelerator pedal position (APP) sensor
: P1705
