2001 NISSAN X-TRAIL sensor

CYLINDER HEAD
EM-183
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
a. Turn the ignition switch to “OFF”.
b. Disconnect battery negative terminal.
c. Install glow plug and install all the parts removed in step 4.
d. Install fuel supply pump fuse [ENG CONT (20A)].
e. Connect battery negative terminal.
f. Using CONSULT-II make sure no error code is indicated for items of self-diagnosis.
Removal and InstallationEBS00LRW
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
REMOVAL
1. Drain engine coolant. Refer to CO-29, "Changing Engine Coolant" .
2. Remove the following parts:
●Charge air cooler (Refer to EM-122, "Removal and Installation" .)
●Rocker cover (Refer to EM-156, "Removal and Installation" .)
●Air cleaner and air duct (Refer to EM-120, "Removal and Installation" .)
●Vacuum pump (Refer to EM-139, "Removal and Installation" .)
●Injection tube, spill tube and fuel injector (Refer to EM-144, "Removal and Installation" .)
●Intake manifold (Refer to EM-123, "Removal and Installation" .)
●Exhaust manifold and Turbocharger (Refer to EM-127, "Removal and Installation" .)
●Secondary timing chain (Refer to EM-167, "Removal and Installation" .)
●Camshaft (Refer to EM-158, "Removal and Installation" .)
SBIA0193E
1. Glow plug 2. Cylinder head assembly 3. Cylinder head bolt
4. Thermal transmitter 5. Engine coolant temperature sensor 6. Gasket
7. Water outlet 8. Glow plate

EM-186
[YD22DDTi]
CYLINDER HEAD
*: Measured with head bolts tightened
2. Apply a continuous bead of Genuine Liquid Gasket or equivalent
on the surface shown in the figure.
A: Apply bead so that it does not protrude into oil passage. Refer
to E M - 111 , "
Precautions For Liquid Gasket" .
B: Minimize the overlapping area of the bead, with start and end
areas of bead as shown in the figure.
Apply so that the portion marked * comes at an external loca-
tion but cannot be viewed externally after engine is assembled.
3. Install cylinder head assembly.
●Tighten bolts in numerical order as shown in the figure
according to the following procedure:
a. Apply engine oil to bolt threads and seat surfaces.
b. Tighten bolts to 29 to 38 N·m (2.9 to 3.9 kg-m, 21 to 28 ft-lb).
c. Tighten 180° to 185° [target: 180°] (angular tightening).
d. Loosen completely to 0 N·m (0 kg-m, 0 in-lb) in the reverse order
of that shown in the figure.
e. Tighten bolts to 35 to 44 N·m (3.5 to 4.5 kg-m, 26 to 32 ft-lb).
f. Tighten 90° to 95° [target: 90°] (angular tightening)
g. Tighten another 90° to 95° [target: 90°] (angular tightening).
●When an angle wrench is not used, paint an alignment
mark on the head of cylinder head bolt and cylinder head
surface before tightening. Check the angle with a protrac-
tor.
4. Install glow plug.
●To avoid damage, glow plugs should be removed only
when required.
●Handle with care to avoid applying shock. When dropped
from approx. 100 mm (3.94 in) or higher, always replace
with a new one.
●Before installing, remove carbon depositing on mounting hole of glow plug with a reamer.
5. Install engine coolant temperature sensor and thermal transmitter.
PBIC1256E
JEM149G
JEM166G

EM-194
[YD22DDTi]

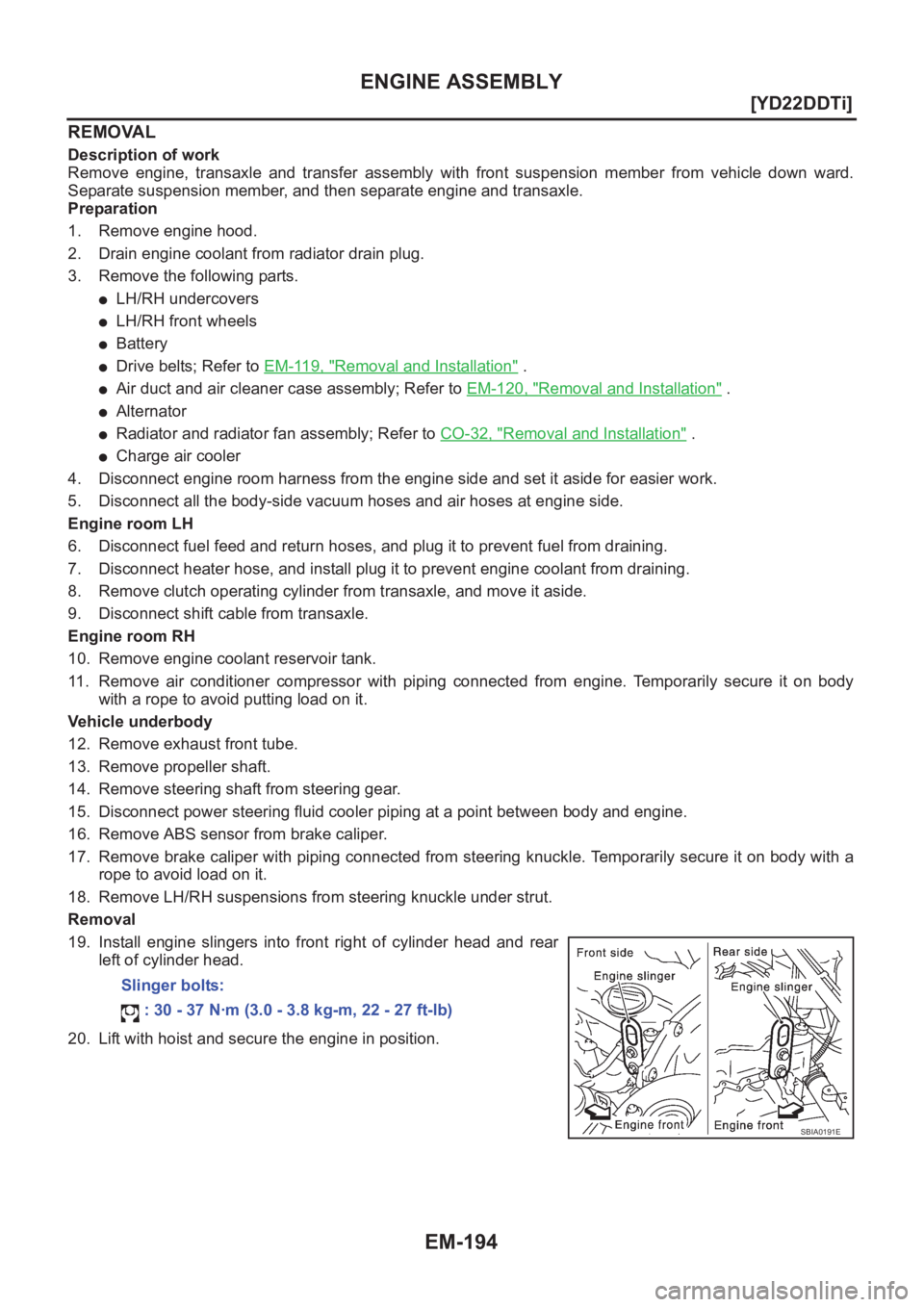

ENGINE ASSEMBLY
REMOVAL
Description of work
Remove engine, transaxle and transfer assembly with front suspension member from vehicle down ward.
Separate suspension member, and then separate engine and transaxle.
Preparation
1. Remove engine hood.
2. Drain engine coolant from radiator drain plug.
3. Remove the following parts.
●LH/RH undercovers
●LH/RH front wheels
●Battery
●Drive belts; Refer to EM-119, "Removal and Installation" .
●Air duct and air cleaner case assembly; Refer to EM-120, "Removal and Installation" .
●Alternator
●Radiator and radiator fan assembly; Refer to CO-32, "Removal and Installation" .
●Charge air cooler
4. Disconnect engine room harness from the engine side and set it aside for easier work.
5. Disconnect all the body-side vacuum hoses and air hoses at engine side.
Engine room LH
6. Disconnect fuel feed and return hoses, and plug it to prevent fuel from draining.
7. Disconnect heater hose, and install plug it to prevent engine coolant from draining.
8. Remove clutch operating cylinder from transaxle, and move it aside.
9. Disconnect shift cable from transaxle.
Engine room RH
10. Remove engine coolant reservoir tank.
11. Remove air conditioner compressor with piping connected from engine. Temporarily secure it on body
with a rope to avoid putting load on it.
Vehicle underbody
12. Remove exhaust front tube.
13. Remove propeller shaft.
14. Remove steering shaft from steering gear.
15. Disconnect power steering fluid cooler piping at a point between body and engine.
16. Remove ABS sensor from brake caliper.
17. Remove brake caliper with piping connected from steering knuckle. Temporarily secure it on body with a
rope to avoid load on it.
18. Remove LH/RH suspensions from steering knuckle under strut.
Removal
19. Install engine slingers into front right of cylinder head and rear
left of cylinder head.
20. Lift with hoist and secure the engine in position.Slinger bolts:
: 30 - 37 N·m (3.0 - 3.8 kg-m, 22 - 27 ft-lb)
SBIA0191E

EM-230
[YD22DDTi]

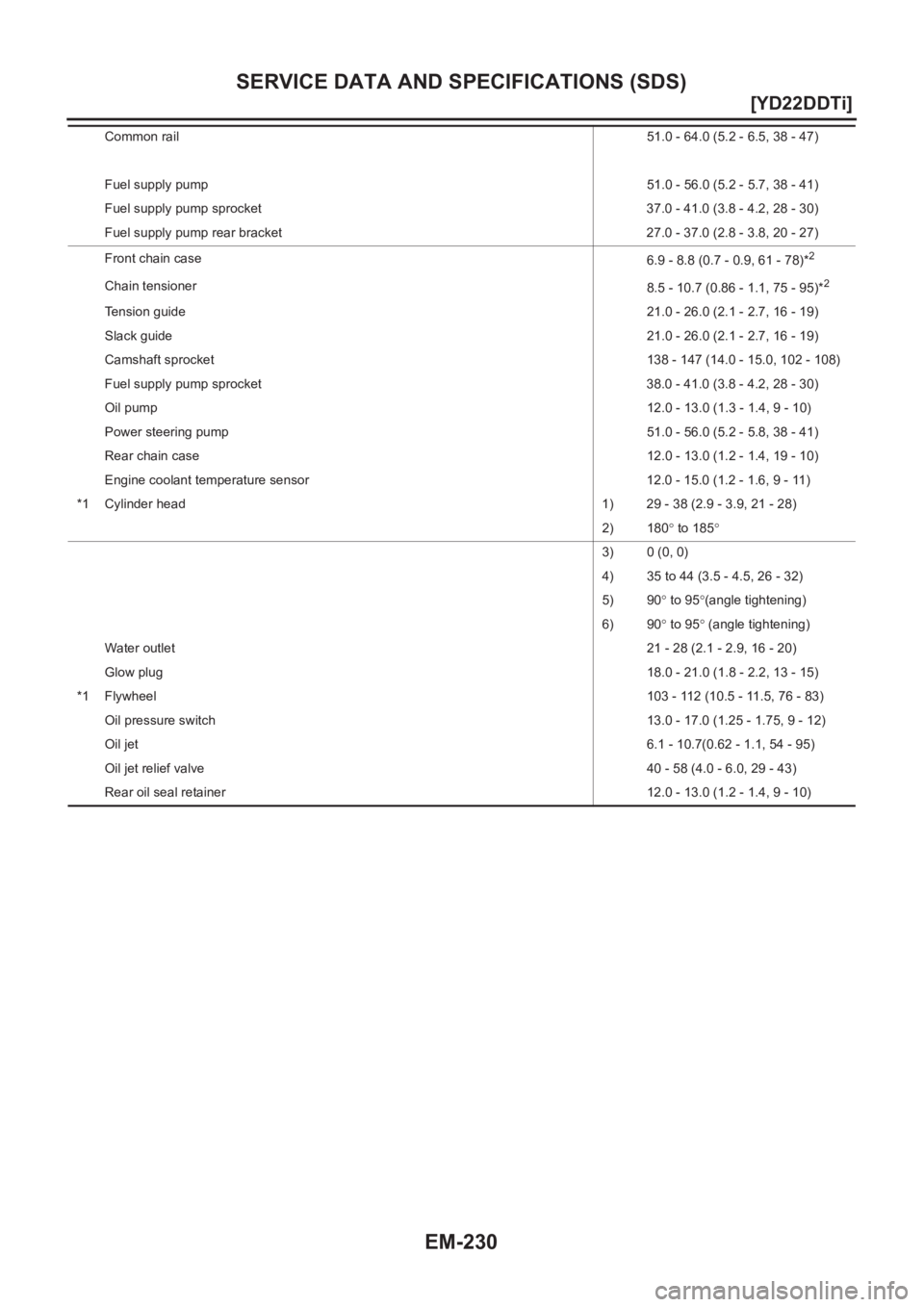

SERVICE DATA AND SPECIFICATIONS (SDS)
Common rail51.0 - 64.0 (5.2 - 6.5, 38 - 47)
Fuel supply pump51.0 - 56.0 (5.2 - 5.7, 38 - 41)
Fuel supply pump sprocket 37.0 - 41.0 (3.8 - 4.2, 28 - 30)
Fuel supply pump rear bracket 27.0 - 37.0 (2.8 - 3.8, 20 - 27)
Front chain case
6.9 - 8.8 (0.7 - 0.9, 61 - 78)*
2
Chain tensioner
8.5 - 10.7 (0.86 - 1.1, 75 - 95)*2
Tension guide21.0 - 26.0 (2.1 - 2.7, 16 - 19)
Slack guide21.0 - 26.0 (2.1 - 2.7, 16 - 19)
Camshaft sprocket 138 - 147 (14.0 - 15.0, 102 - 108)
Fuel supply pump sprocket 38.0 - 41.0 (3.8 - 4.2, 28 - 30)
Oil pump12.0 - 13.0 (1.3 - 1.4, 9 - 10)
Power steering pump51.0 - 56.0 (5.2 - 5.8, 38 - 41)
Rear chain case12.0 - 13.0 (1.2 - 1.4, 19 - 10)
Engine coolant temperature sensor 12.0 - 15.0 (1.2 - 1.6, 9 - 11)
*1 Cylinder head 1) 29 - 38 (2.9 - 3.9, 21 - 28)
2) 180° to 185°
3) 0 (0, 0)
4) 35 to 44 (3.5 - 4.5, 26 - 32)
5) 90° to 95°(angle tightening)
6) 90° to 95° (angle tightening)
Water outlet21 - 28 (2.1 - 2.9, 16 - 20)
Glow plug18.0 - 21.0 (1.8 - 2.2, 13 - 15)
*1 Flywheel103 - 112 (10.5 - 11.5, 76 - 83)
Oil pressure switch13.0 - 17.0 (1.25 - 1.75, 9 - 12)
Oil jet6.1 - 10.7(0.62 - 1.1, 54 - 95)
Oil jet relief valve40 - 58 (4.0 - 6.0, 29 - 43)
Rear oil seal retainer12.0 - 13.0 (1.2 - 1.4, 9 - 10)

CO-20
[QR]

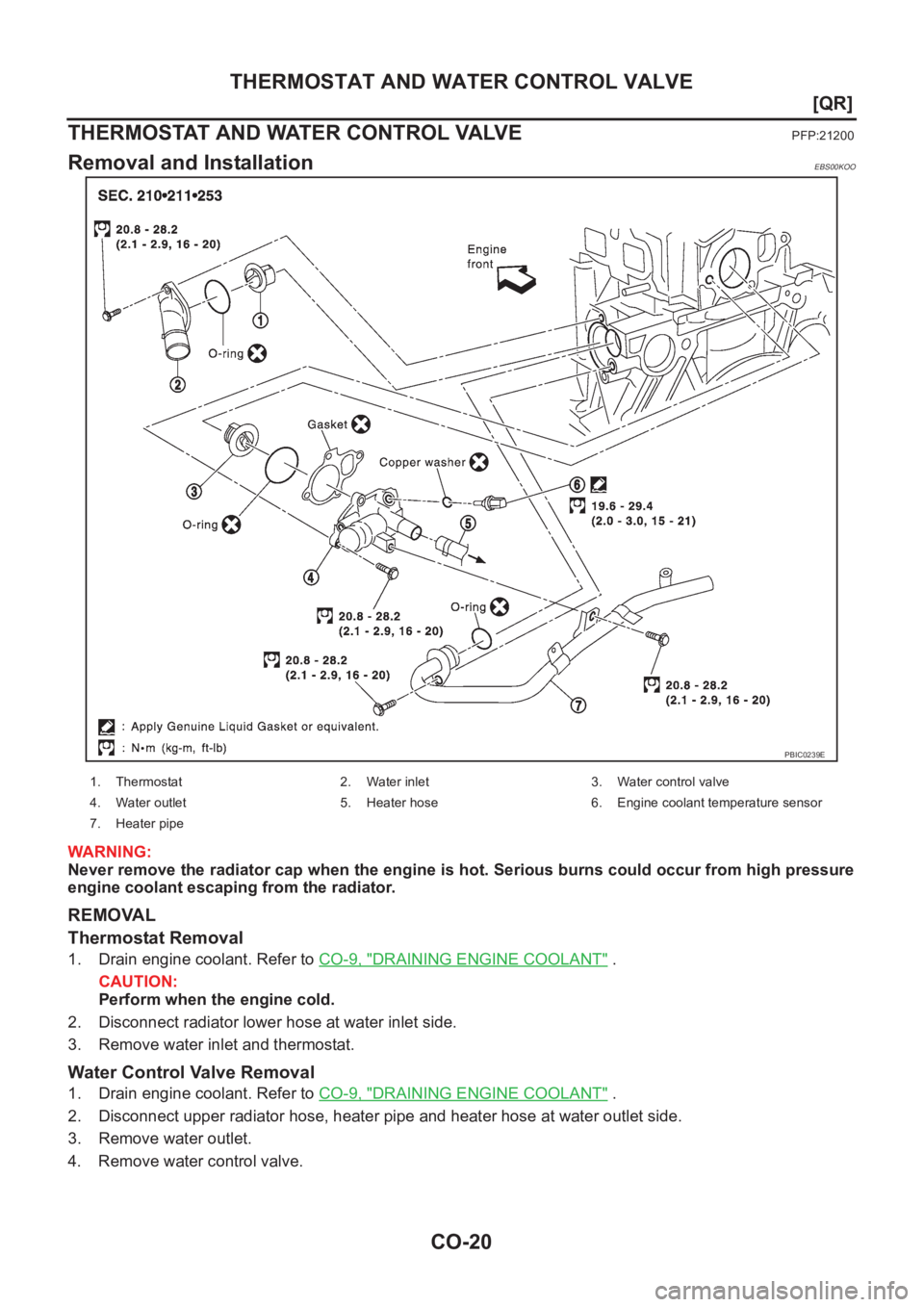

THERMOSTAT AND WATER CONTROL VALVE
THERMOSTAT AND WATER CONTROL VALVE
PFP:21200
Removal and InstallationEBS00KOO
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
engine coolant escaping from the radiator.
REMOVAL
Thermostat Removal
1. Drain engine coolant. Refer to CO-9, "DRAINING ENGINE COOLANT" .
CAUTION:
Perform when the engine cold.
2. Disconnect radiator lower hose at water inlet side.
3. Remove water inlet and thermostat.
Water Control Valve Removal
1. Drain engine coolant. Refer to CO-9, "DRAINING ENGINE COOLANT" .
2. Disconnect upper radiator hose, heater pipe and heater hose at water outlet side.
3. Remove water outlet.
4. Remove water control valve.
PBIC0239E
1. Thermostat 2. Water inlet 3. Water control valve
4. Water outlet 5. Heater hose 6. Engine coolant temperature sensor
7. Heater pipe

THERMOSTAT AND WATER CONTROL VALVE
CO-21
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO
INSPECTION AFTER REMOVAL
●Place a string so that it is caught in the valves of the thermostat
and water control valve. Immerse fully in a container filled with
water. Heat while stirring. (The example in the figure shows the
thermostat.)
●The valve opening temperature is the temperature at which the
valve opens and the falls from the thread.
●Continue heating. Check the full-open lift amount.
NOTE:
The full-open lift amount standard temperature for the water
control valve is the reference value.
● After checking the full-open lift amount, lower the water temper-
ature and check the valve closing temperature.
Standard values
INSTALLATION
Install in the reverse order of removal paying attention to the following.
●Install the engine coolant temperature sensor.
Use Genuine Liquid Gasket or equivalent.
Installation of Thermostat and Water Control Valve
●Install the thermostat and water control valve with the whole cir-
cumference of each flange part fit securely inside the rubber
ring. (The example in the figure shows the thermostat.)
●Install the thermostat with the jiggle valve facing upwards. (The
position deviation may be within the range of ±10°)
●Install the water control valve with the up-mark facing up and the
frame center part facing upwards. (The position deviation may
be within the range of ±10°)
Heater Pipe Installation
First apply a neutral detergent to the O-ring, then quickly insert the insertion parts of the heater pipe into the
installation holes.
SLC252B
Thermostat Water control valve
Valve opening temperature 80.5 - 83.5°C (177 - 182° F) 93.5 - 96.5°C (200 - 206°F)
Full-open lift amountMore than 8 mm/ 95°C
(0.315 in/ 203 °F)More than 8 mm/ 108°C
(0.315 in/ 226 ° F)
Valve closing temperature 77°C (171°F) 90°C (194° F)
PBIC0157E
PBIC0158E

CO-22
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Standard and LimitEBS00KOP
CAPACITY
Unit: (lmp qt)
THERMOSTAT
WATER CONTROL VALVE
RADIATOR
Unit: kPa (bar, kg/cm2 , psi)
Tightening TorqueEBS00KOQ
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)*
Engine coolant capacity [With reservoir tank (MAX level)] Approximately 7.1 (6-1/4)
Reservoir tank0.6 (1/2)
Valve opening temperature 80.5 - 83.5°C (177 - 182°F)
Valve liftMore than 8 mm/ 95°C (0.315 in/203°F)
Valve closing temperature 77°C (171°F)
Valve opening temperature 93.5 - 96.5°C (200 - 206°F)
Valve liftMore than 8 mm/108°C (0.315 in/226°F)
Valve closing temperature 90°C (194° F)
Cap relief pressureStandard 78 - 98 (0.78 - 0.98, 0.8 - 1.0, 11- 14)
Limit 59 (0.59, 0.6, 9)
Leakage test pressure 157 (1.57, 1.6, 23)
Cylinder block drain plug 7.8 - 11.8 (0.8 - 1.2, 69 - 104)*
Radiator mounting bracket 3.8 - 4.5 (0.39 - 0.46, 34 - 39)*
Radiator fan assembly 3.8 - 4.5 (0.39 - 0.46, 34 - 39)*
Radiator fan2.9 - 3.9 (0.30 - 0.40, 26 - 34)*
Radiator fan motor 3.9 - 4.9 (0.40 - 0.50, 35 - 43)*
Water pump20.8 - 28.2 (2.1 - 2.9, 16 - 20)
Water pump housing 20.8 - 28.2 (2.1 - 2.9, 16 - 20)
Water inlet20.8 - 28.2 (2.1 - 2.9, 16 - 20)
Water outlet20.8 - 28.2 (2.1 - 2.9, 16 - 20)
Water pipe20.8 - 28.2 (2.1 - 2.9, 16 - 20)
Hater pipe20.8 - 28.2 (2.1 - 2.9, 16 - 20)
Engine coolant temperature sensor 19.6 - 29.4 (2.0 - 3.0, 15 - 21)

EC-1

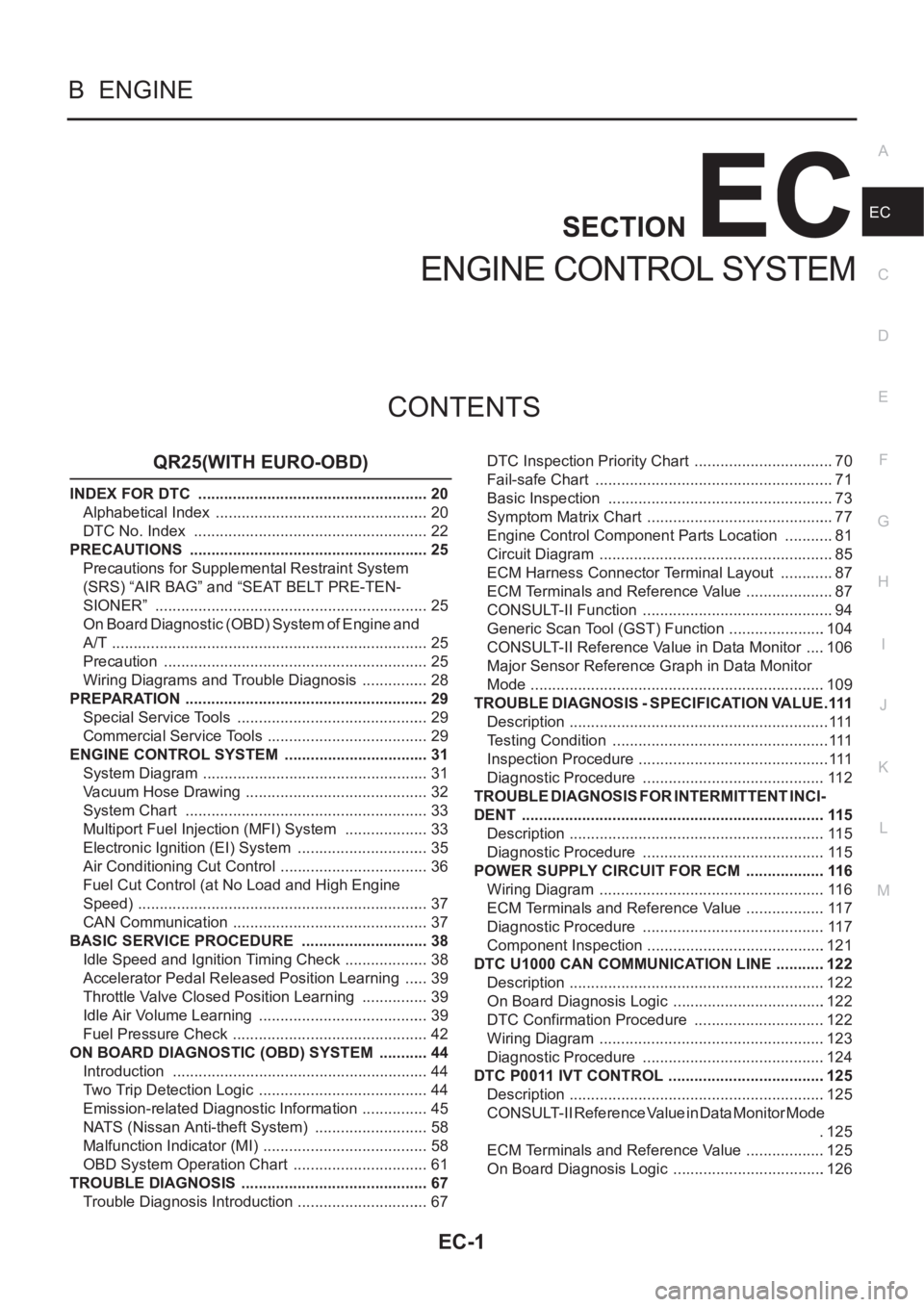

ENGINE CONTROL SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION
A
EC
ENGINE CONTROL SYSTEM
QR25(WITH EURO-OBD)
INDEX FOR DTC ...................................................... 20
Alphabetical Index .................................................. 20
DTC No. Index ....................................................... 22
PRECAUTIONS ........................................................ 25
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ................................................................ 25
On Board Diagnostic (OBD) System of Engine and
A/T .......................................................................... 25
Precaution .............................................................. 25
Wiring Diagrams and Trouble Diagnosis ................ 28
PREPARATION ......................................................... 29
Special Service Tools ............................................. 29
Commercial Service Tools ...................................... 29
ENGINE CONTROL SYSTEM .................................. 31
System Diagram ..................................................... 31
Vacuum Hose Drawing ........................................... 32
System Chart ......................................................... 33
Multiport Fuel Injection (MFI) System .................... 33
Electronic Ignition (EI) System ............................... 35
Air Conditioning Cut Control ................................... 36
Fuel Cut Control (at No Load and High Engine
Speed) .................................................................... 37
CAN Communication .............................................. 37
BASIC SERVICE PROCEDURE .............................. 38
Idle Speed and Ignition Timing Check .................... 38
Accelerator Pedal Released Position Learning ...... 39
Throttle Valve Closed Position Learning ................ 39
Idle Air Volume Learning ........................................ 39
Fuel Pressure Check .............................................. 42
ON BOARD DIAGNOSTIC (OBD) SYSTEM ............ 44
Introduction ............................................................ 44
Two Trip Detection Logic ........................................ 44
Emission-related Diagnostic Information ................ 45
NATS (Nissan Anti-theft System) ........................... 58
Malfunction Indicator (MI) ....................................... 58
OBD System Operation Chart ................................ 61
TROUBLE DIAGNOSIS ............................................ 67
Trouble Diagnosis Introduction ............................... 67DTC Inspection Priority Chart ................................. 70
Fail-safe Chart ........................................................ 71
Basic Inspection ..................................................... 73
Symptom Matrix Chart ............................................ 77
Engine Control Component Parts Location ............ 81
Circuit Diagram ....................................................... 85
ECM Harness Connector Terminal Layout ............. 87
ECM Terminals and Reference Value ..................
... 87
CONSULT-II Function ............................................. 94
Generic Scan Tool (GST) Function .......................104
CONSULT-II Reference Value in Data Monitor .....106
Major Sensor Reference Graph in Data Monitor
Mode .....................................................................109
TROUBLE DIAGNOSIS - SPECIFICATION VALUE ..111
Description .............................................................111
Testing Condition ...................................................111
Inspection Procedure .............................................111
Diagnostic Procedure ...........................................112
TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-
DENT .......................................................................115
Description ............................................................115
Diagnostic Procedure ...........................................115
POWER SUPPLY CIRCUIT FOR ECM ...................116
Wiring Diagram .....................................................116
ECM Terminals and Reference Value ...................117
Diagnostic Procedure ...........................................117
Component Inspection ..........................................121
DTC U1000 CAN COMMUNICATION LINE ............122
Description ............................................................122
On Board Diagnosis Logic ....................................122
DTC Confirmation Procedure ...............................122
Wiring Diagram .....................................................123
Diagnostic Procedure ...........................................124
DTC P0011 IVT CONTROL .....................................125
Description ............................................................125
CONSULT-II Reference Value in Data Monitor Mode
.125
ECM Terminals and Reference Value ...................125
On Board Diagnosis Logic ....................................126
