EM-82
[QR]
CYLINDER BLOCK
16. Install flywheel (M/T model) or drive plate (A/T model).
●Install drive plate, reinforcement plate and pilot converter as
shown in figure (A/T model).
●Using drift of 33 mm (1.30 in) in diameter, push pilot converter
into the end of crankshaft (A/T model).
17. Install knock sensor.
●Make sure that there is no foreign material on the cylinder
block mating surface and the back surface of the knock sen-
sor.
●Install sensor with connector facing lower left by 45° as
shown.
●D o n o t t i g h t e n t h e m o u n t i n g b o l t s w h i l e h o l d i n g t h e c o n n e c t o r.
●Make sure that the knock sensor does not interfere with other-
parts.
CAUTION:
If any impact by dropping is applied to the knock sensor,
replace it with new one.
18. Install crankshaft position (POS) sensor.
19. Install followings in reverse order of removal.
How to Select Piston and Bearing EBS00KNV
DESCRIPTION
*For the service parts, the grade for fitting cannot be selected between a piston pin and a connecting rod.
(Only 0 grade is available.) The information at the shipment from the plant is described as a reference.
●The identification grade stamped on each part is the grade for the dimension measured in new condition.
This grade cannot apply to reused parts.
●For reused or repaired parts, measure the dimension accurately. Determine the grade by comparing the
measurement with the values of each selection table.
●For details of the measurement method of each part, the reuse standards and the selection method of the
selective fitting parts, refer to the text.
KBIA0075E
KBIA0069E
Selection points Selection parts Selection items Selection methods
Between cylinder block to
crankshaftMain bearingMain bearing grade (bearing
thickness)Determined by match of cylin-
der block bearing housing
grade (inner diameter of hous-
ing) and crankshaft journal
grade (outer diameter of jour-
nal)
Between crankshaft to connect-
ing rodConnecting rod bearingConnecting rod bearing grade
(bearing thickness)Combining service grades for
connecting rod big end inner
diameter and crankshaft pin
outer diameter determine con-
necting rod bearing selection.
Between cylinder block to pis-
tonPiston and piston pin assembly
The piston is available together
with piston pin as an assembly.Piston grade (piston outer
diameter)Piston grade = cylinder bore
grade (inner diameter of bore)
*Between piston to connecting
rod———

EM-108
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)
Bearing Oil Clearance
Unit: mm (in)
Tightening TorqueEBS00KNY
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)*2
Connecting rod bearing oil clearanceStandard 0.028 - 0.045 (0.0011 - 0.0018)
Limit 0.10 (0.0039)
*1: Parts to be tightened in particular orders.
1)-: Order of tightening when tightening two or more times separately.
Auto-tensioner 19.6 - 23.5 (2.0 - 2.4, 15 - 17)
Mass air flow sensor
3.8 - 4.5 (0.39 - 0.46, 34 - 39) *
2
Resonator
3.8 - 4.5 (0.39 - 0.46, 34 - 39)*2
Air cleaner case lower
3.8 - 4.5 (0.39 - 0.46, 34 - 39)*2
*1 Intake manifold17.6 - 21.6 (1.8 - 2.2, 13 - 15)
Intake manifold collector 17.6 - 21.6 (1.8 - 2.2, 13 - 15)
Intake manifold support 17.6 - 21.6 (1.8 - 2.2, 13 - 15)
Electric throttle control actuator
7.2 - 9.6 (0.74 - 0.98, 64 - 84) *
2
EVAP canister purge volume control solenoid valve
4.3 - 5.8 (0.44 - 0.59, 38 - 51) *2
*1 Exhaust manifold 39.2 - 44.1 (4.0 - 4.5, 29 - 32)
Exhaust manifold cover
5.1 - 6.5 (0.52 - 0.66, 46 - 57) *
2
Heated oxygen sensor 40 - 50 (4.1 - 5.1, 30 - 36)
*1 Oil pan upper M6 bolt
8.1 - 9.5 (0.83 - 0.97, 72 - 84) *
2
M8 bolt 19.6 - 23.5 (2.0 - 2.4, 15 - 17)
Oil pan upper to transmission joint bolts 39.2 - 46.1 (4.0 - 4.7, 29 - 34)
*1 Oil pan lower
6.4 - 7.5 (0.65 - 0.76, 57 - 66) *
2
Oil pan drain plug29.4 - 39.2 (3.0 - 4.0, 22 - 28)
Rear plate cover
6.4 - 7.5 (0.65 - 0.76, 57 - 66) *
2
Oil strainer M6 bolt
8.1 - 9.5 (0.83 - 0.97, 72 - 84) *2
M8 bolt 19.6 - 23.5 (2.0 - 2.4, 15 - 17)
Oil level gauge guide 19.6 - 23.5 (2.0 - 2.4, 15 - 17)
Ignition coil
5.4 - 7.3 (0.55 - 0.75, 48 - 64) *
2
Spark plug19.6 - 29.4 (2.0 - 3.0, 15 - 21)
*1 Fuel tube1)
2)9.3 - 10.8 (0.95 - 1.1, 0.7 - 0.8) *
2
20.6 - 26.5 (2.1 - 2.7, 16 - 19)
*1 Rocker cover1)
2)0.98 - 2.9 (0.1 - 0.3, 9 - 25) *
2
7.4 - 9.3 (0.75 - 0.95, 66 - 82) *2
PCV valve
1.96 - 2.94 (0.20 - 0.30, 18 - 26) *2
Intake valve timing control solenoid valve
5.4 - 7.3 (0.55 - 0.75, 48 - 64) *2
*1 Intake valve timing control cover 11.8 - 13.7 (1.2 - 1.4, 9 - 10)
Camshaft position sensor (PHASE)
5.4 - 7.3 (0.55 - 0.75, 48 - 64) *
2
Camshaft sprocket (Intake and Exhaust) 127- 157 (13.0 - 16.0, 94 - 115)
Chain tensioner
6.4 - 7.5 (0.65 - 0.76, 57 - 66) *
2

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-109
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
*1 Camshaft bracket 1)
2)
3)
4)2.0 (0.2, 17) *2
2.0 (0.2, 17) *2
5.9 (0.6, 52) *2
9.0 - 11.8 (0.92 - 1.20, 80 - 104) *2
Crankshaft pulley 1)
2)37.3 - 47.1 (3.8 - 4.8, 28 - 34)
60° - 66° (Angle tightening)
*1 Front cover 11.8 - 13.7 (1.2 - 1.4, 9 - 10)
Timing chain slack guide 15.7 - 17.7 (1.6 - 1.8, 12 - 13)
Timing chain tension guide 15.7 - 17.7 (1.6 - 1.8, 12 - 13)
Balancer unit timing chain tensioner
6.4 - 7.5 (0.65 - 0.76, 57 - 66) *
2
*1 Balancer unit 1) 45.2 - 51.0 (4.6 - 5.2, 34 - 37)
2) 90° - 95° (Angle tightening)
3) 0 (0.0, 0)
4) 45.2 - 51.0 (4.6 - 5.2, 34 - 37)
5) 90° - 95° (Angle tightening)
*1 Cylinder head 1) 98.1 (10.0, 72)
2) 0 (0.0, 0)
3) 34.3 - 44.1 (3.54.5, 26 - 32)
4) 75° - 80° (Angle tightening)
5) 75° - 80° (Angle tightening)
Flywheel (M/T)103 - 113 (10.5 - 11.5, 76 - 83)
Drive plate (A/T)103 - 113 (10.5 - 11.5, 76 - 83)
Connecting rod bearing cap 1) 18.6 - 20.6 (1.9 - 2.1, 14 - 15)
2) 90° - 95° (Angle tightening)
*1 Lower cylinder block M10 bolt 1) 36.3 - 42.2 (3.7 - 4.3, 27 - 31)
M10 bolt 2) 60° - 65° (Angle tightening)
M8 bolt 3) 19.6 - 24.5 (2.0 - 2.5, 15 - 18)
Knock sensor 15.7 - 26.5 (1.6 - 2.7, 12 - 19)
Oil pressure switch 12.3 - 17.2 (1.25 -1.75, 9 - 12)
Signal plate12 - 14 (1.2 - 1.4, 9 - 10)
Crankshaft position sensor (POS)
5.4 - 7.3 (0.55 - 0.75, 48 - 64) *
2

EM-120
[YD22DDTi]
AIR CLEANER AND AIR DUCT
AIR CLEANER AND AIR DUCT
PFP:16500
Removal and InstallationEBS00LRD
REMOVAL
1. Remove mass air flow sensor harness clamp.
2. Disconnect harness connector from mass air flow sensor.
3. Remove air duct, air cleaner case/ mass air flow sensor.
●Add marks as necessary for easier installation.
4. Remove mass air flow sensor from air cleaner case.
CAUTION:
Handle mass air flow sensor with following cares.
●Do not shock it.
●Do not disassemble it.
●Do not touch its sensor.
INSTALLATION
1. Attach each joint aligning marks put at removal. Screw clamps firmly.
2. Install in the reverse order of removal.
PBIC1235E
1. Air cleaner case (upper) 2. Clamp 3. Air duct
4. Mass air flow sensor 5. Grommet 6. Air duct side
7. Mounting rubber 8. Air cleaner case (lower) 9. Air cleaner filter

OIL PAN AND OIL STRAINER
EM-133
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

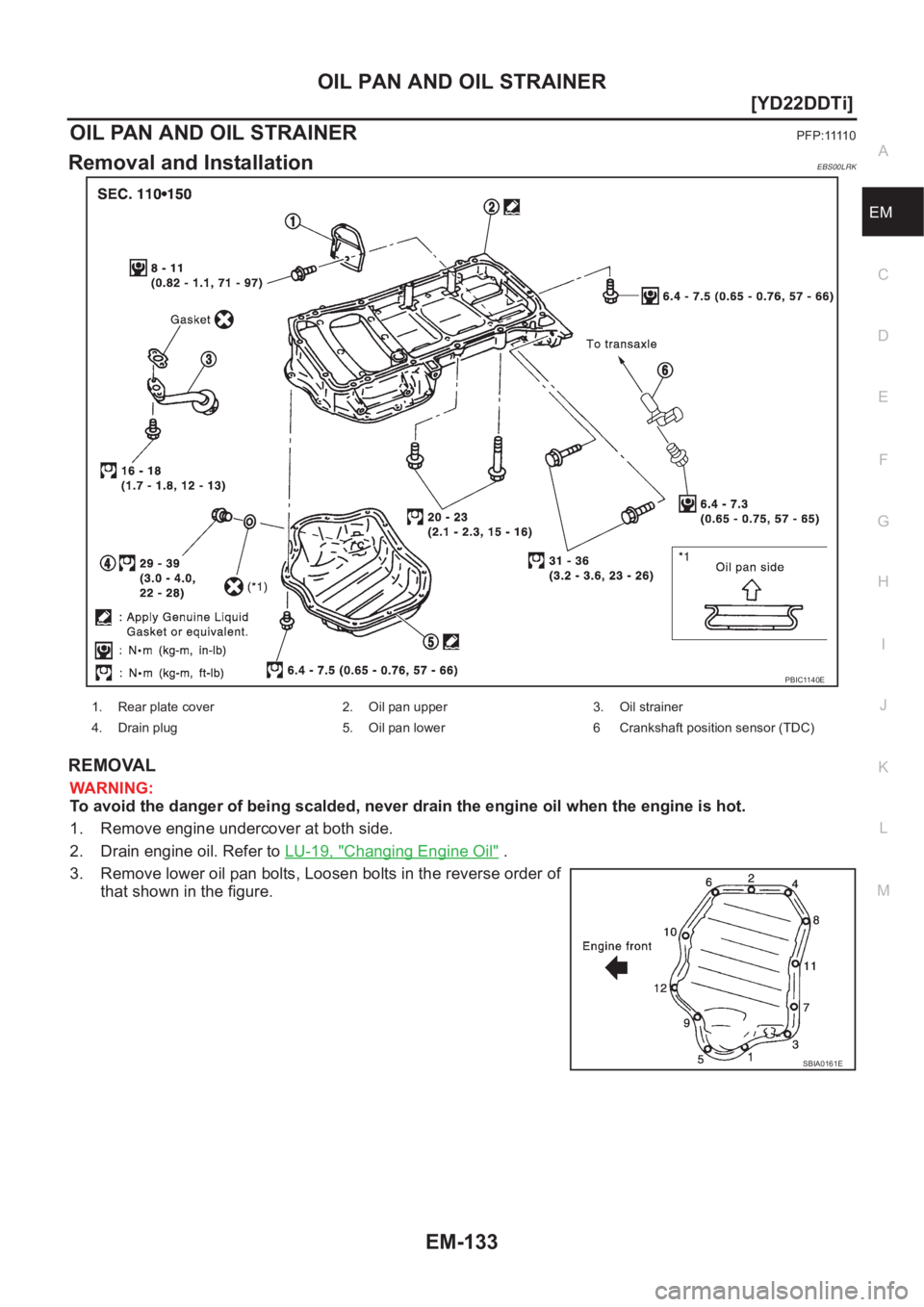

OIL PAN AND OIL STRAINERP F P : 1111 0
Removal and InstallationEBS00LRK
REMOVAL
WARNING:
To avoid the danger of being scalded, never drain the engine oil when the engine is hot.
1. Remove engine undercover at both side.
2. Drain engine oil. Refer to LU-19, "
Changing Engine Oil" .
3. Remove lower oil pan bolts, Loosen bolts in the reverse order of
that shown in the figure.
PBIC1140E
1. Rear plate cover 2. Oil pan upper 3. Oil strainer
4. Drain plug 5. Oil pan lower 6 Crankshaft position sensor (TDC)
SBIA0161E

EM-134
[YD22DDTi]
OIL PAN AND OIL STRAINER
4. Remove lower oil pan.
a. Insert Tool (seal cutter) between upper oil pan and lower oil pan.
●Be careful not to damage aluminum mating surface.
●Do not insert screwdriver, or oil pan flange will be
deformed.
b. Slide Tool by tapping on the side of the Tool with a hammer.
c. Remove lower oil pan.
5. Remove drive belts.
6. Remove A/C compressor and bracket.
7. Remove front exhaust tube and its support.
8. Set a suitable transmission jack under transaxle and hoist
engine with engine slinger. Refer to EM-193, "
Removal and
Installation" .
9. Remove center member.
10. Remove crankshaft position sensor (TDC) from transaxle.
CAUTION:
●Avoid impacts such as a dropping.
●Do not disassemble.
●Keep it away from metal particles.
●Do not place sensor close to magnetic materials.
11. Remove rear plate cover and four engine-to transaxle bolts.
12. Remove catalyst and rear diffuser. Refer to EM-126, "
Removal
and Installation" .
SEM544G
SEM545G
JEM553G
PBIB0416E

EM-136
[YD22DDTi]
OIL PAN AND OIL STRAINER
c. Apply Genuine Liquid Gasket or equivalent, to areas shown in
the figure.
●At the 8 bolt holes marked , liquid gasket should be
applied outside holes.
●Be sure liquid gasket is 3.5 to 4.5 mm (0.138 to 0.177 in)
or 4.5 to 5.5 mm (0.177 to 0.217 in) wide. (Be careful that
the diameter of the silicon bead is different around the
front.)
●Attaching should be done within 5 minutes after coating.
d. Install upper oil pan.
●Tighten bolts in numerical order to specified torque.
●Bolt dimensions vary depending on the installation location.
Refer to the following and use appropriate bolts.
●The shank length under the bolt neck above is the length of
the threaded part (pilot portion not included).
3. Tighten transaxle joint bolts.
4. Install rear plate cover.
5. Install center member.
6. Install crankshaft position sensor (TDC).
7. Install lower oil pan.
a. Use a scraper to remove old liquid gasket from mating surfaces.
●Also remove old liquid gasket from mating surface of
upper oil pan.
JEM118G
M6 x 30 mm (1.18 in) : Bolt No. 15, 16
M8 x 25 mm (0.98 in) : Bolt No. 3, 4, 9, 10
M8 x 60 mm (2.36 in) : Bolt No. 1, 2, 5, 6, 7, 8,
11, 12, 13, 14
SBIA0162E
PBIB0416E
SBIA0163E

VACUUM PUMP
EM-141
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
15. Disconnect vacuum hose from vacuum pump side.
16. Remove camshaft position sensor.
17. Remove cylinder head rear cover plate.
18. Loosen and remove the installation bolts in rear cam sprocket.
●Loosen rear cam sprocket installation bolts by fixing the hexagonal portion of the camshaft.
19. Remove vacuum pump and cylinder head rear cover assembly.
●Remove and install vacuum pump, sprocket, drive chain and
chain guide as an assembly.
●Loosen mounting bolts in reverse order shown in figure.
●Do not remove any bolts not shown in figure. (Especially
never remove M6 bolts on vacuum pump.)
●Use seal cutter (special service tool) or other suitable tool to
remove.
INSTALLATION
1. Install vacuum pump and cylinder head rear cover assembly
onto cylinder head. Refer to EM-142, "
ASSEMBLY" .
●Apply Genuine Liquid Gasket or equivalent (Refer to EM-111,
"Precautions For Liquid Gasket" .) to area shown in the figure.
●Attaching should be done with in 5 minutes after coating.
2. Tighten mounting bolts in order shown in the figure.
3. Install rear cam sprocket mounting bolts by fixing the hexagonal
portion of the camshaft.
4. Tighten rear cam sprocket mounting bolts.
5. Install cylinder head rear cover plate.
●Apply Genuine Liquid Gasket or equivalent (Refer to EM-111,
"Precautions For Liquid Gasket" .) to area shown in the figure.
●Attaching should be done with in 5 minutes after coating.
CAUTION:
Never start engine with vacuum circuit being open. If
engine is started and vehicle is running while vacuum
pump is open (with vacuum hose disconnected), blow-by
flow rate will increase and engine may be damaged.
6. Install in reverse order of removal after this step.
●When vacuum hose is connected, insert it securely by at least
15 mm (0.59 in).
SBIA0167E
PBIC1141E
SBIA0167E
SBIA0169E
