2001 NISSAN X-TRAIL Ec-47

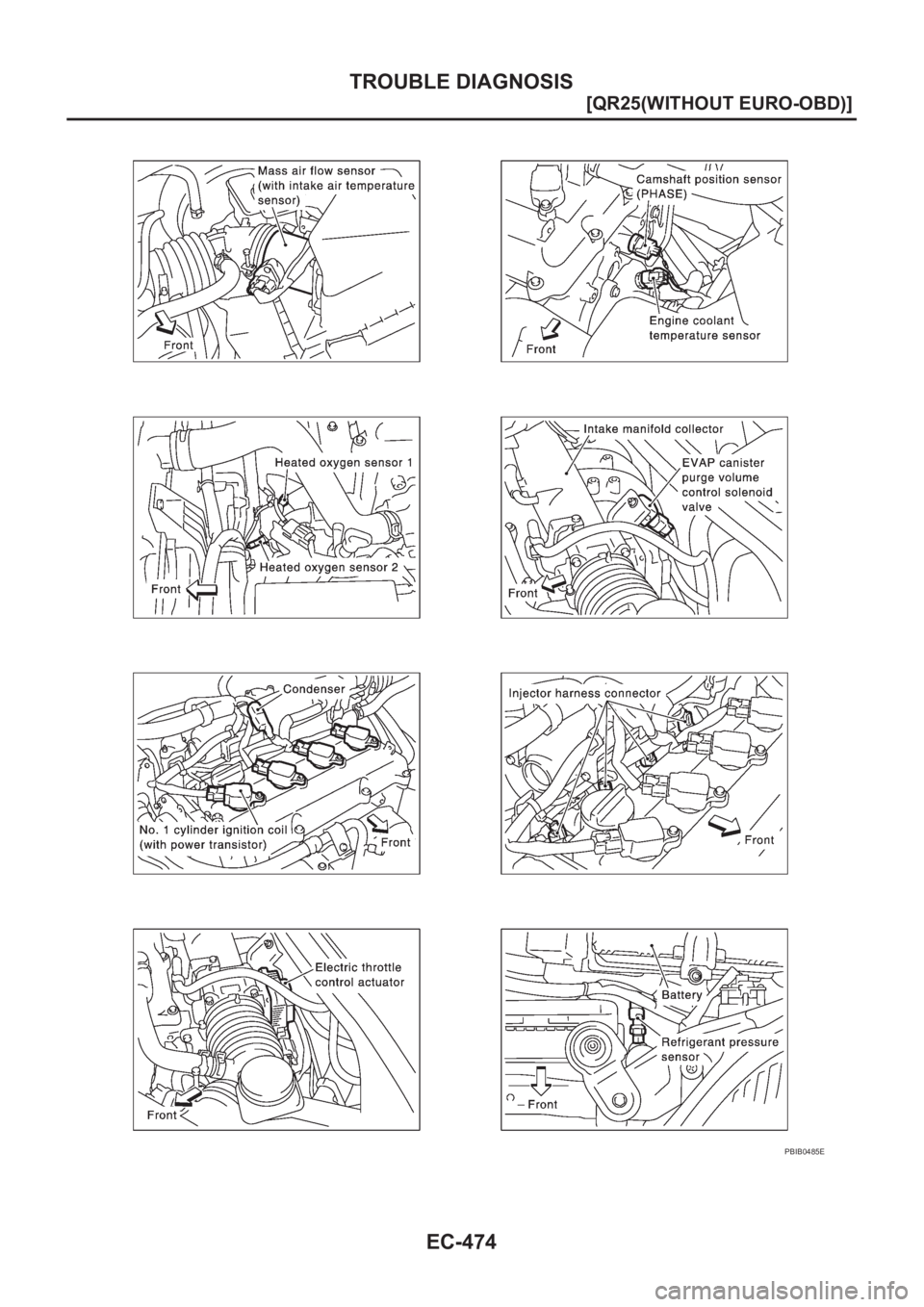

EC-474
[QR25(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
PBIB0485E

TROUBLE DIAGNOSIS

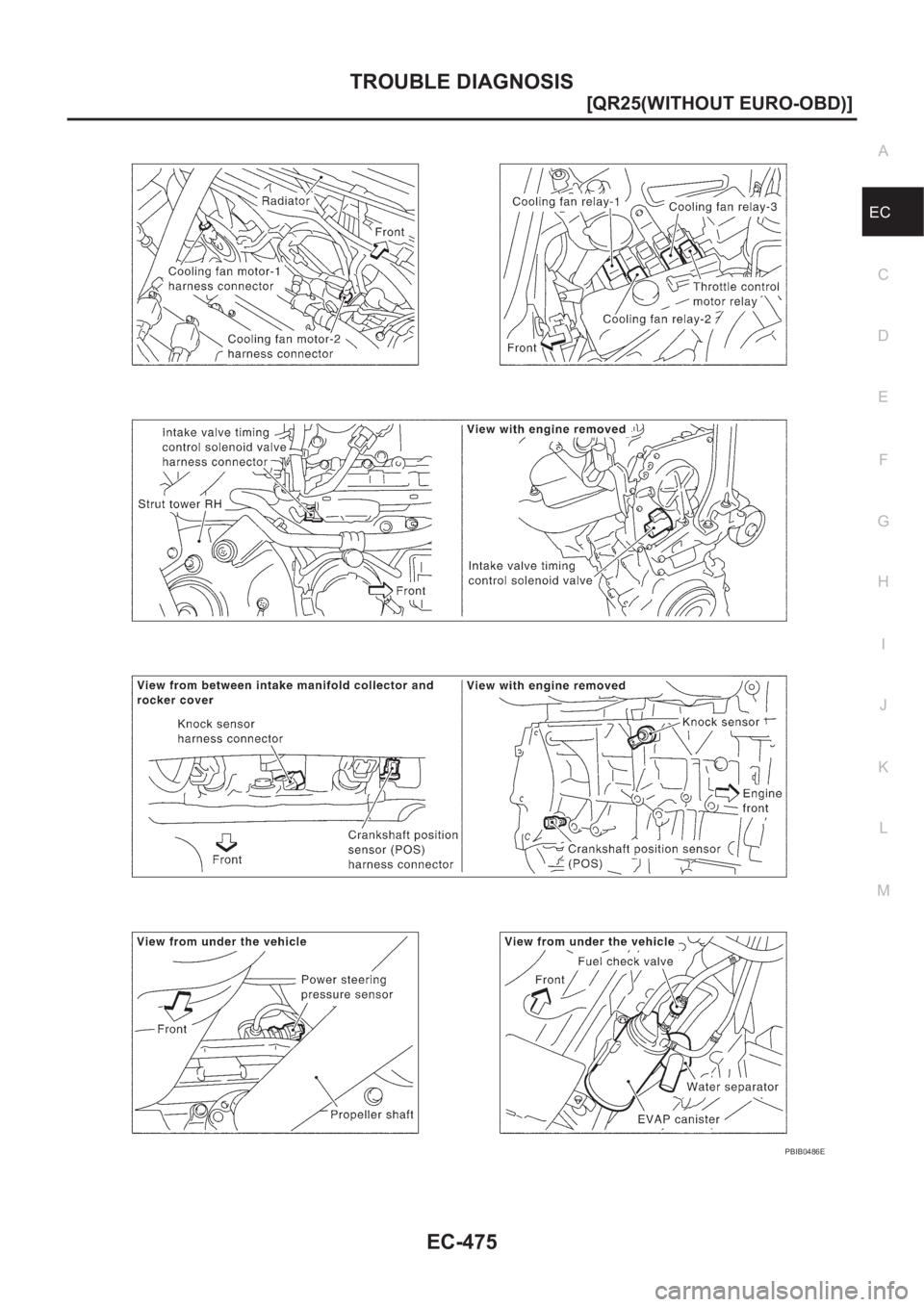

EC-475
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PBIB0486E

EC-476
[QR25(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
PBIB1444E

TROUBLE DIAGNOSIS
EC-477
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

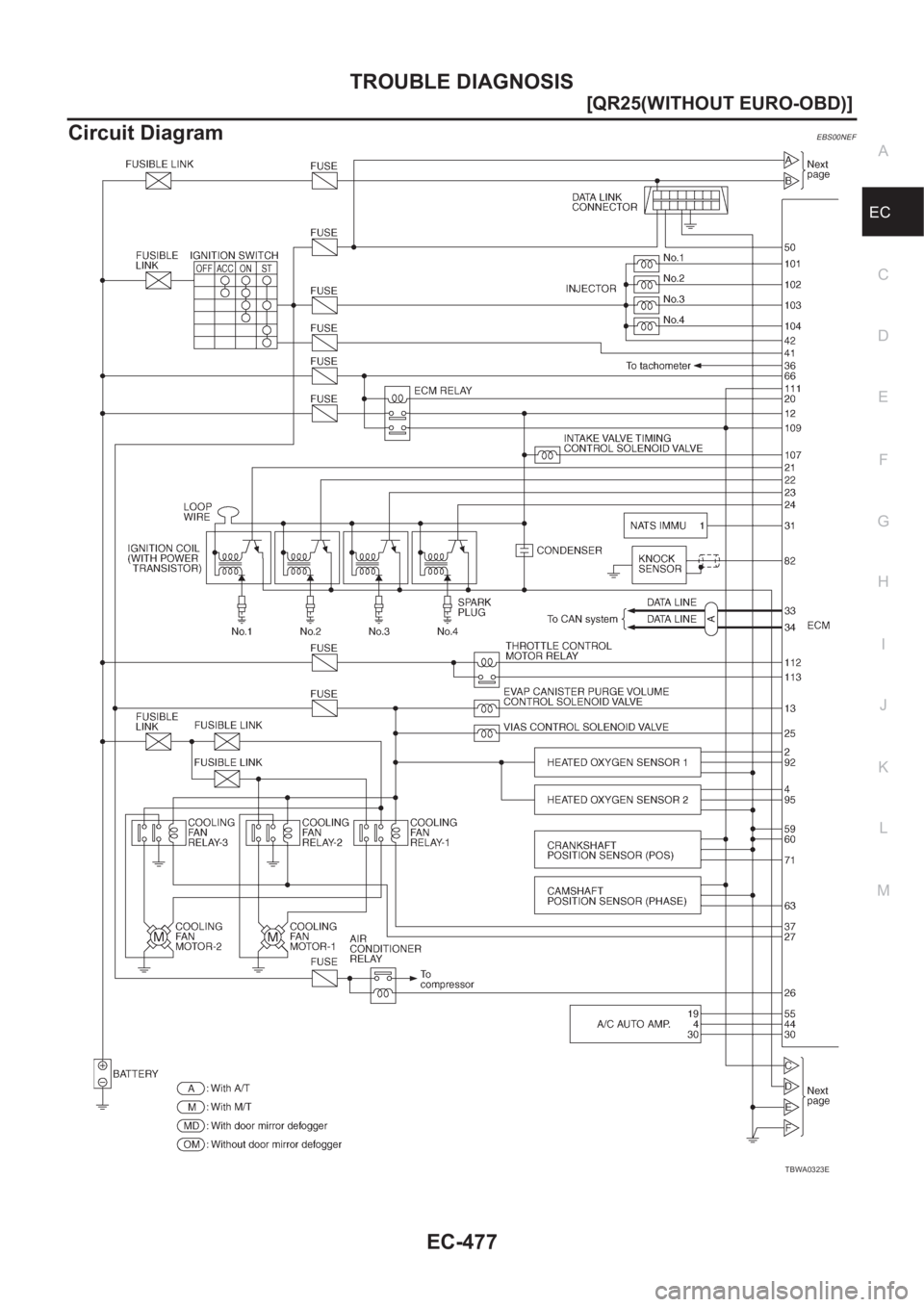

Circuit DiagramEBS00NEF
TBWA0323E

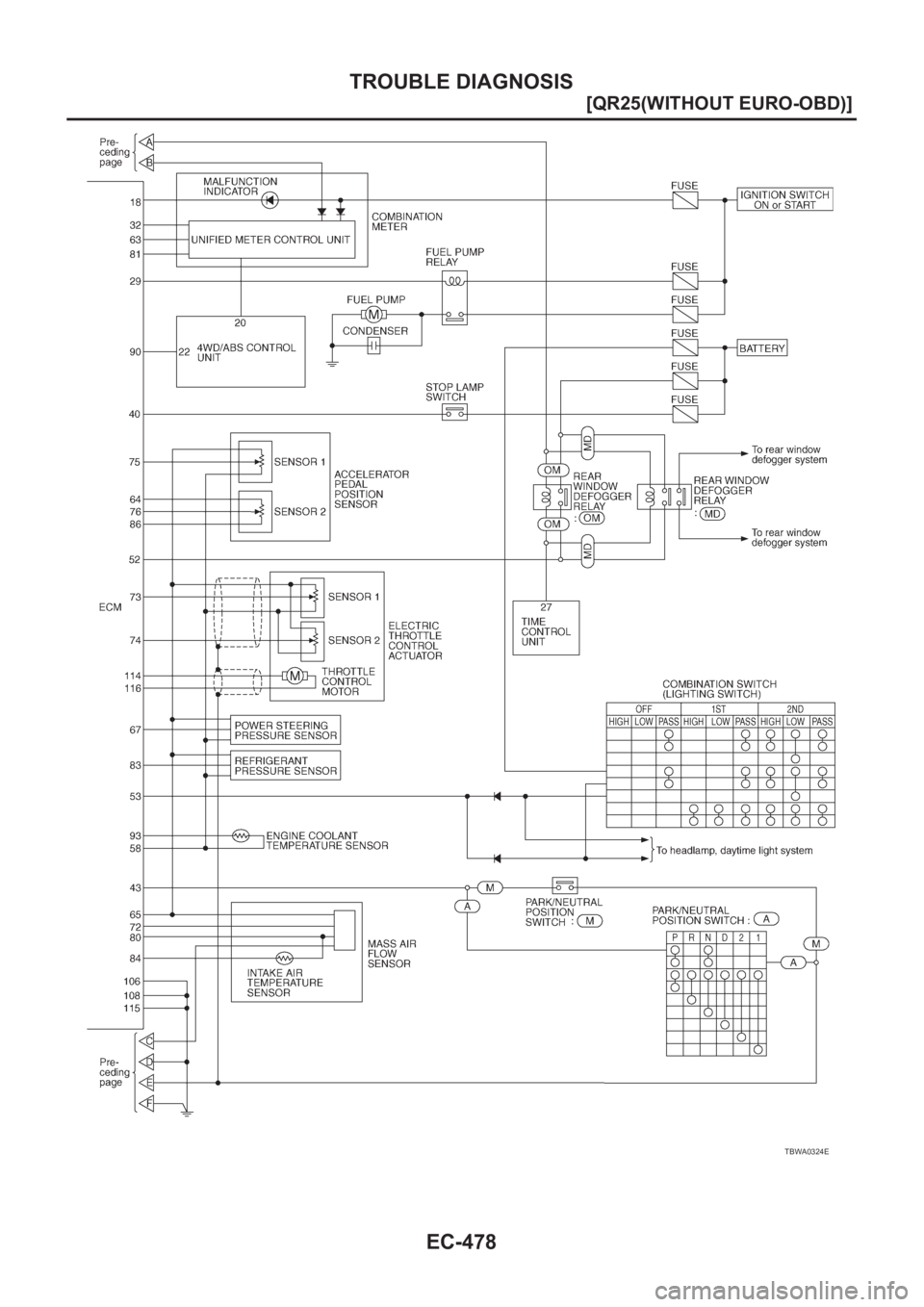

EC-478
[QR25(WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
TBWA0324E

TROUBLE DIAGNOSIS
EC-479
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

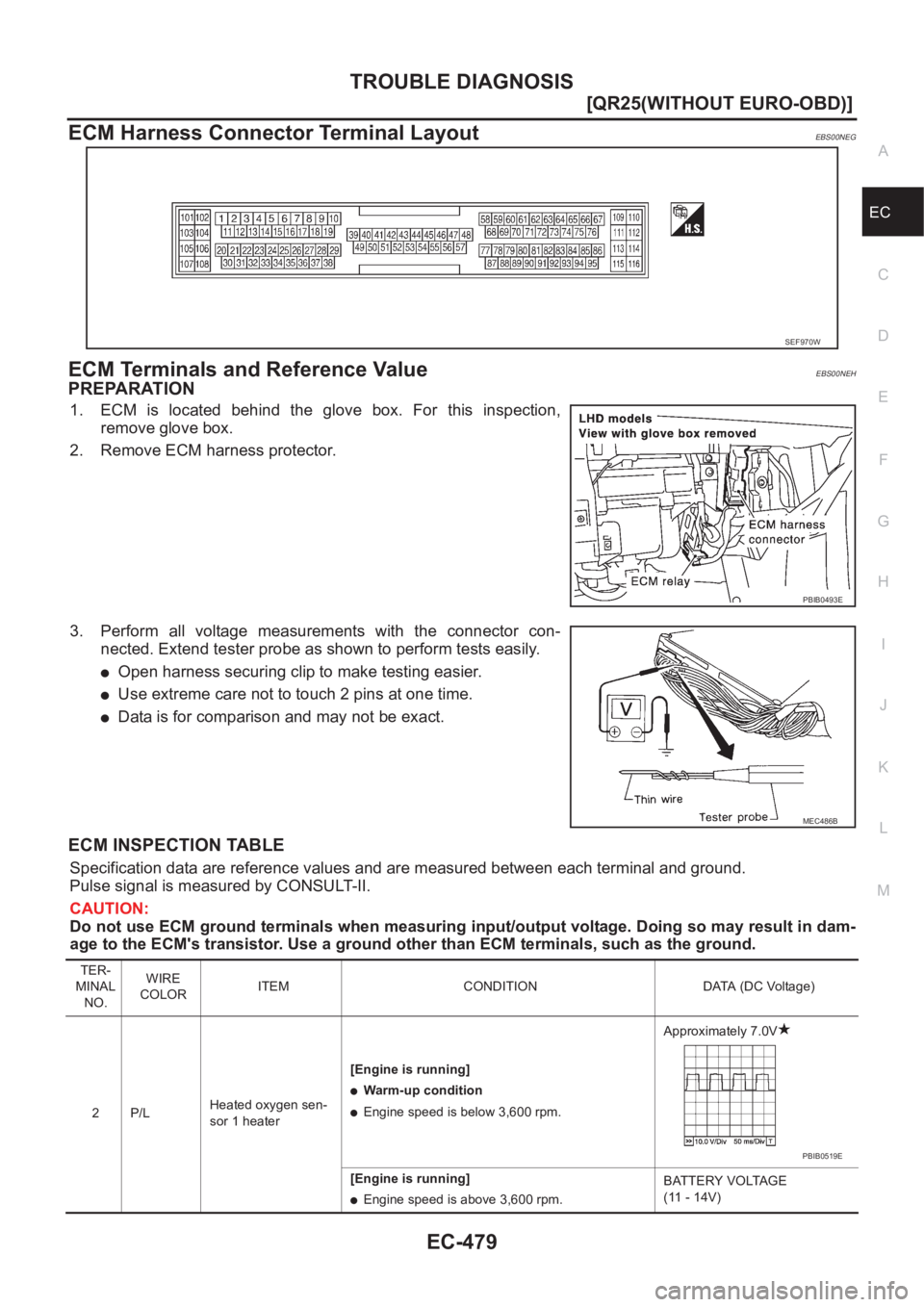

ECM Harness Connector Terminal LayoutEBS00NEG
ECM Terminals and Reference ValueEBS00NEH
PREPARATION
1. ECM is located behind the glove box. For this inspection,
remove glove box.
2. Remove ECM harness protector.
3. Perform all voltage measurements with the connector con-
nected. Extend tester probe as shown to perform tests easily.
●Open harness securing clip to make testing easier.
●Use extreme care not to touch 2 pins at one time.
●Data is for comparison and may not be exact.
ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
SEF970W
PBIB0493E
MEC486B
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
2P/LHeated oxygen sen-
sor 1 heater[Engine is running]
●Warm-up condition
●Engine speed is below 3,600 rpm.Approximately 7.0V
[Engine is running]
●Engine speed is above 3,600 rpm.BATTERY VOLTAGE
(11 - 14V)
PBIB0519E

AT-308
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
*2: These terminals are connected to the ECM.
*3: These terminals are connected to the data link connector.32 *2 RThrottle position
sensor
(Power source)
or When turning ignition switch to “ON”. 4.5 - 5.5V
When turning ignition switch to
“OFF”.0V
34 W/GPNP switch “D”
position
and When setting selector lever to “D”
position.Battery voltage
When setting selector lever to other
positions.0V
35 L/WPNP switch “R”
positionWhen setting selector lever to “R”
position.Battery voltage
When setting selector lever to other
positions.0V
36 GPNP switch “N” or
“P” positionWhen setting selector lever to “N” or
“P” position.Battery voltage
When setting selector lever to other
positions.0V
39 *2 L/OREngine speed sig-
nal
and Refer to EC-479, "
ECM INSPEC-
TION TABLE" (QR25DE) or EC-
1166, "ECM INSPECTION TABLE"
(QR20DE).—
40 L/BVehicle speed
sensorWhen moving vehicle at 2 to 3 km/h
(1 to 2 MPH) for 1 m (3 ft) or more.Voltage varies
between less
than 0V and
more than 4.5V
41 W/RThrottle position
sensorWhen depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)Fully-closed
throttle: 0.5V
Fully-open throt-
tle: 4V
42 BThrottle position
sensor
(Ground)———
45 P Stop lamp switchWhen depressing brake pedal. Battery voltage
When releasing brake pedal. 0V
47 BRA/T fluid tempera-
ture sensorWhen ATF temperature is 20°C
(68°F).1.5V
When ATF temperature is 80°C
(176°F).0.5V
48 B/W Ground — — — Te r m i -
nal No.Wire color Item ConditionJudgementstan-
dard(Approx.)

AT-392
[ALL]
ENGINE SPEED SIGNAL
ENGINE SPEED SIGNAL
PFP:24825
DescriptionECS004UC
The engine speed signal is sent from the ECM to the TCM.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 10 km/h
(6 MPH), throttle opening greater than 1/8 of the full throttle
position and driving for more than 10 seconds.
Without CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 10 km/h
(6 MPH), throttle opening greater than 1/8 of the full throttle
position and driving for more than 10 seconds.
3. Perform self-diagnosis.
Refer to AT- 2 5 3 , "
SELF-DIAGNOSTIC PROCEDURE (WITH-
OUT CONSULT-II)" .
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
39 L/OREngine speed
signalandRefer to EC-479, "
ECM INSPECTION TABLE"
(QR25DE) or EC-1166, "ECM INSPECTION
TABLE" (QR20DE).—
Diagnostic trouble code Malfunction is detected when... Check item (Possible cause)
: ENGINE SPEED SIG
TCM does not receive the proper voltage
signal from ECM.
●Harness or connectors
(The sensor circuit is open or shorted.)
: 9th judgement flicker
SAT014K
SCIA0703E
