Page 2437 of 3833
DTC VEHICLE SPEED SENSOR MTR
AT-359
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Without CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in “D” position and vehicle speed higher than 20
km/h (12 MPH).
3. Perform self-diagnosis.
Refer to AT- 2 5 3 , "
SELF-DIAGNOSTIC PROCEDURE (WITH-
OUT CONSULT-II)" .
SCIA0696E
Page 2438 of 3833
AT-360
[ALL]
DTC VEHICLE SPEED SENSOR MTR
Wiring Diagram — AT — VSSMTR
ECS004TN
TCWA0038E
Page 2439 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC VEHICLE SPEED SENSOR MTR
AT-361
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004TO
1.CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONI NISSAN X-TRAIL 2001 Service Repair Manual DTC VEHICLE SPEED SENSOR MTR
AT-361
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004TO
1.CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONI](/manual-img/5/57405/w960_57405-2438.png)

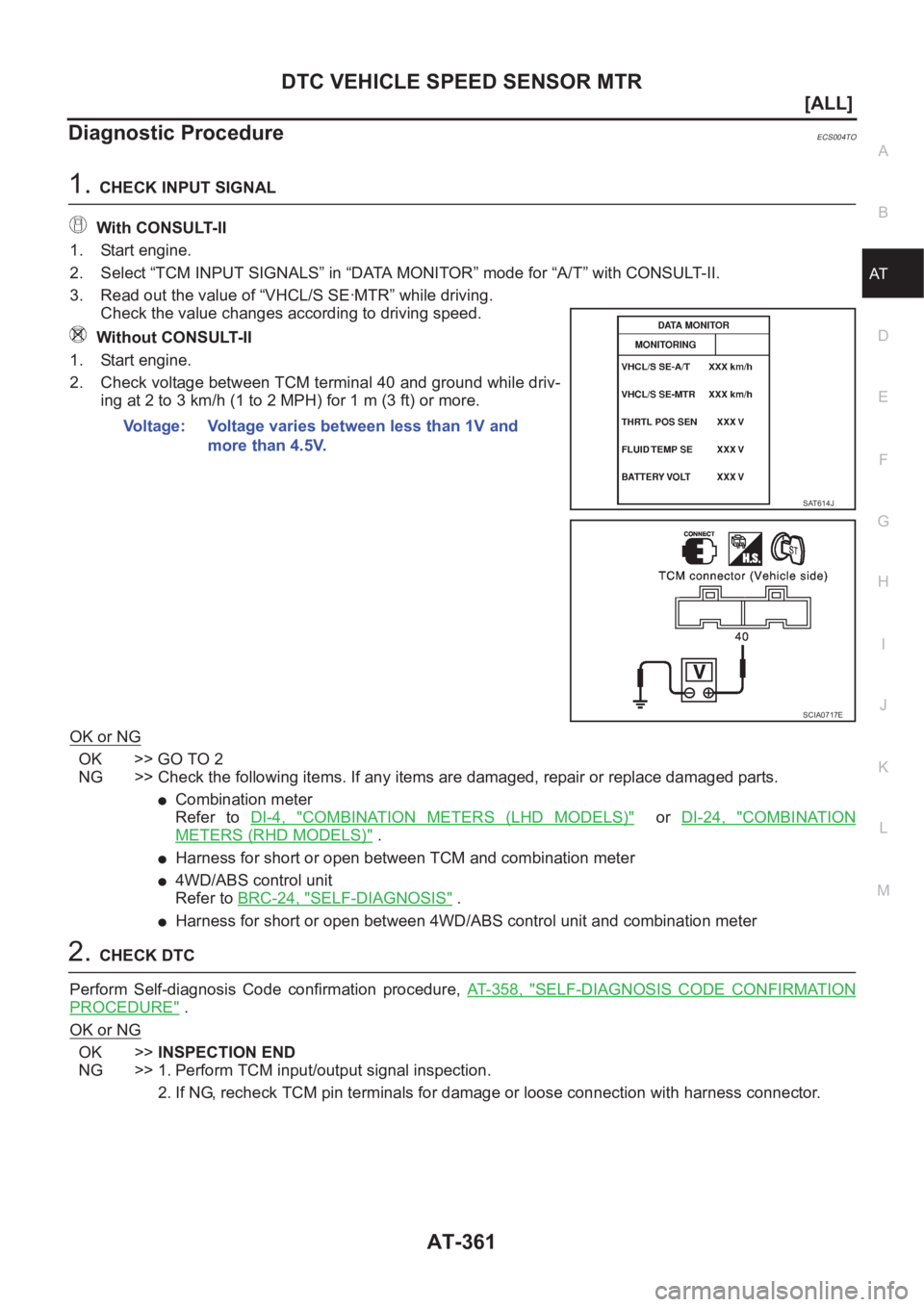

DTC VEHICLE SPEED SENSOR MTR
AT-361
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004TO
1.CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE·MTR” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM terminal 40 and ground while driv-
ing at 2 to 3 km/h (1 to 2 MPH) for 1 m (3 ft) or more.
OK or NG
OK >> GO TO 2
NG >> Check the following items. If any items are damaged, repair or replace damaged parts.
●Combination meter
Refer to DI-4, "
COMBINATION METERS (LHD MODELS)" or DI-24, "COMBINATION
METERS (RHD MODELS)" .
●Harness for short or open between TCM and combination meter
●4WD/ABS control unit
Refer to BRC-24, "
SELF-DIAGNOSIS" .
●Harness for short or open between 4WD/ABS control unit and combination meter
2.CHECK DTC
Perform Self-diagnosis Code confirmation procedure, AT- 3 5 8 , "
SELF-DIAGNOSIS CODE CONFIRMATION
PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Voltage: Voltage varies between less than 1V and
more than 4.5V.
SAT614J
SCIA0717E
Page 2440 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-362
[ALL]
ACCELE RATOR PEDAL POSITION (APP) SENSOR
ACCELE RATOR PEDAL POSITION (APP) SENSOR
PFP:22620
DescriptionECS004TP
●Accelerator pedal position (APP) sensor
Electric throttle control actuat NISSAN X-TRAIL 2001 Service Repair Manual AT-362
[ALL]
ACCELE RATOR PEDAL POSITION (APP) SENSOR
ACCELE RATOR PEDAL POSITION (APP) SENSOR
PFP:22620
DescriptionECS004TP
●Accelerator pedal position (APP) sensor
Electric throttle control actuat](/manual-img/5/57405/w960_57405-2439.png)
AT-362
[ALL]
ACCELE RATOR PEDAL POSITION (APP) SENSOR
ACCELE RATOR PEDAL POSITION (APP) SENSOR
PFP:22620
DescriptionECS004TP
●Accelerator pedal position (APP) sensor
Electric throttle control actuator consists of throttle control motor,
acceleration pedal position sensor, throttle position sensor, etc.
The actuator sends a signal to the TCM.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
*:This code means Accelerator pedal position (APP) sensor in reality.
PBIB0498E
Monitor item Condition Specification
Accelerator pedal position (APP) sensor
(THRTL POS SEN)Fully-closed throttle Approximately 0.5V
Fully-open throttle Approximately 4V
Termi-
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
32 RThrottle position
sensor
(Power source)
or When turning ignition switch “ON”. 4.5 - 5.5V
When turning ignition switch “OFF”. 0V
41 W/RThrottle position
sensorWhen depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)Fully-closed throttle:
0.5V
Fully-open throttle:
4V
42 BGround
(Throttle position
sensor)———
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: THROTTLE POSI SEN*
TCM receives an excessively low or high
voltage from the sensor.
●Harness or connectors
(The sensor circuit is open or shorted.)
●Accelerator pedal position (APP) sensor
: 3rd judgement flicker
Page 2441 of 3833
ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-363
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 10 km/h
(6 MPH), throttle opening greater than 1/2 of the full throttle
position and driving for more than 3 seconds.
Without CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 10 km/h
(6 MPH), throttle opening greater than 1/2 of the full throttle
position and driving for more than 3 seconds.
3. Perform self-diagnosis.
Refer to AT- 2 5 3 , "
SELF-DIAGNOSTIC PROCEDURE (WITH-
OUT CONSULT-II)" .
SAT014K
SCIA0697E
Page 2442 of 3833
AT-364
[ALL]
ACCELE RATOR PEDAL POSITION (APP) SENSOR
Wiring Diagram — AT — TPS
ECS004TQ
TCWA0039E
Page 2443 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-365
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004TR
1.CHECK DTC WITH ECM
●Check P code with CONSULT-II “ENGINE”.
Turn ignition switch ON NISSAN X-TRAIL 2001 Service Repair Manual ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-365
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004TR
1.CHECK DTC WITH ECM
●Check P code with CONSULT-II “ENGINE”.
Turn ignition switch ON](/manual-img/5/57405/w960_57405-2442.png)
ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-365
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004TR
1.CHECK DTC WITH ECM
●Check P code with CONSULT-II “ENGINE”.
Turn ignition switch ON and select “SELF DIAGNOSTIC RESULTS” mode for “ENGINE” with CONSULT-II.
Refer to EC-457, "
Malfunction Indicator (MI)" (QR25DE) or EC-1144, "Malfunction Indicator (MI)" (QR20DE).
OK or NG
OK (With CONSULT-II)>>GO TO 2.
OK (Without CONSULT-II)>>GO TO 3.
NG >> Check throttle position sensor circuit for engine control.
2.CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “THRTL POS SEN”.
OK or NG
OK >> GO TO 4.
NG >> Check harness for short or open between ECM and
TCM regarding throttle position sensor circuit.
SAT014K
Vo l t a g e :
Fully-closed throttle :Approximately 0.5V
Fully-open throttle :Approximately 4V
SAT614J
Page 2444 of 3833
AT-366
[ALL]
ACCELE RATOR PEDAL POSITION (APP) SENSOR
3. CHECK INPUT SIGNAL (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 41 and 42 while accelerator pedal is depressed slowly.
(Voltage rises gradually in response to throttle position.)
OK or NG
OK >> GO TO 4.
NG >> Check harness for short or open between ECM and
TCM regarding throttle position sensor circuit.
4. CHECK DTC
Perform Self-diagnosis Code confirmation procedure. Refer to AT- 3 6 3 , "
SELF-DIAGNOSIS CODE CONFIR-
MATION PROCEDURE" .
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Voltage:
Fully-closed throttle valve :Approximately 0.5V
Fully-open throttle valve :Approximately 4V
SCIA0710E
