2001 NISSAN X-TRAIL sensor

AT-328
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
A/T Does Not Shift: D
2→ D3ECS004VB
SYMPTOM:
A/T does not shift from D
2 to D3 at the specified speed.
1. CHECK SYMPTOM
Are Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position and Vehicle Cannot Be Started From D
1 OK?
Ye s o r N o
Yes >> GO TO 2.
No >> Go to AT- 3 2 1 , "
Vehicle Does Not Creep Forward In “D”,“2” Or “1” Position" , AT- 3 2 3 , "Veh ic le
Cannot Be Started From D1" .
2. CHECK CONTROL CABLE
Check control cable. Refer to AT- 4 1 6 , "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
3. CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 5 3 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 3 5 8 , "DTC VEHICLE SPEED SENSOR
MTR" (Except for Euro-OBD).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
4. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 3 6 2 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR" —Except for
Euro-OBD.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
SAT023JB
PBIB0498E

AT-330
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
A/T Does Not Shift: D
3→ D4ECS004VC
SYMPTOM:
●A/T does not shift from D3 to D4 at the specified speed.
●A/T must be warm before D3 to D4 shift will occur.
1. CHECK SYMPTOM
Are Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position and Vehicle Cannot Be Started From D
1 OK?
Ye s o r N o
Yes >> GO TO 2.
No >> Go to AT- 3 2 1 , "
Vehicle Does Not Creep Forward In “D”,“2” Or “1” Position" .
2. CHECK SELF-DIAGNOSTIC RESULTS
With CONSULT-II
Does self-diagnosis, after cruise test, show damage to any of the following circuits?
●PNP switch
●Overdrive control switch
●A/T fluid temperature sensor
●Vehicle speed sensor·A/T (revolution sensor)
●Shift solenoid valve A or B
●Vehicle speed sensor·MTR
Ye s o r N o
Ye s > >●Check damaged circuit. Refer to the following items.
Except for Euro-OBD
–AT- 3 5 3 , "VEHICLE SPEED SENSOR·A/T (REVOLU-
TION SENSOR)"
–AT- 3 6 7 , "SHIFT SOLENOID VALVE A"
–AT- 3 7 2 , "SHIFT SOLENOID VALVE B"
–AT- 3 8 6 , "BATT/FLUID TEMP SEN (A/T FLUID TEMP
SENSOR CIRCUIT AND TCM POWER SOURCE)"
–AT- 3 5 8 , "DTC VEHICLE SPEED SENSOR MTR"
–AT- 3 4 4 , "TCM Self-diagnosis Does Not Activate"
No >> GO TO 3.
3. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 3 6 2 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR" —Except for
Euro-OBD
OK or NG
OK >> GO TO 4
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
SCIA0771E
PBIB0498E

AT-332
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
A/T Does Not Perform Lock-up
ECS004VD
SYMPTOM:
A/T does not perform lock-up at the specified speed.
1. CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to A/T fluid temperature sensor, vehicle speed sensor·A/T (revolution sen-
sor), engine speed signal or torque converter clutch solenoid valve circuit after cruise test?
Ye s o r N o
Yes >> Check damaged circuit. Refer to AT- 3 8 1 , "TORQUE CONVERTER CLUTCH SOLENOID VALVE"
,AT- 3 8 6 , "BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE)" , AT- 3 5 3 , "VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" , AT- 3 9 2 ,
"ENGINE SPEED SIGNAL" .— Except for Euro-OBD
No >> GO TO 2.
2. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 3 6 2 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR" (Except for
Euro-OBD).
OK or NG
OK >> GO TO 3.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
3. DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Torque converter clutch control valve
–Torque converter relief valve
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check torque converter.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
PBIB0498E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-335
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Lock-up Is Not ReleasedECS004VF
SYMPTOM:
Lock-up is not released when accelerator pedal is released.
1.CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage accelerator pedal position (APP) sensor
circuit?
Without CONSULT-II
Does self-diagnosis show damage to accelerator pedal position
(APP) sensor circuit?
Ye s o r N o
Yes >> Check accelerator pedal position (APP) sensor circuit.
Refer to AT- 3 4 4 , "
TCM Self-diagnosis Does Not Acti-
vate" .
No >> GO TO 2.
2.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SAT367J

AT-336
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
Engine Speed Does Not Return To Idle (Light Braking D
4→ D3 )ECS004VG
SYMPTOM:
●Engine speed does not smoothly return to idle when A/T shifts from D4 to D3 .
●Vehicle does not decelerate by engine brake when turning overdrive control switch OFF.
●Vehicle does not decelerate by engine brake when shifting A/T from “D” to “2” position.
1. CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to overrun clutch solenoid valve
circuit after cruise test?
Ye s o r N O
Yes >> Check overrun clutch solenoid valve circuit. Refer to AT-
377, "OVERRUN CLUTCH SOLENOID VALVE"
(Except for Euro-OBD).
No >> GO TO 2.
2. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 3 6 2 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR" —Except for
Euro-OBD.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
3. CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 4.
NG >> GO TO 6.
SCIA0774E
PBIB0498E
SAT171B

AT-338
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

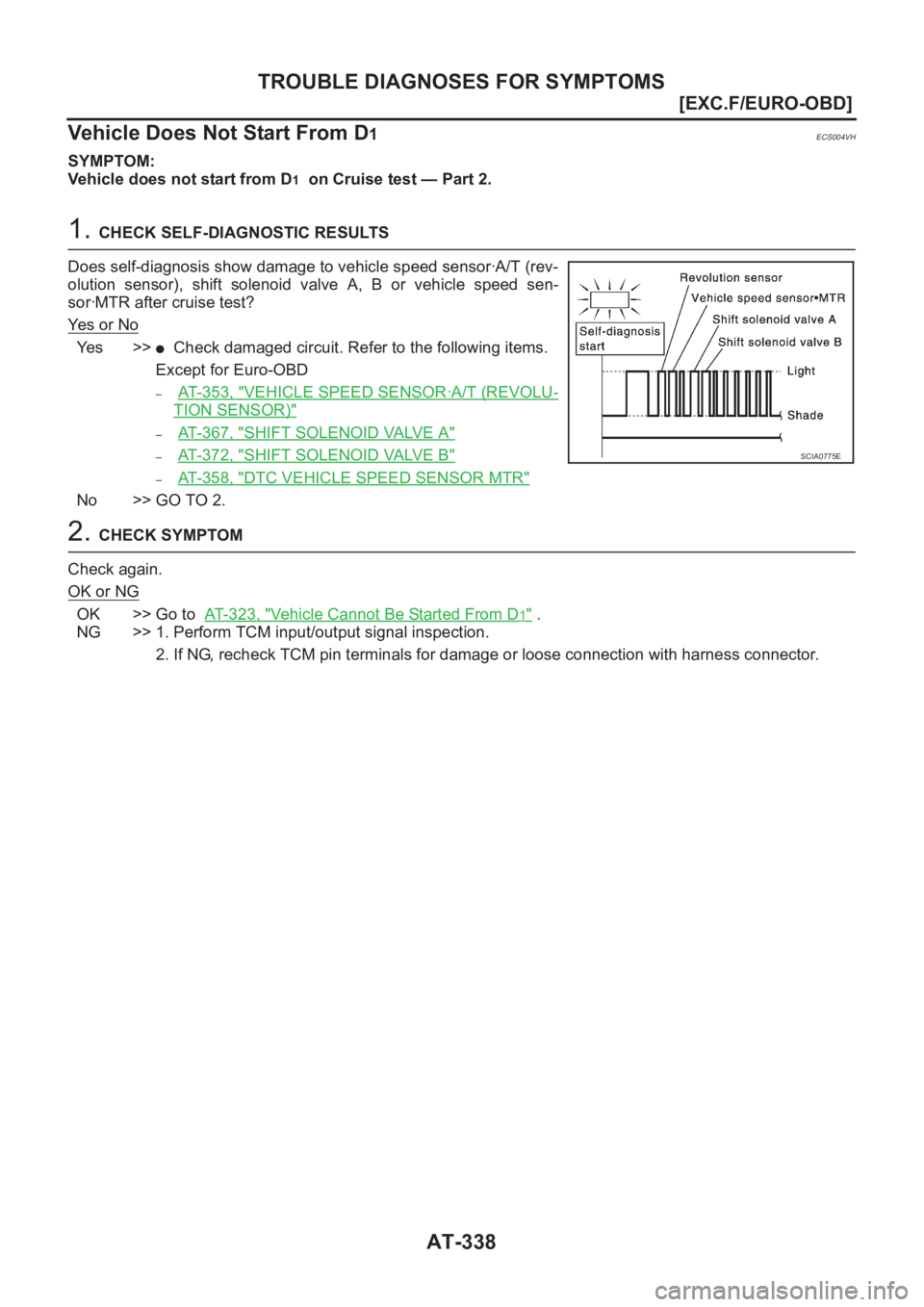

Vehicle Does Not Start From D
1ECS004VH
SYMPTOM:
Vehicle does not start from D
1 on Cruise test — Part 2.
1. CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to vehicle speed sensor·A/T (rev-
olution sensor), shift solenoid valve A, B or vehicle speed sen-
sor·MTR after cruise test?
Ye s o r N o
Ye s > >●Check damaged circuit. Refer to the following items.
Except for Euro-OBD
–AT- 3 5 3 , "VEHICLE SPEED SENSOR·A/T (REVOLU-
TION SENSOR)"
–AT- 3 6 7 , "SHIFT SOLENOID VALVE A"
–AT- 3 7 2 , "SHIFT SOLENOID VALVE B"
–AT- 3 5 8 , "DTC VEHICLE SPEED SENSOR MTR"
No >> GO TO 2.
2. CHECK SYMPTOM
Check again.
OK or NG
OK >> Go to AT-323, "Vehicle Cannot Be Started From D1" .
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SCIA0775E

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-341
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
A/T Does Not Shift: 22→ 11 , When Selector Lever “2” → “1” PositionECS004VK
SYMPTOM:
A/T does not shift from 2
2 to 11 when changing selector lever from “2” to “1” position.
1.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT- 3 4 4 , "TCM Self-
diagnosis Does Not Activate" .
No >> GO TO 2
2.CHECK CONTROL CABLE
Check control cable. Refer to AT-416, "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
3.CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 5 3 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT-358, "DTC VEHICLE SPEED SENSOR
MTR" (Except for Euro-OBD).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
SCIA0706E
SAT023JB

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-343
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

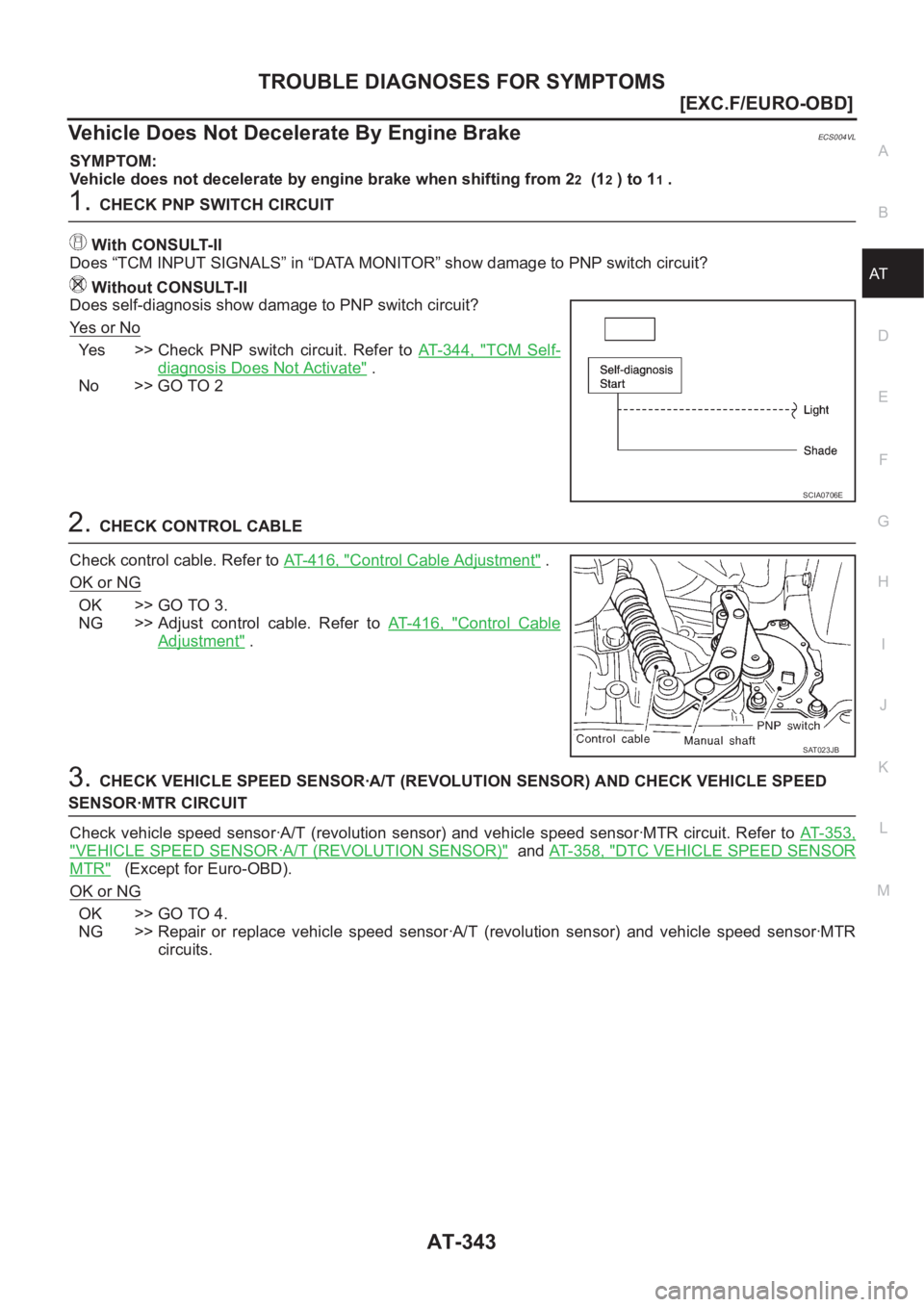

Vehicle Does Not Decelerate By Engine BrakeECS004VL
SYMPTOM:
Vehicle does not decelerate by engine brake when shifting from 2
2 (12 ) to 11 .
1.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT- 3 4 4 , "TCM Self-
diagnosis Does Not Activate" .
No >> GO TO 2
2.CHECK CONTROL CABLE
Check control cable. Refer to AT-416, "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
3.CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 5 3 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT-358, "DTC VEHICLE SPEED SENSOR
MTR" (Except for Euro-OBD).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
SCIA0706E
SAT023JB
