2001 NISSAN X-TRAIL sensor

DTC P0190 COMMON RAIL FUEL PRESSURE SENSOR
EC-1469
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

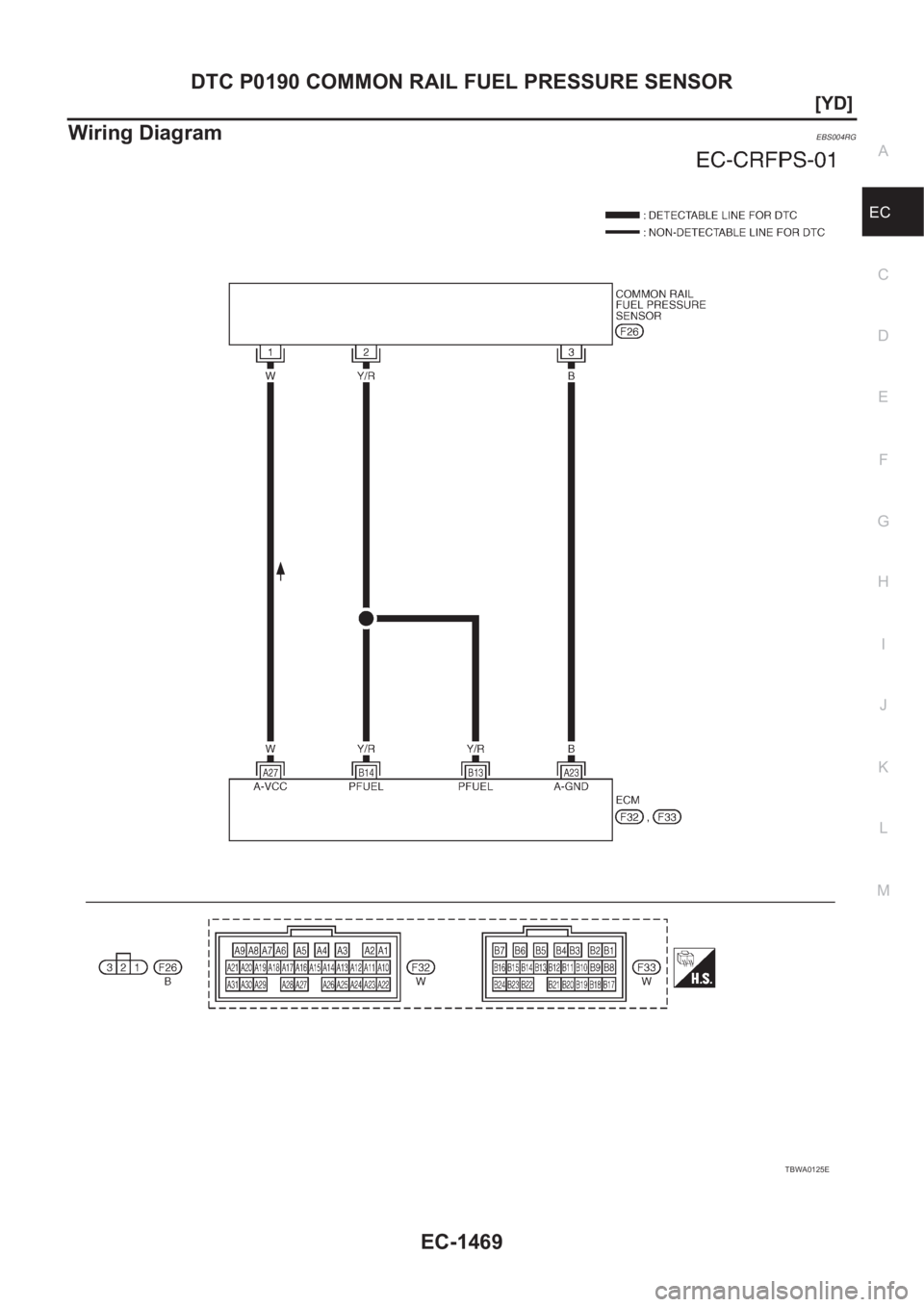

Wiring DiagramEBS004RG
TBWA0125E

EC-1470
[YD]
DTC P0190 COMMON RAIL FUEL PRESSURE SENSOR
Diagnostic Procedure
EBS004RH
1. CHECK COMMON RAIL FUEL PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect common rail fuel pressure sensor harness connec-
tor.
3. Turn ignition switch “ON”.
4. Check voltage between common rail fuel pressure sensor termi-
nal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
2. CHECK COMMON RAIL FUEL PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between common rail fuel pressure sensor terminal 3 and engine ground. Refer
to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check harness for open or short between ECM and common rail fuel pressure sensor.
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB0382E
Voltage: Approximately 5V
PBIB0405E
Continuity should exist.

DTC P0190 COMMON RAIL FUEL PRESSURE SENSOR
EC-1471
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

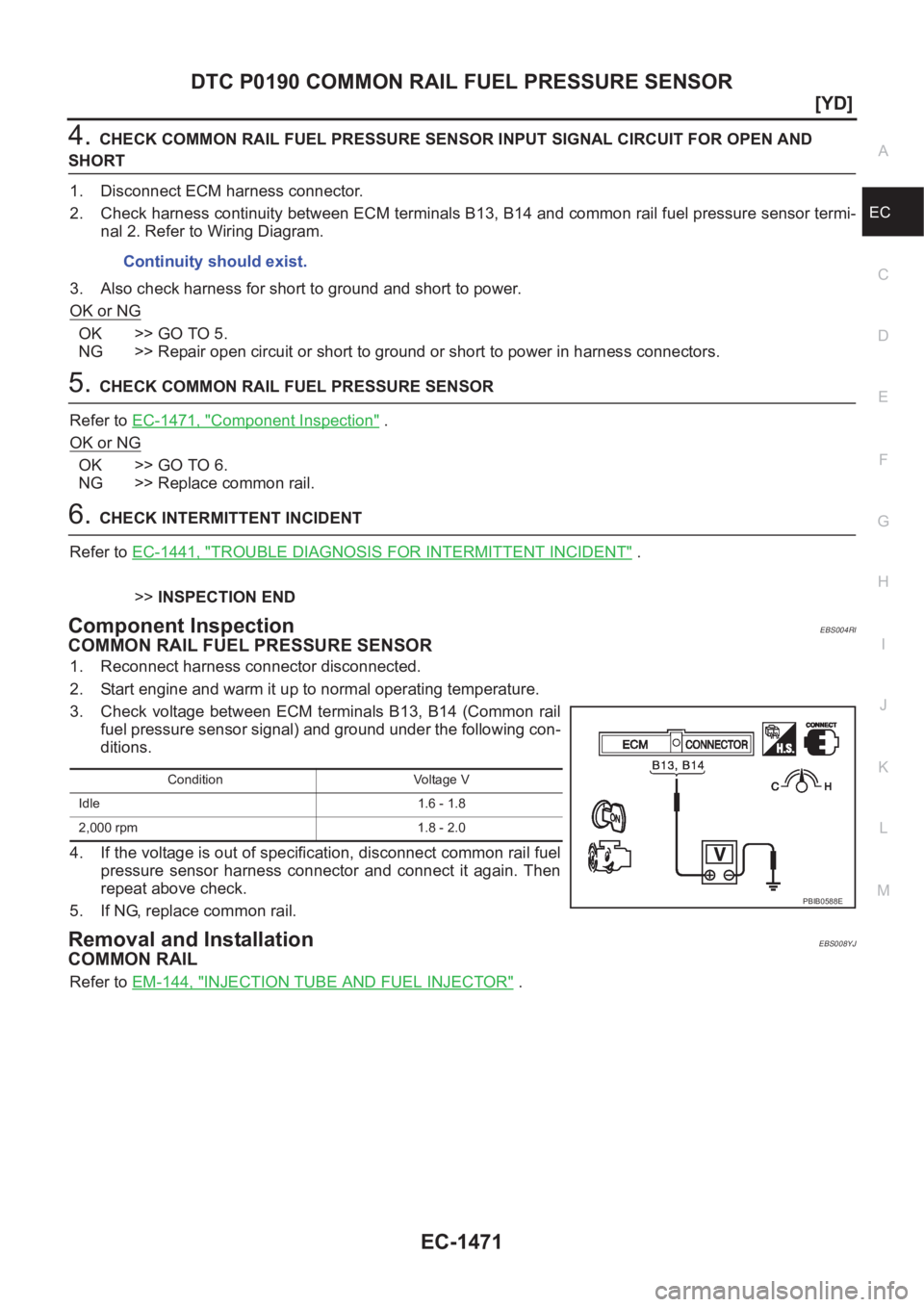

4.CHECK COMMON RAIL FUEL PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND
SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals B13, B14 and common rail fuel pressure sensor termi-
nal 2. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness connectors.
5.CHECK COMMON RAIL FUEL PRESSURE SENSOR
Refer to EC-1471, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace common rail.
6.CHECK INTERMITTENT INCIDENT
Refer to EC-1441, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS004RI
COMMON RAIL FUEL PRESSURE SENSOR
1. Reconnect harness connector disconnected.
2. Start engine and warm it up to normal operating temperature.
3. Check voltage between ECM terminals B13, B14 (Common rail
fuel pressure sensor signal) and ground under the following con-
ditions.
4. If the voltage is out of specification, disconnect common rail fuel
pressure sensor harness connector and connect it again. Then
repeat above check.
5. If NG, replace common rail.
Removal and InstallationEBS008YJ
COMMON RAIL
Refer to EM-144, "INJECTION TUBE AND FUEL INJECTOR" . Continuity should exist.
Condition Voltage V
Idle 1.6 - 1.8
2,000 rpm 1.8 - 2.0
PBIB0588E

DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
EC-1479
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)PFP:23731
DescriptionEBS004RQ
The crankshaft position sensor (TDC) monitors engine speed by
means of signals from the sensing plate (with 23 protrusions)
installed to the fly wheel. The datum signal output is detected 15°
signal and sent to the ECM. The sensor signal is used for fuel injec-
tion control and fuel injection timing control.
CONSULT-II Reference Value in Data Monitor ModeEBS004RR
Specification data are reference values.
ECM Terminals and Reference ValueEBS004RS
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
PBIB0368E
MONITOR ITEM CONDITION SPECIFICATION
CKPS·RPM (TDC)
●Tachometer: Connect
●Run engine and compare CONSULT-II value with the tachometer indi-
cation.Almost the same speed as the
tachometer indication.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA(DC Voltage and Pulse Sig-
nal)
B20 L/RCrankshaft position sen-
sor (TDC) ground[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V
B21 L/GCrankshaft position sen-
sor (TDC)[Engine is running]
●Warm-up condition
●Idle speed0 - 12.5V
[Engine is running]
●Warm-up condition
●Engine speed is 2,000 rpm0 - 12.5V
PBIB0395E
PBIB0396E

EC-1480
[YD]
DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
On Board Diagnosis Logic
EBS004RT
DTC Confirmation ProcedureEBS004RU
Before performing the following procedure, confirm that battery voltage is more than 10V.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode
with CONSULT-II.
2. Crank engine for at least 1 second.
3. Start engine and run it for at least 2 seconds at idle speed.
4. If DTC is detected, go to EC-1482, "
Diagnostic Procedure" .
DTC Malfunction is detected when ... Check Items (Possible Cause)
P0335
●An improper voltage signal from the sensor is sent
to ECM during running and cranking.●Harness or connectors
(The sensor circuit is open or shorted.)
●Crankshaft position sensor (TDC)
SEF817Y

DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
EC-1481
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS004RV
TBWA0123E

EC-1482
[YD]
DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
Diagnostic Procedure
EBS004RW
1. CHECK CRANKSHAFT POSITION SENSOR (TDC) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
3. Disconnect crankshaft position sensor (TDC) harness connector
and ECM harness connector.
4. Check harness continuity between ECM terminal B20 and
crankshaft position sensor (TDC) terminal 1. Refer to Wiring
Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
2. CHECK CRANKSHAFT POSITION SENSOR (TDC) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between crankshaft position sensor (TDC) terminal 2 and ECM terminal B21.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK CRANKSHAFT POSITION SENSOR (TDC)
Refer to EC-1482, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace crankshaft position sensor (TDC).
4. CHECK INTERMITTENT INCIDENT
Refer to EC-1441, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS008YW
CRANKSHAFT POSITION SENSOR(TDC)
1. Loosen the fixing bolt of the sensor.
2. Disconnect crankshaft position sensor (TDC) harness connector.
PBIB0385E
Continuity should exist.
PBIB0416E
Continuity should exist.

DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
EC-1483
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

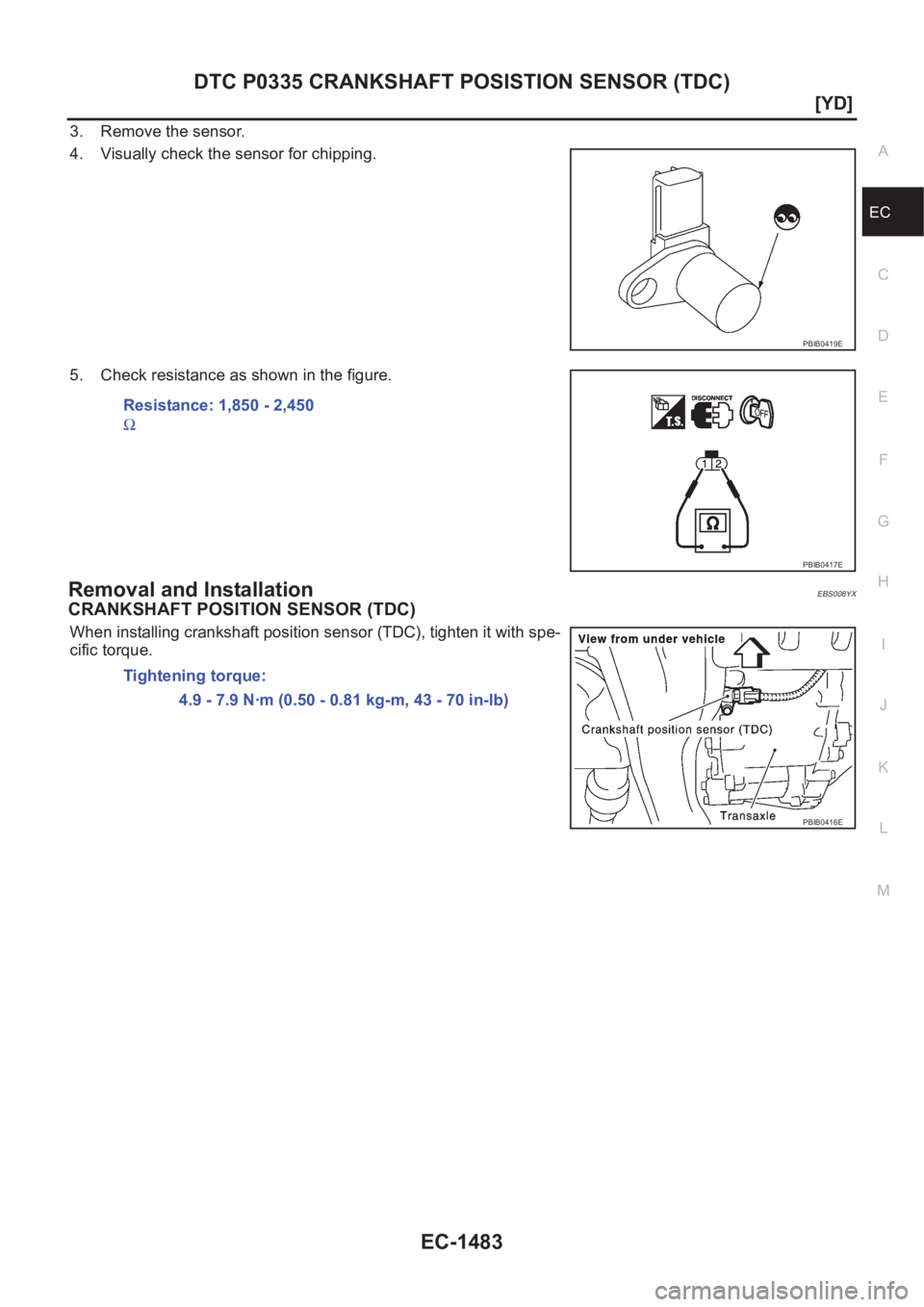

3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown in the figure.
Removal and InstallationEBS008YX
CRANKSHAFT POSITION SENSOR (TDC)
When installing crankshaft position sensor (TDC), tighten it with spe-
cific torque.
PBIB0419E
Resistance: 1,850 - 2,450
Ω
PBIB0417E
Tightening torque:
4.9 - 7.9 N·m (0.50 - 0.81 kg-m, 43 - 70 in-lb)
PBIB0416E
