System DescriptionNBEL0162The parking, license and tail lamp operation is controlled by the lighting switch which is built into the combi-
nation switch and headlamp battery saver control unit. The battery saver system is controlled by the head-
lamp battery saver control unit and smart entrance control unit.
Power is supplied at all times
Ito tail lamp relay terminals 2 and 3
Ithrough 10A fuse (No. 61, located in the fuse and fusible link box), and
Ito headlamp battery saver control unit terminal 7, and
Ito smart entrance control unit terminal 10
Ithrough 7.5A fuse [No. 24, located in the fuse block (J/B)].
When ignition switch is in ON or START position, power is supplied
Ito headlamp battery saver control unit terminal 1
Ithrough 10A fuse [No. 16, located in the fuse block (J/B)], and
Ito headlamp battery saver control unit terminal 10, and
Ito smart entrance control unit terminal 33
Ithrough 7.5A fuse [No. 11, located in the fuse block (J/B)].
Ground is supplied to headlamp battery saver control unit terminals 4 and 11.
LIGHTING OPERATION BY LIGHTING SWITCHNBEL0162S01When lighting switch is in 1ST (or 2ND) position, ground is supplied
Ito tail lamp relay terminal 1 from headlamp battery saver control unit terminals 6 and 14
Ithrough headlamp battery saver control unit terminals 5 and 13, and
Ito combination switch (lighting switch) terminal 11
Ithrough combination switch (lighting switch) terminal 5
Ithrough body grounds E13 and E41.
Tail lamp relay is then energized and the parking, license and tail lamps illuminate.
LIGHTING OPERATION BY AUTO LIGHT CONTROL SYSTEMNBEL0162S03When auto light control system is operated, ground is supplied
Ito tail lamp relay terminal 1 from headlamp battery saver control unit terminals 6 and 14
Ithrough headlamp battery saver control unit terminals 5 and 13, and
Ithrough auto light control unit terminal 7.
Tail lamp relay is then energized and the parking, license and tail lamps illuminate.
BATTERY SAVER CONTROLNBEL0162S02When the ignition switch is turned from ON (or START) to OFF (or ACC) positions while parking, license and
tail lamps are illuminated, the RAP signal is supplied to terminal 10 of the headlamp battery saver control unit
from smart entrance control unit terminal 5.
After counting 45 seconds by the RAP signal from the smart entrance control unit to headlamp battery saver
control unit, the ground supply to terminal 1 of the tail lamp relay from headlamp battery saver control unit
terminals 6 and 14 is terminated.
Then the parking, license and tail lamps are turned off.
The parking, license and tail lamps are turned off when driver or passenger side door is opened even if 45
seconds have not passed after the ignition switch is turned from ON (or START) to OFF (or ACC) positions
while parking, license and tail lamps are illuminated.
When the lighting switch is turned from OFF to 1ST (or 2ND) after the parking, license and tail lamps are turned
off by the battery saver control, ground is supplied.
Ito headlamp battery saver control unit terminals 5 and 13 from lighting switch terminal 11, and
Ito tail lamp relay terminal 1 from headlamp battery saver control unit terminals 6 and 14.
Then the parking, license and tail lamps illuminate again.
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
PARKING, LICENSE AND TAIL LAMPS
System Description
EL-61

System DescriptionNBEL0027OUTLINENBEL0027S02Power is supplied at all times
Ito headlamp RH relay terminals 1 and 3
Ithrough 15A fuse (No. 59, located in the fuse and fusible link box), and
Ito headlamp battery saver control unit terminal 7
Ito smart entrance control unit terminal 10
Ithrough 7.5A fuse [No. 24, located in the fuse block (J/B)], and
Ito front fog lamp relay terminal 3
Ithrough 15A fuse (No. 53, located in the fuse and fusible link box).
When ignition switch is in ON or START position, power is supplied
Ito headlamp battery saver control unit terminal 1
Ithrough 10A fuse [No. 16, located in the fuse block (J/B)], and
Ito headlamp battery saver control unit terminal 10, and
Ito smart entrance control unit terminal 33
Ithrough 7.5A fuse [No. 11, located in the fuse block (J/B)].
Ground is supplied to headlamp battery saver control unit terminals 4 and 11.
When lighting system is in 2ND position, ground is supplied
Ito headlamp RH relay terminal 2 from headlamp battery saver control unit terminals 2 and 8
Ithrough headlamp battery saver control unit terminals 3 and 9,
Ithrough lighting switch terminal 12, and
Ithrough body grounds E13 and E41.
Headlamp RH relay is then energized.
FRONT FOG LAMP OPERATIONNBEL0027S01The front fog lamp switch is built into the combination switch. The lighting switch must be in the 2ND position
and LOW (ªBº) position for front fog lamp operation.
With the front fog lamp switch in the ON position, ground is supplied
Ito front fog lamp relay terminal 2
Ithrough the front fog lamp switch, lighting switch and body grounds E13 and E41.
The front fog lamp relay is energized and power is supplied
Ifrom front fog lamp relay terminal 5
Ito terminal 1 of each front fog lamp.
Ground is supplied to terminal 3 of each front fog lamp through body grounds E13 and E41.
With power and ground supplied, the front fog lamps illuminate.
BATTERY SAVER CONTROLNBEL0027S03When the ignition switch is turned from ON (or START) to OFF (or ACC) positions while front fog lamps are
illuminated, the RAP signal is supplied to terminal 10 of the headlamp battery saver control unit from smart
entrance control unit terminal 5.
After counting 45 seconds by the RAP signal from the smart entrance control unit to headlamp battery saver
control unit, the ground supply to terminal 2 of headlamp RH relay from headlamp battery saver control unit
teminals 2 and 8 are terminated.
Then front fog lamps are turned to off.
Front fog lamps are turned off when driver or passenger side door is opened even if 45 seconds have not
passed after the ignition switch is turned from ON (or START) to OFF (or ACC) positions while front fog lamps
are illuminated.
When the lighting switch is turned from OFF to 2ND after front fog lamps are turned off by the battery saver
control, ground is supplied
Ito headlamp battery saver control unit terminals 5 and 13 from lighting switch terminal 11, and
Ito headlamp RH relay terminal 2 from headlamp battery saver control unit terminals 2 and 8
Ithrough headlamp battery saver control unit terminals 3 and 9, and
Ithrough lighting switch terminal 12.
Then the front fog lamps illuminate again.
FRONT FOG LAMP
System Description
EL-70

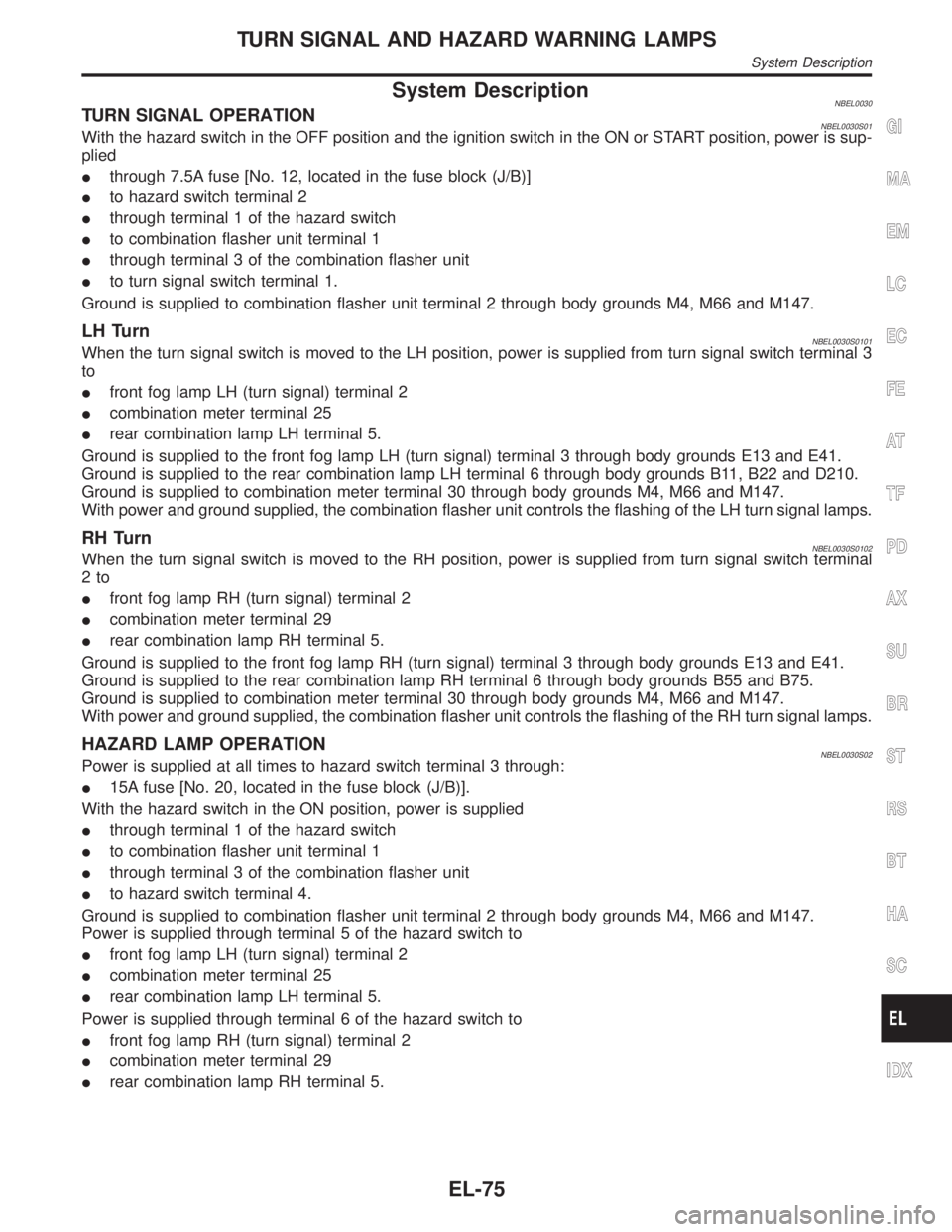

System DescriptionNBEL0030TURN SIGNAL OPERATIONNBEL0030S01With the hazard switch in the OFF position and the ignition switch in the ON or START position, power is sup-
plied
Ithrough 7.5A fuse [No. 12, located in the fuse block (J/B)]
Ito hazard switch terminal 2
Ithrough terminal 1 of the hazard switch
Ito combination flasher unit terminal 1
Ithrough terminal 3 of the combination flasher unit
Ito turn signal switch terminal 1.
Ground is supplied to combination flasher unit terminal 2 through body grounds M4, M66 and M147.
LH TurnNBEL0030S0101When the turn signal switch is moved to the LH position, power is supplied from turn signal switch terminal 3
to
Ifront fog lamp LH (turn signal) terminal 2
Icombination meter terminal 25
Irear combination lamp LH terminal 5.
Ground is supplied to the front fog lamp LH (turn signal) terminal 3 through body grounds E13 and E41.
Ground is supplied to the rear combination lamp LH terminal 6 through body grounds B11, B22 and D210.
Ground is supplied to combination meter terminal 30 through body grounds M4, M66 and M147.
With power and ground supplied, the combination flasher unit controls the flashing of the LH turn signal lamps.
RH TurnNBEL0030S0102When the turn signal switch is moved to the RH position, power is supplied from turn signal switch terminal
2to
Ifront fog lamp RH (turn signal) terminal 2
Icombination meter terminal 29
Irear combination lamp RH terminal 5.
Ground is supplied to the front fog lamp RH (turn signal) terminal 3 through body grounds E13 and E41.
Ground is supplied to the rear combination lamp RH terminal 6 through body grounds B55 and B75.
Ground is supplied to combination meter terminal 30 through body grounds M4, M66 and M147.
With power and ground supplied, the combination flasher unit controls the flashing of the RH turn signal lamps.
HAZARD LAMP OPERATIONNBEL0030S02Power is supplied at all times to hazard switch terminal 3 through:
I15A fuse [No. 20, located in the fuse block (J/B)].
With the hazard switch in the ON position, power is supplied
Ithrough terminal 1 of the hazard switch
Ito combination flasher unit terminal 1
Ithrough terminal 3 of the combination flasher unit
Ito hazard switch terminal 4.
Ground is supplied to combination flasher unit terminal 2 through body grounds M4, M66 and M147.
Power is supplied through terminal 5 of the hazard switch to
Ifront fog lamp LH (turn signal) terminal 2
Icombination meter terminal 25
Irear combination lamp LH terminal 5.
Power is supplied through terminal 6 of the hazard switch to
Ifront fog lamp RH (turn signal) terminal 2
Icombination meter terminal 29
Irear combination lamp RH terminal 5.
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
TURN SIGNAL AND HAZARD WARNING LAMPS
System Description
EL-75

Ground is supplied to terminal 3 of each front fog lamp (turn signal) through body grounds E13 and E41.
Ground is supplied to terminal 6 of the rear combination lamp LH through body grounds B11, B22 and D210.
Ground is supplied to terminal 6 of the rear combination lamp RH through body grounds B55 and B75.
Ground is supplied to combination meter terminal 30 through body grounds M4, M66 and M147.
With power and ground supplied, the combination flasher unit controls the flashing of the hazard warning
lamps.
MULTI-REMOTE CONTROL SYSTEM OPERATIONNBEL0030S03Power is supplied at all times
Ithrough 15A fuse [No. 20, located in the fuse block (J/B)]
Ito multi-remote control relay terminals 1, 3 and 6.
Ground is supplied to multi-remote control relay terminal 2, when the multi-remote control system is triggered
through the smart entrance control unit.
Refer to ªMULTI-REMOTE CONTROL SYSTEMº, EL-270.
The multi-remote control relay is energized.
Power is supplied through terminal 7 of the multi-remote control relay
Ito front fog lamp LH (turn signal) terminal 2
Ito combination meter terminal 25
Ito rear combination lamp LH terminal 5.
Power is supplied through terminal 5 of the multi-remote control relay
Ito front fog lamp RH (turn signal) terminal 2
Ito combination meter terminal 29
Ito rear combination lamp RH terminal 5.
Ground is supplied to terminal 3 of each front fog lamp (turn signal) through body grounds E13 and E41.
Ground is supplied to terminal 6 of the rear combination lamp LH through body grounds B11, B22 and D210.
Ground is supplied to terminal 6 of the rear combination lamp RH through body grounds B55 and B75.
Ground is supplied to combination meter terminal 30 through body grounds M4, M66 and M147.
With power and ground supplied, the smart entrance control unit controls the flashing of the hazard warning
lamps.
TURN SIGNAL AND HAZARD WARNING LAMPS
System Description (Cont'd)
EL-76

Wiring Diagram Ð TURN ÐNBEL0032
MEL781L
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð
EL-77

MEL782L
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð (Cont'd)
EL-78

Trouble DiagnosesNBEL0033
Symptom Possible cause Repair order
Turn signal and hazard warning
lamps do not operate.1. Hazard switch
2. Combination flasher unit
3. Open in combination flasher
unit circuit1. Check hazard switch.
2. Refer to combination flasher unit check.
3. Check wiring to combination flasher unit for open
circuit.
Turn signal lamps do not operate
but hazard warning lamps operate.1. 7.5A fuse
2. Hazard switch
3. Combination switch (turn signal)
4. Open in combination switch
(turn signal) circuit1. Check 7.5A fuse [No. 12, located in fuse block
(J/B)]. Turn ignition switch ON and verify battery
positive voltage is present at terminal 2 of hazard
switch.
2. Check hazard switch.
3. Check combination switch (turn signal).
4. Check the wire between combination flasher unit
terminal 3 and combination switch (turn signal) ter-
minal 1 for open circuit.
Hazard warning lamps do not oper-
ate but fog lamps (turn signal)
operate.1. 15A fuse
2. Hazard switch
3. Open in hazard switch circuit1. Check 15A fuse [No. 20, located in fuse block (J/B)].
Verify battery positive voltage is present at terminal
3 of hazard switch.
2. Check hazard switch.
3. Check the wire between combination flasher unit
terminal 3 and hazard switch terminal 4 for open cir-
cuit.
Front fog lamp (turn signal) LH or
RH does not operate.1. Bulb
2. Grounds E13 and E41
3. Open in front fog lamp (turn sig-
nal) circuit1. Check bulb.
2. Check grounds E13 and E41.
3. Check harness between front fog lamp (turn signal)
and combination switch.
Rear combination lamp LH does
not operate.1. Bulb
2. Grounds B11, B22 and D210
3. Open in rear combination lamp
LH circuit1. Check bulb.
2. Check grounds B11, B22 and D210.
3. Check harness between rear combination lamp LH
and hazard switch.
Rear combination lamp RH does
not operate.1. Bulb
2. Grounds B55 and B75
3. Open in rear combination lamp
RH circuit1. Check bulb.
2. Check grounds B55 and B75.
3. Check harness between rear combination lamp RH
and hazard switch.
LH and RH turn indicators do not
operate.1. Ground 1. Check grounds M4, M66 and M147.
LH or RH turn indicator does not
operate.1. Bulb
2. Open in turn indicator circuit1. Check bulb in combination meter.
2. Check harness between combination meter and haz-
ard switch.
SEL122E
Electrical Components InspectionNBEL0034COMBINATION FLASHER UNIT CHECKNBEL0034S01IBefore checking, ensure that bulbs meet specifications.
IConnect a battery and test lamp to the combination flasher
unit, as shown. Combination flasher unit is properly function-
ing if it blinks when power is supplied to the circuit.
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
TURN SIGNAL AND HAZARD WARNING LAMPS
Trouble Diagnoses
EL-79

Component Connector No. Power terminal Ground terminal
IVCS switch R10 2 12
Display & NAVI control unit M117, M118 8 24
A/C auto amp. M102 24 25
Clock M39 3 4
Globe box lamp M30 1 2
The ground for all of the components except for compass, glove box lamp and ashtray are controlled through
terminals 2 and 3 of the illumination control switch and body grounds M77 and M111.
BATTERY SAVER CONTROLNBEL0035S02When the ignition switch is turned from ON (or START) to OFF (or ACC) positions while illumination lamps
are illuminated, the RAP signal is supplied to terminal 10 of the headlamp battery saver control unit from smart
entrance control unit terminal 5.
After counting 45 seconds by the RAP signal from the smart entrance control unit to headlamp battery saver
control unit, the ground supply to terminal 1 of the tail lamp relay from headlamp battery saver control unit
teminals 6 and 14 is terminated.
Then illumination lamps are turned off.
Illumination lamps are turned off when driver or passenger side door is opened even if 45 seconds have not
passed after the ignition switch is turned from ON (or START) to OFF (or ACC) positions while illumination
lamps are illuminated.
When the lighting switch is turned from OFF to 1ST (or 2ND) after illumination lamps are turned off by the
battery saver control, ground is supplied
Ito headlamp battery saver control unit terminals 5 and 13 from lighting switch terminal 11, and
Ito tail lamp relay terminal 1 from headlamp battery saver control unit terminals 6 and 14.
Then illumination lamps illuminate again.
NOTE:
For Trouble Diagnoses for battery saver control, refer to ªPARKING, LICENSE AND TAIL LAMPSº
(EL-66).
GI
MA
EM
LC
EC
FE
AT
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
IDX
ILLUMINATION
System Description (Cont'd)
EL-81
