2001 HONDA ODYSSEY Owners Manual

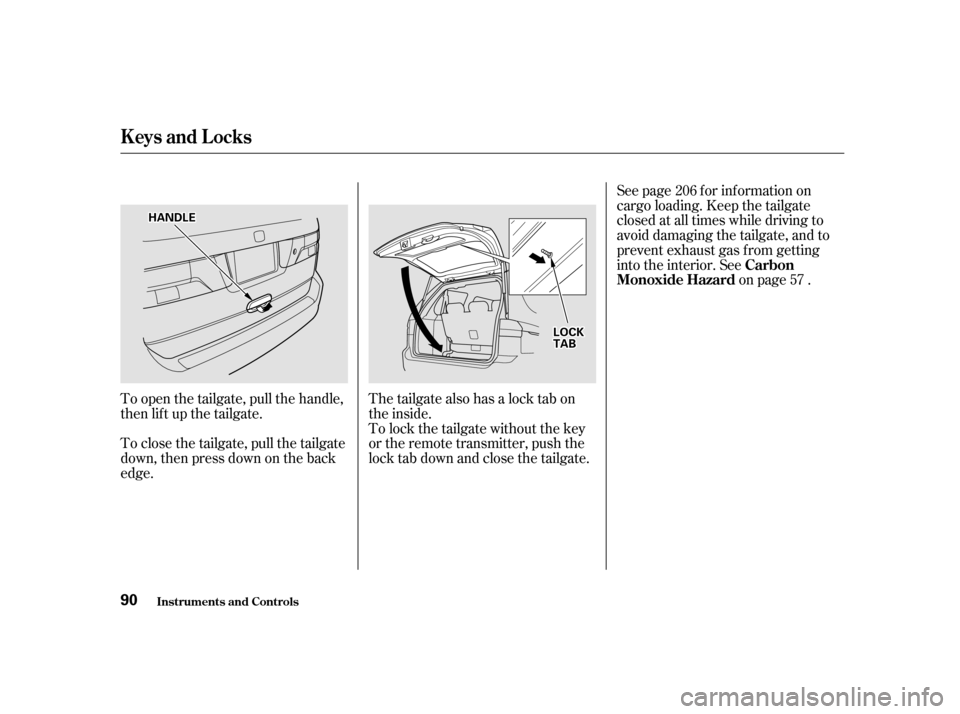

To open the tailgate, pull the handle,
then lif t up the tailgate.
To close the tailgate, pull the tailgate
down, then press down on the back
edge.The tailgate also has a lock tab on
the inside.
To lock the tailgate without the key
or the remote transmitter, push the
lock tab down and close the tailgate.See page for information on
cargo loading. Keep the tailgate
closed at all times while driving to
avoid damaging the tailgate, and to
prevent exhaust gas f rom getting
into the interior. See
on page .
206
57
Keys and Locks
Inst rument s and Cont rols Carbon
Monoxide Hazard
90
HHAANNDDLLEE
LLOOCCKKTTAABB

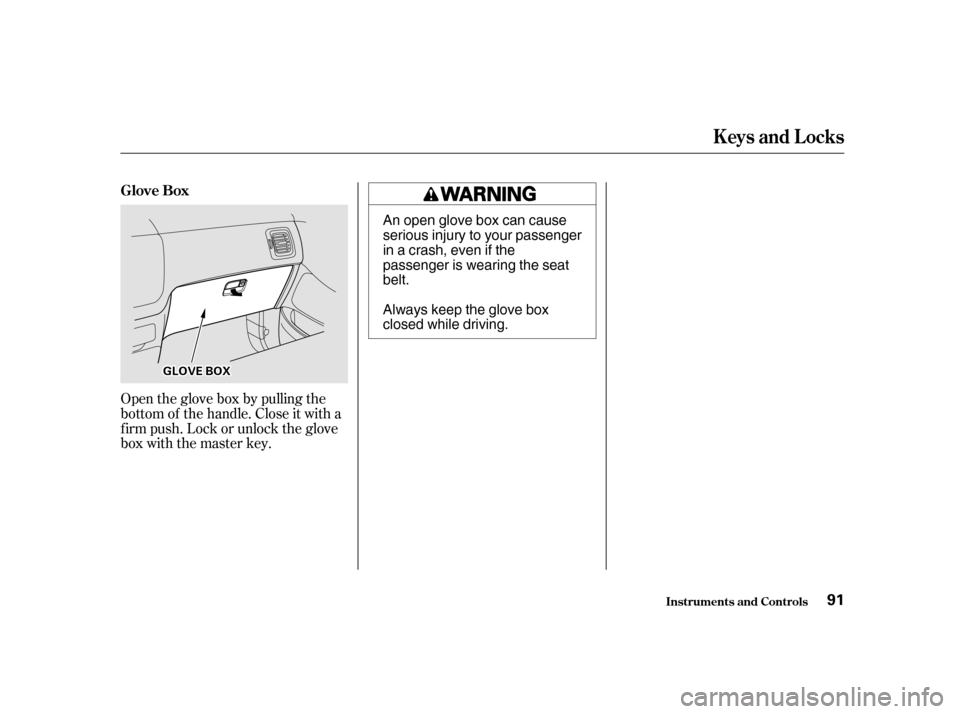

Open the glove box by pulling the
bottom of the handle. Close it with a
f irm push. Lock or unlock the glove
box with the master key.
Keys and Locks
Inst rument s and Cont rols
Glove Box
91
GGLLOOVVEEBBOOXXAn open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seatbelt.
Always keep the glove box
closed while driving.

Your Honda is equipped with dual
sliding doors. Be sure all passengers
are clear of the sliding doors bef ore
closing them.

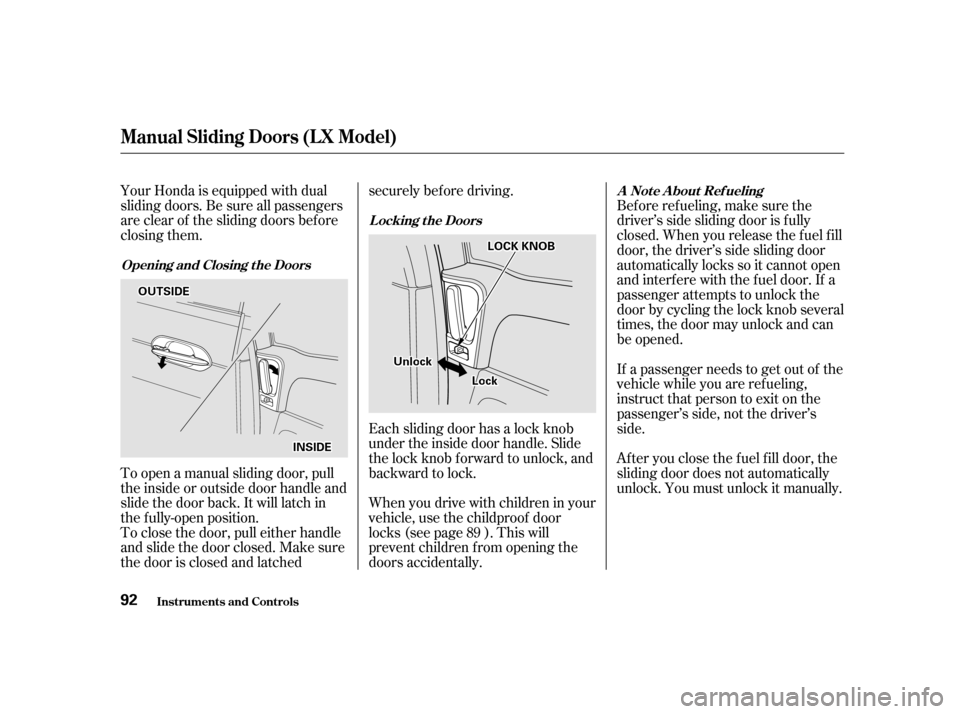

To open a manual sliding door, pull
the inside or outside door handle and
slide the door back. It will latch in
the f ully-open position.
To close the door, pull either handle
and slide the door closed. Make sure
the door is closed and latchedsecurely bef ore driving.
Each sliding door has a lock knob
under the inside door handle. Slide
the lock knob f orward to unlock, and
backward to lock.
Whenyoudrivewithchildreninyour
vehicle, use the childproof door
locks (see page ). This will
prevent children f rom opening the
doors accidentally.
Bef ore ref ueling, make sure the
driver’s side sliding door is f ully
closed. When you release the f uel f ill
door, the driver’s side sliding door
automatically locks so it cannot open
and interfere with the fuel door. If a
passenger attempts to unlock the
door by cycling the lock knob several
times, the door may unlock and can
be opened.
If a passenger needs to get out of the
vehicle while you are ref ueling,
instruct that person to exit on the
passenger’s side, not the driver’s
side.
Af ter you close the f uel f ill door, the
sliding door does not automatically
unlock. You must unlock it manually.
89
Manual Sliding Doors (L X Model)
Opening and Closing t he Doors L ocking t he Doors
A Not e A bout Ref ueling
Inst rument s and Cont rols
92
OOUUTTSSIIDDEE
IINNSSIIDDEE
UUnnlloocckk
LLoocckk
LLOOCCKKKKNNOOBB

When parking f acing downhill, make
sure the manual doors are latched in
the f ully-open position, then hold the
door open while allowing your
passengers to enter or exit the
vehicle. Do not pull the inside or
outside door handle, or the latch will
release and the door will slam shut.Your Honda is equipped with dual
power sliding doors. The doors on
the EX model are electrically
powered and can be operated with
the remote transmitter, the door
handles, or the switches on the
dashboard.
Be sure all passengers are clear of
the sliding doors bef ore closing them.The power sliding doors operate
with the ignition switch in any
position. In addition:
TheshiftlevermustbeinPark.
The MAIN switch on the
dashboard must be in the ON
position.
The sliding door you want to
operate must be unlocked.
To open the door with the inside
handle, the childproof door lock
on the door you want to operate
must be unlocked (see page ).
Make sure both sliding doors are
closed bef ore you start driving.
If you shif t out of Park while a door
is closing, you will hear a beep until
the power sliding door closes
completely. 89
CONT INUED
Inst rument s and Cont rols
Manual Sliding Doors (L X Model), Power Sliding Doors (EX Model)
Parking Facing DownhillPower Sliding Doors
93
Closing a power sliding door
while any part of a passenger is
in the door’s path can cause
serious injury.
Make sure all passengers are
clear of the doorway before
closing a sliding door.

If you shif t out of Park while a door
is opening, you will hear a
continuous tone and the door will
stop moving. If you keep driving with
the door open, the tone continues
until you stop and close the door.

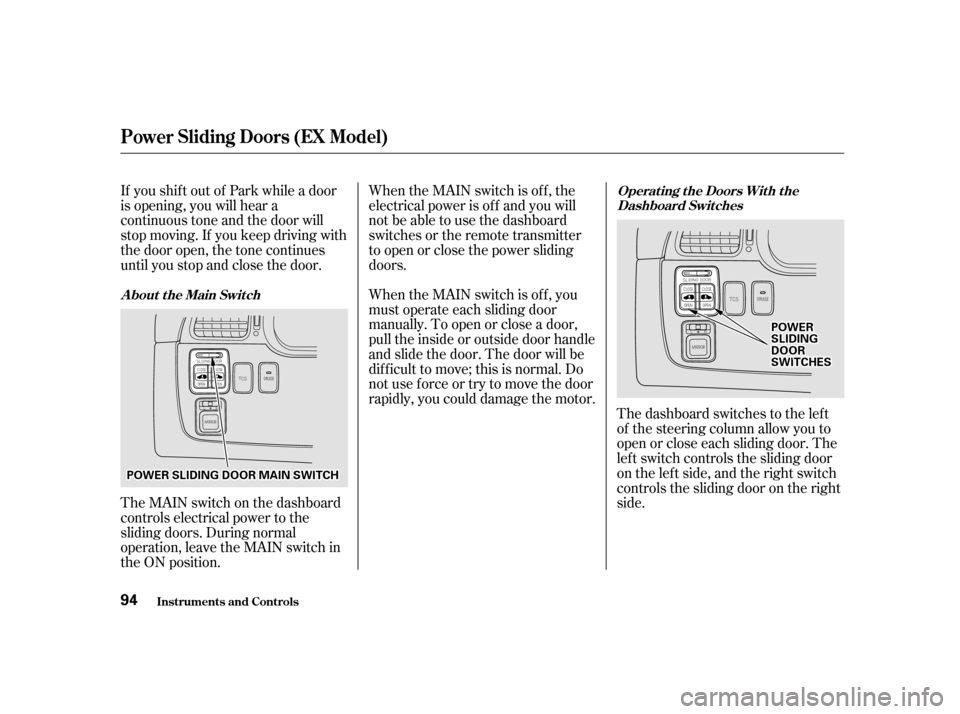

The MAIN switch on the dashboard
controls electrical power to the
sliding doors. During normal
operation, leave the MAIN switch in
the ON position.When the MAIN switch is off, the
electrical power is of f and you will
notbeabletousethedashboard
switches or the remote transmitter
to open or close the power sliding
doors.
When the MAIN switch is of f , you
must operate each sliding door
manually. To open or close a door,
pull the inside or outside door handle
and slide the door. The door will be
difficulttomove;thisisnormal.Do
not use f orce or try to move the door
rapidly, you could damage the motor.
The dashboard switches to the lef t
of the steering column allow you to
open or close each sliding door. The
lef t switch controls the sliding door
on the lef t side, and the right switch
controls the sliding door on the right
side.
Inst rument s and Cont rols
Power Sliding Doors (EX Model)
A bout t he Main Swit ch Operat ing t he Doors Wit h t he
Dashboard Switches
94
PPOOWWEERRSSLLIIDDIINNGGDDOOOORRSSWWIITTCCHHEESS
PPOOWWEERRSSLLIIDDIINNGGDDOOOORRMMAAIINNSSWWIITTCCHH

To open a sliding door, make sure
the door is unlocked. Then press the
appropriate button f or at least two
seconds. If you f orget to unlock the
door f irst, you will hear three beeps.
Unlock the door and try again.
To close a sliding door, press the
appropriate button f or at least two
seconds.
To stop the power sliding door’s
movement, push the appropriate
door button on the remote
transmitter. The door will stop, and
you will hear three beeps.
If you push the same button again,
the door will reverse direction.
To open a door, make sure the door
is unlocked. Then push and release
the bottom of the switch. If you
f orget to unlock the door f irst, you
will hear three beeps. Unlock the
door and try again.
To close a sliding door, push and
release the top of the appropriate
switch.
To stop the power sliding door’s
movement, push either the top or the
bottom of the appropriate switch.
The door will stop, and you will hear
three beeps.
To start the door moving again, push
the switch again: bottom to open, or
toptoclose.
You can open or close each sliding
door with the remote transmitter.
The right button controls the
passenger’s side sliding door, and
the left button controls the driver’s
side sliding door.
CONT INUED
Inst rument s and Cont rols
Power Sliding Doors (EX Model)
Operat ing t he Doors Wit h t he
Remote Transmitter
95
DDRRIIVVEERR’’SSSSIIDDEESSLLIIDDIINNGGDDOOOORRBBUUTTTTOONN
PPAASSSSEENNGGEERR’’SSSSIIDDEESSLLIIDDIINNGGDDOOOORRBBUUTTTTOONN
LLEEDD

Each power sliding door has an auto-
reverse f eature. If a door meets
resistance while closing, it will beep
three times and automatically
reverse direction. However, the door
may not immediately reverse
direction (like some elevator doors),
and the f orce of a closing door may
cause bruising or discomf ort. Always
make sure passengers and any
objects are well away f rom the power
sliding doors bef ore closing them.
Also check that passengers,
especially children, do not have their
hands on the edge of the sliding door
or on the door pillar. The auto-
reverse f eature stops working when
the door is about to latch so the
motor can pull the door shut.

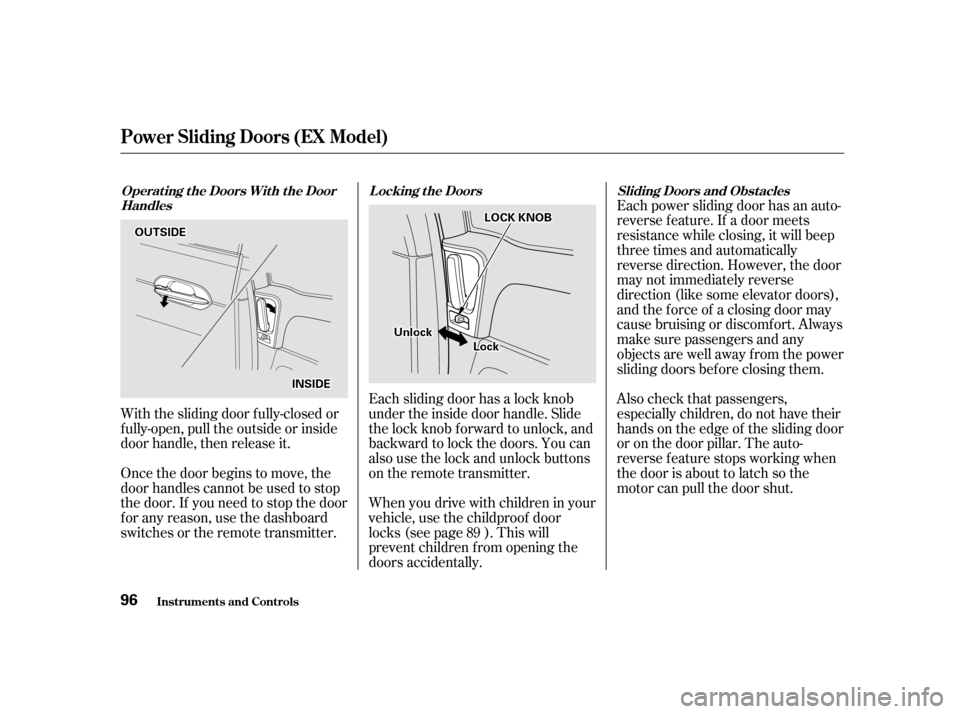

With the sliding door f ully-closed or
f ully-open, pull the outside or inside
door handle, then release it.
Once the door begins to move, the
door handles cannot be used to stop
the door. If you need to stop the door
f or any reason, use the dashboard
switches or the remote transmitter. Each sliding door has a lock knob
under the inside door handle. Slide
the lock knob f orward to unlock, and
backward to lock the doors. You can
also use the lock and unlock buttons
on the remote transmitter.
Whenyoudrivewithchildreninyour
vehicle, use the childproof door
locks (see page ). This will
prevent children f rom opening the
doors accidentally.
89
Inst rument s and Cont rols
Operat ing t he Doors Wit h t he Door Handles L ocking t he Doors Sliding Doors and Obst acles
Power Sliding Doors (EX Model)
96
OOUUTTSSIIDDEE
IINNSSIIDDEE
UUnnlloocckk
LLoocckk
LLOOCCKKKKNNOOBB

If a person or object is in the way
af ter the door begins to close, the
door handles cannot be used to stop
the door. To stop the door, use the
dashboard switches or the remote
transmitter.
If a passenger needs to get out of the
vehicle while you are ref ueling,
instruct that person to exit on the
passenger’s side, not the driver’s
side.Make sure the power sliding doors
are latched in the f ully-open
position, then hold the door open
while allowing your passengers to
enter or exit the vehicle. Do not
pull the inside or outside door
handle, or the latch will release
and the door will close.
Make sure the MAIN switch is in
the ON position. This allows the
power assist to keep the doors
f rom slamming shut.
If the MAIN switch is off, the door
can slam shut and possibly injure
someone.
If your vehicle’s battery is
disconnected or goes dead while a
sliding door is open, the power
sliding door system needs to be reset.
After reconnecting the battery:
Close each sliding door completely
by hand; or
Move the MAIN switch on the
dashboard to the ON position.
Push and hold the top of each door
switch until each sliding door
closes completely.
If the power sliding doors are closed,
the system will reset itself
automatically once the battery has
been reconnected.
If the power sliding doors do not
operate properly af ter resetting,
have your vehicle checked by a
Honda dealer.
When parking f acing downhill on a
steep grade, the power sliding doors
may not open or close as they do
normally.
Bef ore ref ueling, make sure the
driver’s side sliding door is f ully
closed. When you release the f uel f ill
door, the driver’s side sliding door
automatically locks so it cannot open
and interfere with the fuel door. If a
passenger attempts to unlock the
door by cycling the lock knob several
times, the door may unlock and can
be opened. Af ter you close the f uel f ill door, the
sliding door does not automatically
unlock. You must unlock it manually.
CONT INUED
Inst rument s and Cont rols
A Not e A bout Ref ueling
Parking Facing DownhillHow t o Reset t he Power Sliding
Doors
Power Sliding Doors (EX Model)
97
