2001 HONDA ODYSSEY Owners Manual

µµ
Ý Û
The ignition switch must be in
ACCESSORY (I) or ON (II) to
operate the audio system. Turn the
system on by pushing the PWR/
VOL knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
Adjust the volume by turning the
PWR/VOL knob.
You can use any of f our methods to
f ind radio stations on the selected
band: TUNE, SEEK, SCAN or the
Preset buttons.
Use the TUNE bar to tune
the radio to a desired f requency.
Press the upper part ( ) to tune
toahigherfrequency,orthelower
part ( ) to tune to a lower
f requency. The f requency numbers
will start to change rapidly. Release
the bar when the display reaches the
desired f requency. To change the
f requency in small increments, press
and release the TUNE bar quickly. The SEEK f unction
searches the band for a station with
a strong signal. To activate it, push
the SEEK switch up or down, then
release it. Depending on which way
you push the switch, the system
scans upward or downward f rom the
current f requency. It stops when it
finds a station with a strong signal.
Audio System
Comf ort and Convenience Feat ures
Operating the Radio
TUNESEEK
162

µ
CONT INUED
The SCAN f unction
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. SCN shows in the
display. The system will scan up the
band f or a station with a strong
signal. When it f inds a strong signal,
it will stop and play that station f or
approximately f ive seconds. If you do
nothing, the system will then scan
f or the next strong station and play
that f or f ive seconds. When it plays a
station that you want to continue
listening to, press the SCAN button
again.
Audio System
Comf ort and Convenience Feat ures
SCAN
163

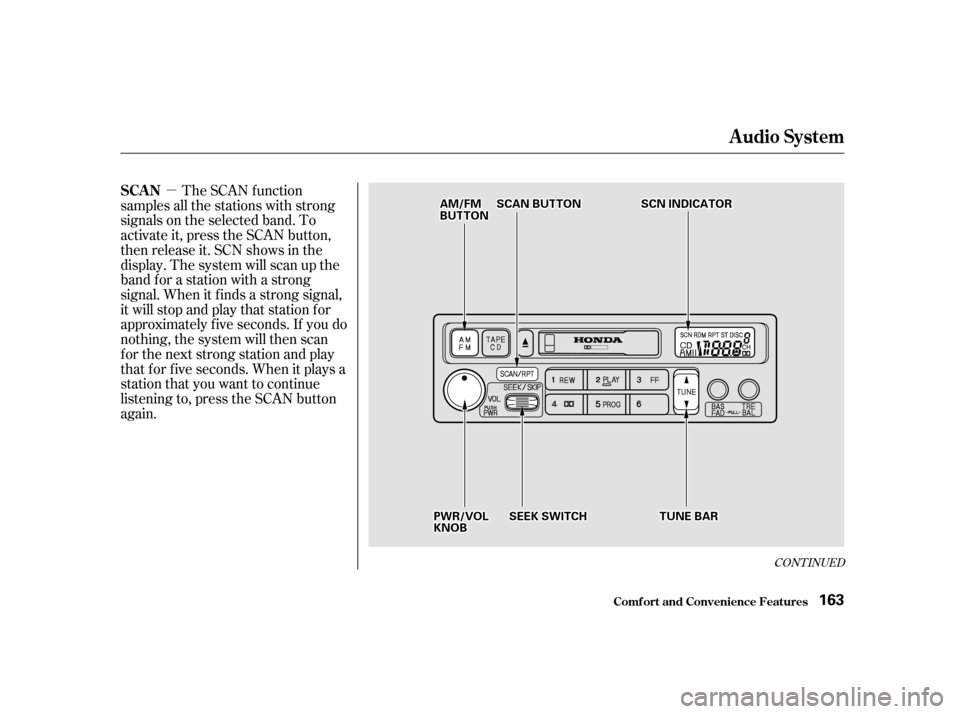

AAMM//FFMMBBUUTTTTOONNSSCCAANNBBUUTTTTOONN
TTUUNNEEBBAARRPPWWRR//VVOOLLKKNNOOBBSSEEEEKKSSWWIITTCCHH
SSCCNNIINNDDIICCAATTOORR

µYou can store the
f requencies of your f avorite radio
stations in the six preset buttons.
Each button will store one f requency
on the AM band, and two
f requencies on the FM band.
To store a f requency:
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each Preset
button.
Use the TUNE or SEEK f unction
to tune the radio to a desired
station.
Pick the Preset button you want
for that station. Press the button
and hold it until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
on FM. Once a station’s frequency is stored,
simply press and release the proper
Preset button to tune to it.
The preset f requencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed.
1. 2. 3.4.
Preset
Audio System
Comf ort and Convenience Feat ures
164

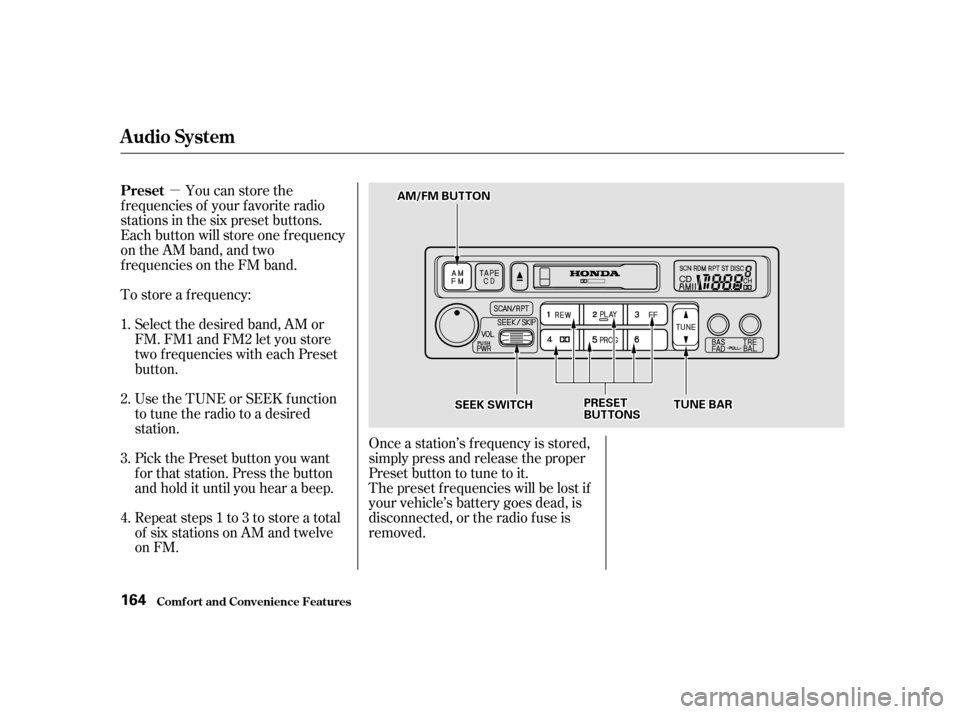

AAMM//FFMMBBUUTTTTOONN
SSEEEEKKSSWWIITTCCHHTTUUNNEEBBAARRPPRREESSEETTBBUUTTTTOONNSS

µµ
These two
controls adjust the strength of the
sound coming f rom each speaker.
The Balance control adjusts the side-
to-side strength, while the Fader
control adjusts the f ront-to-back
strength.
To adjust the fader, push on the
BASS/FADER control knob to get it
to pop out. Pull it out slightly f arther,
and adjust the f ront-to-back sound to
your liking. Push the knob back in
when you are done so you cannot
change the setting by accidentally
bumping it.
To adjust the balance, push on the
TREBLE/BALANCE control knob
to get it to pop out. Pull it out slightly
f arther, and adjust the side-to-side
sound to your liking. Push the knob
back in when you are done so you
cannot change the setting by
accidentally bumping it. Use these controls
to adjust the tone to your liking. To adjust the Bass level, push on the
BASS/FADER control knob to get it
to pop out. Without pulling it out
f arther, turn the knob to adjust the
bass level. Push the knob back in
when you are done so you cannot
change the setting by accidentally
bumping it.
For inf ormation, See page .
To adjust the Treble level, push on
the TREBLE/BALANCE control
knob to get it to pop out. Without
pulling it out f arther, turn the knob
to adjust the treble level. Push the
knob back in when you are done so
you cannot change the setting by
accidentally bumping it.
179
Adjusting the Sound
Balance/Fader
Treble/BassRadio Frequencies and Reception
Audio System
Comf ort and Convenience Feat ures165

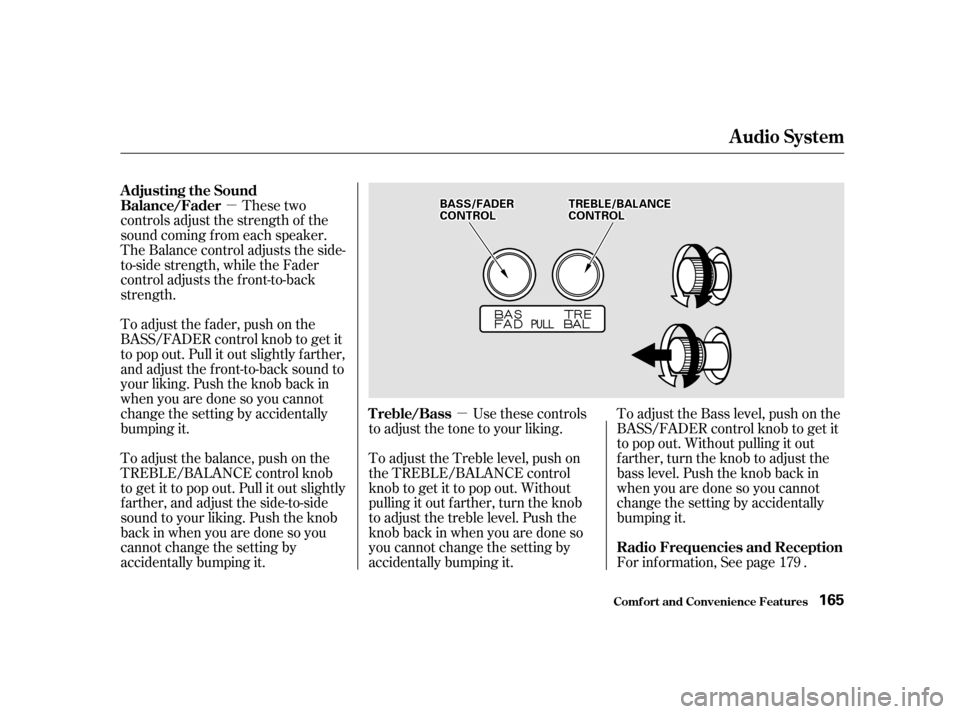

BBAASSSS//FFAADDEERRCCOONNTTRROOLLTTRREEBBLLEE//BBAALLAANNCCEECCOONNTTRROOLL

Ûµµ
Dolby B noise reduction turns on
when you insert a cassette. If the
tape was not recorded with Dolby B
noise reduction, turn it of f by
pressing the button.
When the system reaches the end of
the tape, it will automatically reverse
direction and play the other side. If
you want to remove the cassette
f rom the drive, press the EJECT
button.
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned of f .
Turn the audio system ON. Make
sure the tape opening on the cassette
is f acing to the right, then insert the
cassette most of the way into the slot.
The system will pull it in the rest of
the way, and begin to play.
The tape direction indicator will light
to show you which side of the
cassette is playing. The indicates
thesideyouinsertedfacingupward
is now playing. If you want to play
the other side, press the PROG
button.
With a cassette playing, you can use
the FF, REW, SKIP, or REPEAT
f unction to f ind a desired program.
Fast Forward and Re-
wind move the tape rapidly. To re-
wind the tape, push the REW button.
You will see REW in the display. To
fast forward the tape, push the FF
button. You will see FF displayed.
Press the PLAY button to take the
system out of rewind or f ast f orward. If the system reaches the end of the
tape while in f ast f orward or rewind,
it automatically stops that function,
reverses direction, and begins to play.
The Skip Function allows
you to f ind the beginning of a song
or passage. To f ind the beginning of
the song or passage currently
playing, push the SKIP switch down.
You will see REW f lashing in the
display as the tape rewinds. To f ind
the beginning of the next song, push
the SKIP switch up. You will see FF
flashing in the display as the tape
f ast f orwards. When the system
f inds the beginning of a song or
passage, it goes back to PLAY mode.
71
Audio System
Comf ort and Convenience Feat ures
A udio System L ighting
Operating the Cassette Player
T ape Search Functions
FF/REWSK IP
166

µThe Repeat f unction
continuously replays the current
song or passage. Press the RPT
button to activate it; you will see RPT
displayed as a reminder. When the
system reaches the end of the song
or passage currently playing, it will
automatically go into rewind. When
it senses the beginning of the same
song or passage, the system returns
to PLAY mode. It will continue to
repeat this same program until you
deactivate REPEAT by pressing the
button again.
CONT INUED
Audio System
Comf ort and Convenience Feat ures
REPEAT
167

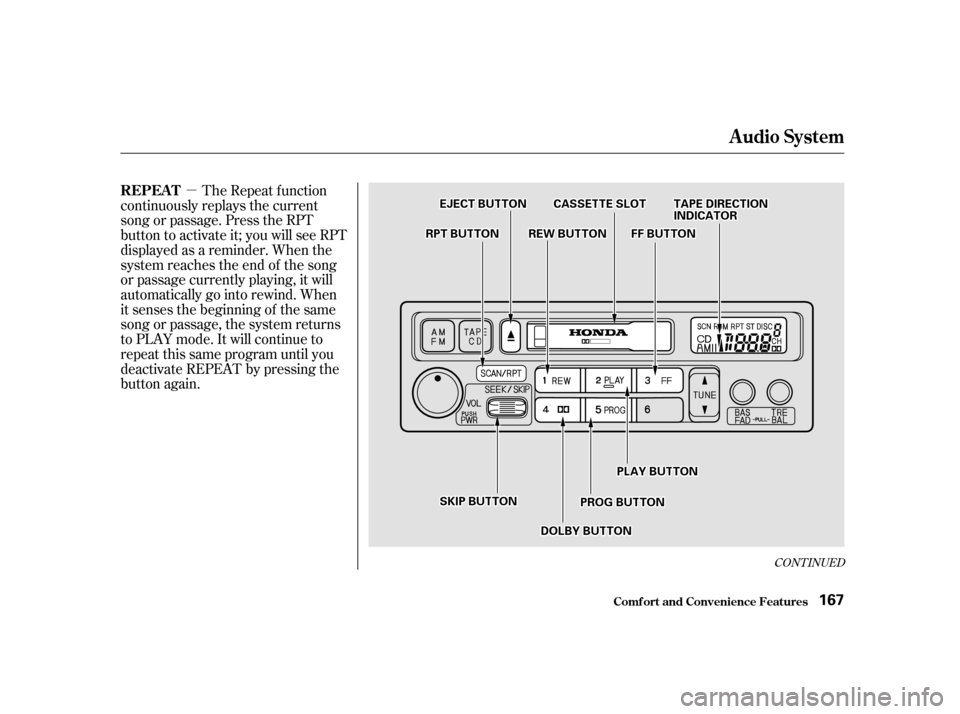

RREEWWBBUUTTTTOONN
EEJJEECCTTBBUUTTTTOONN
FFFFBBUUTTTTOONN
TTAAPPEEDDIIRREECCTTIIOONNIINNDDIICCAATTOORRCCAASSSSEETTTTEESSLLOOTT
PPLLAAYYBBUUTTTTOONN
PPRROOGGBBUUTTTTOONN
RRPPTTBBUUTTTTOONN
DDOOLLBBYYBBUUTTTTOONN
SSKKIIPPBBUUTTTTOONN

The SKIP and REPEAT f unctions
use silent periods on the tape to f ind
the end of a song or passage. These
f eatures may not work to your
satisfaction if there is almost no gap
between selections, a high noise
level between selections, or a silent
period in the middle of a selection.
Damaged cassettes can jam inside
the drive or cause other problems.
See page for information on
cassette care and protection.190
Caring f or Cassettes
Audio System
Comf ort and Convenience Feat ures
168
EEJJEECCTTBBUUTTTTOONN
SSKKIIPPBBUUTTTTOONNPPRROOGGBBUUTTTTOONN
PPLLAAYYBBUUTTTTOONN
RRPPTTBBUUTTTTOONNRREEWWBBUUTTTTOONNFFFFBBUUTTTTOONN
CCAASSSSEETTTTEESSLLOOTTTTAAPPEEDDIIRREECCTTIIOONNIINNDDIICCAATTOORR
DDOOLLBBYYBBUUTTTTOONN

A Compact Disc changer is available
f rom your dealer. It holds up to six
discs, providing several hours of
continuous entertainment. You
operate the CD changer with the
same controls used f or the radio and
cassette player.
Using the instructions that came
with the changer, load the desired
CDs in the magazine, and load the
magazine in the changer. Play only
standard round discs. Odd-shaped
CDs may jam in the drive or cause
other problems.
Your dealer also has an accessory in-
dash single CD player available that
is operated by the radio controls. To
operate this unit, use the instructions
(except f or those relating to multiple
discs) in this section.
CONT INUED
Operating the Optional CD
Player/Changer
Audio System
Comf ort and Convenience Feat ures
169

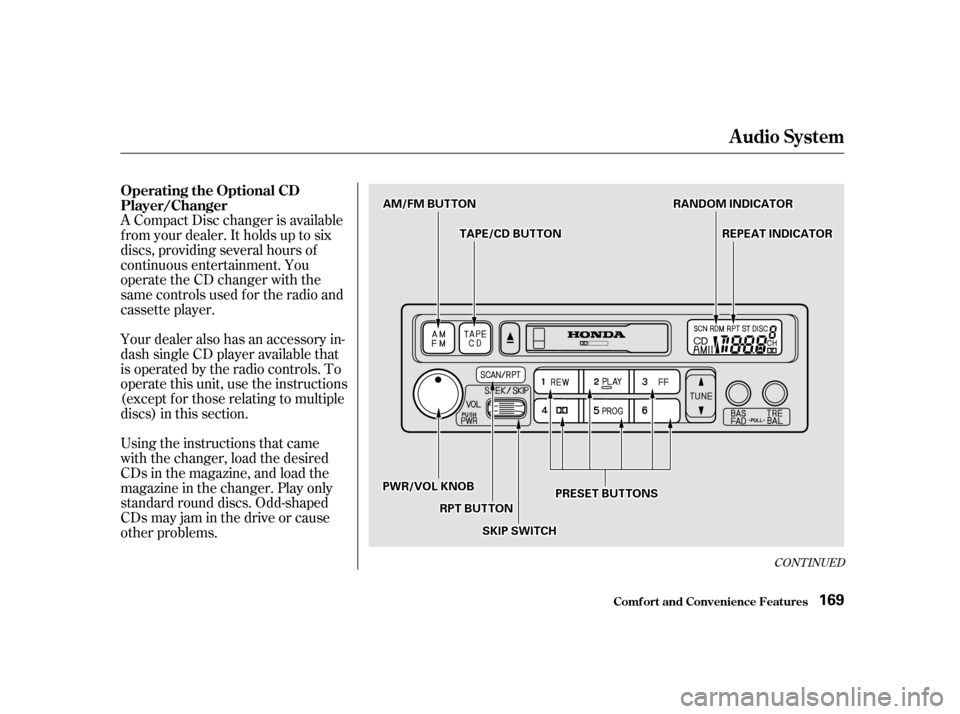

PPRREESSEETTBBUUTTTTOONNSS
SSKKIIPPSSWWIITTCCHH
AAMM//FFMMBBUUTTTTOONN
TTAAPPEE//CCDDBBUUTTTTOONN
RRAANNDDOOMMIINNDDIICCAATTOORR
RREEPPEEAATTIINNDDIICCAATTOORR
PPWWRR//VVOOLLKKNNOOBB
RRPPTTBBUUTTTTOONN
