Page 65 of 123
YOUR 206 CC IN DETAIL
66
From 3 to 10 years (33 to 80 lbs or 15 to 36 kg)
''Recaro Start': is fitted to the rear seat with a three-point seat belt. The seat height, width and length must be adjusted depending on the age andbuild of your child. "Klippan Optima": is fitted to the rear seat with a three-point seat belt. From the age of 6 years (approximately 49 lbs or 22 kgs), only the booster seatis used.
Make sure you fasten the three-point seat belts or the child seat straps so that theslack in relation to the child's body is kept to a minimum, even for short journeys.
* According to current legal requirements.Never leave a child or an animal in a vehicle expo-sed to the sun, with thewindows closed.
Never leave the keys within reach
of children inside the car. Strap children into their child seats even on short journeys. Observe the precautions concer- ning the passenger air bag. Observe strictly the recommenda- tions for fitting and fastening thechild seat straps as detailed in theinstructions.4
5
Page 66 of 123
YOUR 206 CC IN DETAIL67

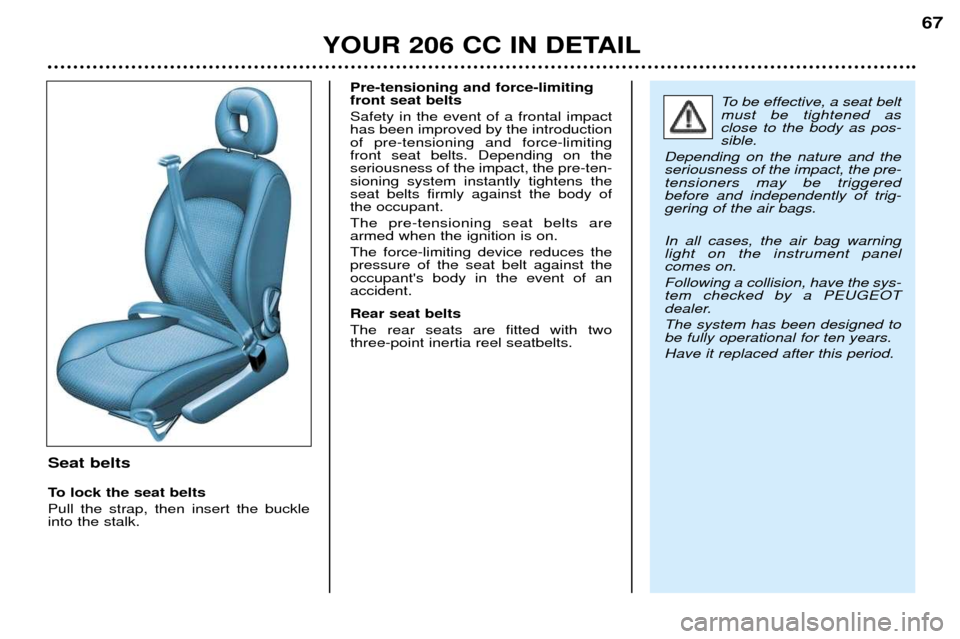

Seat belts
To lock the seat belts Pull the strap, then insert the buckle into the stalk.Pre-tensioning and force-limitingfront seat belts Safety in the event of a frontal impact has been improved by the introductionof pre-tensioning and force-limitingfront seat belts. Depending on theseriousness of the impact, the pre-ten-sioning system instantly tightens theseat belts firmly against the body ofthe occupant. The pre-tensioning seat belts are armed when the ignition is on. The force-limiting device reduces the pressure of the seat belt against theoccupant's body in the event of anaccident. Rear seat belts The rear seats are fitted with two three-point inertia reel seatbelts.
To be effective, a seat belt must be tightened asclose to the body as pos-sible.
Depending on the nature and theseriousness of the impact, the pre-tensioners may be triggeredbefore and independently of trig-gering of the air bags. In all cases, the air bag warning light on the instrument panelcomes on. Following a collision, have the sys- tem checked by a PEUGEOT
dealer. The system has been designed to be fully operational for ten years. Have it replaced after this period.
Page 67 of 123
YOUR 206 CC IN DETAIL
68
Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompanied by the message
"Remote control
battery low" on the multifunction dis-
play.
To replace the battery, remove the screw then unclip the casing using acoin at the ring (CR 2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
THE KEYS The keys allow you to
independently
operate the locks on the doors, the tailgate (opening), the fuel filler cap,the steering lock, the glove box andthe passenger air bag disarming con-trol and to switch on the ignition. Central locking From the driver's door the keys allow you:
Ðto lock or unlock the doors and tail-
gate simultaneously,
Ð to unlock simultaneously just thedoors
Unlocking the boot is possible only
by using the boot key. If one of the doors is open, the central locking does not work. The remote control This fulfils the same functions as the
key, at a distance. Locking Pressing button
Alocks the doors and
the tailgate by remote control.This is displayed by the continuouslighting of the direction indicators forapproximately two seconds. Unlocking Pressing button Bunlocks just the
doors.This is shown by the rapid flashing ofthe direction indicators. Note: do not repeatedly press the but-
ton of your remote control out of range
of your vehicle. You risk causing it notto work and the remote control wouldhave to be reprogrammed .Locating your car
To locate your car in a car park, if you have locked it:
press button A, the courtesy lights
come on and the direction indica- tors flash for a few seconds.Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.
* According to specification.
Programming the remote control Switch off the ignition.
Switch the ignition on again.
Press button A.
Switch off the ignition and remove the remote control key from the
ignition lock. The remote control isnow working again.
Page 68 of 123
YOUR 206 CC IN DETAIL69
Make a careful note of the
number on each key. The keynumber is coded on the label
attached to the key.
If the keys are lost, your PEUGEOT dea-ler can rapidly supply you with new keys. The high frequency remote control is a high-performance system which has apowerful beam. Do not operate it while it is in your poc- ket as there is a possibility that it mayunlock your vehicle, without you beingaware of it. The remote control does not operate when the key is in the ignition, evenwhen the ignition is switched off, exceptfor reprogramming. As a safety precaution (with children on board), remove the ignition key whenyou leave the vehicle, even for a shorttime. Do not repeatedly press the button of your remote control out of range of your
vehicle. You risk causing it not to workand the remote control would have to bereprogrammed. When purchasing a second-hand vehicle:
- ensure that you are given the confiden- tial card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the onlyones which can start the vehicle.
Do not make any modifications to theelectronic engine immobiliser system.
Confidential card The confidential card contains the identification code necessary for any
work carried out by a PEUGEOT dea-
ler on the system. This code is hiddenby a film which should be removed
only if necessary. Keep your card in a safe place, never inside the vehicle.
ELECTRONIC ENGINE IMMOBILISER This locks the engine control system a few moments as soon as the ignition
has been switched off and thereforeprevents starting of the vehicle by
anyone who does not have the key. The ignition key has an electronic chip which has a special code. When theignition is switched on, the code isrecognised and starting is possible. If the system does not function correctly , an audible signal sounds,
accompanied by a message on themultifunction display*.
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible. * According to specification.
Page 69 of 123
YOUR 206 CC IN DETAIL69
Make a careful note of the
number on each key. The keynumber is coded on the label
attached to the key.
If the keys are lost, your PEUGEOT dea-ler can rapidly supply you with new keys. The high frequency remote control is a high-performance system which has apowerful beam. Do not operate it while it is in your poc- ket as there is a possibility that it mayunlock your vehicle, without you beingaware of it. The remote control does not operate when the key is in the ignition, evenwhen the ignition is switched off, exceptfor reprogramming. As a safety precaution (with children on board), remove the ignition key whenyou leave the vehicle, even for a shorttime. Do not repeatedly press the button of your remote control out of range of your
vehicle. You risk causing it not to workand the remote control would have to bereprogrammed. When purchasing a second-hand vehicle:
- ensure that you are given the confiden- tial card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the onlyones which can start the vehicle.
Do not make any modifications to theelectronic engine immobiliser system.
Confidential card The confidential card contains the identification code necessary for any
work carried out by a PEUGEOT dea-
ler on the system. This code is hiddenby a film which should be removed
only if necessary. Keep your card in a safe place, never inside the vehicle.
ELECTRONIC ENGINE IMMOBILISER This locks the engine control system a few moments as soon as the ignition
has been switched off and thereforeprevents starting of the vehicle by
anyone who does not have the key. The ignition key has an electronic chip which has a special code. When theignition is switched on, the code isrecognised and starting is possible. If the system does not function correctly , an audible signal sounds,
accompanied by a message on themultifunction display*.
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible. * According to specification.
Page 70 of 123
YOUR 206 CC IN DETAIL
70
Doors Opening the doors from outside Opening the doors from inside
Locking and unlocking the boot Lock
the boot using the key (turn the
key from Ato C) or the remote control.
Unlock it using the key (turn the key
from Ato B) in all cases.
The lighting is controlled by opening the boot.
Locking from the inside
To lock, press button A.
Locking one of the front doors locks the doors and the boot. Unlocking from the inside
To unlock, pull button Aor the handle.
''Door open'' alert With the engine running or the vehicle moving, the flashing of the central
"STOP" warning light, accompanied
by an audible signal and a diagramlocating the problem on the multifunc-tion screen, warns you that a door isnot properly closed.
Page 71 of 123
YOUR 206 CC IN DETAIL71
Bonnet strut Secure the strut to hold the bonnet open. Before closing the bonnet, replace the strut in its housing.
To close Lower the bonnet and release it at the end of its travel. Check that the bonnetis locked.
Opening the bonnet Inside the vehicle:
pull the handle on
the left- hand side, under the fascia. Outside the vehicle: lift the catch and
raise the bonnet. Filling the fuel tank The tank must be filled with fuel with the engine switched off
.
Insert the key then turn it to the left. Remove the cap.
A label indicates which type of fuel to use. If you fill your tank, do not continue
after the third cut-off of the pump
nozzle. This could result in vehiclemalfunctions. The capacity of the tank is approxi- mately 10.3 gallons (47 litres).
Page 72 of 123
YOUR 206 CC IN DETAIL
72
THE ELECTRIC RETRACTABLE ROOF Opening the roof
Ensure that the screen 1is hooked
on (no object must be placed on the screen; if there is luggage in theboot, this must not push the bootupwards).
Check that no object has been placed on the rear parcel shelf.
With the vehicle stationary and
the handbrake applied, turn theignition switch to position M.
Release the two hooks 2 comple-
tely; this operation is confirmed by
an audible signal.
Pull switch 3 until you hear a signal
to indicate that the roof openingoperation is complete.
When carrying out this manoeuvre, the front windows and then the rear
quarter panel windows lower, the roofcover opens, the roof folds up and
stores itself in the boot. Then the roofcover closes and the detachable shelfpositions itself. Note: The control buttons for the win-
dows become operational again at the end of the roof operation.Operating hitch: If the operation is
interrupted, a continuous audible sig- nal sounds: Release switch 3, then pull it again
to finish opening the roof.
Note: If the malfunction persists, con-
tact a PEUGEOT dealer to have the system checked.
After rain or washing the vehicle, it is advisable to wait for the roof todry before opening it.
