2001.5 Peugeot 206 CC Owner's Manual

YOUR 206 CC IN DETAIL
50
Selecting a service The last address entered is displayed. There are 3 options for defining the location in which you wish to obtain a service:
Ð resume the last address entered by means of the
"Validate" function.
Ð enter the name of a new town then enter the street (or the "town centre" function) by means of the "Change"
function.
Ð automatically enter your current location by using the "current location" function.
The address of the required service is displayed. An indication on the right-hand side of the screen (e.g. 1/50) indicates whether there are any other establishments
(50 maximum) which offer the same service within a radiusof approximately 35 miles (50 km). Use the "Next"or "Previous" functions to consult the list
offered.When the establishment of your choice is displayed, select the "Validate" function then press the "VAL"button.
Select a guidance criterion. Guidance begins, follow the instructions.
After confirming the address, select a service by scrolling through the list using the direction arrows then press the
"VAL" button.
A cursor on the left-hand side of the screen indicates yourposition in the list.

YOUR 206 CC IN DETAIL51

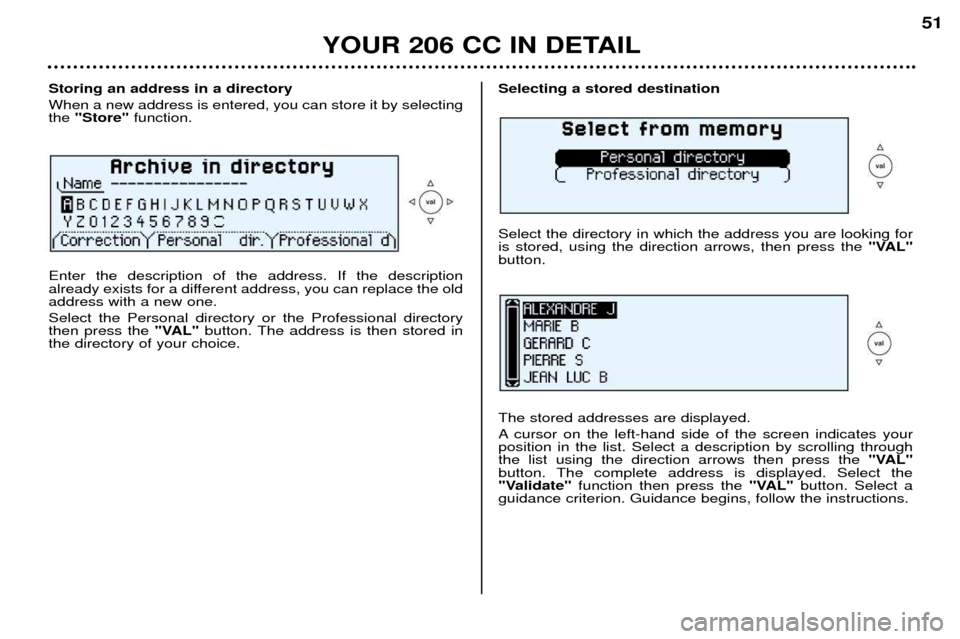

Storing an address in a directory When a new address is entered, you can store it by selecting the
"Store" function.
Enter the description of the address. If the description
already exists for a different address, you can replace the oldaddress with a new one. Select the Personal directory or the Professional directory then press the "VAL"button. The address is then stored in
the directory of your choice.Selecting a stored destination Select the directory in which the address you are looking for is stored, using the direction arrows, then press the "VAL"
button. The stored addresses are displayed.
A cursor on the left-hand side of the screen indicates your position in the list. Select a description by scrolling throughthe list using the direction arrows then press the "VAL"
button. The complete address is displayed. Select the
"Validate" function then press the "VAL" button. Select a
guidance criterion. Guidance begins, follow the instructions.

YOUR 206 CC IN DETAIL
52
Display configuration From the general menu, the
"Configure display"menu
gives access to the following parameters:
Ð Adjustment of the display brightness.
Ð Adjustment of the date and time.
Ð Selection of the language of the display and voice information (English, German, Spanish, French, Italian).
Ð Adjustment of formats and units. This adjustment permits a selection between display of Km/h or Mph, between degrees Celsius or Fahrenheit and the format for the hours(12 or 24 hour mode) to be modified.Navigation options From the main menu, the "Navigation options"menu gives
access to the following parameters:
Ð Management of the directories. It enables an address stored under a description to be renamed or deleted. To do this, select the directory and the description to be changed.
Ð Voice synthesiser volume adjustment.
Ð Deletion of all data stored in the two directories.

YOUR 206 CC IN DETAIL53

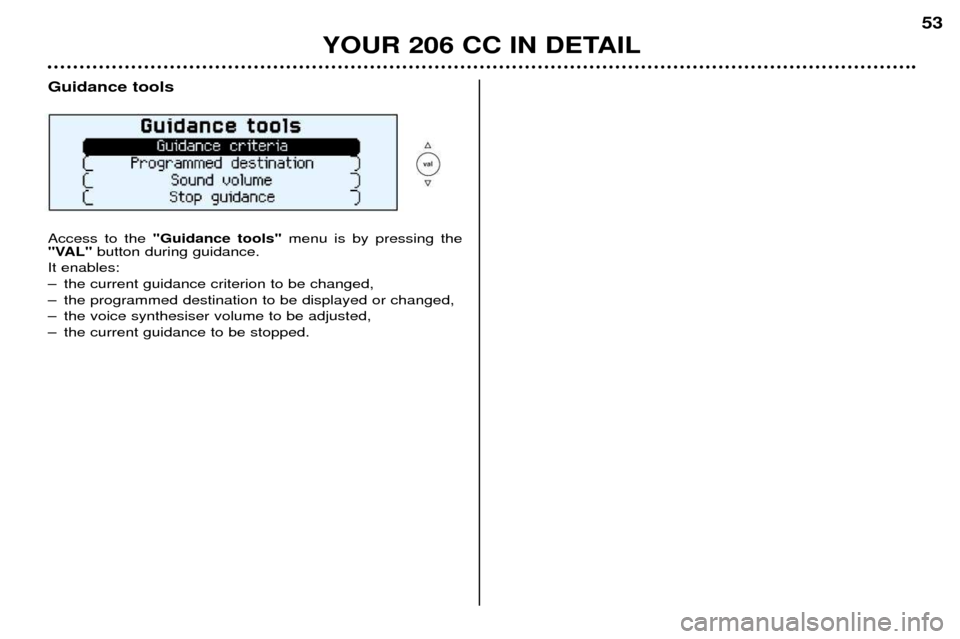

Guidance tools Access to the
"Guidance tools" menu is by pressing the
"VAL" button during guidance.
It enables:
Ð the current guidance criterion to be changed,
Ð the programmed destination to be displayed or changed,
Ð the voice synthesiser volume to be adjusted,
Ð the current guidance to be stopped.

YOUR 206 CC IN DETAIL
54
Ventilation

YOUR 206 CC IN DETAIL55

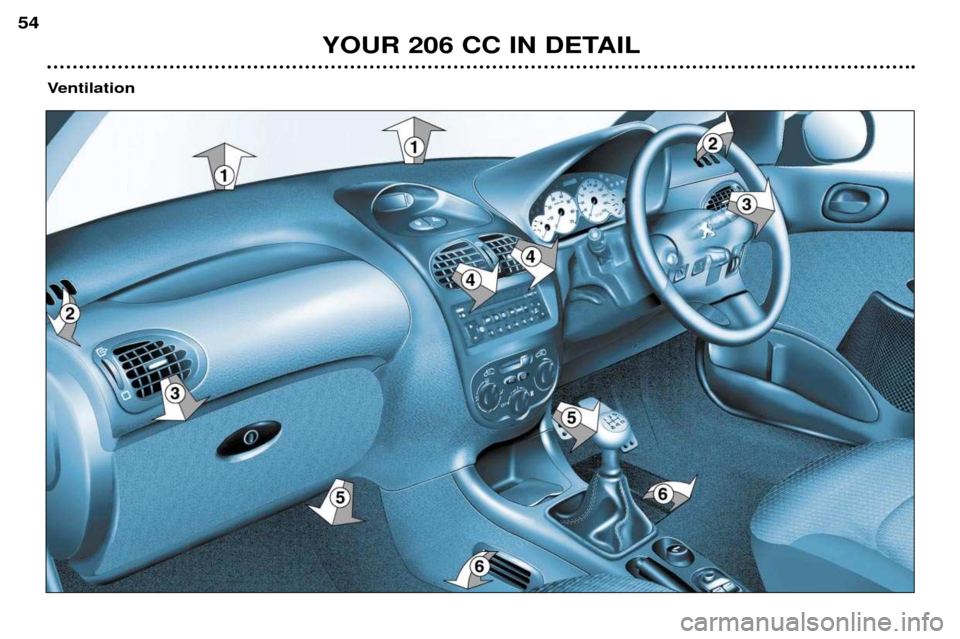

Ventilation 1 . Windscreen demisting or de-icing vents.
2 . Front window demisting or de-icing vents.
3 . Side vents.
4 . Centre vents.
5 . Air outlet to front footwells.
6 . Air outlet to rear footwells*.
Advice on operation
Ð Place the air flow control at a sufficient level to ensure correct renewal of air in the passenger compartment. The "OFF"
position cuts off all the air circulation in the passenger compartment. Note : only use the ''OFF''position occasionally (risk of condensation).
Ð Select the air distribution most suited to your requirements and the climatic conditions.
Ð Gradually adjust the temperature setting for your comfort.
Ð Position the outside air control to the left: the "Outside air" position.
Ð For perfectly even air distribution, take care not to obstruct the exterior air intake grille on the bonnet, the vents and the air ducts under the front seats. Check that the pollen filter is in good condition.
* According to specification.

YOUR 206 CC IN DETAIL
56

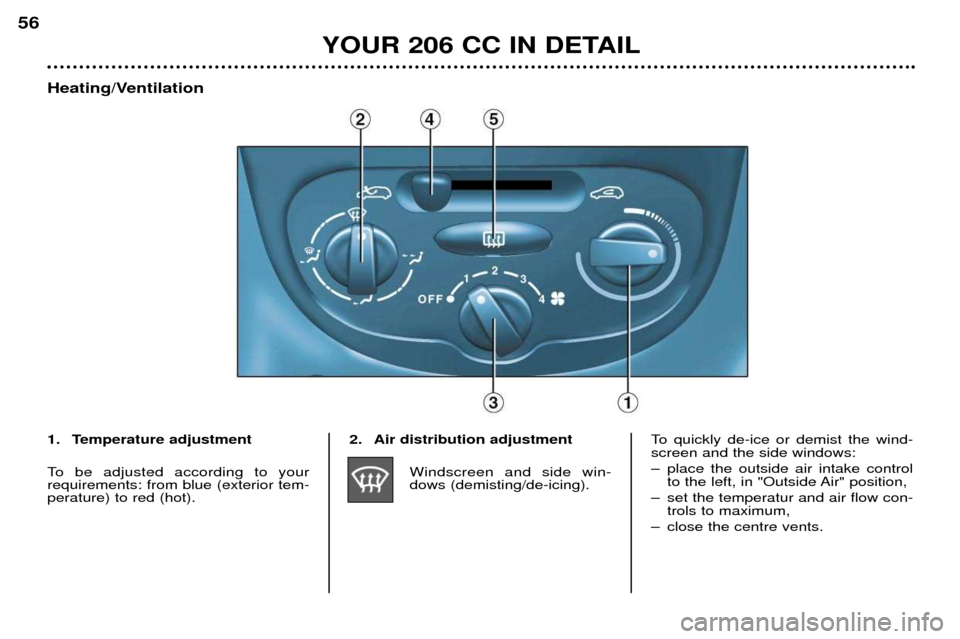

Heating/Ventilation
2. Air distribution adjustmentWindscreen and side win- dows (demisting/de-icing). To quickly de-ice or demist the wind-screen and the side windows:
Ð place the outside air intake control
to the left, in "Outside Air" position,
Ð set the temperatur and air flow con- trols to maximum,
Ð close the centre vents.
1. Temperature adjustment
To be adjusted according to your requirements: from blue (exterior tem-perature) to red (hot).

YOUR 206 CC IN DETAIL57
Windscreen ,side window-
sand footwells. Footwells.
These settings are recommended for cold climates. Centre and side vents. This setting is recommended
for hot climates.
3. Air flow adjustment
Turn the control to give a suf- ficient air flow to ensure yourcomfort. 4. Air intake control
Outside air intake.
This is the position for normal use.
Recirculation of interior air.
This position prevents the exteriorodours and smoke from entering thepassenger compartment and increas-es the speed of heating. As soon as possible, place the control in the outside air position, otherwise there is a risk of the windows misting up.
5. De-icing the rear screen
With the engine running, pressing the button de-icesthe rear screen and the mir-rors*.
It switches off automatically afterapproximately twelve minutes. Press-ing the button again starts it again fortwelve minutes. It is possible to stop the de-icing oper- ation by pressing the button before thetwelve minutes have elapsed. Note: this function is disarmed when
the roof is stored in the boot.
* According to specification.
