2001.5 Peugeot 206 CC Owner's Manual

YOUR 206 CC IN DETAIL43
CD CHANGER* Selecting CD changer mode Press button R.
Selecting a track Press button Lto select the next track.
Press button Nto return to the start of the current track or to select the previous track.
Accelerated play Keep button Lor Npressed for forwards or backwards accelerated play. Accelerated play stops as soon as the button is
released. Shuffle When the CD changer is selected, keep button Rpressed down for two seconds.
The tracks will be played in random sequence. Pressing the button again for two seconds returns you to normal play.
*Available during the current year.

YOUR 206 CC IN DETAIL
44
Direction arrows: These enable you to move around the screen and thus select a function.
On the welcome screen only, the Up and Down buttons enable the brightness of the screen to beadjusted.
menu : this button allows access to the main menu. It can be
used at any time.
esc : escape button
"Short press": cancels the current operation andreturns to the previous screen. "Press for more than 2 seconds": returns to the welcome screen. This button can be used in any menu. It is inactive during guidance.
mod : mode button
"Short press": changes between date, navigation andradio.
val : Confirmation button
Confirms the function selected.
THE SATELLITE NAVIGATION SYSTEM Introduction The satellite navigation system guides you to the destination of your choiceby means of vocal and visual instruc-
tions. The heart of the system lies inthe use of a map database and a GPS
system. The latter enables your posi-tion to be located by means of severalsatellites. The satellite navigation system consists of the following components:
Ð the remote control,
Ð the display,
Ð the control unit,
Ð the last voice message recall control,
Ð the CD ROM. The remote controlPointing this at the screen enables the information contained in the various menus to be selected.
A special compartment in the glove box permits storage of the remote control.
Some functions or services descri- bed may vary depending on the CDROM version or the country wherethe vehicle is sold.

YOUR 206 CC IN DETAIL45

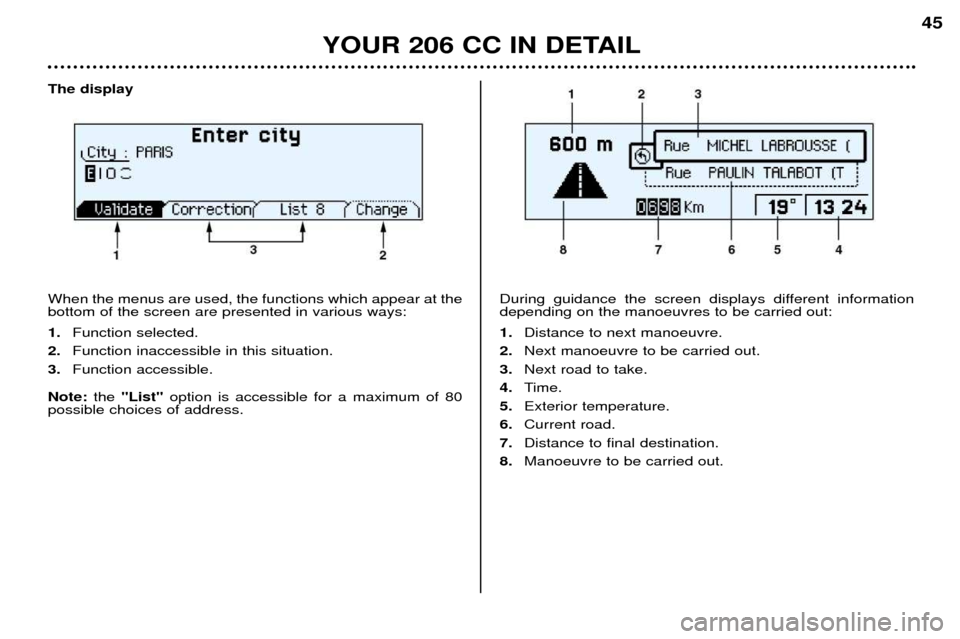

The display When the menus are used, the functions which appear at the bottom of the screen are presented in various ways: 1.
Function selected.
2. Function inaccessible in this situation.
3. Function accessible.
Note: the "List" option is accessible for a maximum of 80
possible choices of address.
During guidance the screen displays different information depending on the manoeuvres to be carried out: 1. Distance to next manoeuvre.
2. Next manoeuvre to be carried out.
3. Next road to take.
4. Time.
5. Exterior temperature.
6. Current road.
7. Distance to final destination.
8. Manoeuvre to be carried out.

YOUR 206 CC IN DETAIL
46
The control unit This is in the glove box. 1.
CD ROM eject button.
2. CD ROM compartment.
3. ON indicator light indicates that the control unit is
supplied with power.
4. CD indicator light shows that there is a CD ROM in theunit.
5. Remote control storage compartment.The last voice message recall control
Pressing the button on the end of the wiper stalk allowsthe last voice message to berepeated.
The CD ROM It contains all the mappingdata. It must be inserted with the printed face upwards.
Use only CD Roms approved by PEUGEOT.

YOUR 206 CC IN DETAIL47
Main menu Switch on the ignition. Press the
"Menu"button to access the main menu.
Select a function using the direction arrows, then confirm ( "VAL" button).Navigation / Guidance Following selection of the "Navigation/guidance"menu, a
screen warns you about the use of the navigation system. Follow the regulations in force and do not use the remotecontrol while driving. Press the "VAL" button to access the next screen.
The "Navigation/guidance" menu offers various options for
selecting guidance:
Ð By entering the address of a new destination.
Ð By selecting a service (hotel, station, airport...) available in a town.
Ð By selecting an address stored in one of the two directories.
Ð By resuming a previously interrupted guidance or by stopping a current guidance. Two messages may be displayed depending on the previous actions: "Resume
guidance" or "Stop guidance" .
Ð The radio functions are suspended when the system is in guidance mode.

YOUR 206 CC IN DETAIL47
Main menu Switch on the ignition. Press the
"Menu"button to access the main menu.
Select a function using the direction arrows, then confirm ( "VAL" button).Navigation / Guidance Following selection of the "Navigation/guidance"menu, a
screen warns you about the use of the navigation system. Follow the regulations in force and do not use the remotecontrol while driving. Press the "VAL" button to access the next screen.
The "Navigation/guidance" menu offers various options for
selecting guidance:
Ð By entering the address of a new destination.
Ð By selecting a service (hotel, station, airport...) available in a town.
Ð By selecting an address stored in one of the two directories.
Ð By resuming a previously interrupted guidance or by stopping a current guidance. Two messages may be displayed depending on the previous actions: "Resume
guidance" or "Stop guidance" .
Ð The radio functions are suspended when the system is in guidance mode.

YOUR 206 CC IN DETAIL
48
Entering a new destination The last town entered is displayed.
To enter the name of another town, select each letter using the direction arrows then confirm (
"VAL"button) for each
letter. If an error is made, the "Correct"function enables the last
letter entered to be cleared.The "List" function indicates, as the name is entered,
the number of towns beginning with the same letters. When the list contains less than 5 names, these are displayed
automatically. Select a town then confirm ( "VAL"button).
The "Change" function enables the town entered to be
completely cleared. When the complete name of the town is displayed, select the
"Validate" function then press the "VAL"button.
Note: following confirmation of a letter, only those letters
which could make up an existing name appear.
Enter the name of the street. Select the "Validate"function
then press the "VAL"button.
Note: the guidance can be activated from the time the town
is entered without the name of a street or a number. To do this, select the "town centre" function.
Enter the number on the street. Select the "Validate"
function then press the "VAL"button.
Note: the guidance can be activated as soon as the town
and street are entered without a number. To do this, selectthe "Validate" function.

YOUR 206 CC IN DETAIL49

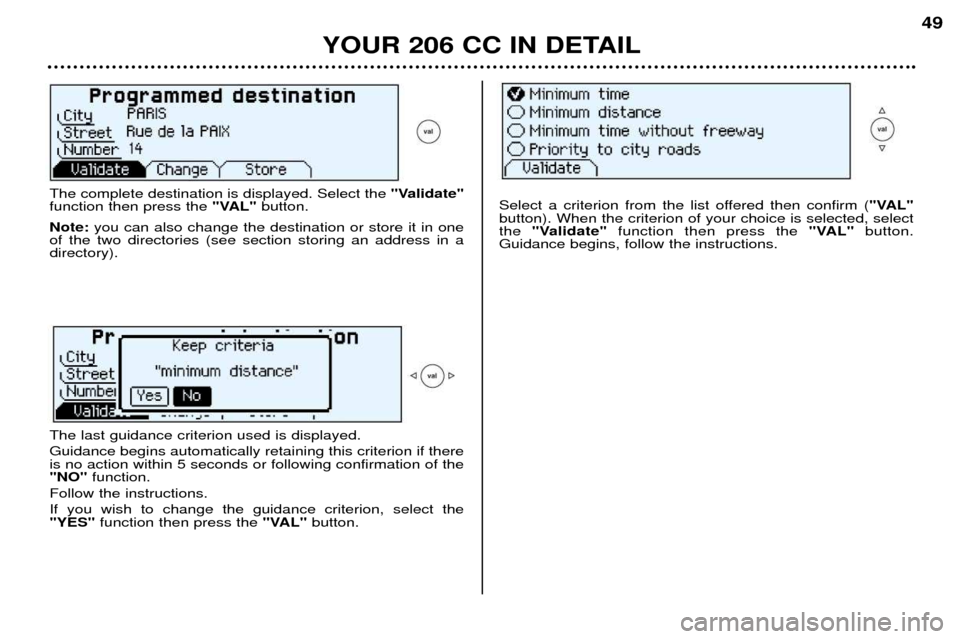

The complete destination is displayed. Select the
"Validate"
function then press the "VAL"button.
Note: you can also change the destination or store it in one
of the two directories (see section storing an address in a directory).Select a criterion from the list offered then confirm ( "VAL"
button). When the criterion of your choice is selected, select the "Validate" function then press the "VAL"button.
Guidance begins, follow the instructions.
The last guidance criterion used is displayed. Guidance begins automatically retaining this criterion if there is no action within 5 seconds or following confirmation of the"NO" function.
Follow the instructions. If you wish to change the guidance criterion, select the "YES" function then press the "VAL"button.
