Page 57 of 123
YOUR 206 CC IN DETAIL
58

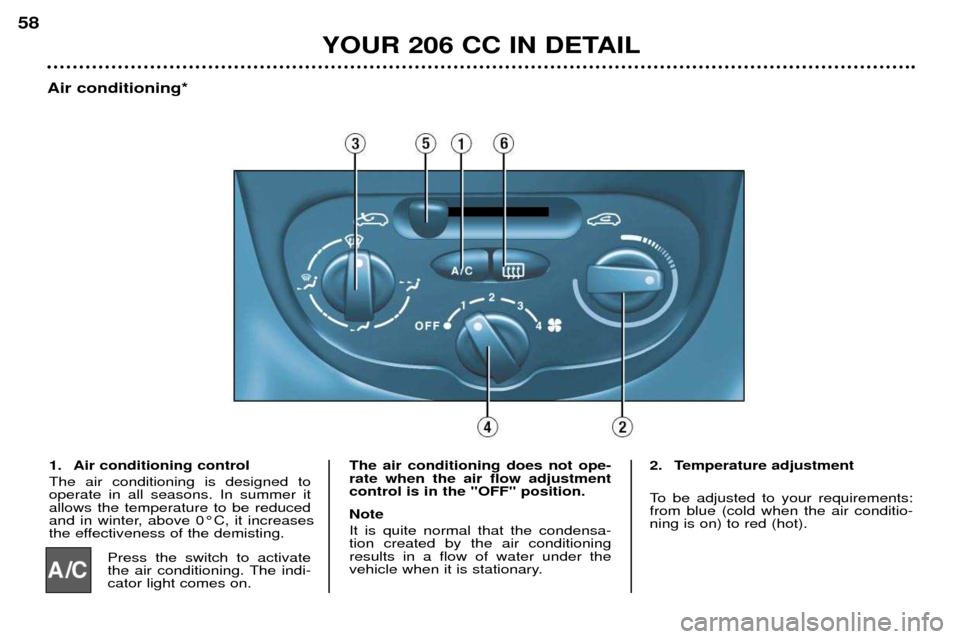

Air conditioning*
1. Air conditioning control The air conditioning is designed to operate in all seasons. In summer itallows the temperature to be reduced
and in winter, above 0¡C, it increases
the effectiveness of the demisting. Press the switch to activate
the air conditioning. The indi-cator light comes on. The air conditioning does not ope-rate when the air flow adjustmentcontrol is in the "OFF" position. Note It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.
2. Temperature adjustment
To be adjusted to your requirements: from blue (cold when the air conditio-ning is on) to red (hot).
Page 58 of 123
YOUR 206 CC IN DETAIL59
3. Air distribution adjustment
Windscreen and side win- dows (demisting/de-icing).
To quickly de-ice or demist the wind-screen and the side windows:
Ð place the temperature and air flow controls to maximum,
Ð close the central vents.
Ð place the outside air intake control to the left, in the "Outside air" posi- tion,
Ð operate the air conditioning
Windscreen, side windowsand footwells. Footwells.
These settings are recommended for cold climates.
Central and side vents.
This setting is recommended for hotclimates. 5. Air intake control
Outside air intake.
This is the norma operating position.
Recirculation of interior air.
This position prevents the entry ofunpleasant odours or fumes from theoutside. Used simultaneously with the air conditioning enables both the heatingand cooling performance to be impro-ved. Used without air conditioning, recircu- lation may result in misting the win-dows. As soon as possible, place the control in the outside air position. Important precaution Operate the air conditioning for 5 to 10 minutes, once or twice a month, to
keep it in perfect working order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.4. Air flow adjustment
From position 1to position 4.
Turn the knob to obtain suffi- cient flow to ensure your com-fort.
* According to specification.
6. De-misting the rear screen
With the engine running, pressing the button de-miststhe rear screen and the mir-rors*.
It switches off automatically afterapproximately twelve minutes. Press again to resume de-misting for twelve minutes. It is possible to stop the de-misting operation by pressing the button againbefore the end of the twelve minutes. Note: this function is disarmed when
the roof is stored in the boot.
Page 59 of 123
YOUR 206 CC IN DETAIL
60
Automatic air conditioning* Note: in the cabriolet version, the effectiveness of the system may be reduced.
2.
Automatic comfort programmePress the "AUTO" button. The system automatically regulatesthe temperature level of the pas-senger compartment in line with
the temperature selected. To obtain thecorrect ambiance, it controls the tempera-
ture, the air flow, the distribution and intakeof air as well as air conditioning.3.Automatic visibility programme
In certain cases, the automat- ic comfort programme mayprove inadequate to demistor de-ice the windows
(because of humidity, numerous pas-sengers, ice etc.). In these casesselect the automatic visibility pro-gramme to rapidly clear the windows.
Automatic operation
1. Temperature setting The required temperature is displayed. Press the top and
bottom arrows to change. Asetting of approximately 21allows a comfortable setting
to be obtained.
Page 60 of 123
YOUR 206 CC IN DETAIL61
5.
Air distribution
Successive presses of this button allow the air flow to bedirected alternately to:
Ð the windscreen,
Ð the windscreen and the footwells,
Ð the central and side vents and the footwells,
Ð the central and side vents.
7. Air intake Press this button to recycle
the interior air. Recirculation,
shown on the display, pre-vents the entry of unpleasant
odours and fumes. from the outside.
Avoid prolonged recirculation of the
interior air. To do this, press again toreturn the system to automatic pro-cessing of the air intake.
4. Air conditioning
Press this button to stop the
air conditioning. The "ECO"symbol lights up. Press againto return to automatic opera-
tion of the air conditioning. The "A/C"symbol is displayed. 8. Switching the system off
The "OFF" button enablesthe entire system to be
switched off.
9. De-icing the rear window Press this button to de-ice therear screen and the mirrors*.The de-icing system switches
off automatically after a peri-
od which varies depending on the out-side temperature. It is possible to stop
the de-icing before it switches off auto-matically by pressing the button again. Note: this function is disarmed when
the roof is stored in the boot.
Manual operation
If you wish you can make a different
choice from the one offered by the sys-
tem, by changing a setting. The otherfunctions will still be managed auto-
matically. Press the "AUTO" button toreturn to completely automatic opera-tion.
6. Air flowThe air flow may beincreased or reducedby pressing the buttons
+ or - respectively.
* According to specification.
Note
The condensation created by the air con- ditioning causes a normal flow of waterunder the vehicle when it stops.
Page 61 of 123
YOUR 206 CC IN DETAIL
62

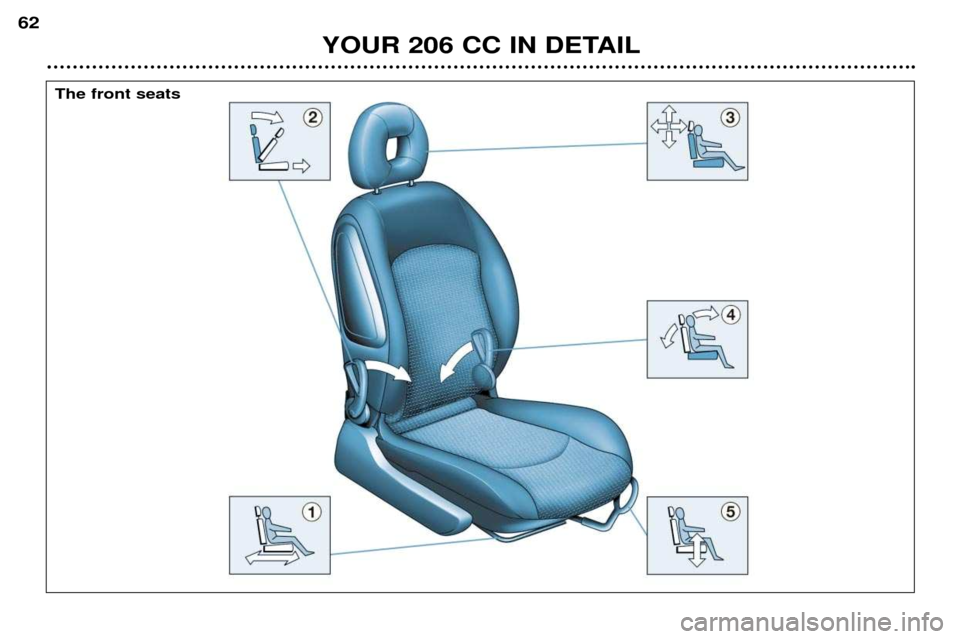

The front seats
Page 62 of 123
YOUR 206 CC IN DETAIL63
1 - Forwards/backwards adjustment
Lift the lever and slide the seat forwards or backwards.
2 - Access to the rear seats Place your fingers in one of the twohandles and push towards the frontto fold down the seat backt andmove the seat forwards. When putback, the seat returns to its initialposition.It is impossible to access the rearseats if the front seat is in areclining position.
No person nor object mustprevent the seat from returningto its initial position. Returning tothis position is necessary for it tobe locked.
3 - Adjusting the height of the head restraint
To raise the head restraint, push it upwards.
The setting is correct when theupper edge of the head restraintis level with the top of the head.
The head restraint has a frame withnotches which prevents the headrestraint from dropping down (safetydevice in case of impact).
To lower the head restraint you must simultaneously:- press the knob on the left-hand side at its base,
- press downwards. The angle of the head restraint can also be adjusted.
To remove the head restraint, press the tab.
4 - Adjusting the seat back angle Push one of the two controls
towards the rear.
5 - Driver's seat height adjustment Pull the handle upwards. Remove your weight from the seat to raise, or press on the seat to
lower.
Never drive with the head restraints removed. Theseshould be correctly fittedand adjusted.
Page 63 of 123
YOUR 206 CC IN DETAIL
64
''Isofix'' mountings
Available on the front passenger seat, the Isofix mountings allow for fitting of aspecial child seat
, sold by PEUGEOT
dealers. The locks incorporated in the child seat fit onto the Isofix mountings and ensuresafe, reliable and fast assembly
.
In the front, the child seat must be fit-
ted in the "rear facing" position for chil-dren weighing less than 29lbs (13 kg):front seat as far forward as possibleso that the body of the child seat is incontact with or as close as possible to
the instrument panel. This positionthus limits movement of the child seatin the event of an accident. In exceptional cases, the child seat may be fitted in the 'forwards facing'position if the rear seats are alreadyoccupied by other children. In thiscase, use the Isofix mountings, thestrap and the seat belt and adjust the front passenger seat to the "mid-travel" position. In both cases it is imperative to disarm the passenger air bag. The special approved child seat is the
Isofix KIDDY seat. It can be used "rearfacing" from birth to 29 lbs (13 kg)and "forwards facing" from 20 to 40 lbs(9 to 18 kg). This seat can also be used on seats not fitted with Isofix mountings: buck-ling of the three-point seat belt is then
compulsory. Follow the instructions for fitting the child seat given in the instruc-tion booklet.
Page 64 of 123
YOUR 206 CC IN DETAIL65
CHILD SEATS Child safety was one of PEUGEOT's main concerns when designing your vehicle; however the safety of your children also depends on you.
For maximum safety, please observe the following precautions:
- All children under the age of 10 are required to travel in approved restraining devices*, suited to their weight, in the seats
fit-
ted with seat belts.
- front passenger seat*: children under the age of 10 must not be transported in the "forwards facing" position, unless the rear seats are already occupied by other children. In this case adjust the front passenger seat to the mid-position. The "rear fac -
ing" position is permitted when the air bag is disarmed.
After carrying out numerous tests, PEUGEOT recommends the following systems: Up to 18 months (to 29 lbs or 13 kg) "Ršmer Babysure": is installed with its back to the engine and secured with a three-point seat belt, on either the front or rea r
seat. In the front the passenger seat must be adjusted to the "mid-position".
From 9 months to 3 or 4 years (20 to 40 lbs or 9 to 18 kg) "Ršmer Prince": is fitted to the rear seat with a three-point seat belt.For the safety of your children, the seat and the restraining cushion must never be separated.
From 3 to 6 years (33 to 55 lbs or 15 to 25 kg) "Ršmer Vario": is fitted to the rear seat with a three-point seat belt.
