2001.5 Peugeot 206 CC Owner's Manual

9YOUR AT A GLANCE

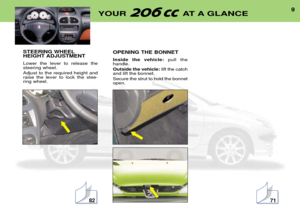

STEERING WHEEL HEIGHT ADJUSTMENT Lower the lever to release the steering wheel. Adjust to the required height and raise the lever to lock the stee-ring wheel. OPENING THE BONNET Inside the vehicle:
pull the
handle. Outside the vehicle: lift the catch
and lift the bonnet. Secure the strut to hold the bonnet open.
8271

11YOUR AT A GLANCE

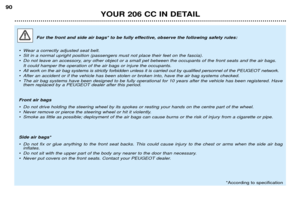

FRONT AIR BAGS Disarming the passenger air bag Insert the ignition key in the switch 1and turn it to:
Ð the ONposition; the passenger
air bagis armed,
Ð tthe OFF position; the passenger
air bag is disarmed.
Operating check
With the ignition on (2nd notch), illu-mination of this warning light,accompanied by an audible signaland the message "Passenger air
bag disarmed" on the multi-func-
tion display, indicates that the pas-senger air bag is disarmed (switch inthe "OFF" position).
The warning light remains on throu-ghout the disarming process. Precautions regarding thepassenger air bag
Vehicle fitted with a passenger air bag disarming switch:
Ð disarm the air
bag if you install a rearwards-facing child seat
Ð arm the air bag for an adult pas-
senger.
Vehicle not fitted with a passen-ger air bag disarming switch:
Ð do not install a rearwards-facing child seat on thefront passengerseat.
Never place your feet or anyobject on the fascia panel. ''ISOFIX'' MOUNTINGS
Available on the front passenger seat, Isofix mountings allow fit-ting of a
special child seat* sold
by PEUGEOT dealers. The locks incorporated in the child seat fit onto the ''Isofix''mountings, ensuring reliable,
safe and fast assembly. Thechild seat must be fitted in therearwards facing position for chil-dren less than 13kg (in this
event it is essential to disarmthe passenger air bag). Follow the instructions for fitting the child seat in the installationbrochure.
8864

12YOUR AT A GLANCE
No. Symbol Function
1 Air distribution adjustment.
2 Air intake control.
3 Temperature adjustment.
4 Demisting the rear screen and the mirrors
5 Air flow adjustment.
6 Air conditioningcontrol

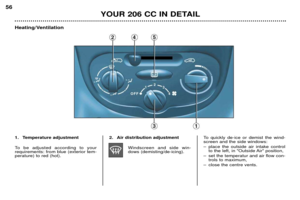

HEATING/AIR CONDITIONING
56
58

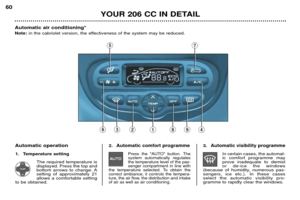

13YOUR AT A GLANCE
No. Symbol Function
1 Air flow adjustment.
2 Air distributionadjustment.
3 Air intake control.
4 Air conditioningcontrol.
5 Demisting the rear screen and the mirrors.
6 Switching off.
7 Temperature adjustment.
8 Automatic comfort programme.
9 Automatic visibility programme.
Note:in the cabriolet version,
system performance may be reduced.
60
AUTOMATIC AIR CONDITIONING

14THE AUTOMATIC AUTOADAPTIVE GEARBOX Starting the vehicle
To start the engine, move the selector lever to position N or P:
Press the brake pedal to change from posi-tion P , when selecting forward or reverse gears.
P. Parking.
R. Reverse.
N. Neutral.
D. Driving: in this position, the four gears change automatically.
3. Automatic changes of the first three gears only.
2. Automatic changes of the first two gears only.
A. Sport programme.
B. Snow programme.
Position of the selector lever This is displayed by an indicator on the instrument panel.YOUR AT A GLANCE
85

PEUGEOT SERVICING
18
PEUGEOT SERVICING
Your vehicle benefits from extended service intervals, every 20,000 miles (30,000 km) or every two years. The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal. It is for this reason, and for your complete peace of mind, that your PEUGEOT dealer will carry out a levels check and top-up midway between each routine service, at the time or distance intervals specified. This will be undertaken free of charge, provided that the maintenance of your vehicle has been carried out within the PEUGEOT network at the time or distance intervals specified. At the same time, your Peugeot dealer will offer you a Peugeot safety check, for a nominal fee.
A Peugeot professional will carry out a quick check, and will top up the levels if necessary (oil up to 1 litre, coolant and screen wash). If the oil level is too low there is a risk of serious damage to the engine: check the engine oil level at least every 2,000 to 3,000 miles (3,000 to 5,000 km), depending on the conditions of use.
The date of the intermediate visit is not shown by the service indicator. It is to be carried out every 10,000 miles (15,000 km) maximum. This extended servicing has been made possible by modifications to our vehicles and to the lubricants:

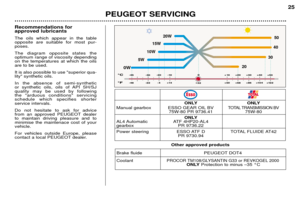

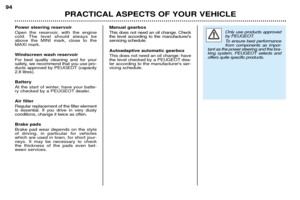

THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER.

PEUGEOT SERVICING19
SPECIAL FEATURES Some of your vehicle's vital components have specific servicing schedules. The air bags and the pretensioning seat belts must be replaced every 10 years. The brake fluid must be replaced every 40,000 miles (60,000 km) or every 2 years.
The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services).Note:
The engine coolant does not need to be replaced.

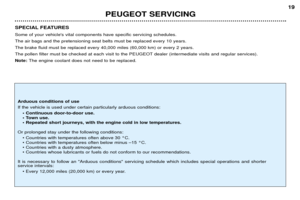

Arduous conditions of use If the vehicle is used under certain particularly arduous conditions: ¥ Continuous door-to-door use.
¥ Town use.¥ Repeated short journeys, with the engine cold in low temperatures.
Or prolonged stay under the following conditions: ¥ Countries with temperatures often above 30 ¡C.¥ Countries with temperatures often below minus Ð15 ¡C.¥ Countries with a dusty atmosphere.¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an "Arduous conditions" servicing schedule which includes special operations and shorter service intervals: ¥ Every 12,000 miles (20,000 km) or every year.

PEUGEOT SERVICING
20

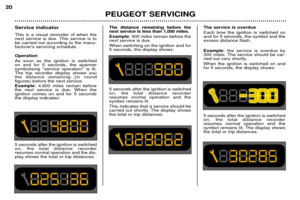

Service indicator This is a visual reminder of when the
next service is due. This service is tobe carried out according to the manu-facturer's servicing schedule. Operation As soon as the ignition is switched on and for 5 seconds, the spannersymbolising ''service operation'' is lit.The trip recorder display shows youthe distance remaining (in roundfigures) before the next service. Example : 4,800 miles remain before
the next service is due. When the ignition comes on and for 5 secondsthe display indicates: The distance remaining before thenext service is less than 1,000 miles. Example
: 900 miles remain before the
next service is due. When switching on the ignition and for 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distance recorderresumes normal operation and thesymbol remains lit. This indicates that a service should be
carried out shortly. The display showsthe total or trip distances.
5 seconds after the ignition is switchedon, the total distance recorderresumes normal operation and the dis-play shows the total or trip distances.
5 seconds after the ignition is switched on, the total distance recorderresumes normal operation and the
symbol remains lit. The display showsthe total or trip distances.
The service is overdue Each time the ignition is switched on and for 5 seconds, the symbol and theexcess distance flash. Example : the service is overdue by
300 miles. The service should be car-
ried out very shortly. When the ignition is switched on and for 5 seconds, the display shows:
