2000 NISSAN PATROL Diff

Fluids and Lubricants
Capacity (Approximate)
Recommended Fluids/Lubricants
Liter Imp measure
Engine oil (Refill)
With oil filter
ZD30DDTi 5.7 5 qtDiesel engine: API CF4 or ACEA
B3-96.98 or ACEA B3/E3-
96.98*3 for ZD30DDTi Without oil filter
ZD30DDTi 5.2 4-5/8 qt
Cooling system (with reservoir tank)
With front heater
ZD30DDTi M/T, A/TRHD 12.7 11-1/8 qt
Genuine Nissan Anti-freeze Coolant
(L2N) or equivalent*4 LHD 12.9 11-3/8 qt
Without front
heaterZD30DDTi M/T, A/TRHD 12.0 10-5/8 qt
LHD 12.2 10-3/4 qt
With rear heater
ZD30DDTi M/T, A/TRHD 13.8 12-1/8 qt
LHD 14.0 12-3/8 qt
Manual transmission Ð Ð API GL-4, Viscosity SAE 75W-90 only
Differential carrier gear oil (without limited slip differential) Ð Ð API GL-5*1
Transfer fluid
ÐÐGenuine Nissan ATF or equivalent*2 or
API GL-4*1
Automatic transmission fluid 11.8 10-3/8 qt Genuine Nissan ATF or equivalent*2
Power steering fluid Refill to the proper oil level
according to the instructions in
ªDo-it-yourself operationsº sec-
tion of the owner's manual.Type DEXRON
TMIII or equivalent
Brake and clutch fluid
DOT 3 or DOT 4 (U.S. FMVSS No.
116)*5
Multi-purpose grease Ð Ð NLGI No. 2 (Lithium soap base)
Propeller shaft greaseNLGI No. 2 (Molybdenum disulphide
lithium soap base)
Air conditioning system refrigerant Ð Ð HFC-134a (R-134a)
Air conditioning system lubricants
ÐÐNissan A/C System Oil Type S or
exact equivalent
*1: For further details, see ªSAE viscosity numberº.
*2: For more information regarding suitable fluids, contact a Nissan dealer for correct brands of DEXRON
TMIII/MERCONTMAutomatic Transmission Fluid.
*3: Never use API CG-4.
*4: Use Genuine Nissan Anti-freeze Coolant (L2N) or equivalent in its quality, in order to avoid possible aluminum corrosion within the engine cooling
system caused by the use of non-genuine engine coolant.
Note that any repairs for the incidents within the engine cooling system while using non-genuine engine coolant may not be covered by
the warranty even if such incidents occurred during the warranty period.
*5: Never mix DOT 3 & DOT 4.
RECOMMENDED FLUIDS AND LUBRICANTS
MA-1008

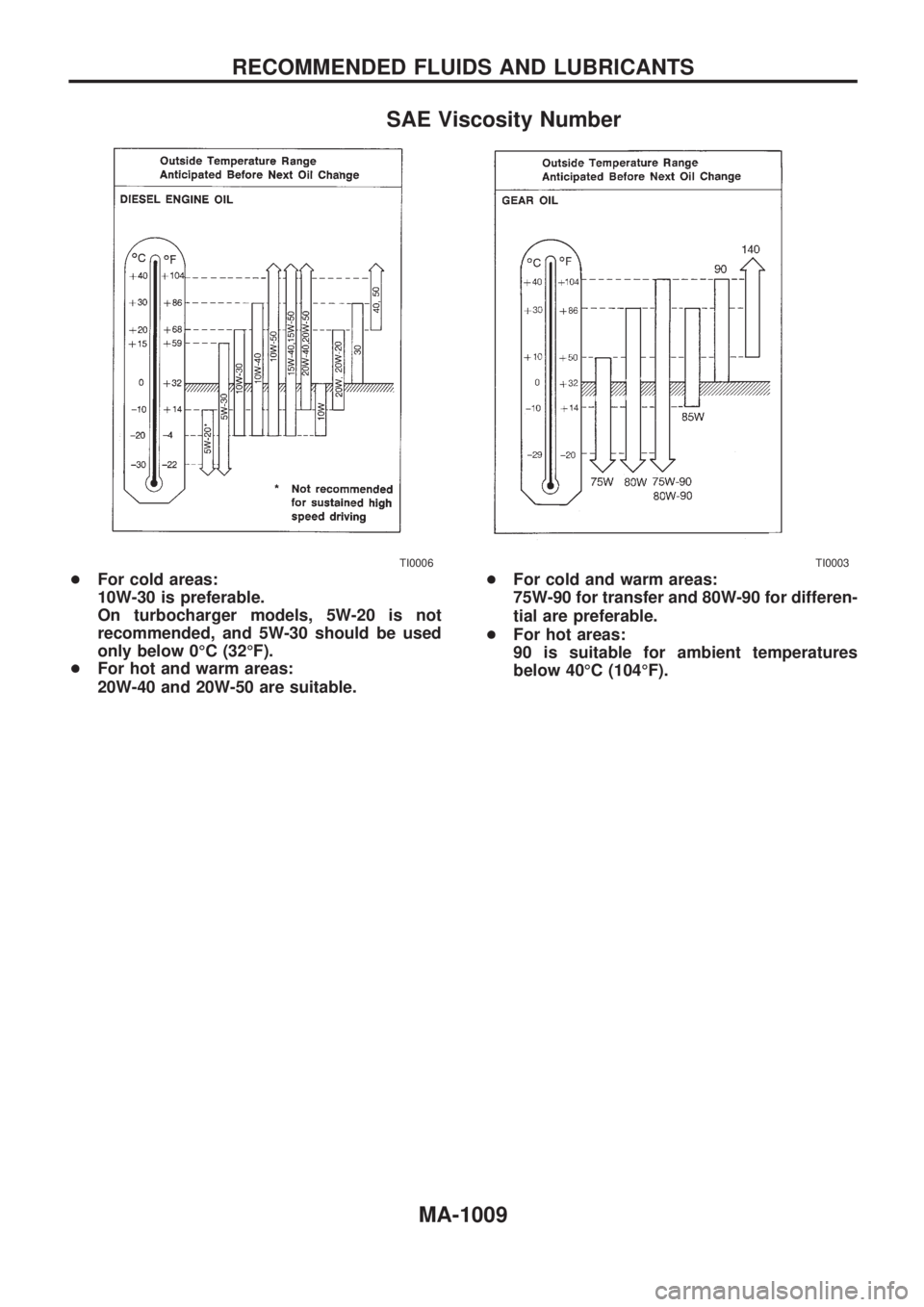

SAE Viscosity Number
+For cold areas:
10W-30 is preferable.
On turbocharger models, 5W-20 is not
recommended, and 5W-30 should be used
only below 0ÉC (32ÉF).
+For hot and warm areas:
20W-40 and 20W-50 are suitable.+For cold and warm areas:
75W-90 for transfer and 80W-90 for differen-
tial are preferable.
+For hot areas:
90 is suitable for ambient temperatures
below 40ÉC (104ÉF).
TI0006TI0003
RECOMMENDED FLUIDS AND LUBRICANTS
MA-1009

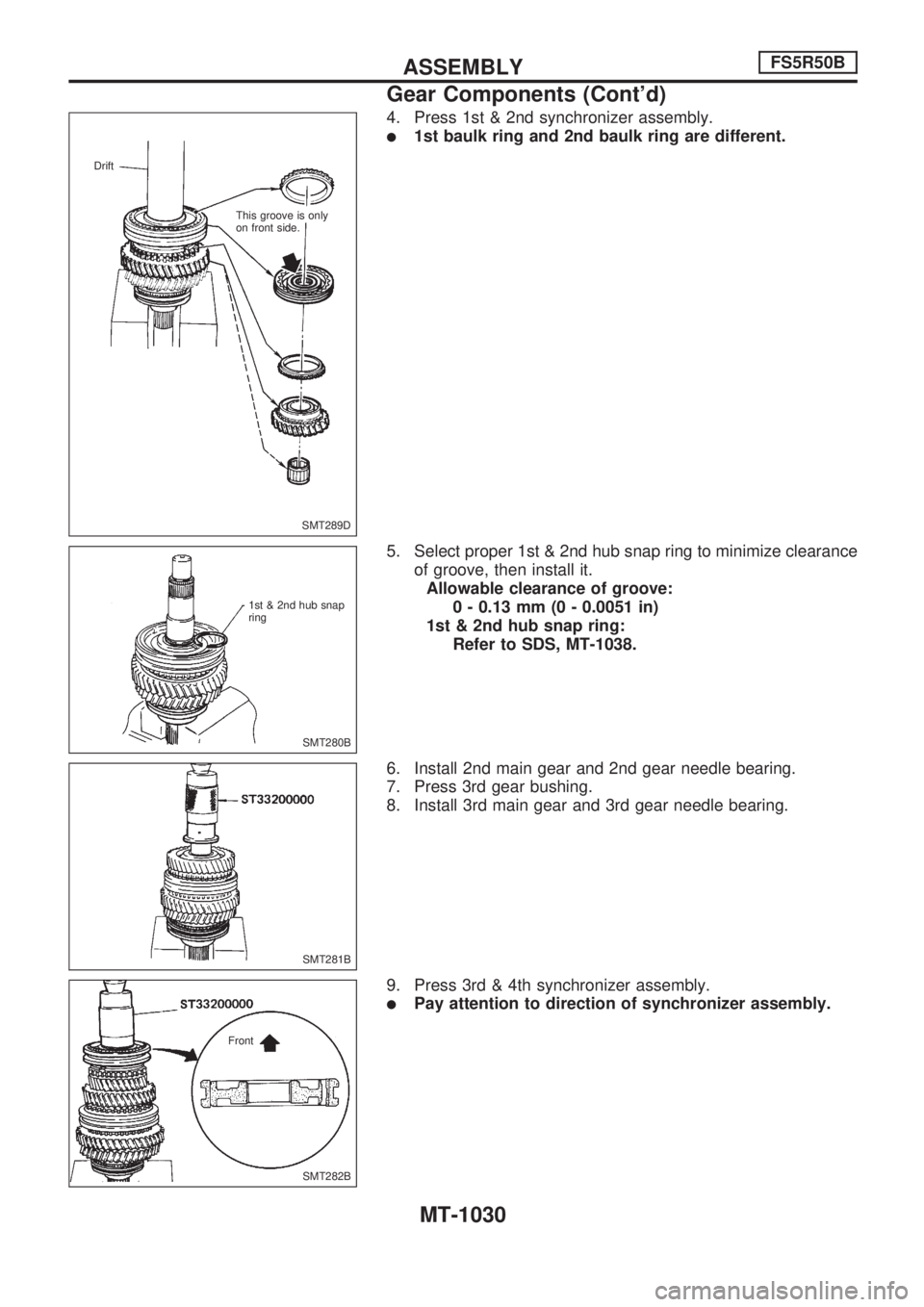

4. Press 1st & 2nd synchronizer assembly.
l1st baulk ring and 2nd baulk ring are different.
5. Select proper 1st & 2nd hub snap ring to minimize clearance
of groove, then install it.
Allowable clearance of groove:
0 - 0.13 mm (0 - 0.0051 in)
1st & 2nd hub snap ring:
Refer to SDS, MT-1038.
6. Install 2nd main gear and 2nd gear needle bearing.
7. Press 3rd gear bushing.
8. Install 3rd main gear and 3rd gear needle bearing.
9. Press 3rd & 4th synchronizer assembly.
lPay attention to direction of synchronizer assembly.
SMT289D Drift
This groove is only
on front side.
SMT280B 1st & 2nd hub snap
ring
SMT281B
SMT282B Front
ASSEMBLYFS5R50B
Gear Components (Cont'd)
MT-1030

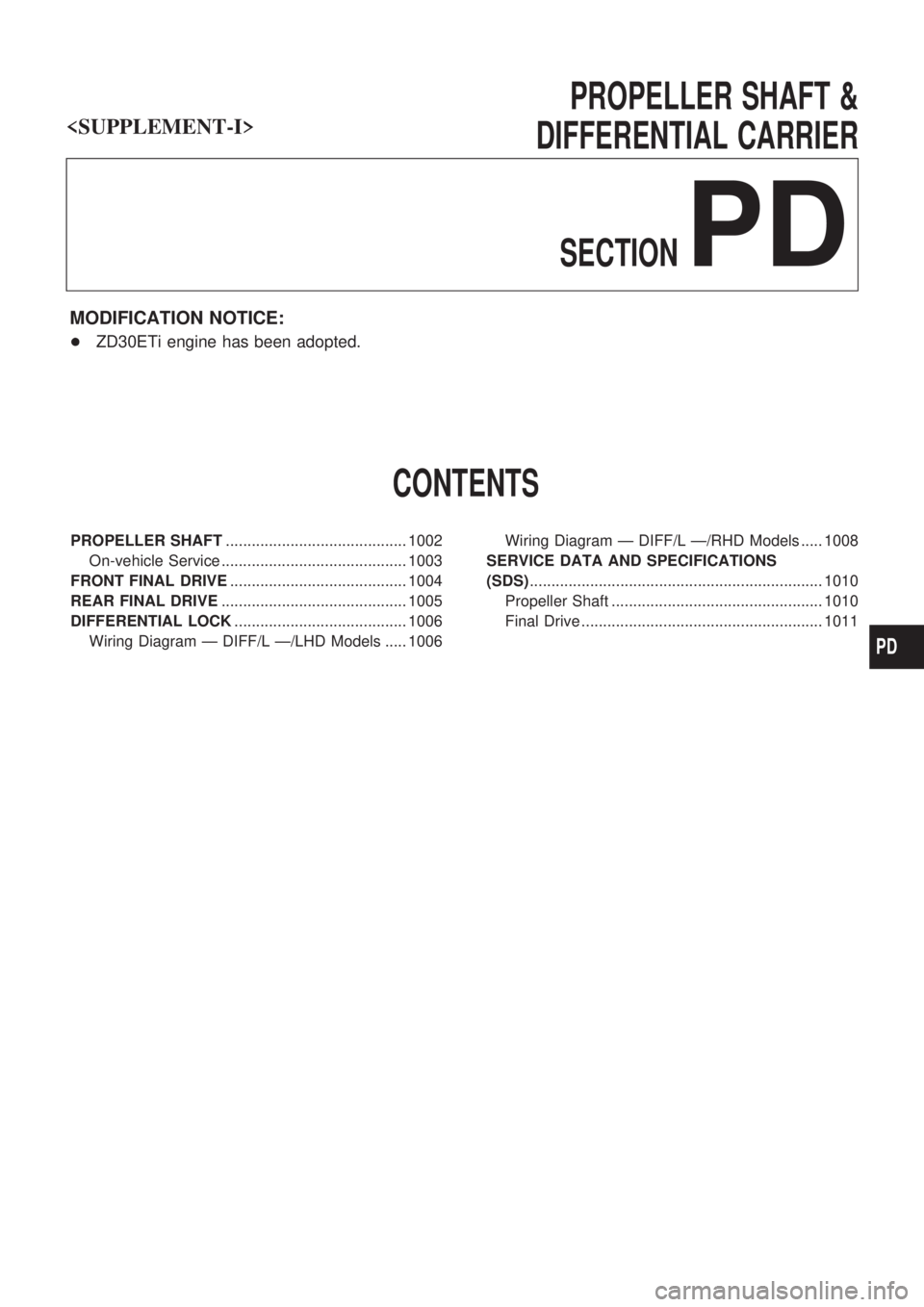

PROPELLER SHAFT &
DIFFERENTIAL CARRIER
SECTION
PD
MODIFICATION NOTICE:
+ ZD30ETi engine has been adopted.
CONTENTS
PROPELLER SHAFT .......................................... 1002
On-vehicle Service ........................................... 1003
FRONT FINAL DRIVE ......................................... 1004
REAR FINAL DRIVE ........................................... 1005
DIFFERENTIAL LOCK ........................................ 1006
Wiring Diagram Ð DIFF/L Ð/LHD Models ..... 1006 Wiring Diagram Ð DIFF/L Ð/RHD Models ..... 1008
SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................... 1010
Propeller Shaft ................................................. 1010
Final Drive ........................................................ 1011

PD

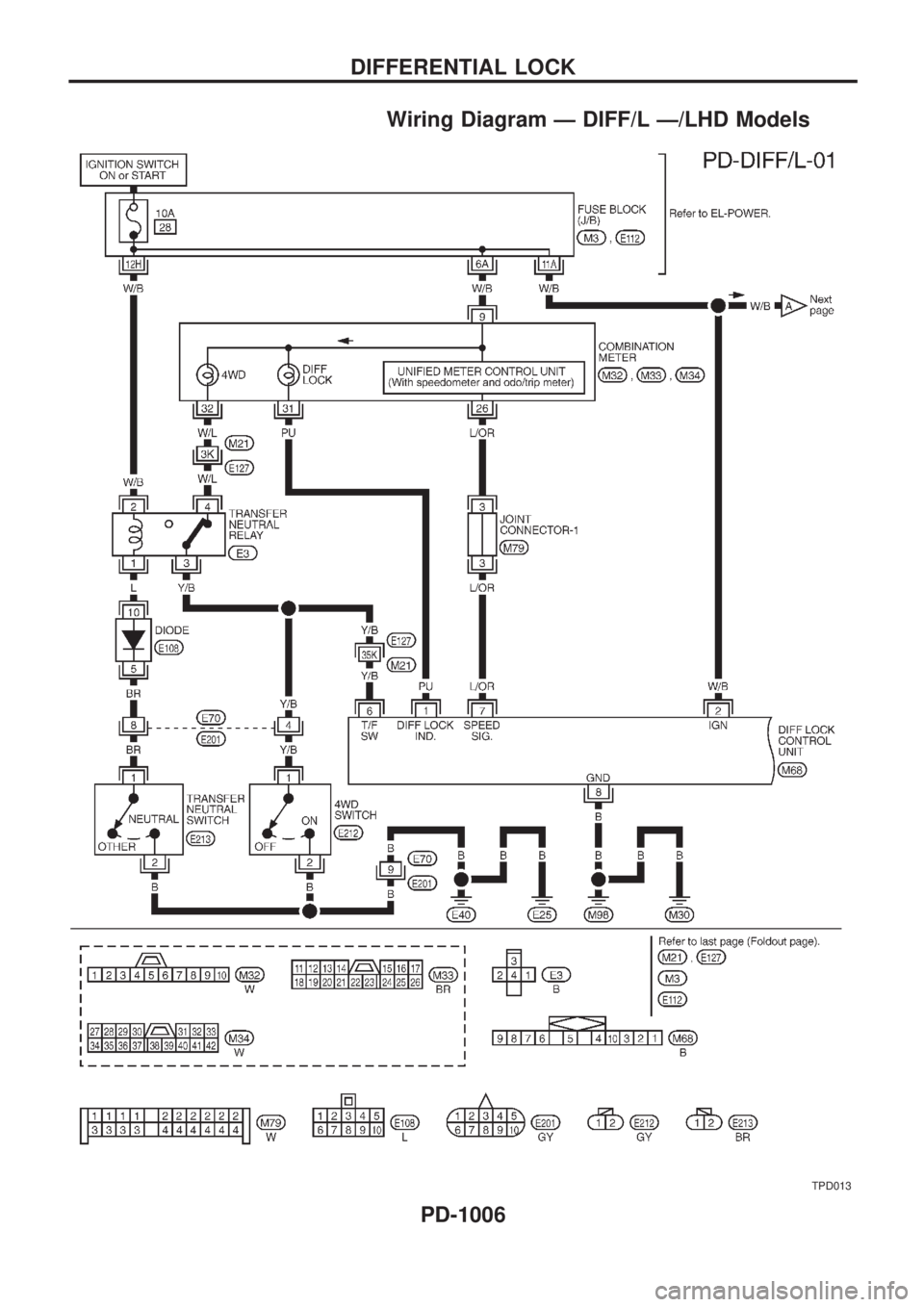

Wiring Diagram Ð DIFF/L Ð/LHD Models
TPD013
DIFFERENTIAL LOCK
PD-1006

TPD018
DIFFERENTIAL LOCK

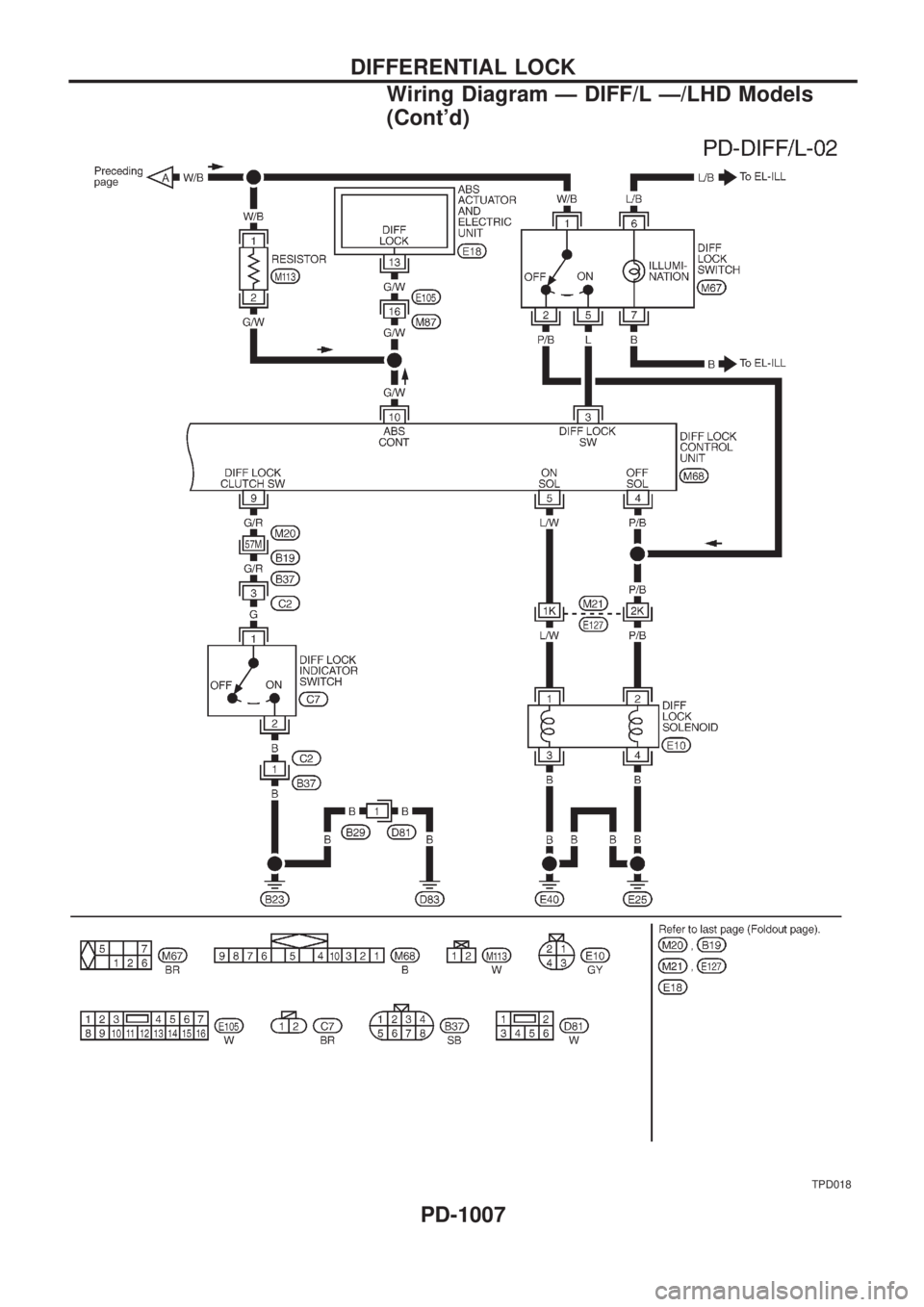

Wiring Diagram Ð DIFF/L Ð/LHD Models
(Cont'd)PD-1007

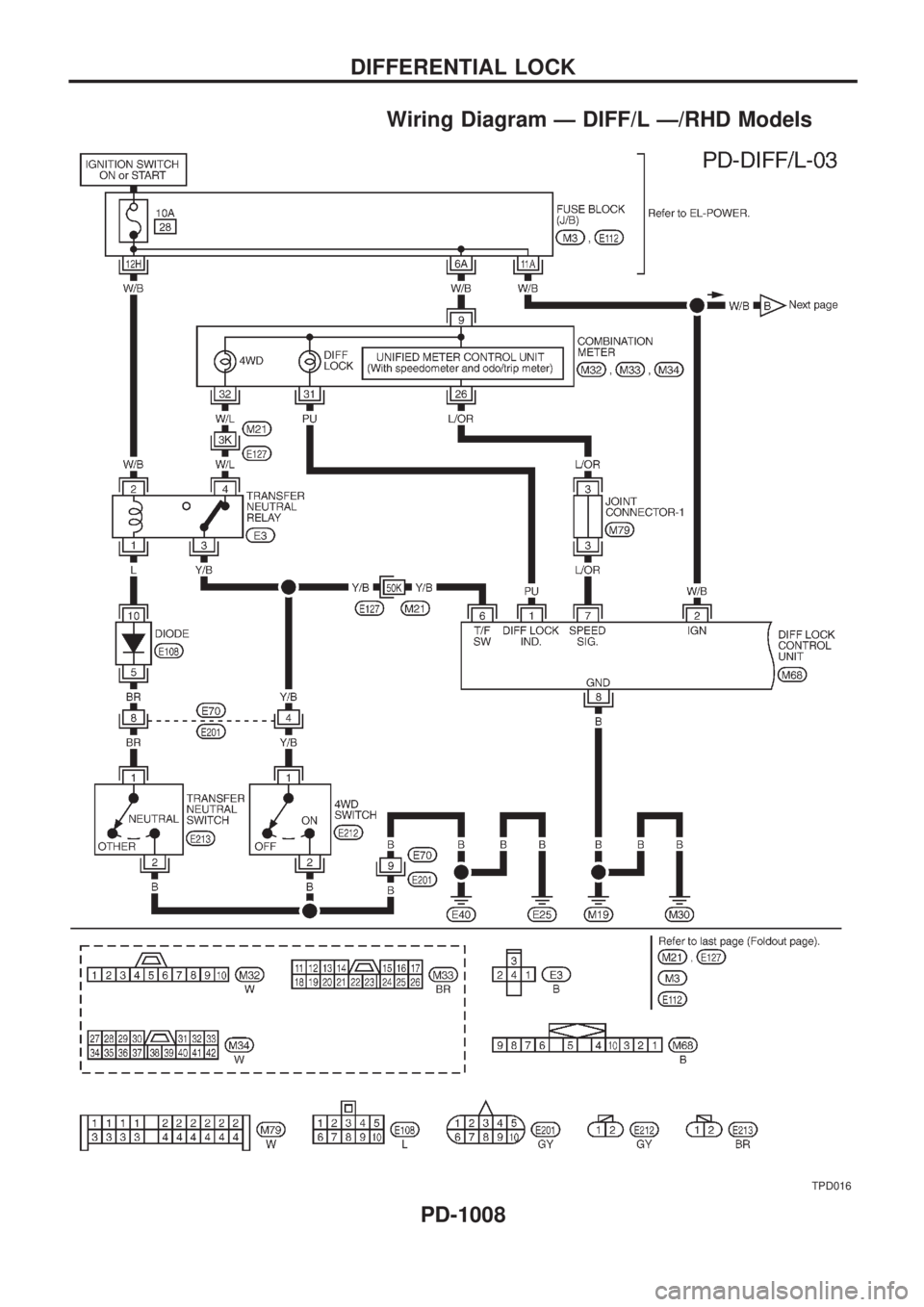

Wiring Diagram Ð DIFF/L Ð/RHD Models
TPD016
DIFFERENTIAL LOCK
PD-1008

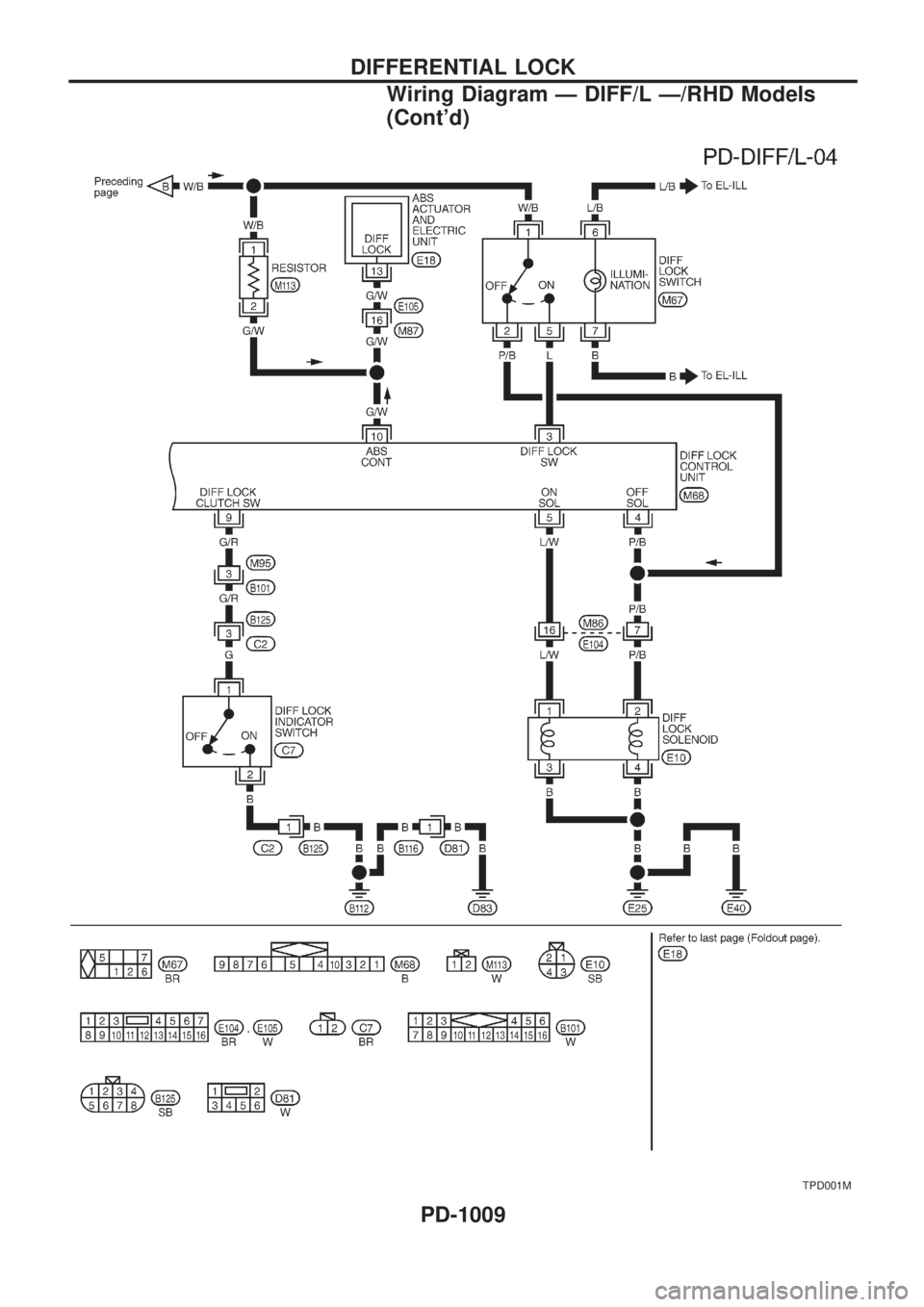

TPD001M
DIFFERENTIAL LOCK
Wiring Diagram Ð DIFF/L Ð/RHD Models
(Cont'd)PD-1009
