2000 NISSAN PATROL Diff

General Specifications
Cylinder arrangementIn-line 4
Displacementcm
3(cu in) 2,953 (180.19)
Bore and strokemm (in) 96 x 102 (3.78 x 4.02)
Valve arrangementDOHC
Firing order1-3-4-2
Number of piston ringsCompression 2
Oil1
Number of main bearings5
Compression ratio17.9
Compression Pressure
Unit: kPa (bar, kg/cm2, psi)/200 rpm
Compression pressureStandard 2,942 (29.4, 30.0, 427)
Minimum 2,452 (24.5, 25.0, 356)
Differential limit between cylinders 294 (2.94, 3.0, 43)
Cylinder Head
Unit: mm (in)
Standard Limit
Head surface distortion Less than 0.03 (0.0012) 0.2 (0.008)
SEM368G
Valve
VALVE
Unit: mm (in)
FEM067
SERVICE DATA AND SPECIFICATIONS (SDS)ZD
EM-1085

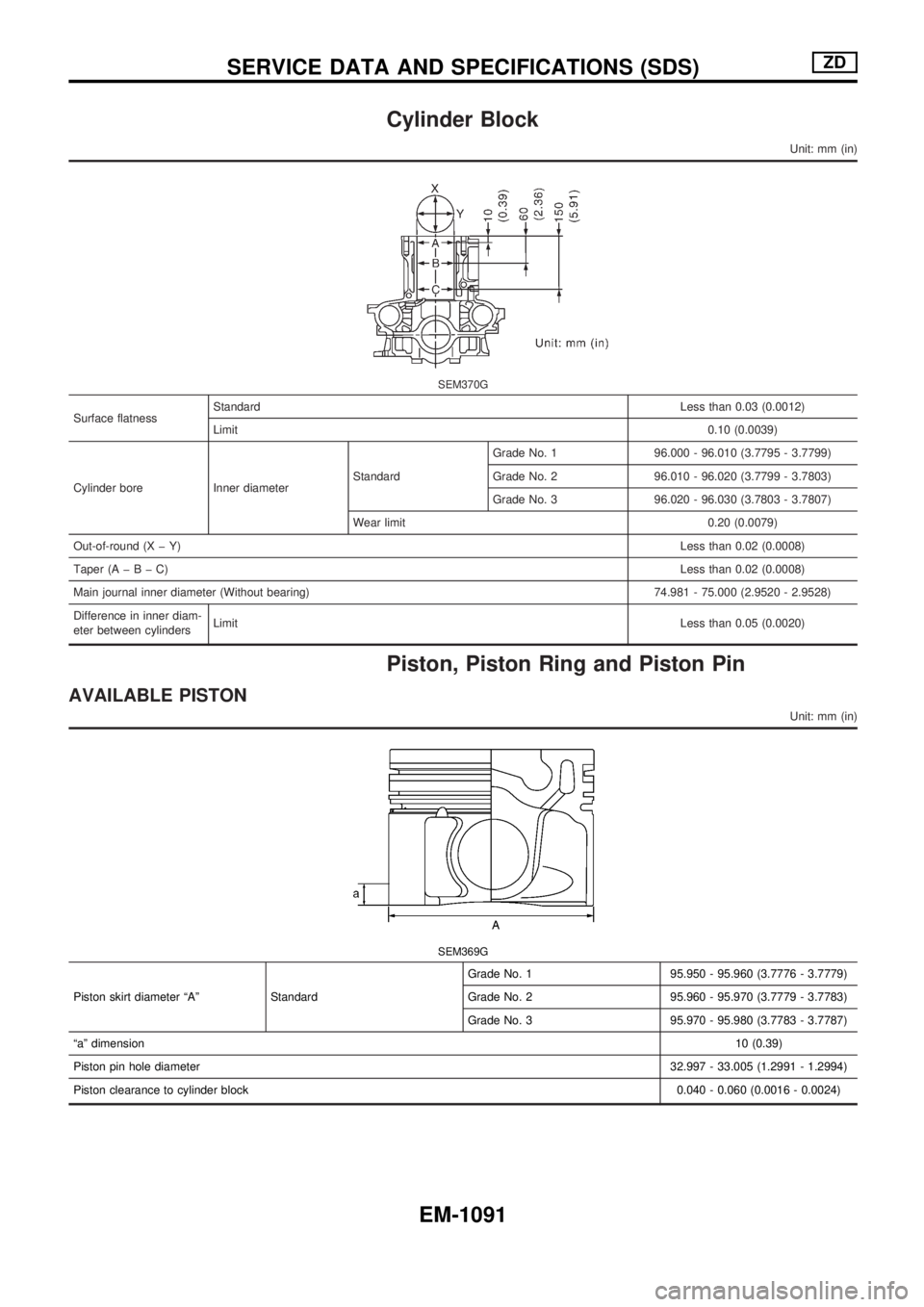

Cylinder Block
Unit: mm (in)
SEM370G
Surface flatnessStandardLess than 0.03 (0.0012)
Limit0.10 (0.0039)
Cylinder bore Inner diameterStandardGrade No. 1 96.000 - 96.010 (3.7795 - 3.7799)
Grade No. 2 96.010 - 96.020 (3.7799 - 3.7803)
Grade No. 3 96.020 - 96.030 (3.7803 - 3.7807)
Wear limit 0.20 (0.0079)
Out-of-round (X þ Y)Less than 0.02 (0.0008)
Taper (AþBþC)Less than 0.02 (0.0008)
Main journal inner diameter (Without bearing) 74.981 - 75.000 (2.9520 - 2.9528)
Difference in inner diam-
eter between cylindersLimitLess than 0.05 (0.0020)
Piston, Piston Ring and Piston Pin
AVAILABLE PISTON
Unit: mm (in)
SEM369G
Piston skirt diameter ªAº StandardGrade No. 1 95.950 - 95.960 (3.7776 - 3.7779)
Grade No. 2 95.960 - 95.970 (3.7779 - 3.7783)
Grade No. 3 95.970 - 95.980 (3.7783 - 3.7787)
ªaº dimension10 (0.39)
Piston pin hole diameter32.997 - 33.005 (1.2991 - 1.2994)
Piston clearance to cylinder block0.040 - 0.060 (0.0016 - 0.0024)
SERVICE DATA AND SPECIFICATIONS (SDS)ZD
EM-1091

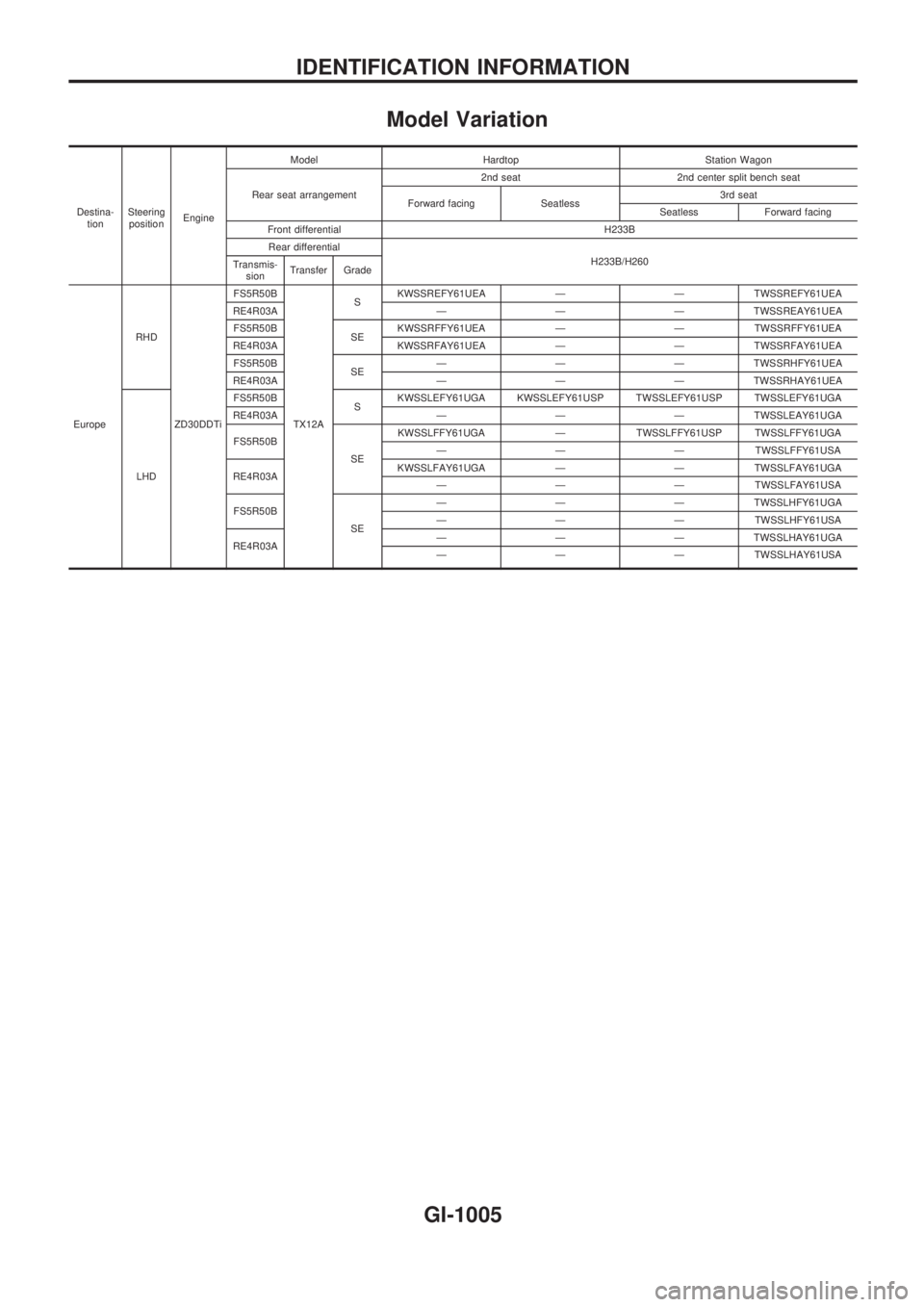

Model Variation
Destina-
tionSteering
positionEngineModel Hardtop Station Wagon
Rear seat arrangement2nd seat 2nd center split bench seat
Forward facing Seatless3rd seat
Seatless Forward facing
Front differential H233B
Rear differential
H233B/H260
Transmis-
sionTransfer Grade
EuropeRHD
ZD30DDTiFS5R50B
TX12ASKWSSREFY61UEA Ð Ð TWSSREFY61UEA
RE4R03A Ð Ð Ð TWSSREAY61UEA
FS5R50B
SEKWSSRFFY61UEA Ð Ð TWSSRFFY61UEA
RE4R03A KWSSRFAY61UEA Ð Ð TWSSRFAY61UEA
FS5R50B
SEÐ Ð Ð TWSSRHFY61UEA
RE4R03A Ð Ð Ð TWSSRHAY61UEA
LHDFS5R50B
SKWSSLEFY61UGA KWSSLEFY61USP TWSSLEFY61USP TWSSLEFY61UGA
RE4R03A Ð Ð Ð TWSSLEAY61UGA
FS5R50B
SEKWSSLFFY61UGA Ð TWSSLFFY61USP TWSSLFFY61UGA
Ð Ð Ð TWSSLFFY61USA
RE4R03AKWSSLFAY61UGA Ð Ð TWSSLFAY61UGA
Ð Ð Ð TWSSLFAY61USA
FS5R50B
SEÐ Ð Ð TWSSLHFY61UGA
Ð Ð Ð TWSSLHFY61USA
RE4R03AÐ Ð Ð TWSSLHAY61UGA
Ð Ð Ð TWSSLHAY61USA
IDENTIFICATION INFORMATION
GI-1005

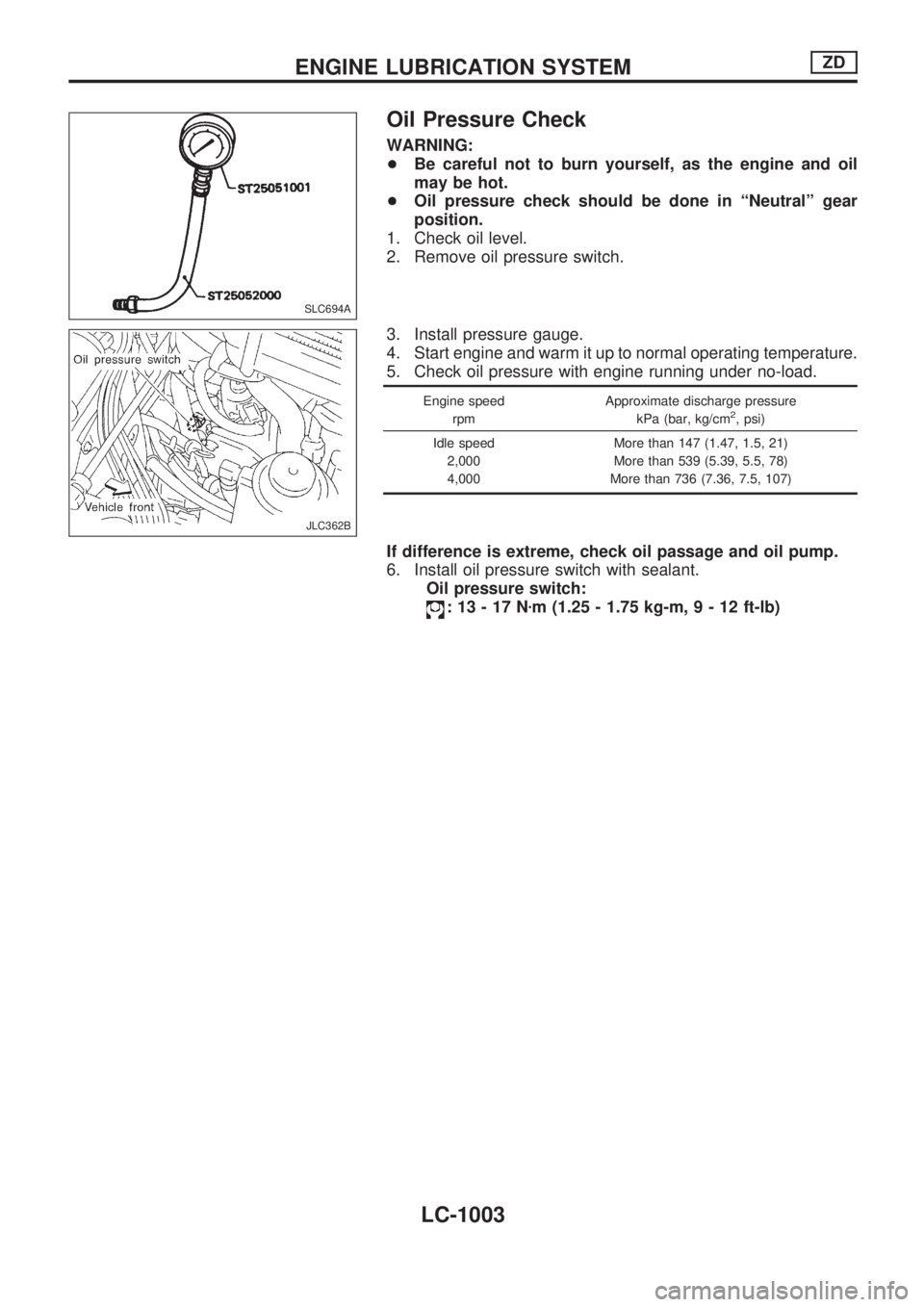

Oil Pressure Check
WARNING:
+Be careful not to burn yourself, as the engine and oil
may be hot.
+Oil pressure check should be done in ªNeutralº gear
position.
1. Check oil level.
2. Remove oil pressure switch.
3. Install pressure gauge.
4. Start engine and warm it up to normal operating temperature.
5. Check oil pressure with engine running under no-load.
Engine speed
rpmApproximate discharge pressure
kPa (bar, kg/cm2, psi)
Idle speed
2,000
4,000More than 147 (1.47, 1.5, 21)
More than 539 (5.39, 5.5, 78)
More than 736 (7.36, 7.5, 107)
If difference is extreme, check oil passage and oil pump.
6. Install oil pressure switch with sealant.
Oil pressure switch:
:13-17Nzm (1.25 - 1.75 kg-m,9-12ft-lb)
SLC694A
JLC362B
ENGINE LUBRICATION SYSTEMZD
LC-1003

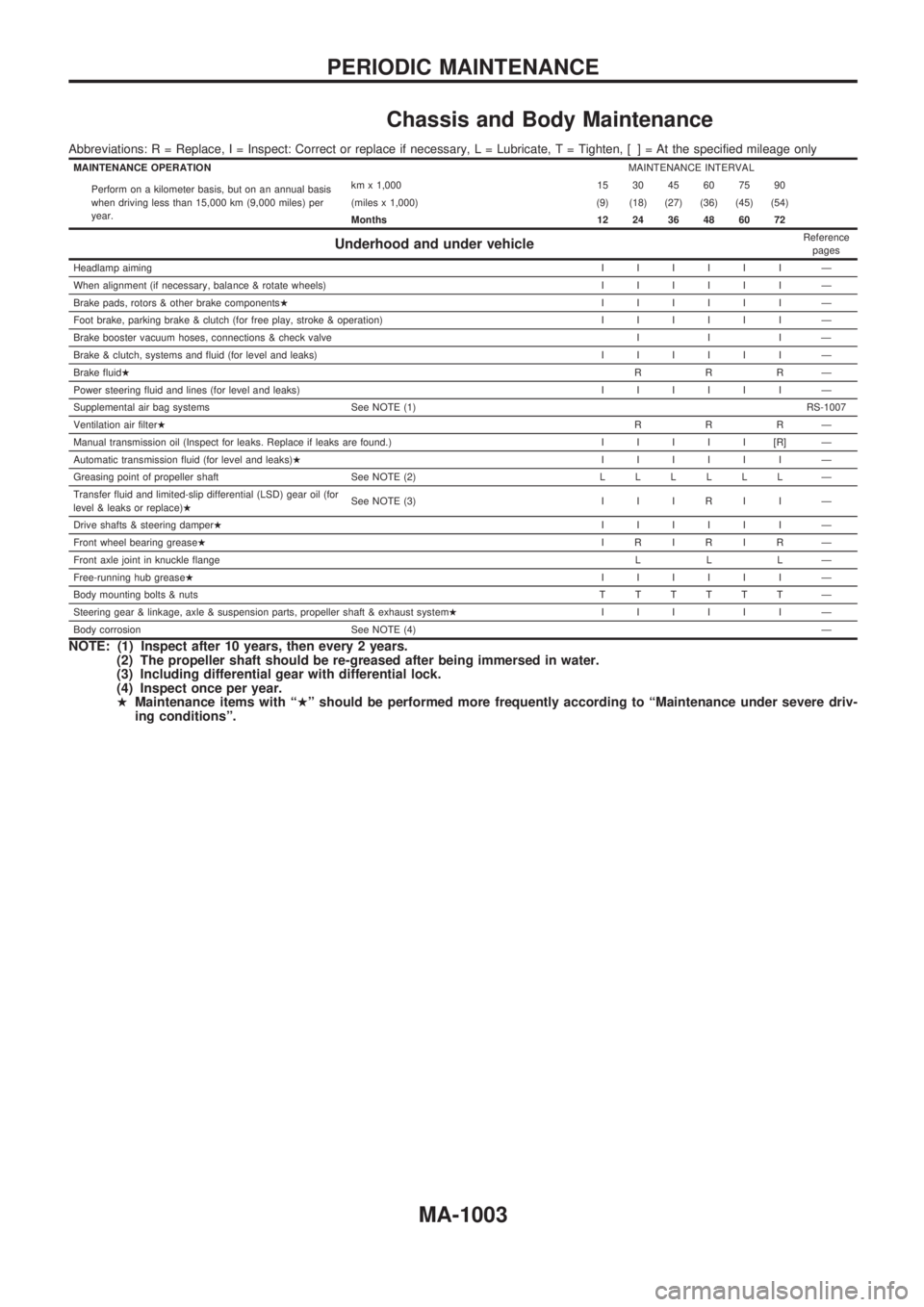

Chassis and Body Maintenance
Abbreviations: R = Replace, I = Inspect: Correct or replace if necessary, L = Lubricate, T = Tighten, [ ] = At the specified mileage only
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Perform on a kilometer basis, but on an annual basis
when driving less than 15,000 km (9,000 miles) per
year.km x 1,000 15 30 45 60 75 90
(miles x 1,000) (9) (18) (27) (36) (45) (54)
Months 12 24 36 48 60 72
Underhood and under vehicleReference
pages
Headlamp aimingIIIIII Ð
When alignment (if necessary, balance & rotate wheels)IIIIII Ð
Brake pads, rotors & other brake componentsHIIIIII Ð
Foot brake, parking brake & clutch (for free play, stroke & operation)IIIIII Ð
Brake booster vacuum hoses, connections & check valve I I I Ð
Brake & clutch, systems and fluid (for level and leaks)IIIIII Ð
Brake fluidHRRRÐ
Power steering fluid and lines (for level and leaks)IIIIII Ð
Supplemental air bag systems See NOTE (1)RS-1007
Ventilation air filterHRRRÐ
Manual transmission oil (Inspect for leaks. Replace if leaks are found.)IIIII[R] Ð
Automatic transmission fluid (for level and leaks)HIIIIII Ð
Greasing point of propeller shaft See NOTE (2)LLLLLL Ð
Transfer fluid and limited-slip differential (LSD) gear oil (for
level & leaks or replace)HSee NOTE (3) I I I R I I Ð
Drive shafts & steering damperHIIIIII Ð
Front wheel bearing greaseHIRIRIR Ð
Front axle joint in knuckle flangeLLLÐ
Free-running hub greaseHIIIIII Ð
Body mounting bolts & nutsTTTTTT Ð
Steering gear & linkage, axle & suspension parts, propeller shaft & exhaust systemHIIIIII Ð
Body corrosion See NOTE (4)Ð
NOTE: (1) Inspect after 10 years, then every 2 years.
(2) The propeller shaft should be re-greased after being immersed in water.
(3) Including differential gear with differential lock.
(4) Inspect once per year.
HMaintenance items with ªHº should be performed more frequently according to ªMaintenance under severe driv-
ing conditionsº.
PERIODIC MAINTENANCE
MA-1003

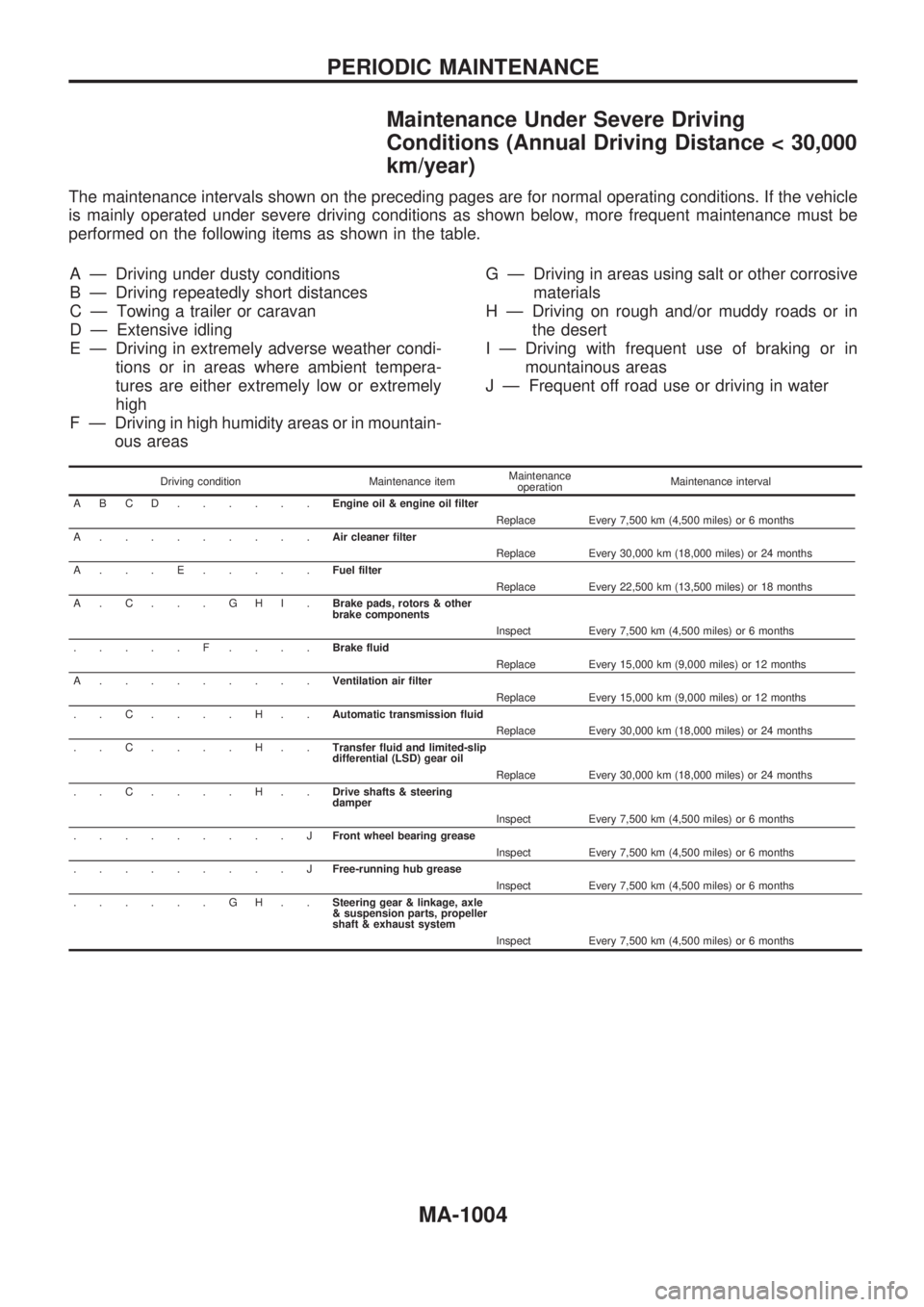

Maintenance Under Severe Driving
Conditions (Annual Driving Distance < 30,000
km/year)
The maintenance intervals shown on the preceding pages are for normal operating conditions. If the vehicle
is mainly operated under severe driving conditions as shown below, more frequent maintenance must be
performed on the following items as shown in the table.
A Ð Driving under dusty conditions
B Ð Driving repeatedly short distances
C Ð Towing a trailer or caravan
D Ð Extensive idling
E Ð Driving in extremely adverse weather condi-
tions or in areas where ambient tempera-
tures are either extremely low or extremely
high
F Ð Driving in high humidity areas or in mountain-
ous areasG Ð Driving in areas using salt or other corrosive
materials
H Ð Driving on rough and/or muddy roads or in
the desert
I Ð Driving with frequent use of braking or in
mountainous areas
J Ð Frequent off road use or driving in water
Driving condition Maintenance itemMaintenance
operationMaintenance interval
ABCD......Engine oil & engine oil filter
Replace Every 7,500 km (4,500 miles) or 6 months
A.........Air cleaner filter
Replace Every 30,000 km (18,000 miles) or 24 months
A...E.....Fuel filter
Replace Every 22,500 km (13,500 miles) or 18 months
A.C...GHI.Brake pads, rotors & other
brake components
Inspect Every 7,500 km (4,500 miles) or 6 months
.....F....Brake fluid
Replace Every 15,000 km (9,000 miles) or 12 months
A.........Ventilation air filter
Replace Every 15,000 km (9,000 miles) or 12 months
..C....H..Automatic transmission fluid
Replace Every 30,000 km (18,000 miles) or 24 months
..C....H..Transfer fluid and limited-slip
differential (LSD) gear oil
Replace Every 30,000 km (18,000 miles) or 24 months
..C....H..Drive shafts & steering
damper
Inspect Every 7,500 km (4,500 miles) or 6 months
.........JFront wheel bearing grease
Inspect Every 7,500 km (4,500 miles) or 6 months
.........JFree-running hub grease
Inspect Every 7,500 km (4,500 miles) or 6 months
......GH..Steering gear & linkage, axle
& suspension parts, propeller
shaft & exhaust system
Inspect Every 7,500 km (4,500 miles) or 6 months
PERIODIC MAINTENANCE
MA-1004

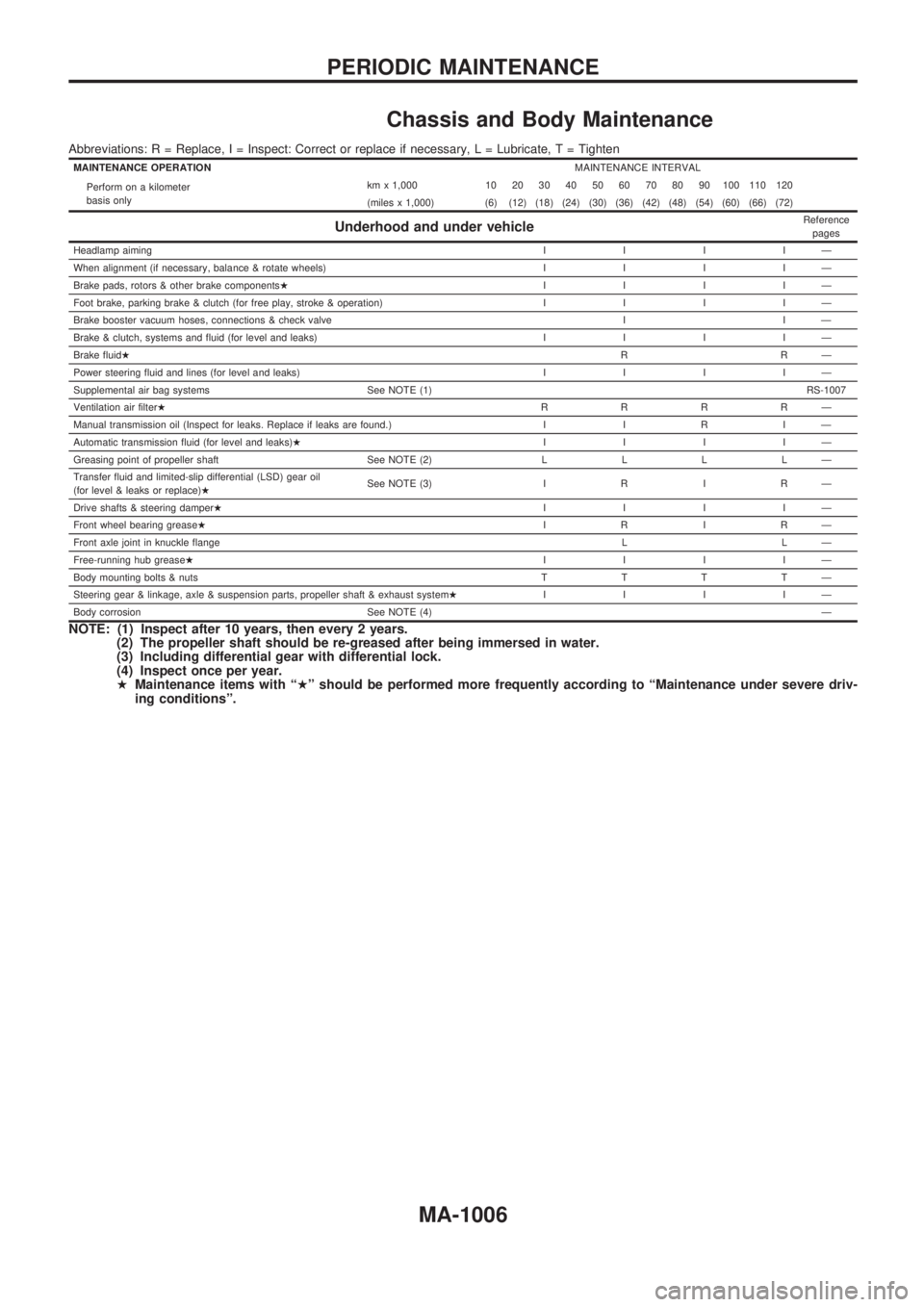

Chassis and Body Maintenance
Abbreviations: R = Replace, I = Inspect: Correct or replace if necessary, L = Lubricate, T = Tighten
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Perform on a kilometer
basis onlykm x 1,000 10 20 30 40 50 60 70 80 90 100 110 120
(miles x 1,000) (6) (12) (18) (24) (30) (36) (42) (48) (54) (60) (66) (72)
Underhood and under vehicleReference
pages
Headlamp aimingIIIIÐ
When alignment (if necessary, balance & rotate wheels)IIIIÐ
Brake pads, rotors & other brake componentsHIIIIÐ
Foot brake, parking brake & clutch (for free play, stroke & operation)IIIIÐ
Brake booster vacuum hoses, connections & check valve I I Ð
Brake & clutch, systems and fluid (for level and leaks)IIIIÐ
Brake fluidHRRÐ
Power steering fluid and lines (for level and leaks)IIIIÐ
Supplemental air bag systems See NOTE (1)RS-1007
Ventilation air filterHRRRRÐ
Manual transmission oil (Inspect for leaks. Replace if leaks are found.) I I R I Ð
Automatic transmission fluid (for level and leaks)HIIIIÐ
Greasing point of propeller shaft See NOTE (2)LLLLÐ
Transfer fluid and limited-slip differential (LSD) gear oil
(for level & leaks or replace)HSee NOTE (3) I R I R Ð
Drive shafts & steering damperHIIIIÐ
Front wheel bearing greaseHIRIRÐ
Front axle joint in knuckle flangeLLÐ
Free-running hub greaseHIIIIÐ
Body mounting bolts & nutsTTTTÐ
Steering gear & linkage, axle & suspension parts, propeller shaft & exhaust systemHIIIIÐ
Body corrosion See NOTE (4)Ð
NOTE: (1) Inspect after 10 years, then every 2 years.
(2) The propeller shaft should be re-greased after being immersed in water.
(3) Including differential gear with differential lock.
(4) Inspect once per year.
HMaintenance items with ªHº should be performed more frequently according to ªMaintenance under severe driv-
ing conditionsº.
PERIODIC MAINTENANCE
MA-1006

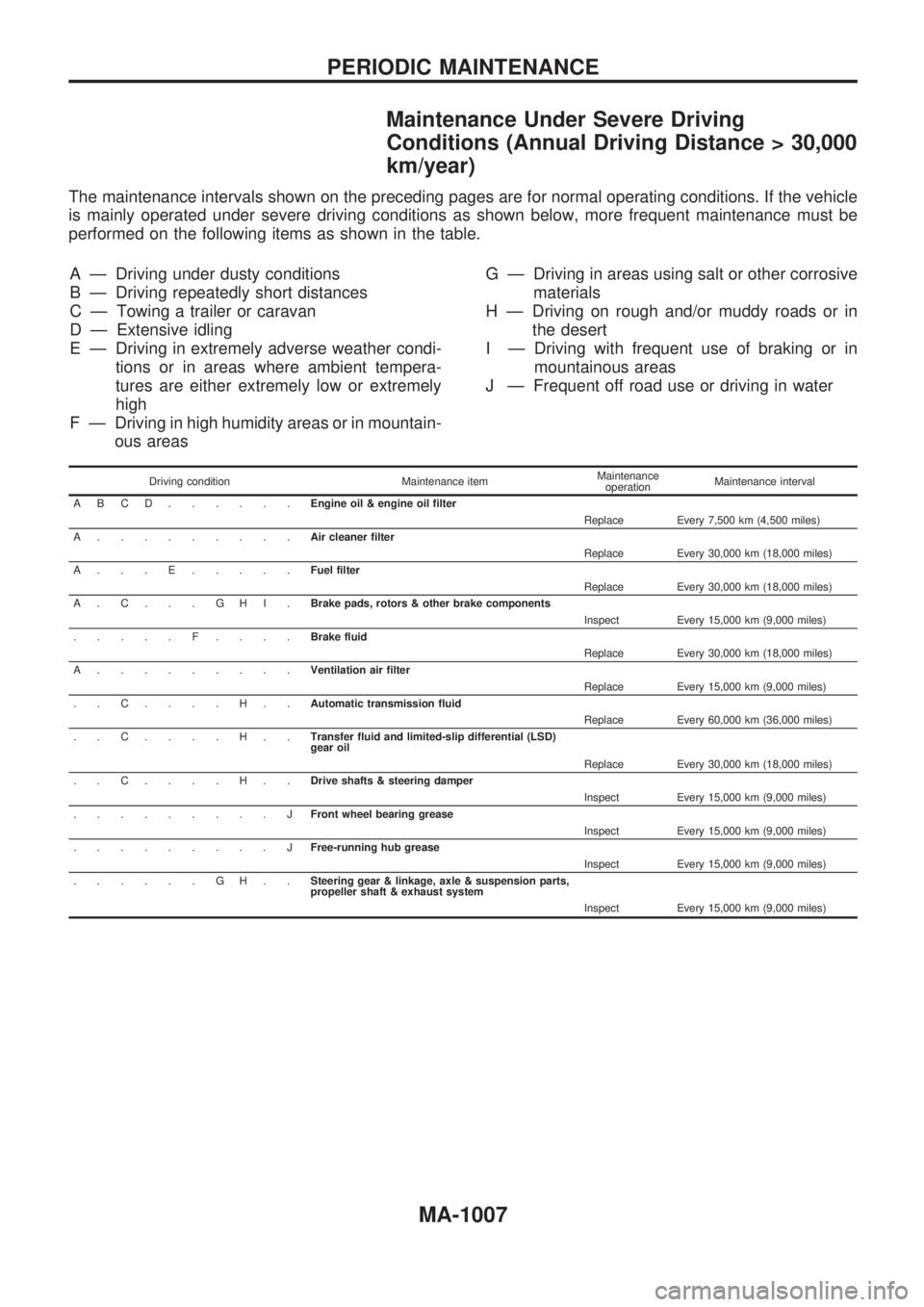

MaintenanceUnderSevereDriving
Conditions (Annual Driving Distance > 30,000
km/year)
The maintenance intervals shown on the preceding pages are for normal operating conditions. If the vehicle
is mainly operated under severe driving conditions as shown below, more frequent maintenance must be
performed on the following items as shown in the table.
A Ð Driving under dusty conditions
B Ð Driving repeatedly short distances
C Ð Towing a trailer or caravan
D Ð Extensive idling
E Ð Driving in extremely adverse weather condi- tions or in areas where ambient tempera-
tures are either extremely low or extremely
high
F Ð Driving in high humidity areas or in mountain- ous areas G Ð Driving in areas using salt or other corrosive
materials
H Ð Driving on rough and/or muddy roads or in the desert
I Ð Driving with frequent use of braking or in mountainous areas
J Ð Frequent off road use or driving in water
Driving condition Maintenance item Maintenance
operation Maintenance interval
ABCD...... Engine oil & engine oil filter
Replace Every 7,500 km (4,500 miles)
A......... Air cleaner filter
Replace Every 30,000 km (18,000 miles)
A...E..... Fuel filter
Replace Every 30,000 km (18,000 miles)
A.C...GHI. Brake pads, rotors & other brake components
Inspect Every 15,000 km (9,000 miles)
.....F.... Brake fluid
Replace Every 30,000 km (18,000 miles)
A......... Ventilation air filter
Replace Every 15,000 km (9,000 miles)
..C....H.. Automatic transmission fluid
Replace Every 60,000 km (36,000 miles)
..C....H.. Transfer fluid and limited-slip differential (LSD)
gear oil
Replace Every 30,000 km (18,000 miles)
..C....H.. Drive shafts & steering damper
Inspect Every 15,000 km (9,000 miles)
.........J Front wheel bearing grease
Inspect Every 15,000 km (9,000 miles)
.........J Free-running hub grease
Inspect Every 15,000 km (9,000 miles)
......GH.. Steering gear & linkage, axle & suspension parts,
propeller shaft & exhaust system
Inspect Every 15,000 km (9,000 miles)
PERIODIC MAINTENANCE
MA-1007
