COMFORT ADJUSTMENT
152To release the belt, press the buckle release button
and allow the belt to retract.
If the belt does not retract smoothly, pull it out and check
for kinks or twists. Then make sure it remains untwisted
as it retracts.
Seat belt extender
If your seat belts cannot be fastened securely because
it is not long enough, a personalized seat belt extender
is available from your Lexus dealer free of charge.
Please contact your local Lexus dealer to order the
proper required length for the extender. Bring the
heaviest coat you expect to wear for proper
measurement and selection of length. Additional
ordering information is available at your Lexus dealer.
CAUTION
When using the seat belt extender, observe the
following. Failure to follow these instructions could
result in less effectiveness of the seat belt restraint
system in case of vehicle accident, increasing the
chance of personal injury.

Never use the seat belt extender if you can fasten the
seat belt without it.
 Remember that the extender provided for you may
not be safe when used on a different vehicle, or for
another person or at a different seating position than
the one originally intended for.
16L026a

COMFORT ADJUSTMENT
153
To connect the extender to the seat belt, insert the
tab into the seat belt buckle so that the ºPRESSº
signs on the buckle release buttons of the extender
and the seat belt are both facing outward as shown.
You will hear a click when the tab locks into the buckle.
When releasing the seat belt, press on the buckle
release button on the ext
ender, not on the seat belt. This
helps prevent damage to the vehicle interior and
extender itself.
When not in use, remove the extender and store in the
vehicle for future use.

COMFORT ADJUSTMENT
154
CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the belt is not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
 If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed. It cannot protect
an adult occupant or your child from injury.

COMFORT ADJUSTMENT
155

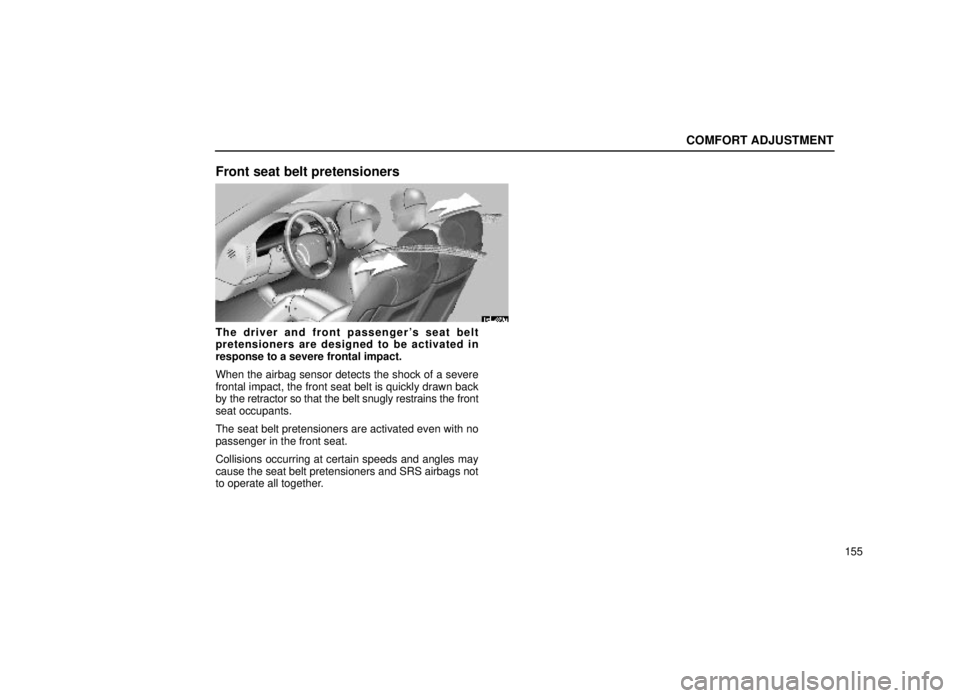

Front seat belt pretensioners
16L239a
The driver and front passenger's seat belt
pretensioners are designed to be activated in
response to a severe frontal impact.
When the airbag sensor detects the shock of a severe
frontal impact, the front seat belt is quickly drawn back
by the retractor so that the belt snugly restrains the front
seat occupants.
The seat belt pretensioners are activated even with no
passenger in the front seat.
Collisions occurring at certain speeds and angles may
cause the seat belt pretensioners and SRS airbags not
to operate all together.

COMFORT ADJUSTMENT
156
16L136±2
This indicator comes on when the ignition key is
turned to the ªACCº or ªONº position. It goes off
after about 6 seconds. This means the front seat
belt pretensioners are operating properly.
This warning light system monitors the airbag sensor
assembly, inflator, seat belt pretensioner assembly,
warning light, interconnecting wiring and power sources.
(For details, see ªService reminder indicators and
warning buzzersº on page 62.)

COMFORT ADJUSTMENT
157

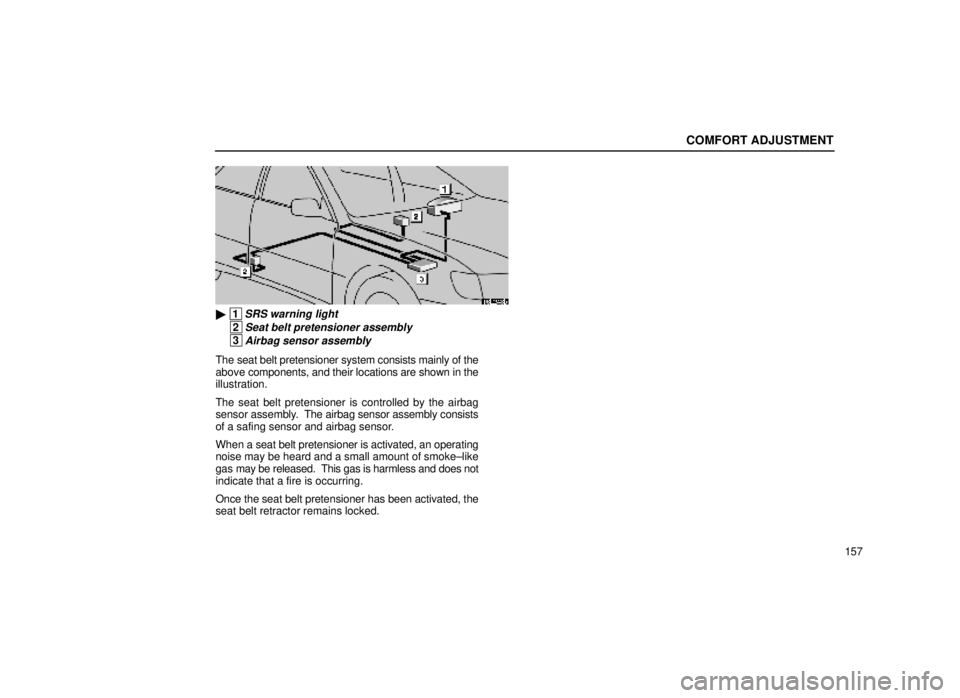

16L243b

1SRS warning light
2Seat belt pretensioner assembly
3Airbag sensor assembly
The seat belt pretensioner system consists mainly of the
above components, and their locations are shown in the
illustration.
The seat belt pretensioner is controlled by the airbag
sensor assembly. The airbag sensor assembly consists
of a safing sensor and airbag sensor.
When a seat belt pretensioner is activated, an operating
noise may be heard and a small amount of smoke±like
gas may be released. This gas is harmless and does not
indicate that a fire is occurring.
Once the seat belt pretensioner has been activated, the
seat belt retractor remains locked.

COMFORT ADJUSTMENT
158
CAUTION
Do not modify, remove, strike or open the front seat belt
pretensioner assemblies, airbag sensor or surrounding
area or wiring. Doing any of these may cause sudden
operation of the front seat belt pretensioners or disable
the system, which could result in death or serious
injury.
Failure to follow the instruction can result in death or
serious injury.

COMFORT ADJUSTMENT
159
NOTICE
Do not perform any of the following changeswithout consulting your Lexus dealer. Suchchanges can interfere with proper operation of the
seat belt pretensioners in some cases.
Installation of electronic devices such as a mobile two±way radio, cassette tape player orcompact disc player.
Repairs on or near the front seat belt retractorassemblies.
Modification of the suspension system.
Modification of the front end structure.
Attachment of a grille guard (bull bar, kangaroo
bar, etc.), snowplow, winches or any other equipment to the front end.
Repairs made on or near the front fenders, front
end structure or console.
