2000 DODGE NEON instrument panel

Connector
Name/NumberColor Location Fig.
Proportional
EVAP/Purge
SolenoidBK Left Rear of
Engine
Compartment2
Radiator Fan
MotorBK Front of
Engine
Compartment2
Radio - C1 BK Rear of Radio 7
Radio - C2 GY Rear of Radio 7
Rear Window
Defogger
SwitchBK Center of
Instrument
Panel7
Remote
Keyless Entry
ModuleBK Center of
Instrument
Panel7
Right Back-Up
LampBK At Lamp 12
Right City
Lamp
(Built-Up-
Export)GY Right
Headlamp
OpeningN/S
Right Front
Door SpeakerBK At
Passengers
Door15
Right Front
Fog LampBK At Lamp N/S
Right Front
Side Marker
LampNAT At Lamp N/S
Right Front
Turn Signal
Lamp
(Built-Up-
Export)NAT At Lamp 3
Right Front
Wheel Speed
SensorBK At Right Front
Wheel
Opening1, 3
Right
HeadlampBK At Lamp 3
Right
Headlamp
Leveling Motor
(Built-Up-
Export)GY Rear of Right
HeadlampN/S
Right
Instrument
Panel SpeakerBK At Speaker 6, 7Connector
Name/NumberColor Location Fig.
Right License
Lamp
(Built-Up-
Export)NAT At Lamp 13
Right
Park/Turn
Signal Lamp
(Except
Built-Up-
Export)BK At Lamp N/S
Right Rear
Door Lock
MotorBK At Motor 16
Right Rear
Fog Lamp
(Built-Up-
Export)GY At Lamp 13
Right Rear
SpeakerBK At Speaker 11
Right Rear
Turn Signal
Lamp
(Built-Up-
Export)GY At Lamp 12
Right Rear
Wheel Speed
SensorBL At Right Rear
Wheel
OpeningN/S
Right
Repeater
Lamp
(Built-Up-
Export)BL At Lamp 1
Right Tail/Stop
Lamp
(Built-Up-
Export)BK At Lamp 12
Right
Tail/Stop/ Turn
Signal Lamp
(Except
Built-Up-
Export)BK At Lamp N/S
Seat Belt
SwitchBK Under Drivers
SeatN/S
Sentry Key
Immobilizer
ModuleBK Left Side of
Instrument
Panel6
Siren
(Built-Up-
Export)Left Front of
Vehicle1
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 5
DESCRIPTION AND OPERATION (Continued)

Connector
Name/NumberColor Location Fig.
Sunroof
Control
ModuleAt Sunroof N/S
Sunroof Motor At Sunroof N/S
Sunroof
SwitchBK At Switch N/S
Sunroof Vent
SwitchAt Switch N/S
Throttle
Position
SensorBK On Throttle
Body2
Torque
Converter
Clutch
Solenoid
(ATX)BK On
Transmission2
Traction
Control SwitchWT Center of
Instrument
Panel7Connector
Name/NumberColor Location Fig.
Trunk Key
Cylinder
SwitchGY On Decklid 17
Underhood
LampBK At Lamp N/S
Vehicle Speed
Control ServoBK At Right Front
Strut Tower1, 3
Vehicle Speed
SensorBK On
Transmission5
Windshield
Washer PumpRD At Right Front
Wheel
Opening1
Wipe/Wash
SwitchGY Center of
Instrument
Panel6
Wiper Motor BK Left Side of
Engine
CompartmentN/S
8W - 90 - 6 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

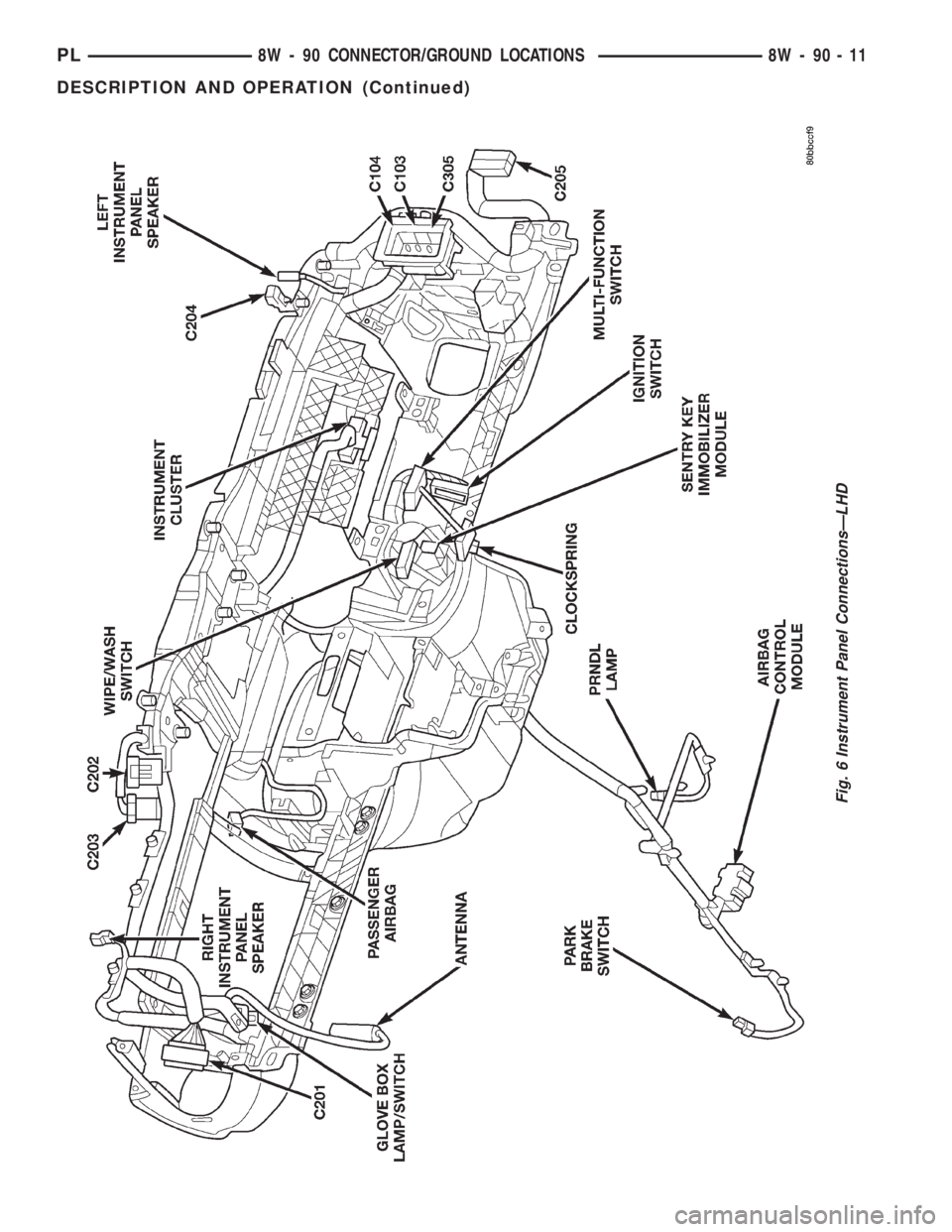

Fig. 6 Instrument Panel ConnectionsÐLHD
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 11
DESCRIPTION AND OPERATION (Continued)

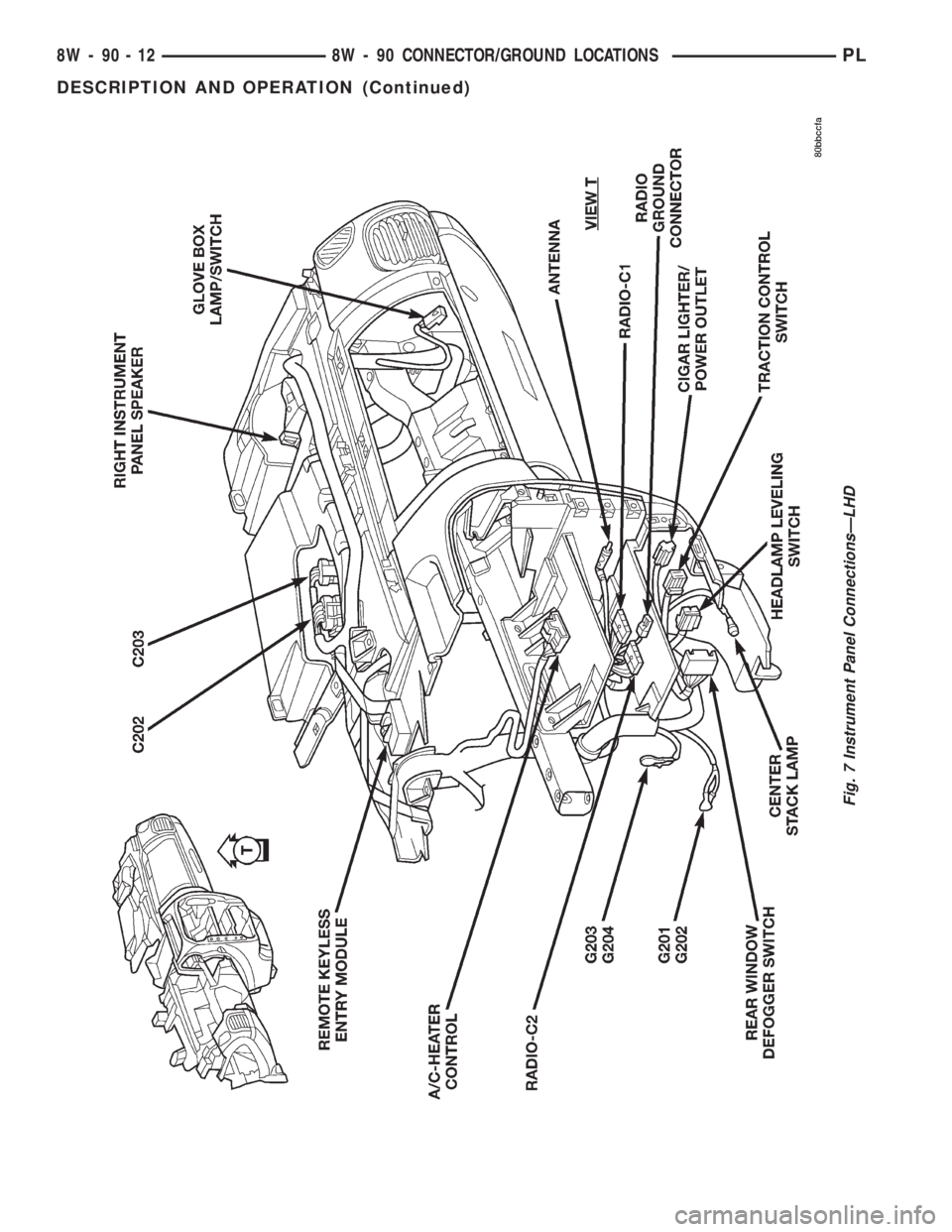

Fig. 7 Instrument Panel ConnectionsÐLHD
8W - 90 - 12 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

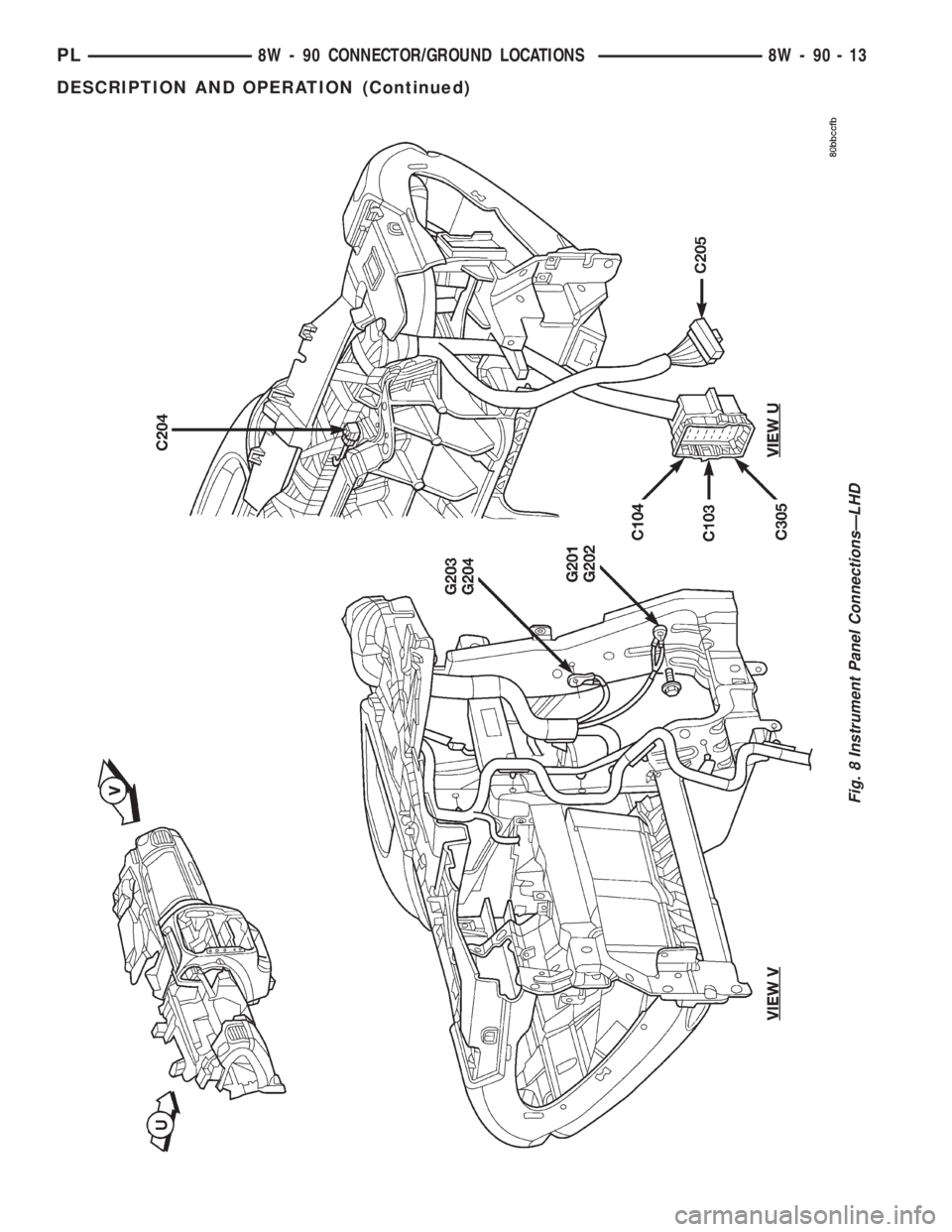

Fig. 8 Instrument Panel ConnectionsÐLHD
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 13
DESCRIPTION AND OPERATION (Continued)

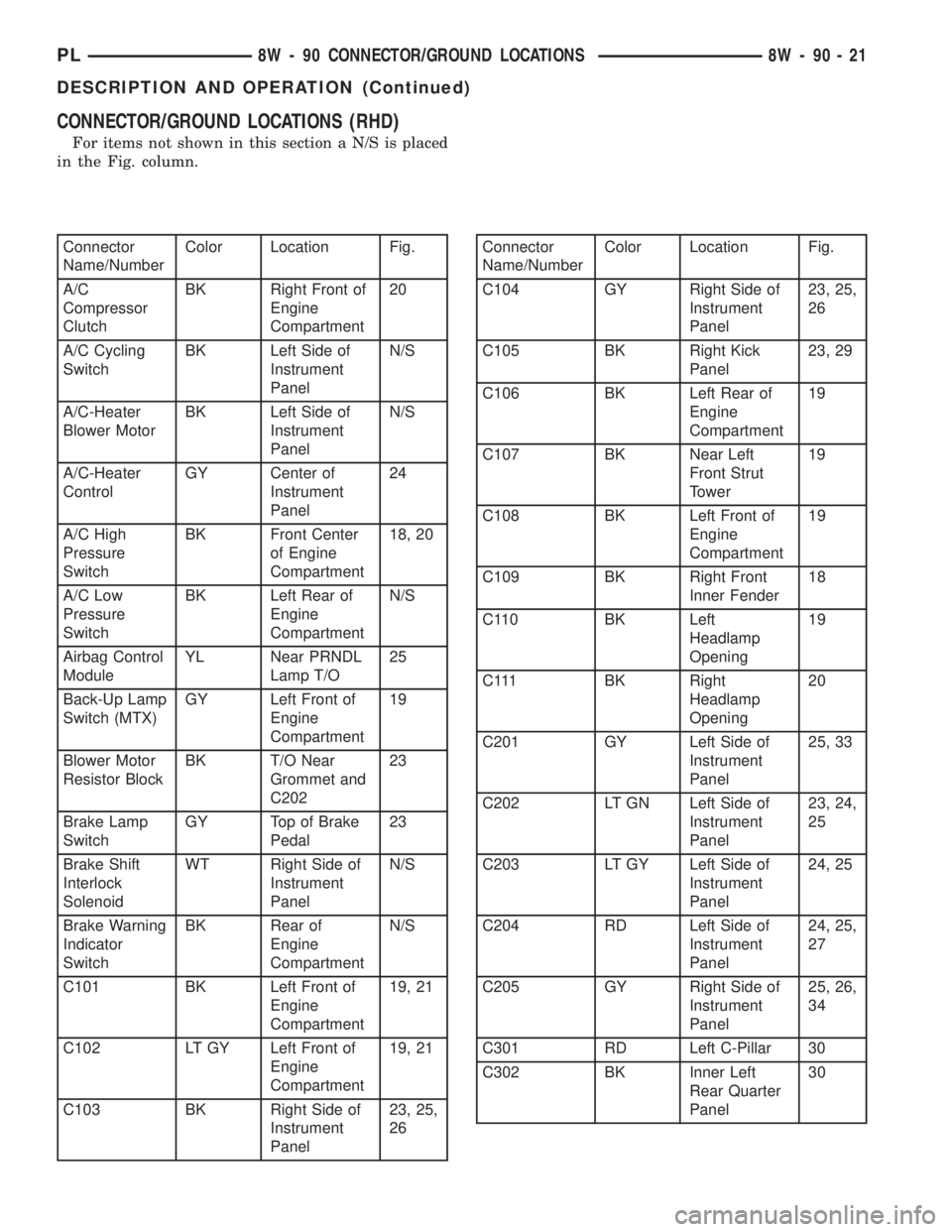

CONNECTOR/GROUND LOCATIONS (RHD)
For items not shown in this section a N/S is placed
in the Fig. column.
Connector
Name/NumberColor Location Fig.
A/C
Compressor
ClutchBK Right Front of
Engine
Compartment20
A/C Cycling
SwitchBK Left Side of
Instrument
PanelN/S
A/C-Heater
Blower MotorBK Left Side of
Instrument
PanelN/S
A/C-Heater
ControlGY Center of
Instrument
Panel24
A/C High
Pressure
SwitchBK Front Center
of Engine
Compartment18, 20
A/C Low
Pressure
SwitchBK Left Rear of
Engine
CompartmentN/S
Airbag Control
ModuleYL Near PRNDL
Lamp T/O25
Back-Up Lamp
Switch (MTX)GY Left Front of
Engine
Compartment19
Blower Motor
Resistor BlockBK T/O Near
Grommet and
C20223
Brake Lamp
SwitchGY Top of Brake
Pedal23
Brake Shift
Interlock
SolenoidWT Right Side of
Instrument
PanelN/S
Brake Warning
Indicator
SwitchBK Rear of
Engine
CompartmentN/S
C101 BK Left Front of
Engine
Compartment19, 21
C102 LT GY Left Front of
Engine
Compartment19, 21
C103 BK Right Side of
Instrument
Panel23, 25,
26Connector
Name/NumberColor Location Fig.
C104 GY Right Side of
Instrument
Panel23, 25,
26
C105 BK Right Kick
Panel23, 29
C106 BK Left Rear of
Engine
Compartment19
C107 BK Near Left
Front Strut
Tower19
C108 BK Left Front of
Engine
Compartment19
C109 BK Right Front
Inner Fender18
C110 BK Left
Headlamp
Opening19
C111 BK Right
Headlamp
Opening20
C201 GY Left Side of
Instrument
Panel25, 33
C202 LT GN Left Side of
Instrument
Panel23, 24,
25
C203 LT GY Left Side of
Instrument
Panel24, 25
C204 RD Left Side of
Instrument
Panel24, 25,
27
C205 GY Right Side of
Instrument
Panel25, 26,
34
C301 RD Left C-Pillar 30
C302 BK Inner Left
Rear Quarter
Panel30
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 21
DESCRIPTION AND OPERATION (Continued)

Connector
Name/NumberColor Location Fig.
C303 BL/BK Left B-Pillar at
Left Rear
Door28, 35
C304 BL/BK Right B-Pillar
at Right Rear
Door29, 31,
35
C305 NAT Right Side of
Instrument
Panel25, 26,
29
C306 BK Front Center
of Headliner27
Camshaft
Position
SensorBK Rear of
EngineN/S
Cargo Lamp BK Under Parcel
Shelf30
Center High
Mounted Stop
LampBK Rear of Lamp 36
Center Stack
LampBK Center of
Instrument
Panel24
Cigar
Lighter/Power
OutletRD Center of
Instrument
Panel24
Clockspring GN Rear of
Steering
Wheel25
Clutch
Interlock
Switch (MTX)BK Top of Clutch
Pedal23
Controller
Anti-Lock
BrakeBK Near Left
Strut Tower19
Crankshaft
Position
SensorBK Right Front of
EngineN/S
Data Link
ConnectorBK Right Front
Kick Panel23
Decklid
SolenoidBK On Decklid 36
Dome
Lamp/Intrusion
SensorNAT At Lamp N/S
Driver Cylinder
Lock SwitchBK At Drivers
Door34
Driver Door
Lock MotorBK At Drivers
Door34Connector
Name/NumberColor Location Fig.
Driver Door
Lock SwitchBK At Drivers
Door34
Driver Power
MirrorBL At Drivers
Door34
Driver Power
Window MotorBK At Drivers
Door34
Driver Power
Window
Switch - C1BK At Drivers
Door34
Driver Power
Window
Switch - C2GY At Drivers
Door34
Engine
Coolant
Temperature
SensorBK Right Side of
EngineN/S
Engine Oil
Pressure
SwitchGN Right Rear of
Engine22
Fuel Injector
NO. 1BK At Injector 21
Fuel Injector
NO. 2BK At Injector 21
Fuel Injector
NO. 3BK At injector 21
Fuel Injector
NO. 4BK At Injector 21
Fuel Pump
ModuleLT GY At Fuel Tank N/S
G101 Left Front of
Engine
CompartmentN/S
G102 Left Front of
Engine
CompartmentN/S
G103 Right Front of
Engine
Compartment20
G104 Near Engine
Starter MotorN/S
G105 Near Negative
Battery
TerminalN/S
G201 Lower Center
of Instrument
Panel24, 26
8W - 90 - 22 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

Connector
Name/NumberColor Location Fig.
G202 Lower Center
of Instrument
Panel24, 26
G203 Lower Center
of Instrument
Panel24, 26
G204 Lower Center
of Instrument
Panel24, 26
G301 Inner Left
Rear Quarter
Panel30
G302 Inner Right
Rear Quarter
Panel31
G303 Inner Left
Rear Quarter
Panel30
G304 At Decklid 36
Generator BK Left Rear of
Engine22
Glove Box
Lamp / SwitchBK Rear of
Lamp/Switch24, 25
Headlamp
Leveling
SwitchBK Center of
Instrument
Panel24
High Note
HornBK Right Inner
Fender18
Hood Ajar
SwitchBK Right Side of
Engine
CompartmentN/S
Idle Air Control
MotorBK On Throttle
Body19
Ignition Coil BK Top of Valve
Cover22
Ignition Switch BK Rear of
Switch25
Inlet Air
Temperature
SensorBK Left Front of
Engine
Compartment19
Instrument
ClusterBK Right Side of
Instrument
Panel25
Knock Sensor BK Left Front of
Engine21
Left Back-Up
LampBK At Lamp 30
Left City Lamp BK At Lamp N/SConnector
Name/NumberColor Location Fig.
Left Front
Door SpeakerBK At
Passengers
Door33
Left Front Fog
LampBK At Lamp N/S
Left Front Turn
Signal LampNAT At Lamp 19
Left Front
Wheel Speed
SensorBK At Left Front
Wheel
Opening19
Left Headlamp BK At Lamp 19
Left Headlamp
Leveling MotorGY Rear of Left
HeadlampN/S
Left
Instrument
Panel SpeakerBK At Speaker 24, 25
Left License
LampNAT Rear of Lamp 32
Left Rear Door
Lock MotorBK At Motor 35
Left Rear Fog
LampGY At Lamp N/S
Left Rear
SpeakerBK At Speaker 30
Left Rear Turn
Signal LampGY At Lamp 30
Left Rear
Wheel Speed
SensorBL At Left Rear
Wheel
OpeningN/S
Left Repeater
LampBL At Lamp 18
Left Tail/Stop
LampBK At Lamp 30
Low Note
HornBK Right Inner
Fender18
Manifold
Absolute
Pressure
SensorBK Left Front of
Engine21
Map/Reading
LampsBK Front of
Headliner27
Multi-Function
SwitchGY Right Side of
Instrument
Panel25
Oxygen
Sensor 1/1
UpstreamGY Right Rear of
Engine22
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 23
DESCRIPTION AND OPERATION (Continued)
