4.3.3 ELECTRONIC PINION FACTOR
WARNING
The pinion factor must be set for all new trans-
mission control modules. If the pinion factor is not
set or if it is set incorrectly, any speed-related
accessories will not operate or will operate inaccu-
rately. This includes the speedometer, speed con-
trol, rolling door locks, and other devices that are
operated by the powertrain and body control mod-
ules. For instructions on setting the pinion factor,
see the appropriate transmission diagnostic man-
ual or the service manual.
5.0 RECOMMENDED TOOLS
AND EQUIPMENT
DRBIIIt(diagnostic readout box) scan tool
fuel pressure adapter (C-6631) or #6539
fuel pressure kit (C-4799-B) or #5069
fuel release hose (C-4799-1)
MinAir flow fitting #6457
jumper wires
ohmmeter
oscilloscope
vacuum gauge
voltmeter
12 volt test light minimum 25 ohms resistance
with probe #8382
CAUTION: A 12 VOLT TEST LIGHT SHOULD
NOT BE USED FOR THE FOLLOWING
CIRCUITS, DAMAGE TO THE POWERTRAIN
CONTROLLER WILL OCCUR.
²5 Volt Supply
²8 Volt Supply
²J1850 PCI Bus
²CCD Bus
²CKP Sensor Signal
²CMP Sensor Signal
²Vehicle Speed Sensor Signal
²O2 Sensor Signal
6.0 GLOSSARY OF TERMS
ABSantilock brake system
backfire,
popbackfuel ignites in either the intake or
the exhaust system
CKPcrank position sensor
CMPcamshaft position sensor
cuts out,
missesa steady pulsation or the inability of
the engine to maintain a consistent
rpmDLCdata link connector (previously
called ªengine diagnostic connectorº)
detona-
tion,
spark
knocka mild to severe ping, especially un-
der loaded engine conditions
ECTengine coolant temperature sensor
EGRexhaust gas recirculation valve and
system
genera-
torpreviously called ªalternatorº
hard
startThe engine takes longer than usual
to start, even though it is able to
crank normally.
hesita-
tion, sag,
stumble
There is a momentary lack of response
when the throttle is opened.
This can
occur at all vehicle speeds. If it is se-
vere enough, the engine may stall.
IATintake air temperature sensor
IACidle air control valve
JTECCombined engine and transmission
control module
lack of
power,
sluggish
The engine has less than expected
power, with little or no increase in vehi-
cle speed when the throttle is opened.
LDPLeak Detection Pump
MAPmanifold absolute pressure sensor
MILmalfunction indicator lamp
MTVmanifold tuning valve
O2Soxygen sensor
PCIProgrammable Communication In-
terface
PCMpowertrain control module
PCMpowertrain control module
PCVpositive crankcase ventilation
PEPPeripheral Expansion Port
poor fuel
economyThere is significantly less fuel mile-
age than other vehicles of the same
design and configuration
rough,
unstable,
or er-
ratic idle
stallingThe engine runs unevenly at idle
and causes the engine to shake if it
is severe enough. The engine idle
rpm may vary (called ªhuntingº).
This condition may cause stalling if
it is severe enough.
SKIMSentry Key Immobilizer Module
SKISSentry Key Immobilizer System
start and
stallThe engine starts but immediately
dies.
13
GENERAL INFORMATION
ProCarManuals.com

Symptom:
P-0622 GENERATOR FIELD NOT SWITCHING PROPERLY
When Monitored and Set Condition:
P-0622 GENERATOR FIELD NOT SWITCHING PROPERLY
When Monitored: With the ignition key on and the engine not running.
Set Condition: This trouble code sets when the PCM tries to regulate the generator field
with no result during monitoring.
POSSIBLE CAUSES
GENERATOR FIELD RESISTANCE > = 5.0 OHMS
ASD WIRING HARNESS INTERMITTENT DEFECT
ASD WIRING HARNESS OBSERVABLE DEFECT
GENERATOR FIELD DRIVE CIRCUIT SHORT TO GROUND
GENERATOR FIELD DRIVER CIRCUIT OPEN
PCM DEFECTIVE (GENERATOR)
ASD RELAY OUTPUT CIRCUIT OPEN
TEST ACTION APPLICABILITY
1 Ignition On, Engine Not Running.
With the DRB, actuate the Generator Field Driver Circuit.
Backprobe the ASD Relay Output Circuit at the back of the Generator.
Is the voltage above 10.0 volts?All
Ye s®Go To 2
No®Repair the open ASD Relay Output Circuit, Generator to Harness
Splice.
2 Engine Running
With the DRB, actuate the Generator Field Driver Circuit.
Backprobe the Generator Field Driver Circuit at the back of the Generator.
Does the voltage shift from low to high?All
Ye s®Go To 3
No®Go To 5
3 Ignition On, Engine Not Running.
With the DRB, actuate the Generator Field Driver Circuit.
With the DRB, read codes.
Wiggle Wiring Harness from the Generator to PCM.
Does the Generator Field Driver Circuit code return?All
Ye s®Repair as necessary where wiggling caused problem to appear.
Perform Powertrain Verification Test VER-3A.
No®Go To 4
16
CHARGING
ProCarManuals.com

Symptom List:
P-1492 BATTERY TEMP SENSOR VOLTAGE TOO HIGH
P-1493 BATTERY TEMP SENSOR VOLTAGE TOO LOW
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be P-1492 BATTERY TEMP SENSOR
VOLTAGE TOO HIGH.
When Monitored and Set Condition:
P-1492 BATTERY TEMP SENSOR VOLTAGE TOO HIGH
When Monitored: With the ignition key on.
Set Condition: The PCM senses the voltage from the BTS to be either below 0.1 volts or
above 4.9 volts for 3 seconds.
P-1493 BATTERY TEMP SENSOR VOLTAGE TOO LOW
When Monitored: With the ignition key on.
Set Condition: The PCM senses the voltage from the BTS to be either below 0.1 volts or
above 4.9 volts for 3 seconds.
POSSIBLE CAUSES
PCM DEFECTIVE
TEST ACTION APPLICABILITY
1 Ignition On, Engine Not Running
With the DRB, read the Trouble Codes.
Does the DRB show9Battery Temperature Sensor Voltage9with a run count of zero?All
Ye s®Replace the PCM.
Perform Powertrain Verification Test VER-5A.
No®Test Complete.
18
CHARGING
ProCarManuals.com

TEST ACTION APPLICABILITY
4 Engine Running
With the DRB, read trouble codes.
Are there any Charging System trouble codes?All
Ye s®Refer to Symptom List for problems related to Charging.
Perform Powertrain Verification Test VER-3A.
No®Go To 5
5 Ignition Off
Using a Voltmeter, measure the voltage between the Generator Case and Battery (-)
side.
Caution: Ensure all Wires are clear of the engine's moving parts.
Start the engine.
Is the voltage above 0.4 volt?All
Ye s®Repair Generator Ground high resistance Generator Case to
Battery (-) side.
Perform Powertrain Verification Test VER-3A.
No®Go To 6
6 Ignition Off
Connect Voltmeter between the Generator (12V) B+ Terminal and the Battery (+)
side.
Caution: Ensure all Wires are clear of the engine's moving parts.
Start the engine.
Is the voltage above 0.4 volt?All
Ye s®Repair the B(+) Circuit for high resistance between the Generator
and Battery.
Perform Powertrain Verification Test VER-3A.
No®Go To 7
7 Turn engine off, ignition key on.
With the DRB, read Battery voltage and record.
Using a Voltmeter, measure Battery voltage B(+) to B(-) Terminal.
Record second voltage reading.
Compare the two voltage readings.
Is the voltage difference less than one volt?All
Ye s®Test Complete.
Perform Powertrain Verification Test VER-3A.
No®Go To 8
8 Ignition Off
Disconnect the PCM Connector.
Note: Check connectors - Clean/repair as necessary.
Using a voltmeter, measure the fused B(+) at PCM.
Is the voltage within one volt of the DRB recorded reading?All
Ye s®Repair the B(+) Circuit for high resistance between the PCM and
the Battery.
Perform Powertrain Verification Test VER-3A.
No®Go To 9
25
CHARGING
* CHECKING CHARGING SYSTEM OPERATION WITH NO DTC'S Ð
Continued
ProCarManuals.com

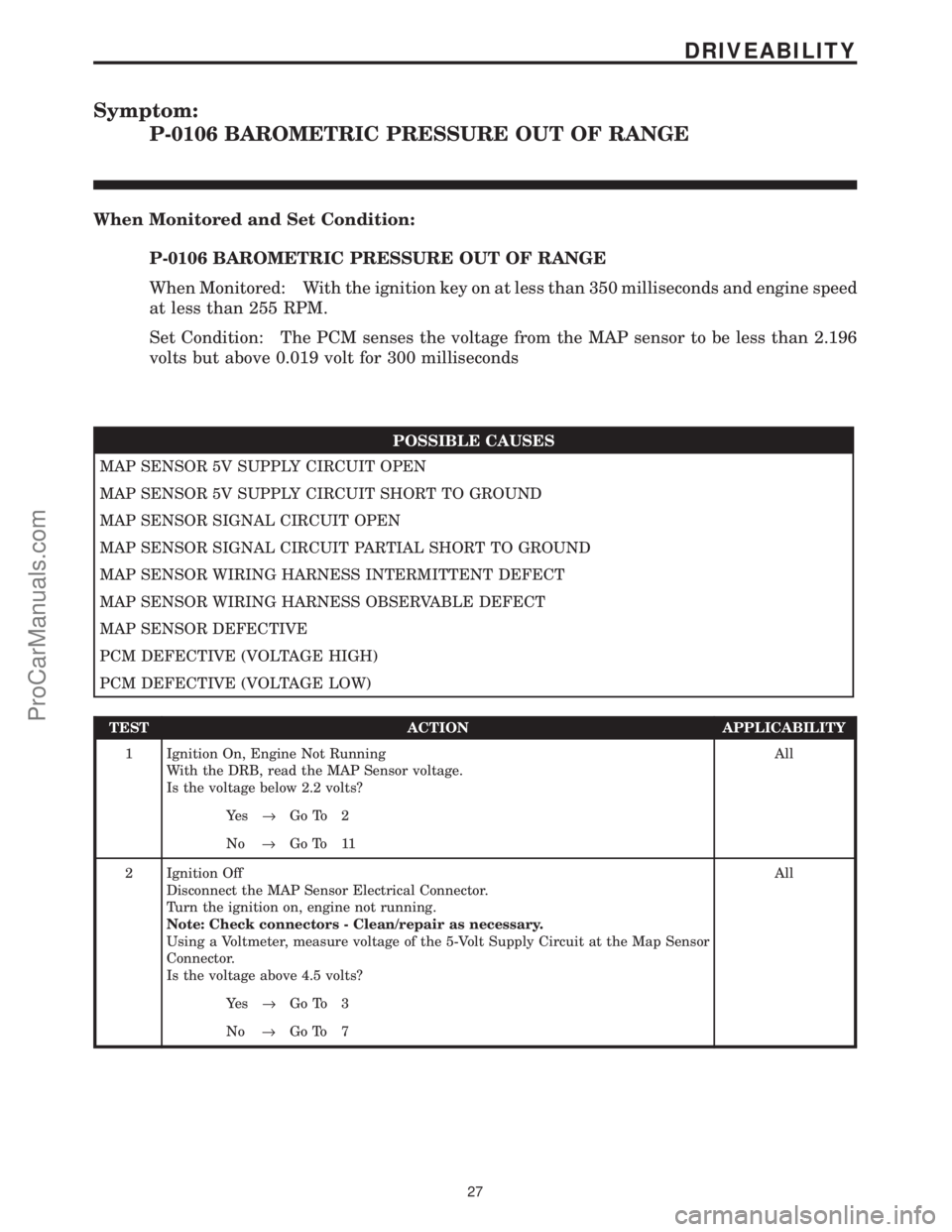

Symptom:
P-0106 BAROMETRIC PRESSURE OUT OF RANGE
When Monitored and Set Condition:
P-0106 BAROMETRIC PRESSURE OUT OF RANGE
When Monitored: With the ignition key on at less than 350 milliseconds and engine speed
at less than 255 RPM.
Set Condition: The PCM senses the voltage from the MAP sensor to be less than 2.196
volts but above 0.019 volt for 300 milliseconds
POSSIBLE CAUSES
MAP SENSOR 5V SUPPLY CIRCUIT OPEN
MAP SENSOR 5V SUPPLY CIRCUIT SHORT TO GROUND
MAP SENSOR SIGNAL CIRCUIT OPEN
MAP SENSOR SIGNAL CIRCUIT PARTIAL SHORT TO GROUND
MAP SENSOR WIRING HARNESS INTERMITTENT DEFECT
MAP SENSOR WIRING HARNESS OBSERVABLE DEFECT
MAP SENSOR DEFECTIVE
PCM DEFECTIVE (VOLTAGE HIGH)
PCM DEFECTIVE (VOLTAGE LOW)
TEST ACTION APPLICABILITY
1 Ignition On, Engine Not Running
With the DRB, read the MAP Sensor voltage.
Is the voltage below 2.2 volts?All
Ye s®Go To 2
No®Go To 11
2 Ignition Off
Disconnect the MAP Sensor Electrical Connector.
Turn the ignition on, engine not running.
Note: Check connectors - Clean/repair as necessary.
Using a Voltmeter, measure voltage of the 5-Volt Supply Circuit at the Map Sensor
Connector.
Is the voltage above 4.5 volts?All
Ye s®Go To 3
No®Go To 7
27
DRIVEABILITY
ProCarManuals.com

Symptom:
P-0122 THROTTLE POSITION SENSOR VOLTAGE LOW
When Monitored and Set Condition:
P-0122 THROTTLE POSITION SENSOR VOLTAGE LOW
When Monitored: With the ignition on.
Set Condition: The TP sensor signal voltage goes below 0.16 volt.
POSSIBLE CAUSES
TPS 5-VOLT SUPPLY CIRCUIT OPEN
TPS SIGNAL CIRCUIT SHORT TO GROUND
TPS SIGNAL CIRCUIT SHORT TO SENSOR GROUND CIRCUIT
TPS WIRING HARNESS INTERMITTENT DEFECT
TPS WIRING HARNESS OBSERVABLE DEFECT
PCM DEFECTIVE (TPS)
THROTTLE POSITION SENSOR DEFECTIVE
THROTTLE POSITION SENSOR VOLTAGE CHANGE NOT SMOOTH
TRANSMISSION CONTROL MODULE DEFECTIVE (TPS)
TEST ACTION APPLICABILITY
1 Turn key on, engine off.
With the DRB, read the Throttle Position Sensor (TP Sensor) voltage.
Is the Throttle Position Sensor voltage below 0.16 volt?All
Ye s®Go To 2
No®Go To 8
2 Ignition Off
Disconnect the Throttle Position Sensor.
Note: Check connectors - Clean/repair as necessary.
Ignition On, Engine Not Running.
Measure the voltage at the 5-Volt Supply Circuit at TPS Connector.
Is the voltage below 4.0 volts?All
Ye s®Repair the open TP Sensor 5-Volt Supply Circuit.
Perform Powertrain Verification Test VER-5A.
No®Go To 3
45
DRIVEABILITY
ProCarManuals.com

TEST ACTION APPLICABILITY
3 Ignition Off
Disconnect the Throttle Position Sensor.
Note: Check connectors - Clean repair as necessary.
Ignition On, Engine Not Running.
With the DRB, read the Throttle Position Sensor voltage.
Is the voltage above 1.0 volt?All
Ye s®Replace the Throttle Position Sensor.
Perform Powertrain Verification Test VER-5A.
No®Go To 4
4 Ignition Off
Disconnect the Throttle Position Sensor.
Disconnect the Transmission Control Module.
Disconnect the PCM.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance between the TP Sensor Signal Circuit and ground.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Throttle Position Sensor Signal Circuit for a short to
ground.
Perform Powertrain Verification Test VER-5A.
No®Go To 5
5 Ignition Off
Disconnect the Throttle Position Sensor.
Disconnect the Transmission Control Module.
Disconnect the PCM.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance between the TP Sensor Signal Circuit and the Sensor Ground
Circuit.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Sensor Signal Circuit shorted to Sensor Ground
Circuit.
Perform Powertrain Verification Test VER-5A.
No®Go To 6
6 Ignition Off
Disconnect the Throttle Position Sensor.
Disconnect the Transmission Control Module if equipped..
Note: Check connectors - Clean/repair as necessary.
Key On
With the DRB, read the Throttle Position Sensor voltage.
Is the voltage above 1.0 volt?All
Ye s®Replace the Transmission Control Module.
Perform Powertrain Verification Test VER-5A.
No®Go To 7
7 If there are no potential causes remaining, the Powertrain Control Module is
assumed to be defective.
View repair options.All
Repair
Replace the PCM.
Perform Powertrain Verification Test VER-5A.
46
DRIVEABILITY
P-0122 THROTTLE POSITION SENSOR VOLTAGE LOW ÐContinued
ProCarManuals.com

Symptom:
P-0131 1/1 O2 SENSOR VOLTAGE SHORTED TO GROUND
When Monitored and Set Condition:
P-0131 1/1 O2 SENSOR VOLTAGE SHORTED TO GROUND
When Monitored: With the ignition key off, after the O2 Sensor cools down; and after the
next key on provided that it is a cold start (coolant temperature less than 38 degrees C
(100.4 degrees F)) and ambient temperature within 13 degrees C (7.2 degrees F) of coolant
temperature.
Set Condition: The upstream O2 Sensor Signal voltage is below 0.156 volt prior to O2
Sensor Heater test (cool down period), and O2 voltage less than 0.156 volt after the key on
in the subsequent start.
POSSIBLE CAUSES
1/1 02 SENSOR VOLTAGE LOW
1/1 O2S SIGNAL CIRCUIT SHORT TO GROUND
1/1 O2S SIGNAL CKT SHORT TO GROUND CIRCUIT
1/1 O2 SENSOR DEFECTIVE
PCM DEFECTIVE (1/1 O2S)
TEST ACTION APPLICABILITY
1 Ignition Off
Turn ignition on.
With the DRB, monitor the Upstream O2 Sensor voltage for a few minutes.
Wait three minutes or until the voltage stabilizes (between 0.4 and 0.6 volt).
With the DRB, monitor the Upstream O2 Sensor voltage.
Is the Upstream O2 Sensor voltage below 0.156 volt?All
Ye s®Go To 2
No®The condition required to set this trouble code is not present at
this time.
Perform Powertrain Verification Test VER-5A.
2 Ignition Off
Disconnect the Upstream O2 Sensor Connector.
Note: Check connectors - Clean/repair as necessary.
Key on.
With the DRB, monitor the Upstream O2 Sensor voltage.
Is the Upstream O2 Sensor voltage below 0.156 volts?All
Ye s®Go To 3
No®Replace the Upstream O2 Sensor.
Perform Powertrain Verification Test VER-5A.
53
DRIVEABILITY
ProCarManuals.com
