2000 CHEVROLET IMPALA Owners Manual

yellowblue
2-50 Convex Outside Mirror
Your passenger's side mirror is convex. A convex mirror's
surface is curved so you can see more from the driver's seat.
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Storage Compartments
Glove Box
Use the door key to lock and unlock the glove box.
To open, lift the latch.
Center Console (If Equipped)
The console has cupholders, a cassette tape storage area
and a coinholder. To open the console's storage area,
pull up on the latch located in the front of the console lid
and pull up.
Rear Seat Cupholder (If Equipped)
To access the rear cupholders, pull down on the cloth strap
located toward the top of your center back seat cushion. You
will then have access to the dual oversized cupholders.
Trunk Convenience Net (If Equipped)
Your vehicle may have a convenience net. You'll see it
on the back wall of the trunk.
Put small loads, like grocery bags, behind the net. It can
help keep them from falling over during sharp turns or
quick starts and stops.
The net isn't for larger, heavier loads. Store those in the
trunk as far forward as you can.
You can unhook the net so that it will lie flat when
you're not using it.

yellowblue
2-51

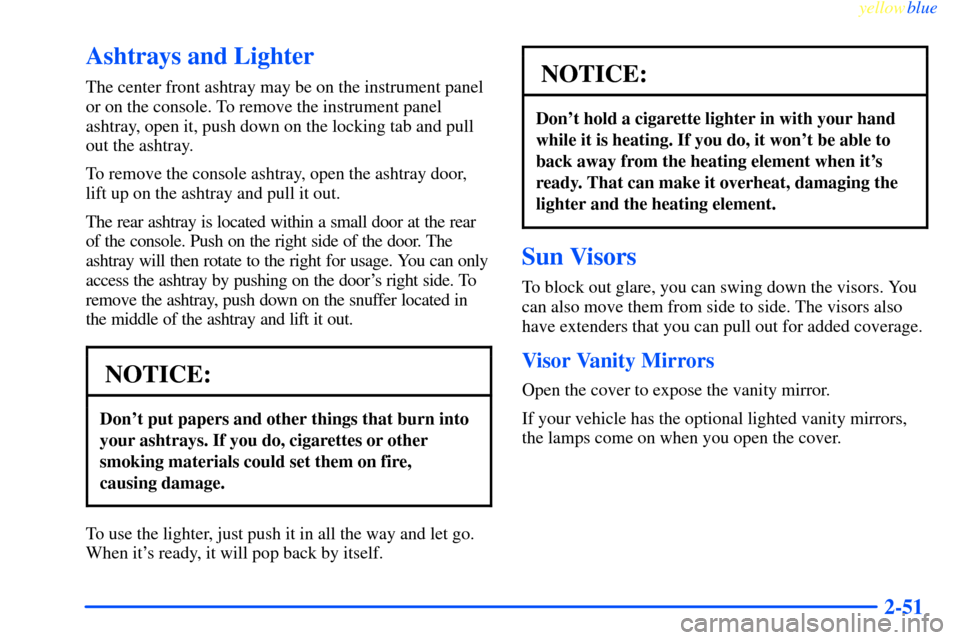

Ashtrays and Lighter
The center front ashtray may be on the instrument panel
or on the console. To remove the instrument panel
ashtray, open it, push down on the locking tab and pull
out the ashtray.
To remove the console ashtray, open the ashtray door,
lift up on the ashtray and pull it out.
The rear ashtray is located within a small door at the rear
of the console. Push on the right side of the door. The
ashtray will then rotate to the right for usage. You can only
access the ashtray by pushing on the door's right side. To
remove the ashtray, push down on the snuffer located in
the middle of the ashtray and lift it out.
NOTICE:
Don't put papers and other things that burn into
your ashtrays. If you do, cigarettes or other
smoking materials could set them on fire,
causing damage.
To use the lighter, just push it in all the way and let go.
When it's ready, it will pop back by itself.
NOTICE:
Don't hold a cigarette lighter in with your hand
while it is heating. If you do, it won't be able to
back away from the heating element when it's
ready. That can make it overheat, damaging the
lighter and the heating element.
Sun Visors
To block out glare, you can swing down the visors. You
can also move them from side to side. The visors also
have extenders that you can pull out for added coverage.
Visor Vanity Mirrors
Open the cover to expose the vanity mirror.
If your vehicle has the optional lighted vanity mirrors,
the lamps come on when you open the cover.

yellowblue
2-52
Accessory Power Receptacle
Your vehicle has a 12-volt outlet.
Vehicles without a center console, it is located in
the ashtray.
Vehicles with a center console, it is located at the rear of
the console.
NOTICE:
Adding some electrical equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn't be covered by your
warranty. Check with your dealer before adding
electrical equipment, and never use anything that
exceeds the fuse rating.
Auxiliary Power Connection
(Power Drop)
Your vehicle is equipped
with an auxiliary
power connection.
This feature provides power, ground and accessory wires
which can be accessed to add aftermarket electrical
equipment to your vehicle. It is located on the passenger's
side of the vehicle, under the glove box, and is labeled
with a wire function and fuse rating. For information on
accessing the connection and electrical hookup, please
refer to your service manual. To order a service manual,
see ªService Publications, Orderingº in the Index.

yellowblue
2-53
NOTICE:
Adding some electrical equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn't be covered by your
warranty. Check with your dealer before adding
electrical equipment, and never use anything that
exceeds the fuse rating.
Cellular Phone Readiness Package
(If Equipped)
Your vehicle may be equipped with a wiring harness that
will work with a dealer
-installed GM Hughes
portable
phone. The phone has integrated features with the radio
and car audio speakers. See your dealer for more details.
OnStar
System (Option)
OnStar
is a vehicle communications service which
may be ordered through your dealer. The following
OnStar services are available 24 hours a day:

Automatic Notification of Air Bag Deployment

Emergency Services
Theft Detection/Notification and
Stolen
-Vehicle Tracking

Remote Door Unlock

Roadside Assistance with Location

Route Support

Convenience Services

Remote Diagnostics

Hands
-Free, Voice-Activated Cellular Telephone
For more information, contact your dealer.
Assist Handles (If Equipped)
An assist handle above each passenger door can be used
when getting out of your vehicle.
The assist handles also include courtesy and reading
lamps. See ªInterior Lampsº in the Index.
Garment Hooks
For your convenience, garment hooks are attached to
the rear headliner.

yellowblue
2-54

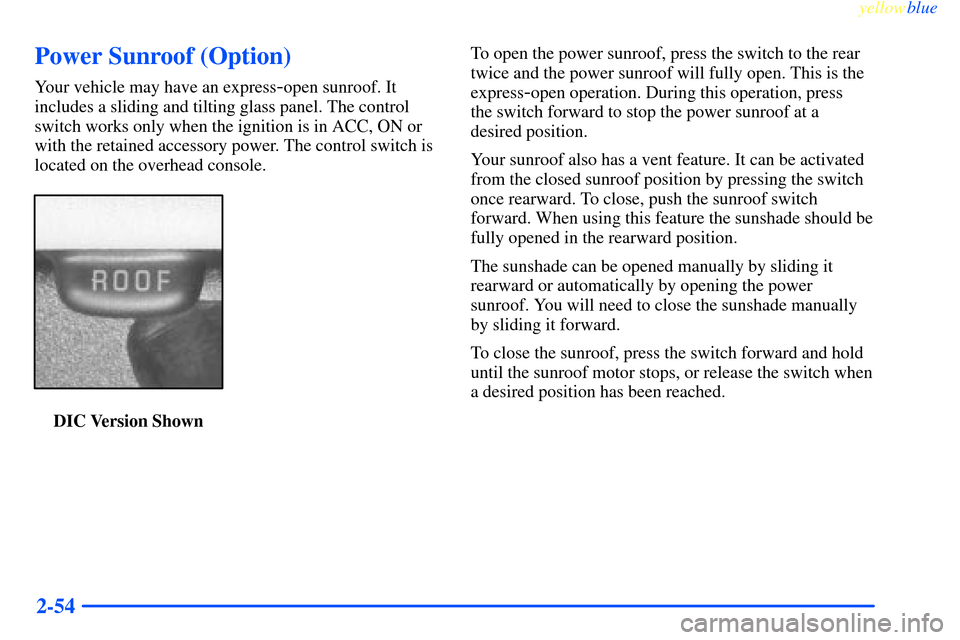

Power Sunroof (Option)
Your vehicle may have an express-open sunroof. It
includes a sliding and tilting glass panel. The control
switch works only when the ignition is in ACC, ON or
with the retained accessory power. The control switch is
located on the overhead console.
DIC Version ShownTo open the power sunroof, press the switch to the rear
twice and the power sunroof will fully open. This is the
express
-open operation. During this operation, press
the switch forward to stop the power sunroof at a
desired position.
Your sunroof also has a vent feature. It can be activated
from the closed sunroof position by pressing the switch
once rearward. To close, push the sunroof switch
forward. When using this feature the sunshade should be
fully opened in the rearward position.
The sunshade can be opened manually by sliding it
rearward or automatically by opening the power
sunroof. You will need to close the sunshade manually
by sliding it forward.
To close the sunroof, press the switch forward and hold
until the sunroof motor stops, or release the switch when
a desired position has been reached.

yellowblue
2-55

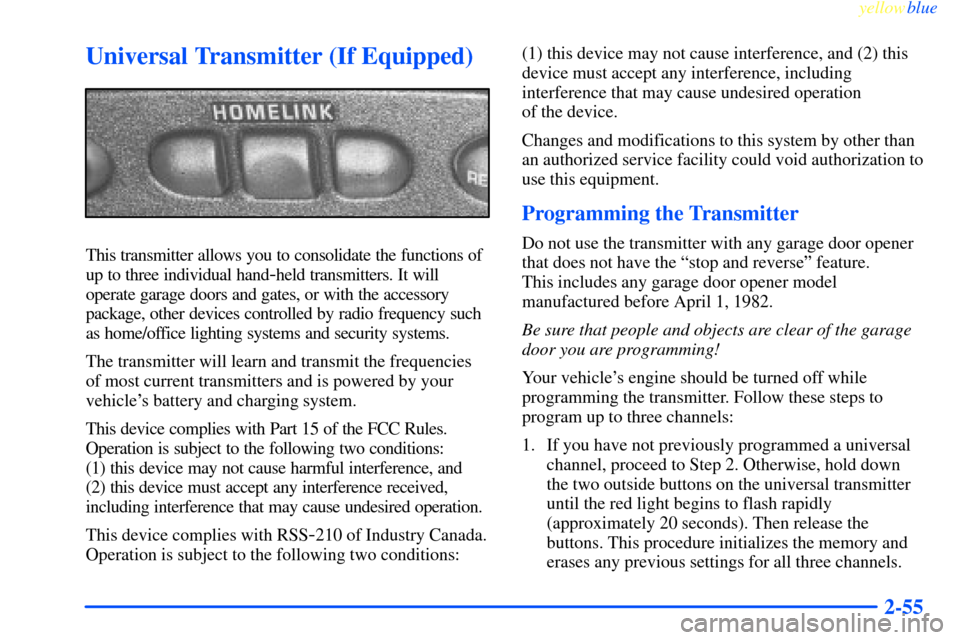

Universal Transmitter (If Equipped)
This transmitter allows you to consolidate the functions of
up to three individual hand
-held transmitters. It will
operate garage doors and gates, or with the accessory
package, other devices controlled by radio frequency such
as home/office lighting systems and security systems.
The transmitter will learn and transmit the frequencies
of most current transmitters and is powered by your
vehicle's battery and charging system.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation
of the device.
Changes and modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
Programming the Transmitter
Do not use the transmitter with any garage door opener
that does not have the ªstop and reverseº feature.
This includes any garage door opener model
manufactured before April 1, 1982.
Be sure that people and objects are clear of the garage
door you are programming!
Your vehicle's engine should be turned off while
programming the transmitter. Follow these steps to
program up to three channels:
1. If you have not previously programmed a universal
channel, proceed to Step 2. Otherwise, hold down
the two outside buttons on the universal transmitter
until the red light begins to flash rapidly
(approximately 20 seconds). Then release the
buttons. This procedure initializes the memory and
erases any previous settings for all three channels.

yellowblue
2-56

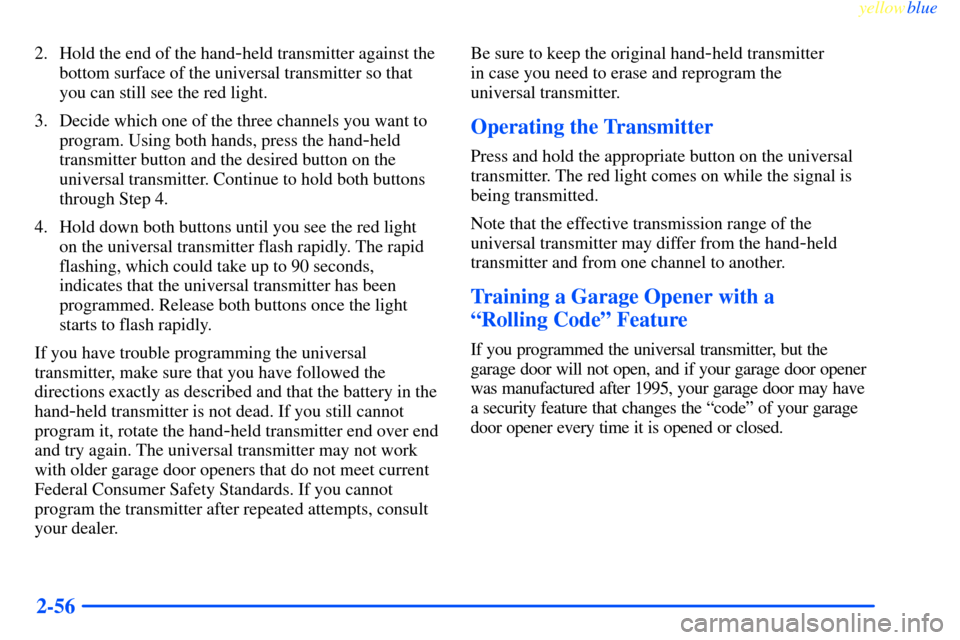

2. Hold the end of the hand-held transmitter against the
bottom surface of the universal transmitter so that
you can still see the red light.
3. Decide which one of the three channels you want to
program. Using both hands, press the hand
-held
transmitter button and the desired button on the
universal transmitter. Continue to hold both buttons
through Step 4.
4. Hold down both buttons until you see the red light
on the universal transmitter flash rapidly. The rapid
flashing, which could take up to 90 seconds,
indicates that the universal transmitter has been
programmed. Release both buttons once the light
starts to flash rapidly.
If you have trouble programming the universal
transmitter, make sure that you have followed the
directions exactly as described and that the battery in the
hand
-held transmitter is not dead. If you still cannot
program it, rotate the hand
-held transmitter end over end
and try again. The universal transmitter may not work
with older garage door openers that do not meet current
Federal Consumer Safety Standards. If you cannot
program the transmitter after repeated attempts, consult
your dealer.Be sure to keep the original hand
-held transmitter
in case you need to erase and reprogram the
universal transmitter.
Operating the Transmitter
Press and hold the appropriate button on the universal
transmitter. The red light comes on while the signal is
being transmitted.
Note that the effective transmission range of the
universal transmitter may differ from the hand
-held
transmitter and from one channel to another.
Training a Garage Opener with a
ªRolling Codeº Feature
If you programmed the universal transmitter, but the
garage door will not open, and if your garage door opener
was manufactured after 1995, your garage door may have
a security feature that changes the ªcodeº of your garage
door opener every time it is opened or closed.

yellowblue
2-57

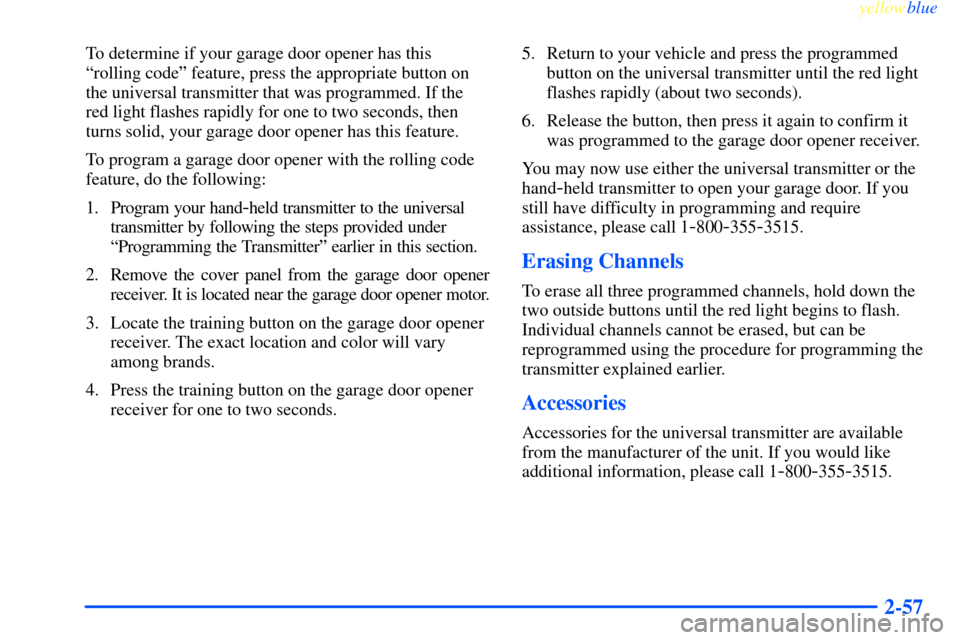

To determine if your garage door opener has this
ªrolling codeº feature, press the appropriate button on
the universal transmitter that was programmed. If the
red light flashes rapidly for one to two seconds, then
turns solid, your garage door opener has this feature.
To program a garage door opener with the rolling code
feature, do the following:
1. Program your hand
-held transmitter to the universal
transmitter by following the steps provided under
ªProgramming the Transmitterº earlier in this section.
2. Remove the cover panel from the garage door opener
receiver. It is located near the garage door opener motor.
3. Locate the training button on the garage door opener
receiver. The exact location and color will vary
among brands.
4. Press the training button on the garage door opener
receiver for one to two seconds.5. Return to your vehicle and press the programmed
button on the universal transmitter until the red light
flashes rapidly (about two seconds).
6. Release the button, then press it again to confirm it
was programmed to the garage door opener receiver.
You may now use either the universal transmitter or the
hand
-held transmitter to open your garage door. If you
still have difficulty in programming and require
assistance, please call 1
-800-355-3515.
Erasing Channels
To erase all three programmed channels, hold down the
two outside buttons until the red light begins to flash.
Individual channels cannot be erased, but can be
reprogrammed using the procedure for programming the
transmitter explained earlier.
Accessories
Accessories for the universal transmitter are available
from the manufacturer of the unit. If you would like
additional information, please call 1
-800-355-3515.
