2000 CHEVROLET IMPALA Owners Manual

yellowblue

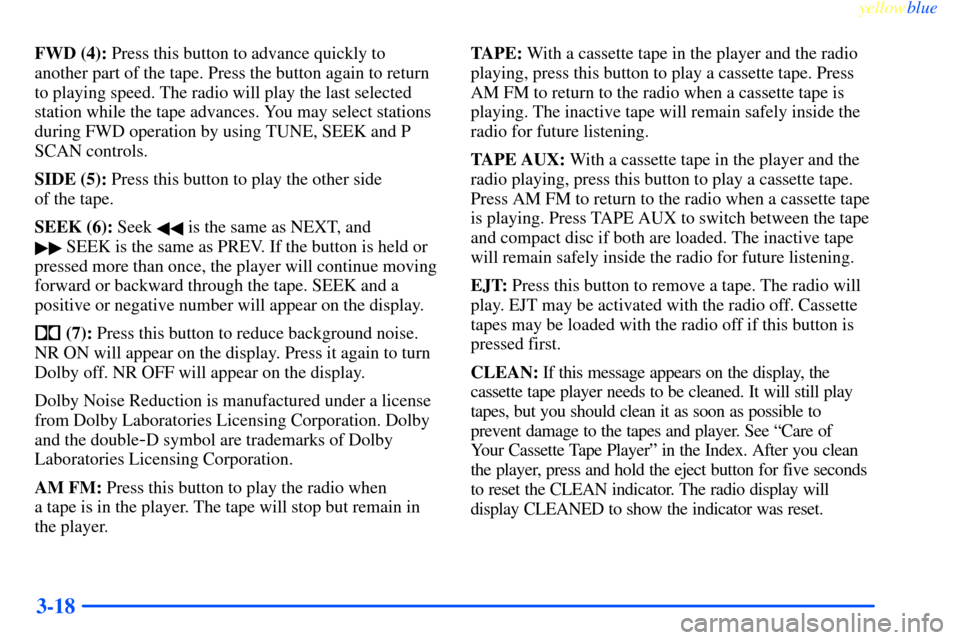

3-18
FWD (4): Press this button to advance quickly to
another part of the tape. Press the button again to return
to playing speed. The radio will play the last selected
station while the tape advances. You may select stations
during FWD operation by using TUNE, SEEK and P
SCAN controls.
SIDE (5): Press this button to play the other side
of the tape.
SEEK (6): Seek
 is the same as NEXT, and


SEEK is the same as PREV. If the button is held or
pressed more than once, the player will continue moving
forward or backward through the tape. SEEK and a
positive or negative number will appear on the display.

(7): Press this button to reduce background noise.
NR ON will appear on the display. Press it again to turn
Dolby off. NR OFF will appear on the display.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double
-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
AM FM: Press this button to play the radio when
a tape is in the player. The tape will stop but remain in
the player.TAPE: With a cassette tape in the player and the radio
playing, press this button to play a cassette tape. Press
AM FM to return to the radio when a cassette tape is
playing. The inactive tape will remain safely inside the
radio for future listening.
TAPE AUX: With a cassette tape in the player and the
radio playing, press this button to play a cassette tape.
Press AM FM to return to the radio when a cassette tape
is playing. Press TAPE AUX to switch between the tape
and compact disc if both are loaded. The inactive tape
will remain safely inside the radio for future listening.
EJT: Press this button to remove a tape. The radio will
play. EJT may be activated with the radio off. Cassette
tapes may be loaded with the radio off if this button is
pressed first.
CLEAN: If this message appears on the display, the
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index. After you clean
the player, press and hold the eject button for five seconds
to reset the CLEAN indicator. The radio display will
display CLEANED to show the indicator was reset.

yellowblue
3-19
Tight/Loose Tape Sensor Defeat
With the radio off and the ignition on, press and hold
the TAPE AUX button to disable the tight/loose tape
sensing feature to enable play of some tape head
cleaners and portable CD adapters. The radio will
display READY and flash the cassette icon. The
tight/loose tape sensing feature will then be disabled
until the next cassette eject.
CD Adapter Kits
It is possible to use a CD adapter kit with your cassette
tape player after activating the bypass feature on your
tape player.
To activate the bypass feature, use the following steps:
1. Turn the ignition to ON or ACC.
2. Turn the radio off.
3. Press and hold the TAPE button for five seconds.
READY will appear on the display for five seconds,
indicating the feature is active.
4. Insert the adapter. It will power up the radio and
begin playing.
This override routine will remain active until EJT
is pressed.Playing a Compact Disc
Insert a disc partway into the slot, label side up. The player
will pull it in. The disc should begin playing. The display
will show the CD symbol. If you want to insert a compact
disc with the ignition off, first press DISP or EJT.
If you're driving on a very rough road or if it's very hot,
the disc may not play and CHECK CD may appear on
the display. When things get back to normal, the disc
should play. If the disc comes out, it could be that:

The disc is upside down.

It is dirty, scratched or wet.

It is very humid. (If so, wait about an hour
and try again.)
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer.
PREV (1): Press this button to go to the previous track
if the current selection has been playing for less than
eight seconds. If the PREV button is pressed and
the current selection has been playing for more than
eight seconds, it will go to the beginning of the current
selection. TRACK and the track number will appear on
the display. If you hold the button or press it more than
once, the player will continue moving back through the
disc. The sound will mute while seeking.

yellowblue

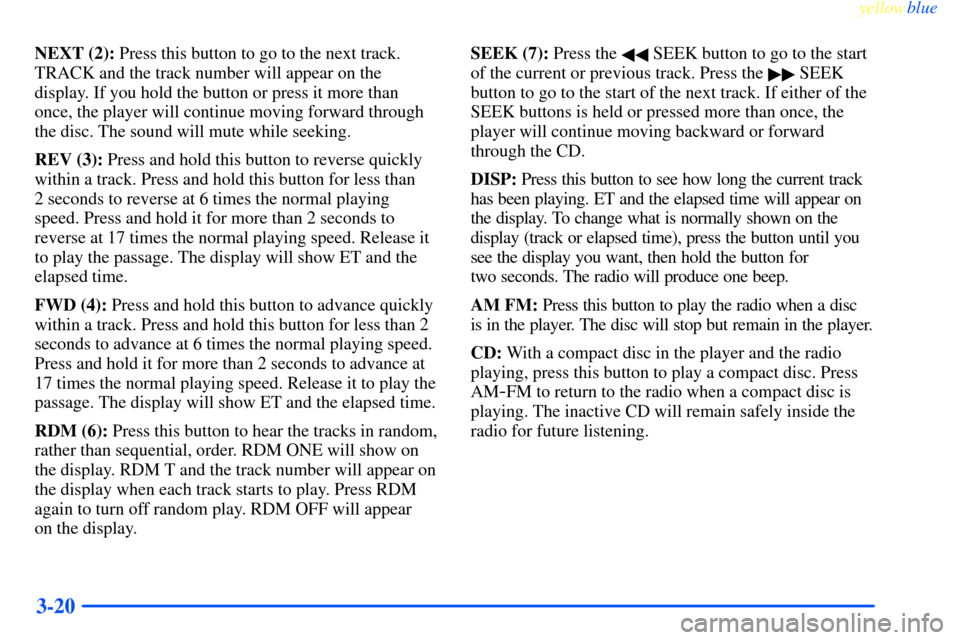

3-20
NEXT (2): Press this button to go to the next track.
TRACK and the track number will appear on the
display. If you hold the button or press it more than
once, the player will continue moving forward through
the disc. The sound will mute while seeking.
REV (3): Press and hold this button to reverse quickly
within a track. Press and hold this button for less than
2 seconds to reverse at 6 times the normal playing
speed. Press and hold it for more than 2 seconds to
reverse at 17 times the normal playing speed. Release it
to play the passage. The display will show ET and the
elapsed time.
FWD (4): Press and hold this button to advance quickly
within a track. Press and hold this button for less than 2
seconds to advance at 6 times the normal playing speed.
Press and hold it for more than 2 seconds to advance at
17 times the normal playing speed. Release it to play the
passage. The display will show ET and the elapsed time.
RDM (6): Press this button to hear the tracks in random,
rather than sequential, order. RDM ONE will show on
the display. RDM T and the track number will appear on
the display when each track starts to play. Press RDM
again to turn off random play. RDM OFF will appear
on the display.SEEK (7): Press the  SEEK button to go to the start
of the current or previous track. Press the


SEEK
button to go to the start of the next track. If either of the
SEEK buttons is held or pressed more than once, the
player will continue moving backward or forward
through the CD.
DISP: Press this button to see how long the current track
has been playing. ET and the elapsed time will appear on
the display. To change what is normally shown on the
display (track or elapsed time), press the button until you
see the display you want, then hold the button for
two seconds. The radio will produce one beep.
AM FM: Press this button to play the radio when a disc
is in the player. The disc will stop but remain in the player.
CD: With a compact disc in the player and the radio
playing, press this button to play a compact disc. Press
AM
-FM to return to the radio when a compact disc is
playing. The inactive CD will remain safely inside the
radio for future listening.

yellowblue

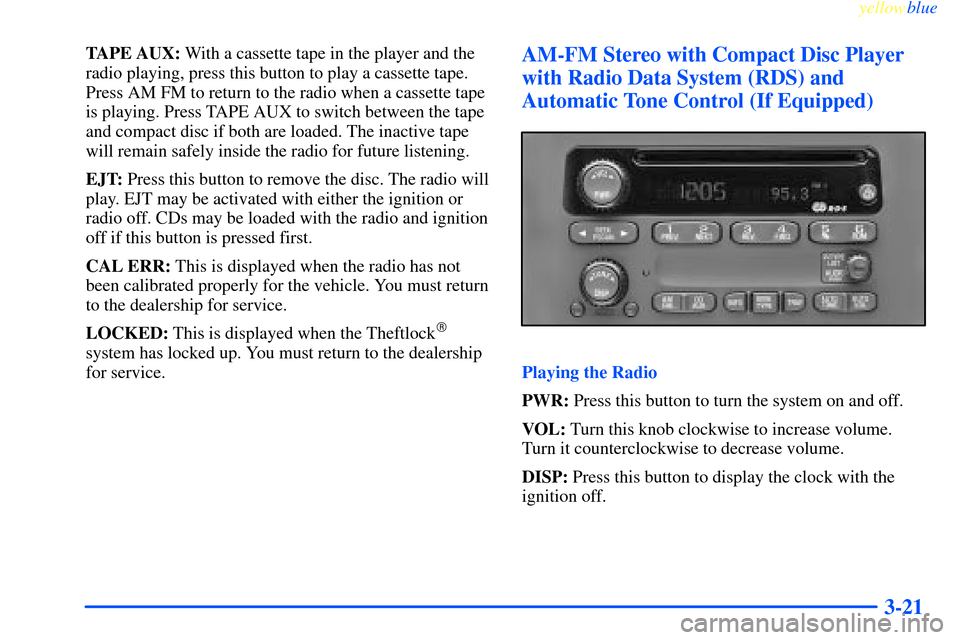

3-21
TAPE AUX: With a cassette tape in the player and the
radio playing, press this button to play a cassette tape.
Press AM FM to return to the radio when a cassette tape
is playing. Press TAPE AUX to switch between the tape
and compact disc if both are loaded. The inactive tape
will remain safely inside the radio for future listening.
EJT: Press this button to remove the disc. The radio will
play. EJT may be activated with either the ignition or
radio off. CDs may be loaded with the radio and ignition
off if this button is pressed first.
CAL ERR: This is displayed when the radio has not
been calibrated properly for the vehicle. You must return
to the dealership for service.
LOCKED: This is displayed when the Theftlock


system has locked up. You must return to the dealership
for service.
AM-FM Stereo with Compact Disc Player
with Radio Data System (RDS) and
Automatic Tone Control (If Equipped)
Playing the Radio
PWR: Press this button to turn the system on and off.
VOL: Turn this knob clockwise to increase volume.
Turn it counterclockwise to decrease volume.
DISP: Press this button to display the clock with the
ignition off.

yellowblue

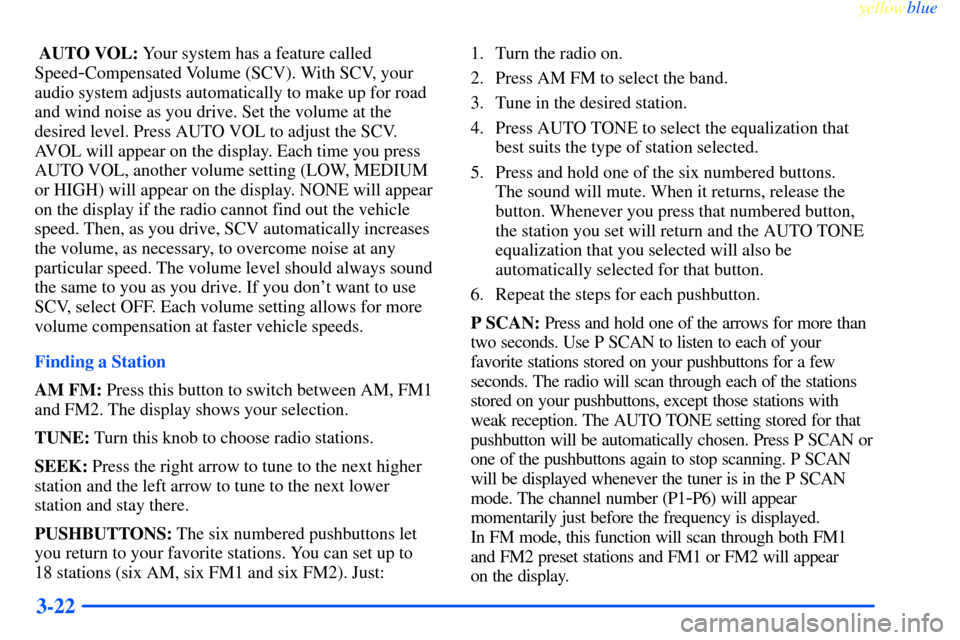

3-22
AUTO VOL: Your system has a feature called
Speed
-Compensated Volume (SCV). With SCV, your
audio system adjusts automatically to make up for road
and wind noise as you drive. Set the volume at the
desired level. Press AUTO VOL to adjust the SCV.
AVOL will appear on the display. Each time you press
AUTO VOL, another volume setting (LOW, MEDIUM
or HIGH) will appear on the display. NONE will appear
on the display if the radio cannot find out the vehicle
speed. Then, as you drive, SCV automatically increases
the volume, as necessary, to overcome noise at any
particular speed. The volume level should always sound
the same to you as you drive. If you don't want to use
SCV, select OFF. Each volume setting allows for more
volume compensation at faster vehicle speeds.
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Turn this knob to choose radio stations.
SEEK: Press the right arrow to tune to the next higher
station and the left arrow to tune to the next lower
station and stay there.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press AUTO TONE to select the equalization that
best suits the type of station selected.
5. Press and hold one of the six numbered buttons.
The sound will mute. When it returns, release the
button. Whenever you press that numbered button,
the station you set will return and the AUTO TONE
equalization that you selected will also be
automatically selected for that button.
6. Repeat the steps for each pushbutton.
P SCAN: Press and hold one of the arrows for more than
two seconds. Use P SCAN to listen to each of your
favorite stations stored on your pushbuttons for a few
seconds. The radio will scan through each of the stations
stored on your pushbuttons, except those stations with
weak reception. The AUTO TONE setting stored for that
pushbutton will be automatically chosen. Press P SCAN or
one of the pushbuttons again to stop scanning. P SCAN
will be displayed whenever the tuner is in the P SCAN
mode. The channel number (P1
-P6) will appear
momentarily just before the frequency is displayed.
In FM mode, this function will scan through both FM1
and FM2 preset stations and FM1 or FM2 will appear
on the display.

yellowblue

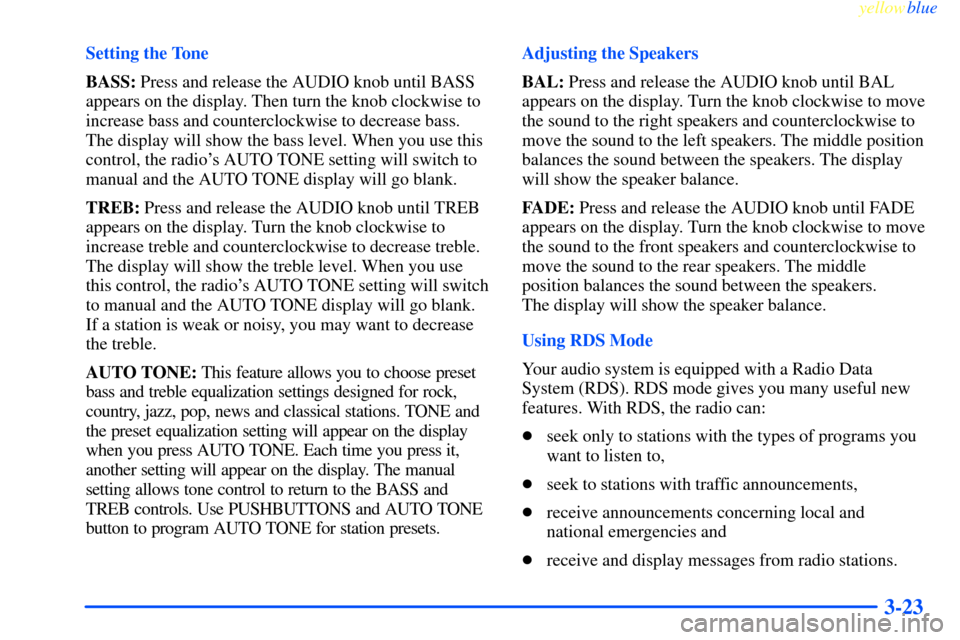

3-23
Setting the Tone
BASS: Press and release the AUDIO knob until BASS
appears on the display. Then turn the knob clockwise to
increase bass and counterclockwise to decrease bass.
The display will show the bass level. When you use this
control, the radio's AUTO TONE setting will switch to
manual and the AUTO TONE display will go blank.
TREB: Press and release the AUDIO knob until TREB
appears on the display. Turn the knob clockwise to
increase treble and counterclockwise to decrease treble.
The display will show the treble level. When you use
this control, the radio's AUTO TONE setting will switch
to manual and the AUTO TONE display will go blank.
If a station is weak or noisy, you may want to decrease
the treble.
AUTO TONE: This feature allows you to choose preset
bass and treble equalization settings designed for rock,
country, jazz, pop, news and classical stations. TONE and
the preset equalization setting will appear on the display
when you press AUTO TONE. Each time you press it,
another setting will appear on the display. The manual
setting allows tone control to return to the BASS and
TREB controls. Use PUSHBUTTONS and AUTO TONE
button to program AUTO TONE for station presets.Adjusting the Speakers
BAL: Press and release the AUDIO knob until BAL
appears on the display. Turn the knob clockwise to move
the sound to the right speakers and counterclockwise to
move the sound to the left speakers. The middle position
balances the sound between the speakers. The display
will show the speaker balance.
FADE: Press and release the AUDIO knob until FADE
appears on the display. Turn the knob clockwise to move
the sound to the front speakers and counterclockwise to
move the sound to the rear speakers. The middle
position balances the sound between the speakers.
The display will show the speaker balance.
Using RDS Mode
Your audio system is equipped with a Radio Data
System (RDS). RDS mode gives you many useful new
features. With RDS, the radio can:

seek only to stations with the types of programs you
want to listen to,

seek to stations with traffic announcements,

receive announcements concerning local and
national emergencies and

receive and display messages from radio stations.

yellowblue
3-24

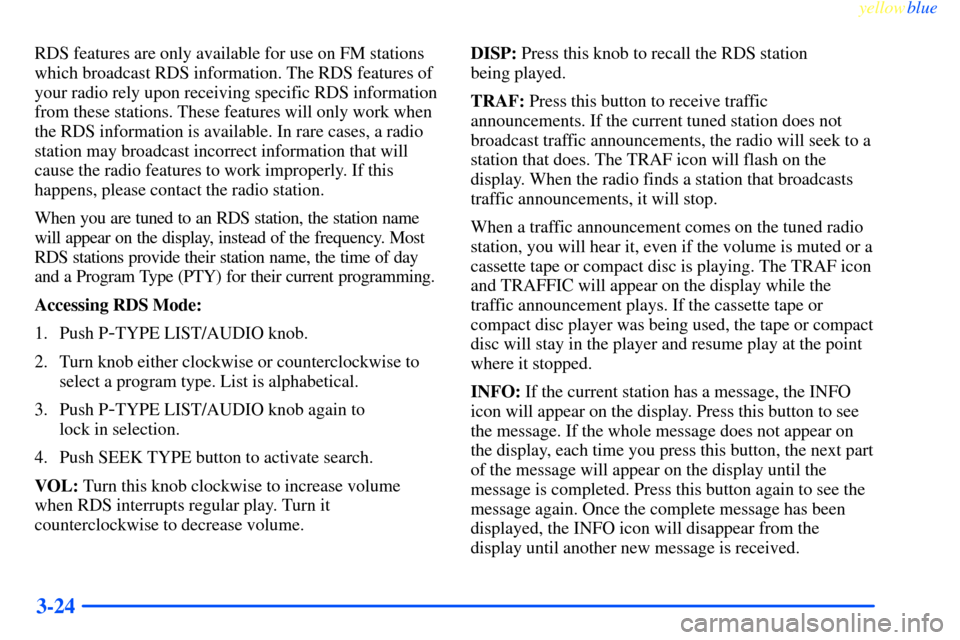

RDS features are only available for use on FM stations
which broadcast RDS information. The RDS features of
your radio rely upon receiving specific RDS information
from these stations. These features will only work when
the RDS information is available. In rare cases, a radio
station may broadcast incorrect information that will
cause the radio features to work improperly. If this
happens, please contact the radio station.
When you are tuned to an RDS station, the station name
will appear on the display, instead of the frequency. Most
RDS stations provide their station name, the time of day
and a Program Type (PTY) for their current programming.
Accessing RDS Mode:
1. Push P
-TYPE LIST/AUDIO knob.
2. Turn knob either clockwise or counterclockwise to
select a program type. List is alphabetical.
3. Push P
-TYPE LIST/AUDIO knob again to
lock in selection.
4. Push SEEK TYPE button to activate search.
VOL: Turn this knob clockwise to increase volume
when RDS interrupts regular play. Turn it
counterclockwise to decrease volume.DISP: Press this knob to recall the RDS station
being played.
TRAF: Press this button to receive traffic
announcements. If the current tuned station does not
broadcast traffic announcements, the radio will seek to a
station that does. The TRAF icon will flash on the
display. When the radio finds a station that broadcasts
traffic announcements, it will stop.
When a traffic announcement comes on the tuned radio
station, you will hear it, even if the volume is muted or a
cassette tape or compact disc is playing. The TRAF icon
and TRAFFIC will appear on the display while the
traffic announcement plays. If the cassette tape or
compact disc player was being used, the tape or compact
disc will stay in the player and resume play at the point
where it stopped.
INFO: If the current station has a message, the INFO
icon will appear on the display. Press this button to see
the message. If the whole message does not appear on
the display, each time you press this button, the next part
of the message will appear on the display until the
message is completed. Press this button again to see the
message again. Once the complete message has been
displayed, the INFO icon will disappear from the
display until another new message is received.

yellowblue
3-25

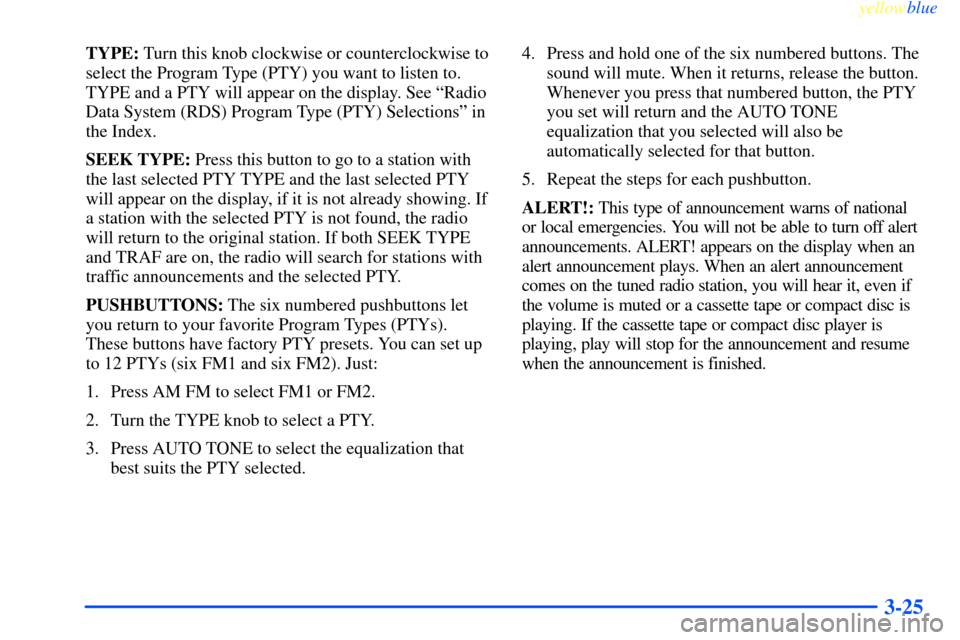

TYPE: Turn this knob clockwise or counterclockwise to
select the Program Type (PTY) you want to listen to.
TYPE and a PTY will appear on the display. See ªRadio
Data System (RDS) Program Type (PTY) Selectionsº in
the Index.
SEEK TYPE: Press this button to go to a station with
the last selected PTY TYPE and the last selected PTY
will appear on the display, if it is not already showing. If
a station with the selected PTY is not found, the radio
will return to the original station. If both SEEK TYPE
and TRAF are on, the radio will search for stations with
traffic announcements and the selected PTY.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite Program Types (PTYs).
These buttons have factory PTY presets. You can set up
to 12 PTYs (six FM1 and six FM2). Just:
1. Press AM FM to select FM1 or FM2.
2. Turn the TYPE knob to select a PTY.
3. Press AUTO TONE to select the equalization that
best suits the PTY selected.4. Press and hold one of the six numbered buttons. The
sound will mute. When it returns, release the button.
Whenever you press that numbered button, the PTY
you set will return and the AUTO TONE
equalization that you selected will also be
automatically selected for that button.
5. Repeat the steps for each pushbutton.
ALERT!: This type of announcement warns of national
or local emergencies. You will not be able to turn off alert
announcements. ALERT! appears on the display when an
alert announcement plays. When an alert announcement
comes on the tuned radio station, you will hear it, even if
the volume is muted or a cassette tape or compact disc is
playing. If the cassette tape or compact disc player is
playing, play will stop for the announcement and resume
when the announcement is finished.
