2000 CHEVROLET IMPALA Owners Manual

yellowblue

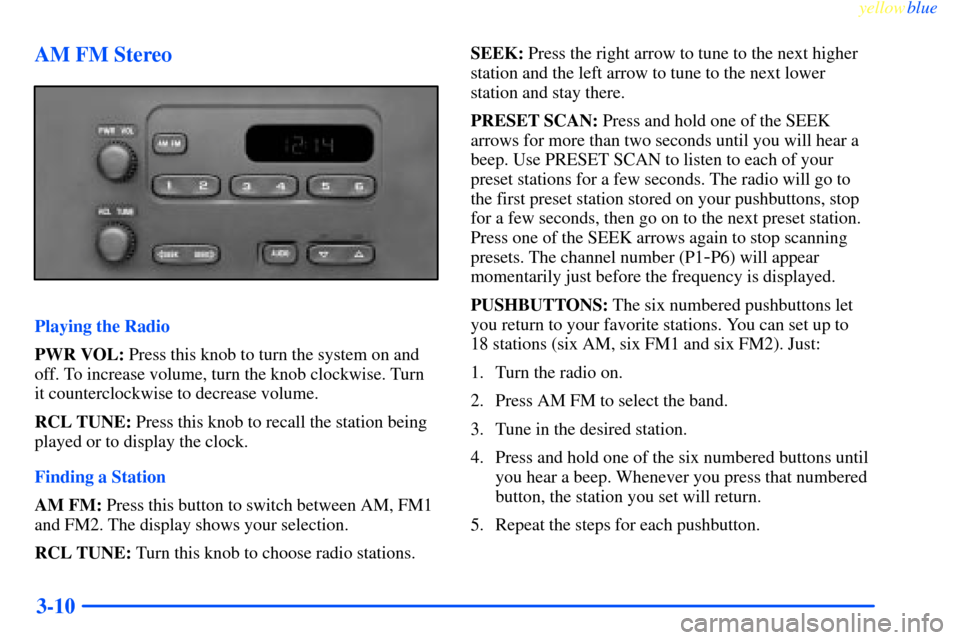

3-10 AM FM Stereo
Playing the Radio
PWR VOL: Press this knob to turn the system on and
off. To increase volume, turn the knob clockwise. Turn
it counterclockwise to decrease volume.
RCL TUNE: Press this knob to recall the station being
played or to display the clock.
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
RCL TUNE: Turn this knob to choose radio stations.SEEK: Press the right arrow to tune to the next higher
station and the left arrow to tune to the next lower
station and stay there.
PRESET SCAN: Press and hold one of the SEEK
arrows for more than two seconds until you will hear a
beep. Use PRESET SCAN to listen to each of your
preset stations for a few seconds. The radio will go to
the first preset station stored on your pushbuttons, stop
for a few seconds, then go on to the next preset station.
Press one of the SEEK arrows again to stop scanning
presets. The channel number (P1
-P6) will appear
momentarily just before the frequency is displayed.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press and hold one of the six numbered buttons until
you hear a beep. Whenever you press that numbered
button, the station you set will return.
5. Repeat the steps for each pushbutton.

yellowblue
3-11
Setting the Tone
BASS: Press and release AUDIO repeatedly until BAS
appears on the display. Then press and hold the up arrow
to increase bass. ªBº and a positive number will appear on
the display. Press and hold the down arrow to decrease
bass. B and a negative number will appear on the display.
B and a zero will appear on the display when the bass
level is set to the middle position. Release the up or down
arrow when you find the bass level you want or when the
maximum or minimum level is reached.
TREB: Press and release AUDIO until TRE appears on
the display. Then press and hold the up arrow to increase
treble. ªTº and a positive number will appear on the
display. Press and hold the down arrow to decrease treble.
T and a negative number will appear on the display. T and
a zero will appear on the display when the treble level is set
to the middle position. Release the up or down arrow when
you find the treble level you want or when the maximum or
minimum level is reached. If a station is weak or noisy, you
may want to decrease the treble.To set BASS or TREB to the middle position, select the
desired tone control. Then press and hold AUDIO for
more than two seconds until you hear a beep. B and a
zero or T and a zero will appear on the display. To set all
of the tone controls and speaker controls to the middle
position, end out of audio mode. Then press and hold
AUDIO for more than two seconds until you hear a
beep. CEN will appear on the display.
Adjusting the Speakers
BALANCE: Press and release AUDIO until BAL
appears on the display. Then press and hold the up arrow
to move the sound to the right speakers or the down
arrow to move the sound to the left speakers. R and a
number will appear on the display when the sound is
balanced toward the right speakers. L and a number
will appear on the display when the sound is balanced
toward the left speakers. L and a zero will appear on the
display when the the sound is balanced between the
speakers. Release the up or down arrow when you find
the speaker balance you want or when the maximum or
minimum level is reached.

yellowblue
3-12
FADE: Press and release AUDIO until FAD appears on
the display. Then press and hold the up arrow to move
the sound to the front speakers or the down arrow to
move the sound to the rear speakers. ªFº and a number
will appear on the display when the sound is balanced
toward the front speakers.ªRº and a number will appear
on the display when the sound is balanced toward the
rear speakers. F and a zero will appear on the display
when the the sound is balanced between the speakers.
Release the up or down arrow when you find the speaker
balance you want or when the maximum or minimum
level is reached.
To set BALANCE or FADE to the middle position,
select the desired speaker control. Then press and hold
AUDIO for more than two seconds until you hear a
beep. L and a zero or F and a zero will appear on the
display. To set all of the tone controls and speaker
controls to the middle position, end out of audio mode.
Then press and hold AUDIO for more than two seconds
until you hear a beep. CEN will appear on the display.AM-FM Stereo with Cassette Tape Player
with Radio Data System (RDS) and
Automatic Tone Control (If Equipped)
Playing the Radio
PWR: Press this button to turn the system on and off.
VOL: Turn this knob clockwise to increase volume.
Turn it counterclockwise to decrease volume.
DISP: Press this button to display the clock with the
ignition off.

yellowblue
3-13
AUTO VOL: Your system has a feature called
Speed
-Compensated Volume (SCV). With SCV, your
audio system adjusts automatically to make up for road
and wind noise as you drive. Set the volume at the
desired level. Press AUTO VOL to adjust the SCV.
AVOL will appear on the display. Each time you press
AUTO VOL, another volume setting (LOW, MEDIUM
or HIGH) will appear on the display. NONE will appear
on the display if the radio cannot find out the vehicle
speed. Then, as you drive, SCV automatically increases
the volume, as necessary, to overcome noise at any
particular speed. The volume level should always sound
the same to you as you drive. If you don't want to use
SCV, select OFF. Each volume setting allows for more
volume compensation at faster vehicle speeds.
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Turn this knob to choose radio stations.
SEEK: Press the right arrow to tune to the next higher
station and the left arrow to tune to the next lower
station and stay there.PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press AUTO TONE to select the equalization that
best suits the type of station selected.
5. Press and hold one of the six numbered buttons. The
radio will produce one beep. Whenever you press
that numbered button, the station you set will return
and the AUTO TONE equalization that you selected
will also be automatically selected for that button.
6. Repeat the steps for each pushbutton.

yellowblue

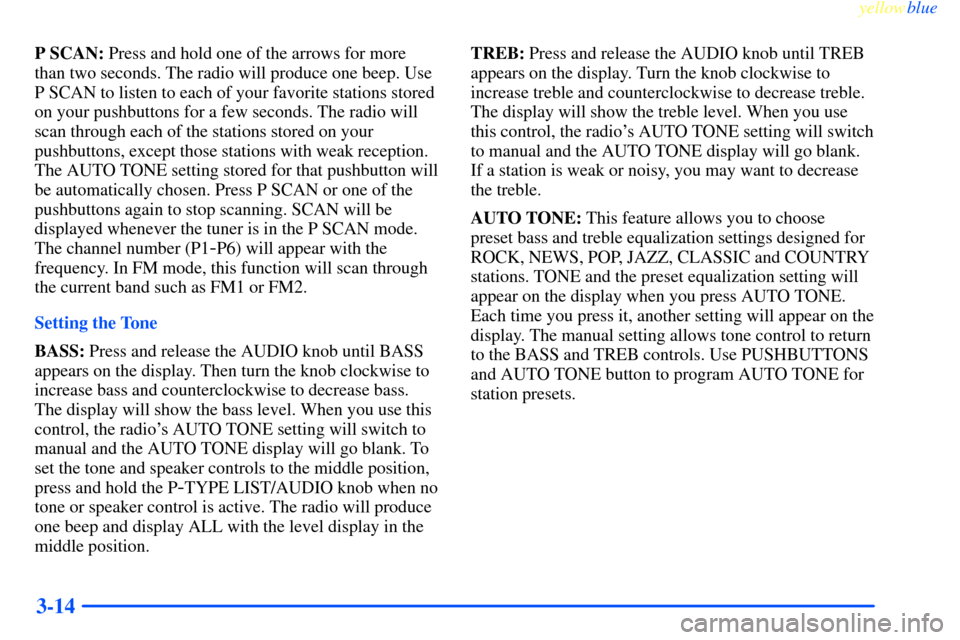

3-14
P SCAN: Press and hold one of the arrows for more
than two seconds. The radio will produce one beep. Use
P SCAN to listen to each of your favorite stations stored
on your pushbuttons for a few seconds. The radio will
scan through each of the stations stored on your
pushbuttons, except those stations with weak reception.
The AUTO TONE setting stored for that pushbutton will
be automatically chosen. Press P SCAN or one of the
pushbuttons again to stop scanning. SCAN will be
displayed whenever the tuner is in the P SCAN mode.
The channel number (P1
-P6) will appear with the
frequency. In FM mode, this function will scan through
the current band such as FM1 or FM2.
Setting the Tone
BASS: Press and release the AUDIO knob until BASS
appears on the display. Then turn the knob clockwise to
increase bass and counterclockwise to decrease bass.
The display will show the bass level. When you use this
control, the radio's AUTO TONE setting will switch to
manual and the AUTO TONE display will go blank. To
set the tone and speaker controls to the middle position,
press and hold the P
-TYPE LIST/AUDIO knob when no
tone or speaker control is active. The radio will produce
one beep and display ALL with the level display in the
middle position.TREB: Press and release the AUDIO knob until TREB
appears on the display. Turn the knob clockwise to
increase treble and counterclockwise to decrease treble.
The display will show the treble level. When you use
this control, the radio's AUTO TONE setting will switch
to manual and the AUTO TONE display will go blank.
If a station is weak or noisy, you may want to decrease
the treble.
AUTO TONE: This feature allows you to choose
preset bass and treble equalization settings designed for
ROCK, NEWS, POP, JAZZ, CLASSIC and COUNTRY
stations. TONE and the preset equalization setting will
appear on the display when you press AUTO TONE.
Each time you press it, another setting will appear on the
display. The manual setting allows tone control to return
to the BASS and TREB controls. Use PUSHBUTTONS
and AUTO TONE button to program AUTO TONE for
station presets.

yellowblue

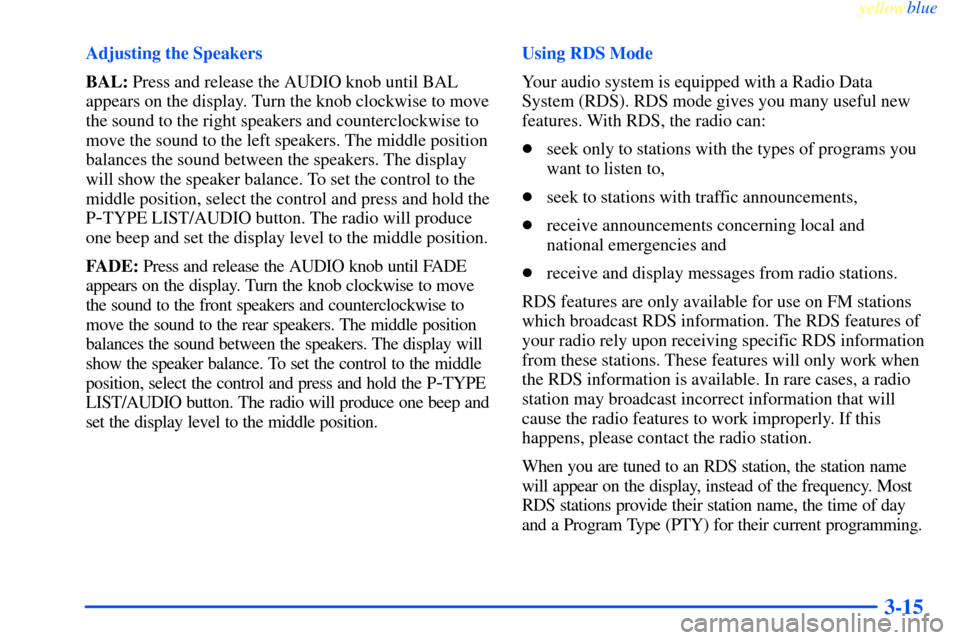

3-15
Adjusting the Speakers
BAL: Press and release the AUDIO knob until BAL
appears on the display. Turn the knob clockwise to move
the sound to the right speakers and counterclockwise to
move the sound to the left speakers. The middle position
balances the sound between the speakers. The display
will show the speaker balance. To set the control to the
middle position, select the control and press and hold the
P
-TYPE LIST/AUDIO button. The radio will produce
one beep and set the display level to the middle position.
FADE: Press and release the AUDIO knob until FADE
appears on the display. Turn the knob clockwise to move
the sound to the front speakers and counterclockwise to
move the sound to the rear speakers. The middle position
balances the sound between the speakers. The display will
show the speaker balance. To set the control to the middle
position, select the control and press and hold the P
-TYPE
LIST/AUDIO button. The radio will produce one beep and
set the display level to the middle position.Using RDS Mode
Your audio system is equipped with a Radio Data
System (RDS). RDS mode gives you many useful new
features. With RDS, the radio can:

seek only to stations with the types of programs you
want to listen to,

seek to stations with traffic announcements,

receive announcements concerning local and
national emergencies and

receive and display messages from radio stations.
RDS features are only available for use on FM stations
which broadcast RDS information. The RDS features of
your radio rely upon receiving specific RDS information
from these stations. These features will only work when
the RDS information is available. In rare cases, a radio
station may broadcast incorrect information that will
cause the radio features to work improperly. If this
happens, please contact the radio station.
When you are tuned to an RDS station, the station name
will appear on the display, instead of the frequency. Most
RDS stations provide their station name, the time of day
and a Program Type (PTY) for their current programming.

yellowblue

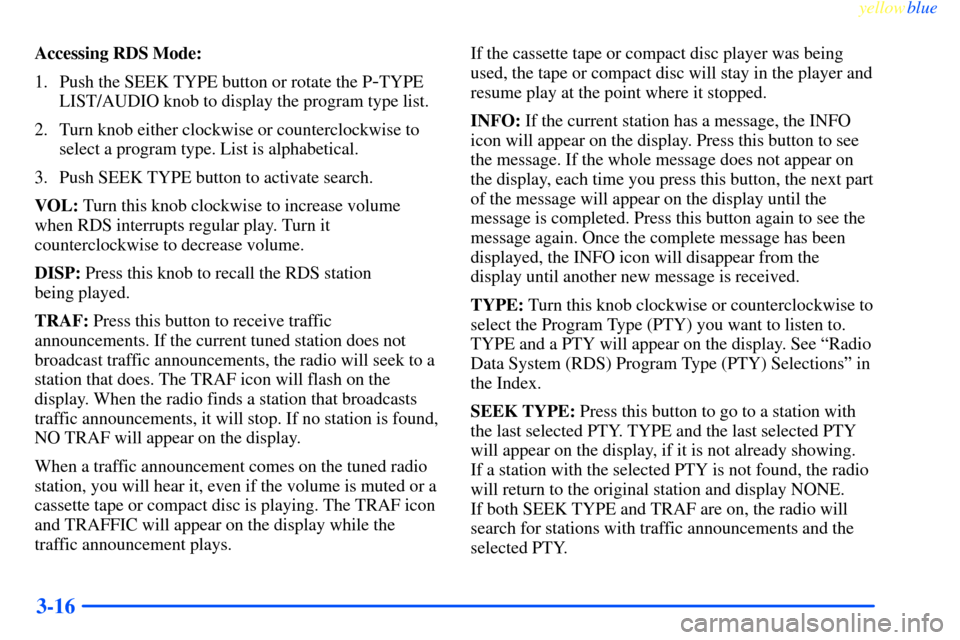

3-16
Accessing RDS Mode:
1. Push the SEEK TYPE button or rotate the P
-TYPE
LIST/AUDIO knob to display the program type list.
2. Turn knob either clockwise or counterclockwise to
select a program type. List is alphabetical.
3. Push SEEK TYPE button to activate search.
VOL: Turn this knob clockwise to increase volume
when RDS interrupts regular play. Turn it
counterclockwise to decrease volume.
DISP: Press this knob to recall the RDS station
being played.
TRAF: Press this button to receive traffic
announcements. If the current tuned station does not
broadcast traffic announcements, the radio will seek to a
station that does. The TRAF icon will flash on the
display. When the radio finds a station that broadcasts
traffic announcements, it will stop. If no station is found,
NO TRAF will appear on the display.
When a traffic announcement comes on the tuned radio
station, you will hear it, even if the volume is muted or a
cassette tape or compact disc is playing. The TRAF icon
and TRAFFIC will appear on the display while the
traffic announcement plays. If the cassette tape or compact disc player was being
used, the tape or compact disc will stay in the player and
resume play at the point where it stopped.
INFO: If the current station has a message, the INFO
icon will appear on the display. Press this button to see
the message. If the whole message does not appear on
the display, each time you press this button, the next part
of the message will appear on the display until the
message is completed. Press this button again to see the
message again. Once the complete message has been
displayed, the INFO icon will disappear from the
display until another new message is received.
TYPE: Turn this knob clockwise or counterclockwise to
select the Program Type (PTY) you want to listen to.
TYPE and a PTY will appear on the display. See ªRadio
Data System (RDS) Program Type (PTY) Selectionsº in
the Index.
SEEK TYPE: Press this button to go to a station with
the last selected PTY. TYPE and the last selected PTY
will appear on the display, if it is not already showing.
If a station with the selected PTY is not found, the radio
will return to the original station and display NONE.
If both SEEK TYPE and TRAF are on, the radio will
search for stations with traffic announcements and the
selected PTY.

yellowblue
3-17

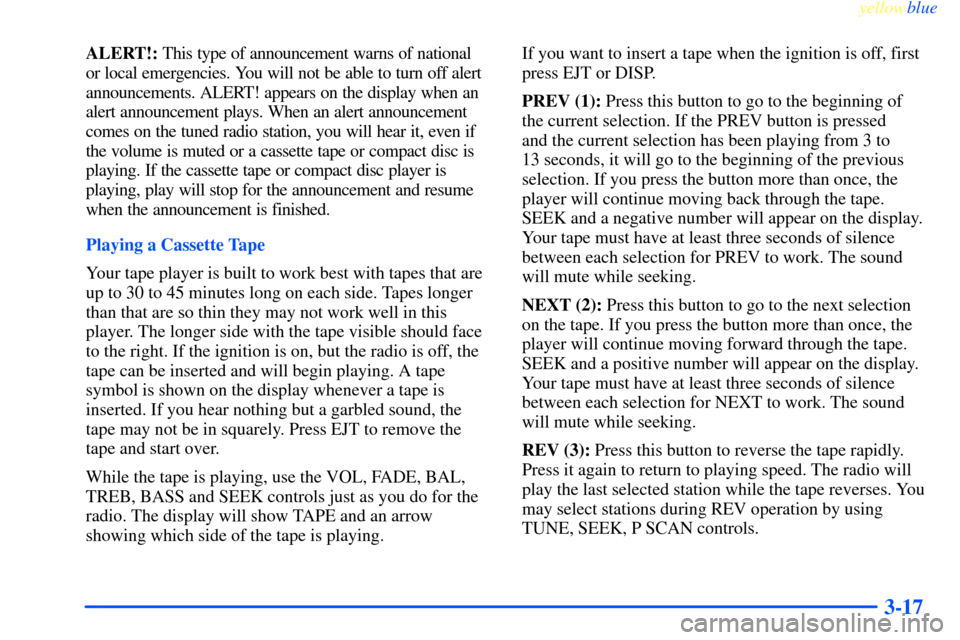

ALERT!: This type of announcement warns of national
or local emergencies. You will not be able to turn off alert
announcements. ALERT! appears on the display when an
alert announcement plays. When an alert announcement
comes on the tuned radio station, you will hear it, even if
the volume is muted or a cassette tape or compact disc is
playing. If the cassette tape or compact disc player is
playing, play will stop for the announcement and resume
when the announcement is finished.
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
up to 30 to 45 minutes long on each side. Tapes longer
than that are so thin they may not work well in this
player. The longer side with the tape visible should face
to the right. If the ignition is on, but the radio is off, the
tape can be inserted and will begin playing. A tape
symbol is shown on the display whenever a tape is
inserted. If you hear nothing but a garbled sound, the
tape may not be in squarely. Press EJT to remove the
tape and start over.
While the tape is playing, use the VOL, FADE, BAL,
TREB, BASS and SEEK controls just as you do for the
radio. The display will show TAPE and an arrow
showing which side of the tape is playing.If you want to insert a tape when the ignition is off, first
press EJT or DISP.
PREV (1): Press this button to go to the beginning of
the current selection. If the PREV button is pressed
and the current selection has been playing from 3 to
13 seconds, it will go to the beginning of the previous
selection. If you press the button more than once, the
player will continue moving back through the tape.
SEEK and a negative number will appear on the display.
Your tape must have at least three seconds of silence
between each selection for PREV to work. The sound
will mute while seeking.
NEXT (2): Press this button to go to the next selection
on the tape. If you press the button more than once, the
player will continue moving forward through the tape.
SEEK and a positive number will appear on the display.
Your tape must have at least three seconds of silence
between each selection for NEXT to work. The sound
will mute while seeking.
REV (3): Press this button to reverse the tape rapidly.
Press it again to return to playing speed. The radio will
play the last selected station while the tape reverses. You
may select stations during REV operation by using
TUNE, SEEK, P SCAN controls.
