2000 CHEVROLET IMPALA audio

yellowblue

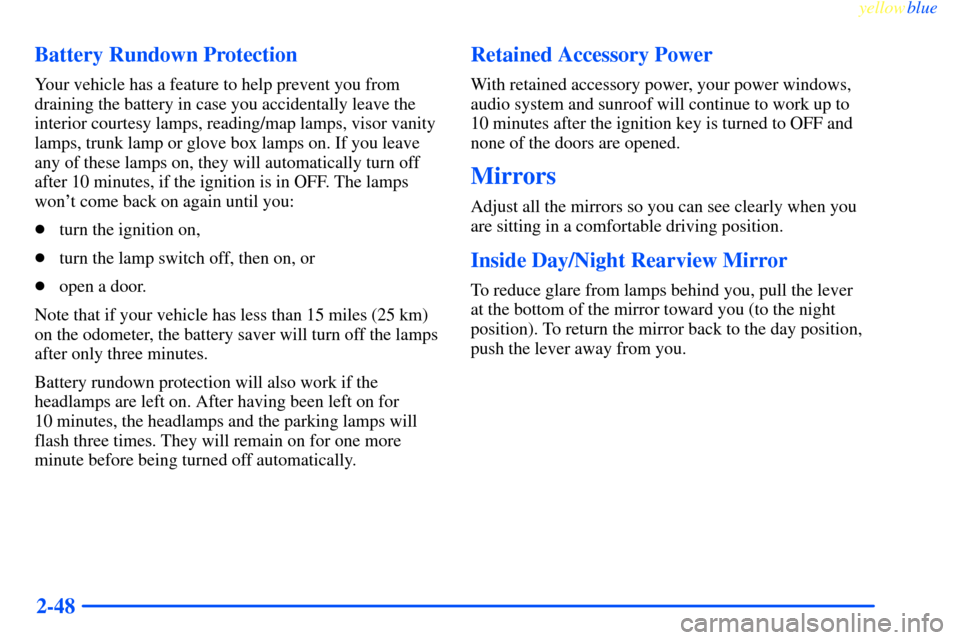

2-48 Battery Rundown Protection
Your vehicle has a feature to help prevent you from
draining the battery in case you accidentally leave the
interior courtesy lamps, reading/map lamps, visor vanity
lamps, trunk lamp or glove box lamps on. If you leave
any of these lamps on, they will automatically turn off
after 10 minutes, if the ignition is in OFF. The lamps
won't come back on again until you:

turn the ignition on,

turn the lamp switch off, then on, or

open a door.
Note that if your vehicle has less than 15 miles (25 km)
on the odometer, the battery saver will turn off the lamps
after only three minutes.
Battery rundown protection will also work if the
headlamps are left on. After having been left on for
10 minutes, the headlamps and the parking lamps will
flash three times. They will remain on for one more
minute before being turned off automatically.
Retained Accessory Power
With retained accessory power, your power windows,
audio system and sunroof will continue to work up to
10 minutes after the ignition key is turned to OFF and
none of the doors are opened.
Mirrors
Adjust all the mirrors so you can see clearly when you
are sitting in a comfortable driving position.
Inside Day/Night Rearview Mirror
To reduce glare from lamps behind you, pull the lever
at the bottom of the mirror toward you (to the night
position). To return the mirror back to the day position,
push the lever away from you.

yellowblue
2-53

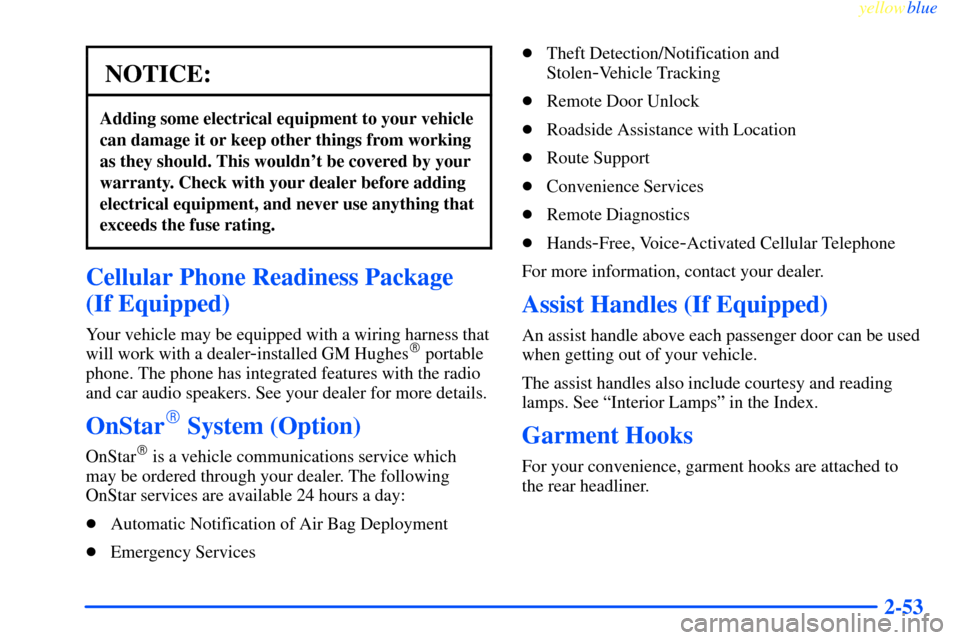

NOTICE:
Adding some electrical equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn't be covered by your
warranty. Check with your dealer before adding
electrical equipment, and never use anything that
exceeds the fuse rating.
Cellular Phone Readiness Package
(If Equipped)
Your vehicle may be equipped with a wiring harness that
will work with a dealer
-installed GM Hughes
portable
phone. The phone has integrated features with the radio
and car audio speakers. See your dealer for more details.
OnStar
System (Option)
OnStar
is a vehicle communications service which
may be ordered through your dealer. The following
OnStar services are available 24 hours a day:

Automatic Notification of Air Bag Deployment

Emergency Services
Theft Detection/Notification and
Stolen
-Vehicle Tracking

Remote Door Unlock

Roadside Assistance with Location

Route Support

Convenience Services

Remote Diagnostics

Hands
-Free, Voice-Activated Cellular Telephone
For more information, contact your dealer.
Assist Handles (If Equipped)
An assist handle above each passenger door can be used
when getting out of your vehicle.
The assist handles also include courtesy and reading
lamps. See ªInterior Lampsº in the Index.
Garment Hooks
For your convenience, garment hooks are attached to
the rear headliner.

yellowblue
2-58
The Instrument Panel -- Your Information System
The main components of your instrument panel are:
A. Instrument Panel Fuse Block
B. Multifunction Lever
C. Hazard Warning Flasher Switch
D. Audio System
E. Climate ControlsF. Center Console Shift Lever
(If Equipped)
G. Ignition Switch
H. Steering Wheel Cruise
Control SwitchesI. Hood Release
J. Remote Trunk Release
K. Lamp Controls

3-
yellowblue
3-1

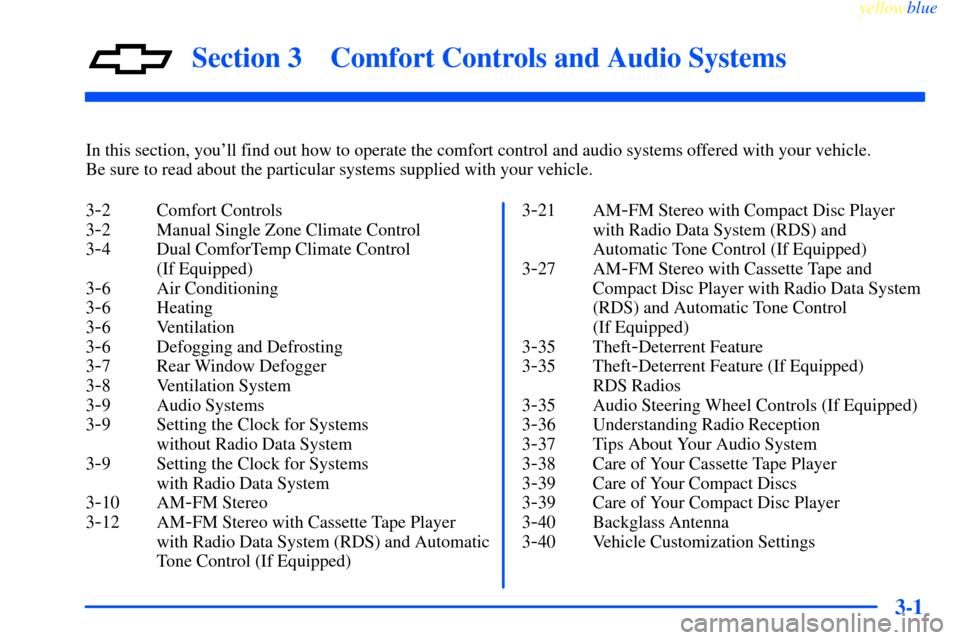

Section 3 Comfort Controls and Audio Systems
In this section, you'll find out how to operate the comfort control and audio systems offered with your vehicle.
Be sure to read about the particular systems supplied with your vehicle.
3
-2 Comfort Controls
3
-2 Manual Single Zone Climate Control
3
-4 Dual ComforTemp Climate Control
(If Equipped)
3
-6 Air Conditioning
3
-6 Heating
3
-6 Ventilation
3
-6 Defogging and Defrosting
3
-7 Rear Window Defogger
3
-8 Ventilation System
3
-9 Audio Systems
3
-9 Setting the Clock for Systems
without Radio Data System
3
-9 Setting the Clock for Systems
with Radio Data System
3
-10 AM-FM Stereo
3
-12 AM-FM Stereo with Cassette Tape Player
with Radio Data System (RDS) and Automatic
Tone Control (If Equipped)3
-21 AM-FM Stereo with Compact Disc Player
with Radio Data System (RDS) and
Automatic Tone Control (If Equipped)
3
-27 AM-FM Stereo with Cassette Tape and
Compact Disc Player with Radio Data System
(RDS) and Automatic Tone Control
(If Equipped)
3
-35 Theft-Deterrent Feature
3
-35 Theft-Deterrent Feature (If Equipped)
RDS Radios
3
-35 Audio Steering Wheel Controls (If Equipped)
3
-36 Understanding Radio Reception
3
-37 Tips About Your Audio System
3
-38 Care of Your Cassette Tape Player
3
-39 Care of Your Compact Discs
3
-39 Care of Your Compact Disc Player
3
-40 Backglass Antenna
3
-40 Vehicle Customization Settings

yellowblue
3-9

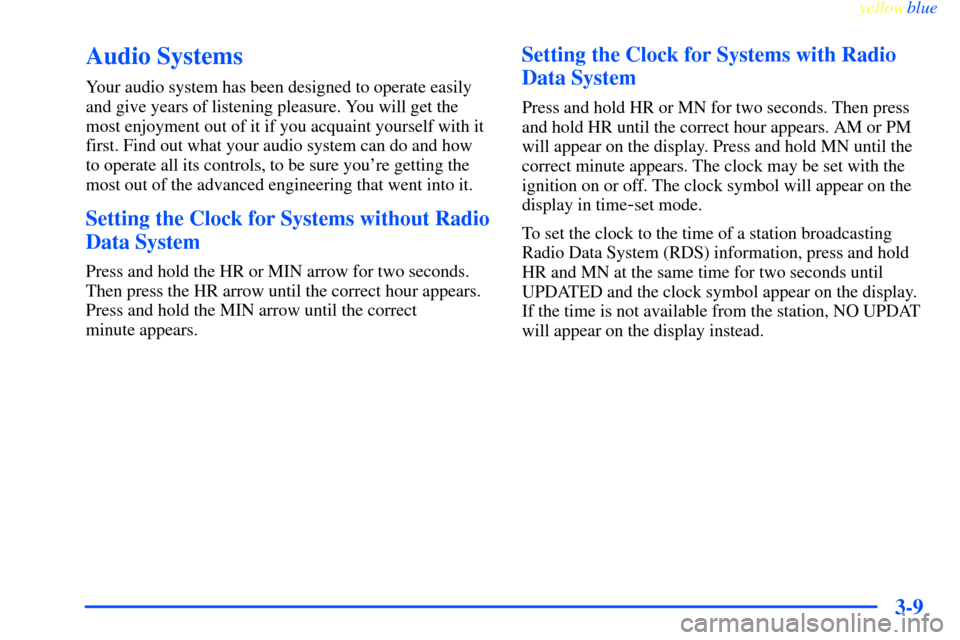

Audio Systems
Your audio system has been designed to operate easily
and give years of listening pleasure. You will get the
most enjoyment out of it if you acquaint yourself with it
first. Find out what your audio system can do and how
to operate all its controls, to be sure you're getting the
most out of the advanced engineering that went into it.
Setting the Clock for Systems without Radio
Data System
Press and hold the HR or MIN arrow for two seconds.
Then press the HR arrow until the correct hour appears.
Press and hold the MIN arrow until the correct
minute appears.
Setting the Clock for Systems with Radio
Data System
Press and hold HR or MN for two seconds. Then press
and hold HR until the correct hour appears. AM or PM
will appear on the display. Press and hold MN until the
correct minute appears. The clock may be set with the
ignition on or off. The clock symbol will appear on the
display in time
-set mode.
To set the clock to the time of a station broadcasting
Radio Data System (RDS) information, press and hold
HR and MN at the same time for two seconds until
UPDATED and the clock symbol appear on the display.
If the time is not available from the station, NO UPDAT
will appear on the display instead.

yellowblue
3-11

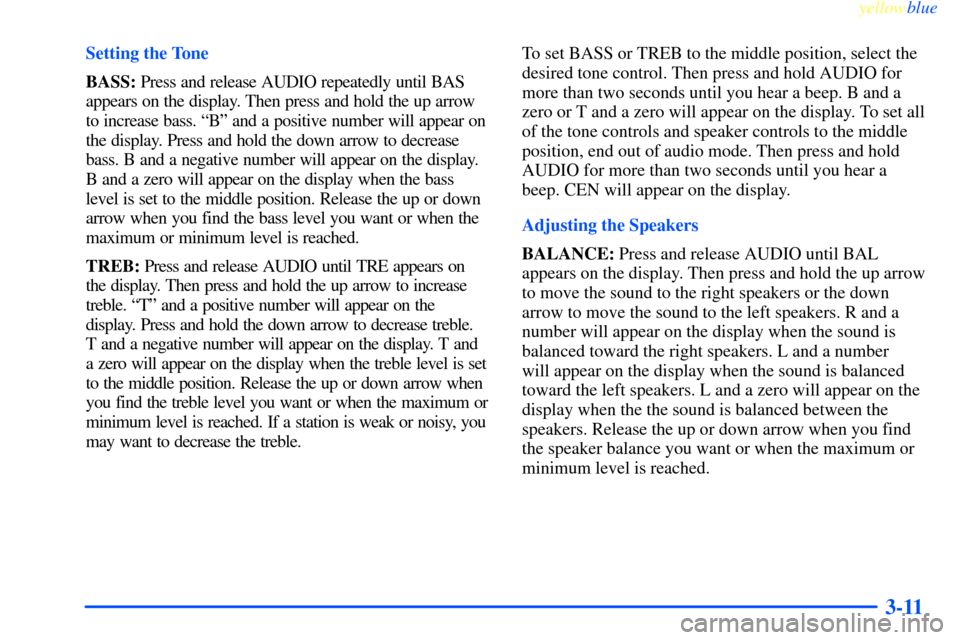

Setting the Tone
BASS: Press and release AUDIO repeatedly until BAS
appears on the display. Then press and hold the up arrow
to increase bass. ªBº and a positive number will appear on
the display. Press and hold the down arrow to decrease
bass. B and a negative number will appear on the display.
B and a zero will appear on the display when the bass
level is set to the middle position. Release the up or down
arrow when you find the bass level you want or when the
maximum or minimum level is reached.
TREB: Press and release AUDIO until TRE appears on
the display. Then press and hold the up arrow to increase
treble. ªTº and a positive number will appear on the
display. Press and hold the down arrow to decrease treble.
T and a negative number will appear on the display. T and
a zero will appear on the display when the treble level is set
to the middle position. Release the up or down arrow when
you find the treble level you want or when the maximum or
minimum level is reached. If a station is weak or noisy, you
may want to decrease the treble.To set BASS or TREB to the middle position, select the
desired tone control. Then press and hold AUDIO for
more than two seconds until you hear a beep. B and a
zero or T and a zero will appear on the display. To set all
of the tone controls and speaker controls to the middle
position, end out of audio mode. Then press and hold
AUDIO for more than two seconds until you hear a
beep. CEN will appear on the display.
Adjusting the Speakers
BALANCE: Press and release AUDIO until BAL
appears on the display. Then press and hold the up arrow
to move the sound to the right speakers or the down
arrow to move the sound to the left speakers. R and a
number will appear on the display when the sound is
balanced toward the right speakers. L and a number
will appear on the display when the sound is balanced
toward the left speakers. L and a zero will appear on the
display when the the sound is balanced between the
speakers. Release the up or down arrow when you find
the speaker balance you want or when the maximum or
minimum level is reached.

yellowblue
3-12

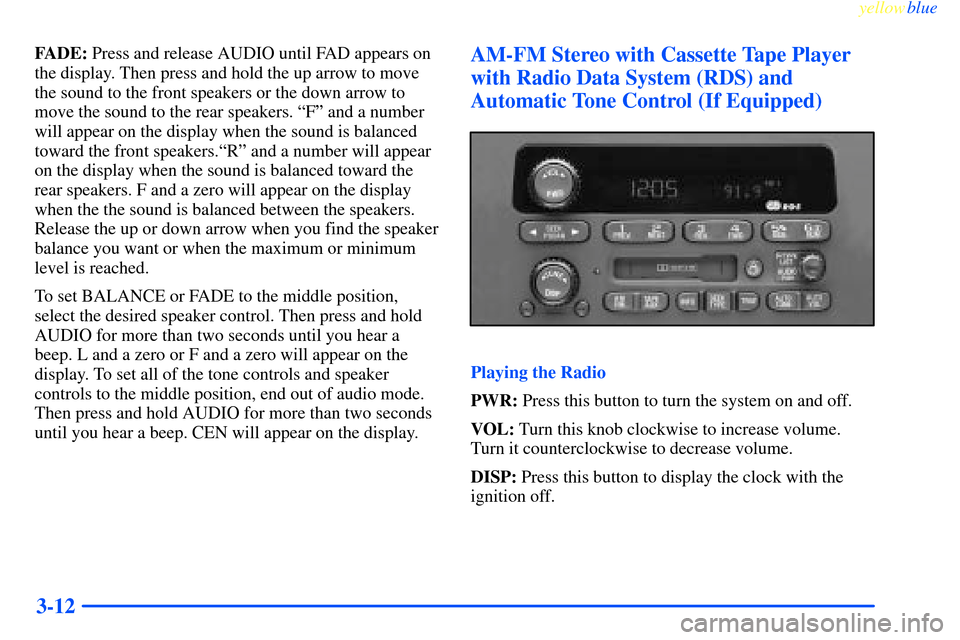

FADE: Press and release AUDIO until FAD appears on
the display. Then press and hold the up arrow to move
the sound to the front speakers or the down arrow to
move the sound to the rear speakers. ªFº and a number
will appear on the display when the sound is balanced
toward the front speakers.ªRº and a number will appear
on the display when the sound is balanced toward the
rear speakers. F and a zero will appear on the display
when the the sound is balanced between the speakers.
Release the up or down arrow when you find the speaker
balance you want or when the maximum or minimum
level is reached.
To set BALANCE or FADE to the middle position,
select the desired speaker control. Then press and hold
AUDIO for more than two seconds until you hear a
beep. L and a zero or F and a zero will appear on the
display. To set all of the tone controls and speaker
controls to the middle position, end out of audio mode.
Then press and hold AUDIO for more than two seconds
until you hear a beep. CEN will appear on the display.AM-FM Stereo with Cassette Tape Player
with Radio Data System (RDS) and
Automatic Tone Control (If Equipped)
Playing the Radio
PWR: Press this button to turn the system on and off.
VOL: Turn this knob clockwise to increase volume.
Turn it counterclockwise to decrease volume.
DISP: Press this button to display the clock with the
ignition off.

yellowblue
3-13

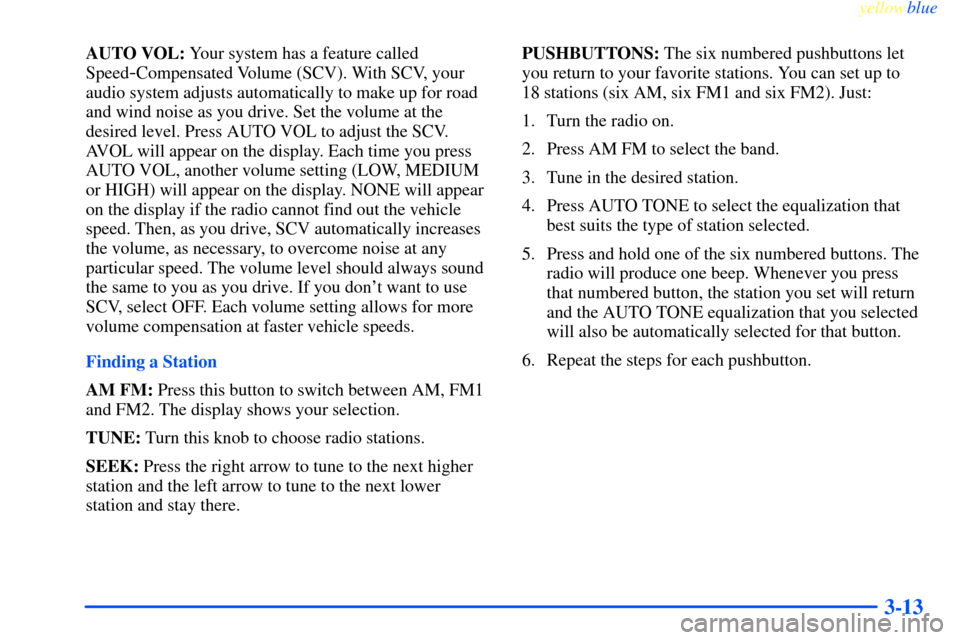

AUTO VOL: Your system has a feature called
Speed
-Compensated Volume (SCV). With SCV, your
audio system adjusts automatically to make up for road
and wind noise as you drive. Set the volume at the
desired level. Press AUTO VOL to adjust the SCV.
AVOL will appear on the display. Each time you press
AUTO VOL, another volume setting (LOW, MEDIUM
or HIGH) will appear on the display. NONE will appear
on the display if the radio cannot find out the vehicle
speed. Then, as you drive, SCV automatically increases
the volume, as necessary, to overcome noise at any
particular speed. The volume level should always sound
the same to you as you drive. If you don't want to use
SCV, select OFF. Each volume setting allows for more
volume compensation at faster vehicle speeds.
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Turn this knob to choose radio stations.
SEEK: Press the right arrow to tune to the next higher
station and the left arrow to tune to the next lower
station and stay there.PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press AUTO TONE to select the equalization that
best suits the type of station selected.
5. Press and hold one of the six numbered buttons. The
radio will produce one beep. Whenever you press
that numbered button, the station you set will return
and the AUTO TONE equalization that you selected
will also be automatically selected for that button.
6. Repeat the steps for each pushbutton.
