2000 CHEVROLET IMPALA Owners Manual

yellowblue
3-26

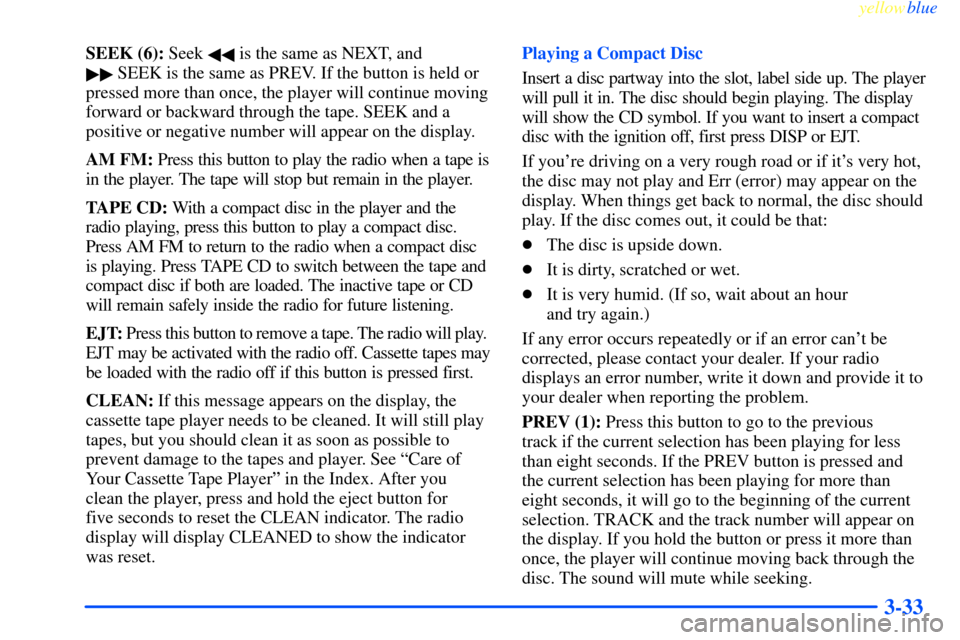

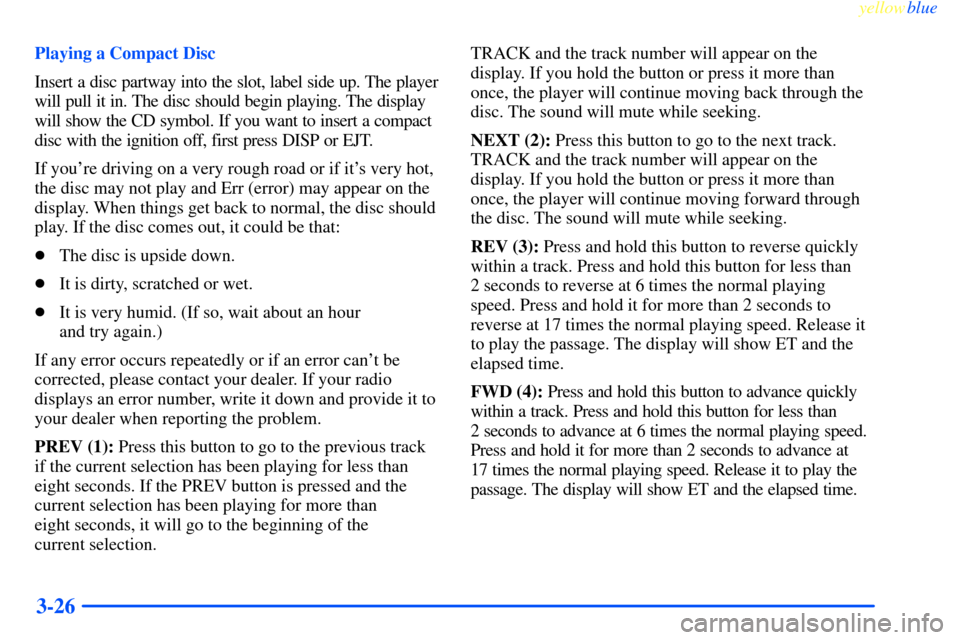

Playing a Compact Disc
Insert a disc partway into the slot, label side up. The player
will pull it in. The disc should begin playing. The display
will show the CD symbol. If you want to insert a compact
disc with the ignition off, first press DISP or EJT.
If you're driving on a very rough road or if it's very hot,
the disc may not play and Err (error) may appear on the
display. When things get back to normal, the disc should
play. If the disc comes out, it could be that:

The disc is upside down.

It is dirty, scratched or wet.

It is very humid. (If so, wait about an hour
and try again.)
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer. If your radio
displays an error number, write it down and provide it to
your dealer when reporting the problem.
PREV (1): Press this button to go to the previous track
if the current selection has been playing for less than
eight seconds. If the PREV button is pressed and the
current selection has been playing for more than
eight seconds, it will go to the beginning of the
current selection. TRACK and the track number will appear on the
display. If you hold the button or press it more than
once, the player will continue moving back through the
disc. The sound will mute while seeking.
NEXT (2): Press this button to go to the next track.
TRACK and the track number will appear on the
display. If you hold the button or press it more than
once, the player will continue moving forward through
the disc. The sound will mute while seeking.
REV (3): Press and hold this button to reverse quickly
within a track. Press and hold this button for less than
2 seconds to reverse at 6 times the normal playing
speed. Press and hold it for more than 2 seconds to
reverse at 17 times the normal playing speed. Release it
to play the passage. The display will show ET and the
elapsed time.
FWD (4): Press and hold this button to advance quickly
within a track. Press and hold this button for less than
2 seconds to advance at 6 times the normal playing speed.
Press and hold it for more than 2 seconds to advance at
17 times the normal playing speed. Release it to play the
passage. The display will show ET and the elapsed time.

yellowblue
3-27

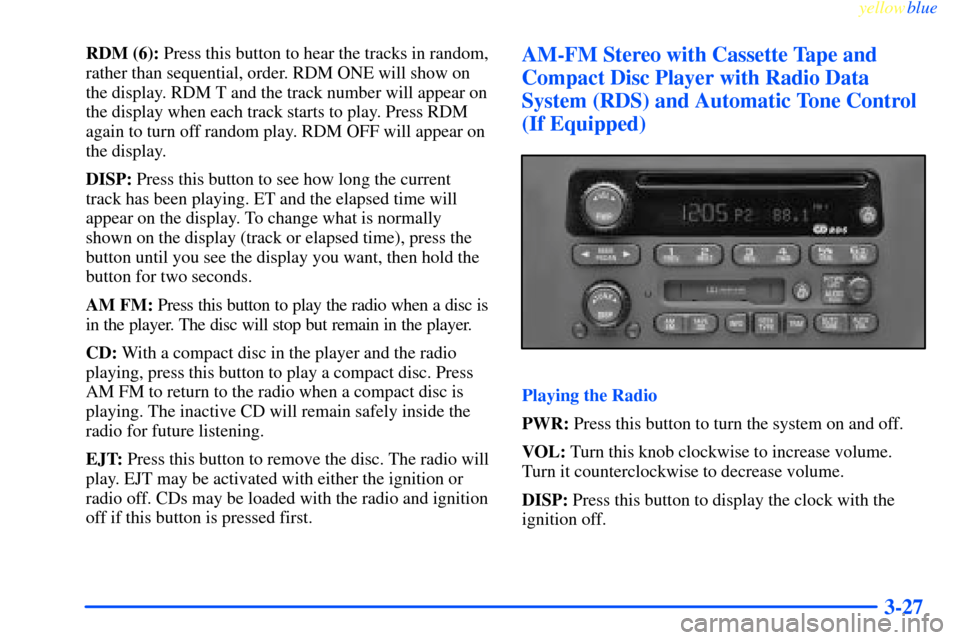

RDM (6): Press this button to hear the tracks in random,
rather than sequential, order. RDM ONE will show on
the display. RDM T and the track number will appear on
the display when each track starts to play. Press RDM
again to turn off random play. RDM OFF will appear on
the display.
DISP: Press this button to see how long the current
track has been playing. ET and the elapsed time will
appear on the display. To change what is normally
shown on the display (track or elapsed time), press the
button until you see the display you want, then hold the
button for two seconds.
AM FM: Press this button to play the radio when a disc is
in the player. The disc will stop but remain in the player.
CD: With a compact disc in the player and the radio
playing, press this button to play a compact disc. Press
AM FM to return to the radio when a compact disc is
playing. The inactive CD will remain safely inside the
radio for future listening.
EJT: Press this button to remove the disc. The radio will
play. EJT may be activated with either the ignition or
radio off. CDs may be loaded with the radio and ignition
off if this button is pressed first.AM-FM Stereo with Cassette Tape and
Compact Disc Player with Radio Data
System (RDS) and Automatic Tone Control
(If Equipped)
Playing the Radio
PWR: Press this button to turn the system on and off.
VOL: Turn this knob clockwise to increase volume.
Turn it counterclockwise to decrease volume.
DISP: Press this button to display the clock with the
ignition off.

yellowblue
3-28

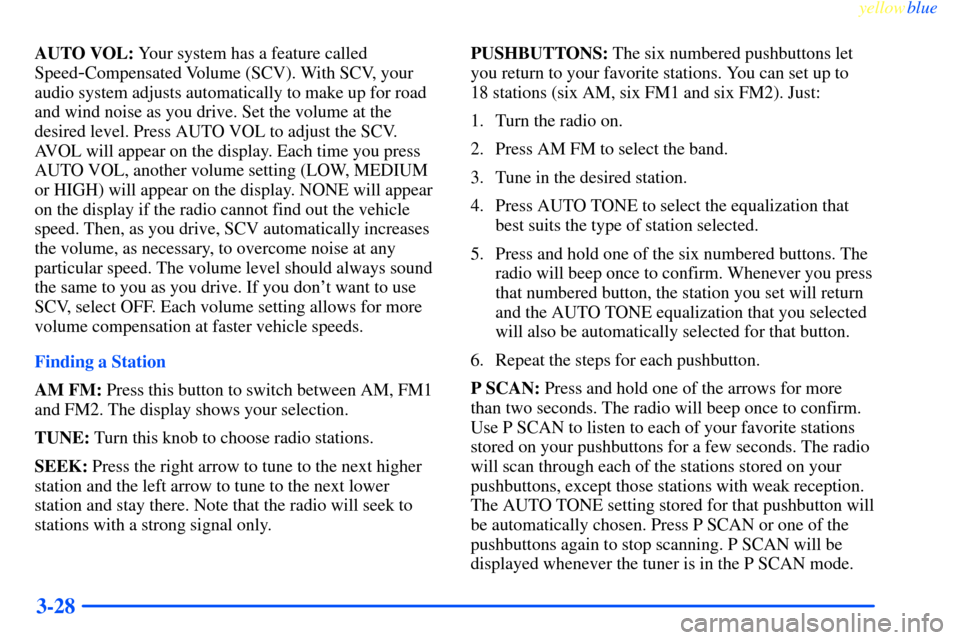

AUTO VOL: Your system has a feature called
Speed
-Compensated Volume (SCV). With SCV, your
audio system adjusts automatically to make up for road
and wind noise as you drive. Set the volume at the
desired level. Press AUTO VOL to adjust the SCV.
AVOL will appear on the display. Each time you press
AUTO VOL, another volume setting (LOW, MEDIUM
or HIGH) will appear on the display. NONE will appear
on the display if the radio cannot find out the vehicle
speed. Then, as you drive, SCV automatically increases
the volume, as necessary, to overcome noise at any
particular speed. The volume level should always sound
the same to you as you drive. If you don't want to use
SCV, select OFF. Each volume setting allows for more
volume compensation at faster vehicle speeds.
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Turn this knob to choose radio stations.
SEEK: Press the right arrow to tune to the next higher
station and the left arrow to tune to the next lower
station and stay there. Note that the radio will seek to
stations with a strong signal only.PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press AUTO TONE to select the equalization that
best suits the type of station selected.
5. Press and hold one of the six numbered buttons. The
radio will beep once to confirm. Whenever you press
that numbered button, the station you set will return
and the AUTO TONE equalization that you selected
will also be automatically selected for that button.
6. Repeat the steps for each pushbutton.
P SCAN: Press and hold one of the arrows for more
than two seconds. The radio will beep once to confirm.
Use P SCAN to listen to each of your favorite stations
stored on your pushbuttons for a few seconds. The radio
will scan through each of the stations stored on your
pushbuttons, except those stations with weak reception.
The AUTO TONE setting stored for that pushbutton will
be automatically chosen. Press P SCAN or one of the
pushbuttons again to stop scanning. P SCAN will be
displayed whenever the tuner is in the P SCAN mode.

yellowblue
3-29
The channel number (P1-P6) will appear with the
frequency. In FM mode, this function will scan through
the current band such as FM1 and FM2.
Setting the Tone
BASS: Press and release the P
-TYPE LIST/AUDIO
knob until BASS appears on the display. Then turn the
knob clockwise to increase bass and counterclockwise to
decrease bass. The display will show the bass level.
When you use this control, the radio's AUTO TONE
setting will switch to manual and the AUTO TONE
display will go blank. To set the tone and speaker
controls to the middle position, press and hold the
P
-TYPE LIST/AUDIO knob when no tone or speaker
control is active. The radio will produce one beep and
display ALL with the level display in the middle position.
TREB: Press and release the P
-TYPE LIST/AUDIO
knob until TREB appears on the display. Turn the knob
clockwise to increase treble and counterclockwise to
decrease treble. The display will show the treble level.
When you use this control, the radio's AUTO TONE
setting will switch to manual and the AUTO TONE
display will go blank. If a station is weak or noisy, you
may want to decrease the treble.AUTO TONE: This feature allows you to choose preset
bass and treble equalization settings designed for ROCK,
NEWS, POP, JAZZ, CLASSIC and COUNTRY stations.
TONE and the preset equalization setting will appear on
the display when you press AUTO TONE. Each time you
press it, another setting will appear on the display.
The manual setting allows tone control to return to the
BASS and TREB controls. Use PUSHBUTTONS and
AUTO TONE button to program AUTO TONE for
station presets.
Adjusting the Speakers
BAL: Press and release the P
-TYPE LIST/AUDIO knob
until BAL appears on the display. Turn the knob
clockwise to move the sound to the right speakers and
counterclockwise to move the sound to the left speakers.
The middle position balances the sound between the
speakers. The display will show the speaker balance.
FADE: Press and release the P
-TYPE LIST/AUDIO knob
until FADE appears on the display. Turn the knob
clockwise to move the sound to the front speakers and
counterclockwise to move the sound to the rear speakers.
The middle position balances the sound between the
speakers. The display will show the speaker balance.

yellowblue
3-30

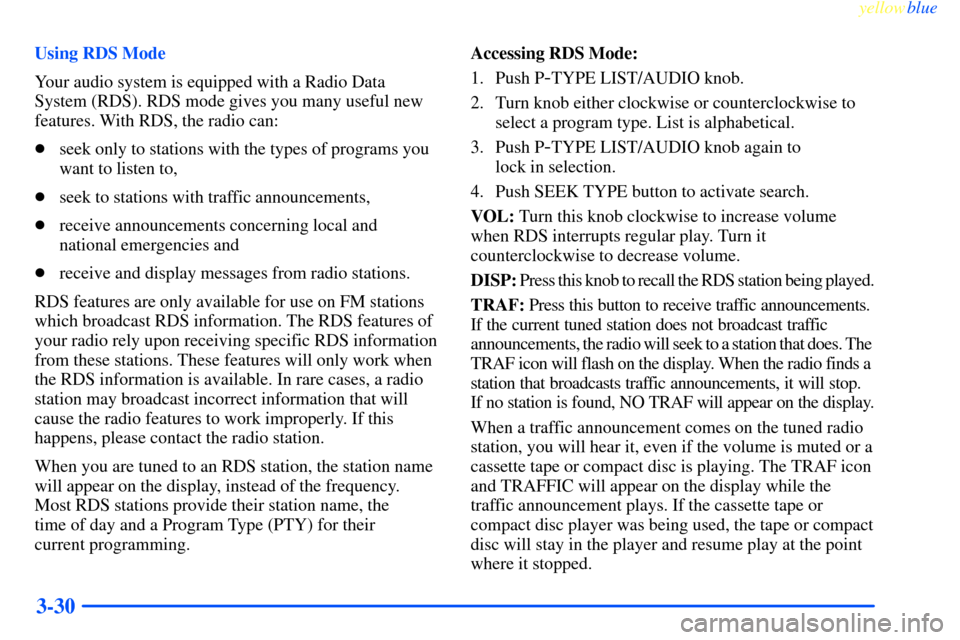

Using RDS Mode
Your audio system is equipped with a Radio Data
System (RDS). RDS mode gives you many useful new
features. With RDS, the radio can:

seek only to stations with the types of programs you
want to listen to,

seek to stations with traffic announcements,

receive announcements concerning local and
national emergencies and

receive and display messages from radio stations.
RDS features are only available for use on FM stations
which broadcast RDS information. The RDS features of
your radio rely upon receiving specific RDS information
from these stations. These features will only work when
the RDS information is available. In rare cases, a radio
station may broadcast incorrect information that will
cause the radio features to work improperly. If this
happens, please contact the radio station.
When you are tuned to an RDS station, the station name
will appear on the display, instead of the frequency.
Most RDS stations provide their station name, the
time of day and a Program Type (PTY) for their
current programming.Accessing RDS Mode:
1. Push P
-TYPE LIST/AUDIO knob.
2. Turn knob either clockwise or counterclockwise to
select a program type. List is alphabetical.
3. Push P
-TYPE LIST/AUDIO knob again to
lock in selection.
4. Push SEEK TYPE button to activate search.
VOL: Turn this knob clockwise to increase volume
when RDS interrupts regular play. Turn it
counterclockwise to decrease volume.
DISP: Press this knob to recall the RDS station being played.
TRAF: Press this button to receive traffic announcements.
If the current tuned station does not broadcast traffic
announcements, the radio will seek to a station that does. The
TRAF icon will flash on the display. When the radio finds a
station that broadcasts traffic announcements, it will stop.
If no station is found, NO TRAF will appear on the display.
When a traffic announcement comes on the tuned radio
station, you will hear it, even if the volume is muted or a
cassette tape or compact disc is playing. The TRAF icon
and TRAFFIC will appear on the display while the
traffic announcement plays. If the cassette tape or
compact disc player was being used, the tape or compact
disc will stay in the player and resume play at the point
where it stopped.

yellowblue
3-31

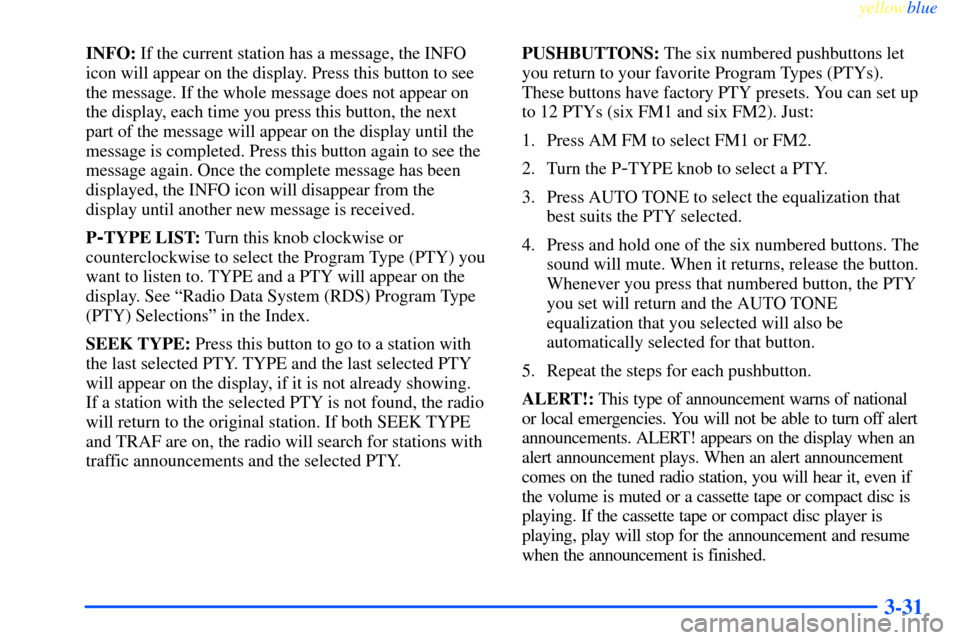

INFO: If the current station has a message, the INFO
icon will appear on the display. Press this button to see
the message. If the whole message does not appear on
the display, each time you press this button, the next
part of the message will appear on the display until the
message is completed. Press this button again to see the
message again. Once the complete message has been
displayed, the INFO icon will disappear from the
display until another new message is received.
P
-TYPE LIST: Turn this knob clockwise or
counterclockwise to select the Program Type (PTY) you
want to listen to. TYPE and a PTY will appear on the
display. See ªRadio Data System (RDS) Program Type
(PTY) Selectionsº in the Index.
SEEK TYPE: Press this button to go to a station with
the last selected PTY. TYPE and the last selected PTY
will appear on the display, if it is not already showing.
If a station with the selected PTY is not found, the radio
will return to the original station. If both SEEK TYPE
and TRAF are on, the radio will search for stations with
traffic announcements and the selected PTY.PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite Program Types (PTYs).
These buttons have factory PTY presets. You can set up
to 12 PTYs (six FM1 and six FM2). Just:
1. Press AM FM to select FM1 or FM2.
2. Turn the P
-TYPE knob to select a PTY.
3. Press AUTO TONE to select the equalization that
best suits the PTY selected.
4. Press and hold one of the six numbered buttons. The
sound will mute. When it returns, release the button.
Whenever you press that numbered button, the PTY
you set will return and the AUTO TONE
equalization that you selected will also be
automatically selected for that button.
5. Repeat the steps for each pushbutton.
ALERT!: This type of announcement warns of national
or local emergencies. You will not be able to turn off alert
announcements. ALERT! appears on the display when an
alert announcement plays. When an alert announcement
comes on the tuned radio station, you will hear it, even if
the volume is muted or a cassette tape or compact disc is
playing. If the cassette tape or compact disc player is
playing, play will stop for the announcement and resume
when the announcement is finished.

yellowblue
3-32

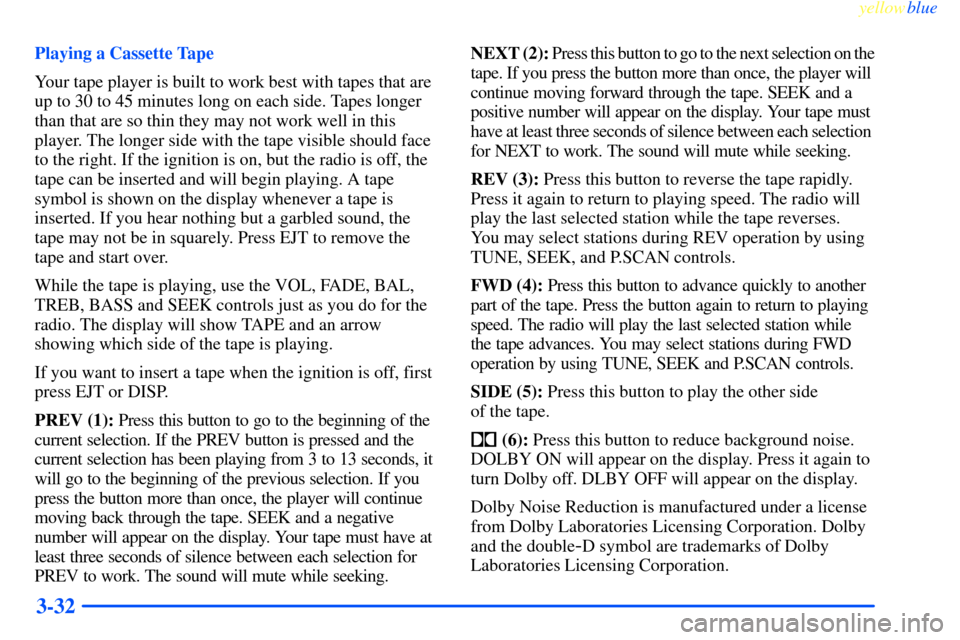

Playing a Cassette Tape
Your tape player is built to work best with tapes that are
up to 30 to 45 minutes long on each side. Tapes longer
than that are so thin they may not work well in this
player. The longer side with the tape visible should face
to the right. If the ignition is on, but the radio is off, the
tape can be inserted and will begin playing. A tape
symbol is shown on the display whenever a tape is
inserted. If you hear nothing but a garbled sound, the
tape may not be in squarely. Press EJT to remove the
tape and start over.
While the tape is playing, use the VOL, FADE, BAL,
TREB, BASS and SEEK controls just as you do for the
radio. The display will show TAPE and an arrow
showing which side of the tape is playing.
If you want to insert a tape when the ignition is off, first
press EJT or DISP.
PREV (1): Press this button to go to the beginning of the
current selection. If the PREV button is pressed and the
current selection has been playing from 3 to 13 seconds, it
will go to the beginning of the previous selection. If you
press the button more than once, the player will continue
moving back through the tape. SEEK and a negative
number will appear on the display. Your tape must have at
least three seconds of silence between each selection for
PREV to work. The sound will mute while seeking.NEXT (2): Press this button to go to the next selection on the
tape. If you press the button more than once, the player will
continue moving forward through the tape. SEEK and a
positive number will appear on the display. Your tape must
have at least three seconds of silence between each selection
for NEXT to work. The sound will mute while seeking.
REV (3): Press this button to reverse the tape rapidly.
Press it again to return to playing speed. The radio will
play the last selected station while the tape reverses.
You may select stations during REV operation by using
TUNE, SEEK, and P.SCAN controls.
FWD (4): Press this button to advance quickly to another
part of the tape. Press the button again to return to playing
speed. The radio will play the last selected station while
the tape advances. You may select stations during FWD
operation by using TUNE, SEEK and P.SCAN controls.
SIDE (5): Press this button to play the other side
of the tape.

(6): Press this button to reduce background noise.
DOLBY ON will appear on the display. Press it again to
turn Dolby off. DLBY OFF will appear on the display.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double
-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.

yellowblue
3-33
SEEK (6): Seek  is the same as NEXT, and


SEEK is the same as PREV. If the button is held or
pressed more than once, the player will continue moving
forward or backward through the tape. SEEK and a
positive or negative number will appear on the display.
AM FM: Press this button to play the radio when a tape is
in the player. The tape will stop but remain in the player.
TAPE CD: With a compact disc in the player and the
radio playing, press this button to play a compact disc.
Press AM FM to return to the radio when a compact disc
is playing. Press TAPE CD to switch between the tape and
compact disc if both are loaded. The inactive tape or CD
will remain safely inside the radio for future listening.
EJT: Press this button to remove a tape. The radio will play.
EJT may be activated with the radio off. Cassette tapes may
be loaded with the radio off if this button is pressed first.
CLEAN: If this message appears on the display, the
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index. After you
clean the player, press and hold the eject button for
five seconds to reset the CLEAN indicator. The radio
display will display CLEANED to show the indicator
was reset.Playing a Compact Disc
Insert a disc partway into the slot, label side up. The player
will pull it in. The disc should begin playing. The display
will show the CD symbol. If you want to insert a compact
disc with the ignition off, first press DISP or EJT.
If you're driving on a very rough road or if it's very hot,
the disc may not play and Err (error) may appear on the
display. When things get back to normal, the disc should
play. If the disc comes out, it could be that:
The disc is upside down.
It is dirty, scratched or wet.
It is very humid. (If so, wait about an hour
and try again.)
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer. If your radio
displays an error number, write it down and provide it to
your dealer when reporting the problem.
PREV (1): Press this button to go to the previous
track if the current selection has been playing for less
than eight seconds. If the PREV button is pressed and
the current selection has been playing for more than
eight seconds, it will go to the beginning of the current
selection. TRACK and the track number will appear on
the display. If you hold the button or press it more than
once, the player will continue moving back through the
disc. The sound will mute while seeking.
