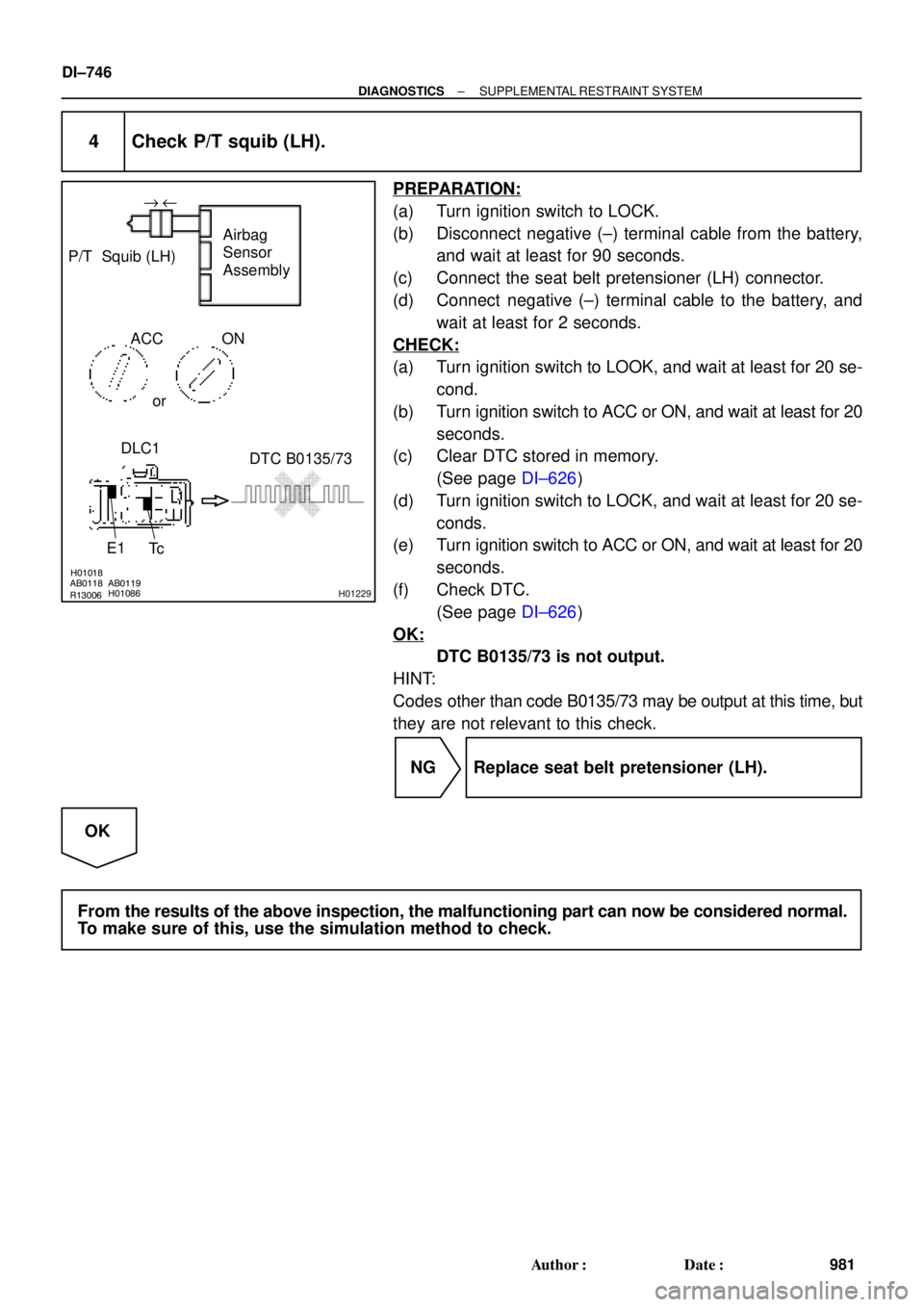

4 Check P/T squib (LH).
PREPARATION:
(a) Turn ignition switch to LOCK.
(b) Disconnect negative (±) terminal cable from the battery,
and wait at least for 90 seconds.
(c) Connect the seat belt pretensioner (LH) connector.
(d) Connect negative (±) terminal cable to the battery, and
wait at least for 2 seconds.
CHECK:
(a) Turn ignition switch to LOOK, and wait at least for 20 se-
cond.
(b) Turn ignition switch to ACC or ON, and wait at least for 20
seconds.
(c) Clear DTC stored in memory.
(See page DI±626)
(d) Turn ignition switch to LOCK, and wait at least for 20 se-
conds.
(e) Turn ignition switch to ACC or ON, and wait at least for 20
seconds.
(f) Check DTC.
(See page DI±626)
OK:
DTC B0135/73 is not output.
HINT:
Codes other than code B0135/73 may be output at this time, but
they are not relevant to this check.
NG Replace seat belt pretensioner (LH).
OK
From the results of the above inspection, the malfunctioning part can now be considered normal.
To make sure of this, use the simulation method to check.

H01017H02139AB0118AB0119R13006H01087H02214
P/T Squib (LH)
Airbag
Sensor
Assembly
PL+
PL±
ACC
or
DTC B0136/74ON
E1 TcDLC1
DI±748
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
983 Author: Date:

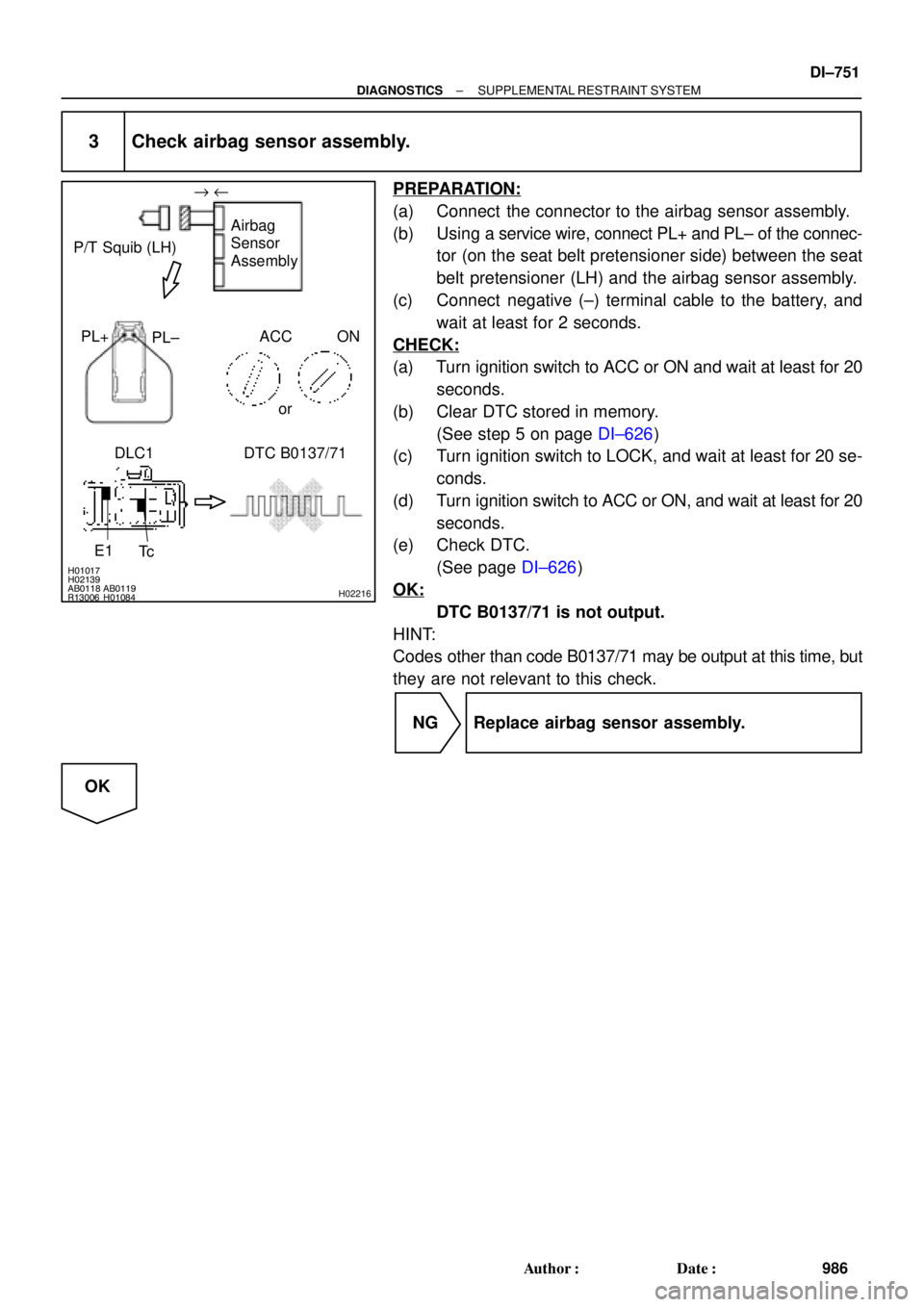

3 Check airbag sensor assembly.
PREPARATION:
(a) Connect the connector to the airbag sensor assembly.
(b) Using a service wire, connect PL+ and PL± of the connec-
tor (on the seat belt pretensioner side) between the seat
belt pretensioner (LH) and the airbag sensor assembly.
(c) Connect negative (±) terminal cable to the battery, and
wait at least for 2 seconds.
CHECK:
(a) Turn ignition switch to ACC or ON and wait at least for 20
seconds.
(b) Clear DTC stored in memory.
(See page DI±626)
(c) Turn ignition switch to LOCK, and wait at least for 20 se-
conds.
(d) Turn ignition switch to ACC or ON, and wait at least for 20
seconds.
(e) Check DTC.
(See page DI±626)
OK:
DTC B0136/74 is not output.
HINT:
Codes other than code B0136/74 may be output at this time, but
they are not relevant to this check.
NG Replace airbag sensor assembly.
OK

AB0118
R13006AB0119H01018
H01087H01232
"u
E1Tc ACC ON
orAirbag
Sensor
Assembly P/T Squib (LH)
DTC B0136/74 DLC1
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±749
984 Author: Date:
4 Check P/T squib (LH).
PREPARATION:
(a) Turn ignition switch to LOCK.
(b) Disconnect negative (±) terminal cable from the battery,
and wait at least for 90 seconds.
(c) Connect the seat belt pretensioner (LH) connector.
(d) Connect negative (±) terminal cable to the battery, and
wait at least for 2 seconds.
CHECK:
(a) Turn ignition switch to ACC or ON, and wait at least for 20
seconds.
(b) Clear DTC stored in memory.
(See page DI±626)
(c) Turn ignition switch to LOCK, and wait at least for 20 se-
conds.
(d) Turn ignition switch to ACC or ON, and wait at least for 20
seconds.
(e) Check DTC.
(See page DI±626)
OK:
DTC B0136/74 is not output.
HINT:
Codes other than code B0136/74 may be output at this time, but
they are not relevant to this check.
NG Replace seat belt pretensioner (LH).
OK
From the results of the above inspection, the malfunctioning part can now be considered normal.
To make sure of this, use the simulation method to check.

H01017H02139AB0118AB0119R13006H01084H02216
P/T Squib (LH)Airbag
Sensor
Assembly
PL+
PL±ACC
or
DTC B0137/71ON " u
E1
Tc DLC1
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±751
986 Author: Date:

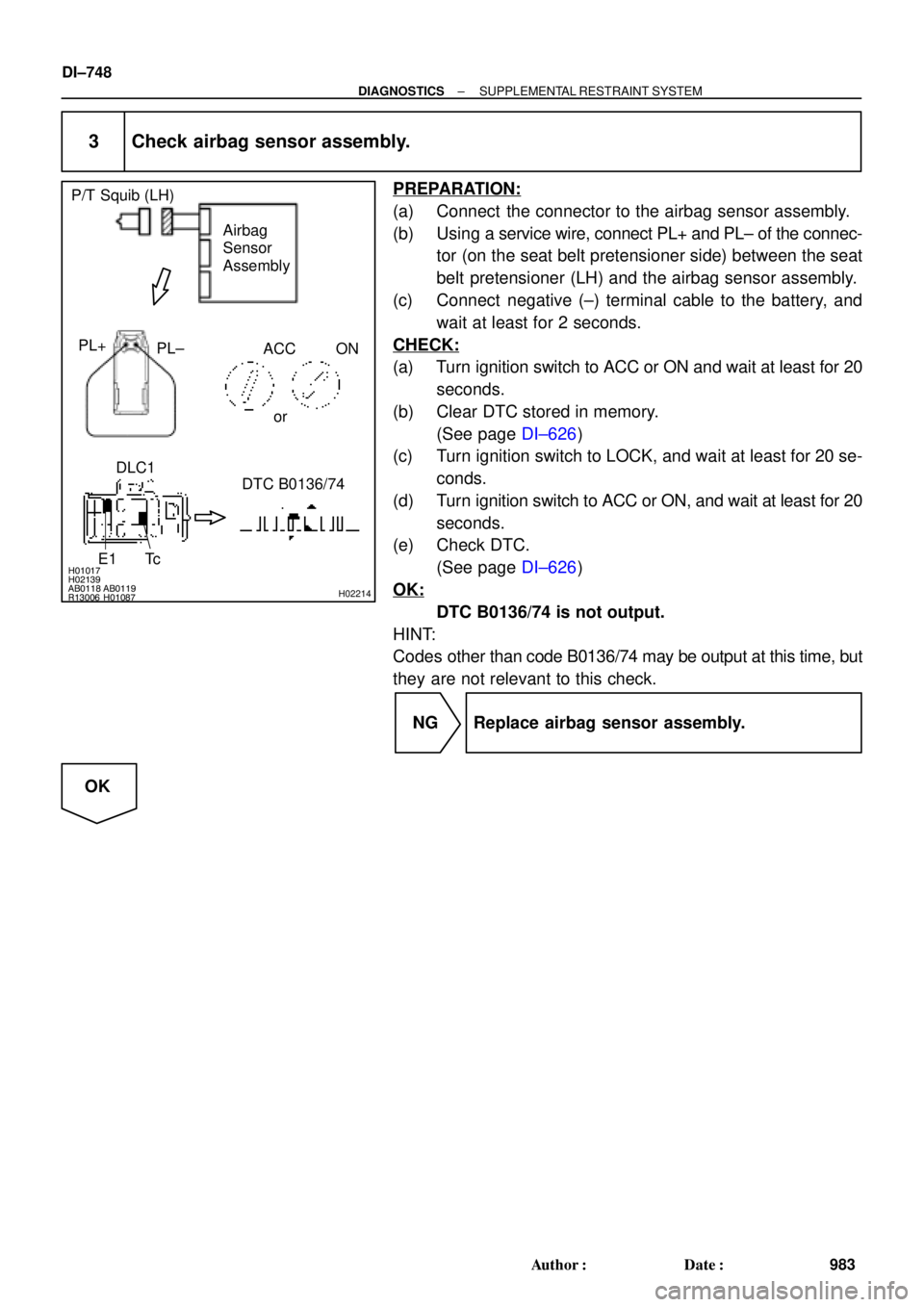

3 Check airbag sensor assembly.
PREPARATION:
(a) Connect the connector to the airbag sensor assembly.
(b) Using a service wire, connect PL+ and PL± of the connec-
tor (on the seat belt pretensioner side) between the seat
belt pretensioner (LH) and the airbag sensor assembly.
(c) Connect negative (±) terminal cable to the battery, and
wait at least for 2 seconds.
CHECK:
(a) Turn ignition switch to ACC or ON and wait at least for 20
seconds.
(b) Clear DTC stored in memory.
(See step 5 on page DI±626)
(c) Turn ignition switch to LOCK, and wait at least for 20 se-
conds.
(d) Turn ignition switch to ACC or ON, and wait at least for 20
seconds.
(e) Check DTC.
(See page DI±626)
OK:
DTC B0137/71 is not output.
HINT:
Codes other than code B0137/71 may be output at this time, but
they are not relevant to this check.
NG Replace airbag sensor assembly.
OK

H01018AB0118AB0119R13006H01084H01220
"u
E1 TcACC ON
orAirbag
Sensor
Assembly P/T Squib (LH)
DTC B0137/71 DLC1
DI±752
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
987 Author: Date:
4 Check P/T squib (LH).
PREPARATION:
(a) Turn ignition switch to LOCK.
(b) Disconnect negative (±) terminal cable from the battery,
and wait at least for 90 seconds.
(c) Connect the seat belt pretensioner (LH) connector.
(d) Connect negative (±) terminal cable to the battery, and
wait at least for 2 seconds.
CHECK:
(a) Turn ignition switch to ACC or ON, and wait at least for 20
seconds.
(b) Clear DTC stored in memory.
(See step 5 on page DI±626)
(c) Turn ignition switch to LOCK, and wait at least for 20 se-
conds.
(d) Turn ignition switch to ACC or ON, and wait at least for 20
seconds.
(e) Check DTC.
(See page DI±626)
OK:
DTC B0137/71 is not output.
HINT:
Codes other than code B0137/71 may be output at this time, but
they are not relevant to this check.
NG Replace seat belt pretensioner (LH).
OK
From the results of the above inspection, the malfunctioning part can now be considered normal.
To make sure of this, use the simulation method to check. If the malfunctioning part can not be
detected by the simulation method, replace all SRS components including the wire harness.

H01017H02139AB0118AB0119R13006H01085H02217
P/T Squib (LH)
Airbag
Sensor
Assembly
PL+
PL±
ACC
or
DTC B0138/72ON " u
E1
Tc DLC1
DI±754
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
989 Author: Date:
3 Check airbag sensor assembly.
PREPARATION:
(a) Connect the connector to the airbag sensor assembly.
(b) Using a service wire, connect PL+ and PL± of the connec-
tor (on the seat belt pretensioner side) between the seat
belt pretensioner (LH) and the airbag sensor assembly.
(c) Connect negative (±) terminal cable to the battery, and
wait at least for 2 seconds.
CHECK:
(a) Turn ignition switch to ACC or ON and wait at least for 20
seconds.
(b) Clear DTC stored in memory.
(See step 5 on page DI±626)
(c) Turn ignition switch to LOCK, and wait at least for 20 se-
conds.
(d) Turn ignition switch to ACC or ON, and wait at least for 20
seconds.
(e) Check DTC.
(See page DI±626)
OK:
DTC B0138/72 is not output.
HINT:
Codes other than code B0138/72 may be output at this time, but
they are not relevant to this check.
NG Replace airbag sensor assembly.
OK

AB0118
R13006AB0119H01018
H01085H01222
"u
E1TcACC ON
or Airbag
Sensor
Assembly P/T Squib (LH)
DTC B0138/72 DLC1
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DI±755
990 Author: Date:
4 Check P/T squib (LH).
PREPARATION:
(a) Turn ignition switch to LOCK.
(b) Disconnect negative (±) terminal cable from the battery,
and wait at least for 90 seconds.
(c) Connect the seat belt pretensioner (LH) connector.
(d) Connect negative (±) terminal cable to the battery, and
wait at least for 2 seconds.
CHECK:
(a) Turn ignition switch to ACC or ON, and wait at least for 20
seconds.
(b) Clear DTC stored in memory.
(See step 5 on page DI±626)
(c) Turn ignition switch to LOCK, and wait at least for 20 se-
conds.
(d) Turn ignition switch to ACC or ON, and wait at least for 20
seconds.
(e) Check DTC.
(See page DI±626)
OK:
DTC B0138/72 is not output.
HINT:
Codes other than code B0138/72 may be output at this time, but
they are not relevant to this check.
NG Replace seat belt pretensioner (LH).
OK
From the results of the above inspection, the malfunctioning part can now be considered normal.
To make sure of this, use the simulation method to check. If the malfunctioning part can not be
detected by the simulation method, replace all SRS components including the wire harness.

DI±230
± DIAGNOSTICSSUPPLEMENTAL RESTRAINT SYSTEM
DTC No.
(See Page)
Detection ItemTrouble AreaSRS
Warning Light
B0137/71
(DI±284)
Short in P/T squib (LH) circuit
(to Ground)
Seat belt pretensioner LH (squib)

Airbag sensor assembly

Wire harness
Blink
B0138/72
(DI±287)
Short in P/T squib (LH) circuit
(to B+)
Seat belt pretensioner LH (squib)

Airbag sensor assembly

Wire harness
Blink
B1100/31
(DI±290)
Airbag sensor assembly malfunction
Airbag sensor assemblyON
B1156/B1157/
15
(DI±292)
Front airbag sensor (RH) malfunction
Front airbag sensor (RH)

Wire harness

Engine room main wire harness

Airbag sensor assembly
ON
B1158/B1159/
16
(DI±300)
Front airbag sensor (LH) malfunction
Front airbag sensor (LH)

Wire harness

Airbag sensor assembly
ON
Nl
System normal±OFFNormal
(DI±305)
Voltage source drop
Battery

Airbag sensor assemblyON
HINT:

When the SRS warning light remains lit up and the DTC is the normal code, this means a voltage source
drops.
This malfunction is not stored in memory by the airbag sensor assembly and if the power source volt-
age returns to normal, the SRS warning light will automatically go out.

When 2 or more codes are indicated, the codes will be displayed in numeral order starting from the
lowest numbered code.

If a code not listed on the chart is displayed, the airbag sensor assembly is faulty.
