For windshield wipers:

1. Hold the wiper arm away from the

window.
72F-09-008

2. Squeeze lock lever (A) towards wiper arms

(B) and remove the wiper frame from the

arm as shown.

113

9-30

60G-74E
EMERGENCY SERVICE

EMERGENCY SERVICE

Jacking Instructions 10-1

Jump Starting Instructions 10-2

Towing 10-4

Emergency Remedies 10-4

Warning Triangle 10-5

115

EMERGENCY SERVICE

60G-74E

JACKING INSTRUCTIONS

60G-06-009

1) Park the vehicle securely on hard level

ground.

2) Apply the parking brake firmly and shift into

"R" (Reverse). Choke the front and rear wheel

diagonally opposite the wheel to be changed.

3) Switch on the hazard warning flasher if your

vehicle is in or near traffic.

4) Slacken but do not remove wheel nuts on the

wheel to be changed.

5) Position the jack vertically and raise the jack

by turning the jack handle clockwise until the

jack head recess fits the frame boss.

6) Continue to raise the jack slowly and smoothly

until the tyre clears the ground. Do not raise

the vehicle more than necessary.

10-1
63B-10-001E

70F-08-001

60G-10-001

NOTE:

Use the wheel nut wrench in combination with

jack crank to raise or lower the jack as shown

in the illustration.
Use the jack only to change wheels.

Never jack up the vehicle on an

inclined surface.

Never raise the vehicle with the jack in

a location other than under the frame

boss near the wheel to be changed.

Make sure that the jack is raised at

least 2 inches (51 mm) before it

contacts the vehicle. Use of the jack

when it is within 2 inches of being

fully collapsed may result in failure

of the jack.

Never get under the vehicle when it

is supported by the jack. t=>

116

60G-74E
EMERGENCY SERVICE

JUMP STARTING INSTRUCTIONS

60G-10-002
60G-10-003

Never run the engine when the

vehicle is supported by the jack and

never allow passengers to remain in

the vehicle.
Never attempt to jump start your

vehicle if the battery appears to be

frozen. Batteries in this condition

may explode or rupture if jump

starting is attempted.

When making jump lead

connections, be certain that your

hands and the Jump leads remain

clear from pulleys, belts, or fans.

Batteries produce flammable

hydrogen gas. Keep flames and

sparks away from the battery or an

explosion may occur. Never smoke

when working in the vicinity of the

battery.

If the booster battery you use for

jump starting is installed in another

vehicle, make sure the two vehicles

are not touching each other.

If your battery discharges

repeatedly, for no apparent reason,

have your vehicle inspected by an

authorized MARUTI dealer.

To avoid harm to yourself or damage

to your vehicle or battery, follow the

jump starting instructions below

precisely and in order. If you are in

doubt, call for qualified road service.

10-2

EMERGENCY SERVICE

60G-74E

CAUTION

Vehicle equipped with electronic fuel

injection system will not start by

pushing or towing as the fuel pump

will not work in this condition. This

starting method could also result in

permanent damage to the catalytic

converter. Use jump leads to start a

vehicle with a weak or flat battery.

60G-10-004E

When jump starting your vehicle, use the

following procedure:

1) Use only a 12 volt battery to jump start

your vehicle. Position the good 12V battery

close to your vehicle so that the jump leads

will reach both batteries. When using a

battery installed on another vehicle, DO

NOT LET THE VEHICLES TOUCH. Apply

the parking brakes fully on both vehicles.

2) Turn off all vehicle accessories, except

those necessary for safety reasons (for

example, headlights or hazard lights).
3) Make jump lead connections as follows:

a) Connect one end of the first jump lead

to the positive (+) terminal of the flat

battery.

b) Connect the other end to the positive

(+) terminal of the booster battery.

c) Connect one end of the second jump

lead to the negative (-) terminal of the

booster battery.

d) Make the final connection to an

unpainted, heavy metal part of the

engine of the vehicle with the flat

battery.

Never connect the jump lead directly

to the negative (-) terminal of the

discharged battery, or an explosion

may occur.

10-3
4) If the booster battery you are using is fitted

to another vehicle, start the engine of the

vehicle with the booster battery. Run the

engine at moderate speed.

5) Start the engine of the vehicle with the flat

battery.

6) Remove the jump leads in the exact

reverse order in which you connected

them.

118

60G-74E
EMERGENCY SERVICE

TOWING

If you need to have your vehicle towed, contact

a professional service.

CAUTION

To help avoid damage to your vehicle

during towing, proper equipment and

towing procedures must be used.

Manual Transmission

Whenever possible, your vehicle should be

towed from the front with the front wheels lifted.

If the steering and drivetrain are in good

condition, your vehicle may be towed from the

rear with the rear wheels lifted and the front

wheels on the ground. Before towing, make

sure the steering is unlocked and the

transmission is in neutral.
EMERGENCY REMEDIES

If the Starter Does Not Operate:

1) Try turning the ignition switch to the

"START" position with the headlights

turned on to determine the battery

condition. If the headlights go excessively

dim or go off, it usually means that either

the battery is flat or the battery terminal

contact is poor. Recharge the battery or

correct battery terminal contact as

necessary.

2) If the headlights remain bright, check the

fuses. If the reason for failure of the starter

is not obvious, there may be a major

electrical problem. Have the vehicle

inspected by your authorized MARUTI

dealer.

If the Engine is Flooded

If the engine is flooded with petrol, it may be

hard to start. If this happens, press the

accelerator pedal all the way to the floor and

hold it there while cranking the engine. (Do

not operate the starter motor for more than

15 seconds). Release the accelerator as soon

as the engine has started.
If the Engine Overheats

The engine could overheat temporarily under

severe driving conditions. If the engine coolant

temperature gauge indicates overheating

during driving:

1) Turn off the air conditioner, if equipped.

2) Take the vehicle to a safe place and park.

3) Let the engine run at normal idle speed

for a few minutes until the indicator is within

the normal, acceptable temperature range

between "H" and "C".

If you see or hear escaping steam, stop

the vehicle in a safe place and

Immediately turn off the engine to let it

cool. Do not open the bonnet when

steam is present. When the steam can

no longer be seen or heard, open the

hood to see if the coolant is still boiling.

If it is, you must wait until it stops

boiling before you proceed.

119

10-4

EMERGENCY SERVICE

60G-74E

WARNING TRIANGLE (TYPE-1)

If the temperature indication does not come

down to within the normal, acceptable range:

1) Turn off the engine and check that the

water pump belt and pulleys are not

damaged or slipping. If any abnormality is

found, correct it.

2) Check the coolant level in the reservoir. If

it is found to be lower than the "LOW" line,

look for leaks at the radiator, water pump,

and radiator and heater hoses. If you

locate any leaks that may have caused the

overheating, do not run the engine until

these problems have been corrected.

3) If you do not find a leak, carefully add

coolant to the reservoir and then the

radiator, if necessary. (Refer to "ENGINE

COOLANr in the "INSPECTION AND

MAINTENANCE" section.)
K is dangerous to remove the radiator

cap when the water temperature is

high, because scalding fluid and steam

may be blown out under pressure. The

cap should only be taken off when the

coolant temperature has lowered.

To help prevent personal Injury, keep

hands, tools and clothing away from the

engine cooling fan and airconditioner

fan (if equipped). These electric fans

can automatically turn on without

warning.
843-10-004

In case of vehicle break-down or during

emergency stopping where your vehicle could

become a potential traffic hazard, please keep

the warning triangle, provided with your

vehicle, on the pathway (road) behind the

vehicle so as to warn the approaching traffic,

at an approximate distance of 5-15 m, such

that reflecting side of the triangle faces the

rear. Please activate the hazard warning lamps

before alighting the vehicle to keep the warning

triangle.

10-5
120

60G-74E
EMERGENCY SERVICE

WARNING TRIANGLE (TYPE-2)

In case of vehicle breakdown or during

emergency stopping where your vehicle

could become a potential traffic hazard,

keep the warning triangle, provided with

your vehicle, on the road free from any

obstacles behind your vehicle so as to warn

the approaching traffic, at an approximate

distance of 50-100 m, the reflecting side of

the triangle should face the on coming

traffic. Please activate the hazard warning

lamps before alighting the vehicle to keep

the warning triangle.
Remove the warning triangle

carefully from the box as shown by arrow

1.

Open both the reflector arms as shown

by arrows and lock arms with each other

with the clip provided in the right arm.

Open the bottom stand in counter clock-

wise direction as shown by arrow 3.

Position the warning triangle behind the

vehicle on a plain surface.

Reverse the removal procedure

keeping inside the box.
for

121

10-6

60G-74E
BODY WORK CARE

BODY WORK CARE

Corrosion Prevention 11-1

Vehicle Cleaning 11-2

123

BODY WORK CARE

60G-74E

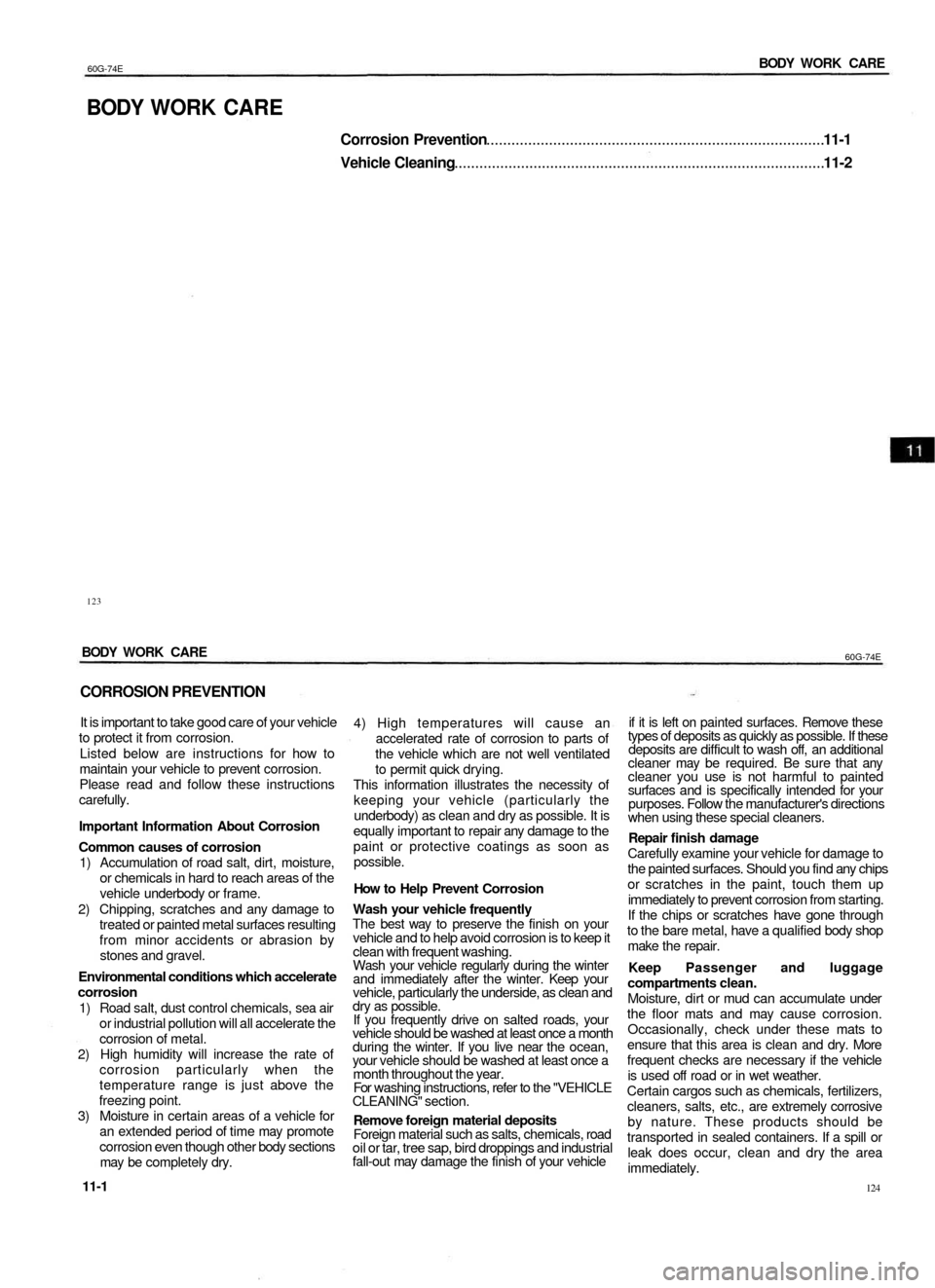

CORROSION PREVENTION

It is important to take good care of your vehicle

to protect it from corrosion.

Listed below are instructions for how to

maintain your vehicle to prevent corrosion.

Please read and follow these instructions

carefully.

Important Information About Corrosion

Common causes of corrosion

1) Accumulation of road salt, dirt, moisture,

or chemicals in hard to reach areas of the

vehicle underbody or frame.

2) Chipping, scratches and any damage to

treated or painted metal surfaces resulting

from minor accidents or abrasion by

stones and gravel.

Environmental conditions which accelerate

corrosion

1) Road salt, dust control chemicals, sea air

or industrial pollution will all accelerate the

corrosion of metal.

2) High humidity will increase the rate of

corrosion particularly when the

temperature range is just above the

freezing point.

3) Moisture in certain areas of a vehicle for

an extended period of time may promote

corrosion even though other body sections

may be completely dry.

11-1
4) High temperatures will cause an

accelerated rate of corrosion to parts of

the vehicle which are not well ventilated

to permit quick drying.

This information illustrates the necessity of

keeping your vehicle (particularly the

underbody) as clean and dry as possible. It is

equally important to repair any damage to the

paint or protective coatings as soon as

possible.

How to Help Prevent Corrosion

Wash your vehicle frequently

The best way to preserve the finish on your

vehicle and to help avoid corrosion is to keep it

clean with frequent washing.

Wash your vehicle regularly during the winter

and immediately after the winter. Keep your

vehicle, particularly the underside, as clean and

dry as possible.

If you frequently drive on salted roads, your

vehicle should be washed at least once a month

during the winter. If you live near the ocean,

your vehicle should be washed at least once a

month throughout the year.

For washing instructions, refer to the "VEHICLE

CLEANING" section.

Remove foreign material deposits

Foreign material such as salts, chemicals, road

oil or tar, tree sap, bird droppings and industrial

fall-out may damage the finish of your vehicle
if it is left on painted surfaces. Remove these

types of deposits as quickly as possible. If these

deposits are difficult to wash off, an additional

cleaner may be required. Be sure that any

cleaner you use is not harmful to painted

surfaces and is specifically intended for your

purposes. Follow the manufacturer's directions

when using these special cleaners.

Repair finish damage

Carefully examine your vehicle for damage to

the painted surfaces. Should you find any chips

or scratches in the paint, touch them up

immediately to prevent corrosion from starting.

If the chips or scratches have gone through

to the bare metal, have a qualified body shop

make the repair.

Keep Passenger and luggage

compartments clean.

Moisture, dirt or mud can accumulate under

the floor mats and may cause corrosion.

Occasionally, check under these mats to

ensure that this area is clean and dry. More

frequent checks are necessary if the vehicle

is used off road or in wet weather.

Certain cargos such as chemicals, fertilizers,

cleaners, salts, etc., are extremely corrosive

by nature. These products should be

transported in sealed containers. If a spill or

leak does occur, clean and dry the area

immediately.

124

60G-74E
BODY WORK CARE

Store your vehicle in a dry, well-ventilated

area.

Do not park your vehicle in a damp, poorly

ventilated area. If you often wash your vehicle

in the garage or if you frequently drive it in

when wet, your garage may be damp.The high

humidity in the garage may cause or

accelerate corrosion. A wet vehicle may

corrode even in a heated garage if the

ventilation is poor.

Do not apply additional undercoating

or rust preventive coating on or around

exhaust system components such as

the exhaust pipes, etc. A fire could be

started if the undercoating substance

becomes overheated.

Cover your vehicle

If you cannot regularly park your vehicle in a

garage, we recommend you use a vehicle

cover. Years of exposure to midday sun can

cause the colours in paint, plastic parts, and

fabrics to fade. Covering your vehicle with a

high-quaiity, "breathable" vehicle cover can

help protect the finish from the harmful UV

rays in sunlight, and can reduce the amount

of dust and air pollution reaching the surface.

125
VEHICLE CLEANING

When cleaning the interior or exterior

of the vehicle, NEVER USE flammable

solvents such as lacquer thinners,

petrol, benzene or cleaning materials

such as bleach or strong household

detergents. The materials could cause

personal injury or damage to the

vehicle.

Cleaning the Interior

Vinyl upholstery

Prepare a solution of soap or mild detergent

mixed with warm water. Apply the solution to

the vinyl with a sponge or soft cloth and let it

soak for a few minutes to loosen dirt. Rub the

surface with a clean, damp cloth to remove

dirt and the soap solution. If some dirt still

remains on the surface, repeat this procedure.

Fabric upholstery

Remove loose dirt with a vacuum cleaner. Using

a mild soap solution, rub stained areas with a

clean damp cloth. To remove soap, rub the

areas again with a cloth dampened with water.

Repeat this until the stain is removed, or use a

commercial fabric cleaner for tougher stains. If

you use a fabric cleaner, carefully follow the

manufacturer's instructions and precautions.
Seat Belts

Clean seat belts with a mild soap and water.

Do not use bleach or dye on the belts. They

may weaken the fabric in the belts.

Vinyl floor mats

Ordinary dirt can be removed from vinyl with

water or mild soap. Use a brush to help loosen

dirt. After the dirt is loosened, rinse the mat

thoroughly with water and dry it in the shade.

Carpets

Remove dirt and soil as much as possible with

a vacuum cleaner. Using a mild soap solution,

rub stained areas with a clean damp cloth.To

remove soap, rub the areas again with a cloth

dampened with water. Repeat this until the

stain is removed, or use a commercial carpet

cleaner for tougher stains. If you use a carpet

cleaner, carefully follow the manufacturer's

instructions and precautions.

11-2

BODY WORK CARE

60G-74E

Cleaning the Exterior

CAUTION

It is important that your vehicle be kept

clean and free from dirt. Failure to keep

your vehicle clean may result in fading

of the paint or corrosion to various

parts of the vehicle body.

Washing

Never attempt to wash and wax your

vehicle with the engine running.

When cleaning the underside of the

body and fender, where there may

be sharp-edged parts, you should

wear gloves and a longsleeved shirt

to protect your hands and arms from

being cut.

After washing your vehicle, carefully

test the brakes before driving to

make sure they have maintained

their normal effectiveness.
When washing the vehicle, follow the

instructions below:

1) Flush the underside of body and wheel

housings with pressurized water to remove

mud and debris. Use plenty of water.

CAUTION

When washing the vehicle, avoid

directing steam or hot water of more

than 80°C (176°F) on plastic parts.

2) Remove dirt and mud from the body

exterior with running water. You may use

a soft sponge or brush. Do not use hard

materials which can scratch the paint.

3) Wash the entire exterior with a mild

detergent or car wash soap using a

sponge or soft cloth. The sponge or cloth

should be frequently soaked in the soap

solution.

CAUTION

When using a commercial car wash

product, observe the cautions specified

by the manufacturer. Never use strong

household detergents or soaps.
4) Once the dirt has been completely

removed, rinse off the detergent with

running water.

5) After rinsing, wipe off the vehicle body with

a wet chamois or cloth and allow it to dry

in the shade.

6) Check carefully for damage to painted

surfaces. If there is any damage,

"Touchup" the damage following the

procedure below:

a) Clean all damaged spots and allow

them to dry.

b) Stir the paint and "touchup" the

damaged spots lightly using a small

brush.

c) Allow the paint to dry completely.

Waxing

After washing the vehicle, waxing and

polishing are recommended to further protect

and beautify the paint.

• Only use waxes and polishes of good

quality.

• When using waxes and polishes, observe

the precautions specified by the

manufacturers.

11-3
126

60G-74E

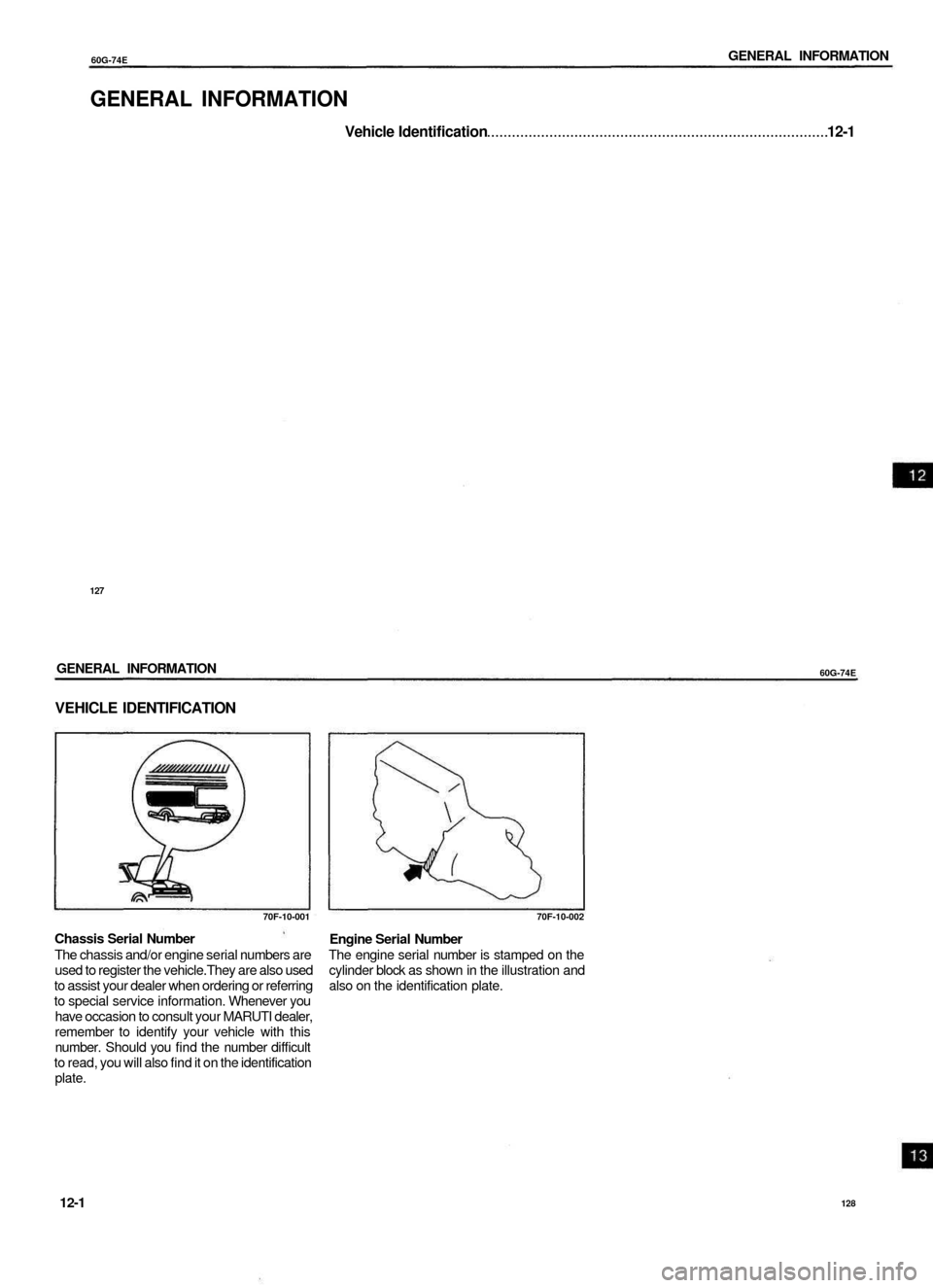

GENERAL INFORMATION

GENERAL INFORMATION

Vehicle Identification 12-1

127

GENERAL INFORMATION

60G-74E

VEHICLE IDENTIFICATION

70F-10-001

Chassis Serial Number

The chassis and/or engine serial numbers are

used to register the vehicle.They are also used

to assist your dealer when ordering or referring

to special service information. Whenever you

have occasion to consult your MARUTI dealer,

remember to identify your vehicle with this

number. Should you find the number difficult

to read, you will also find it on the identification

plate.
70F-10-002

Engine Serial Number

The engine serial number is stamped on the

cylinder block as shown in the illustration and

also on the identification plate.

12-1
128

60G-74E

TABLE OF CONTENTS
MAINTENANCE SERVICE RECORD

WARRANTY POLICY

BEFORE DRIVING

STEERING COLUMN CONTROLS

INSTRUMENT PANEL

OTHER CONTROLS AND EQUIPMENT

OPERATING YOUR VEHICLE

DRIVING TIPS AND SAFE DRIVING

INSPECTION AND MAINTENANCE

EMERGENCY SERVICE

BODY WORK CARE

GENERAL INFORMATION

SPECIFICATIONS

SERVICE NETWORK

60G-74E

FOREWORD

This manual is an essential part of your

vehicle and should be kept with the vehicle

at all times. Please read this manual carefully

and review it from time to time. It contains

important information on safety, operation,

and maintenance. It is especially important

that this manual remain with the vehicle at

the time of resale. The next owner will need

this information also.

You are invited to avail the three free

inspection services as described in this

manual.Three free inspection coupons are

attached to this manual. Please show this

manual to your dealer when you take your

vehicle for any service.

To prolong the life of your vehicle and reduce

maintenance cost, the periodic maintenance

must be carried out according to the

"PERIODIC MAINTENANCE SCHEDULE"

described in "INSPECTION AND

MAINTENANCE" section of this manual.

Periodic maintenance is essential for

preventing trouble and accidents to ensure

your satisfaction and sefety.

Daily Inspection and Care as per "DAILY

INSPECTION CHECKLIST described in the

"INSPECTION AND MAINTENANCE" section

of this Manual is essential for prolonging the

operating lite of the vehicle and for safe driving.
MARUTI UDYOG LIMITED believes in

conservation and protection of Earth's

natural resources.

To that end, we encourage every vehicle

owner to recycle, trade in, or properly

dispose of, as appropriate, used motor oil,

coolant, and' other fluids; batteries; and

tyres.

MARUTI UDYOG LIMITED

All information in this manual is

based on the latest product

information available at the time of

publication. Due to improvements

or other changes, there may be

discrepancies between information

in this manual and your vehicle.

Maruti reserves the right to make

changes at any time without notice.

This vehicle may not comply with

standards or regulations of other

countries. Before attempting to

register this vehicle in any other

country, check all applicable

regulations and make any necessary

modifications.
IMPORTANT

WARNING/CAUTION/NOTE

Please read this manual and follow its

instructions carefully. To emphasise special

information, the words WARNING,

CAUTION, and NOTE have special

meanings. Information following these signal

words should be carefully reviewed.

WARNING

The personal safety of the driver,

passengers, or by standers may be

involved. Disregarding this information

could result in their injury or death.

CAUTION

These instructions point out special

service procedures or precautions that

must be followed to avoid damaging

the vehicle.

NOTE:

This provides special information to make

maintenance easier or important instructions

clearer.

0-1
3
