1999 NISSAN PRIMERA Control

Belt tension
lRefer to MA section.
Fast Idle Control Device (FICD)
lrefer to EC section.

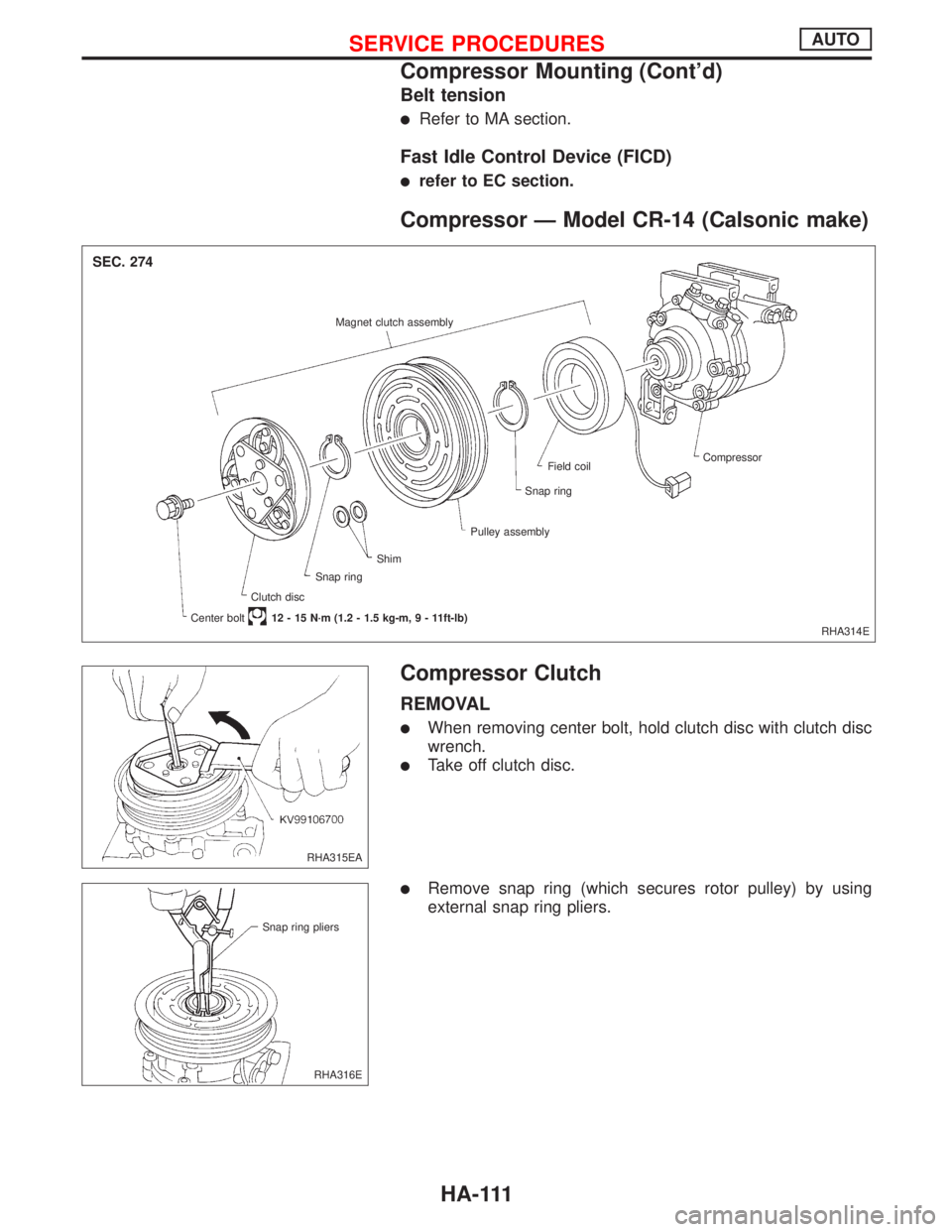

Compressor Ð Model CR-14 (Calsonic make)
Compressor Clutch
REMOVAL
lWhen removing center bolt, hold clutch disc with clutch disc
wrench.
lTake off clutch disc.
lRemove snap ring (which secures rotor pulley) by using
external snap ring pliers.
RHA314E Magnet clutch assembly
Compressor
Field coil
Snap ring
Pulley assembly
Clutch discShim
Snap ring
Center bolt12 - 15 N´m (1.2 - 1.5 kg-m,9-11ft-lb)
SEC. 274
RHA315EA
RHA316E Snap ring pliers
SERVICE PROCEDURESAUTO
Compressor Mounting (Cont'd)
HA-111

A
AAC/V - Wiring diagram....EC-QG-276, EC-SR-265
ABS (anti-lock brake system).........................BR-50
A/C control linkage adjustment (manual
A/C) .............................................................HA-82
A/C control operation (auto A/C) ....................HA-19
A/C diagnostic work flow (auto A/C) ..............HA-26
A/C performance chart ...................................HA-35
A/C performance test diagnoses....................HA-33
A/C relay.........................................................HA-78
A/C service data specification ......................HA-118
A/C switch ......................................................HA-78
A/C symptom chart (auto A/C) .......................HA-28
A/C trouble diagnoses (auto A/C) ..................HA-26
Accelerator control system ...............................FE-3
Accelerator position sensor ...................EC-CD-108
Accelerator position switch ....................EC-CD-108
Accelerator wire adjustment .............................FE-4
A/CCUT - Wiring diagram ......................EC-CD-127
Air bag disposal..............................................RS-27
Air bag precautions ...........................................GI-3
Air bleeding for brake system ..........................BR-8
Air cleaner filter replacement ............MA-23, 34, 44
Air conditioner cut
control .....EC-QG-24, EC-SR-26, EC-CD-20, 126
Air flow meter - See Mass air flow
sensor ............................EC-QG-110, EC-SR-120
Air mix. door motor.........................................HA-92
Alternator ..................................................EL-53, 56
Ambient sensor ..............................................HA-86
Antenna .........................................................EL-229
Anti-lock brake system - See ABS .................BR-50
APS - Wiring diagram ............................EC-CD-109
A/T - Wiring diagram - AT - FTS .....................AT-56
A/T - Wiring diagram - AT - MAIN ...................AT-45
A/T - Wiring diagram - AT - PNP/SW..............AT-50
A/T - Wiring diagram - AT - VSS A/T ..............AT-64
A/T diagnosis communication line .........EC-SR-295
A/T fluid temperature sensor...........................AT-54
A/T trouble diagnoses ...............................AT-29, 30
A/T Wiring diagram - AT - ENG SS ................AT-67
A/T Wiring diagram AT - LPSV .......................AT-76
A/T Wiring diagram AT - TCV .........................AT-71
A/T Wiring diagram AT - TPS..........................AT-81
ATDIAG - Wiring diagram ......................EC-SR-296
Audio .............................................................EL-216
AUDIO - Wiring diagram ...............................EL-219
Audio and A/C control removal and
installation - See Instrument panel .............BT-15
Auto air conditioner - Wiring diagram ............HA-42
Automatic amplifier .........................................HA-87
Automatic transaxle number............................GI-44
Automatic transmission fluid
replacement..........................................MA-49, 50
Auxiliary air control (AAC)
valve ..............................EC-QG-274, EC-SR-263BBack door opener - See Back door ............BT-9, 11
Back door trim.................................................BT-30
Back door window ....................................BT-35, 56
Back-up lamp ................................................EL-107
BACK/L - Wiring diagram..............................EL-107
Ball joint front axle ....................................FA-32, 33
Base idle air volume
initialiging ...........................EC-QG-33, EC-SR-46
Basic inspection ....................EC-QG-72, EC-SR-84
Battery .............................................................EL-29
Body alignment ...............................................BT-60
Brake booster .................................................BR-18
Brake control valve (Proportioning
valve)...........................................................BR-11
Brake fluid change ...........................................BR-7
Brake fluid level .............................................MA-51
Brake fluid level and line check .......................BR-7
Brake hydraulic line ..........................................BR-9
Brake inspection ............................................MA-51
Brake lining wear temporary checking ..........MA-51
Brake pedal ....................................................BR-13
Bulb specifications ........................................EL-137
Bumper, front ....................................................BT-5
Bumper, rear .......................................BT-5, 7, 9, 11
BUZZER - Wiring diagram ............................EL-181
C
Camshaft inspection ...............EM-35, 91, 138, 147,
183, 192, 196
Camshaft position sensor
(CMPS) ..........................EC-QG-238, EC-SR-239
Camshaft position sensor (PHASE) ......EC-QG-238
Canister-See EVAP
canister ..............................EC-QG-25, EC-SR-27
CHARGE - Wiring diagram .............................EL-53
Charging system .............................................EL-53
Chassis and body maintenance ....................MA-48
CHIME - Wiring diagram ...............................EL-181
Cigarette lighter.............................................EL-203
Circuit breaker.................................................EL-22
CKPS - Wiring diagram....EC-QG-234, EC-SR-236,
292, EC-CD-115
Clock .............................................................EL-203
Closed throttle position switch ...............EC-SR-271
Clutch cover ....................................................CL-13
Clutch damper ................................................CL-10
Clutch disc ......................................................CL-13
Clutch fluid level.............................................MA-48
Clutch master cylinder ......................................CL-8
Clutch operating cylinder ..................................CL-9
Clutch release mechanism..............................CL-11
CMPS - Wiring diagram ....EC-QG-240, EC-SR-242
Coil spring (rear) .............................................RA-11
Collision diagnosis..........................................RS-57
Combination meter........................................EL-138
ALPHABETICAL INDEX
IDX-2

Combination meter removal and instal-
lation - See Instrument panel ......................BT-15
Combination switch .........................................EL-64
Combustion chamber replacement ..............EM-146
Component location (cool box) ......................HA-39
Compression pressure ..........EM-69, 126, 188, 196
Compressor clutch removal and
installation .................................................HA-111
Compressor mounting ..................................HA-109
Compressor precaution ....................................HA-7
Compressor special service tool ......................HA-7
Connecting rod......EM-55, 171, 176, 186, 193, 200
Connecting rod bearing
clearance....EM-58, 111, 115, 170, 187, 195, 201
Connecting rod bushing clearance ........EM-59, 116
Console box - See Instrument panel ..............BT-15
CONSULT for ABS .........................................BR-69
CONSULT for engine ...........EC-QG-55, EC-SR-68,
EC-CD-27
CONSULT-II general information .....................GI-39
Control sleeve position sensor ................EC-CD-74
Converter housing installation .......................AT-117
COOL/F - Wiring diagram ....................EC-QG-292,
EC-SR-282, EC-CD-89
Coolant replacement .........................MA-19, 29, 40
Cooling circuit (engine) ........................LC-8, 21, 31
Cooling fan control ...........EC-QG-289, EC-SR-279,
EC-CD-20, 87
Cooling fan motor .............EC-QG-299, EC-SR-289
Cooling fan relay ..............EC-QG-299, EC-SR-289,
EC-CD-96
Crank angle sensor built into distributor
- See Camshaft position sensor .......EC-QG-238,
EC-SR-239
‘‘Crankcase emission control system -
See positive crankcase
ventilation’’ .........................EC-QG-28, EC-SR-30
Crankcase ventilation system - See
Positive crankcase
ventilation ..........................EC-QG-28, EC-SR-30
Crankshaft ........EM-53, 57, 61, 110, 113, 118, 131,
138, 139, 167, 172, 175, 186, 194, 200
Crankshaft position sensor (OBD) .......EC-QG-232,
EC-SR-234, 290
Crankshaft position sensor (POS).........EC-QG-232
Crankshaft position sensor (TDC)..........EC-CD-114
CSPS - Wiring diagram ...........................EC-CD-75
Cylinder block .........................EM-52, 55, 109, 166,
173, 184, 192, 199
Cylinder head ..........EM-31, 86, 140, 178, 188, 196
D
Data link connector for
Consult ..............................EC-QG-29, EC-SR-31
Daytime light system.......................................EL-78
DEF - Wiring diagram ...................................EL-209
Detonation sensor - See Knock
sensor ............................EC-QG-228, EC-SR-230
Diagnosis sensor unit .....................................RS-13Diagnostic trouble code (DTC) for OBD
system ...................................EC-QG-6, EC-SR-6
Diagnostic trouble code (DTC) inspec-
tion priority chart...............EC-QG-80, EC-SR-92,
EC-CD-39
Dimensions ......................................................GI-45
Direct ignition system ..............................EC-QG-32
Door lock .........................................................BT-13
Door mirror ......................................................BT-58
Door trim .........................................................BT-24
Door, front .......................................................BT-13
Door, rear ........................................................BT-13
Drive belt inspection ..........................MA-18, 28, 39
Drive plate runout...................................EM-60, 117
Drive shaft (front) ............................................FA-15
Dropping resistor (A/T) ....................................AT-78
DTC work support .................EC-QG-63, EC-SR-76
DTRL - Wiring diagram ...................................EL-79
E
ECCS relay ............................................EC-CD-140
ECM input/output signal......EC-QG-91, EC-SR-103
ECTS - Wiring diagram ....EC-QG-122, EC-SR-134,
EC-CD-67
EGR control (EGRC) - solenoid valve ...EC-CD-129
EGR control valve..........................EC-QG-252, 311
EGR temperature sensor ......................EC-QG-300
EGR/TS - Wiring diagram .....................EC-QG-302
EGRC - Wiring diagram .........................EC-CD-131
EGRC1 - Wiring diagram ..............EC-QG-248, 309
Electric governer ......................................EC-CD-78
Electric sun roof ............................................EL-230
Electrical diagnoses.........................................GI-24
Electrical ignition system.......EC-QG-23, EC-SR-25
Electrical unit ................................................Foldout
Electronic fuel injection pump ..................EC-CD-24
Engine control circuit
diagram ...........EC-QG-17, EC-SR-19, EC-CD-11
Engine control component parts
location ..............................EC-QG-14, EC-SR-15
Engine control module
(ECM) .....EC-QG-282, EC-SR-277, EC-CD-9, 86
Engine control system diagram and
chart ................EC-QG-18, EC-SR-20, EC-CD-12
Engine coolant temperature sensor
(ECTS) ........EC-QG-120, EC-SR-132, EC-CD-66
Engine fail-safe system .........EC-QG-81, EC-SR-93
Engine oil filter replacement ....................MA-24, 45
Engine oil precautions .......................................GI-6
Engine oil replacement ......................MA-24, 34, 45
Engine removal..............................EM-48, 106, 162
Engine serial number ......................................GI-44
Engine trouble diagnoses ........................EC-CD-33
EVAP canister .......................EC-QG-26, EC-SR-28
EVAP canister purge volume control
solenoid valve ...........EC-QG-26, 262, EC-SR-28
EVAP canister purge volume control
valve ..............................EC-QG-262, EC-SR-250
EVAP vapor lines inspection....................MA-26, 37
ALPHABETICAL INDEX
IDX-3

Evaporative emission (EVAP)
system ...............................EC-QG-25, EC-SR-27
Exhaust gas recirculation (EGR)
valve...........................................EC-QG-244, 305
Exhaust system ................................................FE-9
Exhaust system inspection ............................MA-48
Exterior ............................................................BT-31
F
FCUT - Wiring diagram ..........................EC-CD-101
F/FOG - Wiring diagram................................EL-110
Final drive (FF M/T) ...........................MT-32, 51, 71
Floor trim .........................................................BT-18
Fluid temperature sensor (A/T) .......................AT-94
Fluids..............................................................MA-16
Flywheel (clutch) .............................................CL-14
Flywheel runout..............................EM-60, 117, 177
Fog lamp, front ..............................................EL-110
Fog lamp, rear ...............................................EL-112
F/PUMP - Wiring
diagram..........................EC-QG-338, EC-SR-317
Freeze frame data ................EC-QG-38, EC-SR-50
Fresh vent door control linkage
adjustment ..................................................HA-83
FRO2 - Wiring diagram ........EC-QG-135, 154, 162,
EC-SR-147, 165, 172
FRO2/H - Wiring
diagram..........................EC-QG-168, EC-SR-177
Front axle ..........................................................FA-9
Front bumper ....................................................BT-5
Front disc brake .............................................BR-23
Front door .......................................................BT-13
Front fog lamp .......................................EL-110, 111
Front fog lamp removal and installation ...........BT-5
Front heated oxygen sensor
(HO2S) ......................................EC-QG-132, 139,
EC-SR-144, 150, 156, 162, 170
Front heated oxygen sensor (HO2S)
heater ............................EC-QG-166, EC-SR-175
Front passenger air bag .................................RS-17
Front seat ........................................................BT-40
Front seat belt ..................................................RS-3
Front suspension ............................................FA-26
Front washer .................................................EL-186
Front wiper ....................................................EL-186
FTS - Wiring diagram ............................EC-CD-105
FUEL - Wiring
diagram .........EC-QG-210, 217, EC-SR-213, 220
Fuel cut control (at no load & high
engine speed)....................EC-QG-25, EC-SR-27
Fuel cut solenoid valve ..........................EC-CD-100
Fuel filter ...............................EC-QG-29, EC-SR-31
Fuel filter replacement .......................MA-23, 33, 43
Fuel gauge ............................................EL-141, 146
Fuel injection system....................EC-QG-208, 215,
EC-SR-212, 218,
EC-CD-15, 18
Fuel injector ......................EC-QG-318, EC-SR-302
Fuel line inspection............................MA-22, 33, 43Fuel precautions ................................................GI-7
Fuel pressure check .............EC-QG-29, EC-SR-31
Fuel pressure regulator .........EC-QG-30, EC-SR-32
Fuel pressure release ...........EC-QG-29, EC-SR-31
Fuel pump .........................EC-QG-336, EC-SR-316
Fuel pump and gauge ......................................FE-7
Fuel pump relay ................EC-QG-336, EC-SR-316
Fuel system ......................................................FE-6
Fuel tank vacuum relief
valve ..................................EC-QG-26, EC-SR-28
Fuel temperature sensor .................EC-CD-17, 104
Fuse ..................................................EL-22, Foldout
Fuse block ....................................................Foldout
Fusible link ........................................EL-22, Foldout
G
Garage jack and safety stand .........................GI-47
Gauges..........................................................EL-138
Gear components (M/T) ...........................MT-16, 49
Generic scan tool (GST) .......EC-QG-66, EC-SR-78
GLOW - Wiring diagram ........................EC-CD-120
Glow plug .........................................EC-CD-15, 118
Glow relay ................................................EC-CD-15
GOVNR - Wiring diagram ........................EC-CD-79
Grille - See Exterior ........................................BT-38
Ground distribution..........................................EL-23
H
H/AIM - Wiring diagram ....................EL-87, 93, 200
Harness connector ............................................EL-6
Harness layout ..............................................EL-368
Hazard warning lamp ....................................EL-117
Headlamp..................................................EL-67, 69
Headlamp aiming control ................................EL-87
Headlamp washer .........................................EL-200
Headlining - See Roof trim .............................BT-25
Heated oxygen sensor (HO2S)
(front) ........................................EC-QG-132, 139,
EC-SR-144, 150, 156, 162, 170
Heated oxygen sensor (HO2S) heater
(front) .............................EC-QG-166, EC-SR-175
Heated oxygen sensor (HO2S) heater
(rear) ..............................EC-QG-203, EC-SR-207
Heated oxygen sensor (rear) ...............EC-QG-171,
EC-SR-180, 187,
194, 201
Heated oxygen sensor inspection ...........MA-27, 38
Heated seat .......................................BT-42, EL-234
HEATER - Wiring diagram .............................HA-40
HFC134a (R134a) system service
procedure ..................................................HA-100
HFC134a (R134a) system service tools ..........HA-8
H/LAMP - Wiring diagram ...............................EL-67
Hood..................................................................BT-5
Horn ..............................................................EL-203
HORN - Wiring diagram ................................EL-203
ALPHABETICAL INDEX
IDX-4

How to erase DTC for OBD
system ...............................EC-QG-44, EC-SR-56
HSEAT - Wiring diagram...............................EL-234
Hydraulic lash adjuster inspection .........EM-96, 189
I
IACV-AAC valve ................EC-QG-274, EC-SR-263
IATS - Wiring diagram .......EC-QG-117, EC-SR-128
Identification plate............................................GI-44
Idle air control (IAC)
system ...........................EC-QG-274, EC-SR-263
Idle air control valve
(IACV) ............................EC-QG-274, EC-SR-263
Idle mixture ratio ...................EC-QG-32, EC-SR-34
Idle speed .............................EC-QG-32, EC-SR-34
IGN/SG - Wiring diagram .......................EC-SR-308
Ignition coil .............................................EC-SR-310
Ignition control system ......EC-QG-323, EC-SR-306
Ignition timing ........................EC-QG-32, EC-SR-34
Ignition wire inspection ..............MA-36, EC-SR-229
ILL - Wiring diagram .....................................EL-125
Illumination ....................................................EL-124
INJECT - Wiring diagram ..EC-QG-319, EC-SR-303
Injection nozzle inspection .............................MA-46
Injection timing control valve ...................EC-CD-82
Injector ...................................................EC-QG-318
Injector removal and
installation..........................EC-QG-30, EC-SR-32
Input shaft (FF M/T) .................................MT-21, 58
Instrument panel .............................................BT-15
INT/L - Wiring diagram..................................EL-132
Intake air temparature
sensor ............................EC-QG-116, EC-SR-127
Intake door control linkage adjustment ..........HA-83
Intake door motor .....................................HA-81, 83
Intake valve timing control solenoid
valve ...................................................EC-QG-284
Interior .............................................................BT-18
Interior lamp ..........................................EL-124, 130
K
Knock sensor (KS) .......................EC-QG-228, 229,
EC-SR-230, 231
KS - Wiring diagram ..............................EC-QG-229
L
License lamp .................................................EL-100
Lifting points ....................................................GI-46
Line pressure solenoid valve ..........................AT-74
Line pressure test (A/T) ..................................AT-35
Liquid gasket application .................................EM-5
LOAD - Wiring diagram .........................EC-QG-352
Location of electrical units ............................EL-365
Lubricants.......................................................MA-16Lubrication circuit (engine) ...................LC-4, 15, 26
Lubrication-locks, hinges and hood
latches ........................................................MA-54
Luggage compartment trim .............................BT-29
Luggage room lamp ......................................EL-131
M
MAFS - Wiring
diagram .......EC-QG-112, EC-SR-122, EC-CD-63
MAIN - Wiring
diagram .......EC-QG-103, EC-SR-115, EC-CD-59
Mainshaft (M/T) ........................................MT-24, 63
Malfunction indicator lamp
(MIL) ..................................EC-QG-45, EC-SR-58
Manual transmission number ..........................GI-44
Manual transmission oil replacement ......MA-48, 49
Mass air flow sensor
(MAFS)........EC-QG-110, EC-SR-120, EC-CD-62
METER - Wiring diagram .....................EL-141, 146
MIL & Data link connectors
circuit .............................EC-QG-354, EC-SR-329
MIL/DL - Wiring
diagram .....EC-QG-354, EC-SR-329, EC-CD-142
MIRROR - Wiring diagram ............................EL-231
Mirror defogger .............................................EL-207
Mirror, door......................................................BT-58
Mirror, out side ................................................BT-58
Misfire ................................EC-QG-222, EC-SR-224
Mode door control linkage adjustment ...........HA-82
Model variation ................................................GI-41
Molding - See Exterior ....................................BT-31
M/T major overhaul ..................................MT-14, 47
M/T removal and installation ..........................MT-10
Mud guard - See Exterior ...............................BT-37
MULTI - Wiring diagram ................................EL-298
Multi-remote control system..........................EL-296
Multiport fuel injection (MFI)
system ...............................EC-QG-21, EC-SR-23
Multiport fuel injection precautions ....................GI-6
N
NATS (Nissan anti-theft system)...................EL-342
NATS (Nissan anti-theft system)
precautions ..............................................GI-3, 25
NATS - Wiring diagram .................................EL-343
Needle lift sensor .....................................EC-CD-97
Neutral position switch ......EC-QG-313, EC-SR-298
NLS - Wiring diagram ..............................EC-CD-98
NVH troubleshooting (BR)................................BR-6
NVH troubleshooting (CL) ................................CL-3
NVH troubleshooting (EM) ...............EM-11, 64, 121
NVH troubleshooting (M/T) ..............................MT-7
NVH troubleshooting (RA)................................RA-3
ALPHABETICAL INDEX
IDX-5

O
Oil cooler (engine) ....................................LC-20, 30
Oil pan (engine) ...............................EM-17, 70, 129
Oil pressure (engine)............................LC-5, 16, 27
Oil pump (engine).................................LC-5, 17, 27
Oil pump regulator valve (engine) ....................LC-7
Oil seal replacement
(engine) ................................EM-29, 84, 138, 139
On board diagnostic
system ...............................EC-QG-36, EC-SR-48
Operational check (cool box) .........................HA-24
P
Park/Neutral position
switch.............................EC-QG-313, EC-SR-298
Park/neutral position switch (A/T) ...................AT-48
Parking brake control .....................................BR-48
Parking lamp .................................................EL-100
PCV (positive crankcase
ventilation) .........................EC-QG-28, EC-SR-30
PCV system inspection............................MA-26, 36
Periodic maintenance (for Europe) ..................MA-6
PGC/V - Wiring diagram ...EC-QG-264, EC-SR-252
PHASE - Wiring diagram .......................EC-QG-240
Pilot bushing replacement - See Pilot
converter ...................................................EM-117
Piston assembly..............EM-53, 60, 110, 117, 167,
175, 176, 185, 193, 199
Piston pin inspection.............EM-54, 110, 168, 171,
185, 193, 199
Piston ring inspection ....................EM-54, 111, 168,
185, 193, 199
Piston to bore clearance........................EM-56, 174
PNP/SW - Wiring
diagram..........................EC-QG-315, EC-SR-300
POWER - Wiring diagram...............................EL-12
Power door lock ....................................EL-245, 265
Power door mirror .........................................EL-231
Power seat ....................................................EL-233
Power steering fluid level...............................MA-53
Power steering oil pressure
switch.............................EC-QG-342, EC-SR-321
Power supply routing ......................................EL-10
Power transistor......................................EC-SR-311
Power transistor & ignition coil ..............EC-SR-306
Power window ...............................................EL-236
Pre-delivery inspection.....................................MA-4
Precautions (General) .......................................GI-4
Pressure test (A/T) ..........................................AT-35
PST/SW - Wiring
diagram..........................EC-QG-343, EC-SR-322
R
Radiator ..........................................LC-9, 13, 25, 36Rear axle (disc brake type) ..............................RA-5
Rear bumper ...........................................BT-7, 9, 11
Rear combination lamp removal and
installation ...................................................BT-37
Rear disc brake ........................................BR-33, 40
Rear door ........................................................BT-14
Rear drum brake ............................................BR-44
Rear fog lamp................................................EL-112
Rear heated oxygen sensor
(HO2S) ..EC-QG-171, EC-SR-180, 187, 194, 201
Rear heated oxygen sensor (HO2S)
heater ............................EC-QG-203, EC-SR-207
Rear seat ........................................................BT-43
Rear seat belt ...................................................RS-4
Rear suspension ..............................................RA-4
Rear washer..................................................EL-193
Rear window ...................................................BT-53
Rear window defogger ..................................EL-207
Rear wiper.....................................................EL-193
Refrigerant connection precaution ...................HA-4
Refrigerant general precaution.........................HA-4
Refrigerant lines ...........................................HA-104
Refrigerant pressure
sensor....................EC-QG-299, 347, EC-SR-289
Refrigeration cycle..........................................HA-12
Removal and installation (A/T) ......................AT-116
Revolution sensor (A/T) ............................AT-61, 65
R/FOG - Wiring diagram ...............................EL-112
Roof trim .........................................................BT-25
RRO2 - Wiring
diagram.....................EC-QG-174, 183, 191, 199,
EC-SR-183, 190, 197, 203
RRO2/H - Wiring
diagram..........................EC-QG-205, EC-SR-209
S
SAE J1930 terminology list .............................GI-51
Seal - See Exterior .........................................BT-31
SEAT - Wiring diagram .................................EL-233
Seat belt inspection .......................................MA-54
Seat belt pre-tensioner ...................................RS-13
Seat belt pre-tensioner disposal ....................RS-27
Seat, front .......................................................BT-40
Self-diagnostic results ...........EC-QG-46, EC-SR-59
Shift control components (M/T) .........MT-17, 50, 74
Shock absorber (rear).....................................RA-11
Side air bag ....................................................RS-19
Side trim ..........................................................BT-18
Side window - See Rear side window ............BT-55
S/LOCK - Wiring diagram .....................EL-248, 270
Spark plug replacement...........................MA-25, 35
Speedometer ........................................EL-141, 146
Spiral cable.....................................................RS-14
Spot lamp..............................................EL-130, 131
SROOF - Wiring diagram .............................EL-230
SRS - See Supplemental Restraint
System ..........................................................RS-8
SRS - Wiring diagram ....................................RS-33
ALPHABETICAL INDEX
IDX-6

S/SIG - Wiring diagram ....EC-QG-333, EC-SR-313,
EC-CD-145
Stabilizer bar (front) ........................................FA-32
Stall test (A/T) .................................................AT-34
Standardized relay ............................................EL-8
START - Wiring diagram .................................EL-37
Start signal .................EC-QG-38, 332, EC-SR-312,
EC-CD-145
Starter .......................................................EL-37, 43
Starting system ...............................................EL-37
Steering gear and linkage inspection ............MA-53
Steering knuckle........................................FA-11, 12
Stop lamp ......................................................EL-104
STOP/L - Wiring diagram..............................EL-104
Sun roof, electric ...........................................EL-230
Sunload sensor ..............................................HA-86
Sunroof .....................................................BT-31, 46
Super lock .............................................EL-245, 265
Supplemental Restraint System .......................RS-8
Supplemental restraint system - Wiring
diagram .......................................................RS-33
Symbols and abbreviations .............................GI-38
Symptom matrix chart ...........EC-QG-82, EC-SR-94
Synchronizer (M/T) ......................MT-22, 27, 59, 65
System readiness test (SRT) code ..........EC-SR-50
T
Tachometer ...........................................EL-141, 146
Tail lamp ........................................................EL-100
TCM circuit diagram ........................................AT-10
TCM inspection table ......................................AT-41
Temperature control cable and linkage
adjustment ..................................................HA-83
THEFT - Wiring diagram ...............................EL-316
Theft warning system ....................................EL-311
Thermal protector .........................................HA-113
Thermo control amp .......................................HA-80
Thermostat ..........................................LC-11, 23, 34
Third link (front susp.) .....................................FA-29
Three way catalyst ............EC-QG-258, EC-SR-246
Three way catalyst precautions.........................GI-6
Throttle position sensor
(TPS) .............................EC-QG-125, EC-SR-137
Throttle position sensor
adjustment .........................EC-QG-72, EC-SR-84
Throttle position switch ...............EC-SR-271, AT-85
Tightening torque of standard bolts.................GI-50
Time control system ......................................EL-306
Timing belt....................................................EM-131
Timing chain.............................................EM-19, 75
Tire rotation ....................................................MA-53
Tire size ...........................................................GI-45
Torque converter installation .........................AT-117
Torque convertor clutch solenoid valve...........AT-69
Tow truck towing ..............................................GI-46
Towing point.....................................................GI-49
TP/SW - Wiring diagram ........................EC-SR-273
TPS - Wiring diagram .......EC-QG-128, EC-SR-140
Transmission case (M/T) ................................MT-39Transverse link (front) .....................................FA-32
Trim .................................................................BT-18
Triple pressure switch ....................................HA-79
Trouble diagnoses ...........................................GI-35
Trunk lid ............................................................BT-7
Trunk lid opener - See Trunk lid .......................BT-7
Trunk room lamp...................................EL-130, 131
Trunk room trim...............................................BT-28
Turbocharger........................................EM-156, 201
Turbocharger precautions..................................GI-6
TURN - Wiring diagram.................................EL-118
Turn signal lamp............................................EL-117
Two trip detection logic .........EC-QG-36, EC-SR-48
U
Upper link (front susp.) ...................................FA-29
V
Vacuum hose (brake system).........................BR-20
Vacuum hose drawing (Engine
control) ............EC-QG-19, EC-SR-21, EC-CD-13
Valve clearance .............................EM-40, 179, 191
Valve guide..............EM-36, 93, 142, 180, 189, 197
Valve lifter ..............................EM-40, 145, 179, 198
Valve seat................EM-38, 95, 143, 182, 190, 198
Valve spring.............EM-39, 96, 145, 179, 189, 197
Vehicle identification number...........................GI-43
Vehicle speed sensor
(VSS) ..........EC-QG-267, EC-SR-255, EC-CD-70
Viscosity number (SAE) .................................MA-17
VSS - Wiring
diagram .......EC-QG-269, EC-SR-257, EC-CD-71
W
WARN - Wiring diagram ...............................EL-167
Warning buzzer .............................................EL-180
Warning chime ..............................................EL-180
Warning lamps ..............................................EL-165
Washer, front .................................................EL-186
Washer, rear..................................................EL-193
Water cock control rod adjustment ................HA-82
Water pump ........................................LC-10, 22, 33
Water temperature gauge .....................EL-141, 146
Weatherstrip - See Exterior ............................BT-31
Wheel alignment (front) ..................................FA-35
Wheel alignment (rear).....................................RA-6
Wheel balance ...............................................MA-53
Wheel bearing (front axle) ....................FA-6, 12, 35
Wheel bearing (rear) ........................................RA-5
Wheel hub (front) ............................................FA-12
Wheel hub (rear) ..............................................RA-7
Wheel sensors (ABS) .....................................BR-53
Wheel size .......................................................GI-45
Wheelbase (Dimensions) ................................GI-45
ALPHABETICAL INDEX
IDX-7

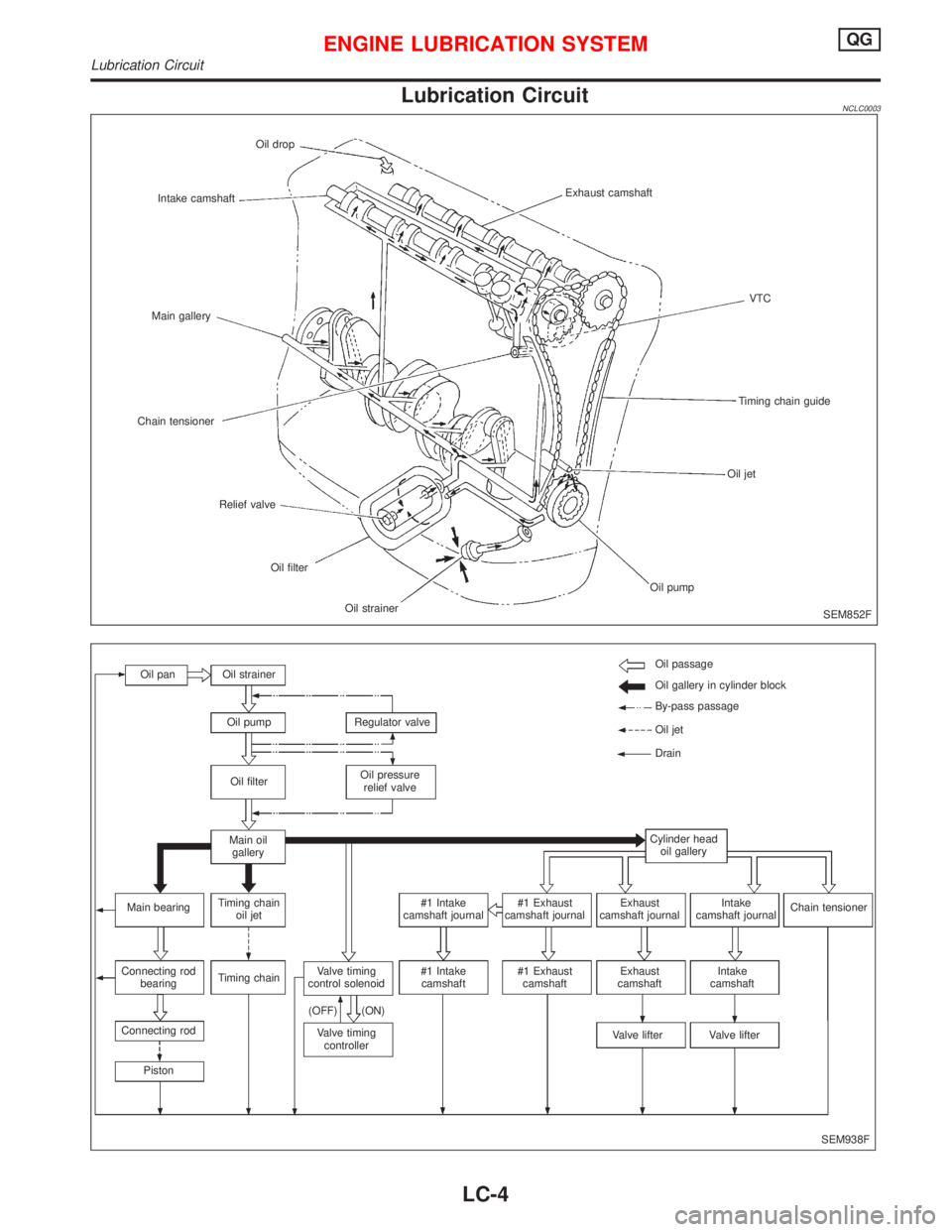

Lubrication CircuitNCLC0003
SEM852F Oil drop
Intake camshaft
Main gallery
Chain tensioner
Relief valve
Oil filter
Oil strainerOil pumpOil jetTiming chain guideVTC Exhaust camshaft
SEM938F Oil pan Oil strainer
Oil pump
Oil filter
Main oil
gallery
Main bearingTiming chain
oil jet
Connecting rod
bearingTiming chain
Connecting rod
PistonRegulator valve
Oil pressure
relief valve
Valve timing
controller#1 Intake
camshaft journal#1 Exhaust
camshaft journal
#1 Intake
camshaft#1 Exhaust
camshaftExhaust
camshaft journal
Exhaust
camshaft
Valve lifter Valve lifterIntake
camshaftIntake
camshaft journalChain tensioner Cylinder head
oil gallery Oil passage
Oil gallery in cylinder block
By-pass passage
Oil jet
Drain
Valve timing
control solenoid
(OFF) (ON)
ENGINE LUBRICATION SYSTEMQG
Lubrication Circuit
LC-4
