IN CASE OF AN EMERGENCY
325
40E003±5

1 Joint
2 When removing the jack, turn the joint by hand in
the ºcontractº direction until the jack is free.
3 When storing, turn the joint by hand in the
ºexpandº direction until the jack is firmly secured
to prevent it from flying forward during a collision
or sudden braking.

IN CASE OF AN EMERGENCY
326
40E004±1

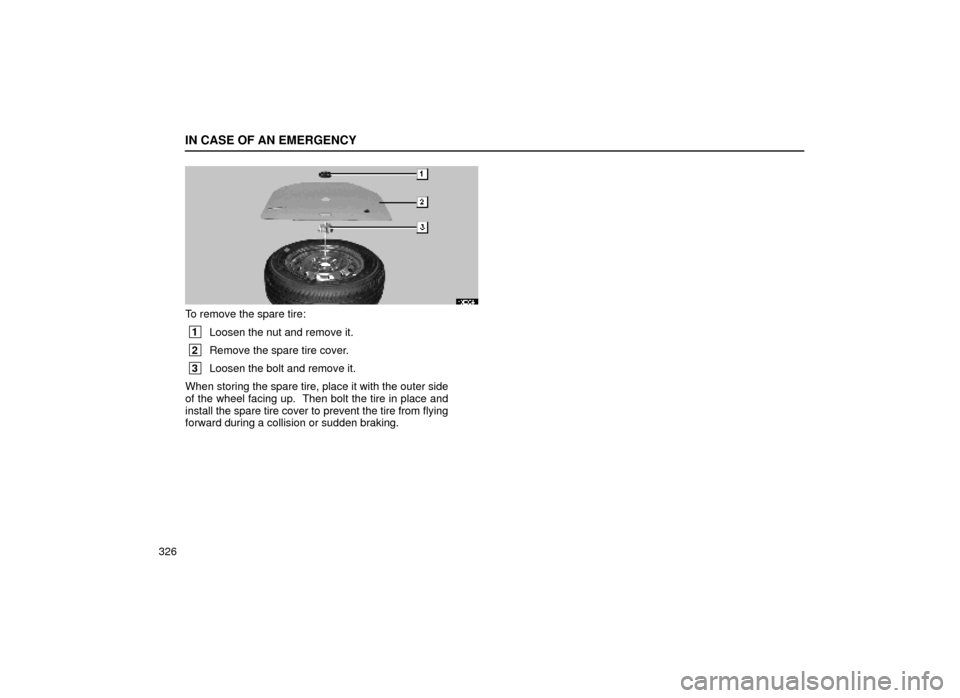

To remove the spare tire:
1Loosen the nut and remove it.
2Remove the spare tire cover.
3Loosen the bolt and remove it.
When storing the spare tire, place it with the outer side
of the wheel facing up. Then bolt the tire in place and
install the spare tire cover to prevent the tire from flying
forward during a collision or sudden braking.

IN CASE OF AN EMERGENCY
327
40E005±1

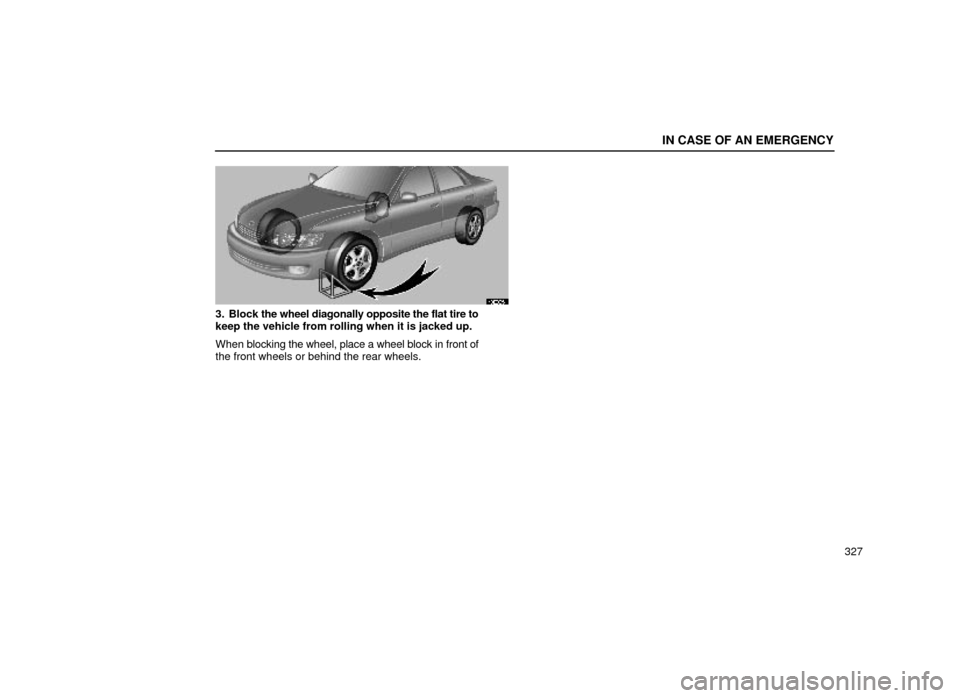

3. Block the wheel diagonally opposite the flat tire to
keep the vehicle from rolling when it is jacked up.
When blocking the wheel, place a wheel block in front of
the front wheels or behind the rear wheels.

IN CASE OF AN EMERGENCY
328
40E006

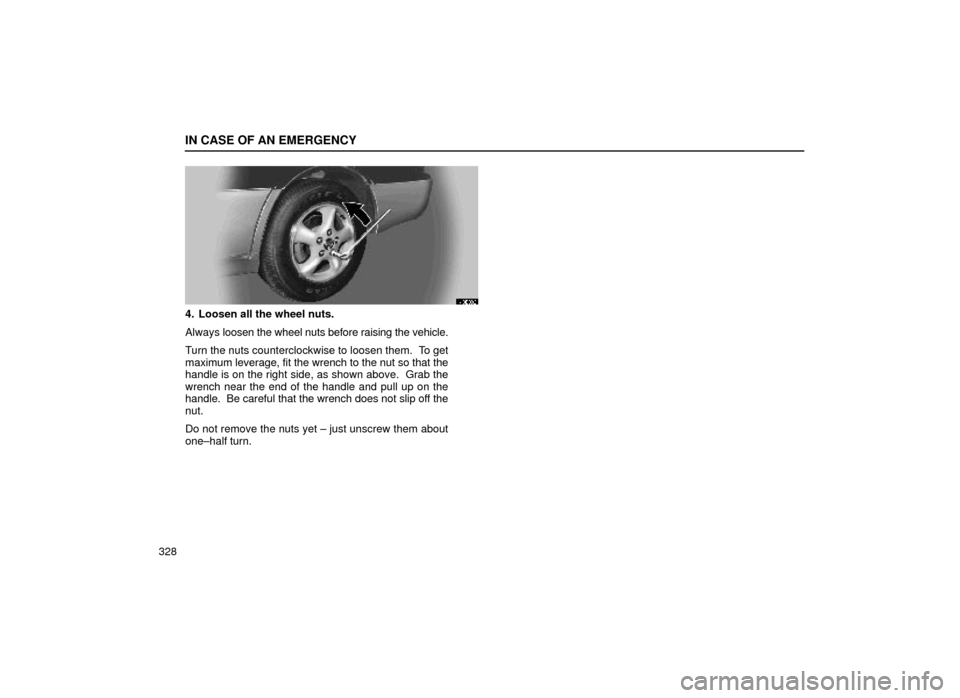

4. Loosen all the wheel nuts.
Always loosen the wheel nuts before raising the vehicle.
Turn the nuts counterclockwise to loosen them. To get
maximum leverage, fit the wrench to the nut so that the
handle is on the right side, as shown above. Grab the
wrench near the end of the handle and pull up on the
handle. Be careful that the wrench does not slip off the
nut.
Do not remove the nuts yet ± just unscrew them about
one±half turn.

IN CASE OF AN EMERGENCY
329
40E007±1
5. Position the jack at the jack points as shown.
Make sure the jack is positioned on a level and solid
surface.

IN CASE OF AN EMERGENCY
330
40E008±2

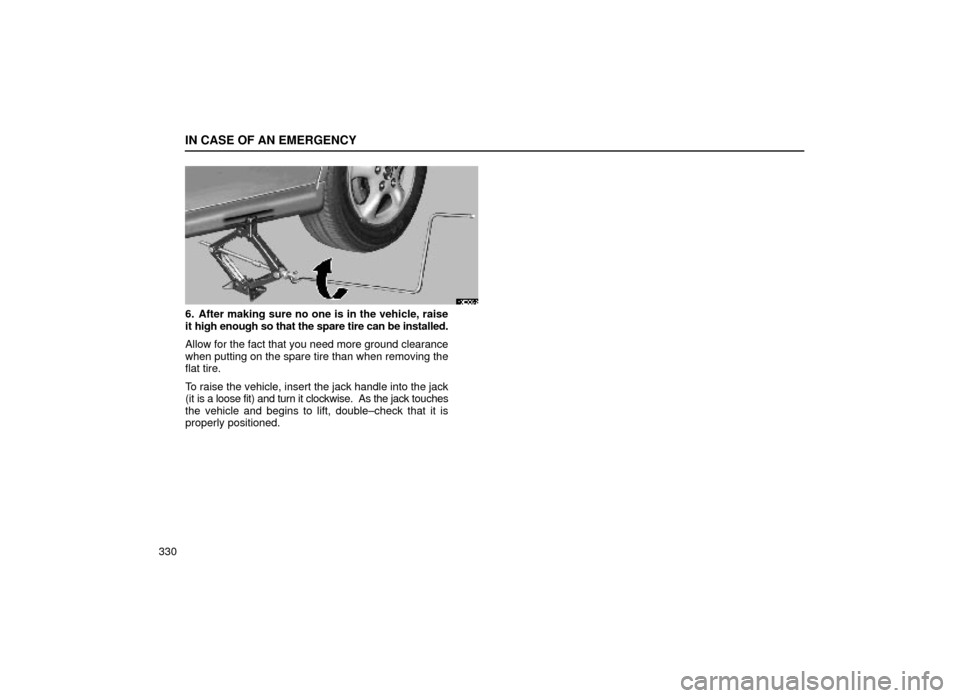

6. After making sure no one is in the vehicle, raise
it high enough so that the spare tire can be installed.
Allow for the fact that you need more ground clearance
when putting on the spare tire than when removing the
flat tire.
To raise the vehicle, insert the jack handle into the jack
(it is a loose fit) and turn it clockwise. As the jack touches
the vehicle and begins to lift, double±check that it is
properly positioned.

IN CASE OF AN EMERGENCY
331

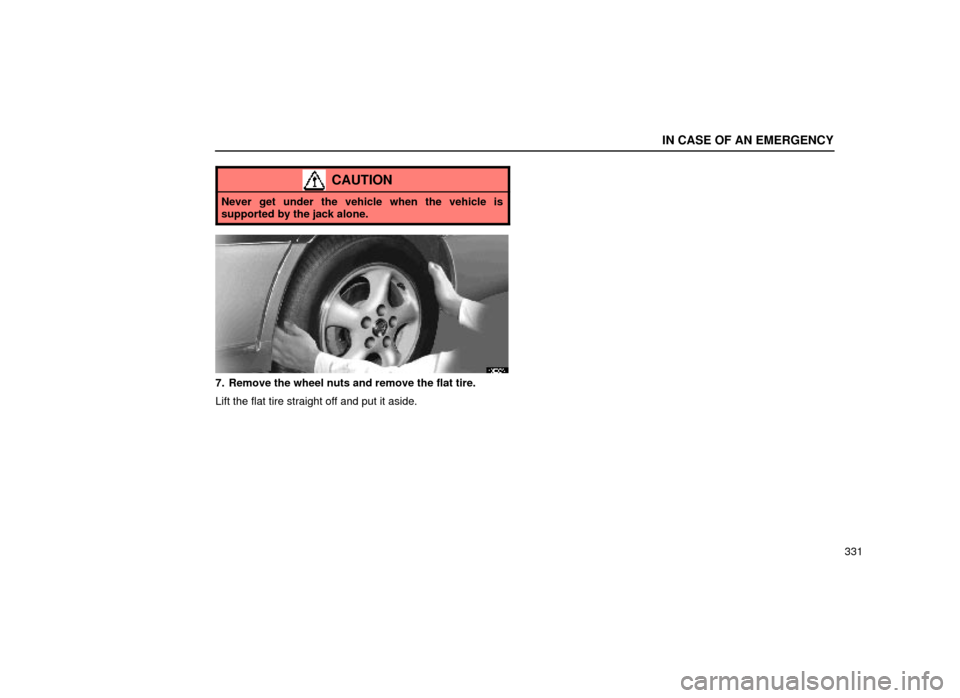

CAUTION
Never get under the vehicle when the vehicle is
supported by the jack alone.
40E009±1
7. Remove the wheel nuts and remove the flat tire.
Lift the flat tire straight off and put it aside.

IN CASE OF AN EMERGENCY
332
40E010

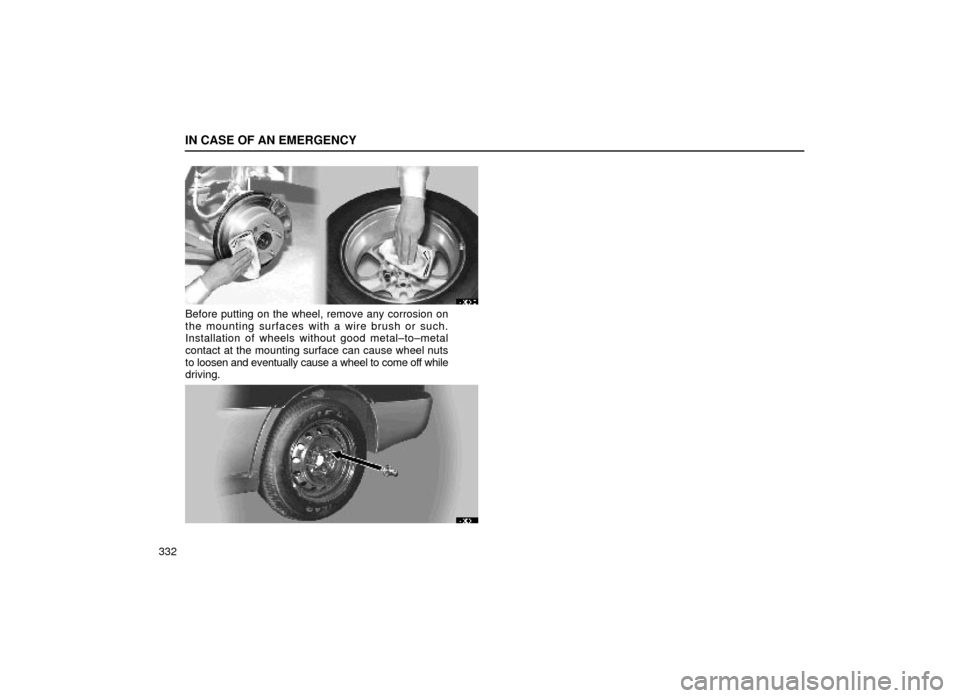

Before putting on the wheel, remove any corrosion on
the mounting surfaces with a wire brush or such.
Installation of wheels without good metal±to±metal
contact at the mounting surface can cause wheel nuts
to loosen and eventually cause a wheel to come off while
driving.
