1999 CADILLAC ELDORADO Owners Manual

yellowblue
2-9 Resynchronization
Pressing the remote keyless entry transmitter buttons
numerous times (approximately 250 times) out of the
vehicle's operating range may cause the transmitter not
to work. Replacing the battery and pressing the
transmitter buttons out of range will also cause the
transmitter not to work. If only the fuel door button
works, the transmitter needs to be resynchronized to
the receiver. Do this by pressing and holding both the
LOCK and UNLOCK buttons on the transmitter for
about eight seconds. You must be within range of
the vehicle.
Once the transmitter has been resynchronized, the horn
will chirp and the exterior lamps will flash once. The
system should now operate properly. See your dealer for
service if your transmitter doesn't work properly.
Trunk
CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on AUTO and the temperature between
65F (18C) and 85F (29C). That will
force outside air into your vehicle. See
ªComfort Controlsº in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.

yellowblue
2-10 Trunk Lock Release
To use this feature, your
vehicle must be in
PARK (P) or NEUTRAL (N)
and the VALET lockout
button must be in the
OFF position. Press the
TRUNK button, located
above the radio on the Driver
Information Center (DIC), to
open the trunk.
You can also press the trunk button on the
remote keyless entry transmitter to access the
trunk compartment.
Trunk Storage System (Option)
The optional trunk storage system can be used to
organize many different items inside the trunk. The
cover (A) is located on top of the spare tire cover (B).
To install the storage system:
1. Pull the carpeting from the floor of the trunk. Turn
the retainer (center dial) on the compact spare tire
cover counterclockwise to remove it.

yellowblue
2-11
2. Place the trunk storage system on the center of the
trunk floor (the cut out portion of the storage system
should be facing the rear of the vehicle).
3. Open the storage system by pulling up on the handle
located in the carpeted area. This allows the unit to
unfold into place. Unfold the divider walls and move
them into the retention slots.
4. Remove the rectangular access panel from the floor
of the storage system. The access panel should
unsnap by hand.
5. Center the storage system access hole over the area
where the spare tire is secured by the retainer.
Position the storage system as needed and then
secure it with the retainer.
6. Replace the access panel.
7. Attach the removable net to the slots located on the
front of the divider walls and attach the hooks to the
holes on each side of the storage system.
Once in place, the storage system can be moved
forward or rearward for convenience and easy access
of stored items.The following steps explain how to remove the trunk
storage system for cleaning or in case you need to access
the spare tire. Follow all of these steps if the storage
system is in the closed position. Begin with Step 2 if the
system is already open.
1. Open the storage system by pulling up on the handle
located in the carpeted area. This allows the unit to
unfold into place. Unfold the divider walls and move
them into the retention slots.
2. Remove the rectangular access panel from the floor
of the storage system. The access panel should
unsnap by hand.
3. Center the storage system access hole over the
area where the spare tire is secured by the retainer.
Position the storage system as needed and then
remove the retainer (turn the retainer
counterclockwise to remove it).
4. Replace the access panel and remove the
storage system.

yellowblue

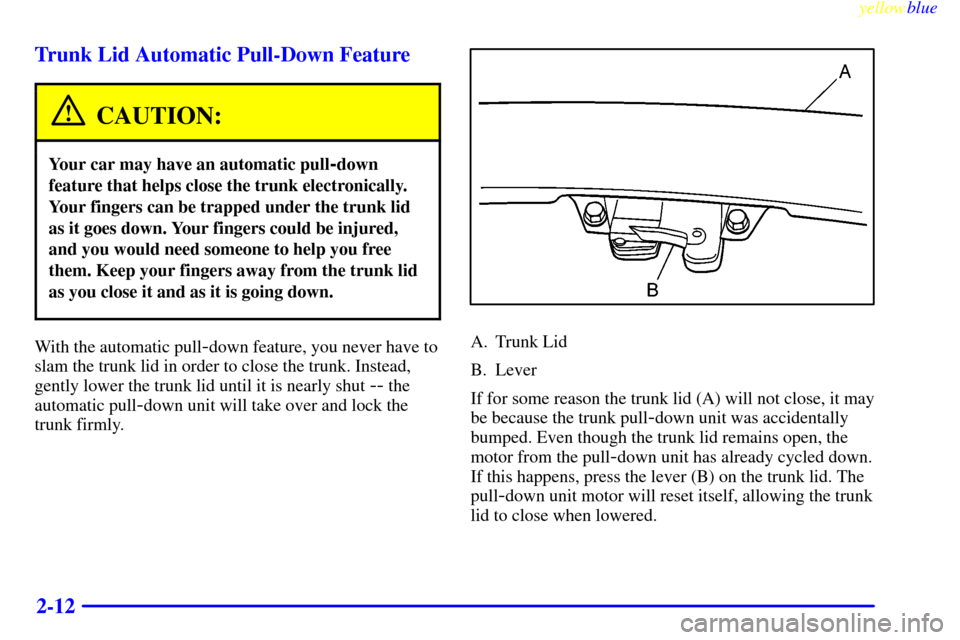

2-12 Trunk Lid Automatic Pull-Down Feature
CAUTION:
Your car may have an automatic pull-down
feature that helps close the trunk electronically.
Your fingers can be trapped under the trunk lid
as it goes down. Your fingers could be injured,
and you would need someone to help you free
them. Keep your fingers away from the trunk lid
as you close it and as it is going down.
With the automatic pull-down feature, you never have to
slam the trunk lid in order to close the trunk. Instead,
gently lower the trunk lid until it is nearly shut
-- the
automatic pull
-down unit will take over and lock the
trunk firmly.
A. Trunk Lid
B. Lever
If for some reason the trunk lid (A) will not close, it may
be because the trunk pull
-down unit was accidentally
bumped. Even though the trunk lid remains open, the
motor from the pull
-down unit has already cycled down.
If this happens, press the lever (B) on the trunk lid. The
pull
-down unit motor will reset itself, allowing the trunk
lid to close when lowered.

yellowblue
2-13
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a chime reminding you to remove your key
from the ignition and take it with you. Always do this.
Your steering wheel will be locked, and so will your
ignition and transaxle. And remember to lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it's best to lock it up and take your keys.
But what if you have to leave your ignition key?

If possible, park in a busy, well lit area.

Put your valuables in a storage area, like your
trunk or glove box. Be sure to close and lock the
storage area.

Close all windows.

Lock the glove box.

Lock all the doors except the driver's.

Then take the door key and remote keyless entry
transmitter with you.

yellowblue
2-14
Theft-Deterrent System (If Equipped)
If the ignition is off and
either door is open, the
SECURITY light will flash,
reminding you to activate
the system.
The light will also flash if the battery has been
disconnected and reconnected. To activate the
theft
-deterrent system:
1. Open the door.
2. Lock the door using the power door lock or the
remote keyless entry transmitter. The SECURITY
light should come on and stay on.
3. Close both doors. The SECURITY light should go
off within about 30 seconds.
The horn will sound and the lamps will flash for about
30 seconds when a door or the trunk is opened without
the key or the remote keyless entry transmitter. The horn
also sounds if the locks are damaged.Remember, the theft
-deterrent system won't activate if
you lock a door with a key or use the manual door lock.
It activates only if you use a power door lock switch or
the remote keyless entry transmitter.
To avoid activating the alarm by accident:

Always unlock a door with a key or use the remote
keyless entry transmitter. (Pressing the unlock button
on the remote keyless entry transmitter disables the
theft
-deterrent system.) Unlocking a door any other
way will activate the alarm. Cycling the ignition
without disarming the theft
-deterrent system will
also activate the alarm.

The vehicle should be locked with the door key after
the doors are closed if you don't want to activate the
theft
-deterrent system.
If you activate the alarm by accident, unlock either door
with your key. You can also turn off the alarm by using
the unlock button of the remote keyless entry
transmitter. The alarm won't stop if you try to unlock a
door any other way.

yellowblue
2-15 Testing the Alarm
1. From inside the vehicle, roll down the window, then
get out of the vehicle, keeping the door open.
2. From outside of the vehicle, with the door open, lock
the vehicle using the power door lock or the remote
keyless entry transmitter and close the door. Wait 30
seconds until the SECURITY light goes off.
3. Reach in and unlock the door using the manual lock
and open the door. The horn will sound and the
headlamps will flash.
If the alarm does not sound when it should, check to see
if the horn works. The horn fuse may be blown. To
replace the fuse, see ªFuses and Circuit Breakersº in the
Index. If the fuse does not need to be replaced, you may
need to have your vehicle serviced.
To reduce the possibility of theft, always activate the
theft
-deterrent system when leaving your vehicle.
Valet Lockout Button
Pressing the VALET
lockout button located
inside the glove box to
ON will disable the use of
the power trunk, fuel door
and garage door openers.
Pressing this button again
will make these features
reusable. Locking the
glove box with the door
key will also help to secure
your vehicle.
Note: The Remote Keyless Entry (RKE) transmitter
can't be used to open the trunk or fuel door if the
VALET lockout button is pressed in.

yellowblue
2-16
PASS-Key
II
Your vehicle is equipped
with the PASS
-Key II
theft
-deterrent system.
PASS
-Key II is a passive
system. The system is
armed when the key is
removed from the ignition.
PASS
-Key II uses a resistor pellet in the ignition key
that is read by the system in your vehicle. If the key
resistor matches the code stored in the vehicle system,
the vehicle's fuel and starting systems will be enabled. If
an incorrect key is used, the vehicle's fuel and starting
systems are disabled for three minutes. Additional
attempts during this lockout period will not start the car,
even with the correct key.If the engine does not start and the STARTING
DISABLED REMOVE KEY message is displayed in
the Driver Information Center, your key should be
checked for damage. Starting may be attempted with an
undamaged key immediately. See your dealer or a
locksmith for key service.
If the STARTING DISABLED REMOVE KEY and
WAIT 3 MINUTES messages are displayed, the key
should be cleaned. After three minutes, try again. A
START CAR message will appear at this time. If the
engine still does not start, wait three minutes and try a
duplicate key. At this time, fuses should be checked (see
ªFuses and Circuit Breakersº in the Index). If the engine
does not start with the duplicate key, your vehicle needs
service. See your dealer for service.
If the THEFT SYSTEM PROBLEM, CAR MAY
NOT START message is displayed during vehicle
operation, a fault has been detected in the system. This
means the PASS
-Key II system is disabled and is not
protecting the vehicle. The vehicle usually restarts. See
your dealer for service.
If an ignition key is lost or damaged, see your dealer or
a locksmith to have a new key made.
