1999 CADILLAC ELDORADO Owners Manual

yellowblue
3-19
Using DSP Mode
DSP: The Digital Signal Processing (DSP) feature is used
to provide a choice of four different listening experiences:
TALK, DRIVER SEAT, LIVE and AUDITORIUM. DSP
can be used while listening to the radio, the cassette tape
player or the CD player. Press this button to turn DSP on.
Press and release this button until you reach the desired
selection. To turn DSP off, press and hold this button until
DSP OFF appears on the display. When DSP OFF is
displayed, the system will provide the best overall Bose

performance. The radio keeps separate DSP settings for
each band (except weather band, which is always set to
TALK), preset and source.

TALK: This setting is used when listening to
non
-musical material such as news, talk shows,
sports broadcasts and books on tape. TALK makes
spoken words sound very clear.

DRIVER SEAT: This setting adjusts the audio to
give the driver the best possible sound qualities.
DRIVER SEAT can be used at any time for any
material. Rear seat passengers in the vehicle may not
get the same effect.

LIVE: This setting is used to enhance the stereo effect.

AUDITORIUM: This setting is used to make the
listening space seem larger.Adjusting the Speakers
TONE: Press and release this button until the desired
BALANCE or FADE control is found.
LEVEL: After selecting the desired BALANCE or
FADE control, press the plus (+) or minus (
-) symbol
on this button to select the desired level.
Playing a Cassette Tape
With the radio on, insert a cassette tape. The tape will
begin playing as soon as it is inserted. When one side of
your cassette tape is done playing, auto reverse plays the
other side of your cassette tape. Cassette tapes may be
loaded with the radio off but they will not start playing
until the radio is on. If you want to insert a cassette tape
when the ignition is off, first press the eject button.
While the tape is playing, use the VOL, TONE, LEVEL
and DSP controls just as you do for the radio. Other
controls may have different functions when a tape is
inserted. The display will show an underlined tape
symbol. TAPE PLAY will appear on the display when a
tape is playing, with an arrow to indicate which side of
the tape is playing.

yellowblue
3-20
If an error occurs while trying to play a cassette tape, it
could be that:

The cassette tape is tight and the cassette player
cannot turn the hubs of the tape. Hold the cassette
tape with the open end down and try turning the right
hub counterclockwise with a pencil. Flip the tape
over and repeat. If the hubs do not turn easily, your
cassette tape may be damaged and should not be
used in the player. Try a new tape to be sure your
player is working properly.

The cassette tape is broken. (Check to see if your
tape is broken. Try a new tape.)
RW: Press the left arrow to rewind the tape rapidly. The
radio will play while the tape rewinds. You may use
your station pushbuttons to tune to another radio station
while in RW mode. Press the left arrow again to return
to playing speed.
FF: Press the right arrow to fast forward to another part
of the tape. The radio will play while the tape advances.
You may use your station pushbuttons to tune to another
radio station while in FF mode. Press the right arrow
again to return to playing speed.TUNE-SEEK: When this button is pressed, it has two
positions. This button works the same, whether it is
pressed to the first or second position. Press this button
to seek to the next or previous selection on the tape.
Your tape must have at least three seconds of silence
between each selection for TUNE
-SEEK to work. The
sound will mute while seeking.
SCAN: Press this button to listen to selections for a few
seconds. The tape will go to a selection, stop for a few
seconds, then go on to the next selection. Press this
button again to stop scanning.
SIDE: Press this button to change the side of the tape
that is playing.
EJECT: Press the upward triangle button to the
right of the cassette tape player to remove a tape. The
radio will play. Eject may be activated with the radio off
and/or the ignition off.
CLEAN TAPE: If this message appears on the display,
the cassette tape player needs to be cleaned. It will still
play tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index. After you clean
the player, press and hold the eject button for three
seconds to reset the CLEAN TAPE indicator.

yellowblue
3-21
Your cassette tape player automatically reduces
background noise from tapes encoded with Dolby NR.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double
-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
Auto CrO
2 allows the cassette tape player to adjust to
the type of cassette tape for clearer sound for CrO
2cassette tapes.
Playing a Compact Disc
Insert a disc partway into the slot, label side up. The
player will pull it in. If the ignition and the radio are on
and the underlined compact disc symbol appears on the
display, the disc will begin playing. Compact discs may
be loaded with the radio off but they will not start
playing until the radio is on. If you want to insert a disc
when the ignition is off, first press the eject button.
The integral CD player can play the smaller 8 cm
compact discs. Full
-size compact discs and the smaller
compact discs are loaded in the same manner.
If you're driving on a very rough road or if it's very hot, the
disc may not play. If the disc comes out, it could be that:

The disc is upside down.

It is dirty, scratched or wet.
The air is very humid. (If so, wait about an hour and
try again.)
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer.
RW: Press and hold the left arrow to reverse the
compact disc. Release it to return to playing speed.
FF: Press and hold the right arrow to fast forward to
another part of the compact disc. Release it to return to
playing speed.
TUNE
-SEEK: When this button is pressed, it has two
positions. This button works the same, whether it is
pressed to the first or second position. Press this button to
seek to the next or previous selection on the compact disc.
SCAN: Press this button to listen to selections for a few
seconds. The compact disc will go to a selection, stop
for a few seconds, then go on to the next selection. Press
this button again to stop scanning.
RDM: Press this button to hear the tracks in random,
rather than sequential, order. Press RDM again to turn
off random play.
EJECT: Press the upward triangle button to the
right of the compact disc player to remove a compact
disc. The radio will play. Eject may be activated with the
radio off and/or the ignition off.

yellowblue
3-22 Radio Data Systems (RDS) Program Type
(PTY) Selections
PTY List Description
Adlt Hit Adult Hits. . . . . . . . . . . . . . . . . . . . . . . . . . .
Any Any. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Classicl Classical. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cls Rock Classical Rock. . . . . . . . . . . . . . . . . . . . . . .
College College. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Country Country. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Info Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jazz Jazz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Language Language. . . . . . . . . . . . . . . . . . . . . . . . . . .
News News. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Nostalga Nostalgia. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oldies Oldies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Persnlty Personality. . . . . . . . . . . . . . . . . . . . . . . . . .
Public Public. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
R & B Rhythm and Blues. . . . . . . . . . . . . . . . . . . . . . .
Rel Musc Religious Music. . . . . . . . . . . . . . . . . . . . .
Rel Talk Religious Talk. . . . . . . . . . . . . . . . . . . . . . . . PTY List Description
Rock M Rock Music. . . . . . . . . . . . . . . . . . . . . . . . . . .
Soft Soft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Soft Rock Soft Rock. . . . . . . . . . . . . . . . . . . . . . . . . .
Sports Sports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Talk Talk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Top 40 Top 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weather Weather. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Factory PTY Presets
PresetFM1FM2
Preset 1Adult HitsJazz
Preset 2ClassicalOldies
Preset 3NewsReligious Music
Preset 4PublicSoft Rock
Preset 5RockR & B
Preset 6CountryTop 40

yellowblue
3-23 CD Adapter Kits
It is possible to use a CD adapter kit with your cassette
tape player after activating the bypass feature on your
tape player.
To activate the bypass feature, use the following steps:
1. Turn the ignition to RUN or ACCESSORY.
2. Turn the radio off.
3. Press and hold the SOURCE button for two seconds.
The tape symbol on the display will flash three
times, indicating the feature is active.
4. Insert the adapter.
This override routine will remain active until the eject
button is pressed.
Trunk-Mounted CD Changer (If Equipped)
With the compact disc changer, you can play up to
12 discs continuously. Normal size discs may be
played using the trays supplied in the magazine. The
smaller discs (8 cm) can be played only with specially
designed trays.
NOTICE:
Objects in the trunk which may shift or slide
during driving could damage your CD changer.
Protect your CD changer by using the
convenience net whenever possible. Place large
objects in the trunk appropriately so that they
will not come into contact with the CD changer.

yellowblue
3-24
You must first load the magazine with discs before you
can play a compact disc. Each of the 12 trays holds one
disc. Press the button on the back of the magazine and
pull gently on one of the trays. Load the trays from
bottom to top, placing a disc on the tray, label side
down. If you load a disc label side up, the disc will not
play and an error will occur. Gently push the tray back
into the magazine slot. Repeat this procedure for loading
up to 12 discs in the magazine.

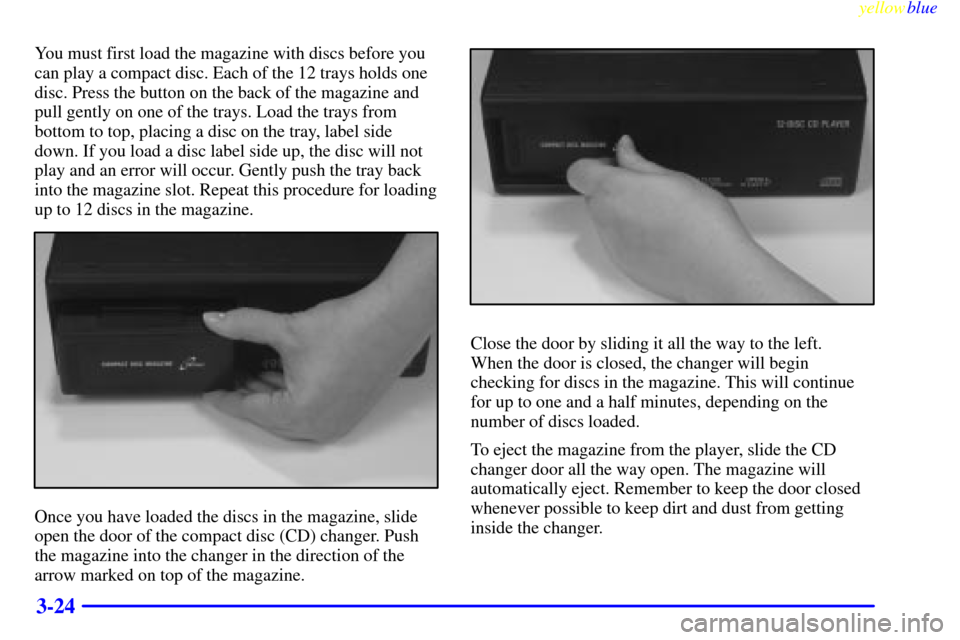

Once you have loaded the discs in the magazine, slide
open the door of the compact disc (CD) changer. Push
the magazine into the changer in the direction of the
arrow marked on top of the magazine.
Close the door by sliding it all the way to the left.
When the door is closed, the changer will begin
checking for discs in the magazine. This will continue
for up to one and a half minutes, depending on the
number of discs loaded.
To eject the magazine from the player, slide the CD
changer door all the way open. The magazine will
automatically eject. Remember to keep the door closed
whenever possible to keep dirt and dust from getting
inside the changer.

yellowblue
3-25
Whenever a CD magazine with discs is loaded in the
changer, the CD changer symbol will appear on the
radio display. If the CD changer is checking the
magazine for CDs, the CD symbol will flash on the
display until the changer is ready to play. When a CD
begins playing, a disc and track number will be
displayed. The disc numbers are listed on the front of
the magazine.
All of the CD functions are controlled by the radio
buttons, except for ejecting the CD magazine.
PUSHBUTTONS: Press buttons one through six to
select compact discs one through six. Press and hold one
of the six pushbuttons until a beep sounds to select
compact discs 7 through 12. These pushbuttons
represent the order of the discs loaded in the changer.
DSPL: Press and hold this button to see the track
elapsed time. (This button is available on the AM
-FM
Stereo with Cassette Tape Player only.)
REV/RW: Press and hold this button to reverse quickly
through a track selection.
FF: Press and hold this button to advance quickly
through a track selection.
If your vehicle is equipped with the AM
-FM Stereo with
Cassette Tape Player, use SEEK
-TUNE. For all other
audio systems, use TUNE
-SEEK.SEEK
-TUNE: Press the right arrow to seek to the next
selection. Press the left arrow to search for the previous
track selection. The sound will mute while seeking.
TUNE
-SEEK: When this button is pressed, it has
two positions. This button works the same, whether it
is pressed to the first or second position. Press this
button to seek to the next or previous selection on the
compact disc.
SCAN: Press this button. You will hear the first few
seconds of the first track on each disc. Press this button
again to stop scanning. (This button is available on the
AM
-FM Stereo with Cassette Tape Player only.)
TRACK SCAN: Press SCAN for less than two seconds.
You will hear the first few seconds of each track on a
disc. Press SCAN again to stop TRACK SCAN. The CD
will mute while scanning and SCAN will appear on the
display. (This function is not available on the AM
-FM
Stereo with Cassette Tape Player.)
DISC SCAN: Press SCAN for more than two seconds.
You will hear the first few seconds of the first track on
each disc. Press SCAN again to stop DISC SCAN. The
CD will mute while scanning and SCAN will appear on
the display. (This function is not available on the
AM
-FM Stereo with Cassette Tape Player.)

yellowblue
3-26
RDM: Press this button to hear the tracks in random,
rather than sequential, order. RANDOM will appear on the
display. Press TUNE
-SEEK while RDM is on the display
to randomly seek through discs. Press RDM again to turn
off random play. (This button is not available on the
AM
-FM Stereo with Cassette Tape Player.)
SIDE: Press this button to select the next disc in the
changer. If your vehicle is equipped with the AM
-FM
Stereo with Cassette Tape Player, CD and the disc number
will appear on the display each time you press this button.
If your vehicle is equipped with any other audio system,
DISC LOADING will appear on the display and the disc
number on the radio display will go to that of the next
available CD each time you press this button.
SOURCE: Press this button to select a source. The
audio source must be loaded to play. If none of the audio
sources are loaded, NO SOURCE LOADED will appear
on the display. Press this button again or press BAND to
switch back to the radio. (CD will be displayed for a few
seconds instead on the AM
-FM Stereo with Cassette
Tape Player, then the radio will play.)
EJECT: Slide the CD changer door all the way open
and the disc holder will automatically eject.Compact Disc Changer Errors
CD CHANGER ERROR could be displayed for
the following:

The road is too rough. The disc should play when the
road is smoother.

The disc is dirty, scratched, wet or loaded label
side up.

The air is very humid. If so, wait about an hour and
try again.
CD CHANGER DOOR OPEN is displayed when the
CD changer door is left open. (CHEK DOOR will be
displayed instead on the AM
-FM Stereo with Cassette
Tape Player.) Completely close the changer door to
restore normal operation.
If any error occurs repeatedly or if an error cannot be
corrected, please contact your dealer.
