1999 CADILLAC ELDORADO Owners Manual

yellowblue
6-59 Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of fires caused
by electrical problems.
Look at the silver
-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don't have a
spare fuse, you can ªborrowº one that has the same
amperage. Pick some feature of your vehicle that you
can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace it as soon as you can.
There are two fuse blocks in your vehicle: the
underhood fuse block and the rear compartment

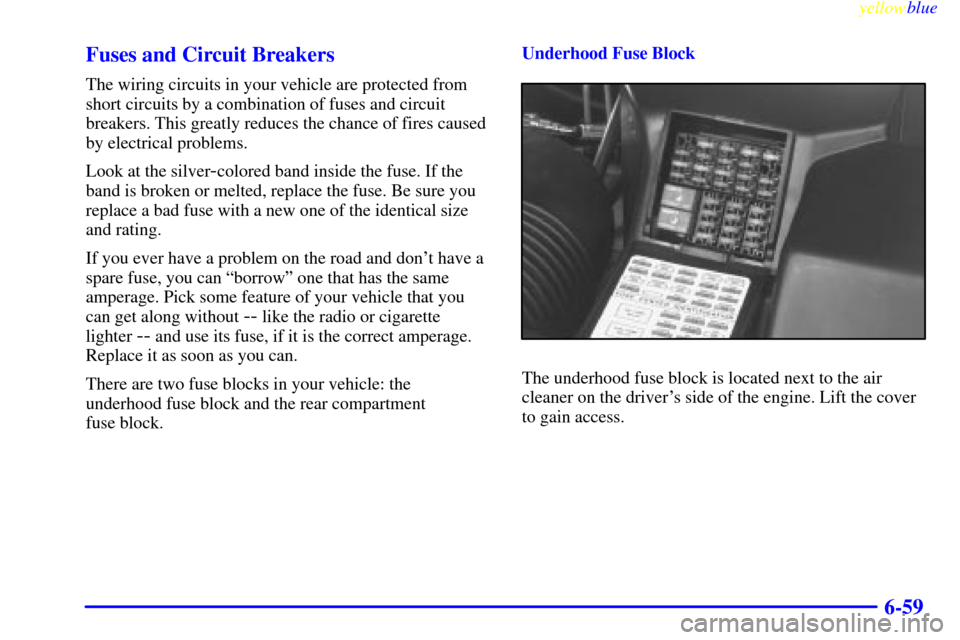

fuse block.Underhood Fuse Block
The underhood fuse block is located next to the air
cleaner on the driver's side of the engine. Lift the cover
to gain access.

yellowblue
6-60
Fuse Usage
DRL Daytime Running Lamps (DRL)
CNR LPS Cornering Lamp Switch, Right and
Left Cornering Lamps
INT LPS Trunk Lamp, Courtesy Lamps,
Front Vanity Lamps, Glove Box
Lamp, Garage Door Opener,
Courtesy Lamp RelayFuse Usage
CIG LTR1 Front and Rear Cigarette Lighters
CIG LTR 2 Right and Left Rear Cigarette
Lighters
L HDLP LO Left Low
-Beam Headlamp
R HDLP LO Right Low
-Beam Headlamp
L HDLP HI Left High
-Beam Headlamp
R HDLP HI Right High
-Beam Headlamp
FOG Front Fog Lamp Relay, Right and
Left Front Fog Lamps,
Headlamp Switch
HDLPS Headlamp Relay, High/Low
-Beam
Control Relay, Right and Left
Low/High
-Beam Fuses
HAZARD Electronic Flasher Module,
Turn/Hazard Switch, Right and Left
Front Turn Lamps, Right and Left
Rear Turn Lamps, Right and Left
Repeater Lamps (Export), Cluster

yellowblue
6-61
Fuse Usage
STOP Stoplamp Switch, Centered
High
-Mounted Stoplamp (CHMSL),
Turn Hazard Switch, ABS
Controller, Stepper Motor Cruise
Control, Right and Left Rear
Stoplamps (Export)
MIRROR Inadvertent Power Relay, Left
Outside Rearview Mirror Switch,
ALDL, Memory Mirror Module,
Dimmer Switch, Cluster
DRL Daytime Running Lamp (DRL)
Relay, Left and Right Low Beam in
DRL Mode, DRL Switch
IGN 0 (ENG) Powertrain Control Module (PCM)
SPARE Not Used
ABS Anti
-Lock Brake System
(ABS)/Traction Control System
IGN
-1 Rear Ignition-1 Relay, Front Fog
Lamp Relay, Rear Fog Lamp Relay
(Export), Controlled Power Backup
Relay, DRL RelayFuse Usage
WIPERS Accessory Relay, Wiper Switch
A/C COMP AC Compressor Relay, Cooling
Fan Relays 1, 2, 3,
Compressor Clutch
PCM (BAT) PCM
PARK/REV Reverse Relay, Right and Left
Back
-Up Lamps, Electrochromic
Mirror (in Header), Park Relay,
Brake Transaxle
-Shift Interlock
(BTSI) Switch, Passenger Zone
Module (PZM)
ECS Transaxle Shift Solenoids, Mass
Airflow, Canister Purge, PCM,
Linear Exhaust Gas Recirculation
(EGR), Front Ignition
-1 Relay
PCM (IGN) Powertrain Control Module (PCM)
DIS Electronic Ignition Control Module
CRUISE Stepper Motor Cruise Control,
Power Steering Pressure Switch,
Low Refrigerant Pressure Cutoff
Switch, Park Relay

yellowblue
6-62
Fuse Usage
INJ Injectors 1, 4, 6, 7
INJ Injectors 2, 3, 5, 8
FUEL PUMP PCM, Fuel Pump Relay, Fuel Pump
OXY SEN1 Oxygen Sensor Front
OXY SEN2 Oxygen Sensor Rear, Catalytic
Converter (CAT) Rear
Oxygen Sensor
Relays
A/C COMP RELAY
FUEL PUMP RELAY
Rear Compartment Fuse Block
The fuse block is located on the front wall of the trunk
(behind the rear seat) on the driver's side. Loosen the
four trunk trim fasteners and pull the trim away from the
fuse block to gain access.Fuse Usage
RLY IGN1 Cluster, Cruise in Stalk, Passenger
Zone Module (PZM), Traction
Control System (TCC) Switch
SIR Sensing and Diagnostic
Module (SDM)
ELC Electronic Level Control (ELC)
Relay, ELC (AC) Compressor
TURN Electronic Flasher,
Turn/Hazard Switch
CONSOLE Rear Zone Blower, Right and Left
Heated Seat Switches (Optional)
BRAKE Brakes
SPARE Not Used
RSS Road Sensing Suspension (RSS)
Module (ETC Only)
IGN 0
-BODY PRNDL, PZM, Cluster, Air
Control Module (ACM), Upper
Zone Motor, Lower Zone Motor
(Optional), HVAC Solenoids,
Climate Control Panel Analog
Cluster, Rear Defog Relay,
ELC Relay

yellowblue
6-63
Fuse Usage
COMFORT CD Player, Remote Keyless Entry
(RKE), Controlled Power Relay,
Air Control Module (ACM), PZM
AMP (Bose
Only) (Optional)Right and Left Hand Bose Relay,
Right and Left Front Speakers
(On Door), Right and Left Rear
Speakers, Bose Amplifier
PZM Passenger Zone Module (PZM)
RADIO/PHONE Radio Receiver, Radio Interface
Module (RIM) (Bose Only),
Phone, DAB Relay, Trunk Release
Relay, Fuel Door Release Relay,
High/Low
-Beam Relay
CLUSTER Steering Wheel Controls, Cluster
ACC PZM, Electrochromic Mirror,
Rain Sensor (Optional),
Accessory Relay
SPARE Not Used
HTD MIR Right and Left Outside
Heated MirrorFuse Usage
HTD SEAT R Passenger Heated Seat
Relay (Optional)
HTD SEAT L Driver Heated Seat
Relay (Optional)
PULL DOWN Trunk Pull
-Down Motor
HDLP WASH Headlamp Washers
ANTENNA Power Mast Antenna
RSS Damper Relay (ETC Only)
CONVENC Trunk Release Relay, Trunk
Release Solenoid, Fuel Door
Release Relay, Fuel Filler Door
Release Solenoid, Door Lock
Relay, Left Front Door Motors,
PZM, Door Unlock Relay
BATT Driver and Passenger Seat Lumbar
Switch (Optional), Driver and
Passenger Seat Belt Comfort
Solenoid, Memory Seat Module
RSS Road Sensing Suspension (RSS)
Module (ETC Only)

yellowblue
6-64
Fuse Usage
RT PARK Headlamp Switch, Right Front
Parking Lamp, Right Front and
Rear Sidemarker Lamps, Right
Park Position Lamp (Export),
Right Turn/Stop/Tail Lamps, Rear
Fog Lamp Relay (Export), Right
and Left Rear Fog Lamps (Export)
LT PARK Left Front and Rear Sidemarker
Lamps, Left Front Parking Lamp,
Left Park Position Lamp (Export),
Left Turn/Stop/Tail Lamps, Right
and Left License Lamps,
Underhood LampReplacement Bulbs
ApplicationNumber
Headlamps Composite
Inner High Beam 9005. . . . . . . . . . . . . . . . . . . . . . .
Outer Low Beam 9006. . . . . . . . . . . . . . . . . . . . . . .
Front Turn Signal 2357 NA. . . . . . . . . . . . . . . . . . . . .
Center High
-Mounted Stoplamp (CHMSL) 1156. . .
Rear Turn Signal and Taillamp 2057. . . . . . . . . . . . .

yellowblue
6-65
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions. Please refer to
ªRecommended Fluids and Lubricantsº in the
Maintenance Schedule booklet for more information.
Engine Specifications
Displacement 279 cubic inches (4 565 cc). . . . . . . . .
Type 4.6 L DOHC V8. . . . . . . . . . . . . . . . . . . . . . . . .
VIN Engine Code
Eldorado Y. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ETC 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horsepower
Eldorado 275 (bhp) @ 5600 rpm. . . . . . . . . . . . . . .
205 (kW) @ 5600 rpm
ETC 300 (bhp) @ 6000 rpm. . . . . . . . . . . . . . . . . . .
224 (kW) @ 6000 rpm
Torque
Eldorado 300 (lb
-ft) @ 4000 rpm . . . . . . . . . . . . . .
407 (N´m) @ 4000 rpm
ETC 295 (lb
-ft) @ 4400 rpm . . . . . . . . . . . . . . . . . .
400 (N´m) @ 4400 rpm
Firing Order 1
-2-7-3-4-5-6-8 . . . . . . . . . . . . . . . . . . .
Thermostat Starts To Open 177
-184
F (81-85
C) . .
Wheel Nut Torque
100 lb-ft (140 N´m)
Capacities
Transaxle (4T80-E) 15.0 quarts (14.2 L). . . . . . . . . .
Crankcase (Engine Oil with
Filter Change) 7.5 quarts (7.1 L). . . . . . . . . . . . . . .
Engine Cooling System 12.5 quarts (11.8 L). . . . . . . .
Fuel Tank 20.0 gallons (75.7 L). . . . . . . . . . . . . . . . . .
R
-134a Refrigerant 2.0 lbs. (0.91 kg). . . . . . . . . . . . .
NOTE: All capacities are approximate. When adding, be
sure to fill to the approximate level, as recommended in
this manual. Recheck fluid level after filling.
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you're not sure, ask your dealer.

yellowblue
6-66
Normal Maintenance
Replacement Parts
Air Filter Element AC Type A1096C. . . . . . . . . . . . .
Fuel Filter Element AC Type GF
-650 . . . . . . . . . . . .
Engine Oil Filter AC Type PF
-58 . . . . . . . . . . . . . . . .
PCV Valve AC Type CV
-774C . . . . . . . . . . . . . . . . . .
Spark Plugs AC Type 41
-950 . . . . . . . . . . . . . . . . . . .
Thermostat AC Type 131
-66 . . . . . . . . . . . . . . . . . . . .
Windshield Wiper Blade
(Pin Type) 22 inches (56.5 cm). . . . . . . . . . . . . . . . .
Vehicle Dimensions
Wheel Base 108.0 inches (274.3 cm). . . . . . . . . . . . .
Length 200.6 inches (509.5 cm). . . . . . . . . . . . . . . . .
Height 53.6 inches (136.1 cm). . . . . . . . . . . . . . . . . . .
Width 75.5 inches (191.8 cm). . . . . . . . . . . . . . . . . . .
Front Tread 60.9 inches (154.6 cm). . . . . . . . . . . . . . .
Rear Tread 60.9 inches (154.6 cm). . . . . . . . . . . . . . .
