1999 CADILLAC ELDORADO Owners Manual

yellowblue
2-33
Tilt Wheel
Tilt steering allows you to adjust the steering wheel
before you drive. Raising the steering wheel to the
highest level gives your legs more room when you enter
and exit the vehicle.
Hold the steering wheel and pull the lever toward you to
tilt the wheel. Adjust the steering wheel to a comfortable
position and then release the lever to lock the wheel
in place.
Turn Signal/Multifunction Lever
Turn and Lane Change Signals
To signal a turn, move the lever all the way up or
down. The lever returns automatically when the turn
is complete.
An arrow on the instrument
panel will flash in the
direction of the turn or
lane change.
Raise or lower the lever until the arrow starts to flash to
signal a lane change. Hold it there until the lane change
is complete. The lever returns when it's released.
If the turn signal is left on, a warning chime will
sound and the Driver Information Center (DIC) will
display TURN SIGNAL ON (after driving about
1 mile (1.6 km/h)) to remind you to turn it off.

yellowblue
2-34
Arrows that flash rapidly when signaling for a turn or
lane change may be caused by a burned
-out signal bulb.
Other drivers won't see the turn signal.
Replace burned
-out bulbs to help avoid possible
accidents. Check the fuse (see ªFuses and Circuit
Breakersº in the Index) and for burned
-out bulbs if the
arrow fails to work when signaling a turn.
Headlamp High/Low Beam
Pull the turn signal lever all the way toward you and
then release it to change the headlamps from low beam
to high or from high beam to low.
This light on the instrument
panel will be on, indicating
high beam usage.
Flash-To-Pass
This lets you use the high-beam headlamps to signal the
driver in front of you that you want to pass.
Pull the turn signal lever toward you to use. When
you do:

If the headlamps are either off or in the Daytime
Running Lamps (DRL) mode, the high
-beam
headlamps will turn on. They'll stay on as long as
you hold the lever there. Release the lever to turn
them off.

If the headlamps are on low beam, they will shift to
high beam and stay there. Pull the lever toward you
to return to low beam.

If the headlamps are on high beam, they will switch
to low beam. To return to high beam, pull the lever
toward you.

yellowblue
2-35 Windshield Wipers
WIPER: Turn the band on the turn signal lever to
control the wipers.
MIST: Turn the band toward you and then release it for
a single wiping cycle. For more cycles, hold the band on
MIST longer.
LO or HI: Turn the band away from you to either LO
(low speed) or to HI (high speed), depending on the
wiper speed you want.
DELAY: You can set the wiper speed for a long or short
delay between wipes with this setting. Turn the band to
the DELAY position. The closer you turn it to LO, the
shorter the delay.OFF: Turn the band to OFF to turn off the wipers.
Be sure to clear ice and snow from the wiper blades
before using them. If they're frozen to the windshield,
carefully loosen or thaw them. If the blades do become
damaged, get new blades or blade inserts.
Heavy snow or ice can overload the wiper motor. A
circuit breaker will stop the motor until it cools. Clear
away snow or ice to prevent an overload.
Rainsense
Wipers (ETC Only)
This moisture sensor is mounted on the passenger's
interior side of the windshield behind the rearview
mirror and is used to automatically operate the wipers
by monitoring the amount of moisture that is on
the windshield.

yellowblue
2-36
The Rainsense system can be activated by turning the
wiper stalk to one of the five sensitivity levels within the
AUTO DELAY area. The AUTO DELAY position
closest to OFF is the lowest sensitivity setting. This
allows more water to collect on the windshield between
wipes. Turning the stalk away from you to the other
AUTO DELAY settings increases the sensitivity of the
system and frequency of wipes. A single wipe will occur
each time you turn the wiper stalk to a higher sensitivity
level. An initial wipe occurs when you turn the ignition
on as a reminder that Rainsense is active. The
windshield wipers also remain in a ªhigh parkº position
(when the wipers are stopped on the windshield and are
not in its normal park position), even when the ignition
is turned off.
The Rainsense wipers operate in a delay mode as well as
a continuous low or high speed depending on the
amount of moisture and the sensitivity level. The MIST
and ªwashº cycles operate as normal and are not
affected by the Rainsense function.
NOTICE:
The wipers must be turned off when going
through a car wash to avoid damage.
It is important to note that the Rainsense wiping feature
(AUTO DELAY) can be overridden at any time by
manually changing the wiper control to LO or HI speed.
Note: If you ever need to replace the windshield, make
sure it is Rainsense compatible.
Windshield Washer
CAUTION:
In freezing weather, don't use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
At the top of the turn signal/multifunction lever there
is a paddle with the word PUSH on it. To spray washer
fluid on the windshield, press and release this paddle.
The wipers will clear the windshield and either stop or
return to your preset speed. For more washer cycles,
press and hold the paddle.
LOW WASHER FLUID will be displayed on the
Driver Information Center (DIC) when the washer
fluid reaches a low level.

yellowblue

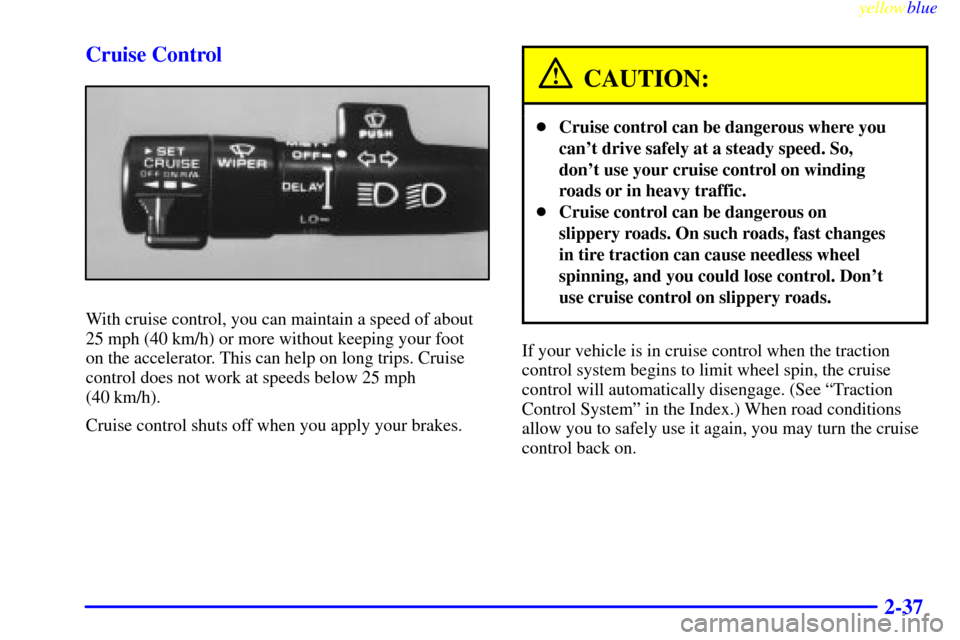

2-37 Cruise Control
With cruise control, you can maintain a speed of about
25 mph (40 km/h) or more without keeping your foot
on the accelerator. This can help on long trips. Cruise
control does not work at speeds below 25 mph
(40 km/h).
Cruise control shuts off when you apply your brakes.
CAUTION:

Cruise control can be dangerous where you
can't drive safely at a steady speed. So,
don't use your cruise control on winding
roads or in heavy traffic.

Cruise control can be dangerous on
slippery roads. On such roads, fast changes
in tire traction can cause needless wheel
spinning, and you could lose control. Don't
use cruise control on slippery roads.
If your vehicle is in cruise control when the traction
control system begins to limit wheel spin, the cruise
control will automatically disengage. (See ªTraction
Control Systemº in the Index.) When road conditions
allow you to safely use it again, you may turn the cruise
control back on.

yellowblue
2-38
Setting Cruise Control
CAUTION:
If you leave your cruise control switch on when
you're not using cruise, you might hit a button
and go into cruise when you don't want to. You
could be startled and even lose control. Keep the
cruise control switch off until you want to use it.
1. Move the cruise control switch to ON.
2. Accelerate to the speed you want.
3. Press the SET CRUISE button at the end of the lever
and release it. The CRUISE ENGAGED message
will display on the Driver Information Center (DIC).
4. Remove your foot from the accelerator pedal.
Resuming a Set Speed
Setting the cruise control at a desired speed and then
applying the brake will end the cruise function.Once you're going about 25 mph (40 km/h) or more,
you can move the cruise control switch from ON to R/A
(Resume/Accelerate) for about half a second to reset.
This returns you to your desired preset speed. Also note
that the Driver Information Center (DIC) will display
the CRUISE ENGAGED message again.
Remember, if you hold the switch at R/A longer than
half a second, the vehicle will accelerate until you
release the switch or apply the brake. So unless you
want to go faster, don't hold the switch at R/A.
Increasing Speed While Using Cruise Control
There are two ways to go to a higher speed:

Use the accelerator pedal to get to the higher speed.
Push the button at the end of the lever and then
release the button and the accelerator pedal. You'll
now cruise at the higher speed.

Move the cruise switch from ON to R/A. Hold it there
until you reach a desired speed and then release the
switch. (To increase your speed in very small amounts,
move the switch to R/A. Each time you do this, your
vehicle will go about 1 mph (1.6 km/h) faster.)
The accelerate feature will only work after you have set the
cruise control speed by pushing the SET CRUISE button.

yellowblue
2-39
Reducing Speed While Using Cruise Control
There are two ways to reduce your speed while using
cruise control:

Push in the button at the end of the lever until you
reach a desired lower speed, then release it. A
CRUISE ENGAGED message will then display in
the Driver Information Center (DIC).

To slow down in very small amounts, push the
button for less than half a second. Each time you do
this, you'll go 1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase your speed. When
you take your foot off the pedal, your vehicle will slow
down to the cruise control speed you set earlier.Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load and the steepness of the hills.
When going up steep hills, you may have to step on the
accelerator pedal to maintain your speed. When going
downhill, you may have to brake or shift to a lower gear
to keep your speed down. Of course, applying the brakes
or downshifting into FIRST (1) takes you out of cruise
control. Many drivers find this to be too much trouble
and don't use cruise control on steep hills.
Ending Cruise Control
There are two ways to end cruise control:

Step lightly on the brake pedal.

Move the CRUISE switch to OFF.
Erasing Speed Memory
The cruise control set speed memory is erased when you
turn off the cruise control or the ignition.

yellowblue
2-40
Exterior Lamps
The control on the left
side of the instrument
panel controls these
lamp systems:

Headlamps

Taillamps

Parking Lamps

Sidemarker Lamps

License Plate Lamp

Underhood Lamp

Fog Lamps

Instrument Panel Lights

Interior Courtesy Lamps
Instrument panel backlighting will activate whenever
the lamps or lights are turned on.
Parking Lamps
Pull the exterior lamp control knob out to the first stop to
turn on the parking as well as the taillamps, sidemarker
lamps and instrument panel lights. Push the control knob
all the way back in to turn the lamps and lights off.
Headlamps
Pull the exterior lamp control knob out all the way to
turn on the headlamps. Push the control knob all the way
back in to turn the headlamps off.
Wiper
-Activated Headlamps
This feature activates the headlamps and parking lamps
after the windshield wipers have been in use for
approximately 20 seconds.
In order to operate the wiper
-activated headlamps, the
Twilight Sentinel must be turned on. This feature
lights the way in poor weather and it also makes your
vehicle more visible to other drivers. If the
wiper
-activated headlamps are on, and the ignition
switch is turned off, the wiper
-activated headlamps will
immediately turn off.
The wiper
-activated headlamps will deactivate if you
turn off the Twilight Sentinel or if the windshield wipers
have been turned off for a period of one or two seconds.
