1998 JAGUAR X308 generator

1415) on the centre bolt of the belt tensioner idler
pulley, rotate the adjuster against spring tension.
3. Whilst holding the tensioner against spring tension, pass the drive belt over the generator pulley and
check that it is correctly located on the other pulleys.
Release the tensioner slowly and remove the
spanner. Check the alignment of the belt.
9. Fit the supercharger drive belt tensioner; refer to operation
18.50.24.
10. Fit the supercharger drive belt ; refer to operation 18.50.08.
11. Refit the fan and motor asse mbly; refer to Operation
26.25.12.
12. Refit the air cleaner assembly; refer to Operation 19.10.05.
13. Reconnect the battery ground cable and fit the battery cover.
Reset the radio inform ation and the clock.

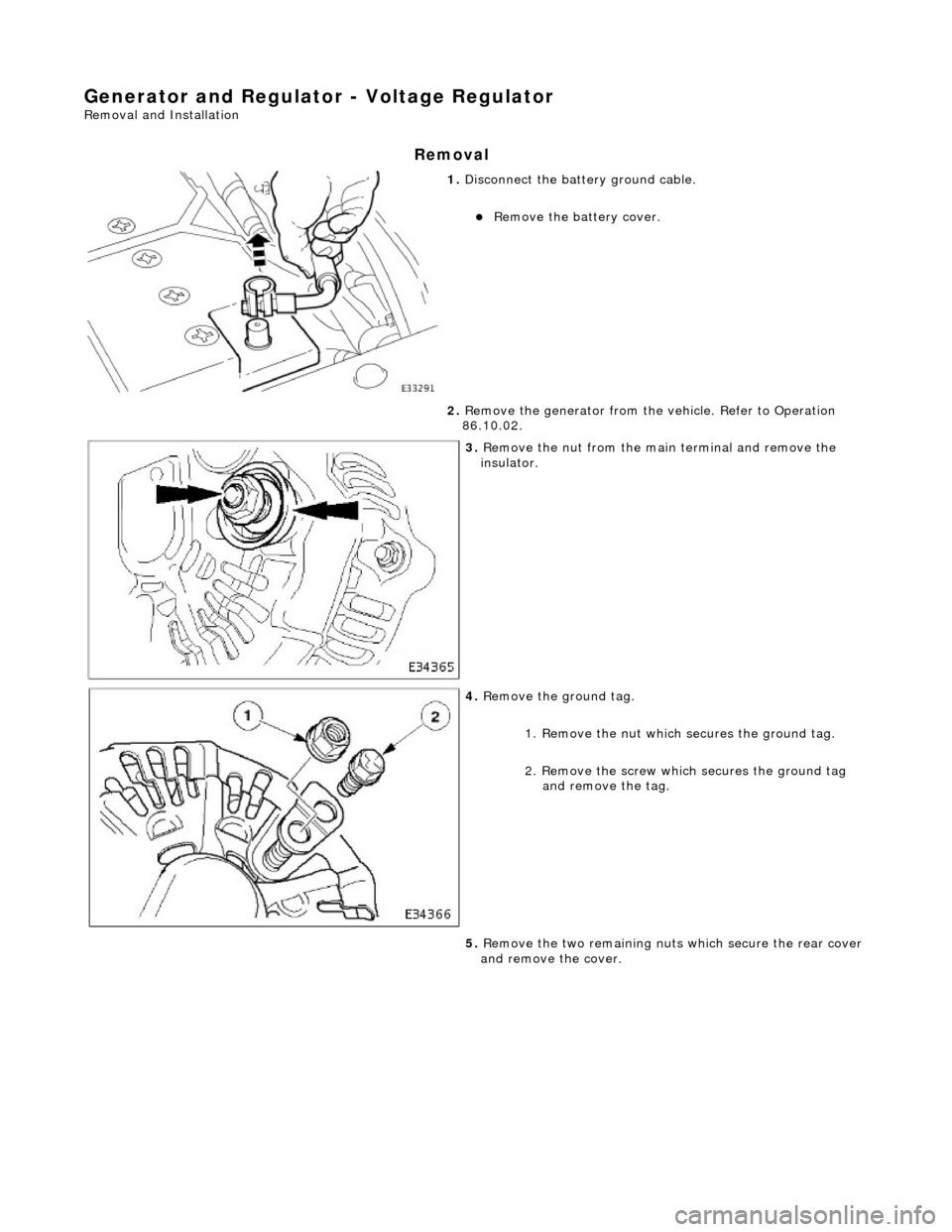

Generator and Regulator - Voltage Regulator
Removal and Installation
Removal

1. Disconnect the batt ery ground cable.
Remove the battery cover.
2. Remove the generator from the vehicle. Refer to Operation
86.10.02.

3. Remove the nut from the main terminal and remove the
insulator.

4. Remove the ground tag.
1. Remove the nut which secures the ground tag.
2. Remove the screw which secures the ground tag and remove the tag.
5. Remove the two remaining nuts which secure th e rear cover
and remove the cover.

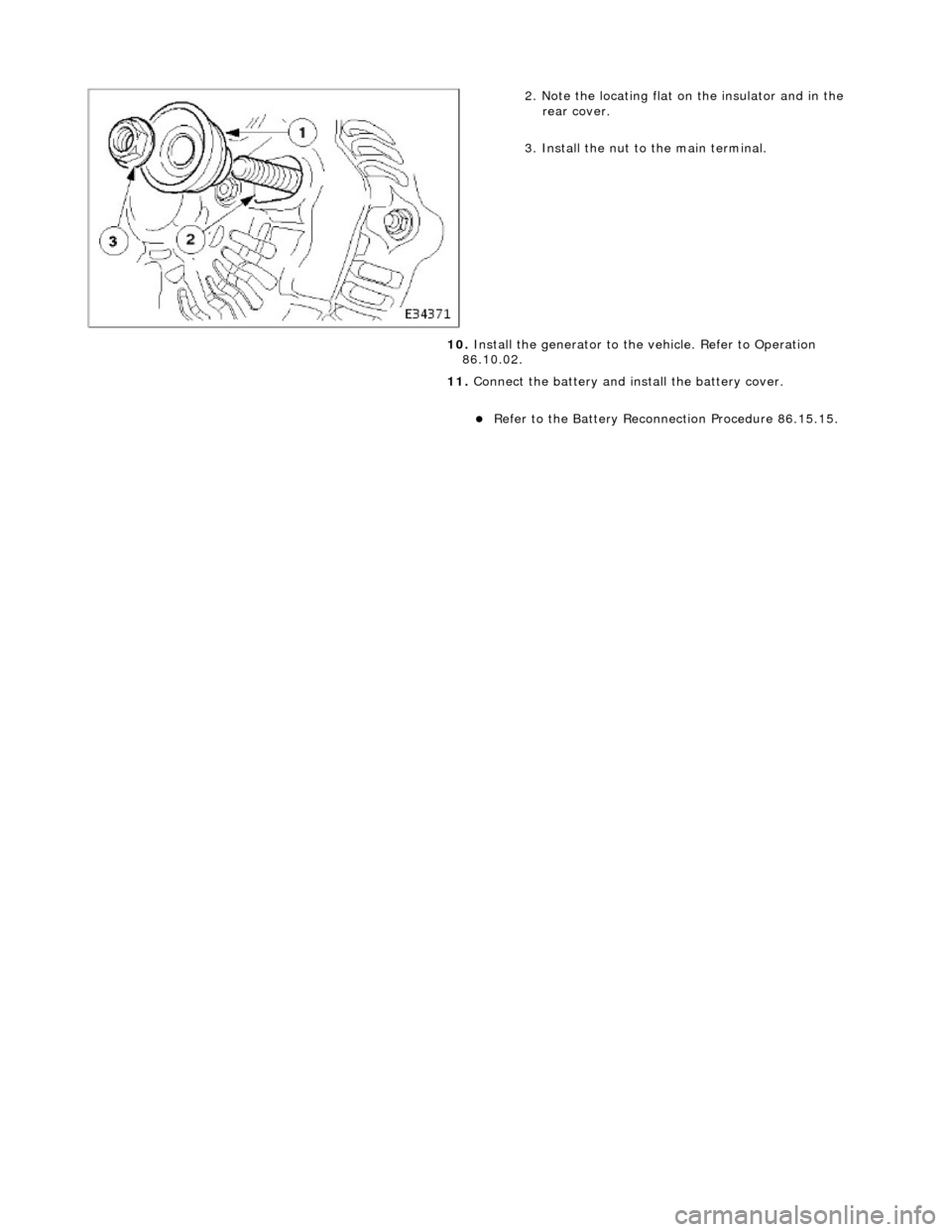

2. Note the locating flat on the insulator and in the rear cover.
3. Install the nut to the main terminal.
10. Install the generator to the vehicle. Refer to Operation
86.10.02.
11. Connect the battery and in stall the battery cover.
Refer to the Battery Reconnection Procedure 86.15.15.

A pyrotechnic front seat belt pre-tensioning device with independent el ectronic sensing and retractor unit is installed at the
base of each 'B' post. In the event of se vere frontal impact, this provides additional front occupant protection by removing
any excess slack from the seat be lt. Seat belt pre-tensioning activates when a frontal impact of sufficient force occurs within
30 degrees of vehicle center line. Under such an impact, el ectronic sensors in the retractor unit fire, igniting the pre-
tensioner gas generator. The ga s generator initiates a chemical reaction, producing gases under pressure. Gas pressure
drives the piston/cable up a tube, rotating the retractor sp indle and removing excess slack from the seat belt. When the
pre-tensioner unit has been activated, the seat belt will lock and cannot be retracted or pulled from the reel.If a seat belt
pre-tensioner activates, a small quantity (less than 1 liter) of gas is produced containing nitrogen, oxygen and water vapor.

8. Remove generator front cooling duct.
Remove bolt.
Move duct rearwards to rele ase tang from undertray.
Release front duct from rear vertical duct.

9. Remove scrivets or screws se curing undertray to bumper
cover. Discard scrivets.

10. Remove and discard tiestrap securing undertray to body
brace.

11. At each side of vehicle, remo ve and discard scrivet securing undertray to wheelarch liner.
12. Remove undertray from vehicle.
13. Remove both front road wheels. Refer to Section 100-02.
14. Remove both front road springs. Refer to 60. 20.02.
15. Disconnect wheel speed sensor harness connectors.

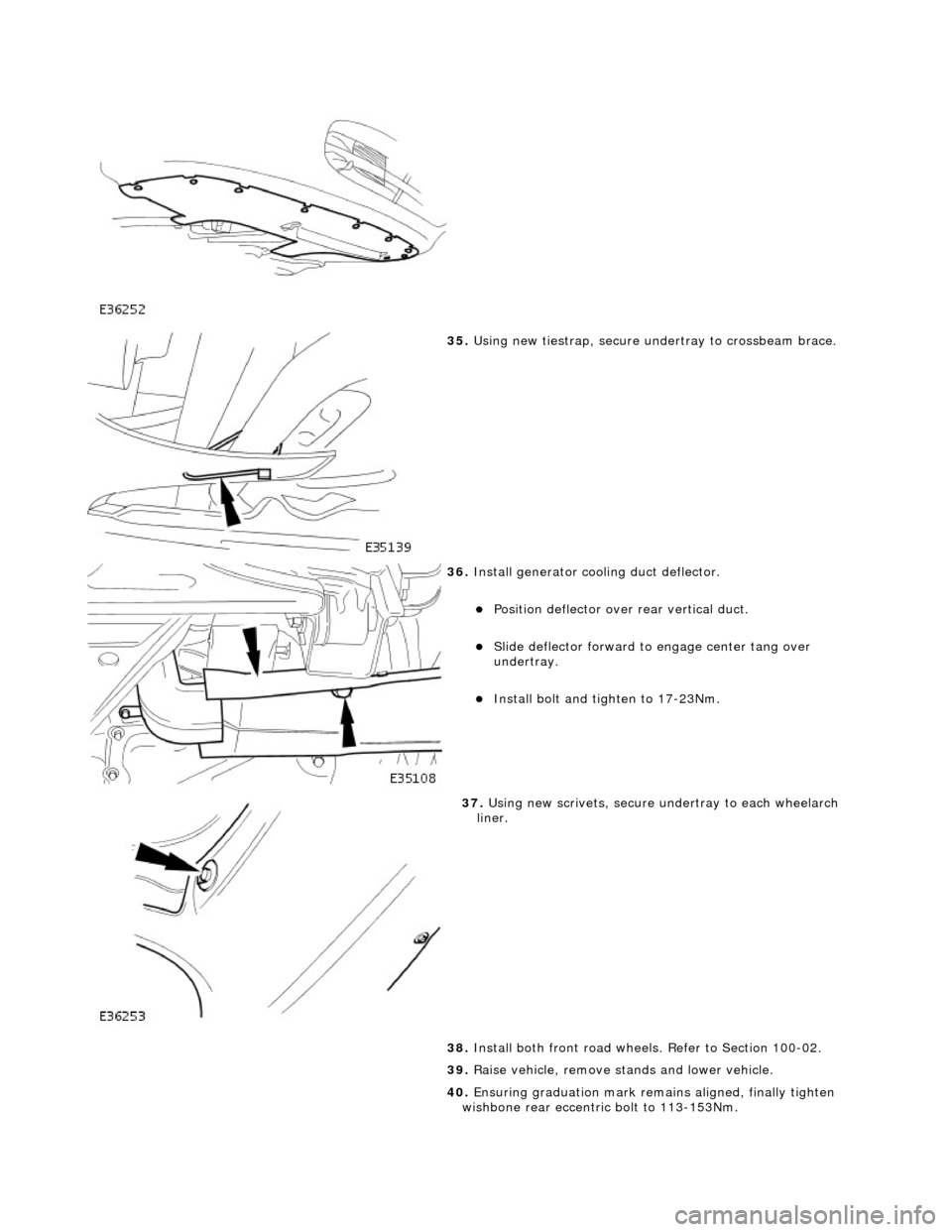

35. Using new tiestrap, secure undertray to crossbeam brace.

36. Install generator cool ing duct deflector.
Position deflector over rear vertical duct.
Slide deflector forward to engage center tang over
undertray.
Install bolt and ti ghten to 17-23Nm.

37. Using new scrivets, secure un dertray to each wheelarch
liner.
38. Install both front road wheels. Refer to Section 100-02.
39. Raise vehicle, remove st ands and lower vehicle.
40. Ensuring graduation mark remains aligned, finally tighten
wishbone rear eccentric bolt to 113-153Nm.

9. Raise front of vehicle.

10. Remove generator cool ing duct deflector.
Remove bolt.
Move deflector rearwards to release tangs from undertray.
Release deflector from rear vertical duct.

11. Remove screws or scrivets securing undertray to bumper
cover. Discard scrivets.

12. Remove and discard tiestrap securing undertray to body
brace.
13. At each side of vehicle, remo ve and discard scrivet securing
undertray to wheelarch liner.

15. Using screws or new scrivets , secure undertray to front
bumper cover.

16. Using new tiestrap, secure undertray to crossbeam brace.

17. Using new scrivets, secure un dertray to each wheelarch
liner.
18. Install generator cool ing duct deflector.
Position deflector over rear vertical duct.
Move deflector forward to engage center tang over
