1998 JAGUAR X308 generator

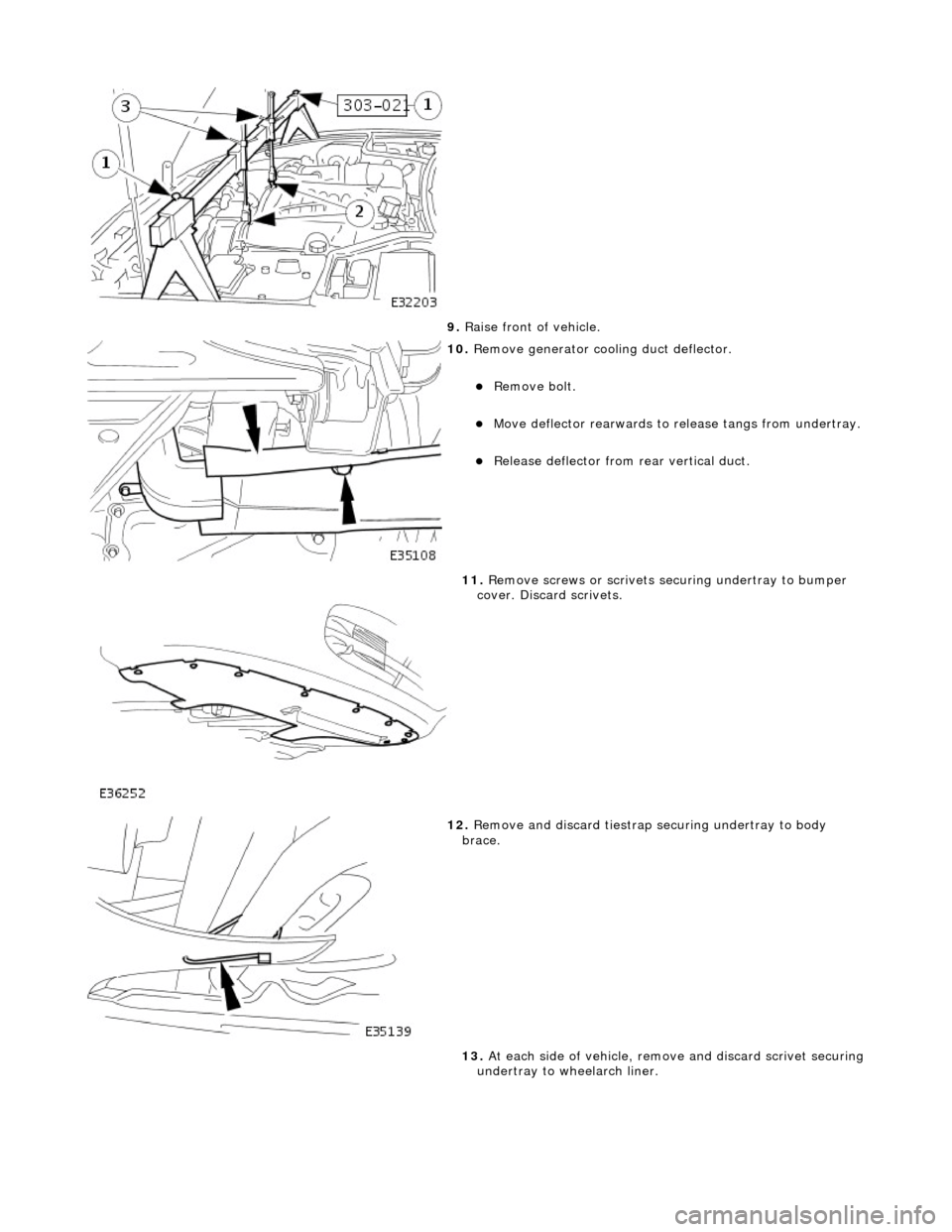

9. Raise front of vehicle.

10. Remove generator cool ing duct deflector.
Remove bolt.
Move deflector rearwards to release tangs from undertray.
Release deflector from rear vertical duct.

11. Remove screws or scrivets securing undertray to bumper
cover. Discard scrivets.

12. Remove and discard tiestrap securing undertray to body
brace.
13. At each side of vehicle, remo ve and discard scrivet securing
undertray to wheelarch liner.

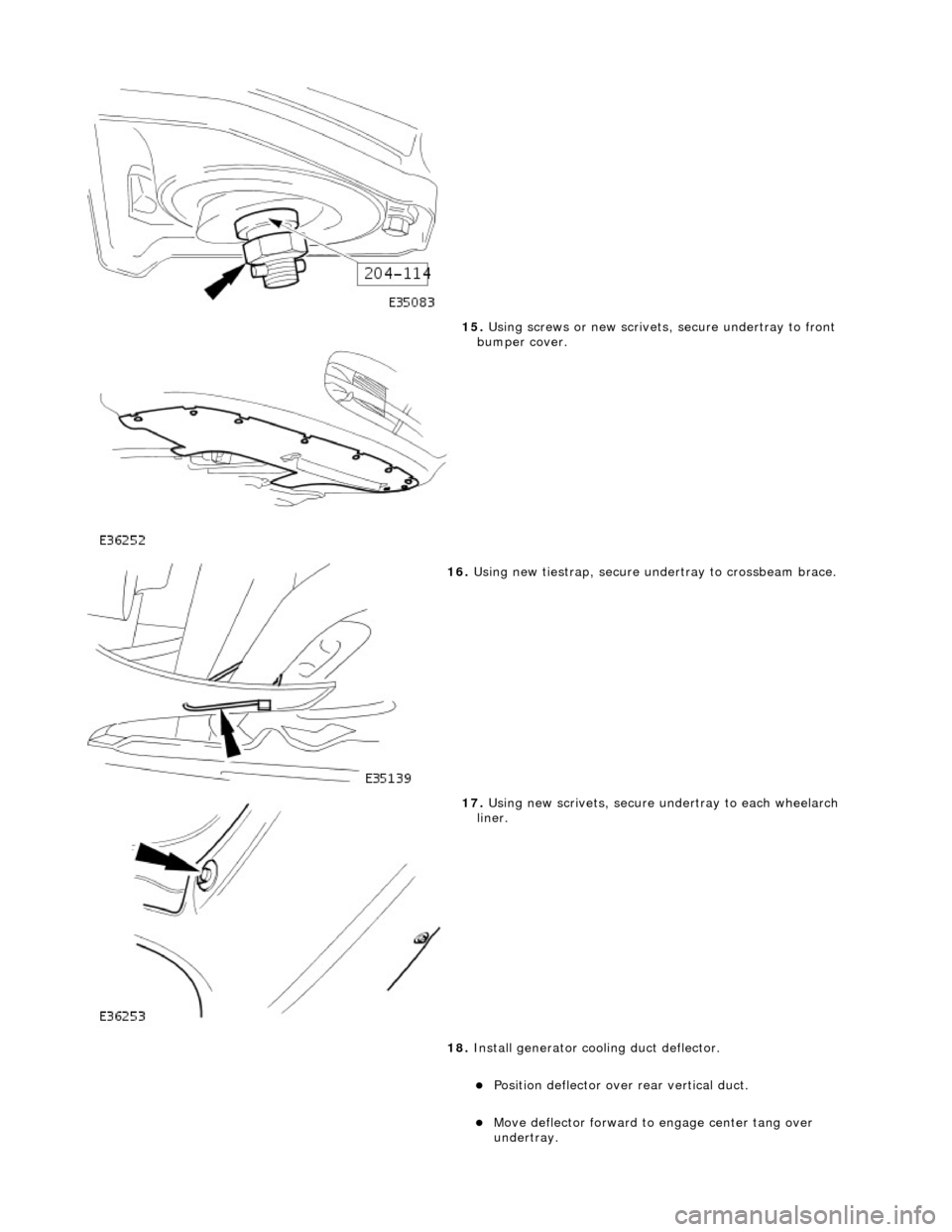

15. Using screws or new scrivets , secure undertray to front
bumper cover.

16. Using new tiestrap, secure undertray to crossbeam brace.

17. Using new scrivets, secure un dertray to each wheelarch
liner.
18. Install generator cool ing duct deflector.
Position deflector over rear vertical duct.
Move deflector forward to engage center tang over
undertray.

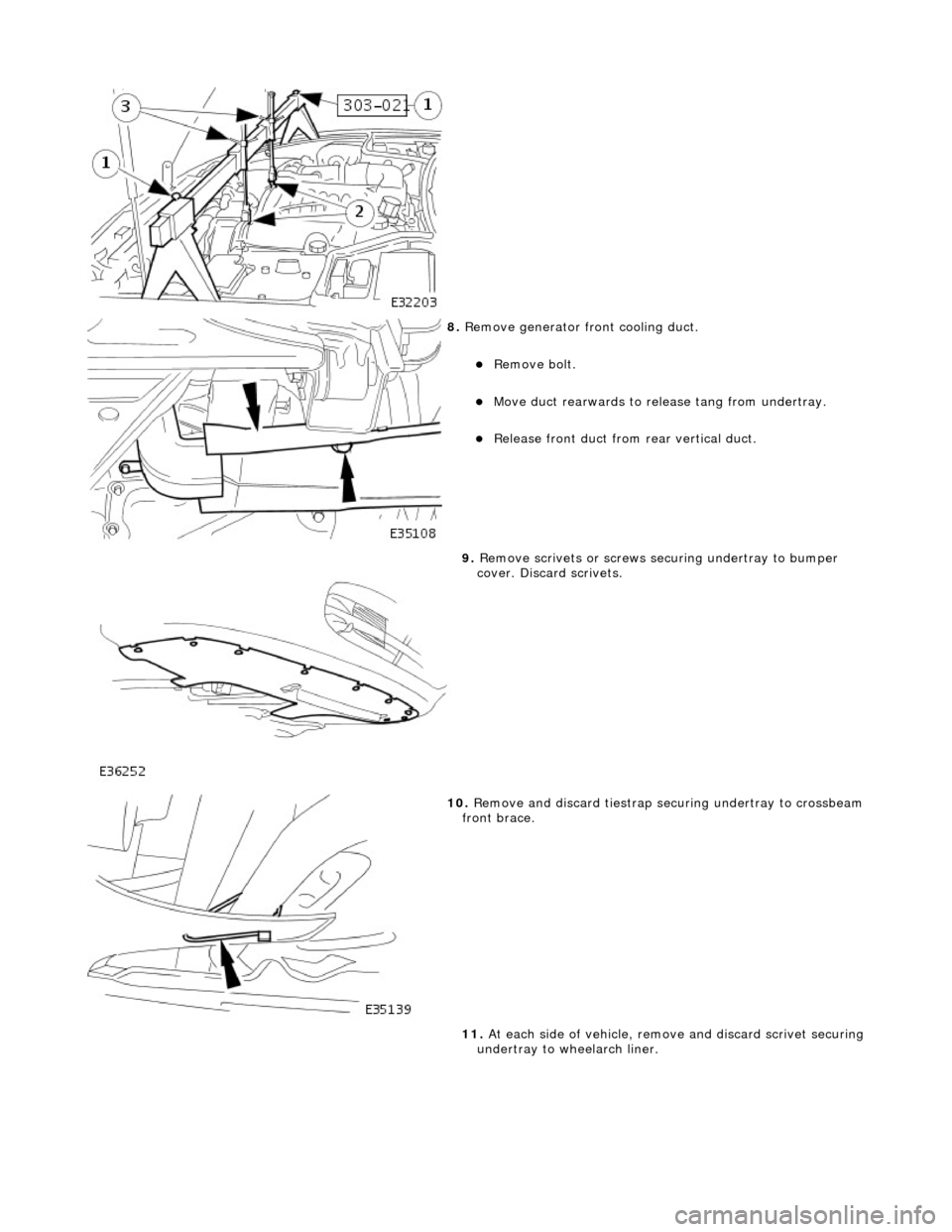

8. Remove generator front cooling duct.
Remove bolt.
Move duct rearwards to rele ase tang from undertray.
Release front duct from rear vertical duct.

9. Remove scrivets or screws se curing undertray to bumper
cover. Discard scrivets.

10. Remove and discard tiestrap securing undertray to crossbeam front brace.
11. At each side of vehicle, remo ve and discard scrivet securing
undertray to wheelarch liner.

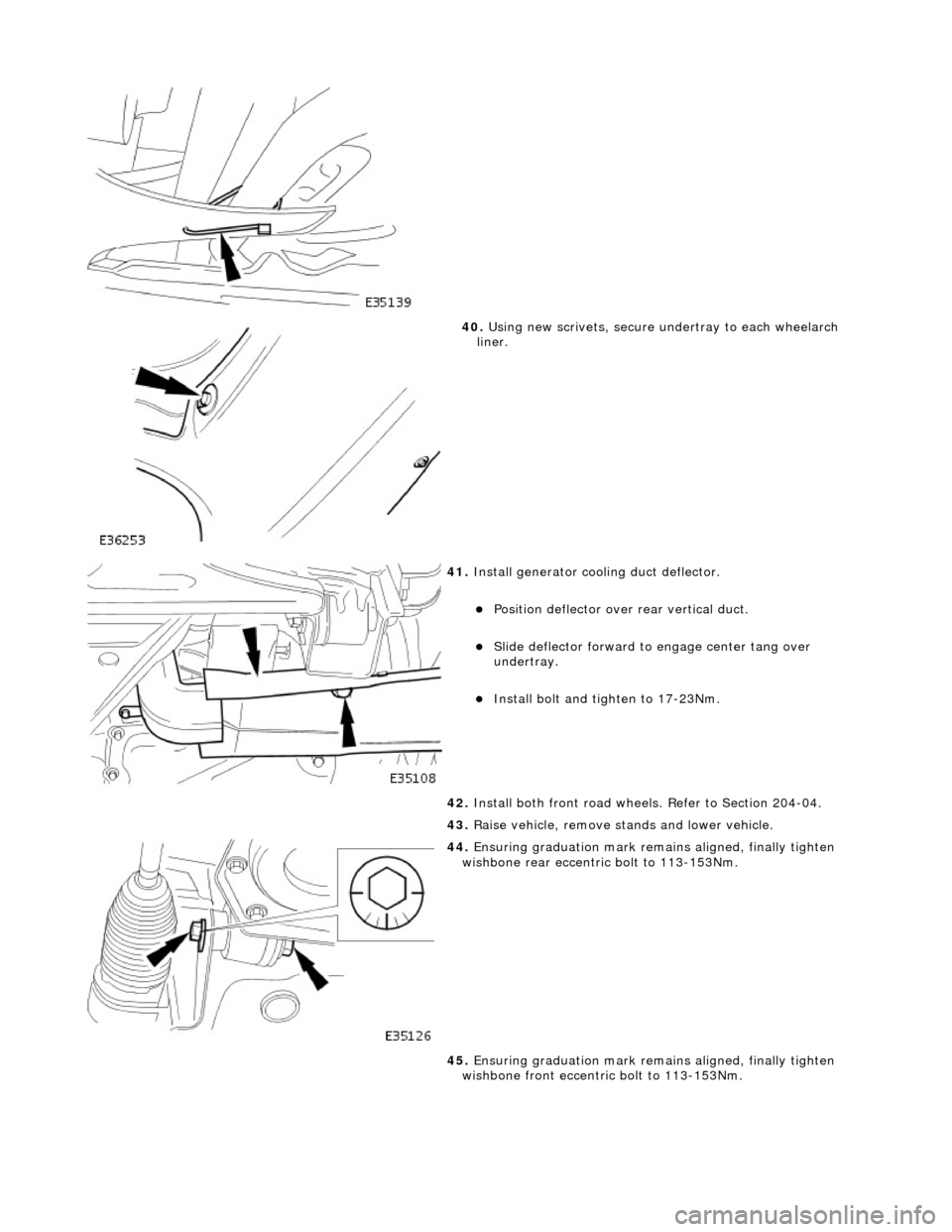

40. Using new scrivets, secure un dertray to each wheelarch
liner.

41. Install generator cool ing duct deflector.
Position deflector over rear vertical duct.
Slide deflector forward to engage center tang over
undertray.
Install bolt and ti ghten to 17-23Nm.
42. Install both front road wheels. Refer to Section 204-04.
43. Raise vehicle, remove st ands and lower vehicle.

44. Ensuring graduation mark remains aligned, finally tighten
wishbone rear eccentric bolt to 113-153Nm.
45. Ensuring graduation mark remains aligned, finally tighten
wishbone front eccentric bolt to 113-153Nm.
