1998 JAGUAR X308 Joint

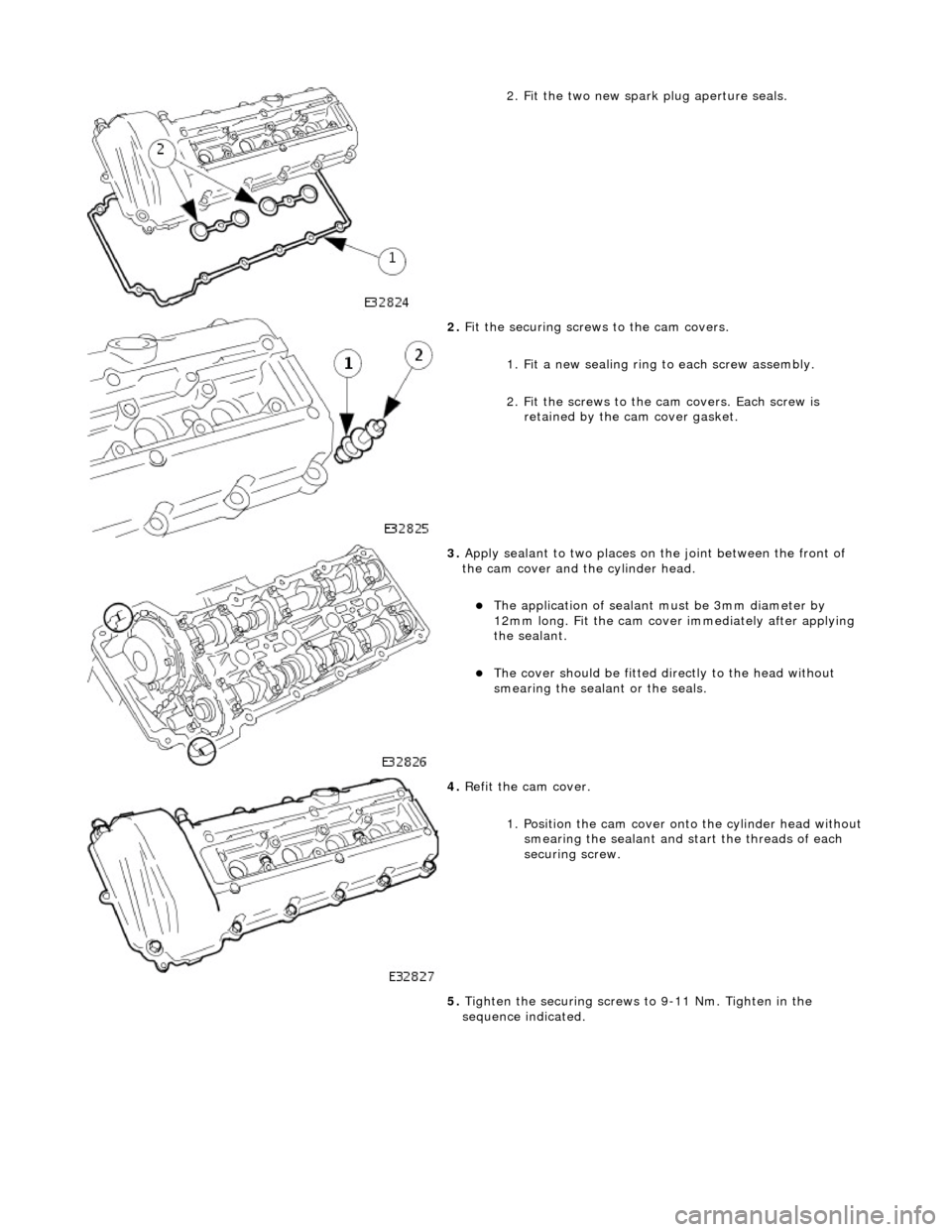

2. Fit the two new spark plug aperture seals.

2. Fit the securing screws to the cam covers.
1. Fit a new sealing ring to each screw assembly.
2. Fit the screws to the cam covers. Each screw is retained by the cam cover gasket.

3. Apply sealant to two places on the joint between the front of
the cam cover and the cylinder head.
The application of sealant must be 3mm diameter by
12mm long. Fit the cam cover immediately after applying
the sealant.
The cover should be fitted di rectly to the head without
smearing the sealant or the seals.

4. Refit the cam cover.
1. Position the cam cover onto the cylinder head without smearing the sealant and start the threads of each
securing screw.
5. Tighten the securing screws to 9-11 Nm. Tighten in the
sequence indicated.

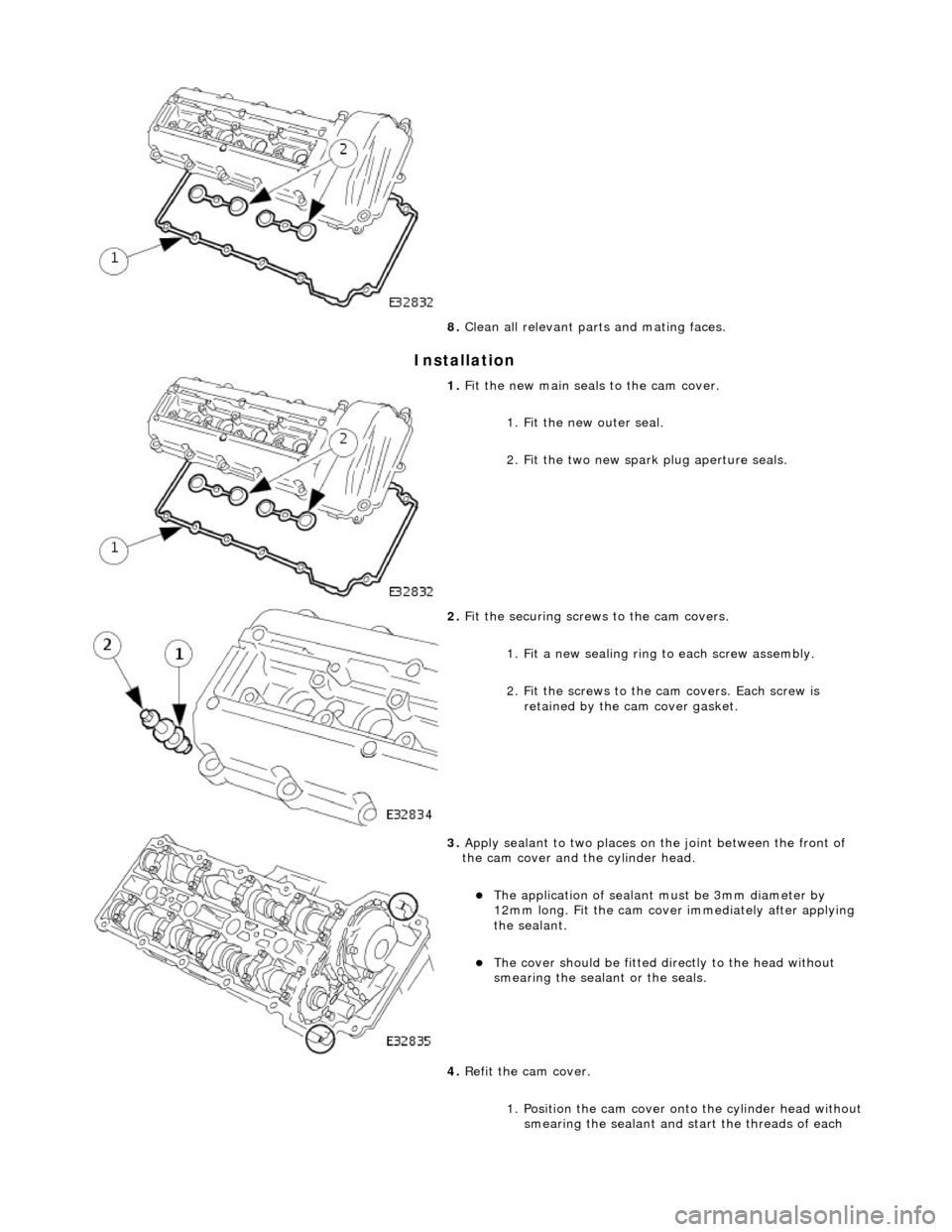

Installation

8. Clean all relevant parts and mating faces.

1. Fit the new main seals to the cam cover.
1. Fit the new outer seal.
2. Fit the two new spark plug aperture seals.

2. Fit the securing screws to the cam covers.
1. Fit a new sealing ring to each screw assembly.
2. Fit the screws to the cam covers. Each screw is retained by the cam cover gasket.

3. Apply sealant to two places on the joint between the front of
the cam cover and the cylinder head.
The application of sealant must be 3mm diameter by
12mm long. Fit the cam cover immediately after applying
the sealant.
The cover should be fitted di rectly to the head without
smearing the sealant or the seals.
4. Refit the cam cover.
1. Position the cam cover onto the cylinder head without smearing the sealant and start the threads of each

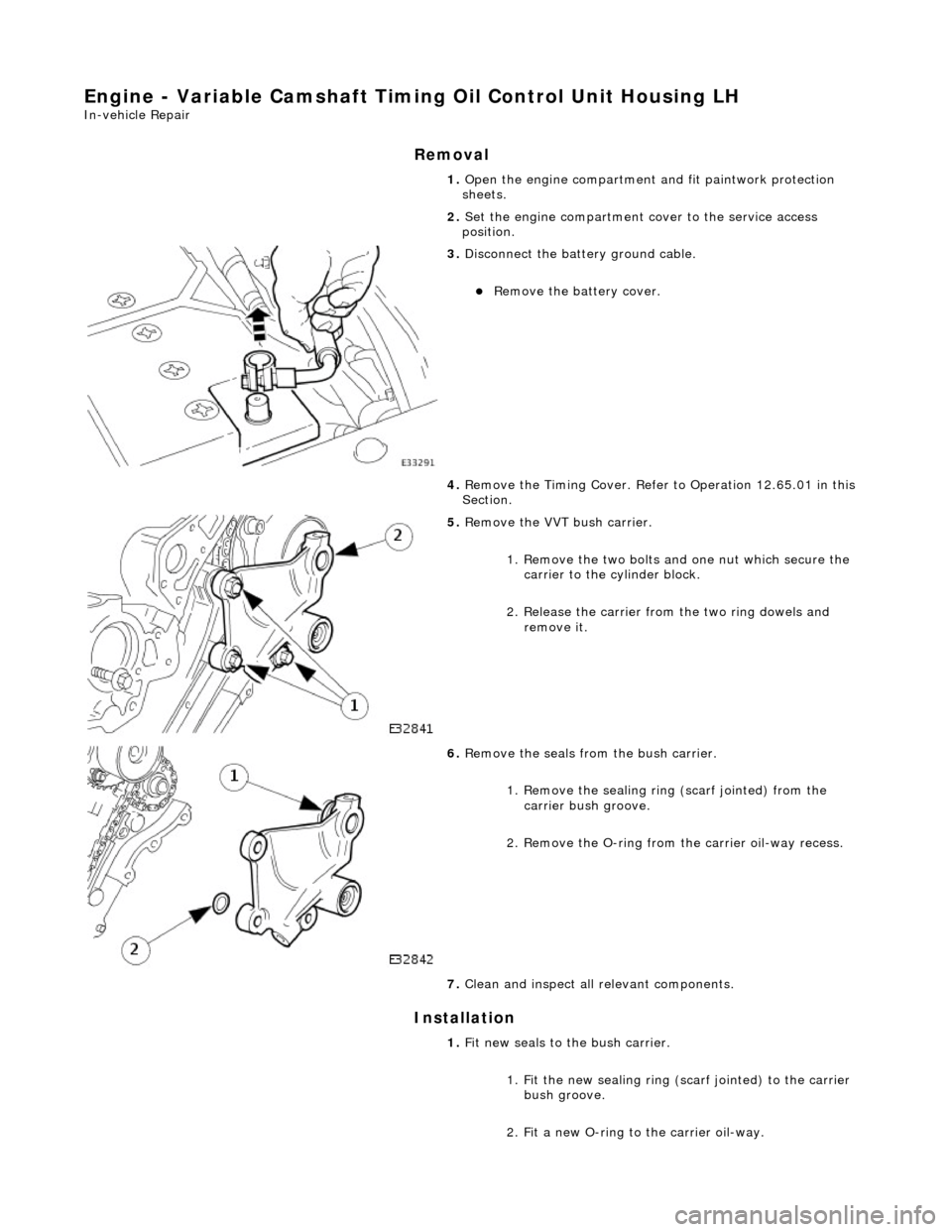

Engine - Variable Camshaft Timing Oil Control Unit Housing LH
In-vehicle Repair
Removal
Installation
1. Open the engine compartment and fit paintwork protection
sheets.
2. Set the engine compartment cover to the service access
position.

3. Disconnect the batt ery ground cable.
Remove the battery cover.
4. Remove the Timing Co ver. Refer to Operation 12.65.01 in this
Section.

5. Remove the VVT bush carrier.
1. Remove the two bolts and one nut which secure the carrier to the cylinder block.
2. Release the carrier from the two ring dowels and
remove it.

6. Remove the seals from the bush carrier.
1. Remove the sealing ring (scarf jointed) from the
carrier bush groove.
2. Remove the O-ring from the carrier oil-way recess.
7. Clean and inspect all relevant components.
1. Fit new seals to the bush carrier.
1. Fit the new sealing ring (scarf jointed) to the carrier bush groove.
2. Fit a new O-ring to the carrier oil-way.

2. Fit the bush carrier to the cylinder block.
Lubricate the seal (scarf jointed) and the bush.
1. Fit the bush carrier assembly.
Check that the seals are in pl ace and that the ring dowels
are engaged squarely. Fully locate the assembly as much
as possible by hand pressure.
2. Fit the two securing bolts and one nut. Tighten to 19- 23 Nm.
3. Refit the Timing Cover. Refer to Operation 12.65.01 in this
Section.
4. Move the engine compartment co ver from the service position
and connect the gas struts.
5. Remove the paint protection sheets and close the cover.
6. Connect the battery and fit the battery cover.
Refer to the Battery Reconnection Procedure 86.15.15.

2.
Release the carrier from the two ring dowels and remove it.
6.

Remove the seals from the bush carrier.
1. Remove the sealing ring (scarf jointed) from the carrier bush groove.
2. Remove the O-ring from the carrier oil-way recess.
7. Clean and inspect all relevant components.
Installation
1.
Fit new seals to the bush carrier.
1. Fit the new sealing ring (scarf jointed) to the carrier bush groove.
2. Fit a new O-ring to the carrier oil-way.

2
. Fit the bush carrier to the cylinder block.
Lubricate the seal (scarf jointed) and the bush.
1. Fit the bush carrier assembly.
 Check that the seals are in place and that the ring dowels are engaged squarely. Fully locate the
assembly as much as possible by hand pressure. 2. Fit the three securing bolts. Tighten to 19-23 Nm.
3. Refit the Timing Cover. Refer to Operation <<12.65.01>> in this Section.
4. Move the engine compartment cover from the service position and connect the gas struts.
5. Remove the paint protection sheets and close the cover.
6. Connect the battery and fit the battery cover. Refer to the Battery Reconnection Procedure <<86.15.15>>.

1.
Remove the blanking plugs from the pipes and
unions. Fit a new sealing washer to the high pressure
hose joint.
2. Connect the high pressure hose union.
3. Connect the feed hose to the pump.

34 . Conne
ct the engine oil
pressure transmitter.

35 .
Fit the radiator and
condense
r assembly. Check that the
lower mounting rubbers are located correctly.

36 . Fit the radiator top
retaining panel.
1. Fit the panel.
2. Check that the radiator top mounting bushes are
located correctly.
37. Fit the radiator top retaining panel.
Fit
the ten bolts which secure the panel.

A coola
nt outlet plastic pipe connects to the outlet port of ea
ch cylinder head to provide a common connection point for the
radiator top hose. It also incorporates the Engine Coolant Te mperature (ECT) sensor which provides a signal representing
coolant temperature at the cylinder heads. The outlet pipe has connections to supply the heater matrix and the bypass flow
to the thermostat housing. An in-groove ga sket, seals each of the outlet-to-cylinder head joints. An aluminium gasket seals
the ECT sensor to duct joint.
Coolant Outlet Duct - Supercharged

The coolant outlet duct on the supercharged engine performs exactly the same function as on the normally aspirated engine
and connects to the same ports on the engine. The main physical difference is that the thermostat housing has been
ItemDe
scription
1Bottom

Hose Connection
2The

rmostat Cover
3The

rmostat
4Coolan

t Outlet Duct
5B

reather Connection
6ECT Se

nsor
7Top Hose Conn

ection
8Bypa

ss to Water Pump
9Hea

ter Hose Connection
