7A1±60
TRANSMISSION CONTROL SYSTEM (4L30±E)

When diagnosing for a possible intermittent short or
open condition, move the wiring harness while
observing test equipment for a change.
Test Description
The numbers below refer to the step numbers on the
diagnostic char:
5. This test measures the resistance of the component.
7. This test checks the function of the shift solenoid B
and the transmission internal wiring harness.
11.This test checks for power to the shift solenoid B
from the ignition through the PCM.Shift Solenoid Status Chart
Gear
Shift solenoid AShift solenoid B
1stOFFON
2ndONON
3rdONOFF
4thOFFOFF
DTC P0758 Shift Solenoid B Electrical
StepActionYe sNo
11. Install the scan tool.
2. With the engine ªonº, turn the ignition switch ªonº.
NOTE: Before clearing DTC(s), use the scan tool to record ªFailure
Recordsº for reference, as data will be lost when the ªClear Infoº
function is used.
3. Record the DTC ªFailure Recordsº.
Were DTCs P0753, P0758, P1860 set?
Go to Step 3Go to Step 2
21. The engine ªonº.
2. Apply brake pedal and select transmission range ªDº.
3. Press and hold down the winter switch and select transmission
mode ªwinterº.
Does the scan tool display DTC P0758 at 3rd gear?
Go to Step 7
Go to Diagnostic
Aids
31. Turn the ignition ªoffº.
2. Disconnect the J2 (WHITE) and J3 (BLUE) PCM connectors.
3. Turn the ignition ªonº.
4. Using the J39200 DVOM, measure the voltage between PCM
connector terminals J2±C2 and J2±C8.
Is the voltage within 10 ± 12 volts?
Go to Step 14Go to Step 4
41. Turn the ignition ªoffº.
2. Using the J39200 DVOM, measure the resistance between
PCM connector terminals J2±C2 and J3±E14.
Is the resistance within 18 ± 20 ohms?
Go to Step 15Go to Step 5
51. Disconnect the transmission 16±way connector H±53.
2. Using the J39200 DVOM, measure the resistance between
terminals H53±16 and H53±15.
Is the resistance within 18 ± 20 ohms?
Go to Step 16Go to Step 6
61. Disconnect the transmission main case connector M±7.
2. Using the J39200 DVOM, measure the resistance between
terminals M7±1(A) and M7±4(C).
Is the resistance within 18 ± 20 ohms?
Go to Step 17Go to Step 18
71. Turn the ignition ªoffº.
2. Disconnect the J2 (WHITE) and J3 (BLUE) PCM connectors.
3. Using the J39200 DVOM, measure the resistance between
PCM connector terminals J2±C2 and J3±E14.
Is the resistance within 18 ± 20 ohms?
Go to Step 8Go to Step 9
8Using the J39200 DVOM, check a continuity between PCM
connector terminal J2±C2 and ground.
Is there a continuity?
Go to Step 19Go to Step 10

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±61
DTC P0758 Shift Solenoid B Electrical (Cont'd)
StepNo Ye s Action
91. Disconnect the transmission 16±way connector H±53.
2. Using the J39200 DVOM, measure the resistance between
terminals H53±16 and H53±15.
Is the resistance within 18±20 ohms?
Go to Step 20Go to Step 11
10Using the J39200 DVOM, check a continuity between PCM
connector terminal J3±E14 and ground.
Is there a continuity?
Go to Step 21Go to Step 12
111. Disconnect the transmission main case connector M±7.
2. Using the J39200 DVOM, measure the resistance between
terminals M7±1(A) and M7±4(C).
Is the resistance within 18 ± 20 ohms?
Go to Step 22Go to Step 23
12Check every connection of the PCM and transmission 16±way
connector H±53.
Was a problem found and corrected?
Go to Step 25Go to Step 13
131. Connect the J2 (WHITE) and J3 (BLUE) PCM connectors to
the PCM.
2. Turn the ignition ªonº, the engine ªonº.
3. Repeat Step 3.
Does the scan tool display DTC P0758 at 3rd gear?
Go to Step 24
Go to Diagnostic
Aids
14The wiring harness between PCM connector terminal
J2±C2 and transmission main case terminal M7±1(A) is shorted
to voltage.
Was a problem found and corrected?
Go to Step 25Ð
15The PCM internal terminal J2±C2 is shorted to voltage.
Replace the PCM. Refer to Powertrain Control Module (PCM) in
Automatic Transmission (4L30±E) section.
Is the replacement complete?
Go to Step 25Ð
16The wiring harness between PCM connector and transmission
16±way connector is shorted.
Was a problem found and corrected?
Go to Step 25Ð
17The wiring harness between transmission 16±way connector and
transmission main case connector is shorted.
Was a problem found and corrected?
Go to Step 25Ð
18The shift solenoid B is faulty, or the internal wiring harness from
the shift solenoid B is shorted.
Was a problem found and corrected?
Go to Step 25Ð
19The wiring harness between PCM connector terminal
J2±C2 and transmission main case connector terminal M7±1(A)
is shorted to ground.
Was a problem found and corrected?
Go to Step 25Ð
20The wiring harness between PCM connector terminal J2±C2 and
transmission 16±way connector terminal H53±16, or between
PCM connector terminal J3±E14 and 16±way connector terminal
H53±15 is open.
Was a problem found and corrected?
Go to Step 25Ð

7A1±66
TRANSMISSION CONTROL SYSTEM (4L30±E)
DTC P1835 Kickdown Switch Always On
StepActionYe sNo
11. Install the scan tool.
2. With the engine ªonº, turn the ignition switch ªonº.
NOTE: Before clearing DTC(s), use the scan tool to record ªFailure
Recordsº for reference, as data will be lost when the ªClear Infoº
function is used.
3. Record the DTC ªFailure Recordsº.
Does the scan tool display ªKickdown switchº ªlowº (closed
switch)?
Go to Step 2Go to Step 3
21. Turn the ignition ªoffº.
2. Disconnect the J3 (BLUE) PCM connector.
3. Using the J39200 DVOM, check a continuity between PCM
connector terminal J3±F11 and ground.
Is there a continuity?
Go to Step 4Go to Step 7
3The TP angle goes from 0% to 100% with the accelerator pedal
depressed.
Is the kickdown switch ªonº when TP angle is below 70%?
Go to Step 5
Go to Diagnostic
Aids
41. Disconnect the kickdown switch connector B±10.
2. Using the J39200 DVOM, check a continuity between
terminals B10±1 and B10±2.
Is there a continuity?
Go to Step 6Go to Step 8
5Adjust the kickdown switch.
Is the kickdown switch ªonº when TP angle is above 95%?
Go to Step 9Ð
6Replace the kickdown switch.
Is the replacement complete?
Go to Step 9Ð
7Replace the PCM. Refer to Powertrain Control Module (PCM) in
Automatic Transmission (4L30±E) section.
Is the replacement complete?
Go to Step 9Ð
8Repair the short to ground in circuit LT BLUE.
Is the repair complete?
Go to Step 9Ð
91. After the repair is complete, use the scan tool to select ªDTCº,
then ªClear Infoº function and ensure the following condition is
met:
The torque converter stator temperature switch circuit does not
indicate a hot mode when the transmission fluid temperature is
less than 60
C (140
F) for at least 5 seconds.
2. Review the scan tool ªDTC Infoº.
Has the last test failed or is the current DTC displayed?
Begin diagnosis
again
Go to Step 1
Repair verified
Exit DTC table

7A1±68
TRANSMISSION CONTROL SYSTEM (4L30±E)
Diagnostic Aids

Inspect the wiring for poor electrical connection at the
PCM and at the transmission 16±way connector.
Look for possible bent, backed out, deformed or
damaged terminals. Check for weak terminal tension
as well. Also check for a chafed wire that could short
to bare metal or other wiring. Inspect for a broken wire
inside the insulation.

When diagnosing for a possible intermittent short or
open condition, move the wiring harness while
observing test equipment for a change.
Test Description
The numbers below refer to the step numbers on the
diagnostic chart:
3. This test checks for power to the brake band apply
solenoid from the ignition through the PCM.
4. This test checks the resistance of the transmission
internal wiring harness and brake band apply
solenoid.
5. This test checks the ability of the PCM and wiring to
control the ground circuit.
DTC P1850 Brake Band Apply Solenoid Malfunction
StepActionYe sNo
11. Install the scan tool.
2. With the engine ªonº, turn the ignition switch ªonº.
NOTE: Before clearing DTC(s), use the scan tool to record ªFailure
Recordsº for reference, as data will be lost when the ªClear Infoº
function is used.
3. Record the DTC ªFailure Recordsº.
Were DTCs P0753, P0758 set?
Go to Step 2Go to Step 3
2Using the J39200 DVOM, back probe between PCM connector
terminals J3±E14 and J2±C8.
Is the voltage between 10 to 12 volts?
Go to Step 4Go to Step 5
31. Turn the ignition ªoffº.
2. Disconnect the J1 (RED) and J3 (BLUE) PCM connectors.
3. Using the J39200 DVOM, measure the resistance between
PCM connector terminals J1±A16 and J3±E14.
Is the resistance within 10±12 ohms?
Go to Step 11Go to Step 12
4Using the J39200 DVOM, back probe between PCM connector
terminals J1±A16 and J2±C8.
Is the voltage between 10 to 12 volts?
Go to Step 25Go to Step 3
51. Turn the ignition ªoffº.
2. Disconnect the J1 (RED) and J3 (BLUE) PCM connectors.
3. Using the J39200 DVOM, check continuity between PCM
terminal J3±E14 and ground.
Is there a continuity?
Go to Step 6Go to Step 8
61. Disconnect the transmission 16±way connector H±53.
2. Using the J39200 DVOM, check continuity between connector
H53±13 and ground.
Is there a continuity?
Go to Step 7Go to Step 16
71. Disconnect the transmission main case connector M±7.
2. Using the J39200 DVOM, check continuity between the
terminal M7±2(B) and ground.
Is there a continuity?
Go to Step 17Go to Step 18
81. Disconnect the J1 (RED) PCM Connector.
2. Using the J39200 DVOM, measure the resistance between
PCM connector terminals J1±A16 and J3±E14.
Is the resistance within 10±12 ohms?
Go to Step 25Go to Step 9
91. Disconnect the transmission 16±way connector H±53.
2. Using the J39200 DVOM, measure the resistance between
terminal H53±13 and H53±15.
Is the resistance within 10±12 ohms?
Go to Step 16Go to Step 10

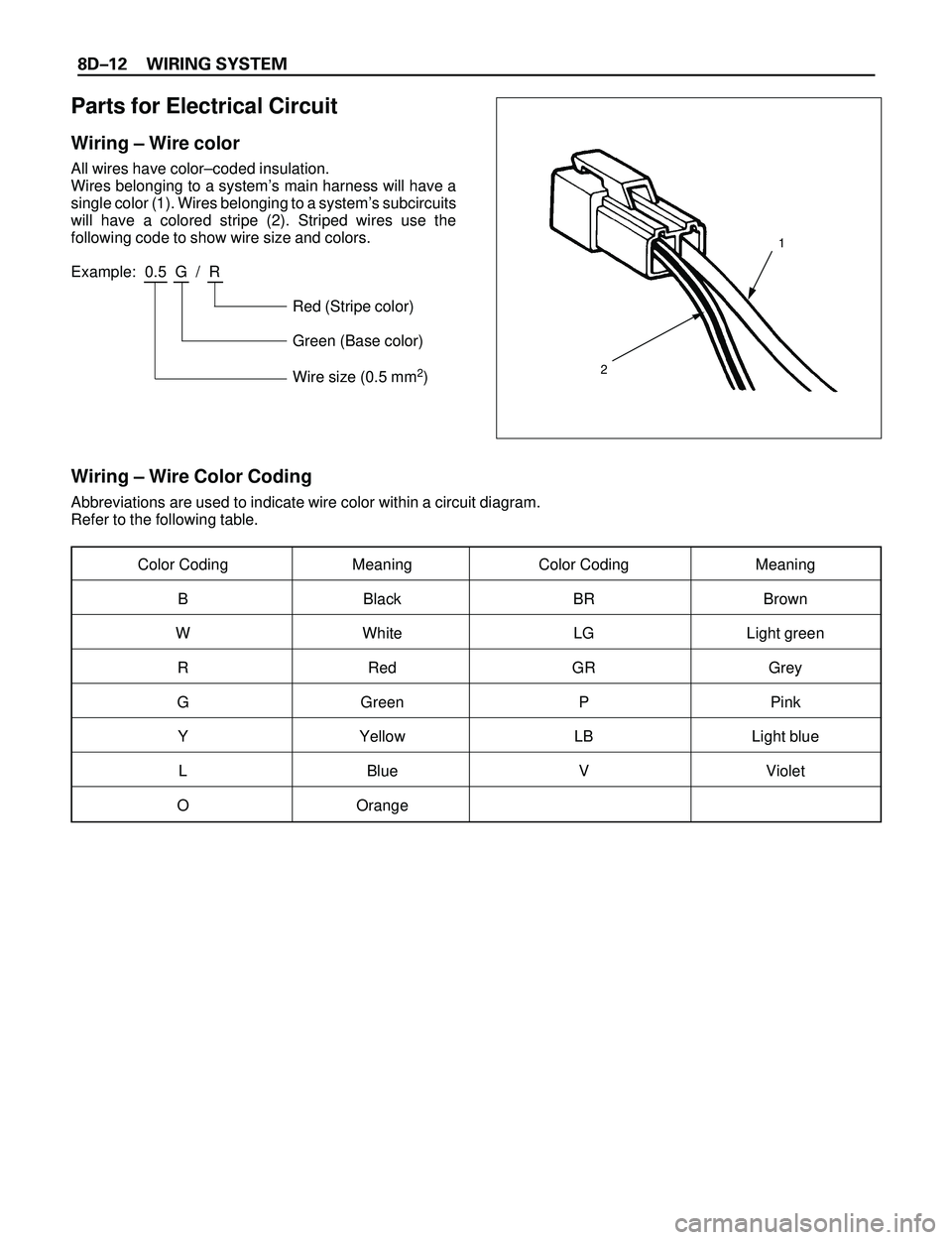

8DÐ12 WIRING SYSTEM
Parts for Electrical Circuit
Wiring Ð Wire color
All wires have colorÐcoded insulation.
Wires belonging to a systemÕs main harness will have a
single color (1). Wires belonging to a systemÕs subcircuits
will have a colored stripe (2). Striped wires use the
following code to show wire size and colors.
Example: 0.5 G / R
Red (Stripe color)
Green (Base color)
Wire size (0.5 mm
2)
Wiring Ð Wire Color Coding
Abbreviations are used to indicate wire color within a circuit diagram.
Refer to the following table.
Color Coding Meaning Color Coding Meaning
B Black BR Brown
W White LG Light green
R Red GR Grey
G Green P Pink
Y Yellow LB Light blue
L Blue V Violet
O Orange
1
2

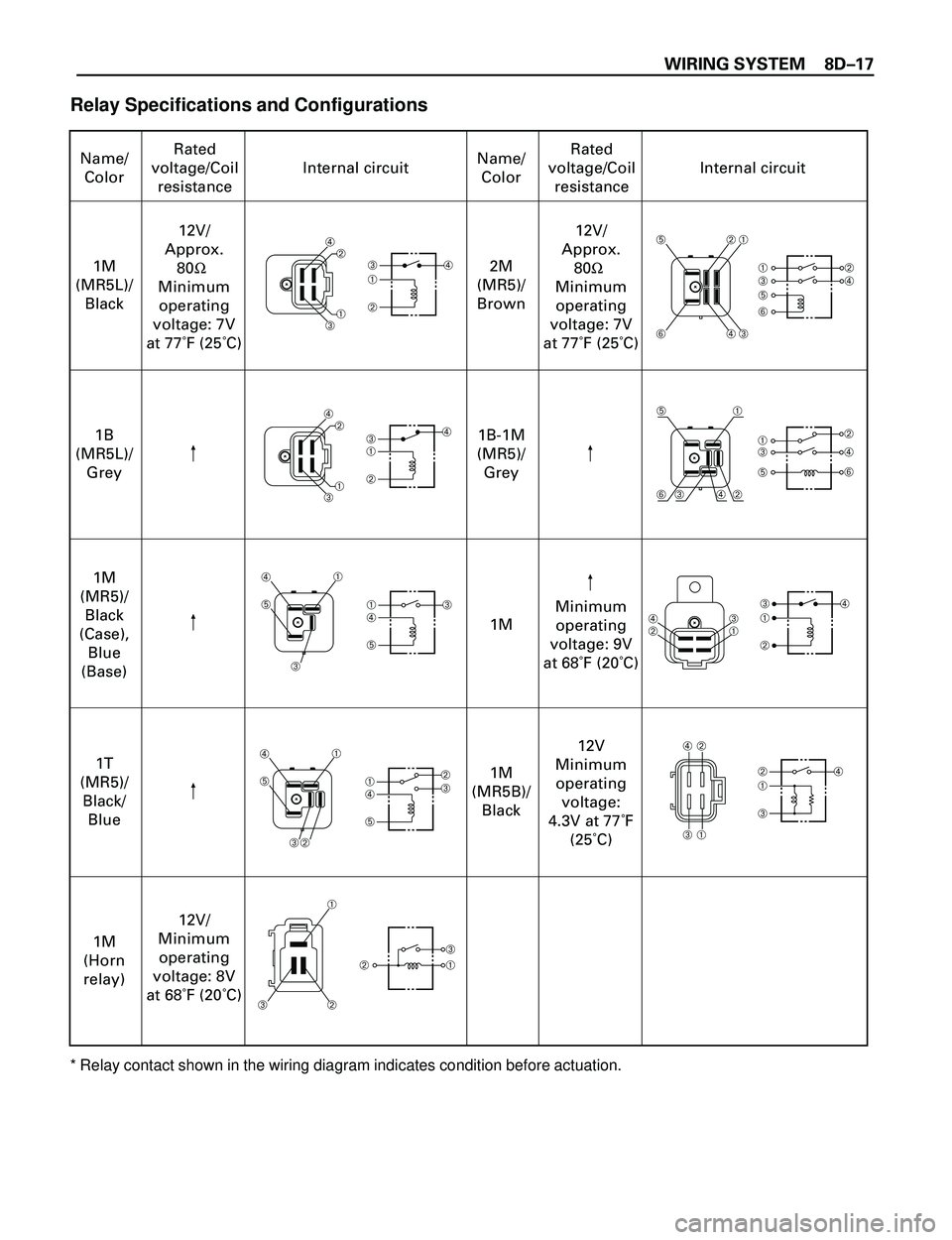

WIRING SYSTEM 8DÐ17
Name/
ColorRated
voltage/Coil
resistanceInternal circuitName/
ColorRated
voltage/Coil
resistanceInternal circuit
1M
(MR5L)/
Black
12V/
Approx.
80W
Minimum
operating
voltage: 7V
at 77˚F (25˚C)2M
(MR5)/
Brown12V/
Approx.
80W
Minimum
operating
voltage: 7V
at 77˚F (25˚C)
1B
(MR5L)/
Grey1B-1M
(MR5)/
Grey
1M
(MR5)/
Black
(Case),
Blue
(Base)1M
1T
(MR5)/
Black/
Blue1M
(MR5B)/
BlackMinimum
operating
voltage: 9V
at 68˚F (20˚C)
12V
Minimum
operating
voltage:
4.3V at 77˚F
(25˚C)
1M
(Horn
relay)12V/
Minimum
operating
voltage: 8V
at 68˚F (20˚C)
Á À ÂÃ Á Ã
À
Â
Á À ÂÃ Á Ã
À
Â
Ä Ã ÀÂ
Â
ÀÃ
Ä
Ä Ã À
Â
Â
ÀÃ
Ä
Á
Á
ÁÂÀ
À
Á Â
Ä À
Ã
Ä
ÁÂ
ÅÀ
Â
Á
Ã
Å
Ä À
Ã
Ä
Á
Å
Â
À
ÁÃ ÅÂ
Á À ÂÃ
 ÃÀ Á
 À ÁÃ
Á Ã
À Â
Relay Specifications and Configurations
* Relay contact shown in the wiring diagram indicates condition before actuation.

SUPPLEMENTAL RESTRAINT SYSTEM9J±21
THROUGHOUT THIS ENTIRE DEPLOYMENT AND
DISPOSAL PROCEDURE.
9. Twist together one connector wire lead to one
deployment wire. The connection should be
mechanically secure.
10. Bend twisted connection made in the previous step
flat and wrap tightly with electrical tape to insulate and
secure.
11. Twist together, bend and tape the remaining
connector wire lead to the remaining deployment
wire.
12. Connect the deployment harness to the driver air bag
assembly, yellow 2±pin connector at the base of the
steering column. Route deployment harness out the
driver side of the vehicle.
WARNING: DEPLOYMENT WIRES SHALL REMAIN
SHORTED AND NOT BE CONNECTED TO A POWER
SOURCE UNTIL THE AIR BAG IS TO BE DEPLOYED.
THE AIR BAG ASSEMBLY WILL IMMEDIATELY
DEPLOY THE AIR BAG WHEN A POWER SOURCE IS
CONNECTED TO IT.
CONNECTING THE DEPLOYMENT WIRES TO THE
POWER SOURCE SHOULD ALWAYS BE THE FINAL
STEP IN THE AIR BAG ASSEMBLY DEPLOYMENT
PROCEDURE.
FAILURE TO FOLLOW PROCEDURES IN THE
ORDER LISTED COULD RESULT IN PERSONAL
INJURY.
13. Disconnect passenger air bag assembly, yellow 2±pin
connector located behind glove box assembly.
14. Cut the passenger air bag assembly harness
connector from the vehicle leaving at least 15 cm (six
inches) of wire at the connector.
15. Strip 13 mm (1/2 inch) of insulation from blue±white
and pink±blue wire lead of the connector.
16. Cut two 900 cm (30 feet) deployment wires from 0.8
mm
(18 gauge) or thicker multi±strand wire. These
wires will be used to fabricate the passenger
deployment harness.
17. Strip 13 mm (1/2 inch) of insulation from both ends of
the wires cut in the previous step.
18. Short the wires by twisting together one end from
each. Deployment wires shall remain shorted and not
be connected to a power source until the air bag is to
be deployed.
WARNING: FAILURE TO FOLLOW PROCEDURES IN
THE ORDER LISTED COULD RESULT IN PERSONAL
INJURY. NEVER CONNECT DEPLOYMENT WIRES
TO ANY POWER SOURCE BEFORE CONNECTING
DEPLOYMENT WIRES TO THE AIR BAG ASSEMBLY
LEADS. DEPLOYMENT WIRES SHALL REMAIN
SHORTED AND NOT BE CONNECTED TO A POWER
SOURCE UNTIL THE AIR BAG IS TO BE DEPLOYED.
THE AIR BAG ASSEMBLY WILL IMMEDIATELY
DEPLOY THE AIR BAG WHEN A POWER SOURCE IS
CONNECTED TO IT. WEAR SAFETY GLASSES
THROUGHOUT THIS ENTIRE DEPLOYMENT AND
DISPOSAL PROCEDURE.19. Twist together one connector wire lead to one
deployment wire. The connection should be
mechanically secure.
20. Bend twisted connection made in the previous step
flat and wrap tightly with electrical tape to insulate and
secure.
21. Twist together, bend and tape the remaining
connector wire lead to the remaining deployment
wire.
22. Connect the deployment harness to the passenger air
bag assembly, yellow 2±pin connector located behind
the glove box assembly. Route deployment harness
out the passenger side of the vehicle.
WARNING: DEPLOYMENT WIRES SHALL REMAIN
SHORTED AND NOT BE CONNECTED TO A POWER
SOURCE UNTIL THE AIR BAG IS TO BE DEPLOYED.
THE AIR BAG ASSEMBLY WILL IMMEDIATELY
DEPLOY THE AIR BAG WHEN A POWER SOURCE IS
CONNECTED TO IT. CONNECTING THE
DEPLOYMENT WIRES SHOULD ALWAYS BE THE
FINAL STEP IN THE AIR BAG ASSEMBLY
DEPLOYMENT PROCEDURE. FAILURE TO FOLLOW
PROCEDURES IN THE ORDER LISTED COULD
RESULT IN PERSONAL INJURY.
23. Verify that the inside of the vehicle and the area
surrounding the vehicle are clear of all people and
loose or flammable objects.
24. Stretch the driver and passenger deployment
harness to their full length.
25. Completely cover windshield area and front door
window openings with a drop cloth, blanket or similar
item. This reduces the possibility of injury due to
possible fragmentation of the vehicle's glass or
interior.
26. Notify all people in the immediate area that you intend
to deploy the air bags. The deployment will be
accompanied by a substantial noise which may
startle the uninformed.
27. Separate the two ends of the driver deployment
harness wires.
WARNING: DEPLOYMENT WIRES SHALL REMAIN
SHORTED AND NOT BE CONNECTED TO A POWER
SOURCE UNTIL THE AIR BAG IS TO A POWER
SOURCE UNTIL THE AIR BAG IS TO BE DEPLOYED.
THE AIR BAG ASSEMBLY WILL IMMEDIATELY
DEPLOY THE AIR BAG WHEN A POWER SOURCE IS
CONNECTED TO IT. CONNECTING THE
DEPLOYMENT WIRES TO THE POWER SOURCE
SHOULD ALWAYS BE THE FINAL STEP IN THE AIR
BAG ASSEMBLY DEPLOYMENT PROCEDURE.
FAILURE TO FOLLOW PROCEDURES IN THE
ORDER LISTED COULD RESULT IN PERSONAL
INJURY.
NOTE: W h e n t h e a i r b a g deploys, the rapid gas
expansion will create a substantial noise. Notify all
people in the immediate area that you intend to deploy the
air bags.
