6E±173 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0202 Injector 2 Control Circuit
D06RW034
Circuit Description
The powertrain control module (PCM) has six individual
injector driver circuits. Each controls an injector. When a
driver circuit is grounded by the PCM, the injector is
activated. The PCM monitors the current in each driver
circuit. The voltage on each driver is monitored to detect
a fault. If the voltage is not what the PCM expects to
monitor on the circuit, a DTC is set. This DTC is also set if
an injector driver is shorted to voltage or if there is an open
circuit.
Conditions for Setting the DTC

The battery voltage is more than 9 volts.

The engine is turning, determined by 58X crankshaft
position input signal.

The injector voltage does not equal the ignition voltage
when the injector is commanded ªOFFº or the injector
voltage does not equal 0 volts when the injector is
commanded ªON.º

The above conditions are met for 15 seconds.
Action Taken When the DTC Sets

The PCM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC

DTC P0202 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
An injector driver circuit that is open or shorted to voltage
will cause a DTC P0202 to set. It will also cause a misfire
due to an inoperative injector. A misfire DTC will also be
set indicating which cylinder is inoperative.
Long term and short term fuel trims that are excessively
high or low are a good indication that an injector is faulty.
Use Fuel Injector Coil Test Procedure to check for faulty
injectors.
Test Description
The number(s) below refer to the step number(s) on the
Diagnostic Chart.
3. This step determines if DTC P0202 is the result of a
hard failure or an intermittent condition.
5. A special injector test connector is provided so that
the injectors can be electrically tested without
removal of the manifold. On the Trooper, the
special 7-way gray connector is located at the front
of the charcoal canister. The test connector can be
identified by the blue connector lock which is
tethered to the wiring harness. If the light for
cylinder 2 is ªONº steady before cranking the engine
as well as while cranking the engine, then the
injector driver circuit is shorted to ground.

6E±175 ENGINE DRIVEABILITY AND EMISSIONS
DTC P0202 ± Injector 2 Control Circuit


StepNo Ye s Value(s) Action
71. Disconnect the PCM connector for the affected
injectors.
2. With a test light connected to B+, probe the affected
injector driver circuit.
Does the test light illuminate?
ÐGo to Step 8Go to Step 15
8Repair short to ground in the injector driver circuit.
Is the action complete?
Ð
Go to OBD
System
Check
Ð
91. Disconnect the injector test connector.
2. At the injector side of the harness, connect an
ohmmeter between the positive wire (red with blue
tracer) and the wire for cylinder 2 (green with orange
tracer).
Does the ohmmeter indicate continuity?
ÐGo to Step 11Go to Step 10
10Repair the open injector harness wire or open injector.
Is the action complete?
ÐVerify repairÐ
11At the PCM side of the injector test connector, check
the green/orange wire for a short to voltage.
Was there a short to voltage?
ÐGo to Step 12Go to Step 13
12Repair the short to voltage.
Is the action complete?
ÐVerify repairÐ
13Check for an open circuit between the injector test
connector and the PCM.
Was there an open circuit?
ÐGo to Step 14Go to Step 15
14Repair the open circuit.
Is the action complete?
ÐVerify repairÐ
15Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
UBS 98model year Immobilizer
Workshop Manual.
Is the action complete?ÐVerify repairÐ

6E±176
ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0203 Injector 3 Control Circuit
D06RW034
Circuit Description
The powertrain control module (PCM) has six individual
injector driver circuits. Each controls an injector. When
the driver circuit is grounded by the PCM, the injector is
activated. The PCM monitors the current in each driver
circuit. The voltage on each driver is monitored to detect
a fault. If the voltage is not what the PCM expects to
monitor on the circuit, a DTC is set. This DTC is also set if
an injector driver is shorted to voltage or if there is an open
circuit.
Conditions for Setting the DTC

The battery voltage is more than 9 volts.

The engine is turning, determined by the 58X
crankshaft position input signal.

The injector voltage does not equal the ignition voltage
when the injector is commanded ªOFFº or the injector
voltage does not equal 0 volts when the injector is
commanded ªON.º

The above conditions are met for 15 seconds.
Action Taken When the DTC Sets

The PCM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC

DTC P0203 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
An injector driver circuit that is open or shorted to voltage
will cause a DTC P0203 to set. It will also cause a misfire
due to an inoperative injector. A misfire DTC will also be
set indicating which cylinder is inoperative.
Long term and short term fuel trims that are excessively
high or low are a good indication that an injector is faulty.
Use Fuel Injector Coil Test Procedure to check for faulty
injectors.
Test Description
The number(s) below refer to the step number(s) on the
Diagnostic Chart.
3. This step determines if DTC P0203 is the result of a
hard failure or an intermittent condition.
5. A special injector test connector is provided so that
the injectors can be electrically tested without
removal of the manifold. On the Trooper, the
special 7-way gray connector is located at the front
of the charcoal canister. The test connector can be
identified by the blue connector lock which is
tethered to the wiring harness. If the light for
cylinder 3 is ªONº steady before cranking the engine
as well as while cranking the engine, then the
injector driver circuit is shorted to ground.

6E±178
ENGINE DRIVEABILITY AND EMISSIONS
DTC P0203 ± Injector 3 Control Circuit


StepNo Ye s Value(s) Action
71. Disconnect the PCM connector for the affected
injectors.
2. With a test light connected to B+, probe the affected
injector driver circuit.
Does the test light illuminate?
ÐGo to Step 8Go to Step 15
8Repair short to ground in the injector driver circuit.
Is the action complete?
Ð
Go to OBD
System
Check
Ð
91. Disconnect the injector test connector.
2. At the injector side of the harness, connect an
ohmmeter between the positive wire (red with blue
tracer) and the wire for cylinder 3 (green).
Does the ohmmeter indicate continuity?
ÐGo to Step 11Go to Step 10
10Repair the open injector harness wire or open injector.
Is the action complete?
ÐVerify repairÐ
11At the PCM side of the injector test connector, check
the green wire for a short to voltage.
Was there a short to voltage?
ÐGo to Step 12Go to Step 13
12Repair the short to voltage.
Is the action complete?
ÐVerify repairÐ
13Check for an open circuit between the injector test
connector and the PCM.
Was there an open circuit?
ÐGo to Step 14Go to Step 15
14Repair the open circuit.
Is the action complete?
ÐVerify repairÐ
15Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
UBS 98model year Immobilizer
Workshop Manual.
Is the action complete?ÐVerify repairÐ

6E±179 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0204 Injector 4 Control Circuit
D06RW034
Circuit Description
The powertrain control module (PCM) has six individual
injector driver circuits. Each controls an injector. When
the driver circuit is grounded by the PCM, the injector is
activated. The PCM monitors the current in each driver
circuit. The voltage on each driver is monitored to detect
a fault. If the voltage is not what the PCM expects to
monitor on the circuit, a DTC is set. This DTC is also set if
an injector driver is shorted to voltage or if there is an open
circuit.
Conditions for Setting the DTC

The battery voltage is more than 9 volts.

The engine is turning, determined by the 58X
crankshaft position input signal.

The injector voltage does not equal the ignition voltage
when the injector is commanded ªOFFº or the injector
voltage does not equal 0 volts when the injector is
commanded ªON.º

The above conditions are met for 15 seconds.
Action Taken When the DTC Sets

The PCM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC

DTC P0204 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
An injector driver circuit that is open or shorted to voltage
will cause a DTC P0204 to set. It will also cause a misfire
due to an inoperative injector. A misfire DTC will also be
set indicating which cylinder is inoperative.
Long term and short term fuel trims that are excessively
high or low are a good indication that an injector is faulty.
Use Fuel Injector Coil Test Procedure to check for faulty
injectors.
Test Description
The number(s) below refer to the step number(s) on the
Diagnostic Chart.
3. This step determines if DTC P0204 is the result of a
hard failure or an intermittent condition.
5. A special injector test connector is provided so that
the injectors can be electrically tested without
removal of the manifold. On the Trooper, the
special 7-way gray connector is located at the front
of the charcoal canister. The test connector can be
identified by the blue connector lock which is
tethered to the wiring harness. If the light for
cylinder 4 is ªONº steady before cranking the engine
as well as while cranking the engine, then the
injector driver circuit is shorted to ground.

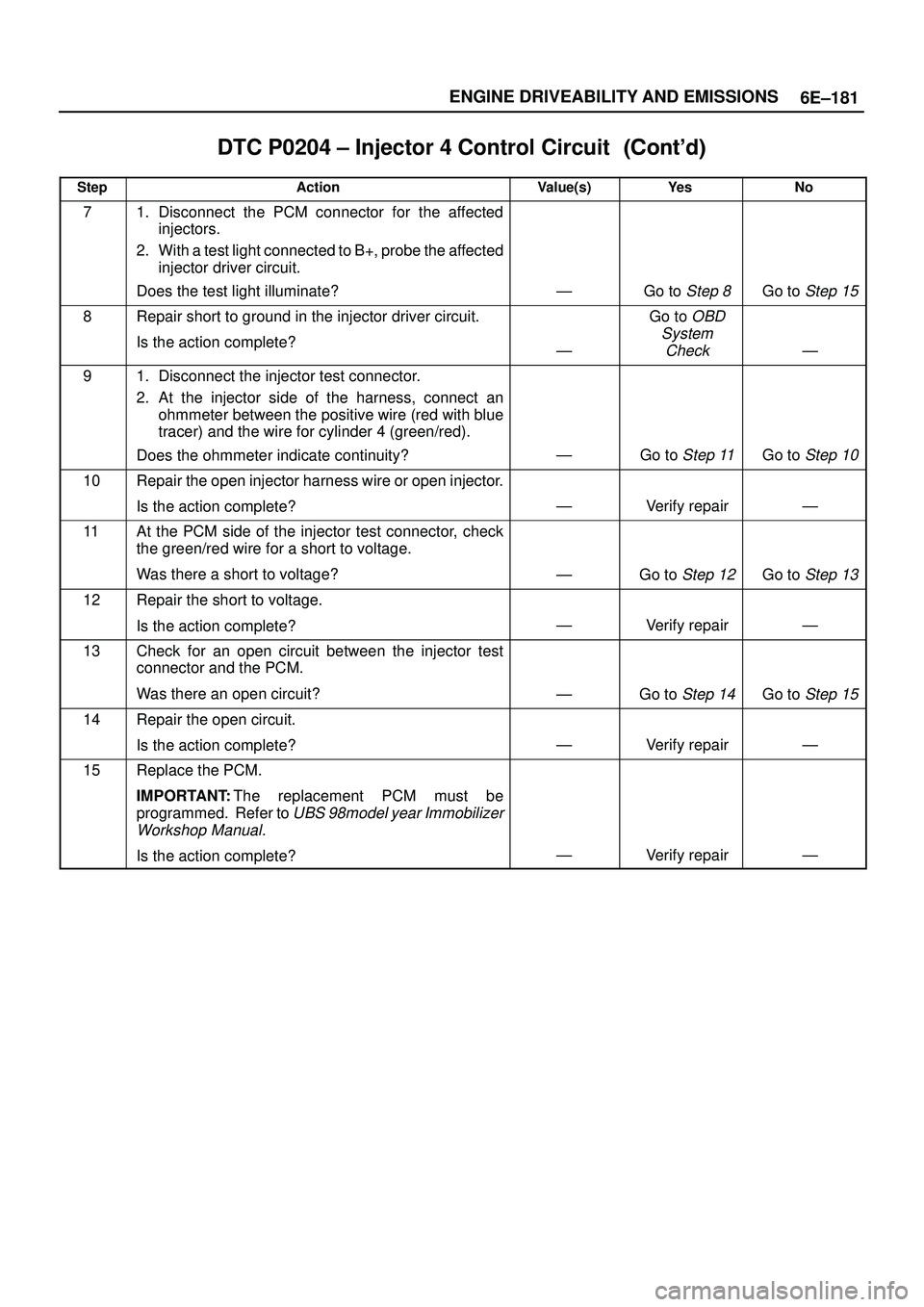

6E±181 ENGINE DRIVEABILITY AND EMISSIONS
DTC P0204 ± Injector 4 Control Circuit


StepNo Ye s Value(s) Action
71. Disconnect the PCM connector for the affected
injectors.
2. With a test light connected to B+, probe the affected
injector driver circuit.
Does the test light illuminate?
ÐGo to Step 8Go to Step 15
8Repair short to ground in the injector driver circuit.
Is the action complete?
Ð
Go to OBD
System
Check
Ð
91. Disconnect the injector test connector.
2. At the injector side of the harness, connect an
ohmmeter between the positive wire (red with blue
tracer) and the wire for cylinder 4 (green/red).
Does the ohmmeter indicate continuity?
ÐGo to Step 11Go to Step 10
10Repair the open injector harness wire or open injector.
Is the action complete?
ÐVerify repairÐ
11At the PCM side of the injector test connector, check
the green/red wire for a short to voltage.
Was there a short to voltage?
ÐGo to Step 12Go to Step 13
12Repair the short to voltage.
Is the action complete?
ÐVerify repairÐ
13Check for an open circuit between the injector test
connector and the PCM.
Was there an open circuit?
ÐGo to Step 14Go to Step 15
14Repair the open circuit.
Is the action complete?
ÐVerify repairÐ
15Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
UBS 98model year Immobilizer
Workshop Manual.
Is the action complete?ÐVerify repairÐ

6E±182
ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0205 Injector 5 Control Circuit
D06RW034
Circuit Description
The powertrain control module (PCM) has six individual
injector driver circuits. Each controls an injector. When
the driver circuit is grounded by the PCM, the injector is
activated. The PCM monitors the current in each driver
circuit. If the voltage is not what the PCM expects to
monitor on the circuit, a DTC is set. This DTC is also set if
an injector driver is shorted to voltage or if there is an open
circuit.
Conditions for Setting the DTC

The battery voltage is more than 9 volts.

The engine is turning, determined by the 58X
crankshaft position input signal.

The injector voltage does not equal the ignition voltage
when the injector is commanded ªOFFº or the injector
voltage does not equal 0 volts when the injector is
commanded ªON.º

The above conditions are met for 15 seconds.
Action Taken When the DTC Sets

The PCM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC

DTC P0205 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
An injector driver circuit that is open or shorted to voltage
will cause a DTC P0205 to set. It will also cause a misfire
due to an inoperative injector. A misfire DTC will also be
set indicating which cylinder is inoperative.
Long term and short term fuel trims that are excessively
high or low are a good indication that an injector is faulty.
Use Fuel Injector Coil Test Procedure to check for faulty
injectors.
Test Description
The number(s) below refer to the step number(s) on the
Diagnostic Chart.
3. This step determines if DTC P0205 is the result of a
hard failure or an intermittent condition.
5. A special injector test connector is provided so that
the injectors can be electrically tested without
removal of the manifold. On the Trooper, the
special 7-way gray connector is located at the front
of the charcoal canister. The test connector can be
identified by the blue connector lock which is
tethered to the wiring harness. If the light for
cylinder 5 is ªONº steady before cranking the engine
as well as while cranking the engine, then the
injector driver circuit is shorted to ground.

6E±184
ENGINE DRIVEABILITY AND EMISSIONS
DTC P0205 ± Injector 5 Control Circuit


StepNo Ye s Value(s) Action
71. Disconnect the PCM connector for the affected
injectors.
2. With a test light connected to B+, probe the affected
injector driver circuit.
Does the test light illuminate?
ÐGo to Step 8Go to Step 15
8Repair short to ground in the injector driver circuit.
Is the action complete?
Ð
Go to OBD
System
Check
Ð
91. Disconnect the injector test connector.
2. At the injector side of the harness, connect an
ohmmeter between the positive wire (red with blue
tracer) and the wire for cylinder 5 (green with black
tracer).
Does the ohmmeter indicate continuity?
ÐGo to Step 11Go to Step 10
10Repair the open injector harness wire or open injector.
Is the action complete?
ÐVerify repairÐ
11At the PCM side of the injector test connector, check
the green/black wire for a short to voltage.
Was there a short to voltage?
ÐGo to Step 12Go to Step 13
12Repair the short to voltage.
Is the action complete?
ÐVerify repairÐ
13Check for an open circuit between the injector test
connector and the PCM.
Was there an open circuit?
ÐGo to Step 14Go to Step 15
14Repair the open circuit.
Is the action complete?
ÐVerify repairÐ
15Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
UBS 98model year Immobilizer
Workshop Manual.
Is the action complete?ÐVerify repairÐ
