1998 CHEVROLET VENTURE Owners Manual

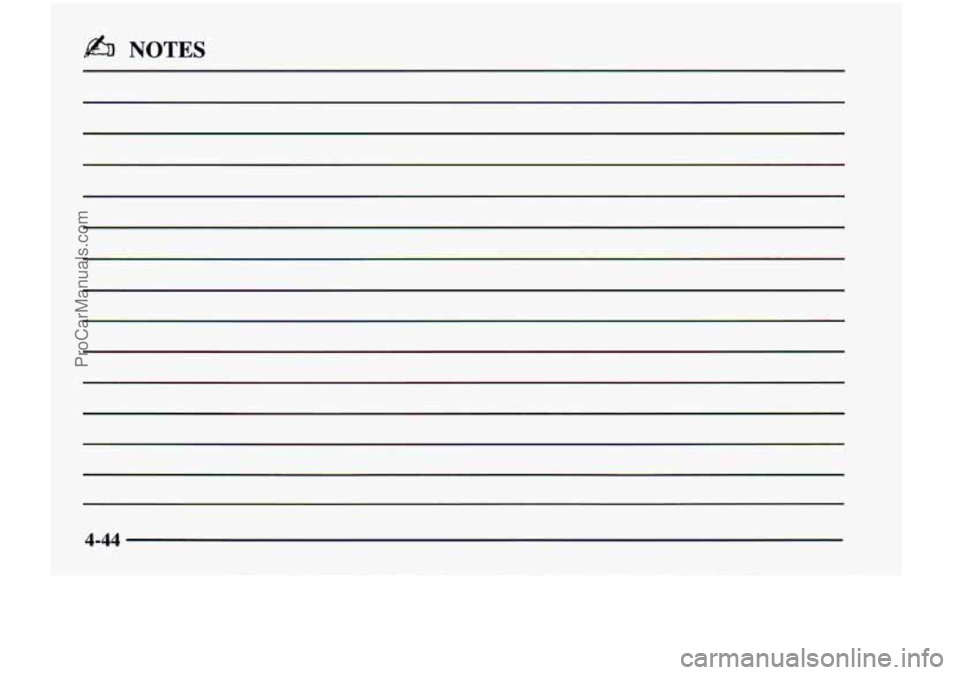

@b NOTES
4-44
ProCarManuals.com

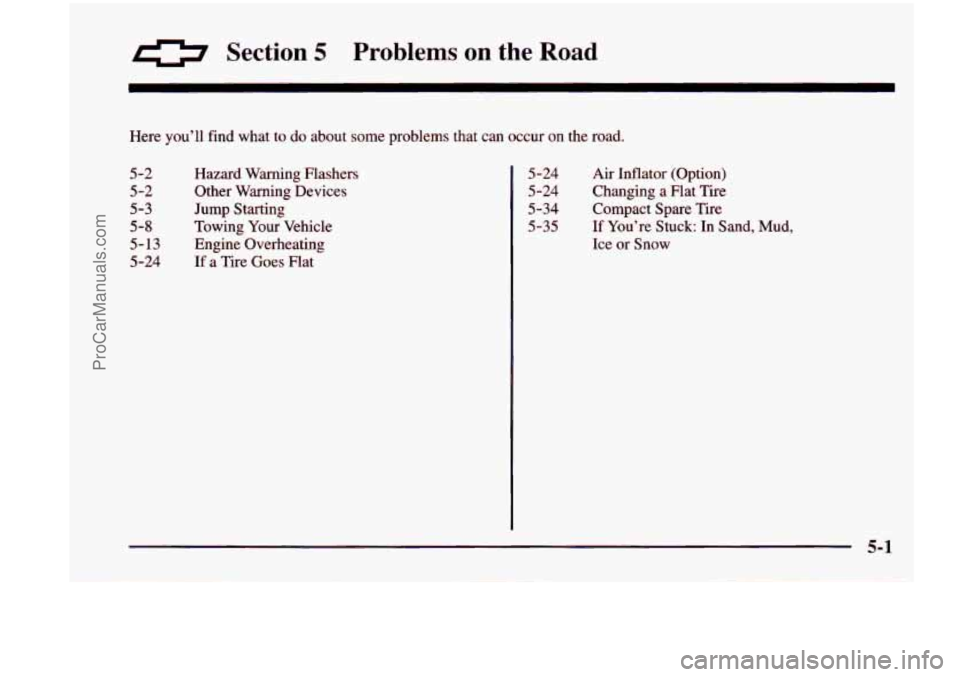

0 Section 5 Problems on the Road
Here you’ll find what to do about some problems that can occur on the road.
5-2
5-2
5-3
5-8
5-13
5-24
Hazard Warning Flashers
Other Warning Devices
Jump Starting
Towing
Your Vehicle
Engine Overheating
If a Tire Goes Flat
5 -24
5-24
5-34
5-35
Air Inflator (Option)
Changing a Flat Tire
Compact Spare Tire
If You’re
Stuck: In Sand, Mud,
Ice or Snow
5-1
ProCarManuals.com

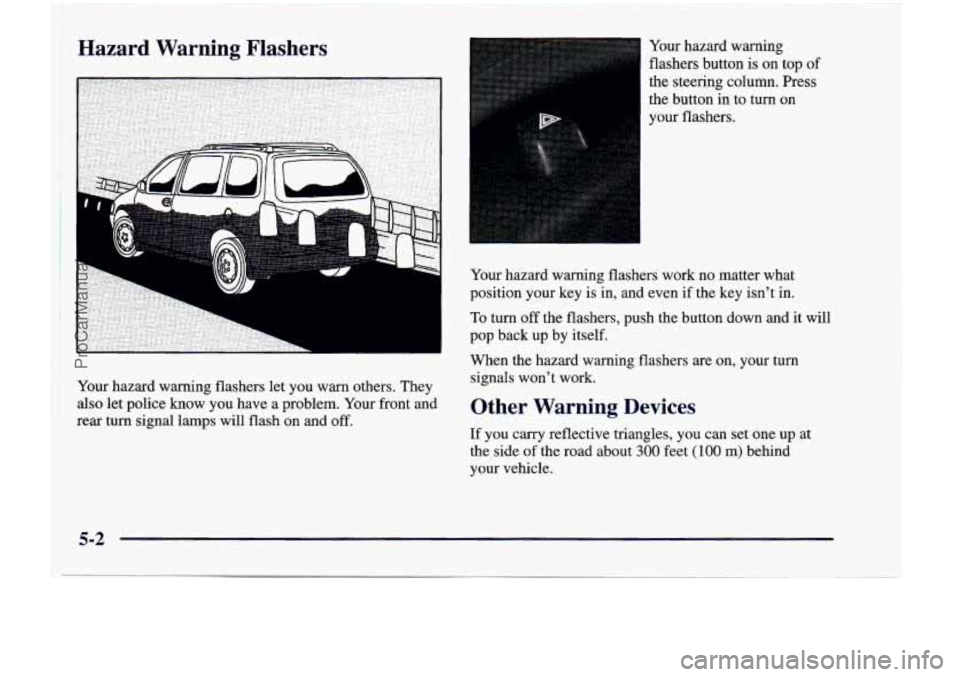

Hazard Warning Flashers
Your hazard warning flashers let you warn others. They
also let police know you have a problem. Your front and
rear turn signal lamps will flash on and off.
Your hazard warning
flashers button is on top
of
the steering column. Press
the button in to turn on
your flashers.
Your hazard warning flashers work no matter what
position your key is in, and even
if the key isn’t in.
To turn off the flashers, push the button down and it will
pop back up by itself.
When the hazard warning flashers
are on, your turn
signals won’t work.
Other Warning Devices
If you carry reflective triangles, you can set one up at
the side of the road about
300 feet (100 m) behind
your vehicle.
5-2
ProCarManuals.com

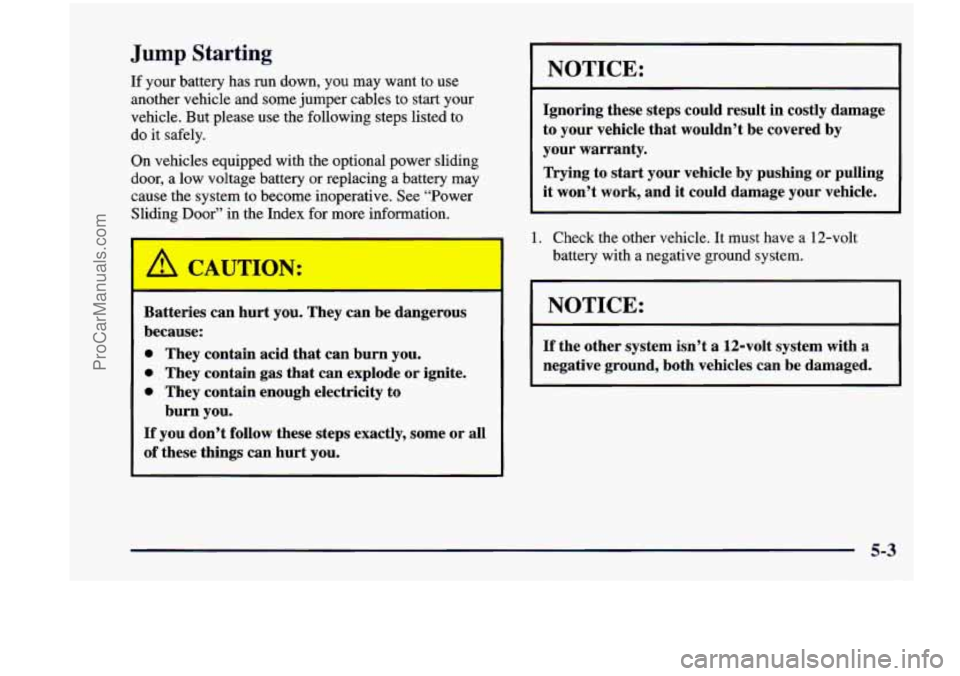

Jump Starting
If your battery has run down, you may want to use
another vehicle and some jumper cables to start your
vehicle. But please use the following steps listed to
do it safely.
On vehicles equipped with the optional power sliding
door, a low voltage battery
or replacing a battery may
cause the system to become inoperative. See “Power
Sliding Door” in the Index for more information.
I
Batteries can h t you. They can be dangerous
because:
0 They contain acid that can burn you.
0 They contain gas that can explode or ignite.
0 They contain enough electricity to
If you don’t follow these steps exactly, some or all
of these things can hurt you.
burn
you.
NOTICE:
Ignoring these steps could result in costly damage
to your vehicle that wouldn’t be covered by
your warranty.
Trying to start your vehicle by pushing or pulling
it won’t work, and it could damage your vehicle.
1. Check the other vehicle. It must have
a 12-volt
battery with a negative ground system.
NOTICE: -1
If the other system isn’t a 12-volt system with a
negative ground, both vehicles can be damaged.
5-3
ProCarManuals.com

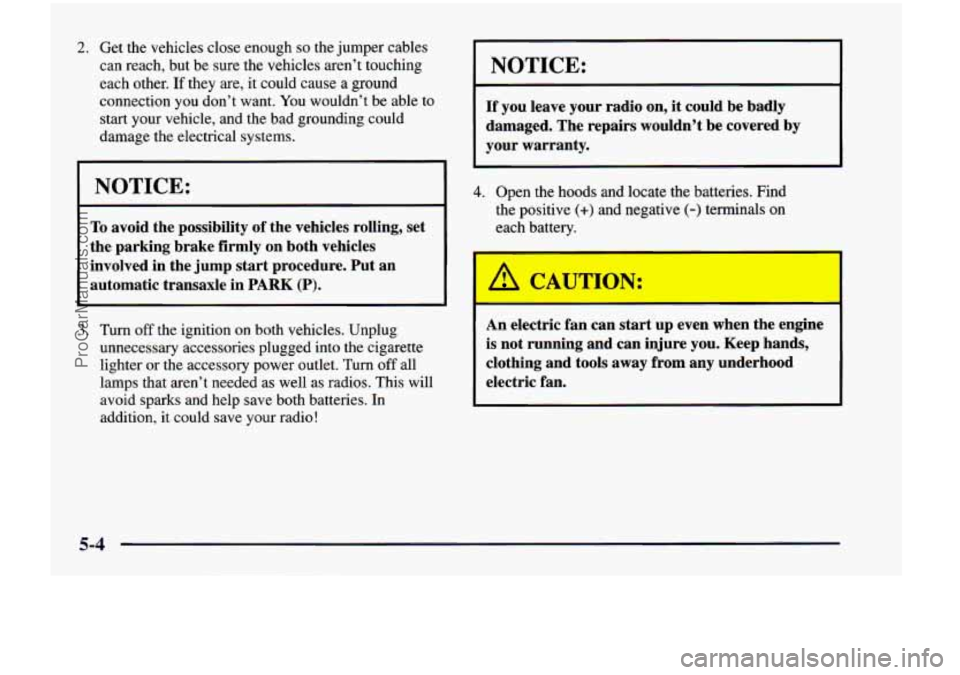

2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren’t touching
each other.
If they are, it could cause a ground
connection
you don’t want. You wouldn’t be able to
start your vehicle, and the bad grounding could
damage the electrical systems.
I NOTICE:
To avoid the possibility of the vehicles rolling, set
the parking brake firmly on both vehicles
involved in the jump
start procedure. Put an
automatic transaxle in PARK
(P).
NOTICE:
If you leave your radio on, it could be badly
damaged. The repairs wouldn’t be covered by
your warranty.
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or the accessory power outlet. Turn
off all
lamps that aren’t needed as well as radios. This will
avoid sparks and help save both batteries. In
addition, it could save your radio!
4. Open the hoods and locate the batteries. Find
the positive
(+) and negative (-) terminals on
each battery.
I CAUTION:
An electric fan can start up even when the engine
is not running and can injure you. Keep hands,
clothing and tools
away from any underhood
electric fan.
5-4
ProCarManuals.com

Your vehicle has a remote
positive (+)jump starting
terminal. The terminal is
under a tethered cap at the
front of the underhood fuse
and relay center. Pull up
the
cap to access the remote
positive
(+) terminal.
You should always use the remote positive
(+) terminal
instead of the positive
(+) terminal on your battery. Using
a match near a battery can cause battery
gas to explode. People have been hurt doing this,
and some have been blinded.
Use a flashlight if
you need more light.
Be sure the battery
has enough water. You don’t
need to add water to the ACDelco Freedom’
battery installed in every new
GM vehicle. But if
a battery has filler caps, be sure the right amount
of fluid is there. If it is low, add water to take
care of that first.
If you don’t, explosive gas could
be present.
Battery fluid contains acid that can burn you.
Don’t get
it on you. If you accidentally get it in
your eyes or
on your skin, flush the place with
water and get medical help immediately.
5-5
ProCarManuals.com

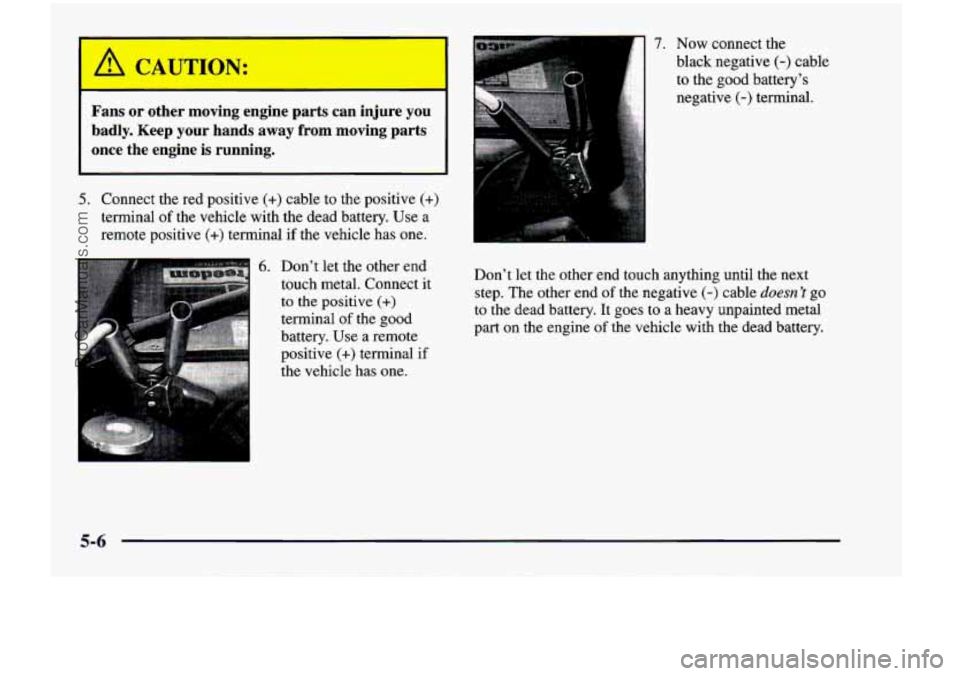

A CAUTION:
3
Fans or other moving engine parts can injure you
badly.
Keep your hands away from moving parts
once the engine
is running.
5. Connect the red positive (+) cable to the positive (+)
terminal of the vehicle with the dead battery. Use a
remote positive
(+) terminal if the vehicle has one.
6. Don’t let the other end
touch metal. Connect it
to the positive
(+)
terminal of the good
battery. Use a remote
positive
(+) terminal if
the vehicle has one.
... ,
7. Now connect the
black negative
(-) cable
to the good battery’s
negative
(-) terminal.
Don’t let the other end touch anything until the next step. The other end
of the negative (-) cable doesn 1 go
to the dead battery. It goes to a heavy unpainted metal
part on the engine
of the vehicle with the dead battery.
5-6
ProCarManuals.com

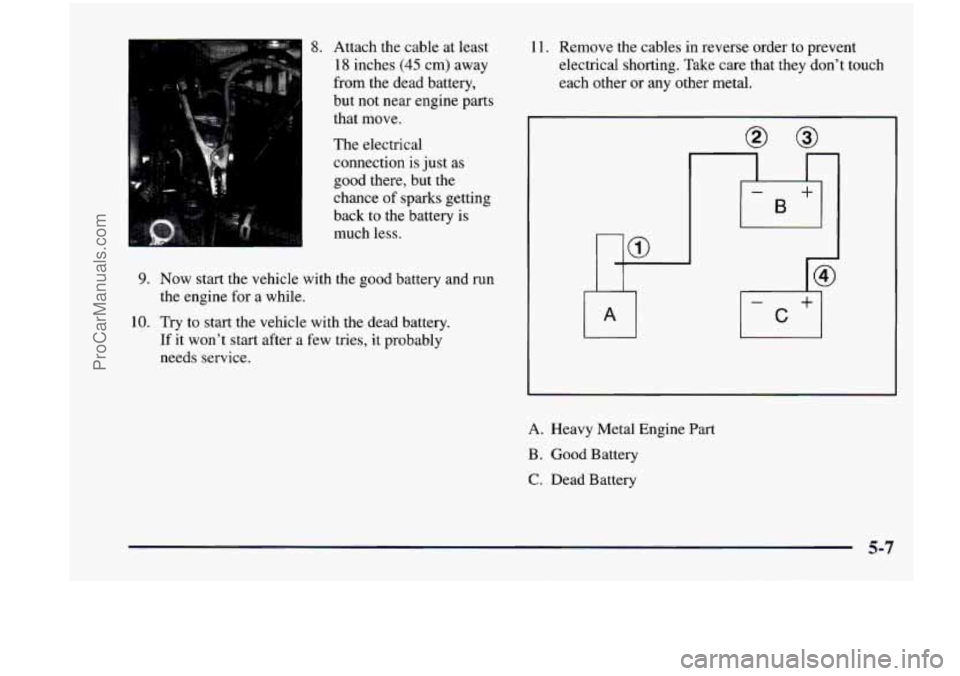

8. Attach the cable at least
18 inches
(45 cm) away
from the dead battery,
but not near engine parts
that move.
The electrical
connection is just
as
good there, but the
chance of sparks getting
back to the battery is
much less.
9. Now start the vehicle with the good battery and run
the engine for
a while.
If it won’t start after a few tries, it probably
needs service.
10.
Try to start the vehicle with
the dead battery.
11. Remove the cables in reverse order to prevent
electrical shorting. Take care that
they don’t touch
each other or
any other metal.
A. Heavy Metal Engine Part
B . Good Battery
C. Dead Battery
5-7
