1998 CHEVROLET VENTURE Owners Manual

Exterior Lamps
~00~ Turning the dial to this setting turns on:
Parking Lamps
Sidemarker Lamps
Taillamps
Instrument Panel Lights
@ Turning the dial to this setting turns on the
headlamps, together with:
0 Parking Lamps
Sidemarker Lamps
0 Taillamps
0 Instrument Panel Lights
0 Turning the dial to this setting turns off all the lamps
and lights.
Lamps On Reminder
If the driver’s door is opened and you turn the ignition
to
OFF or LOCK while leaving the lamps on, you will
hear a warning chime.
2-60
ProCarManuals.com

Daytime Running Lamps
Daytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during the
day. DRL can be helpful in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset.
A light sensor on top of the instrument panel makes the
DRL work,
so be sure it isn’t covered. The DRL system
will make front parking and turn signal lamps come on
in daylight when:
The ignition is on,
0 the headlamp switch is off and
0 the parking brake is released.
When the DRL are on, only your front parking and turn
signal lamps will be on. Your instrument panel won’t be
lit up.
When it’s dark enough outside, the exterior lamps will
come on automatically. When
it’s bright enough outside,
the exterior lamps will go out and the DRL will turn
on.
Of course, you may still turn on the headlamps any time
you need to.
To idle your vehicle with the DRL or exterior lamps
off, set the parking brake while the ignition is in
OFF
or LOCK. Then start the vehicle. The DRL will stay off
until you release the parking brake.
As with any vehicle, you should turn on the regular
headlamp system when
you need it.
Interior Lamps
Instrument Panel Intensity Control
Turn the control, located below the headlamps switch,
to the right to increase the brightness of the instrument
panel lights, and
to the left to decrease the brightness.
Turn the control all the way to the left to turn them
off.
Interior Lamps Control
Turn the dial all the way to the right to turn on the
interior lamps, if the interior lamps override switch is
off. Turn the dial to
the left to turn the lamps off.
2-61
ProCarManuals.com

Interior Lamps Override Switch
This switch is located in
(- the overhead console
switchbank. Press
the
symbol on the bottom of the
rocker switch to override
control of the interior lamps
and turn off power to the
courtesy lamps, reading
lamps and glove box lamp.
G
Press the top of the interior lamps override rocker switch
to
turn power back on to the interior lamps. This will
allow the lamps to stay on when any door is open.
Illuminated Entry
With illuminated entry, the interior of your vehicle is
illuminated
so you can see inside before you enter your
vehicle. The lamps will come on for
40 seconds if you
unlock your door using your key or the remote keyless
entry transmitter (if equipped) and the ignition is in
LOCK or OFF. After 40 seconds have passed, the
interior lamps will slowly fade out. The lamps will
turn off before the 40 seconds if you:
lock all the doors using the key,
0 press LOCK on the power door lock switch or
press LOCK on the remote keyless entry transmitter
(if equipped).
When any door is opened, illuminated entry is cancelled.
The interior lamps will stay on while any door or the
liftgate is open, and slowly fade out when all doors and
the liftgate are closed.
The interior lamps may stay on for up to
25 seconds
after all doors have been closed if they have not been
locked. See “Delayed Illumination” later in this section.
2-62
ProCarManuals.com

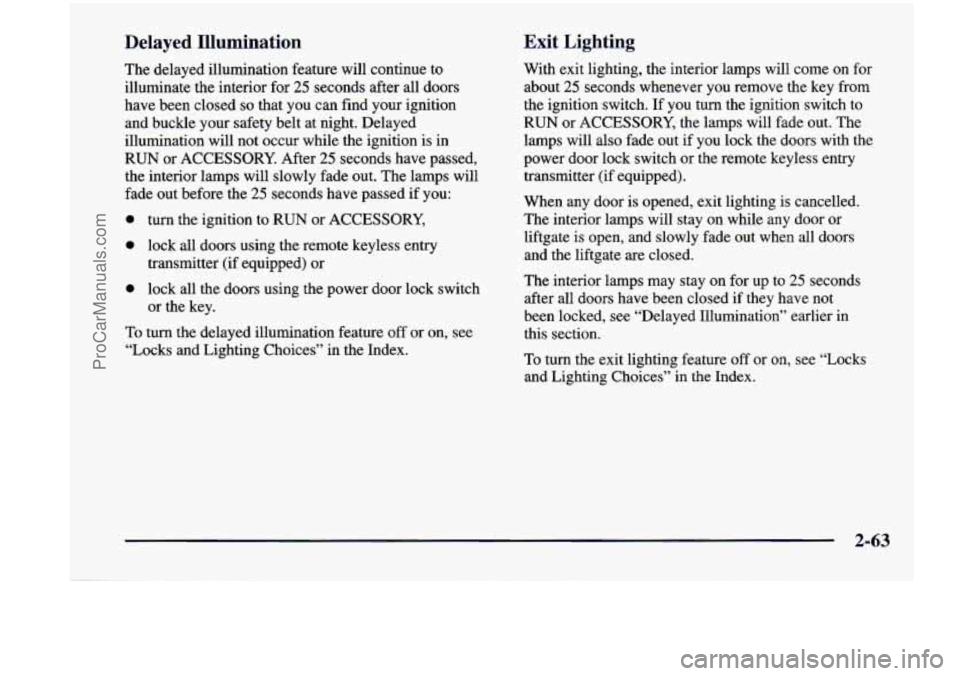

Delayed Illumination Exit Lighting
The delayed
illumination feature will continue to
illuminate the interior for
25 seconds after all doors
have been closed
so that you can find your ignition
and buckle your safety belt at night. Delayed
illumination will not occur while the ignition is in
RUN or ACCESSORY. After
25 seconds have passed,
the interior lamps will slowly fade out. The lamps will
fade out before the
25 seconds have passed if you:
0 turn the ignition to RUN or ACCESSORY,
0 lock all doors using the remote keyless entry
transmitter (if equipped) or
0 lock all the doors using the power door lock switch
or the key.
To turn the delayed illumination feature off or on, see
“Locks and Lighting Choices” in the Index. With exit lighting, the interior
lamps will come on for
about
25 seconds whenever you remove the key from
the ignition switch. If you turn the ignition switch to
RUN or ACCESSORY, the lamps will fade out. The
lamps will
also fade out if you lock the doors with the
power door lock switch or the remote keyless entry
transmitter (if equipped).
When any door is opened, exit lighting is cancelled.
The interior lamps will stay on while any door or
liftgate is open, and slowly fade out when all doors
and the liftgate are closed.
The interior lamps may stay on for up to
25 seconds
after all doors have been closed if they have not
been locked, see “Delayed Illumination” earlier in
this section.
To turn the exit lighting feature
off or on, see “Locks
and Lighting Choices” in the Index.
2-63
ProCarManuals.com

Front Reading Lamps
There are two reading lamps in the overhead console.
To
turn on or off either reading lamp, press the lens of
the lamp. To turn off the lamp, press the lens again.
Rear Reading Lamps
There are two reading lamps in the third row headliner,
above the outboard seating positions.
If your vehicle
does not have dual sliding doors, there is also a reading
lamp
in the second row on the driver’s side.
To turn on either reading lamp, press the lamp lens.
Dome Lamp
This lamp is located in the center of your vehicle
and has no switch
of its own. It will go on each time
you open the
doors, unless you enable the interior
lights override.
Cargo Lamp
This lamp is located in the rear of your vehicle, above
the liftgate opening, and
has no switch of its own. It will
go on each time you open the doors, unless you enable
the interior lights override.
2-64
ProCarManuals.com

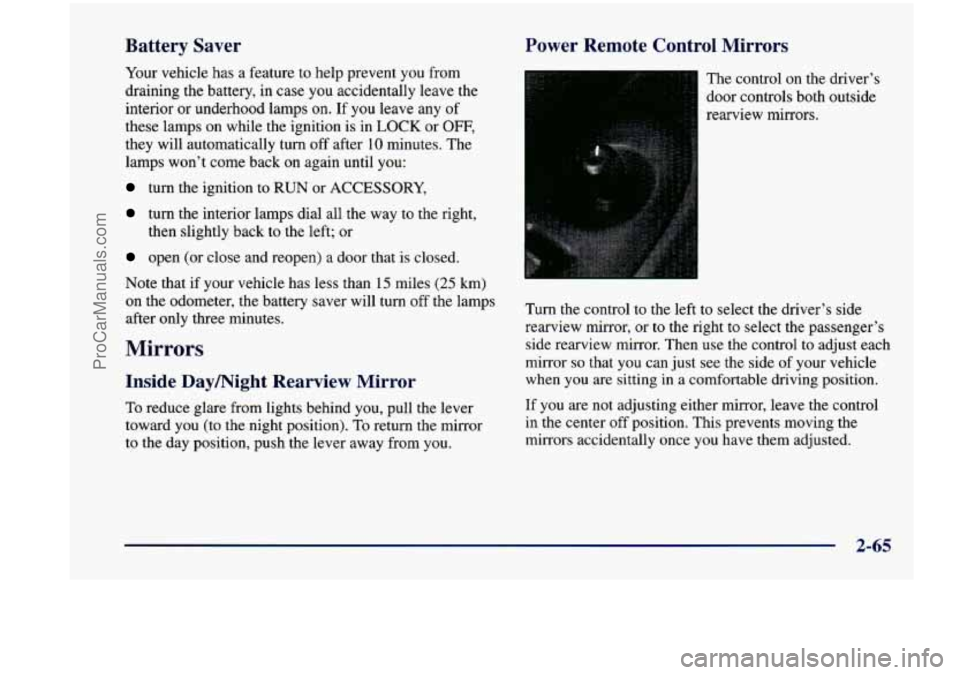

Battery Saver
Your vehicle has a feature to help prevent you from
draining the battery, in case you accidentally leave the
interior or underhood lamps
on. If you leave any of
these lamps on while the ignition is
in LOCK or OFF,
they will automatically turn off after 10 minutes. The
lamps won’t come back on again until you:
turn the ignition to RUN or ACCESSORY,
turn the interior lamps dial all the way to the right,
open (or close and reopen) a door that is closed.
Note that if your vehicle has less than 15 miles
(25 km)
on the odometer, the battery saver will turn off the lamps
after only three minutes. then
slightly back to the left; or
Mirrors
Inside Daymight Rearview Mirror
To reduce glare from lights behind you, pull the lever
toward you (to the night position). To return the mirror
to the day position, push the lever away from you.
Power Remote Control Mirrors
The control on the driver’s
door controls both outside
rearview mirrors.
Turn the control to the left to select the driver’s side
rearview mirror,
or to the right to select the passenger’s
side rearview mirror. Then
use the control to adjust each
mirror
so that you can just see the side of your vehicle
when you
are sitting in a comfortable driving position.
If you are not adjusting either mirror, leave the control
in the center off position. This prevents moving the
mirrors accidentally once you have them adjusted.
2-65
ProCarManuals.com

Both outside mirrors can be folded forward or rearward.
In the rearward position, they will fold almost flush with
the vehicle. This feature is particularly useful
in
automatic car washes.
Your mirrors have
a blue tint to reduce glare while
driving at night.
Convex Outside Mirror
Your passenger’s side mirror is convex. A convex
mirror’s surface is curved
so you can see more from
the driver’s seat.
A CAUTION: I
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Storage Compartments
Your vehicle’s large carrying capacity can store many
items. If you have the extended wheelbase version, you
can carry things as large as a
4’ x 8’ piece of plywood.
You can also use the floor pins that are used to attach the
seats, to secure larger loads. This section also describes
storage areas for specific items like sunglasses and cups.
Glove Box
Your vehicle has a glove box below the instrument panel.
To open the glove box, lift the latch release. Use the key
to lock or unlock the glove box.
The glove box door has a detent to prevent the door
from lowering too far. Open the
glove box until the door
is partway open, then pull the door down if you need it
fully open.
To close the glove box, the door must be
pushed up past the detent.
In the door of the glove box, you will find a tissue pack
holder and clip for
a pen or pencil.
2-66
ProCarManuals.com

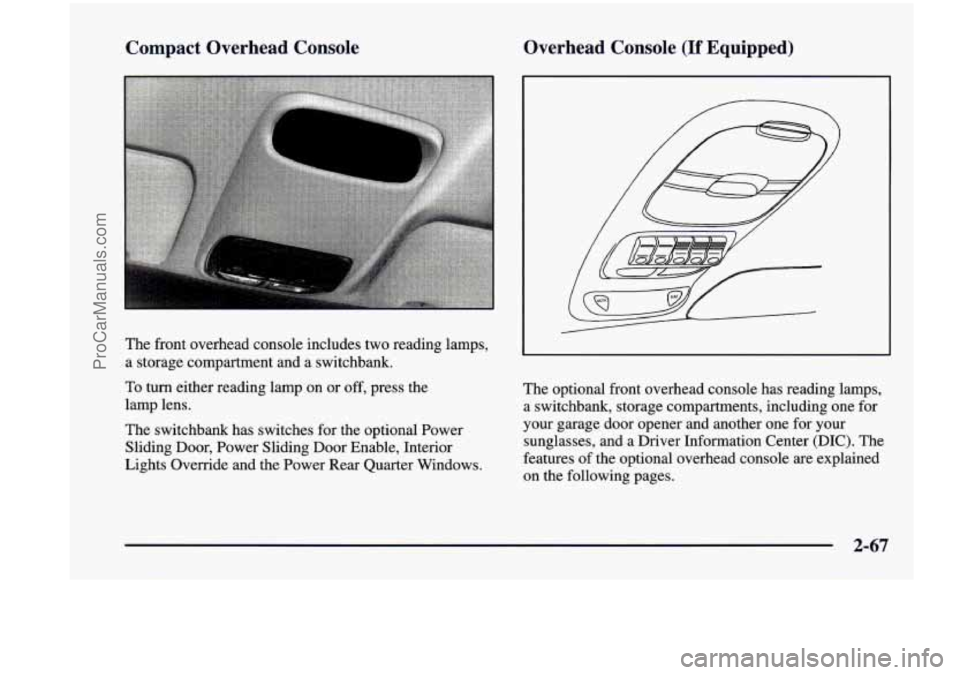

Compact Overhead Console Overhead Console (If Equipped)
b
The
front overhead console includes two reading lamps,
a storage compartment and a switchbank.
To
turn either reading lamp on or off, press the
lamp lens.
The switchbank has switches for the optional Power
Sliding Door, Power Sliding Door Enable, Interior
Lights Override and the Power Rear Quarter Windows. The
optional front overhead console has reading lamps,
a switchbank, storage compartments, including one for
your garage door opener and another one for your
sunglasses, and a Driver Information Center (DIC). The
features of the optional overhead console are explained
on the following pages.
2-67
