1998 CHEVROLET VENTURE Owners Manual

2. Push the latch plate into the buckle until it clicks.
Pull up
on the latch plate to make sure it is secure.
When the shoulder belt
is pulled out all the way, it
will lock. If it does, let it go back all the way and
start again. If the belt
is not long enough, see “Safety
Belt Extender” at the end
of this section. Make sure
the release button on the buckle is positioned
so you
would be able to unbuckle the safety belt quickly
if
you ever had to.
3. To make the lap part tight, pull down on the buckle
end
of the belt as you pull up on the shoulder part.
n n
I I I I
The lap part of the belt should be worn low and snug on
the hips, just touching the thighs. In a crash, this applies
force to the strong pelvic bones. And you’d be less likely \
to slide under the lap belt. If you slid under it, the belt \
would apply force at your abdomen.
This could cause
serious or even fatal injuries. The shoulder belt should go
over the shoulder and across the chest. These
parts of the
body are best able to take belt restraining forces.
ProCarManuals.com

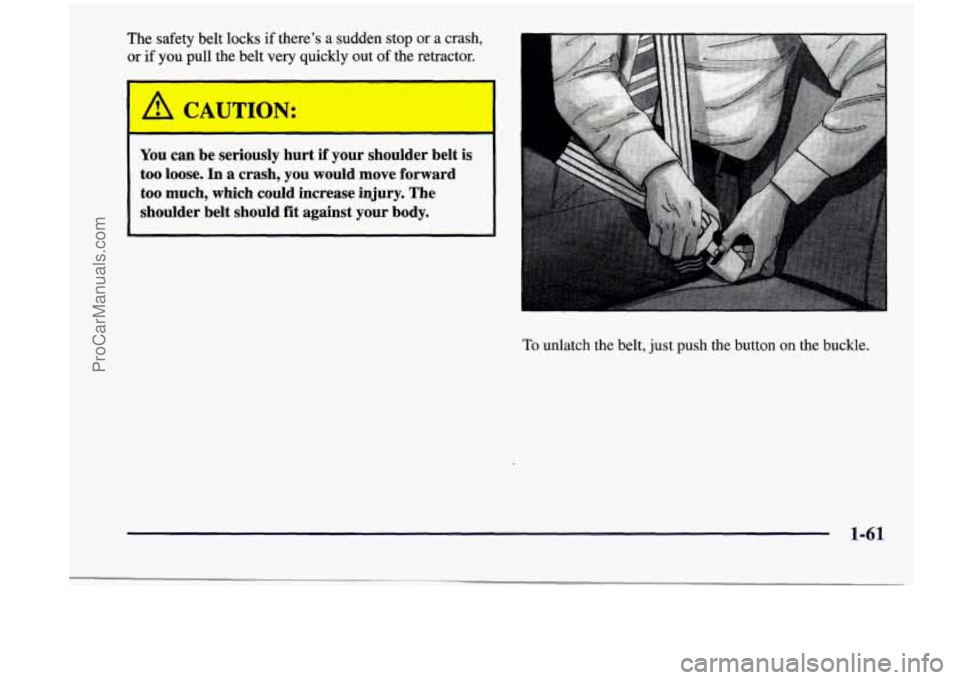

The safety belt locks if there’s a sudden stop or a crash,
or if you pull the belt very quickly out of the retractor.
I
A CAUTION:
I
You can be seriously hurt if your shoulder belt is
too loose. In a crash, you would move forward
too much, which could increase injury. The
shoulder belt should fit against your body.
To unlatch the belt, just push the button on the buckle.
1-61
ProCarManuals.com

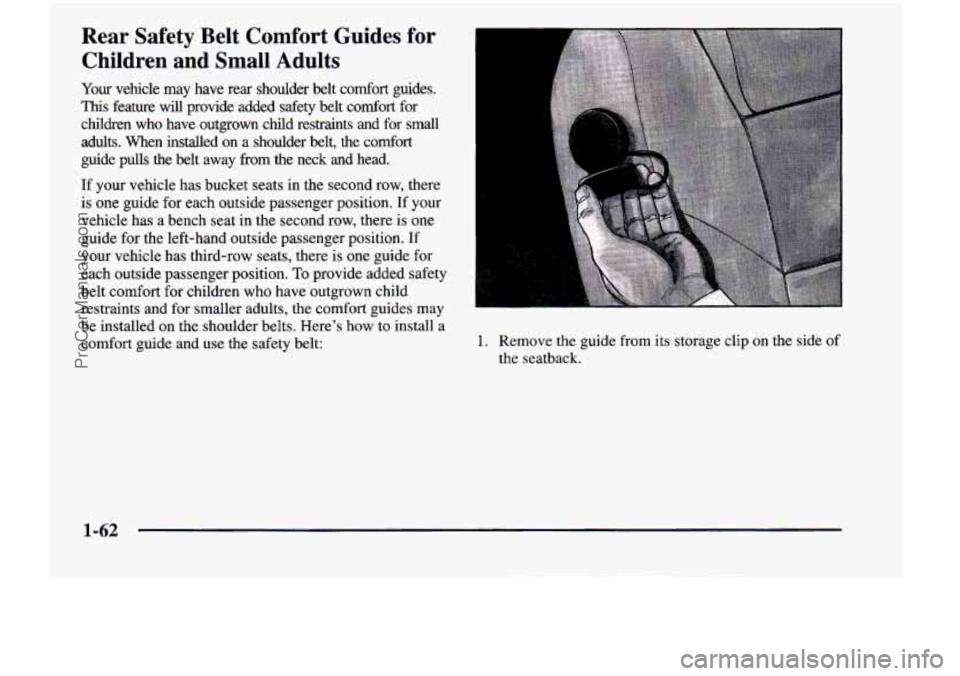

Rear Safety Belt Comfort Guides for Children and
Small Adults
Your vehicle may have rear shoulder belt comfort guides.
This feature will provide added safety belt comfort for
children who have outgrown child restraints and for small
adults. When installed
on a shoulder belt, the comfort
guide pulls the belt away from the neck and head.
If your vehicle has bucket seats in the second row, there
is one guide for each outside passenger position. If your
vehicle has a bench seat in the second row, there is one
guide for the left-hand outside passenger position. If
your vehicle has third-row seats, there
is one guide for
each outside passenger position.
To provide added safety
belt comfort for children who have outgrown child
restraints and for smaller adults, the comfort guides may
be installed on the shoulder belts. Here’s how
to install a
comfort guide and use the safety belt:
1. Remove the guide from its storage clip on the side of
the seatback.
1-62
ProCarManuals.com

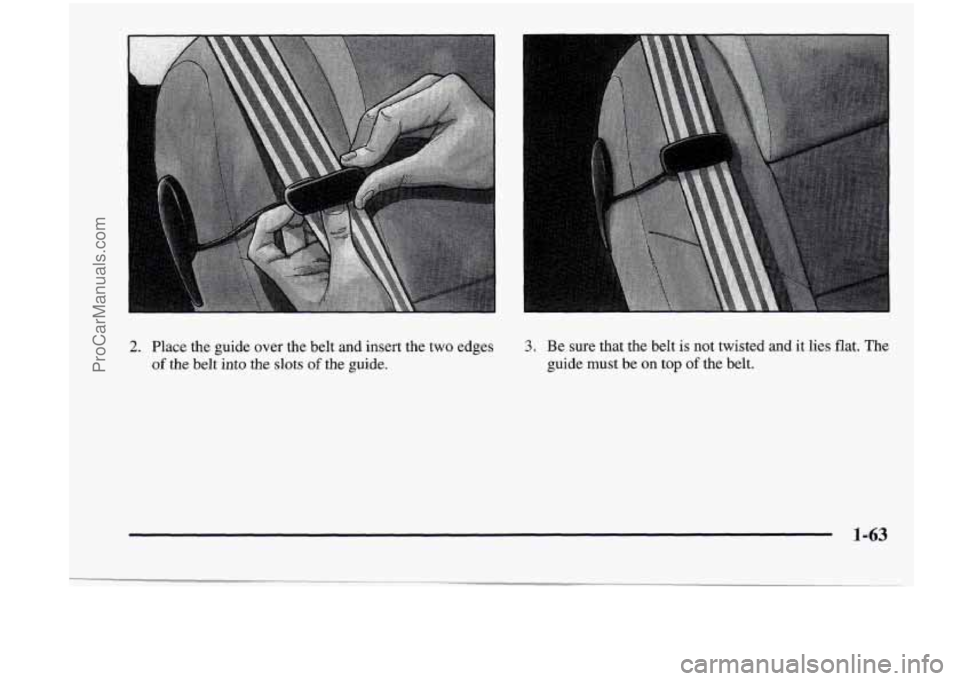

2. Place the guide over the belt and insert the two edges 3. Be sure that the belt is not twisted and it lies flat. The
of the belt into the slots of the guide. guide must be on top of the belt.
1-63
ProCarManuals.com

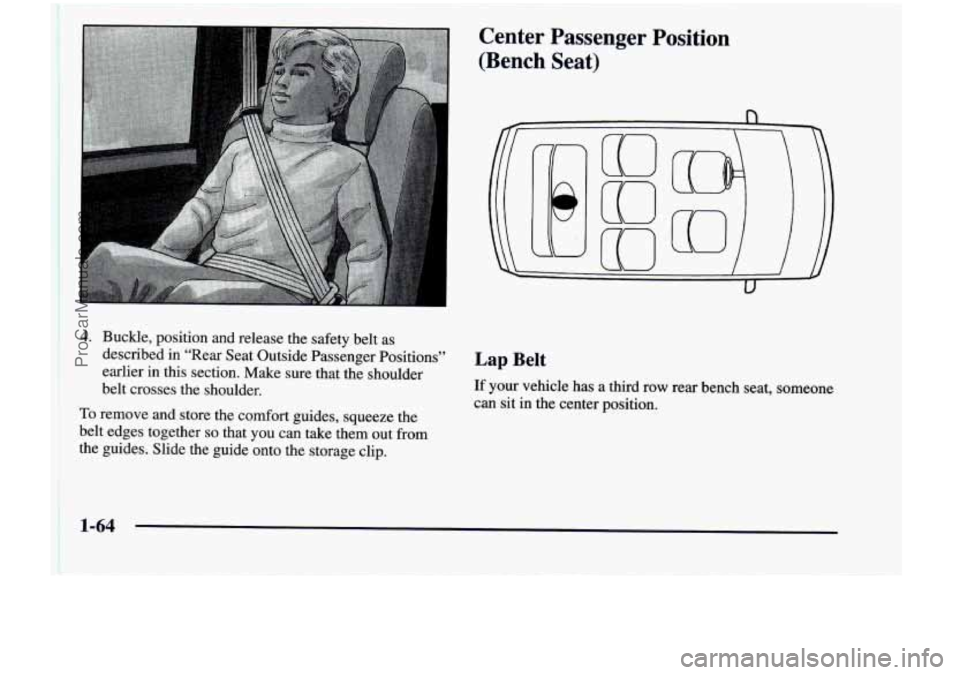

Center Passenger Position
(Bench Seat)
4. Buckle, position and release the safety belt as
described in “Rear Seat Outside Passenger Positions’,
Lap Belt
earlier in this section. Make sure that the shoulder
belt crosses
the shoulder. If your vehicle has a third row rear bench seat, someone
can sit in the center position.
To remove and store the comfort guides, squeeze the
belt edges together
so that you can take them out from
the guides. Slide the guide onto the storage clip.
1-64 ~
ProCarManuals.com

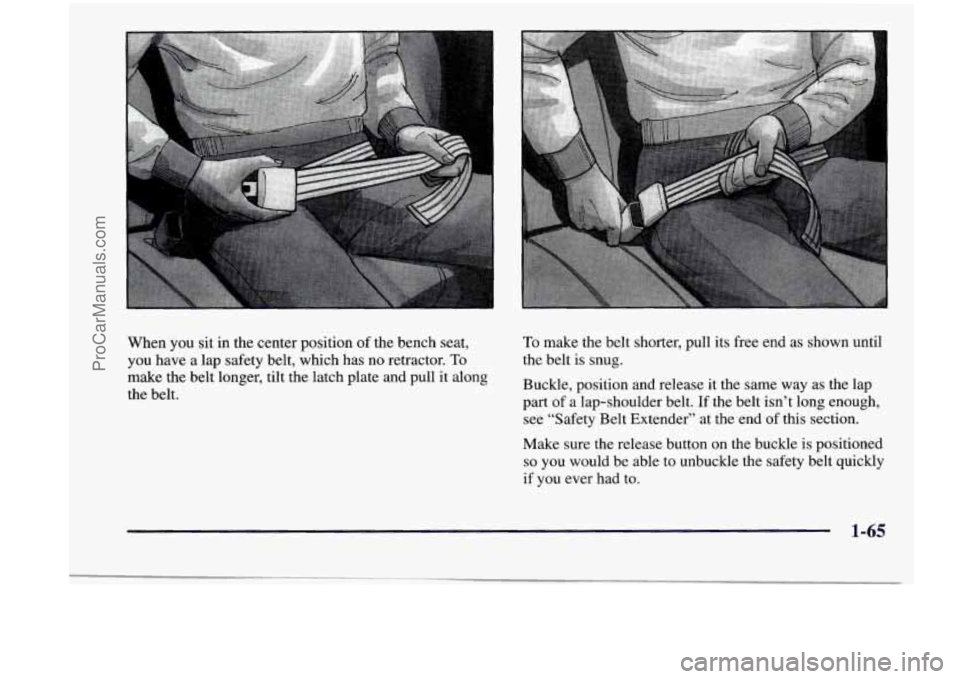

When you sit in the center position of the bench seat,
YOU have a lap safety belt, which has no retractor. To
make the belt longer, tilt the latch plate and pull it along
the belt.
To make the belt shorter, pull its free end as shown until
the belt is snug.
Buckle, position and release it the same way as the lap
part
of a lap-shoulder belt. If the belt isn’t long enough,
see “Safety Belt Extender” at the end
of this section.
Make sure the release button on the buckle
is positioned
so you would be able to unbuckle the safety belt quickly
if you ever had to.
1-65
ProCarManuals.com

Center Passenger Position
(Bucket Seat)
Lap Belt
If your vehicle has bucket seats, someone can sit in the
center position bucket seat. When you sit in the center position bucket seat, you
have a lap safety belt which has
a retractor.
1. Pick up the latch plate and, in a single motion, pull
the belt across you. Don’t let it get twisted.
2. Push the latch plate into the buckle until it clicks. If
the belt stops before it reaches the buckle, let it go
back all the way and start again. Pull up on the latch
plate to make sure it
is secure.
3. Feed the lap belt into the retractor to tighten it.
1-66
ProCarManuals.com

4. Position and release it the same way as the lap part
of a lap-shoulder belt.
If the belt isn’t long enough, see “Safety Belt
Extender” at the end
of this section. Make sure the
release button on the buckle is positioned
so you
would be able to unbuckle the safety belt quickly if
you ever had to.
TO HELP AVOID PERSONAL
INJURY SECURELY LATCH
SEAT
Id LOCATION SHOWN SEE OWNER’S MANUAL FOR MORE INFORMATION. Seat Location I Printed in: 10279595
The center position bucket seat is a CENTER OR LEFT
type seat. Because it is the only bucket seat with a lap
belt, and has a buckle on only one side, there are certain
places
a CENTER OR LEFT type bucket seat should,
and should not, be used. See “Seats” in the Index.
If the
CENTER OR LEFT bucket seat is used on the left side
of the vehicle, the person sitting there should use the
lap-shoulder belt. See “Rear Seat Outside Passenger
Positions” in the Index.
1-67
