1998 CHEVROLET VENTURE change time

GENERAL MOTORS, GM, the GM Emblem,
CHEVROLET, the CHEVROLET Emblem and the
name VENTURE are registered trademarks
of
General Motors Corporation.
This manual includes the latest information at the time it
was printed. We reserve the right to make changes in the
product after that time without further notice. For
vehicles first sold in Canada, substitute the name “General Motors
of Canada Limited” for Chevrolet
Motor Division whenever it appears in this manual.
Please keep this manual in your vehicle,
so it will be
there if you ever need it when you’re on the road. If you\
sell the vehicle, please leave this manual in it
so the new
owner can use it.
Litho in U.S.A.
Part No. 10285629 B First Edition
I-7 We support voluntary
WE SUPPORT
VOLUNTARY TECHNICIAN
CERTIFICATION THROUGH
National Institute for
AUTOMOTIVE SERVICE EXCELLENCE
For Canadian Owners Who Prefer a
French Language Manual:
Aux propribtaires canadiens: Vous pouvez vous
procurer un exemplaire de
ce guide en fraqais chez
votre concessionaire
ou au:
DGN Marketing Services Ltd.
1577 Meyerside Dr.
Mississauga, Ontario
L5T lB9
‘Copyright General Motors Corporation 1997
All Rights Reserved
ProCarManuals.com

Keyless Entry System (Option)
If your vehicle has this option, you can lock and
unlock your doors or unlock your liftgate from about
3 feet (1 m) up to 30 feet (9 m) away using the remote
keyless entry transmitter supplied with your vehicle.
' UN '
a
E
Your keyless entry system operates on a radio frequency subject
to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with
Part 15 of the FCC Rules.
Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation. This device complies with RSS-210
of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
Changes or modifications to this system by other than
an authorized service facility could void authorization
to use this equipment.
This system has
a range of about 3 feet (1 m) up to 30 feet
(9 m). At times you may notice a decrease in range. This
is normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work,
try this:
Check to determine if battery replacement or
synchronization is necessary.
See the instructions
that follow.
Check the distance. You may be too far from your
vehicle. You may need
to stand closer during rainy
or snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps
to the left or
right, hold the transmitter higher, and try again.
0 If you're still having trouble, see your dealer or a
qualified technician for service.
2-8
ProCarManuals.com

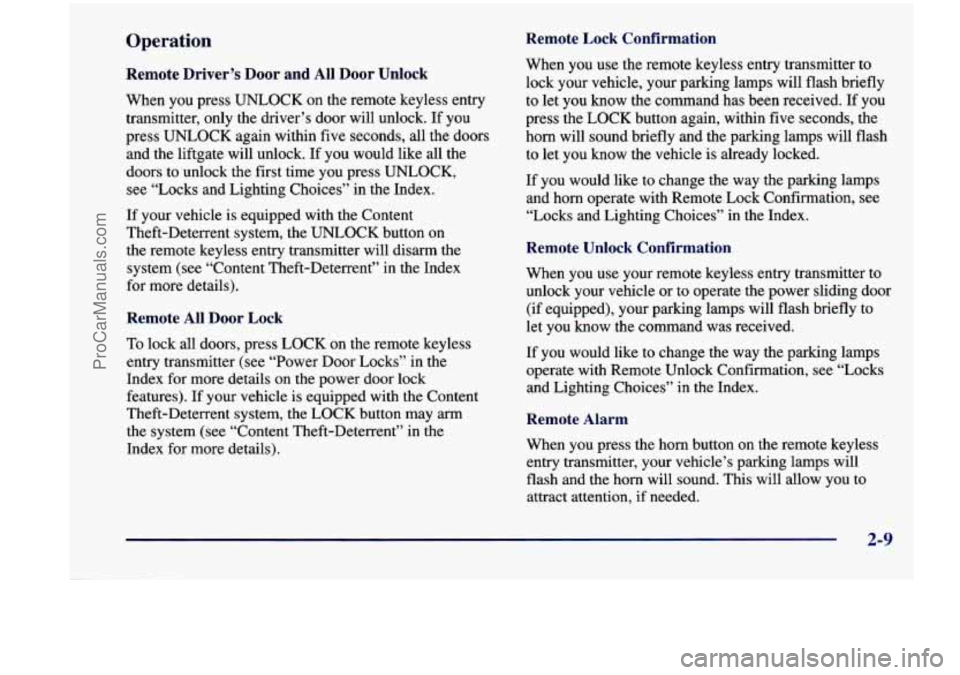

Operation Remote Lock Confirmation
Remote Driver’s Door and
All Door Unlock
When you press UNLOCK on the remote keyless entry
transmitter, only the driver’s door will unlock. If you
press UNLOCK again within five seconds, all the doors
and the liftgate will unlock. If you would like all the
doors to unlock the first time you press UNLOCK,
see “Locks and Lighting Choices” in the Index.
If your vehicle is equipped with the Content
Theft-Deterrent system, the UNLOCK button on
the remote keyless entry transmitter will disarm the
system (see “Content Theft-Deterrent” in the Index
for more details).
Remote All Door Lock
To lock all doors, press LOCK on the remote keyless
entry transmitter (see “Power Door Locks” in the
Index for more details on
the power door lock
features). If your vehicle is equipped with the Content
Theft-Deterrent system, the LOCK button may
arm
the system (see “Content Theft-Deterrent” in the
Index for more details). When you use the
remote keyless entry transmitter to
lock your vehicle, your parking lamps will flash briefly
to let you know the command has been received. If you
press the LOCK button again, within five seconds, the
horn will sound briefly and the parking lamps will flash
to let you know the vehicle is already locked.
If you would like to change
the way the parking lamps
and horn operate with Remote Lock Confirmation, see
“Locks and Lighting Choices” in the Index.
Remote Unlock Confirmation
When you use your remote keyless entry transmitter to
unlock your vehicle or to operate the power sliding door
(if equipped), your parking lamps will flash briefly to
let you
know the command was received.
If you would like to change the way the parking lamps
operate with Remote Unlock Confirmation, see “Locks
and Lighting Choices” in the Index.
Remote Alarm
When you press the horn button on the remote keyless
entry transmitter, your vehicle’s parking lamps will
flash and the horn will sound. This will allow you to
attract attention,
if needed.
2-9
ProCarManuals.com

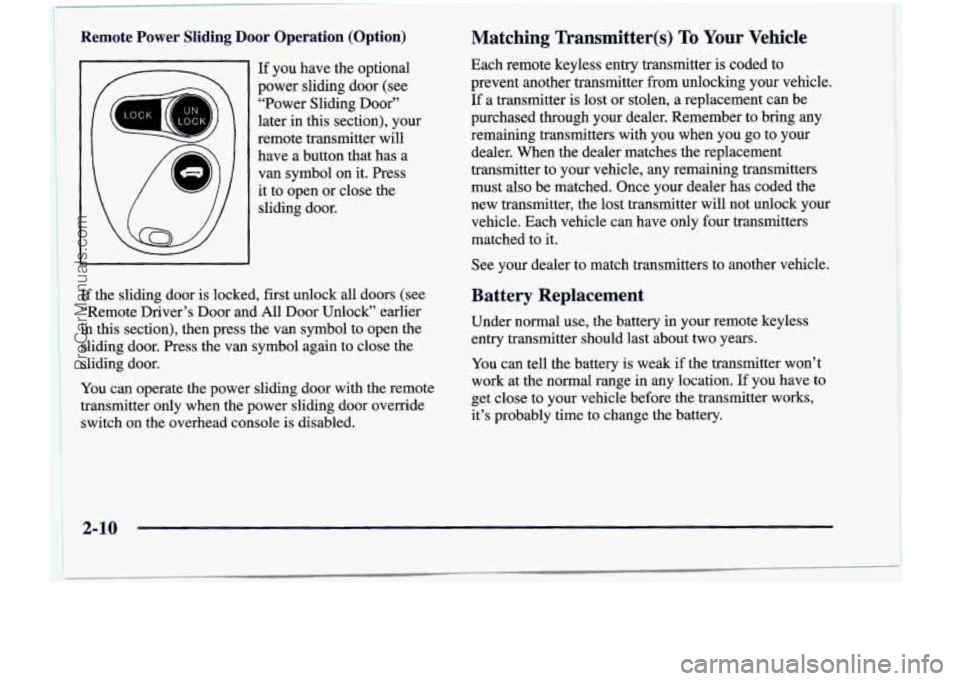

I
Erp LOCK
If you have the optional
power sliding door (see
“Power Sliding Door”
later in this section), your
remote transmitter will
have a button that has
a
van symbol on it. Press
it to open or close the
sliding door. Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a
transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any remaining transmitters with you when you go
to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
If the sliding door is locked, first unlock all doors (see
“Remote Driver’s Door and
All Door Unlock” earlier
in this section), then press the van symbol to open the sliding door. Press the van symbol again to close the
sliding door.
You can operate the power sliding door with the remote
transmitter only when the power sliding door override
switch on the overhead console is disabled. See
your dealer to match transmitters to another vehicle.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
2-10
I
I I
ProCarManuals.com

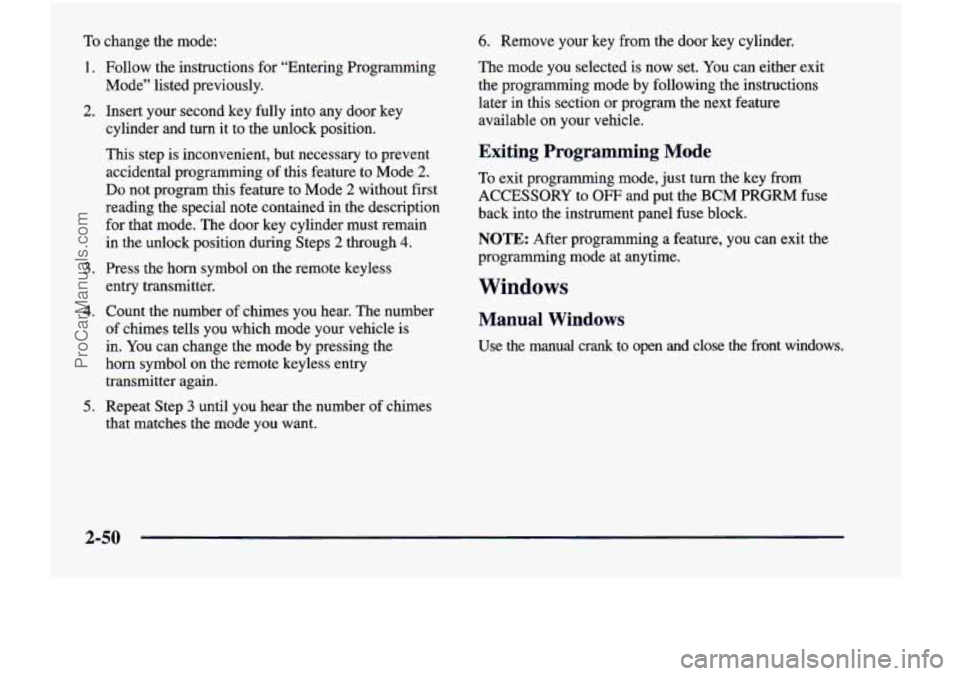

To change the mode:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Insert your second key fully into any door key
cylinder and
turn it to the unlock position.
This step is inconvenient, but necessary to prevent
accidental programming
of this feature to Mode 2.
Do not program this feature to Mode 2 without first
reading the special note contained in the description
for that mode. The door key cylinder must remain
in
the unlock position during Steps 2 through 4.
entry transmitter.
3. Press the horn symbol on the remote keyless
4. Count the number of chimes you hear. The number
of chimes tells you which mode your vehicle is
in. You can change the mode by pressing the
horn symbol on the remote keyless entry
transmitter again.
6. Remove your key from the door key cylinder.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature
available
on your vehicle.
Exiting Programming Mode
To exit programming mode, just turn the key from
ACCESSORY to
OFF and put the BCM PRGRM fuse
back into the instrument panel fuse block.
NOTE: After programming a feature, you can exit the
programming mode at anytime.
Windows
Manual Windows
Use the manual crank to open and close the fiont windows.
5. Repeat Step 3 until you hear the number of chimes
that matches the mode
you want.
2-50
ProCarManuals.com

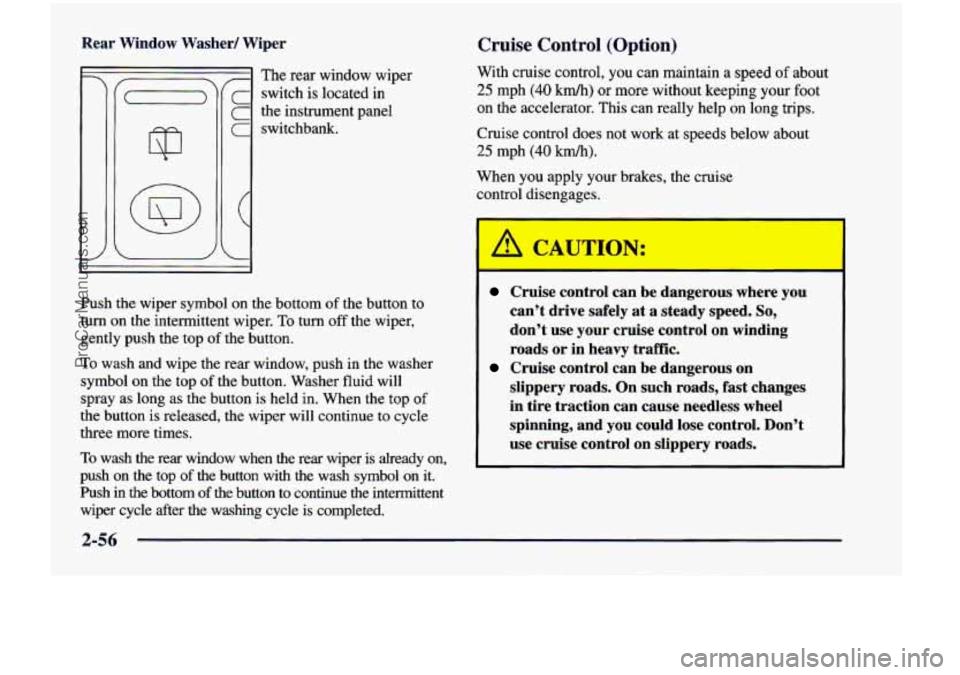

Rear Window Washer/ Wiper
! The rear window wiper
- switch is located in
the instrument panel
1 switchbank.
Cruise Control (Option)
With cruise control, you can maintain a speed of about
25 mph (40 km/h) or more without keeping your foot
on the accelerator. This can really help on long trips.
Cruise control does not work at speeds below about
25 mph (40 km/h).
When you apply your brakes, the cruise
control disengages.
Push
the wiper symbol on the bottom of the button to
turn on the intermittent wiper. To
turn off the wiper,
gently push the top
of the button.
To wash and wipe the rear window, push in the washer
symbol on the top
of the button. Washer fluid will
spray as long as the button is held in. When the top
of
the button is released, the wiper will continue to cycle
three more times.
To wash the rear window when the rear wiper is already on,
push on the top
of the button with the wash symbol on it.
Push in the bottom
of the button to continue the intermittent
wiper cycle after the washing cycle is completed.
Cruise control can be dangerous where you
can’t drive safely at a steady speed.
So,
don’t use your cruise control on winding
roads or in heavy
traffic.
slippery roads. On such roads, fast changes
in tire traction can cause needless wheel
spinning, and
you could lose control. Don’t
use cruise control on slippery roads.
Cruise control can be dangerous on
ProCarManuals.com

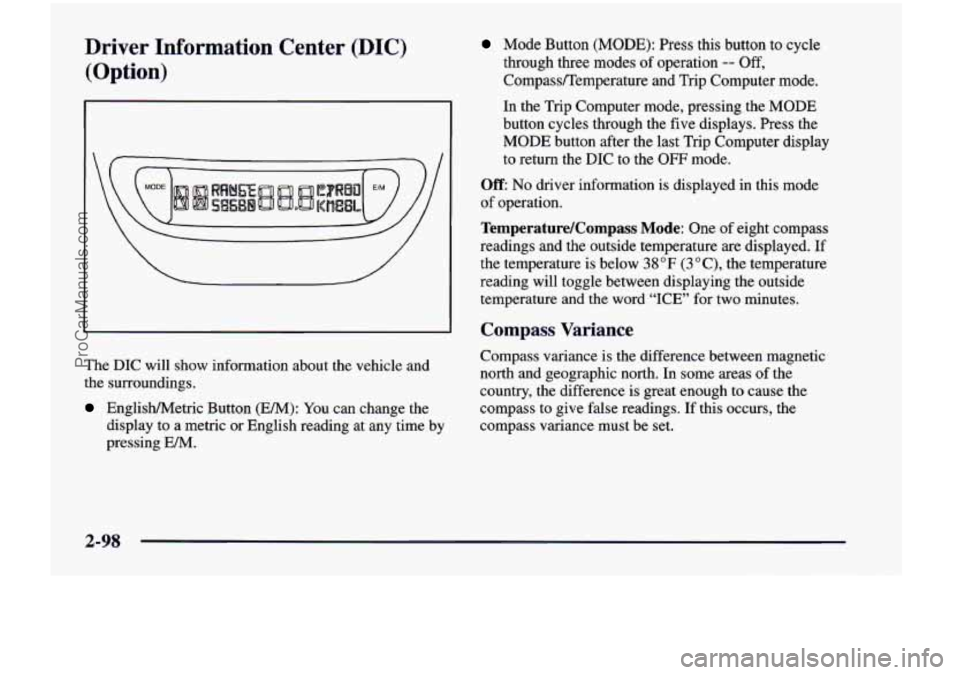

Driver Information Center (DIC)
(Option)
The DIC will show information about the vehicle and
the surroundings.
English/Metric Button (Em): You can change the
display to a metric or English reading at any time by
pressing
EM.
Mode Button (MODE): Press this button to cycle
through three modes of operation
-- Off,
CompassfI'emperature and Trip Computer mode.
In the Trip Computer mode, pressing the
MODE
button cycles through the five displays. Press the
MODE button after the last Trip Computer display
to return the DIC to the
OFF mode.
Off No driver information is displayed in this mode
of operation.
Temperature/Compass Mode: One of eight compass
readings and the outside temperature are displayed. If
the temperature is below
38 "F (3 "C), the temperature
reading will toggle between displaying the outside temperature and the word "ICE" for two minutes.
Compass Variance
Compass variance is the difference between magnetic
north and geographic north. In
some areas of the
country, the difference is great enough to cause the
compass to give false readings. If this occurs, the
compass variance must be set.
2-98
ProCarManuals.com

w.

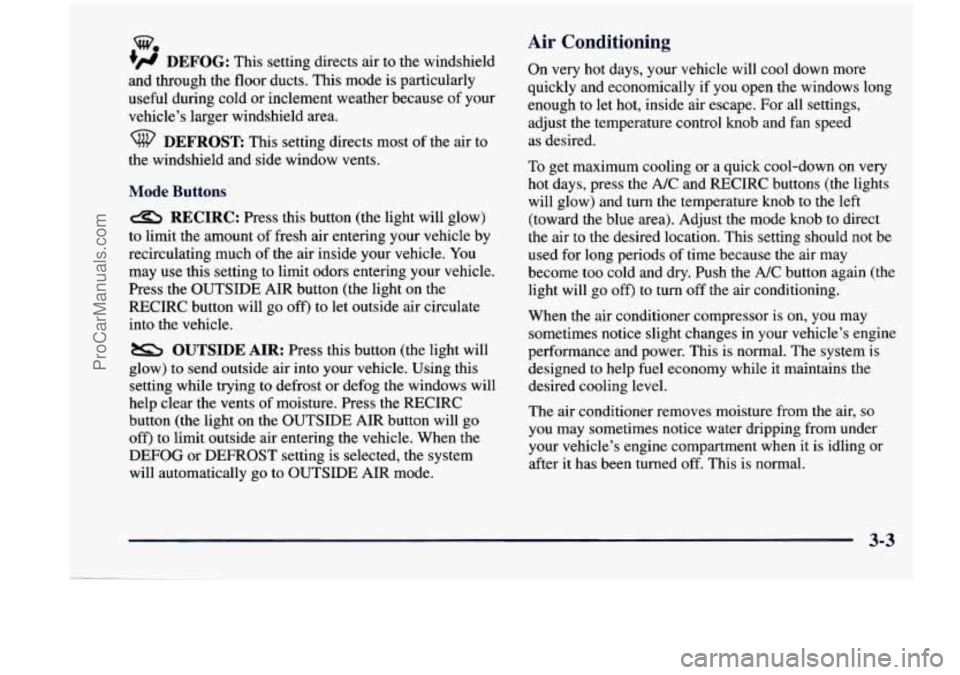

+# DEFOG: This setting directs air to the windshield
and through the floor ducts. This mode is particularly
useful during cold or inclement weather because of your
vehicle’s larger windshield area.
the windshield and side window vents.
DEFROST: This setting directs most of the air to
Mode Buttons
e RECIRC: Press this button (the light will glow)
to limit the amount
of fresh air entering your vehicle by
recirculating much of the air inside your vehicle. You
may use this setting to limit odors entering your vehicle.
Press the OUTSIDE AIR button (the light on the RECIRC button will go
off) to let outside air circulate
into the vehicle.
OUTSIDE AIR: Press this button (the light will
glow) to send outside air into your vehicle. Using this
setting while trying to defrost or defog the windows will
help clear the vents of moisture. Press the RECIRC
button (the light on the
OUTSIDE AIR button will go
off) to limit outside air entering the vehicle. When the
DEFOG
or DEFROST setting is selected, the system
will automatically go to OUTSIDE AIR mode.
Air Conditioning
On very hot days, your vehicle will cool down more
quickly and economically if you open the windows long
enough to let hot, inside air escape. For all settings,
adjust the temperature control knob and fan speed
as desired.
To get maximum cooling or a quick cool-down on very
hot days, press the A/C and RECIRC buttons (the lights
will glow) and turn the temperature knob to the left
(toward the blue area). Adjust the mode
knob to direct
the air to the desired location. This setting should not be
used for long periods
of time because the air may
become too cold and dry. Push the A/C button again (the
light will go off) to turn
off the air conditioning.
When the air conditioner compressor is on, you may sometimes notice slight changes
in your vehicle’s engine
performance and power. This is normal. The system
is
designed to help fuel economy while it maintains the
desired cooling level.
The air conditioner removes moisture from the air,
so
you may sometimes notice water dripping from under
your vehicle’s engine compartment when it is idling or
after it has been turned off. This is normal.
3-3
ProCarManuals.com
